Zinc Machining: Grades, Machinability, Operations & Applications

Zinc Machining: Grades, Machinability, Operations & Applications

Zinc machining plays a pivotal role in various industries, thanks to zinc’s unique properties that make it ideal for machining processes. Its importance stems from its versatility, cost-effectiveness, and corrosion resistance, making it a preferred choice for manufacturing precision components.

Understanding Zinc and Its Alloys

Understanding Zinc and Its Alloys

Zinc, a versatile metal widely used in machining, possesses unique properties that make it an excellent choice for various applications. Here’s a bullet list highlighting the key properties and characteristics of zinc:

  • High machinability: Zinc exhibits excellent machinability, allowing for efficient shaping and forming during machining processes.
  • Corrosion resistance: Zinc offers remarkable resistance to corrosion, making it suitable for applications exposed to harsh environmental conditions.
  • Low melting point: With a relatively low melting point, zinc can be easily cast and molded into intricate shapes, enhancing design flexibility.
  • Ductility: Zinc is highly ductile, enabling the production of complex components without sacrificing structural integrity.
  • Good electrical conductivity: Zinc possesses good electrical conductivity, making it suitable for applications requiring electrical conductivity properties.

Types of Zinc Alloys for Machining

Zinc alloys, derived from combining zinc with other metals, offer enhanced properties tailored for specific machining needs. Here’s an overview of the main zinc alloys suitable for machining:

Zamak 3

Zamak 3 is a widely used zinc alloy known for its excellent castability and dimensional stability. It exhibits superior machinability, making it suitable for producing intricate parts for various industries, including automotive and electronics.

Zamak 5

Zamak 5, characterized by its higher strength and hardness compared to Zamak 3, offers enhanced mechanical properties. It is commonly used in applications requiring greater durability and wear resistance, such as hardware components and consumer products.

ZA 8

ZA 8 is a zinc alloy renowned for its exceptional wear resistance and dimensional stability. Its high strength-to-weight ratio makes it ideal for applications where lightweight yet durable components are required, such as automotive parts and machinery components.

EZAC

EZAC is a specialized zinc alloy known for its superior machinability and excellent surface finish. It offers precise dimensional control and is commonly used in applications where tight tolerances and intricate details are essential, such as aerospace components and precision instruments.

ZA 27

ZA 27 is a high-strength zinc alloy suitable for heavy-duty machining applications. It offers excellent wear resistance and thermal conductivity, making it ideal for components subjected to high-stress environments, such as industrial machinery and equipment parts.

Tombak

Tombak, a copper-zinc alloy, combines the machinability of zinc with the conductivity of copper. It is commonly used in electrical and electronic applications where both mechanical strength and electrical conductivity are required, such as connectors and terminals.

ACuZinc

ACuZinc is a zinc-copper alloy known for its excellent machinability and corrosion resistance. It is commonly used in marine and architectural applications where resistance to saltwater corrosion and aesthetic appeal are crucial.

Zinc-Aluminum Alloy (ZA-22)

ZA-22 is a zinc-aluminum alloy offering a balance of strength, hardness, and machinability. It is commonly used in automotive and aerospace applications where lightweight yet durable components are required.

How to Select the Right Zinc Alloy for Machining?

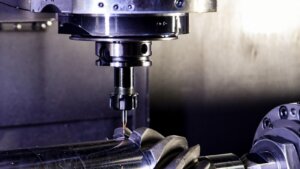

7 MinHow to Select the Right Zinc Alloy for Machining

Selecting the appropriate zinc alloy for machining depends on various factors, including project requirements, mechanical properties, and environmental conditions. Considerations such as strength, corrosion resistance, and machinability play a crucial role in determining the most suitable alloy for your machining needs. By evaluating these factors, you can ensure optimal performance and cost-effectiveness in your machining operations.

When selecting a zinc alloy for machining, consider the following criteria:

  • Mechanical properties: Assess the required strength, hardness, and ductility of the machined parts to ensure they meet the application’s demands.
  • Corrosion resistance: Evaluate the exposure of the components to corrosive environments and select an alloy with appropriate corrosion resistance properties.
  • Machinability: Choose an alloy that offers excellent machinability to streamline the machining process and reduce production time and costs.
  • Dimensional stability: Ensure that the selected alloy maintains dimensional stability during machining and subsequent processing to meet tight tolerances.
  • Environmental considerations: Take into account any specific environmental conditions, such as temperature fluctuations or exposure to chemicals, that may affect the performance of the alloy.

By carefully considering these factors and matching them with the properties of available zinc alloys, you can make an informed decision to select the right alloy for your machining requirements.

Machinability of Zinc Alloys

Machinability is a crucial aspect of working with zinc alloys, impacting the efficiency and quality of machining processes. Understanding the unique machinability characteristics of zinc alloys is essential for achieving optimal results in various machining operations.

Gummy Behavior and its Implications

Zinc alloys exhibit gummy behavior during machining, which can pose challenges to machining processes. This behavior results from the material’s tendency to adhere to cutting tools, leading to built-up edge formation and reduced tool life. Proper tool selection and cutting parameters are essential for minimizing gummy behavior and ensuring smooth machining operations.

Low Melting Point and Machining Strategies

The low melting point of zinc alloys, typically ranging from 380°C to 420°C, influences machining strategies. Specialized machining techniques, such as flood cooling, are often employed to control heat buildup and prevent material softening during machining. By optimizing cutting parameters and tooling strategies, manufacturers can effectively overcome the challenges associated with the low melting point of zinc alloys.

Brittleness Considerations

Brittleness is another important factor to consider when machining zinc alloys. Although zinc alloys offer excellent machinability, they are prone to brittleness at high machining speeds and feed rates. Machining operations should be conducted at appropriate cutting speeds and feed rates to avoid excessive tool wear and material fracturing. Additionally, selecting cutting tools with proper edge geometry and hardness can help mitigate the risk of brittleness during machining.

Safety Hazards and Precautions

Machining zinc alloys can present safety hazards due to the generation of fine particles and fumes during cutting and grinding processes. It is essential to implement appropriate safety measures, such as ventilation systems and personal protective equipment, to minimize exposure to airborne contaminants. Additionally, proper handling and disposal of machining waste are necessary to prevent environmental contamination and ensure workplace safety.

Comprehensive Guide to Zinc Machining Processes

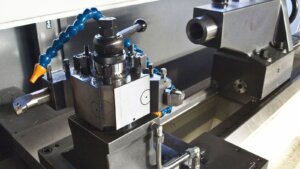

Comprehensive Guide to Zinc Machining Processes

Zinc machining processes encompass a range of techniques tailored to specific application requirements and production needs. Each process offers unique advantages and limitations, making them suitable for various machining operations.

CNC Machining

CNC machining is a versatile and precise method for machining zinc alloys, offering high accuracy and repeatability. Utilizing computer-controlled cutting tools, CNC machining enables the production of complex geometries and tight tolerances in zinc alloy parts. Key considerations for CNC machining of zinc alloys include tool selection, cutting parameters, and surface finishing techniques.

  • Key Considerations:
    • Selection of appropriate cutting tools, such as carbide or high-speed steel (HSS) tools
    • Optimization of cutting parameters, including spindle speed, feed rate, and depth of cut
    • Implementation of effective coolant systems to control heat generation and prevent material softening
  • Advantages:
    • High precision and repeatability
    • Capability to machine complex geometries
    • Enhanced productivity and efficiency
  • Limitations:
    • Initial setup and programming may require specialized skills
    • Higher equipment and maintenance costs compared to conventional machining methods

Milling

Milling is a widely used machining process for shaping and contouring zinc alloy components. It involves rotating cutting tools to remove material from the workpiece’s surface, producing precise features and profiles. When milling zinc alloys, considerations such as tool selection, cutting parameters, and workpiece fixturing play a crucial role in achieving optimal results.

  • Key Considerations:
    • Selection of appropriate milling cutters, such as end mills or face mills
    • Optimization of cutting parameters, including spindle speed, feed rate, and axial depth of cut
    • Use of suitable fixturing and clamping methods to ensure stability and dimensional accuracy
  • Advantages:
    • Versatility in machining various part geometries
    • Ability to achieve high surface finish quality
    • Cost-effective for batch production
  • Limitations:
    • Limited to 2.5D and 3D geometries without specialized equipment
    • Higher tool wear compared to other machining methods

Turning

Turning is a fundamental machining process for producing cylindrical components from zinc alloys. It involves rotating the workpiece against a stationary cutting tool to remove material and create desired shapes and dimensions. When turning zinc alloys, factors such as tool geometry, cutting parameters, and workpiece stability are critical for achieving precise machining outcomes.

  • Key Considerations:
    • Selection of appropriate turning inserts, such as carbide or cubic boron nitride (CBN) inserts
    • Optimization of cutting parameters, including cutting speed, feed rate, and depth of cut
    • Implementation of rigid workholding systems to minimize vibration and chatter
  • Advantages:
    • Fast and efficient production of cylindrical parts
    • Capability to achieve tight dimensional tolerances
    • Suitable for both roughing and finishing operations
  • Limitations:
    • Limited to rotational symmetrical parts
    • Requires frequent tool changes and maintenance

Drilling

Drilling is a primary machining operation for creating holes in zinc alloy components. It involves rotating cutting tools to remove material and form cylindrical holes with precise dimensions and surface finish. When drilling zinc alloys, considerations such as tool geometry, cutting parameters, and coolant application are essential for achieving accurate hole features and minimizing tool wear.

  • Key Considerations:
    • Selection of appropriate drill bits, such as twist drills or carbide drills
    • Optimization of cutting parameters, including cutting speed, feed rate, and pecking depth
    • Use of suitable coolant systems to dissipate heat and evacuate chips effectively
  • Advantages:
    • Versatility in creating holes of various sizes and depths
    • High accuracy and repeatability in hole placement
    • Cost-effective for batch drilling operations
  • Limitations:
    • Prone to tool deflection and chip evacuation issues
    • Limited to straight-hole geometries without specialized tooling

Die Casting

Die casting is a specialized manufacturing process for producing intricate zinc alloy components with high dimensional accuracy and surface finish. It involves injecting molten metal into a steel mold cavity under high pressure, followed by rapid solidification to form the desired part shape. Die casting offers advantages such as fast production cycles, minimal material waste, and excellent part consistency, making it ideal for mass production of zinc alloy components.

  • Key Considerations:
    • Selection of suitable die casting alloys, such as Zamak or ZA alloys
    • Design optimization for mold filling and part ejection
    • Implementation of proper mold cooling systems to control solidification rates
  • Advantages:
    • High production efficiency and throughput
    • Ability to produce complex geometries with tight tolerances
    • Enhanced mechanical properties and surface finish compared to other casting methods
  • Limitations:
    • Initial tooling and equipment costs can be substantial
    • Limited to specific part geometries and sizes determined by mold design

Electro-Discharge Machining (EDM)

Electro-discharge machining (EDM) is a non-traditional machining process used for shaping and machining conductive materials, including zinc alloys. It involves using electrical discharges to remove material from the workpiece, creating intricate shapes and features with high precision. EDM offers advantages such as the ability to machine hardened materials and produce complex geometries with tight tolerances, making it suitable for prototyping and small-scale production of zinc alloy components.

  • Key Considerations:
    • Selection of appropriate electrode materials, such as graphite or copper
    • Optimization of machining parameters, including pulse duration and discharge current
    • Implementation of efficient dielectric flushing systems to remove residual debris and maintain machining stability.
  • Advantages:
    • Ability to machine complex shapes and intricate features
    • High precision and accuracy in dimensional control
    • Suitable for hard-to-machine materials and small-scale production
  • Limitations:
    • Slower material removal rates compared to conventional machining methods
    • Limited to conductive materials and specific part geometries

How to Optimize Surface Finish in Zinc Machining?

How to Optimize Surface Finish in Zinc Machining?

When selecting the most appropriate surface finish for zinc parts, understanding the available options and their respective advantages is crucial. Let’s explore some of the most common finishing techniques employed in the industry.

Electroplating

This process involves coating the zinc part with a thin layer of another metal, such as chrome or nickel, to enhance corrosion resistance, improve appearance, and increase surface hardness. Electroplating is particularly favored for components that require a high-gloss finish or additional environmental protection.

Chromate Conversion Coating

Chromate conversion coating offers a cost-effective way to impart corrosion resistance to zinc parts without significantly altering their appearance. It’s an excellent choice for parts that require a moderate level of protection against corrosion and are not subjected to extreme conditions.

Powder Coating

Powder coating is applied as a free-flowing, dry powder and then cured under heat to form a skin. It provides a thick, uniform finish that is tougher than conventional paint. Ideal for a wide range of applications, powder coating is chosen for its durability, resistance to chipping, and the vast array of available colors.

Anodizing

Anodizing is an electrolytic passivation process used to increase the thickness of the natural oxide layer on the surface of metal parts, enhancing their corrosion resistance and wear properties. For zinc, it’s less common but can be used for specific applications requiring a durable, corrosion-resistant finish.

Painting

Painting offers virtually unlimited color choices and is suitable for both protective and decorative purposes. It’s the go-to option for achieving a specific aesthetic or when color matching is critical to the project.

When and Why Each Method is Preferred:

  • Electroplating: For high-gloss, visually appealing finishes with added durability.
  • Chromate Conversion Coating: When cost-efficiency and moderate corrosion resistance are prioritized.
  • Powder Coating: For superior durability and a wide choice of colors.
  • Anodizing: Selected for its enhanced corrosion and wear resistance in specific applications.
  • Painting: Ideal for custom color matching and decorative finishes.

Expert Machining Tips for High-Quality Zinc Parts

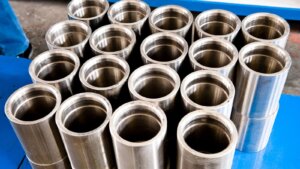

Expert Machining Tips for High-Quality Zinc Parts

Transitioning from the nuances of surface finishes, let’s delve into the machining process itself, highlighting essential tips for achieving excellence in zinc part production.

Preferring Machinable Zinc Alloys

The choice of zinc alloy significantly impacts machinability. Alloys like Zamak 3 and Zamak 5 are popular due to their balance of strength, durability, and ease of machining. Selecting the right alloy is the first step toward quality parts.

Importance of Sharp Cutting Tools

Using sharp, well-maintained cutting tools is non-negotiable for efficient and precise zinc machining. Dull tools can lead to defects and diminish the quality of the surface finish.

The Role of Coolants

Coolants are vital in zinc machining, helping to prevent overheating and ensuring smooth cuts. They play a crucial role in extending tool life and improving the overall quality of the machined part.

Adjusting Cutting Speeds

Optimal cutting speeds vary based on the zinc alloy and the specific machining process. Adjusting speeds appropriately can minimize defects and improve surface quality.

Tooling Considerations: Carbide vs. HSS

Choosing between carbide and high-speed steel (HSS) tools depends on the machining operation and the desired outcomes. Carbide offers longer tool life and faster cutting speeds, while HSS can be preferable for finer finishes.

Additional Tips for Effective Zinc Machining

  • Regularly inspect and replace worn tools to maintain precision.
  • Utilize appropriate feeds and speeds to reduce heat buildup and tool wear.
  • Consider the geometry and wall thickness of parts to optimize machining strategies.

What are the Advantages of Zinc Machining?

What are the Advantages of Zinc Machining

Zinc machining stands out for its exceptional benefits, from the unparalleled precision to the sustainable practices it fosters. Here are eight advantages that set zinc machining apart in the manufacturing landscape:

  • Precision and Accuracy: CNC machining processes enable the achievement of tight tolerances and complex geometries, ensuring parts are produced with utmost precision.
  • Cost-Effectiveness: The efficiency of zinc machining processes, combined with the material’s affordability, results in significant cost savings without compromising quality.
  • Versatility: Zinc’s ability to be easily alloyed with other metals, like aluminum and copper, enhances its mechanical properties and application potential.
  • Durability: Zinc alloys are known for their strength and wear resistance, ensuring the longevity of machined parts even in demanding conditions.
  • Corrosion Resistance: Through processes such as chromate conversion coating, zinc machined parts exhibit excellent resistance to corrosion, extending their usable life.
  • Aesthetic Appeal: Zinc machining allows for high-quality surface finishes, including electroplating and anodizing, which enhance the visual appeal of the parts.
  • Environmental Sustainability: Zinc is a recyclable material, making zinc machining a more environmentally friendly option compared to some alternatives.
  • Rapid Production: The machinability of zinc alloys, coupled with advanced CNC machining techniques, allows for quick turnaround times, meeting the demands of fast-paced production schedules.

What are Industrial Applications of Zinc Machining?

Automotive Industry

In the automotive sector, zinc machining contributes significantly to the production of durable, high-quality components. Zinc alloy parts, known for their strength and corrosion resistance, are used in everything from door handles to fuel systems. The ability to withstand harsh environments makes zinc an ideal choice for automotive applications, enhancing vehicle longevity and performance.

Aerospace Industry

The aerospace industry demands materials that meet strict standards for strength, durability, and weight. Zinc alloys, particularly those machined with precision, find their place in aircraft components where reliability is non-negotiable. These parts include connectors, fasteners, and various structural components, all benefiting from zinc’s excellent mechanical properties and corrosion resistance.

Medical Devices

Zinc’s biocompatibility makes it a preferred material for medical devices. Through zinc machining, manufacturers can create intricate components for surgical instruments, dental appliances, and diagnostic equipment. Its antimicrobial properties further ensure that zinc parts contribute to safer medical environments and procedures.

Electronics and Telecommunications

Zinc machining shines in the electronics and telecommunications industry, where precision and conductivity are paramount. Zinc components are integral to connectors, switches, and casing for electronic devices, providing durability and effective electromagnetic shielding. This ensures that devices not only last longer but also perform more reliably.

Construction and Architectural Applications

The malleability and aesthetic appeal of zinc have made it a favorite in construction and architectural design. Zinc machining facilitates the creation of custom fittings, fasteners, and decorative elements that stand the test of time. Its resistance to corrosion and the ability to achieve various finishes make zinc an attractive choice for both interior and exterior applications.

Final Key Considerations for Effective Zinc Machining

When embarking on the journey of zinc machining, it’s essential to arm yourself with knowledge and best practices to ensure success. Zinc, with its unique properties, requires careful consideration during the machining process. Here’s a distilled list of key considerations that can dramatically impact the quality and efficiency of your zinc machining efforts:

  • Material Selection: Choosing the right zinc alloy—such as Zamak 3 for good fluidity and balance or Zamak 5 for enhanced mechanical properties and castability—is crucial. Each alloy has its specific strengths and applications, affecting everything from durability to finishing options.
  • Machining Parameters: Optimal cutting speeds, feed rates, and the avoidance of excessive heat are vital. Zinc’s low melting point demands precise control to prevent material warping or distortion.
  • Tooling: High-speed steel (HSS) or carbide tools are recommended for zinc machining. Sharp, well-maintained tools reduce the risk of galling and ensure smoother finishes.
  • Cooling and Lubrication: Proper cooling and lubrication extend tool life and improve surface quality. Zinc’s properties allow for aggressive cutting, but without adequate cooling, there’s a risk of premature tool wear and poor surface finishes.
  • Optimizing Surface Finishing: Considering zinc’s surface finishing options early in the design process is key. From electroplating to powder coating, the chosen method can enhance appearance, resistance to corrosion, and surface hardness.
  • Choose a reputable Zinc machining provider: 3ERP offers comprehensive CNC zinc machining services, producing parts and components with exceptional accuracy and precision from various zinc alloys. Zinc alloy is an ideal material for CNC machining due to its malleability, outstanding corrosion resistance, and the potential for high-quality finishes. Our custom zinc parts are commonly used in military and aerospace components, medical equipment, valve bodies, plumbing parts, automotive assemblies, and decorative pieces. Leveraging our state-of-the-art CNC machining centers and a team of experienced technicians, we can manufacture custom parts to meet stringent specifications with a lead time of less than 10 days, wall thickness of 0.75 mm, and tolerances of ±0.125mm (±0.005″).

Conclusions

Understanding the many sides of zinc machining is pivotal for anyone involved in the manufacture of zinc alloy parts. This guide has walked you through the essential considerations that can make or break the machining process, from selecting the appropriate alloy to applying the correct machining parameters and tooling choices.
