Radiographic testing, commonly known as X-Ray material testing, is a process used in the non-destructive testing of materials across various industries. This method uses penetrating X-rays or gamma rays to capture images of an object’s internal structure, identifying any hidden flaws.
Historically, this technology evolved from the discovery of X-rays by Wilhelm Conrad Roentgen in 1895, revolutionizing both medical diagnostics and material testing.
How Does X-Ray Material Testing Work?
X-ray material testing, also known as radiographic testing, utilizes X-rays or gamma rays to visualize the internal structure of a material without damaging it. By directing these rays through the test object, differences in material density and composition are revealed in the resulting image, known as a radiograph.
This method is invaluable for identifying defects such as cracks, voids, and inclusions within metals and other materials.
What Are the Basic Principles Behind X-Ray Testing?
The basic principles behind X-ray testing hinge on the interaction between X-rays—a form of electromagnetic radiation—and the materials they penetrate. As X-rays pass through an object, they are absorbed at varying rates depending on the material’s thickness and density. This differential absorption creates a contrast visible on the radiographic film or detector, effectively mapping the internal structure and revealing any hidden anomalies.
What Equipment is Used in X-Ray Testing?
X-Ray Generators
X-ray generators are crucial in radiographic testing, producing a consistent and controlled flow of X-rays necessary for penetrating test materials. These generators adjust the X-ray beam’s intensity and focus to suit different material types and thicknesses, ensuring optimal image quality and diagnostic precision.
Radiographic Cameras
Radiographic cameras, equipped with specialized shutters and projector systems, are designed to capture the X-rays that pass through the test object. These cameras vary in complexity, from simple film-based systems to advanced digital detectors that provide immediate imaging results.
Use of Sealed Radioactive Sources
Sealed radioactive sources are employed in situations where portability and flexibility are required. Unlike X-ray generators that require electricity, these sources use gamma rays emitted from radioactive isotopes, making them ideal for field use where power sources are limited.
Neutron Radiography Equipment
Neutron radiography represents an alternative to traditional X-ray methods, using neutrons instead of electromagnetic radiation. This technique is particularly effective for inspecting materials that are dense or opaque to X-rays, offering a different perspective on the internal structure by highlighting elements such as hydrogen or water content.
What are the Types of X-Ray Material Testing?
X-ray material testing encompasses a variety of methods, each tailored for specific applications within different industries. Below is a detailed exploration of these techniques:
Direct Radiography
This traditional form of x-ray testing involves placing an x-ray film directly behind the object being inspected. It is predominantly used for its high-resolution imaging capabilities, making it ideal for detecting fine structural details within metal castings and welded joints.
Computed Radiography (CR)
CR uses phosphor imaging plates to capture digital radiographic images. This method is advantageous for its ability to provide digital outputs that can be enhanced and analyzed using software, making it suitable for complex industrial applications where precision is paramount.
Digital Radiography (DR)
DR directly captures radiographic images onto a digital detector, offering immediate results. This method is highly efficient and reduces exposure to radiation. It is commonly employed in rapid testing environments such as automotive and aerospace manufacturing for quality control.
Computed Tomography (CT)
CT scanning offers detailed cross-sectional views and three-dimensional images of an object by combining multiple x-ray images taken from different angles. This method is crucial in the medical field for diagnostic imaging but also serves industrial applications, particularly in analyzing component assemblies and detecting internal defects.
Real-Time Radiography (RTR)
RTR allows for live imaging, providing immediate feedback during the inspection process. This is particularly useful in dynamic environments where adjustments and decisions need to be made quickly, such as in pipeline testing and electronic component manufacturing.
Neutron Radiography
Utilizing neutrons instead of x-rays, neutron radiography is employed to inspect objects that are opaque to x-rays. This method is essential in the detection of organic materials and water within objects, commonly used in the aerospace industry for inspecting fuel cells and other components sensitive to moisture.
What Are the Applications of X-Ray Material Testing?
X-ray material testing, also known as radiographic testing (RT), is crucial across various industries for its ability to provide detailed insights into the internal structure of materials without causing any damage.
Key industries that rely on X-ray material testing include:
- Aerospace: For inspecting components subjected to high stress and requiring high reliability.
- Automotive: Used to check the integrity of critical parts like engine components and safety mechanisms.
- Construction: Helps in examining steel reinforcements and welds in structural components.
- Electronics: Assists in inspecting soldering quality and integrity of circuit boards.
- Manufacturing: Enables the internal examination of complex machined parts for defects.
Inspection Scenarios
Brief explanations of common scenarios where X-ray material testing is applied:
Product Inspections
Product inspections involve the use of X-ray technology to ensure that manufactured items comply with internal and external quality specifications without being invasive.
Welding Inspections
X-ray testing is indispensable for examining welds on pipelines, buildings, and other structures to detect flaws like cracks, voids, and uneven weld penetration that could lead to failures.
Material Inspections
Material inspections ensure that the raw materials and components used in manufacturing processes are defect-free and meet the required quality standards. X-ray testing provides a critical assessment of internal integrity.
3erp utilizes X-ray testing to enhance our CNC machining services and processes significantly. Purchasing material from suppliers without proper certification carries the risk of incorporating substandard or incorrect materials, which can be detrimental in the production cycle.
Even with certification, there is no guarantee that the materials will consistently meet required standards. 3erp’s use of X-ray material testing ensures precise identification of metals within 30 seconds, confirming that the correct materials are used.
This rapid testing capability is crucial for maintaining quality, especially when incorrect materials can compromise the entire manufacturing process, leading to significant financial losses and safety risks in industries where prototype testing with accurate materials is critical.

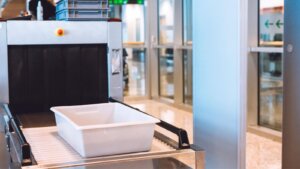

Airport Security and Non-Intrusive Cargo Scanning
In airport security, X-ray testing is crucial for the non-intrusive inspection of luggage and cargo, ensuring safety without disrupting passenger flow.
Art and Historical Artifact Evaluation
X-ray testing is also employed in the art world, offering a non-destructive way to examine and authenticate historical artifacts and artworks, revealing underlying structures and past restorations.
What Benefits Does X-Ray Testing Provide?
The advantages of implementing X-ray material testing are numerous, impacting various aspects of industrial operations and safety protocols:
- Defect Detection: Identifies internal defects and inconsistencies, such as cracks, voids, and inclusions.
- Clear Imaging: Produces high-resolution images for accurate analysis.
- Minimal Preparation: Requires little to no preparation of the objects being tested.
- Non-Destructive: Does not damage the items under inspection, preserving their integrity and value.
- No Residual Radiation: Leaves no residual radiation, ensuring the safety of the test environment.
- Versatility: Suitable for a wide range of materials and object sizes.
- Rapid Results: Provides fast and reliable feedback, essential for quality control processes.
- Enhanced Safety: Reduces the risk of failures and accidents by ensuring component integrity.
Safety Measures in X-Ray Testing
Ensuring safety during X-ray material testing is paramount due to the inherent risks associated with exposure to radiation. Strict safety measures and compliance with standards are crucial to safeguard both the operators and the environment.
Shielding and Protection Protocols
To mitigate the hazards of radiation exposure, comprehensive shielding and protection protocols are implemented. These include:
- Lead Shields: Lead barriers and vests are standard to absorb radiation and prevent its passage beyond the testing area.
- Controlled Access: Restricted access zones ensure that only authorized personnel with appropriate safety gear are present during X-ray operations.
- Monitoring Devices: Use of dosimeters and other radiation monitoring devices helps track exposure levels in real-time, ensuring they remain within safe limits.
Safety Standards and Compliance
Compliance with international and national safety standards is non-negotiable in X-ray testing. Notable standards include:
- ISO (International Organization for Standardization): Provides guidelines on radiation protection and safety in radiographic testing.
- CEN (European Committee for Standardization): Similar to ISO, it sets safety standards for the use of radiographic equipment in Europe.
- ASTM (American Society for Testing and Materials): Offers detailed standards on the safety procedures and equipment specifications for X-ray testing.
- ASME (American Society of Mechanical Engineers): Focuses on engineering standards, including those for the safe use of radiography in testing materials and components.
- API (American Petroleum Institute): Includes standards for radiographic testing in oil and gas pipelines to ensure structural integrity and safety.
What Makes X-Ray Testing Preferable to Other Methods?
X-ray material testing offers unique advantages that make it a preferred choice in various industries for ensuring the integrity and safety of materials and components:
- Internal and External Defect Detection: X-ray testing provides unparalleled ability to detect both internal and external defects within objects, such as cracks, voids, and inclusions, which are often invisible to the naked eye.
- Portable Technology: Modern X-ray equipment is increasingly portable, allowing inspections to be carried out on-site and in hard-to-reach areas without the need for extensive disassembly. This mobility greatly enhances the flexibility and applicability of X-ray testing across different settings.
- Comprehensive Analysis: X-rays can penetrate different materials, offering a detailed view of complex multi-layer structures. This makes X-ray testing invaluable for industries like aerospace and automotive, where detailed insights into product safety and integrity are critical.
What Are the Limitations of X-Ray Testing?
While highly beneficial, X-ray testing also comes with certain limitations that require careful management:
- Radiation Safety: The use of radiation requires stringent safety measures to protect operators and the environment. Proper training, shielding, and adherence to safety protocols are essential to mitigate these risks.
- High Costs: The equipment and operation costs associated with X-ray testing can be significant, including the expenses for maintenance and specialized training of personnel.
- Material Limitations: Certain materials with high density or thickness may not be fully penetrable by standard X-ray machines, requiring higher energy levels which could complicate the testing process.
- Regulatory Compliance: Navigating the complex landscape of international and national regulations can be challenging and resource-intensive..
What are Main Standards and Regulations Governing X-Ray Testing?
Four key standards govern the practice of X-ray testing, ensuring that it is carried out safely and effectively:
- ISO (International Organization for Standardization): ISO standards, such as ISO 17636 for radiographic testing of welds, provide guidelines on techniques, safety, and quality control.
- CEN (European Committee for Standardization): CEN standards, like EN 1435, cover radiographic testing methodology and safety requirements, ensuring uniformity across Europe.
- ASTM (American Society for Testing and Materials): ASTM standards, including ASTM E1742 for radiographic examination, specify the requirements for equipment calibration, testing procedures, and safety measures.
- ASME (American Society of Mechanical Engineers): ASME codes, such as the ASME Boiler and Pressure Vessel Code, outline detailed requirements for radiographic testing to ensure component integrity in high-pressure environments.
Compliance and Quality Assurance in X-Ray Testing
Compliance with these standards is essential not just for legal and regulatory reasons but also for ensuring the quality and safety of X-ray testing practices.
Adhering to established standards helps maintain consistency and reliability in testing results, enhances the reputation of testing facilities, and ensures that the testing processes contribute effectively to quality assurance and risk management in manufacturing and construction projects.
This compliance also supports continual improvement in testing practices and equipment, driven by advancements in technology and changes in industry requirements.
How to Prepare for an X-Ray Testing Procedure?
Proper preparation is crucial for effective X-ray testing. Following these six steps can ensure safety and accuracy:
- Review Safety Protocols: Confirm that all safety measures are in place, including radiation shielding and personal protective equipment.
- Check Equipment Functionality: Ensure the X-ray device is operational and properly calibrated to avoid inaccurate results.
- Prepare the Specimen: Clean the object to be tested, ensuring it’s free from materials that could obscure the X-rays, such as dust or coatings.
- Positioning: Correctly position the specimen to target the specific area of interest, optimizing the focus and detail of the radiograph.
- Controlled Environment: Set up the test in an environment that minimizes any external factors that could affect the X-ray, such as vibrations or other interference.
- Monitor and Adjust: Continuously monitor the process and make necessary adjustments to the equipment settings based on preliminary results.
Conclusion
X-ray material testing is integral to modern industry, offering crucial insights into material integrity and safety through advanced radiographic techniques. Its ability to detect both internal and external defects ensures high-quality standards across various sectors.
With ongoing advancements, particularly in digital radiography, this technology not only meets current industrial needs but also adapts to future challenges, reaffirming its essential role in maintaining robust quality control and safety standards worldwide.
