Urethane Casting: Process, Applications, Materials and Difference to Vacuum Casting

If you’ve ever needed to make a few dozen parts, but didn’t want to pay thousands for injection mold tooling, you’re exactly the kind of person urethane casting was made for. At its core, this process pours liquid urethane resin into a silicone mold, letting you produce strong, functional parts fast, without the usual production headaches. Whether you’re building prototypes or short-run batches, this method helps you move from idea to part in just a few days.

And you’re not the only one paying attention. In 2022, the global market for urethane casting resins hit $1.5 billion, and it’s expected to nearly double to $2.8 billion by 2030, growing at a steady 8.5% annually.

That growth is fueled by how versatile the process is. You can replicate fine details, test real-world performance with Shore A to Shore D materials, and even use 3D printed master models for custom geometries and surface textures.

In this article, we’ll focus on how urethane casting works, why it’s growing so fast, and what you need to know to get the most out of it.

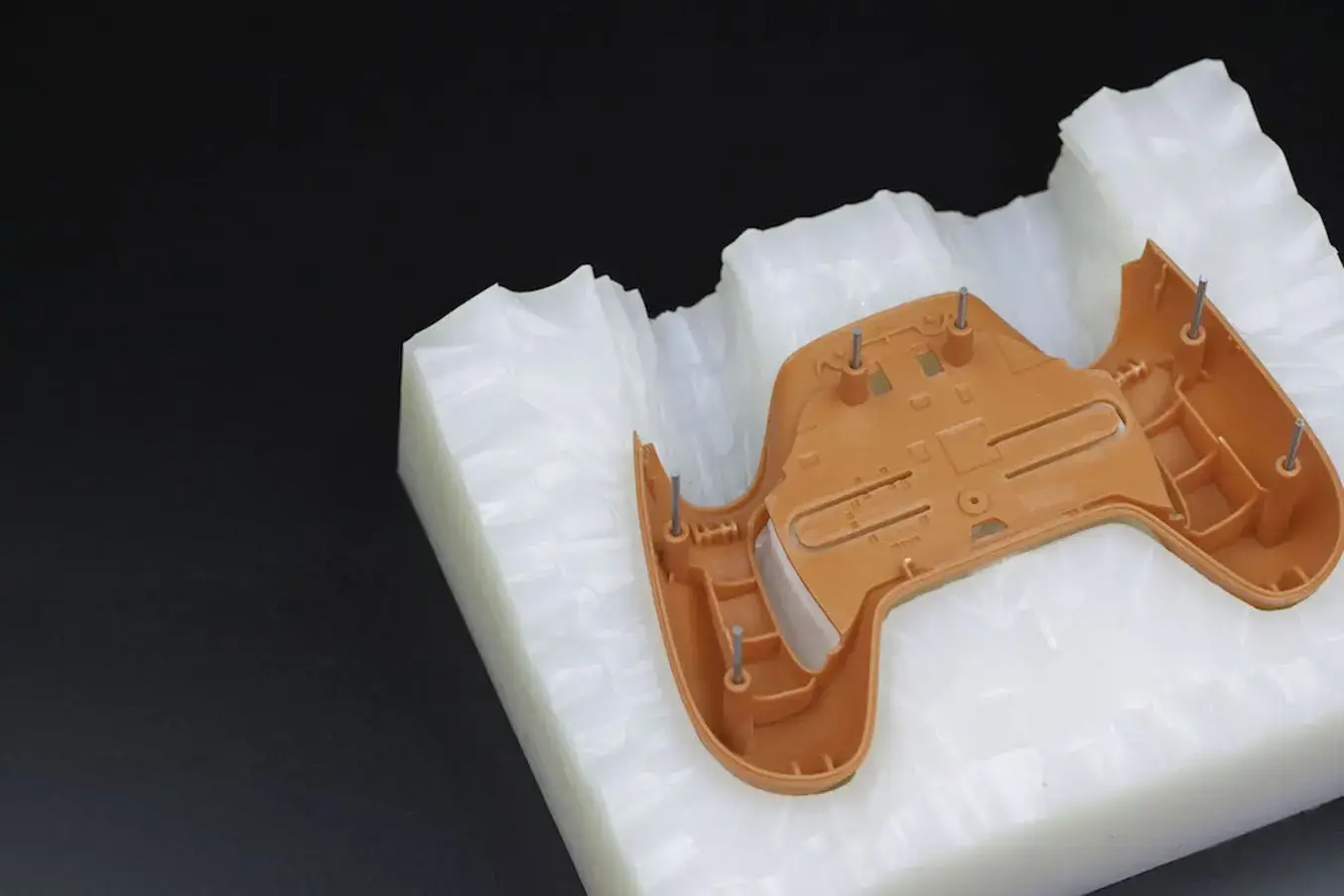

What is Urethane Casting?

Urethane Hero Min

Urethane casting is a flexible casting process type used to produce short-run batches of high-quality plastic parts. The method involves pouring liquid polyurethane resin into a reusable silicone mold to replicate a master model. This casting technique is widely used in rapid prototyping, low volume production, and even medium volume production, thanks to its ability to replicate intricate geometries with a high degree of surface detail.

The process starts with a master pattern, often 3D printed or made using CNC machining, which defines the shape of the final parts. This pattern is placed inside a mold box and encapsulated in liquid silicone.

Once the silicone cures, it forms a soft, reusable mold that can yield up to 30 identical components with minimal dimensional drift. Because the tooling is soft rather than metal, urethane casting is significantly more cost effective than injection molding, especially when producing urethane parts in smaller quantities.

One of the key advantages of urethane casting is that urethane resins cure at room temperature, eliminating the need for the high pressures and heat required in processes like metal or plastic injection. This results in lead times as short as 3–5 days from mold creation to finished part. The flexibility of the silicone mold allows for the casting of complex features such as undercuts and thin wall sections, which are difficult to achieve with rigid molds.

While urethane cast parts do not match the long-term durability or mechanical properties of those made by traditional injection methods, they offer outstanding surface finish, tight tolerances, and enough strength for functional prototypes and limited production runs.

Is Urethane Casting the Same as Vacuum Casting?

No, urethane casting and vacuum casting are not the same, although they are closely related. Vacuum casting refers to a broader manufacturing method in which a vacuum chamber is used to draw liquid material into a flexible mold. This helps eliminate air bubbles and ensures fine detail reproduction. Urethane casting is a specific type of vacuum casting that exclusively uses polyurethane resins as the casting material.

While urethane casting focuses on producing rigid or flexible plastic parts using thermoset polymers, vacuum casting can also be applied to other materials like silicones, epoxies, and some low-melting-point metals. The vacuum assists in ensuring complete filling of the mold cavity, especially when the design includes thin walls or sharp corners.

Another key difference lies in material range. Urethane casting uses a wide selection of urethane formulations with tunable shore hardness, from Shore A 5 to Shore D 85.

How the Urethane Casting Process Works?

The urethane casting process is a low-pressure, room-temperature manufacturing method used to create functional parts from liquid polyurethane resins.

This casting process is especially useful when you need fast turnaround and tight tolerances on parts with intricate geometries.

Each mold is formed around a master model, typically CNC machined or 3D printed, which replicates every fine detail.

The process doesn’t require high temperatures or pressures, making it suitable for delicate features, complex shapes, and soft materials that would be impractical to manufacture using traditional injection mold tooling.

Once the master pattern is prepared and the silicone mold is cured, polyurethane resin is mixed, poured, and allowed to cure inside the mold cavity. After curing, the mold is opened and the part is removed. With proper care, a single silicone mold can be reused to produce up to 30 consistent cast urethane parts.

What are the Different Stages of Urethane Casting?

The urethane casting process consists of several clearly defined stages that take a part from a digital model or prototype to a fully functional physical product. These steps are essential for ensuring quality, consistency, and performance of the final part.

The main stages include:

• Designing the master pattern
• Creating the silicone mold
• Mixing and pouring the urethane resin
• Curing and demolding
• Post-processing and finishing
• Optional pressure curing for thicker parts

Step 1 – Designing the Master Pattern

The first step in the urethane casting workflow is creating a highly accurate master pattern. This is the original model used to define the shape, features, and surface texture of the final cast parts. Typically, the master is produced using high-resolution 3D printing, such as SLA or SLS or precision CNC machining, depending on the level of detail and required finish.

Surface finish is especially important at this stage because every nuance of the master model transfers directly into the silicone mold. For that reason, masters often undergo surface finishing steps like sanding, vapor polishing, or coating. These post-processing techniques remove any layer lines or imperfections, which helps achieve a smooth, professional appearance in the finished urethane cast parts.

Dimensional accuracy, geometric detail, and texture are all locked in during this stage, so investing time and attention here sets the foundation for the entire casting process. Once the master model is ready, it’s securely mounted in a mold box and prepared for silicone pouring in the next stage.

Step 2 – Creating the Silicone Mold

Once your master pattern is complete and surface-finished, the next step is to create the silicone mold that will be used for casting. This mold is made by encasing the master in liquid silicone within a mold box. After curing, the silicone is cut to form mold halves, and the master model is carefully removed, leaving behind a negative cavity that replicates every detail.

There are two main mold types: open and closed. Open molds are used for simple, flat-backed designs, while closed molds are better suited for complex geometries requiring full encapsulation and tighter tolerances. Mold curing methods also vary, condensation-cure silicones typically shrink around 0.5%, while addition-cure types offer near-zero shrinkage, which is crucial for parts requiring dimensional accuracy.

Silicone molds used in urethane casting typically have a service life of 25 to 50 shots before exhibiting dimensional drift. The choice of silicone, part geometry, and resin temperature can all affect mold longevity. Proper mold design, including venting paths and parting line strategy, ensures smoother resin flow and repeatable casting results.

Step 3 – Mixing and Pouring Urethane

The quality of urethane cast parts depends heavily on accurate resin mixing, proper degassing, and consistent mold filling. Most urethane resins are two-part systems that must be thoroughly mixed in the correct ratio. Precision here directly influences mechanical properties and appearance. Working time after mixing is usually around three minutes, depending on the formulation and ambient temperature.

Vacuum degassing is a best practice to eliminate air bubbles introduced during mixing. The resin is placed in a vacuum chamber until trapped gases are removed. Afterward, it’s poured into the mold cavity, often with the help of funnels or vent straws to guide flow into fine features and deep cavities.

For complex or thin-walled components, steady pouring and careful attention to fill paths help ensure defect-free parts. Any inconsistency in mixing, timing, or mold filling can result in weak areas, surface blemishes, or dimensional inaccuracies in the final casting.

Step 4 – Curing and Demolding

After filling, the resin undergoes a curing phase where it hardens inside the mold. While some urethanes cure at room temperature, many manufacturers accelerate the process by heating the mold. A common practice is to cure parts at 60 to 80 degrees Celsius for one to four hours in a pressurized oven. This reduces the chance of air bubbles and improves surface clarity and strength.

The mold is typically placed under pressure (0.4 to 0.6 MPa) to minimize internal voids, especially when casting thicker or optically clear parts. Once curing is complete, the mold is opened and the part is gently removed, revealing its final form. Any flashing or excess material along the parting line is removed during the next stage.

Proper control over time, temperature, and pressure during curing ensures consistency in part dimensions, strength, and appearance, especially in projects with multiple castings or precision requirements.

Step 5 – Finishing and Post-Processing

The final stage of the urethane casting process includes any necessary post-processing to bring the part to its finished condition. This can involve simple steps like trimming flash or sprues, or more complex operations like painting, drilling, or adding surface coatings for aesthetics or functionality.

For tighter tolerance applications, light machining may be performed. When doing this, it’s important to use coolants or water-based lubricants, as urethane can soften or deform at temperatures above 80 degrees Celsius. This is particularly true for Shore A and Shore D parts with lower thermal resistance.

Additional finishing options include adding inserts, applying custom colors, or polishing for improved clarity. These secondary steps not only improve appearance but can also enhance function, allowing cast urethane parts to be used in high-visibility consumer products, housings, or engineering validation units. Post-processing transforms raw castings into production-ready components that meet your project’s full requirements.

What are the Benefits of Urethane Casting?

From rapid prototyping to short-run production parts, using urethane casting enables you to achieve outstanding surface finishes, complex geometries, and reduced lead times while remaining cost-effective.

• Cost-Effectiveness: Urethane molding significantly reduces costs compared to traditional methods like metal casting or injection molding, especially for smaller production runs. Soft tooling such as silicone molds used in urethane casting eliminates the need for expensive steel or aluminum dies.
• Fast Turnaround Times: Typical lead times range from 3 to 5 days. Urethane resins cure at room temperature, bypassing the extended heating-cooling cycle associated with thermoplastics.
• Material Versatility: You can choose from rigid, flexible, clear, colored, or even flame-retardant urethane formulations. These casting materials offer a wide spectrum of properties, from Shore A elastomers to Shore D rigid plastics.
• Low Tooling Costs: Silicone molds used in urethane casting are low-cost, typically ranging from $300 to $600. They’re quick to produce and enable rapid transition from master model to finished part.
• Excellent Surface Finish: The master pattern’s surface replicates onto every cast part. That means with a high-quality SLA or CNC-machined master model, you’ll get a smooth, near-final surface requiring minimal post-processing.
• Design Flexibility: Undercuts, sharp edges, and intricate geometries can be cast without the constraints of rigid metal molds. This allows for more freedom in product development and faster design changes.
• Mold Reusability; Silicone molds used in urethane casting can typically be reused for 25 to 50 casting cycles, depending on the material and mold complexity. This adds to the process’s cost effectiveness.
• High Dimensional Accuracy; Urethane casting offers tight tolerances—±0.010 in + 0.003 in/in—which meets many production part requirements across industries like consumer electronics and medical devices.
• Reduced Material Waste; Compared to subtractive methods like CNC machining, cast urethane parts require less raw material, reducing both cost and environmental waste.

What are the Limitations of Urethane Casting?

Although there are significant advantages to urethane casting, there are three main limitations you should keep in mind: lower durability compared to injection molding, limited scalability for high-volume production, and sensitivity of silicone molds to environmental factors.

• Lower Mechanical Strength: While urethane cast parts can achieve respectable tensile and impact resistance, they still lag behind injection-molded plastics in structural applications. Urethanes are not typically used to create high-load bearing components unless reinforced.
• Limited Part Size: Most casting chambers and ovens restrict maximum part size to around 30 inches in length. This limits the scale of components you can manufacture in a single mold cavity.
• Mold Degradation: Silicone molds used in urethane casting degrade after approximately 25 to 50 cycles. Mold wear results in dimensional drift and reduced part quality, requiring mold replacement to maintain production standards.
• Heat Resistance Limits: Most urethane formulations are not recommended for use above 120 °C. This excludes them from high-temperature environments like engine bays or electronics housing near heat sources.
• Slower for High Volume Needs: Curing times, often several hours, can slow throughput in production runs that require hundreds or thousands of parts. Unlike injection molding, which can produce a part every few seconds, urethane casting is best for low to medium volume production.
• Environmental Sensitivity: Humidity, air bubbles, and even shelf life of resins can impact the urethane casting process. Without proper control of mixing conditions and mold environment, you risk defects such as trapped air, part deformation, or inconsistent surface finish.

What are the Different Methods Used in Urethane Casting?

There are three commonly used urethane casting methods: single-shot, prepolymer, and quasi-prepolymer. Each one comes with specific benefits and limitations based on viscosity control, working time, and the complexity of the geometries being cast.

• Single-Shot Method: This is the most straightforward approach. All components of the resin system are mixed at once and poured directly into the silicone mold. It’s a preferred technique for rapid prototyping and short-run projects with standard geometries. However, the fast reactivity can be challenging when managing bubbles, flow into thin features, or working under variable humidity.
• Prepolymer Method: This process involves partially reacting the polyol and isocyanate ahead of time to create a more stable prepolymer. A curative is then added just before casting. It provides improved control over the reaction profile and better repeatability during the casting process. It’s suitable when you’re scaling production or aiming for greater consistency across parts.
• Quasi-Prepolymer Method: This variation fine-tunes the prepolymer stage using optimized ratios and reaction conditions. It supports casting materials that require enhanced properties like flame resistance, abrasion strength, or higher Shore D hardness. This method is commonly used in production runs requiring enhanced material performance, but it demands tighter control of temperature and viscosity.

How to Choose the Right Urethane Casting Method?

To choose the most effective urethane casting method, you need to match the process with your specific performance criteria and production requirements. Consider your part size, geometry, casting volume, and the type of resins or additives involved.

If you’re producing simple prototypes with fast turnaround needs, the single-shot approach typically works well. For medium volume production where process stability matters, prepolymer or quasi-prepolymer methods allow for tighter control and better consistency across casting cycles.

Always evaluate your decision based on curing behavior, mold compatibility, and required mechanical properties. This ensures that the selected technique supports your goals, whether that’s speed, strength, or long-term durability in end-use parts.

What Materials are Used in Urethane Casting?

Every urethane formulation is built from four essential components: polyol, diisocyanate, curatives, and additives. These ingredients work together to create polyurethane resins that can be tuned in terms of hardness, transparency, and temperature resistance. By adjusting the ratio of these elements, you gain control over key characteristics like flexibility, clarity, and dimensional stability.

Your choice of material should match the mechanical requirements of your part, including whether it needs to withstand heat, abrasion, or impact.

Rigid materials support structural integrity, while softer formulations allow for movement and compression. The selection process also depends on factors like wall thicknesses, mold cavity complexity, and the expected shelf life of the part. Urethanes are widely used in consumer goods, medical devices, and rapid prototyping due to their adaptability and surface finish quality.

Rigid Urethanes (Shore D)

Rigid urethane materials are commonly used when high strength, tight tolerances, and thermal resistance are critical. These casting materials fall within the Shore D hardness range, making them suitable for producing structural parts with minimal deflection. They are often used to create housings, enclosures, and durable production parts in low to medium volume manufacturing.

The following formulations are frequently selected for rigid urethane casting applications:

• AFP3100 (85 Shore D): This formulation offers excellent rigidity and dimensional stability. It’s best used for structural prototypes and fixtures that require durability and resistance to deformation under load.
• AFP3200 (80 Shore D): Known for its balance of stiffness and toughness, AFP3200 is suitable for functional production parts. It performs well in environments requiring a combination of strength and impact resistance.
• AFP3320 (80 Shore D): Offers enhanced mechanical properties, especially when it comes to shock absorption. It’s a good choice when repeated stress or moderate flexing is part of the use case.
• AFP3400 (70 Shore D): Slightly softer than other rigid options, this material is used when minor deflection or added resilience is beneficial. It’s appropriate for components subject to vibration or minor stress.
• AFP3600 (approx. 82 Shore D): Designed for applications requiring moderate heat resistance. It retains its form and properties in environments with fluctuating temperatures and is compatible with both functional testing and light production runs.
• PT8958 (85 Shore D): Offers excellent detail reproduction and smooth surface characteristics. Ideal when minimal post-processing is preferred, especially in cosmetic prototypes or display models.
• RC 79D (85 Shore D ±5): Provides consistent results across repeated casting cycles. It’s commonly selected for projects that need close simulation of injection molded parts, especially when scaling from prototype to production.

Flexible Urethanes (Shore A)

Flexible urethanes are measured on the Shore A scale and are widely used to produce components such as seals, gaskets, vibration-dampening elements, soft enclosures, and consumer product prototypes. When selecting a flexible urethane material, your decision will depend on the required softness, rebound characteristics, and environmental performance.

Flexible urethanes are especially useful in low to medium volume production runs where soft-touch surfaces or compressible features are needed. Their ability to conform to complex geometries without cracking makes them well-suited for parts with intricate mold cavity details, thin wall thicknesses, and embedded features. These materials also perform well under repeated stress cycles, which is ideal for prototypes simulating high-usage consumer or industrial applications.

Here are some widely used flexible urethane materials and their typical applications:

• E1005AL (5 Shore A): This is one of the softest options available. It’s used to create gel-like surfaces and cushioning elements. Applications include medical padding, soft-touch grips, and flexible plugs where minimal rigidity is required.
• E1015AL (15 Shore A): Slightly firmer than E1005AL, this material offers good rebound with high flexibility. It is commonly used in cosmetic prototypes, wearable components, and ergonomic product designs where comfort and pliability matter.
• E1040AL (40 Shore A): A mid-range flexible urethane that balances softness and strength. It is well-suited for seals, bumpers, and consumer electronics cases that need moderate resistance to abrasion and deformation.
• E1060AL (60 Shore A): This formulation provides a higher level of structural support while maintaining flexibility. It’s often used in applications like vibration-dampening pads, flexible couplings, and industrial rollers.
• E1070AB (70 Shore A): Designed for semi-rigid performance, this material is ideal when you need parts to bend without breaking but still hold shape under moderate stress. Typical uses include tool handles, flexible connectors, and durable bushings.
• E1095AB (95 Shore A): The firmest of the Shore A series, this material behaves similarly to Shore D urethanes but with more shock absorption. It is frequently used for structural gaskets, high-load soft components, and custom-fit housings.

Clear and Colored Urethanes

Clear and colored urethanes are widely used to create visual prototypes, transparent enclosures, and parts with custom color-matching requirements. They combine cosmetic quality with reliable material performance, allowing you to simulate final production aesthetics without investing in hard tooling.

Clear urethanes are particularly valuable when you need to produce parts that require transparency or optical clarity. Optical-grade formulations can achieve over 90% light transmission, making them ideal for lenses, covers, or fluid containers. These materials are commonly used in industries such as consumer electronics, medical devices, and product development where seeing internal components or fluid flow matters. Maintaining clarity depends heavily on the mold surface, part geometry, and casting environment. A well-polished master model and clean silicone mold are essential to avoid cloudiness or trapped air.

Color customization is achieved by blending pigments directly into Part A of the urethane resin before the two-part system is mixed. This allows precise control over the color tone, saturation, and opacity. You can match brand colors or product lines while maintaining consistent appearance across batches. Whether you’re producing a handful of prototypes or a short run of custom components, color-matching offers an efficient way to meet design standards and market expectations.

These urethanes support both rigid and flexible variants, giving you more choices in material selection. From translucent prototypes for display to colored parts for functional testing, clear and tinted urethanes deliver dependable surface finish and dimensional accuracy. Their fast curing behavior at room temperature also makes them ideal for low volume production, reducing turnaround times and tooling costs compared to traditional injection molding or CNC machining approaches.

High-Performance and Specialty Urethanes

Certain applications demand more than basic durability or appearance. High-performance urethanes are engineered to offer enhanced resistance to heat, abrasion, chemicals, and environmental exposure. These materials are typically selected for parts used in demanding operational conditions, such as industrial equipment, automotive components, or specialty enclosures.

Polycarbonate-based systems provide excellent chemical and solvent resistance, while polycaprolactone-based variants offer improved resistance to chlorine and moisture. These specialty formulations are often used to create cast urethane parts that require long-term dimensional stability, UV resistance, or contact with reactive substances. They’re also chosen when traditional casting materials are not suitable for temperature-sensitive or corrosive environments.

Selecting high-performance urethanes ensures your parts maintain integrity over time and under stress. While more complex to process, these advanced casting materials expand the range of applications where urethane casting can be used as a true alternative to thermoplastics and metal components.

Foam and Castable Urethanes

Foam and castable urethanes are used when cushioning, energy absorption, or lightweight part structures are required in urethane casting. These materials expand during curing, forming a closed- or open-cell structure depending on the formulation. You can use them to produce soft impact-dampening pads, ergonomic grips, or filler components that reduce material weight without compromising volume.

Castable foams are typically chosen for applications in consumer goods, seating, or protective packaging, where comfort and compression are important. They’re also used to create flexible architectural models, props, and prototypes for parts that must look solid but remain lightweight.

This category of casting materials is often selected during the early stages of product development when soft textures, sculpted geometries, or shock-absorbing properties are part of the design. When processed correctly using silicone molds and proper mixing techniques, these materials deliver consistent results with a reliable surface finish, making them a cost-effective alternative to traditional molded rubbers or multi-step fabrication.

How to Choose the Right Urethane Casting Material?

How to Choose the Right Urethane Casting Material

The most important factor when selecting a urethane casting material is how well it meets the performance criteria of your final part. You should always begin by identifying the part’s purpose, required mechanical properties, and environmental exposure.

If your part needs to withstand repeated stress, abrasion, or temperature shifts, consider a formulation with enhanced tear strength or heat resistance.

For transparent or color-sensitive applications, opt for clear or pigmented systems with optical-grade clarity. Rigid Shore D materials are best for structural parts, while Shore A elastomers offer flexibility and energy return.

Material selection also depends on geometry, mold design, and production volume. Thicker parts may require slow-curing resins, while complex molds benefit from low-viscosity materials that reduce the risk of trapped air.

Finally, always factor in post-processing requirements like painting or machining, especially for functional prototypes or low to medium volume production runs.

Below is more information for each factor.

Shore Hardness and Durometer

Shore hardness is a key metric when evaluating urethane materials. It tells you how hard or soft a material is, which directly affects its flexibility, rebound, and application suitability. The Shore A scale covers soft elastomers, while the Shore D scale measures rigid plastics.

For example, a 60 Shore A urethane might be used for seals, gaskets, or footwear prototypes that require softness and elasticity. A 70–85 Shore D material is more suitable for structural housings, rigid enclosures, and functional prototypes where strength and dimensional stability matter.

When using urethane casting, selecting the appropriate hardness ensures the final part performs as intended—whether that means compressing under pressure or maintaining rigidity under load.

Abrasion

Abrasion resistance is critical in applications where repeated friction, movement, or mechanical contact occurs. If you’re producing wheels, rollers, or parts exposed to constant wear, you need a casting material that can maintain its surface finish and dimensional integrity over time.

Certain urethane formulations are engineered for high abrasion resistance without sacrificing flexibility or shock absorption. These materials are commonly used in manufacturing guides, conveyor components, and bumpers. Selecting the right option minimizes premature failure, reduces maintenance, and extends the part’s functional life, especially in low to medium volume production where replacing worn components quickly isn’t always feasible.

Chemical Resistance

In environments where your part may come into contact with oils, solvents, fuels, or cleaning agents, chemical resistance becomes a defining factor in material selection. Some polyurethane resins degrade or swell when exposed to specific substances, compromising part strength and shape.

For applications in medical devices, laboratory equipment, or industrial systems, choosing a urethane casting resin with high chemical resistance ensures long-term performance. Polycarbonate-based and polycaprolactone-based systems offer improved resistance to solvents, alcohols, and chlorinated environments. These materials are used to create parts like seals, housings, or coatings where exposure to harsh substances is expected.

UV Stability

Urethane parts that operate outdoors or near windows are prone to UV degradation over time. Without adequate UV resistance, the surface may yellow, lose flexibility, or crack prematurely—especially in clear or light-colored cast urethanes.

UV-stabilized formulations are specifically designed to maintain appearance and mechanical properties under prolonged sunlight exposure. These resins contain additives that reduce the effects of UV radiation by either absorbing or reflecting harmful wavelengths. If you’re creating parts for outdoor consumer products, light housings, or architectural models, UV stability should be a top priority.

Your mold material and post-processing choices also affect UV resistance. Applying UV-protective coatings after demolding can further increase the lifespan of cast urethane parts.

Outdoor Suitability

Outdoor suitability refers to how well urethane casting materials perform under fluctuating environmental conditions, including exposure to moisture, temperature changes, UV light, and physical wear. If you’re producing production parts for outdoor applications, such as weatherproof enclosures, vehicle components, or garden tools, resin choice becomes even more critical.

Some urethane formulations offer enhanced durability for external use, with additives that improve water resistance, reduce surface degradation, and stabilize colors. These resins often have better abrasion resistance and thermal flexibility, ensuring they hold up against repeated outdoor stressors. The ability to withstand humidity, dirt, and expansion cycles makes them ideal for parts used across a wide range of climates.

Matching the resin to your outdoor project requirements not only increases the reliability of the product but also reduces replacement and maintenance costs.

Temperature Range

Temperature range is a defining factor in the long-term behavior of urethane parts, especially in environments where heat or cold is a constant variable. Not all casting materials are suitable for high-heat applications, and selecting the wrong formulation can lead to warping, cracking, or softening of the part during operation.

Most urethane resins used in urethane casting are stable up to around 120 °C, with some high-performance formulations pushing that threshold higher. If your component is part of a device near motors, ovens, or heating elements, you need a resin with elevated heat resistance. Conversely, parts exposed to sub-zero temperatures must maintain flexibility and impact resistance without becoming brittle.

Thermal considerations also influence your mold design, wall thickness, and overall production process. Thicker parts may retain heat longer and cure differently than thin-walled geometries.

FDA or Medical-Grade Compliance

When working on projects in the healthcare or food sectors, choosing a urethane casting material that meets FDA or medical-grade standards is essential. These applications require materials that are non-toxic, biocompatible, and safe for direct or indirect contact with skin, tissues, or food surfaces. If you’re designing housings for medical devices, dental tools, or lab equipment, the resin you use must comply with strict regulatory requirements.

Certain polyurethane resins are specifically formulated to meet these compliance standards. They are manufactured in controlled environments, with traceability in both material sourcing and processing. These materials must also maintain dimensional stability and mechanical properties during sterilization, cleaning, and exposure to sanitizing agents.

You should also consider how the resin interacts with post-processing steps such as coating or labeling. Since the casting materials used in urethane molding for medical purposes are often transparent or lightly tinted, clarity and surface finish play a key role in user experience and inspection. Selecting FDA-compliant materials early ensures you avoid costly delays in validation or approval down the line.

Transparency and Color Options

Clear urethane resins offer light transmission above 90%, making them ideal for lenses, light guides, or demonstration models. These optical-grade materials are best used in combination with vacuum casting and precise mold design to avoid trapped air or visual defects. You should also make sure to use a high-resolution master model, as the silicone mold will replicate every detail of the surface.

For colored parts, pigments are typically blended into Part A of the resin mixture before casting. This approach offers a wide range of color customization without affecting the chemical properties of the part. Keep in mind that certain pigments may affect UV stability or heat resistance, so material selection and pigment compatibility must be considered together.

What are the Specific Mechanical Properties of Urethane-Casted Parts?

The mechanical behavior of cast urethanes is defined by the resin formulation, casting process, curing method, and mold design. Parameters like durometer, tensile strength, tear strength, and flexural modulus determine how the finished part will perform under different loads and environments. These material characteristics also affect wall thickness recommendations, surface finish, and expected lifespan.

Whether you’re designing for abrasion resistance, temperature stability, or impact strength, urethane casting allows you to balance performance and cost.

Hardness and Durometer

Durometer is a key performance metric when you’re selecting urethane casting materials. It tells you how soft or hard a urethane part is and helps you predict how it will behave under load or pressure. Urethane formulations cover a broad spectrum, from Shore A 5 for soft, flexible parts to Shore D 85 for rigid components.

If you’re casting parts that need to absorb impact or flex repeatedly, like gaskets or bushings, a Shore A rating in the 30–70 range is often suitable. On the other hand, structural or load-bearing parts used in housings, jigs, or consumer goods typically require Shore D ratings above 70.

Because urethanes can be tuned chemically, you can adjust hardness based on additives, cure conditions, and mold temperature.

Tensile Strength

Tensile strength is how much pulling force a part can handle before breaking, and it’s crucial for any application where your component will face stretching, bending, or continuous stress.

Standard cast urethanes typically have tensile strengths between 500 and 5,000 psi. For most prototypes and low volume production parts, this range provides a strong balance between durability and flexibility. If you’re working on performance-critical designs, such as structural enclosures, support brackets, or impact-resistant inserts, composite urethanes reinforced with fillers or fibers can reach up to 14,000 psi.

You should also evaluate how the tensile properties change under temperature variations, especially if your parts will be exposed to heat or UV radiation.

Flexural Strength

Flexural strength describes a part’s ability to resist bending or deformation under load. In urethane casting, this property is particularly important when you’re producing structural parts or components that span gaps or endure static loads. For standard urethane materials, flexural strength typically reaches around 17,000 psi, providing adequate stiffness and structural integrity for most design applications.

When your project calls for high stiffness without switching to metal molds or high-cost composites, fiber-reinforced urethanes can push flexural strength up to 39,000 psi. This allows you to maintain a lightweight profile while increasing load-bearing capabilities.

Flexural strength becomes especially relevant in tooling, housings, and rigid fixtures.

Impact Resistance

Impact resistance measures how well a material absorbs sudden forces or shocks without cracking or deforming. This property is crucial when you’re casting urethane parts that may be dropped, struck, or subjected to repeated dynamic loads. Cast urethanes excel in this area because they combine energy-absorbing flexibility with structural durability.

The performance advantage lies in the elasticity of the urethane matrix, which distributes energy across the material instead of concentrating it at a single point. This makes urethane ideal for producing low volume parts like enclosures, bumpers, or vibration-damping components used in consumer electronics and industrial machinery.

Impact resistance also depends on factors such as wall thickness, durometer, and curing method. Urethane parts cast with higher Shore D values offer more structural rigidity but may trade off some of their shock-absorbing behavior. For better performance, you can experiment with post-curing cycles or hybrid formulations to optimize both toughness and rigidity.

Abrasion Resistance

If your application involves friction, contact with abrasive surfaces, or repeated movement, abrasion resistance becomes one of the most important mechanical properties to consider. Cast urethanes are often selected over other plastics and elastomers specifically because of their superior wear characteristics in demanding production runs.

Urethanes used in urethane casting offer excellent abrasion resistance due to their molecular elasticity and cross-linked structure. This makes them highly suitable for wear pads, seals, bushings, and wheels, especially when mass production isn’t feasible and low volume production is the target. The process allows you to cost-effectively produce durable, high-performance parts without relying on injection mold tooling.

Thermal Stability

Thermal stability defines a material’s ability to maintain shape, strength, and mechanical properties when exposed to elevated temperatures. In urethane casting, temperature resistance is largely influenced by the urethane formulation, mold material, and curing method. Most standard urethane resins used in low volume production can withstand continuous temperatures up to 130–150 °F, with some high-performance grades enduring brief exposure to 200 °F.

If your part will operate in thermally dynamic environments, like industrial enclosures, engine compartments, or outdoor housings, temperature stability must be a core part of your material selection process. Post-curing techniques can enhance heat tolerance by increasing cross-link density in the cast urethane parts.

When compared to injection molding, the temperature resistance of cast urethanes may be lower, but the cost-effective tradeoff allows for quicker project timelines and excellent prototyping flexibility, especially when mass production isn’t required.

Chemical Resistance

Chemical resistance determines how well your part holds up against exposure to oils, solvents, fuels, acids, or cleaning agents. Urethane casting allows you to choose from various formulations tailored to withstand specific chemical environments. In general, polyether-based urethanes provide better hydrolysis and acid resistance, while polyester-based systems offer stronger performance against fuels and oils.

Cast urethanes used in harsh conditions, like those found in chemical processing, medical device enclosures, or automotive under-hood components, benefit from careful material selection and controlled processing. Some specialty grades even meet requirements for chlorine and solvent exposure, making them well-suited for environments like water treatment systems or lab equipment.

When chemical resistance is crucial, proper curing and mold surface preparation become essential to avoid air bubbles and surface degradation.

Elasticity

Elasticity refers to a material’s ability to stretch under force and return to its original shape without permanent deformation. This property is one of the core strengths of urethane casting, especially for applications requiring energy absorption, repeated flexing, or load distribution. Elastomeric urethanes used in vacuum casting can achieve remarkable rebound characteristics, making them ideal for impact pads, gaskets, or shock-absorbing components.

Depending on the durometer, urethane parts can range from extremely soft and flexible (Shore A 5) to rigid and minimally elastic (Shore D 85). For use cases where dynamic motion or continuous stress is involved, selecting a formulation with high tensile elongation and low compression set is key.

You should also consider factors like curing temperature, wall thickness, and mold design, as they all influence the final mechanical performance.

What Machines and Tools Are Required in Urethane Casting?

Urethane casting depends on a mix of specialized equipment that ensures accuracy, repeatability, and surface quality. Whether you’re producing functional parts, design prototypes, or custom low volume production runs, having the right tools is essential for process reliability and performance.

Mixing and dispensing machines automate resin handling and reduce variation in material ratios. For industrial setups, systems like the Baulé MK Series and Graco Reactor E-Series are widely used. These machines offer controlled metering, integrated heating systems, and precise viscosity management. For smaller operations, Smooth-On kits are often preferred for batch flexibility and accessibility.

Degassing tools like vacuum chambers help eliminate air bubbles before casting. Polytek PolyPurge supports cleaning and maintenance of lines and valves, preventing cross-contamination. For mold filling under low pressure, the Moldman 8000 provides consistency without excessive flow rates. After casting, ovens, trimming tools, and media blasting setups allow for essential post-processing.

What are the Main Parameters of Urethane Casting?

From mold preparation to resin curing, each step influences surface finish, dimensional stability, and part performance. Whether you’re running prototypes or mid-volume batches, precise control over these variables ensures quality results across a wide range of applications.

Below are the core parameters that shape the casting process:

• Mix ratio: Accurate blending of resin components is critical for proper curing.
• Vacuum level: Removes trapped air and prevents voids in complex geometries.
• Mold temperature: Controls resin flow, curing behavior, and replication accuracy.
• Ambient conditions: Room temperature and humidity affect viscosity and shelf life.
• Pouring speed: Ensures resin fills all cavities without turbulence or bubbles.
• Cure time: Dictates final part strength and stability.
• Post-cure settings: Optional heat treatment improves temperature and wear resistance.
• Tooling surface: Influences surface texture and dimensional precision.
• Resin viscosity: Affects how well material flows into narrow channels and fine features.

What are the Tolerances and Surface Finishes in Urethane Casting?

Urethane casting offers dependable dimensional accuracy and surface replication, making it an ideal method for functional prototypes and small batch production parts. Unlike injection molding, which requires complex tooling, this process allows you to achieve tight tolerances with relatively simple setups.

Most urethane parts meet a standard dimensional tolerance of ±0.010 inch, plus an additional ±0.003 inch per inch of part length. These tolerances are suitable for end-use components where exact fit and function matter. The overall precision depends on the quality of the master pattern, mold condition, and control of curing variables.

Surface finishes in urethane casting vary based on the master model and mold material. Silicone molds replicate fine textures accurately, from matte to high-gloss surfaces. When smoother finishes are needed, molds can be polished or coated.

What are Key Considerations When Designing for Urethane Casting?

Certain features like wall thickness, draft angles, and internal geometries play a major role in how successful your casting will be.

To avoid trapped air or warping during the urethane casting process, you need to be aware of how silicone molds behave under pressure and temperature. Thin walls or abrupt transitions can cause air bubbles or inconsistencies in the final urethane parts. Similarly, if you don’t apply the right draft angles, mold release becomes difficult, shortening the mold’s life and affecting part quality.

Using urethane casting for low to medium volume production gives you freedom to test design changes quickly. But to get reliable results, you need to start with solid design fundamentals.

Wall Thickness

Wall thickness is one of the most critical aspects in designing cast urethanes. For most urethane casting applications, a minimum wall thickness of 0.040” (1 mm) is recommended. That said, some small or simple 3D printed master patterns may allow you to go as low as 0.020” (0.5 mm) if structural loads are minimal.

Uniform wall thickness helps reduce internal stresses, shrinkage, and air entrapment. To strengthen walls without creating thick, sink-prone areas, you can add gussets or ribs. A good rule is keeping rib height at or below three times the wall thickness. For bosses, aim for a wall no more than 60% of the adjacent part wall.

Draft Angles

Draft angles are essential for maintaining mold integrity and improving part release. Even though urethane casting uses soft silicone molds, you still need at least 3° to 5° of draft on vertical walls to prevent mold damage during demolding. Without a proper draft, molds tend to tear, especially at high durometer values.

Draft not only helps in part release but also increases the number of casting cycles you can achieve from a single silicone mold. That’s especially important in low volume production where lead times and turnaround matter. In complex geometries, draft angles make a noticeable difference in finish quality and dimensional stability.

Ribs

Ribs are used to increase part strength without adding excessive material. In urethane casting, they also help avoid warping during curing. However, poor rib design can lead to trapped air in the mold cavity or cause thin sections to deform.

The best practice is to keep rib height no more than three times the adjacent wall thickness. Taller ribs may cause flow restrictions, resulting in incomplete filling. Rib thickness should be roughly 50–60% of the main wall to avoid sink marks. Properly designed ribs contribute to greater rigidity, improved tear strength, and better dimensional stability, especially in flexible urethane parts used in consumer goods or housings.

Since molds used in urethane casting are often made from silicone rubber, excessive detail in ribbed areas can shorten mold life.

Bosses

Bosses are small cylindrical features often used for assembly or mounting. In urethane molding, these need extra care due to their localized thickness, which can introduce heat buildup and voids in the casting process. Poorly designed bosses can degrade the mechanical properties of your part, especially under stress.

To improve castability, limit boss wall thickness to 60% or less of the surrounding wall. Add ribs at the base of tall bosses to maintain part strength without increasing material volume. For best results, avoid sharp transitions at the base, which can trap air or tear the silicone mold over time.

Urethane casting provides more freedom than metal casting or injection molding, but that doesn’t mean you can ignore these geometric principles.

Fillets

Fillets are smooth curves added to sharp internal or external corners. These are crucial when working with silicone molds, as they reduce the chance of mold tearing and ensure better material flow during casting. Sharp corners concentrate stress, both in the mold and in the final urethane cast parts.

Aim to add fillets wherever two surfaces meet, especially at the base of ribs and bosses. Even a 0.5 mm radius can make a difference in preventing stress cracks and improving the shelf life of the mold material. Fillets also reduce turbulence in the resin flow, resulting in better surface finish and fewer air inclusions.

For prototypes and production parts alike, fillets serve both functional and aesthetic purposes. They improve overall durability while minimizing cosmetic defects, a win for both engineers and designers working with urethane resins in rapid prototyping or low volume production scenarios.

Radii

Sharp edges increase stress concentrations and often cause air entrapment or localized mold degradation. Adding radii smooths internal and external transitions, making the resin flow more uniform. This leads to more consistent mechanical properties across batches, which is critical in consumer goods and functional housings.

In urethane casting, fillets and radii also prevent stress points from forming during demolding, especially important when using flexible silicone molds. Try to apply a minimum radius of 0.5 mm on all edges where possible. You’ll reduce tearing risks and improve the shelf life of the tooling.

Inserts

Inserts allow you to add threads, bushings, or rigid reinforcements to urethane parts. They are typically placed into the mold cavity before pouring or injecting the resin. However, poorly designed or misaligned inserts can create weak points or surface blemishes.

You should select insert materials compatible with urethane resins and mold temperatures. Brass, aluminum, and stainless steel are common choices due to their strength and dimensional stability. Ensure the insert is securely fixed in place during the casting process, using jigs or pressure-fit recesses. For best results, design the surrounding geometry with smooth transitions to prevent trapped air or mold damage. This practice is essential in applications requiring load-bearing contact, like medical devices, electronic housings, or structural brackets.

Overhangs

Overhangs are tricky in urethane molding because the molds are typically two-part silicone structures. Unsupported overhangs can complicate mold separation, shorten mold life, and cause deformation in the finished part. If your design includes an overhang, consider whether it truly adds functional value or if it can be replaced with a more mold-friendly shape.

When overhangs are unavoidable, plan for strategic parting lines or consider adding supporting structures that allow easy mold demolding. In some cases, using a removable mold insert or side-action core may help, but this increases cost and complexity.

Threads

Threads can be incorporated into urethane cast parts, but they require specific approaches to be effective. Internal threads should be avoided when possible, as they often require post-processing or complex mold inserts. Instead, use brass or stainless steel threaded inserts, placed manually into the silicone mold before casting. This simplifies the molding process and ensures mechanical reliability.

External threads may be molded directly, but you must use smooth transitions and generous draft angles to preserve mold life. You also want to avoid undercuts unless absolutely necessary. For low volume production, this balance between simplicity and functionality helps keep lead times short and tooling costs low.

Through Holes

Through holes serve various functions in consumer goods, medical housings, and structural enclosures. But if they aren’t designed correctly, they can trap air, deform during curing, or weaken surrounding material. The most reliable method is to mold through holes using dowel pins or core inserts that pass through both mold halves.

To maintain clean geometry and dimensional accuracy, ensure holes are at least 0.030″ in diameter. Align them parallel to the mold’s parting line whenever possible. This improves demolding efficiency and minimizes flash. Urethane casting benefits from this kind of forward-thinking because it reduces defects while allowing for complex design changes between runs.

Surface Texture and Finish

Whether you’re producing prototypes for tactile testing or finished parts for consumer electronics, the surface finish of your master pattern directly affects the cast result. That’s why using high-resolution 3D printed master models or CNC-machined surfaces is key.

Silicone molds used in urethane casting capture fine textures down to a few microns. You can achieve glossy, matte, or textured finishes based on your master pattern’s preparation. Avoid porous or inconsistent surfaces that might introduce air bubbles or impact strength during the curing process. This ensures you deliver urethane parts that meet expectations in both appearance and mechanical integrity, without needing extensive post-processing or coatings.

What Industries Use Urethane Casting?

Urethane casting is widely used in industries like automotive, medical devices, consumer electronics, architecture, aerospace, and product development. This method supports low to medium volume production where speed, material flexibility, and cost efficiency are critical.

In the automotive industry, it’s used to create durable housings, dashboards, lenses, and trim pieces. The medical sector relies on cast urethanes for surgical models, prosthetic prototypes, and housings for diagnostic equipment due to its biocompatibility and precision. In electronics, manufacturers use urethane casting for short-run enclosures, connectors, and functional assemblies where the material’s electrical insulation is beneficial.

Architectural designers and model builders use it for scaled structures, facade components, and experimental textures. In aerospace, it helps produce functional test parts and panels where design validation is essential. Consumer product brands rely on urethane casting for rapid prototyping and short production runs of wearables, appliance components, and packaging concepts.

Product Design and Prototyping

If you’re working with a 3D printed or CNC-machined master model, you can use urethane casting to quickly produce functional prototypes with properties similar to injection-molded parts, without the tooling costs or long setup times.

For design teams, this approach bridges the gap between CAD modeling and volume production. You can simulate mechanical performance, conduct usability testing, and validate aesthetics. Typical applications include product housings, ergonomic grips, lighting fixtures, and wearable devices.

The ability to match surface textures, colors, and even durometer hardness means you can test consumer-facing products before committing to mass production. This is especially valuable when you’re targeting high-value markets such as medical devices, electronics, and industrial tools, where product iterations are frequent and tight tolerances matter.

Wheels and Rollers

Urethane casting is a preferred process for producing wheels and rollers across multiple industries, including logistics, fitness, robotics, and automated machinery. These parts benefit from cast urethanes due to their customizable hardness (from Shore A to Shore D), excellent abrasion resistance, and consistent mechanical properties over repeated cycles.

You’ll find urethane wheels in conveyor systems, carts, and packaging lines, where the material’s toughness helps minimize downtime. Rollers are used in everything from 3D printers to assembly equipment, especially where chemical resistance and impact absorption are essential.

By using silicone molds and vacuum casting techniques, manufacturers can create precision-cast rollers with intricate cores, embedded shafts, or bonded inserts.

Automotive Components

In the automotive industry, urethane casting is frequently used to create functional prototypes and short-run production parts that mimic injection-molded components. You’ll see this process applied to interior trim panels, dashboard components, and light housings. Its compatibility with high-detail master patterns allows for complex geometries that replicate production parts with accuracy.

Cast urethanes offer a broad Shore D hardness range, making them suitable for structural or flexible automotive parts alike. Due to the abrasion resistance and heat tolerance of many polyurethane resins, urethane parts are used for testing under real-world mechanical and thermal stress. Engineers often favor urethane casting during design validation to simulate performance before investing in injection mold tooling.

Because lead times are short and mold materials like silicone can be reused, this method is ideal for rapid prototyping, especially when frequent design changes are expected. It’s widely used to bridge the gap between concept models and volume production across automotive applications.

Medical Device Housings

Medical device manufacturers rely on urethane casting to create housings, panels, and enclosures for diagnostic and therapeutic equipment. If you’re developing a new device, you’ll likely need low to medium volume production before committing to regulatory-approved mass manufacturing. Urethane casting offers the surface finish, dimensional precision, and flexibility you need for pre-commercial validation.

Cast urethane parts can simulate injection-molded surfaces, accommodate tight tolerances, and support various post-processing options such as painting, EMI shielding, or media blasting. This is important for consumer-facing or clinical-grade equipment that demands durability and professional aesthetics. Silicone molds used in urethane casting reproduce fine details and textures from the master model, often 3D printed via SLA or machined from resin.

In some cases, biocompatible or flame-retardant formulations are used to meet device safety requirements. The cost-effective production method and rapid turnaround make urethane casting a standard step in the product development lifecycle of medical electronics, lab equipment, and handheld devices.

Consumer Electronics Enclosures

Consumer electronics companies use urethane casting to produce enclosures for prototypes, pilot runs, and even early market testing. When you’re refining a design, say, a new smart home sensor, handheld device, or wearable tech, this process enables you to create fully functional casings that resemble final production models without investing in metal molds.

The urethane casting process allows for intricate design features, sharp edges, and smooth finishes, all while maintaining mechanical integrity. Common parts include bezels, housing shells, battery doors, and structural frames. These parts benefit from material options ranging from soft elastomers to rigid polymers with Shore D ratings for durability.

Because electronic enclosures must protect internal components, casting materials are selected for their thermal stability, impact resistance, and dimensional stability. The best practices in material selection and mold design help you reduce air bubbles, improve surface finish, and simulate injection-molded part quality.

Marine and Aerospace Parts

In both marine and aerospace sectors, urethane casting is widely used to produce lightweight, durable components during early-stage development or low volume production. You’ll often see this technique used for housings, ducting systems, seals, and customized panels where material properties like impact resistance, temperature stability, and dimensional precision are essential.

Thanks to its adaptability, urethane casting supports a wide range of geometries, surface textures, and wall thicknesses, which is especially valuable when replicating injection-molded designs during product testing. Urethane cast parts are frequently used to validate form and fit before investing in hard tooling, especially for critical assemblies exposed to vibration or environmental stress.

Because urethane parts can be tailored using different durometer scales, they can simulate rubber-like behavior or rigid performance depending on your requirements. This flexibility, along with the ability to create airtight, watertight components using silicone molds and vacuum casting, makes the process ideal for short runs in marine and aerospace applications.

Footwear and Fashion Prototyping

Urethane casting is becoming a go-to method in footwear and fashion prototyping due to its ability to create textured, highly detailed pieces that mirror mass production finishes. You can use it to produce midsoles, outsoles, decorative components, wearable tech casings, and fashion accessories for design evaluation or user testing.

For footwear designers, casting materials can replicate varying Shore A or Shore D hardness levels, mimicking the mechanical properties of thermoplastic elastomers or foam inserts. This gives you realistic insight into comfort, flexibility, and performance, without the cost and long lead time of injection mold tooling.

Because most molds used in urethane casting are based on 3D printed or CNC machined master patterns, the process supports fast design changes, perfect for rapidly evolving styles.

Seals, Gaskets, and Insulators

Urethane casting is commonly used to create seals, gaskets, and electrical insulators across industrial, medical, and automotive markets. If you’re producing functional prototypes or low to medium volume runs, casting offers you a balance of flexibility, performance, and speed.

Cast urethanes provide excellent abrasion resistance, chemical resistance, and flexibility, all of which are essential for sealing components exposed to pressure, temperature swings, or friction. The process supports production parts in both soft and firm formulations, giving you freedom to select casting materials that match real-world mechanical properties.

You can also incorporate inserts or use additives to enhance thermal or dielectric performance in electrical insulation parts. Urethane casting allows for high-fidelity reproduction of grooves, sealing lips, and complex geometries, often using silicone molds derived from master models.

Mannequins and Display Models

Urethane casting is widely used to create mannequins and retail display models, especially in applications where visual realism, surface finish, and custom geometry matter. If you’re in the retail, fashion, or exhibit design industry, this process gives you the freedom to replicate lifelike forms quickly and at a lower cost than traditional metal casting or injection mold tooling.

Mannequins and visual props are often produced using master patterns and silicone molds that can replicate high levels of detail—from muscle contours to clothing folds. These cast urethanes can be finished with paint, coatings, or foam cores to mimic real skin tones, textures, or weight distribution. Because the urethane casting process supports low volume production and short lead times, you can run limited promotional displays or custom store fixtures without investing in mass production methods.

Architectural Models

Architectural firms and model makers rely on urethane casting to produce detailed scale models for buildings, urban plans, or product installations. These components often require smooth surface finishes, intricate geometries, and consistent replication of complex forms, all of which are made possible with silicone molds used in urethane casting.

When time is limited and accuracy is essential, casting allows you to move quickly from digital 3D printed master models to finished components with precise dimensional stability. Urethane parts used for architectural display can represent materials like glass, stone, concrete, or polished plastic, helping you simulate a wide range of design textures without the delays of traditional model fabrication.

This method is especially valuable during the design validation stage or when presenting concepts to stakeholders. With urethane casting, you can produce custom panels, modular sections, and miniature structures with consistent color, clarity, and wall thickness.

How Much Does Urethane Casting Cost?

Costs can vary based on the part size, complexity, surface finish, and post-processing needs. The tooling cost is relatively low, with silicone molds typically ranging from $300 to $600 each. These molds are used to create multiple urethane cast parts before they degrade.

Per-part pricing usually falls between $15 and $100. Smaller parts with minimal post-processing are on the lower end, while larger or highly detailed products fall on the higher end. In comparison, a single injection mold tool can cost $10,000 or more, making urethane casting significantly more accessible for prototypes or limited runs.

Material selection also plays a role in cost. High-performance polyurethane resins or parts requiring flame retardant or food-grade certification may increase the material cost.

What are the Common Challenges in Urethane Casting and How to Avoid Them

One common issue of urethane casting is bubble formation inside the mold cavity. Bubbles are often caused by trapped air or high-viscosity casting materials.

Using a vacuum chamber during the degassing and pouring stages helps eliminate air bubbles.

Another way to reduce surface imperfections is by preheating your silicone molds and casting resins, which improves flow and reduces trapped gases.

Mold degradation is another challenge, especially if you’re working with abrasive or high-shore D urethane formulations.

After 20–50 casting cycles, silicone molds begin to lose detail and flexibility. You should expect to replace them to maintain product quality.

Choosing the right mold material for your production volume is part of best practices.

Inconsistent wall thickness can also lead to shrinkage or deformation. When wall sections vary too much, the resin cures at different rates, resulting in stress buildup or voids.

Maintaining uniform wall thickness or adding fillets, ribs, or gussets can counteract this.

Mold shift is another subtle yet damaging issue. If the mold halves are not aligned precisely, you may see visible parting lines on your cast urethane parts. Precision dowel pins and tight-fitting mold boxes can help prevent this.

Finally, consider using slip additives such as erucamide or oleamide. These reduce friction between the mold and part, making demolding easier and preserving mold life.

What Safety and Regulatory Considerations Are Important in Urethane Casting?

Always wear proper personal protective equipment (PPE), including nitrile gloves, eye protection, and respirators in enclosed or poorly ventilated areas.

Ensure your workspace has sufficient air exchange and exhaust ventilation to minimize exposure. It’s important that all containers are clearly labeled, and that you follow chemical storage regulations to prevent accidents.

The urethane casting process also involves thermal curing, so awareness of heat sources and fire safety matters.

In the US, compliance with OSHA’s Hazard Communication Standard and EPA regulations for waste disposal is part of best practices. Spent silicone molds used in urethane casting must be discarded appropriately, while leftover resin mixtures should never be poured down drains.

What is the Environmental Impact of Urethane Casting?

The environmental impact of urethane casting is mainly tied to mold disposal, resin waste, and the use of non-renewable materials.

Since silicone molds are typically single-use after 20–50 cycles, they generate solid waste that isn’t biodegradable. Similarly, leftover casting materials and excess resins contribute to industrial waste if not carefully managed.

However, the process supports low volume production and reduces overproduction, one of the advantages of urethane casting from a sustainability standpoint. Urethane cast parts can sometimes be recycled, especially when using certain thermoset formulations, though this depends on additives and cross-linking agents.

Sustainable alternatives like bio-based urethane resins are becoming more accessible. You may also find opportunities to reuse mold boxes or implement smarter material selection strategies that extend mold life. Compared to mass production with injection molding, urethane casting offers a more environmentally efficient option for small to medium volume projects, especially during product development stages.

How is Quality Control Carried Out in Urethane Casting?

Maintaining consistent quality in urethane casting starts with inspecting each step of the manufacturing process.

After casting, you should perform a visual inspection to check for surface defects, bubbles, or flow lines.

Silicone molds used in urethane casting can sometimes shift slightly, which may introduce parting line misalignment—this should also be monitored closely.

Dimensional accuracy checks are crucial, especially when you’re replicating 3D printed master patterns or tight-tolerance production parts. Using precision tools like calipers or coordinate measuring machines ensures each cast urethane part meets its intended specifications.

Surface finish analysis further ensures consistency, especially when parts are used in consumer goods or visible assemblies.

In production runs over 100 units, statistical sampling helps catch outliers and defects before they propagate. For sealed housings or enclosures, pressure testing is commonly used to validate structural integrity and proper sealing.

How Does Urethane Casting Compare to Other Manufacturing Methods?

Urethane casting stands alongside other key production techniques such as injection molding, CNC machining, metal casting, and 3D printing. Each method offers distinct advantages depending on your project’s priorities—whether that’s cost, lead time, material properties, or design complexity.

What sets urethane casting apart is its sweet spot for low to medium volume production where design flexibility and turnaround speed are vital.

For instance, unlike injection molding which requires expensive steel or aluminum tooling, urethane casting uses cost-effective silicone molds. You can produce accurate replicas from 3D printed master models at a fraction of the tooling investment. This makes it highly accessible for prototyping and bridge production runs. Additive manufacturing, while flexible, lacks the surface finish and material strength of urethane cast parts.

Urethane Casting vs. Injection Molding

Injection molding uses high-pressure molten plastic injected into metal molds, while urethane casting relies on room-temperature liquid resins poured into silicone molds made from a master pattern.

Tooling cost is the first major difference. Creating an injection mold often exceeds $10,000, while a silicone mold used in urethane casting typically ranges between $300–600. Urethane casting supports faster turnaround times and lower upfront investment, especially for limited production runs of 20–500 units.

In terms of surface finish, both offer excellent results, but injection molding edges ahead in texture repeatability and cycle efficiency. That said, urethane resins provide a wider variety of Shore D hardness levels, chemical resistance, and abrasion tolerance.

Material selection for injection molding is broader overall but requires higher minimum order volumes. If you’re producing a concept or specialty component and want to avoid long lead times and high costs, consider how does urethane casting and injection molding compare for your application.

Urethane Casting vs. 3D Printing

Urethane casting involves pouring liquid polyurethane resins into silicone molds made from 3D printed or CNC-machined master patterns. In contrast, 3D printing builds parts layer by layer from a digital model, typically using SLA, SLS, or FDM technologies.

If you’re producing parts that need higher mechanical properties, a superior surface finish, and consistent Shore D hardness, urethane casting usually performs better. The silicone molds used in urethane casting replicate fine features with excellent detail and allow for a wide range of surface textures. Cast urethanes can also mimic rubber-like flexibility or rigid thermoplastics depending on your choice of resin formulation.

On the other hand, 3D printing offers unmatched design freedom and rapid iteration, especially when geometries are too complex for mold splitting. But it falls short in durability and scalability when you need dozens or hundreds of production parts. Many additive manufacturing processes have limited abrasion resistance and may require significant post-processing to meet cosmetic standards.

Another difference lies in production volume and lead times. Urethane casting hits a sweet spot when you need 10–200 parts, while 3D printing is ideal for prototypes or one-off items. If you’re aiming for medium volume production with cost-effective results, the advantages of urethane casting become clear, especially when compared to the higher per-part costs and finish limitations of 3D printed pieces.

Below is a breakdown of how urethane casting and 3D printing compare across six critical factors:

Urethane Casting vs. CNC Machining

Urethane casting uses silicone molds created from a master model, usually 3D printed or CNC-machined, and fills them with liquid urethane resins to form parts. In contrast, CNC machining removes material from solid blocks (metal or plastic) using subtractive processes with computer-controlled tools.

When you’re producing low to medium volume parts with complex geometries and flexible design options, urethane casting offers more freedom. It allows the creation of intricate internal features without requiring tool reconfiguration. The silicone molds used in urethane casting are especially effective for replicating smooth finishes and tight tolerances, while offering lower upfront tooling costs than CNC.

On the other hand, CNC machining shines in material versatility and precision. If you’re working with metals, require extremely tight tolerances, or need single-piece production without waiting for mold fabrication, CNC is typically the better fit. However, the cost per unit in CNC becomes higher as complexity increases, and production timelines can extend for larger batches.

In terms of mechanical properties, cast urethanes offer excellent abrasion resistance, flexibility, and tailored Shore D hardness, which suits applications across consumer electronics, medical housings, and wheels. But CNC parts often provide higher structural integrity in demanding environments. Urethane casting is also more forgiving when it comes to design changes, simply update the master pattern, without reprogramming machinery.

When to Choose Urethane Casting Over Other Methods?

Choosing urethane casting depends on your project’s priorities, whether you’re after fast turnaround, cost-effective tooling, or the ability to test real-world product performance. The advantages of urethane casting make it an ideal manufacturing method for scenarios where design flexibility and short-run volumes are key.

If you’re looking at production quantities between 10 and 200 units, urethane casting hits the sweet spot. It avoids the high cost of injection mold tooling and delivers better mechanical properties than most 3D printed options. The use of silicone molds in urethane casting allows accurate reproduction of complex geometries, textures, and undercuts, features that would be harder or more expensive to achieve with CNC machining or metal casting.

Here are eight specific situations where urethane casting is likely your best choice:

• Design validation with production-grade parts before investing in hard tooling
• Bridge production between prototype and full-scale injection molding
• Low volume production of enclosures, housings, or industrial components
• Rapid prototyping with realistic surface finishes and mechanical performance
• Multiple part designs for user testing, marketing, or field trials
• Flexible elastomeric parts such as gaskets, seals, or shock-absorbing inserts
• Projects with tight deadlines where injection mold lead times are too long
• When cost effectiveness matters, especially for non-metal consumer goods

Conclusion

If you’ve ever felt stuck between pricey injection molds and slow 3D printing, you’re not alone, and that’s exactly where urethane casting shines. At 3ERP, we’ve seen firsthand how this method helps companies like yours bring ideas to life faster, without cutting corners on quality or blowing the budget. You get speed, a smooth surface finish, and materials tough enough to mimic real production parts.

Whether you’re testing a new design, running short production batches, or just need flexibility to make changes, urethane casting gives you room to move. It’s perfect for low to medium volume production where time and cost really matter. And with new materials and greener options on the rise, the process is only getting better.

So if you’re looking to turn a smart idea into a great product, fast, reliably, and without the overhead, we’re here to help make that happen.

3ERP offers complete support for vacuum casting and silicone molding, with the capability to fabricate urethane cast parts to precise tolerances.

The process begins with a master model made using CNC machining or 3D printing. This model is used to create a silicone mold, which is then filled with liquid resin under vacuum to eliminate trapped air.

The part is cured in an oven and removed once cooled. The silicone mold can be reused approximately 20 times, and each resulting component is an accurate replica of the original.

With a mold size capacity up to 1900 x 900 x 750 mm and a maximum product volume of 10 liters, 3ERP is an ideal choice for rapid prototyping and small batch manufacturing with fast turnarounds and excellent dimensional accuracy.
