Titanium CNC Machining: Tips, Techniques & Challenges

Titanium stands out for its incredible strength-to-weight ratio, corrosion resistance, and heat resilience, making it a top choice for industries like aerospace, medical, and automotive manufacturing. While these qualities make it ideal for high-performance parts, they also create unique machining challenges. Its low thermal conductivity and chemical reactivity can lead to heat buildup and rapid tool wear if not handled correctly. Even a small increase in cutting speed can significantly shorten tool life without the right strategies.

But titanium doesn’t have to be intimidating. With proper tools, precise settings, and effective machining techniques, working with titanium can be just as manageable as machining other metals.

In this article, we’ll explore practical tips and strategies to help you master titanium machining and achieve better results.

What is Titanium and Why Is It Used in Machining?

Titanium is celebrated for its strength-to-weight ratio, being about half as heavy as copper and possessing roughly half the density of stainless steel. This metal stands out for its superior corrosion resistance and ability to withstand high temperatures without losing its mechanical properties, making it ideal for harsh environments like marine and chemical processing setups. Furthermore, titanium is non-magnetic and not as electrically conductive as metals like copper, enhancing its applications in areas where magnetic and electrical interference must be minimized.

The metal’s impressive fatigue resistance enables its use in demanding applications such as jet engine components and structural frames. Titanium is also biocompatible, making it essential for medical implants and prosthetics, fulfilling a critical role in biomedical advancements. These characteristics not only highlight titanium’s versatility in manufacturing but also its critical role in advancing modern technological applications across a broad spectrum of industries.

Is Titanium Difficult to Machine?

Yes, machining titanium presents unique challenges due to its intrinsic properties. The metal’s low thermal conductivity significantly contributes to heat retention in the cutting zone, complicating the machining process by increasing the temperature of both the tool and the workpiece. This aspect, coupled with titanium’s chemical reactivity and the gummy nature of the chips it produces, can accelerate tool wear and lead to galling and heat buildup. Furthermore, titanium’s mechanical properties, including a low Young’s modulus, enhance its elasticity, causing it to deflect under tool pressure. This deflection can result in chatter, further complicating the machining process.

The challenges of machining titanium are compounded by its tendency to work-harden if the cutting tool lingers too long in one spot, increasing the difficulty of subsequent machining passes. Additionally, the poor thermal conductivity of titanium localizes heat at the cutting edge, necessitating the use of efficient coolant strategies. The stringy, long chips produced during machining can wrap around tools, adding complexity to chip evacuation.

How Does Titanium Compare to Other Materials in Machining?

Titanium is notoriously more challenging to machine than aluminum and requires more sophisticated machining strategies compared to many steels. The metal’s superior strength-to-weight ratio and unique combination of mechanical and chemical properties often justify the added complexity and expense involved in its machining. In comparison to materials like Inconel, titanium requires different strategies, particularly in heat management and tooling, although both materials demand advanced machining techniques due to their robust properties.

How Does Titanium Machining Differ from Other Materials?

Titanium’s distinctive properties necessitate specific approaches during the machining process. Unlike more conductive metals such as aluminum or steel, titanium requires considerably more careful heat management, lower machining speeds, and high rigidity in the machining setups. Specialized tools are also essential to cope with titanium’s characteristics, which include a lack of thermal conductivity and considerable elasticity. These factors necessitate unique tool path strategies, more frequent use of coolant, and different tool geometries to achieve effective results.

How Does Machining Titanium Work?

Machining titanium effectively requires a meticulous approach focused on controlling heat, selecting the right tooling, implementing suitable coolant strategies, and maintaining machine stability. Due to titanium’s unique properties such as its poor thermal conductivity and high chemical reactivity, optimizing machining parameters like speeds, feeds, and tool paths is crucial. Utilizing slow cutting speeds and higher feed rates helps manage the heat concentration at the cutting zone, which is essential to prevent tool wear and material damage.

Carbide tools coated with advanced materials like Titanium Aluminum Nitride (TiAlN) or Titanium Carbonitride (TiCN) are recommended due to their ability to withstand high temperatures and resist wear. Techniques such as arc-in entries, climb milling, and maintaining small radial engagements are crucial for mitigating tool shocks and reducing chipping. Additionally, employing rigid machines, ensuring stable workholding, and minimizing tool overhang are fundamental to reducing vibration and enhancing the overall machining accuracy.

What Are the Different Stages of Machining Titanium?

Throughout these different stages listed below, stress-relieving treatments prior to machining can significantly enhance the machinability of titanium by reducing internal stresses caused by previous processes such as forging or heat treatments.

Material Selection & Workholding Setup: Choosing the right grade of titanium and securing it properly in the machine setup is fundamental to successful machining. Ensuring the material is well-fixed minimizes potential vibration and movement during the machining process.
Tool Choice & Coating Selection: Selecting tools with appropriate coatings such as TiAlN enhances performance due to their thermal and wear resistance. Tools should be chosen based on the specific titanium alloy and the complexity of the job to optimize cutting efficiency and extend tool life.
Roughing: Utilizing stable tool paths and adequate coolant flow during the roughing stage helps manage the heat effectively. Techniques like trochoidal or plunge milling are beneficial for maintaining low radial engagement and controlling temperature rise.
Semi-Finishing: In this stage, the focus shifts to achieving closer tolerances and preparing the surface for final finishing. It involves careful speed control and minimal chip load to ensure surface integrity.
Finishing: The final touches are applied using sharp tools and controlled heat to achieve the desired surface finishes. The finishing stage often requires high precision to meet the exact specifications of the part.
Post-Machining Processes: After machining, processes such as deburring, polishing, and inspection are critical. For parts used in aerospace or medical applications, non-destructive testing ensures that the components meet stringent safety and quality standards.

What Are the Different Techniques Used for Machining Titanium?

Machining titanium requires an understanding of its unique material properties, including its strength, low thermal conductivity, and tendency to work harden. To effectively machine this versatile but challenging metal, a variety of techniques are employed, ranging from conventional to cutting-edge technologies. These techniques must be carefully chosen to match the part geometry, material grade, and desired outcome, considering the challenges titanium presents.

Conventional Machining Techniques

Conventional machining techniques remain foundational in working with titanium. These include turning, milling, drilling, and sawing, each requiring specific strategies to mitigate the material’s challenges such as heat buildup and work hardening. Here’s how these techniques are adapted for titanium:

Turning and Milling: Low radial engagement and climb milling are recommended to manage the heat and prevent work hardening. Conventional turning, for instance, should be performed with careful control over feed and speed to minimize thermal effects and maximize tool life.
Drilling and Sawing: These operations must prioritize efficient chip evacuation to prevent re-cutting, which can damage tools and compromise part quality. Coolants play a critical role here, helping reduce temperature and flush chips from the cutting zone.
Tooling: Tools used in conventional machining of titanium often feature specialized coatings such as titanium aluminum nitride (TiAlN) to enhance their hardness and heat resistance. Multi-flute cutters with secondary relief and stable corner radii are ideal for handling the toughness of titanium.

Turning

In the turning of titanium, the setup and tooling must be particularly robust to counteract the material’s elasticity and tendency to work harden:

Machine Settings: Lower RPMs and high torque are essential to manage the physical stresses during cutting, preventing deflection and vibration.
Tool Coatings: Utilizing sharp carbide tools coated with materials such as PVD (Physical Vapor Deposition) or TiAlN is crucial to resist wear and thermal buildup.
Operational Techniques: Constant feed rates are necessary to avoid work hardening, with adjustments in axial depth for each pass to distribute wear evenly on the tool. Additionally, the use of high-pressure coolant systems is vital to reduce heat and facilitate chip evacuation, enhancing overall tool performance and part quality.

Milling

Milling titanium requires machines with rigid spindles to counteract the metal’s toughness. Low speed and high torque are essential to manage the physical stress on the tools. Techniques like climb milling are preferred to achieve thick-to-thin chip formation, which helps in minimizing heat at the cutting edge. For optimal results:

Keep radial engagement low to reduce the load on the tool.
Use high-flute-count tools to increase the surface contact and heat dissipation.
Employ arc-in tool paths and introduce chamfers at exits to reduce the impact on the tool and workpiece.
Set the feed per tooth low and maintain stable cutting parameters to avoid premature tool wear.

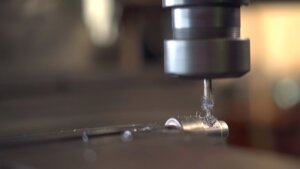

Drilling

Drilling titanium demands rigid setups and specialized drills coated with materials like TiAlN to handle the intense heat and prevent galling. Effective strategies include:

Utilizing high-pressure coolant to facilitate chip evacuation and reduce temperature at the cutting edge.
Maintaining a steady feed to avoid rubbing, which can quickly dull the drill bit.
Implementing incremental peck drilling to clear chips effectively and dissipate heat, ensuring the integrity of the hole and the tool.

Sawing

Sawing titanium is best performed with abrasive blades or carbide-tipped saws that can withstand the material’s hardness. Key considerations include:

Maintaining proper blade tension and speed to ensure clean cuts.
Applying coolant or lubrication liberally to prevent overheating and reduce friction.
Keeping the feed moderate to minimize heat generation and avoid blade wear.

Advanced Machining Techniques

Advanced machining techniques for titanium focus on optimizing process efficiency, minimizing thermal impact, and accommodating complex part geometries. These methods are crucial for enhancing productivity and ensuring the longevity of both the machine tools and the components being machined.

High-Speed Machining (HSM)

High-Speed Machining (HSM) for titanium, while operating at lower speeds relative to other materials like aluminum, leverages high feed rates to compensate for the heat sensitivity and hardening tendencies of titanium. Key strategies in HSM include:

Utilizing controlled high speeds combined with minimal radial depths to encourage the generation of thinner chips, which helps in faster heat removal from the cutting zone.
Avoiding full slotting to minimize the radial load on the tool.
Consistently applying coolant to enhance chip evacuation and reduce the thermal load on the tool and workpiece.
Employing high-flute count tools and optimizing chip thinning techniques to boost productivity without compromising tool integrity or part quality.

Plunge Milling

Plunge Milling is particularly effective for roughing out deep cavities in titanium. This technique focuses on axial rather than radial engagement, which significantly reduces the lateral forces that contribute to tool deflection and wear:

By concentrating forces axially, plunge milling stabilizes the cutting process, extends tool life, and minimizes vibration, making it ideal for handling the substantial material toughness of titanium.
The approach is highly beneficial when machining deep pockets, where radial forces can otherwise lead to tool failure and suboptimal machining results.
Ensuring adequate coolant flow during plunge milling is essential to clear chips effectively and maintain optimal temperatures at the cutting interface.

Electrical Discharge Machining (EDM)

Electrical Discharge Machining (EDM) presents a non-contact process that excels in shaping complex geometries without the mechanical stresses associated with traditional machining. This method is particularly beneficial for crafting intricate features with high precision:

EDM is perfect for creating detailed and precise components, especially where conventional cutting tools might fail.
By eliminating mechanical contact, EDM prevents any deformation or chatter on the workpiece, which is crucial when working with materials as reactive and tough as titanium.
Though the process may be slower compared to other machining methods, the trade-off comes in its ability to achieve superior dimensional accuracy, making it indispensable for aerospace and medical applications where precision is paramount.

Waterjet Cutting

Waterjet cutting offers a thermally neutral process that slices through titanium using an abrasive water stream, preserving the integrity of the material by avoiding heat-induced distortions:

This technique minimizes thermal effects, making it ideal for cutting preforms or roughing out shapes prior to more precise machining.
The absence of a heat-affected zone means that subsequent machining steps are simplified, as the material maintains its original properties and workability.
Properly programmed and executed waterjet cutting also ensures reduced material waste and maximizes the utility of expensive titanium sheets.

Finishing Techniques

Finishing techniques in titanium machining are essential for achieving the desired surface quality, dimensional accuracy, and texture. These methods are tailored to reduce burrs, enhance surface finishes, and ensure the functional aesthetics of the finished parts. They are crucial in applications ranging from aerospace components to medical implants, where precision and surface integrity are paramount.

Grinding

Grinding is a fundamental finishing technique that utilizes rigid grinding wheels to achieve precise surface conditions. This process is characterized by its ability to maintain tight tolerances and produce smooth finishes essential for critical components:

Proper wheel selection, such as cubic boron nitride (cBN), is crucial for extending tool life and achieving superior surface finishes.
The application of steady coolant flow and controlled, low-pressure grinding passes helps in preventing localized heating and surface damage.
By taking small depth increments during grinding, the risk of inducing surface micro-cracks is minimized, which is vital for maintaining the integrity of high-performance parts.

Polishing and Buffing

Polishing and buffing processes employ fine abrasives to reduce surface roughness significantly, enhancing both the aesthetic appeal and functional characteristics of titanium parts:

These processes are particularly beneficial in improving the fatigue life of components by eliminating minor surface imperfections and stress risers.
For biomedical implants, controlled polishing is critical to enhancing biocompatibility and reducing potential contamination sites, thus ensuring the implants’ safety and effectiveness.

Deburring

Deburring is an essential step in finishing that involves the removal of sharp edges and smoothing of corners to ensure safety and functionality:

Techniques such as abrasive brushing, tumbling, or thermal deburring are employed to achieve clean edge finishes.
This process is crucial in applications like aerospace and medical industries, where even minor imperfections can lead to failure under stress concentrations.

Sandblasting

Sandblasting involves the use of high-pressure abrasive media to create a uniform matte surface on titanium parts. This method is excellent for cleaning surfaces, removing minor defects, and preparing parts for further finishing processes:

Correct selection of blasting media is critical to prevent the embedding of particles into the titanium surfaces, which could compromise the material’s integrity.
Consistent nozzle movement and maintaining the correct distance are key to achieving uniform surface finishes without introducing stresses.

Additive and Hybrid Techniques

In machining titanium, additive and hybrid techniques represent a fusion of traditional and innovative approaches, allowing manufacturers to leverage the best of both worlds. These methods not only enhance the efficiency of production but also push the boundaries of what can be achieved in terms of complexity and precision.

Laser-Assisted Machining

Laser-assisted machining (LAM) utilizes a high-intensity laser to preheat the titanium, reducing its hardness and thus the cutting forces required during the machining process. This technique has several critical benefits:

It significantly reduces tool wear and extends the life of cutting tools.
By lowering the hardness of titanium at the cutting zone, LAM minimizes chatter and vibration, leading to smoother finishes.
The precise control of laser intensity and focus is crucial, ensuring that the heat is sufficiently applied without affecting the structural integrity of the material.

Additive Manufacturing (3D Printing)

Additive manufacturing, particularly through processes like direct metal laser sintering (DMLS) and electron beam melting (EBM), has revolutionized how titanium parts are produced:

These techniques allow for the creation of complex geometries that are often impossible to achieve with traditional subtractive methods alone.
By building parts layer by layer, additive manufacturing significantly reduces material waste and can lead to more cost-effective production, especially for intricate designs.
Following the additive process, CNC machining is often employed to achieve the precise tolerances and surface finishes required for high-performance applications.

Hybrid Machining (CNC and Additive Combination)

Hybrid machining combines additive manufacturing and CNC machining into a single process, enhancing the capabilities of each:

This approach allows for the additive build-up of titanium in near-net shapes, which are then precisely machined to achieve final dimensions and surface requirements.
It is particularly valuable in repair and overhaul operations for aerospace components, where material conservation and efficiency are paramount.
Hybrid machining setups typically integrate deposition heads and CNC spindles within the same machine, enabling seamless transitions between additive and subtractive processes.

Tool Path Strategies

Effective tool path strategies are critical in machining titanium due to its challenging material properties, including high strength and low thermal conductivity. These strategies are designed to manage the material’s resistance to cutting, while optimizing tool life and finish quality.

Climb Milling

Climb milling is a preferred method when machining titanium. It aligns the cutter rotation with the feed direction, creating a thick-to-thin chip formation. This method offers several advantages:

It reduces the heat generated in the workpiece, which is crucial given titanium’s poor heat dissipation.
By minimizing the strain hardening of the surface, climb milling helps in extending the tool’s life.
The technique improves chip evacuation, reducing the chances of re-cutting chips which can damage both the tool and the workpiece.

Trochoidal Milling

Trochoidal milling involves curved tool paths that maintain a constant tool load, making it ideal for machining titanium. The benefits of trochoidal milling include:

Reduced heat buildup due to minimized radial engagement, which is particularly beneficial for titanium.
Enhanced tool life and effective chip evacuation from the consistent and controlled cutting environment.
Allows for higher feed rates without excessive heat generation, which can lead to work hardening.

Constant Engagement Tool Paths

Constant engagement tool paths are designed to maintain a steady arc of contact on the tool, which prevents the tool from disengaging and re-engaging with the material abruptly. This continuity offers several improvements:

Reduces the likelihood of tool overload and breakage.
Lowers vibration and ensures more uniform tool wear and tear.
Enhances overall machining efficiency by maintaining consistent chip load, which is crucial for managing the heat and stress on the tool.

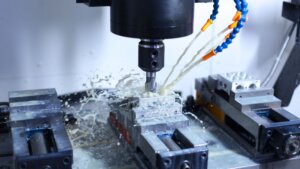

Coolant and Lubrication Techniques

When machining titanium, effective cooling strategies are paramount due to the material’s propensity for heat generation and its sensitivity to thermal stress. Let’s explore the different coolant and lubrication techniques that are pivotal in the machining process, helping to manage heat and enhance tool life.

Flood Coolant Systems

The traditional flood coolant system is a cornerstone in titanium machining, providing a generous flow of coolant to the cutting zone. This method:

Quenches the intense heat generated during the cutting process.
Washes away chips from the work area, which prevents them from being re-cut and causing damage to both the tool and the workpiece.
Ensures that the cutting tools are continually cooled, reducing the risk of overheating and failure.

High-Pressure Coolant (HPC)

High-pressure coolant systems are particularly effective in machining titanium. These systems utilize directed jets to efficiently remove chips from the cutting zone, which:

Minimizes the risk of galling and chip welding, common issues when machining titanium.
Enhances chip evacuation, leading to cleaner cuts and reduced potential for tool failure.
Allows for higher feed rates by maintaining cooler cutting conditions, thus preventing thermal damage to the tool.

Cryogenic Cooling

Cryogenic cooling in titanium machining involves the use of liquid nitrogen (LN2) or carbon dioxide (CO2) to drastically lower the temperature at the cutting zone. This technique:

Substantially reduces the tool wear by keeping the cutting edges extremely cool.
Lowers friction between the tool and the workpiece, enhancing the overall machining performance.
Is particularly beneficial for very hard titanium alloys, where conventional cooling methods might not be effective.

What Are the Most Effective Cooling Techniques?

Among the various methods, high-pressure coolant (HPC) systems and cryogenic cooling stand out as the most effective for machining titanium. These techniques optimize chip thickness and control temperature, which are crucial for preventing tool wear and ensuring the quality of the machined parts.

HPC systems deliver coolant at high pressures directly to the cutting zone, effectively removing chips and reducing temperature, which is essential for maintaining tool integrity and preventing galling.
Cryogenic cooling, involving the use of liquids like nitrogen or carbon dioxide, significantly reduces the cutting area’s temperature, enhancing tool life and reducing friction. This method is especially beneficial for complex, high-precision parts in aerospace or medical applications.

Minimum Quantity Lubrication (MQL)

As an alternative to traditional flood coolant systems, MQL offers an eco-friendly solution by using a fine mist of lubrication, which reduces coolant usage and minimizes environmental impact. However, it’s important to note:

MQL is less effective in high-heat scenarios like those encountered in intensive titanium machining operations.
For lighter finishing passes, MQL can be suitable, provided that the tooling is specifically designed to ensure adequate heat removal despite the minimal fluid application.

What are Emerging Techniques in Titanium Machining?

Emerging techniques in titanium machining integrate innovative technologies that push the boundaries of what is possible in terms of precision, efficiency, and the machining of complex geometries. These novel processes include ultrasonic machining, chemical milling, and plasma arc cutting, each offering unique benefits for specific applications.

Cryogenic Machining

Cryogenic machining introduces coolant at sub-zero temperatures, drastically improving heat control and extending tool life. This technique significantly enhances surface integrity and productivity while minimizing thermal damage to the workpiece.

Cryogenic machining can sometimes replace high-pressure coolant systems, simplifying the machining setup.
It pairs exceptionally well with advanced tool coatings, optimizing performance under extreme conditions.

Ultrasonic Machining

Ultrasonic machining involves vibrating the tool at ultrasonic frequencies, which significantly reduces the cutting forces applied to the titanium. This method is particularly advantageous for manufacturing delicate features in aerospace and medical components.

The ultrasonic vibrations help in reducing friction and temperature, thereby preventing premature tool wear and extending the lifespan of the machining equipment.
This technique is especially effective for creating intricate, thin-walled structures in titanium, where conventional machining might cause damage or distortion.

Plasma Arc Cutting

Plasma arc cutting utilizes a high-velocity stream of ionized gas to melt and cut through titanium. This process is ideal for shaping initial stock and creating complex geometries with minimal mechanical stress on the material.

While effective, plasma cutting requires careful post-processing to mitigate the effects of heat-affected zones that could weaken the structural integrity of the part.
It provides an efficient method to achieve near-net shapes that can be further refined through precision machining.

Chemical Milling (Etching)

Chemical milling, also known as chemical etching, uses controlled chemical dissolution to shape parts without introducing mechanical stress. This process is crucial in applications like aerospace where maintaining material integrity while reducing weight is essential.

Chemical milling achieves uniform thinning and can create highly intricate contours that would be challenging to machine mechanically.
The process requires stringent safety and environmental controls due to the chemicals involved, ensuring the safety of the workforce and minimizing environmental impact.

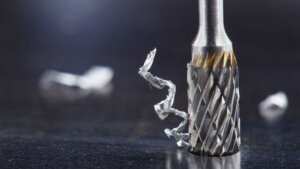

What Are the Most Effective Machining Techniques for Titanium?

In titanium machining, several advanced strategies stand out for their efficacy in managing the unique challenges presented by this robust metal. These techniques are essential for achieving high precision while minimizing tool wear and thermal damage, critical factors when working with titanium due to its strength and low thermal conductivity.

High-pressure coolant systems are pivotal as they help break up chips, facilitating their evacuation and reducing the likelihood of chip welding and galling.
Climb milling helps in producing a cleaner cut and prolongs tool life by minimizing the heat generated during the cutting process.
Dynamic milling paths optimize chip load and maintain consistent cutting conditions, which is essential for managing the thermal dynamics of titanium machining.
Sharp tools with specialized coatings (such as titanium aluminum nitride) reduce sticking and decrease the thermal impact on the tool’s cutting edges.

How Do You Choose the Right Machining Method for Titanium?

Selecting the right machining method for titanium involves a comprehensive understanding of both the material properties and the specific requirements of the project. Factors to consider include:

Material grade: Whether you are working with pure titanium or one of its alloys impacts machinability and tool choice.
Part complexity: Complex shapes may require advanced machining techniques like 5-axis milling or multi-tasking machines.
Machine rigidity: Sturdy machines reduce vibrations, crucial for achieving high precision in titanium machining.
Available coolant systems: Options like high-pressure coolant or cryogenic systems can significantly impact tool life and cutting efficiency.
Desired surface finish: Determines the need for finishing processes and tool types.
Cost considerations: Balancing between the most cost-effective yet efficient machining method can affect the overall budget.
Production scale: High-volume production might justify the investment in more advanced or faster machining processes to reduce cycle times.

What Are the Different Types of Titanium Alloys for Machining?

Titanium is renowned for its strength-to-weight ratio, corrosion resistance, and biocompatibility, making it a preferred material in aerospace, medical, and marine applications. The machining of titanium alloys, however, presents unique challenges due to their physical properties. Here’s a look at some of the common titanium alloys:

Grades 1-4: These are commercially pure (unalloyed) titanium, with Grade 1 being the softest and most ductile, making it easier to machine compared to the others. Each grade has progressively higher strength and less formability.
Grade 5 (Ti-6Al-4V): This is the most widely used titanium alloy, known for its high strength, toughness, and heat resistance. It’s tougher to machine than pure titanium but is common in advanced applications such as aerospace and medical implants.
Ti-5-5-5-3: Known for its high strength and toughness, this alloy is more challenging to machine due to its hardness.
Ti-407: Softer and more formable than Ti-6Al-4V, making it significantly easier to machine. It is suitable for applications where ease of fabrication is a priority over ultimate strength.

What Are Pure Titanium and Its Alloys?

Titanium is renowned for its strength, light weight, and corrosion resistance, making it ideal for various industrial applications. Pure titanium, categorized into Grades 1 through 4, is noted for being more malleable and easier to machine than its alloyed counterparts. These grades differ primarily in oxygen content, with higher levels increasing strength but also making the material harder to work with.

Alloys of titanium introduce elements like Aluminum (Al), Vanadium (V), and Molybdenum (Mo) to enhance specific properties such as strength and heat resistance. For instance, Ti-6Al-4V, a commonly used alloy, offers an excellent balance of strength, corrosion resistance, and machinability, making it a preferred choice across industries from aerospace to medical.

What Are the Different Grades of Titanium?

Titanium alloys are classified into over 40 grades, with each designed for specific applications and environments:

Grade 1: The softest, most ductile titanium, excellent for forming and welding.
Grade 2: Known as the “workhorse” of titanium alloys due to its balanced attributes.
Grade 3: Offers medium strength, suitable for more demanding mechanical components.
Grade 4: The strongest of the commercially pure grades, used where durability and resistance are critical.
Grade 5 (Ti-6Al-4V): The most ubiquitous alloy, valued for its high strength and corrosion resistance.
Grade 6: Exhibits stability and strength at elevated temperatures.
Grades 7 & 11: Contain palladium for enhanced corrosion resistance, particularly against reducing acids.
Grade 12: Known for its excellent weldability and hot formability.
Grade 23: A low interstitial version of Grade 5, often used in medical implants for its superior biocompatibility.

How Do Titanium Alloys Differ in Terms of Machinability?

The machinability of titanium alloys varies significantly based on composition and grade. Pure titanium grades are typically easier to machine than more complex alloys such as Ti-5Al-2.5Sn or the highly alloyed Ti-5-5-5-3, which require more robust machining strategies. High alloying content increases heat resistance but decreases machinability, necessitating adjustments in machining parameters like speeds, feeds, and coolant application.

What Is the Easiest Titanium to Machine?

Among the various grades of titanium, Grade 1 is generally considered the easiest to machine due to its lower hardness and good ductility. This grade is often selected when formability is more critical than strength. Conversely, Ti-407 is noted for being significantly easier to machine than the widely used Ti-6Al-4V, providing a viable option for applications that do not demand the highest strength or heat resistance.

What Are the Tools Required for Machining Titanium?

Machining titanium demands precision and resilience due to its tough nature and tendency to react with cutting tools under high heat. Selecting the right tools for machining titanium is paramount to maintain productivity and minimize tool wear. Here’s a guide on the essential tools and their specifications necessary for effectively machining titanium.

Sharp Carbide Tools: Carbide tools with sharp edges are crucial as they resist wear better under the high heat generated during titanium machining. Tools with physical vapor deposition (PVD) or titanium aluminum nitride (TiAlN) coatings are preferable due to their ability to withstand high temperatures and resist abrasion.
High-Speed Steel Tools: These are useful, especially when enhanced with heat resistance properties. Smaller diameter tools can be advantageous as they allow the cutting edge to cool quicker between cuts, reducing the risk of heat buildup.
Tool Geometry and Coatings: New developments in tool geometry, such as secondary relief angles, are designed to minimize contact area with the titanium, thus reducing heat generation and tool wear. Incorporating tools with more flutes can maintain productivity at lower speeds, which is critical for managing the heat sensitive nature of titanium.
Advanced Toolholders: Tools designed for high-pressure coolant are essential for deep hole drilling and other operations where chip evacuation is a concern. Hydraulic chucks and other anti-pullout toolholders ensure that the tool does not slip under high torque, which is common in titanium machining.
Round Inserts and Variable Helix Geometry: Using tools with a stable corner radius and round inserts helps minimize chip thinning and breakage risks. Variable helix angles in end mills disrupt harmonics and reduce chatter, making the machining process smoother and more reliable.

How Does Tool Coating Impact Titanium Machining?

TiAlN Coatings: Titanium aluminum nitride (TiAlN) coatings are beneficial for titanium machining as they form a tough alumina layer when exposed to the high temperatures of machining. This layer protects the cutting tool from heat and reduces friction, allowing for higher cutting speeds and prolonging tool life.
TiCN Coatings: Titanium carbonitride (TiCN) offers increased hardness and resistance to abrasive wear, which is particularly valuable when cutting through titanium chips that can otherwise be detrimental to the tool’s surface.

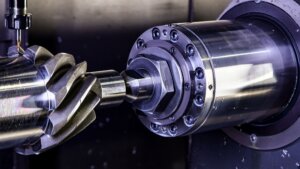

Why Is Tool Sharpness So Important When Machining Titanium?

Sharp tools are critical in titanium machining for several reasons. A keen edge reduces the force required to cut through the material, thereby decreasing the heat generated and the risk of galling—a condition where titanium sticks to the tool surface.

Reduced Friction and Heat: Dull tools increase friction and heat buildup, which can lead to premature tool wear and failure. By maintaining sharp tools, the cutting process becomes more efficient, and the likelihood of adverse outcomes like chip welding is minimized.
Surface Finish and Tool Life: A sharper tool edge also ensures a better surface finish on the machined parts and reduces the tool’s deflection. Regular re-sharpening and proper tool maintenance are essential practices that help extend tool life and reduce overall machining costs.

What Are High-Feed Mills and Why Are They Ideal for Titanium?

High-feed mills are specifically designed to manage the challenges associated with machining titanium. These tools are characterized by their large-radius cutting edges which facilitate the creation of thinner chips, allowing for higher feed rates at reduced depths of cut. This design not only boosts productivity but also significantly reduces the heat generated during the machining process.

Improved Productivity: High-feed mills increase the material removal rate, enabling faster production cycles.
Heat Reduction: By creating thinner chips, these mills help dissipate heat more efficiently, preventing damage to both the tool and the workpiece.
Stable Cutting Temperatures and Forces: These mills help maintain manageable cutting forces and stable temperatures, crucial in prolonging tool life and ensuring the quality of the titanium part, particularly in roughing operations.

What Tool Insert Shapes Are Best for Titanium?

Choosing the right tool insert shape is crucial when machining titanium to minimize wear and tear and maximize efficiency. The best inserts for this purpose typically feature:

Strong Edge Geometry: This helps in reducing chatter and tool pressure, which are common issues when machining titanium due to its tough properties.
Secondary Relief: A secondary relief angle decreases the contact area between the tool and the workpiece, reducing heat generation and tool wear.
Stable Corner Radius: Inserts with a stable corner radius enhance strength and durability, allowing for consistent performance under the strenuous conditions of titanium machining.

Additional considerations include:

Round or Toroidal Inserts: These inserts distribute cutting forces more evenly, reducing the likelihood of tool failure.
Lead Angles: Proper lead angles are essential as they help generate thicker initial chips which carry away more heat, further safeguarding the tool’s lifespan and enhancing the surface finish of the machined part.

What Are the Main Parameters of Machining Titanium?

When machining titanium, using the correct machining parameters is critical to achieving efficient results while maintaining tool life. Titanium’s low thermal conductivity and high strength-to-weight ratio make it particularly challenging to machine without precise control over cutting conditions.

Cutting Speed: Typically ranges between 40 to 150 meters per minute (m/min). Excessive speeds can lead to tool wear due to heat buildup. Lower speeds are recommended when starting a new machining process.
Feed per Tooth: Often maintained between 0.03 and 0.15 mm/tooth. A higher feed rate helps reduce heat generation by ensuring the cutting tool removes material efficiently.
Radial Engagement: Keeping radial engagement below 70% of the cavity width minimizes heat concentration and improves chip evacuation.
Coolant Pressure: High-pressure coolant (HPC) systems are often used to control heat and flush chips from the cutting zone.
Axial Depth of Cut: Adjusting depth based on the material grade and tool capacity helps balance productivity with tool wear.

Why Is Radial Engagement Important in Titanium Machining?

Radial engagement plays a crucial role in titanium machining, influencing both heat generation and chip evacuation. Lower radial engagement involves using a smaller portion of the cutting tool’s diameter in contact with the workpiece, helping to control heat and tool wear.

Reducing radial engagement offers several advantages:

Less Heat Concentration: Lower radial engagement reduces the contact area, preventing excessive heat accumulation at the cutting edge.
Improved Chip Formation: Smaller engagement allows chips to form more effectively, reducing the risk of galling and tool breakage.
Enhanced Coolant Access: With reduced tool contact, the coolant can reach the cutting zone more effectively, ensuring proper heat dissipation.

How Can High-Pressure Coolant Help with Titanium Machining?

High-pressure coolant (HPC) systems are essential when machining titanium due to the material’s poor thermal conductivity and tendency to generate heat during cutting. HPC ensures effective heat management while improving both productivity and tool longevity.

Benefits of using HPC in titanium machining:

Chip Evacuation: The high-pressure flow clears chips from the cutting zone, preventing recutting and chip packing, which are major contributors to tool failure.
Reduced Galling: HPC minimizes galling by flushing chips away before they can bond to the tool surface.
Lower Cutting Temperatures: By consistently cooling the cutting zone, HPC prevents excessive heat buildup, protecting the tool’s cutting edge.
Enhanced Tool Life: Consistent cooling and chip removal reduce tool wear, allowing for more aggressive machining parameters without sacrificing tool integrity.

What Are the Applications of Machined Titanium Parts?

Machined titanium parts are essential across a variety of industries due to their strength, corrosion resistance, and impressive strength-to-weight ratio. Some of the most common applications include:

Aerospace: Aircraft frames, jet engine components, landing gear, and fasteners benefit from titanium’s heat resistance and low weight, reducing fuel consumption while maintaining structural integrity.
Military: Missile components, armor plating, and submarine parts rely on titanium’s durability and corrosion resistance, especially in extreme environments.
Marine: Propellers, ballast tanks, and ship hull reinforcements use titanium due to its excellent resistance to saltwater corrosion.
Medical: Titanium machining is crucial for medical implants, pacemakers, and prosthetic devices because of its biocompatibility and resistance to body fluids, making it ideal for use inside the human body.
Sports Equipment: Titanium’s lightweight yet durable properties make it ideal for golf clubs, bicycle frames, tennis rackets, and sports gear where strength and minimal weight are important.
Automotive: High-performance vehicles use titanium parts like engine valves, brake components, and exhaust systems due to its heat resistance and low mass.
Industrial: Chemical processing equipment, heat exchangers, and pressure vessels use titanium for its corrosion resistance and reliability in harsh environments.
Power Generation and Infrastructure: Turbine blades, structural reinforcements, and power plant components leverage titanium’s long-term durability and fatigue resistance.

What Are the Common Challenges of Machining Titanium?

Machining titanium can be complex due to the metal’s physical properties, which demand precise strategies to avoid tool wear and material damage. Common challenges include:

Heat Buildup: Titanium has low thermal conductivity, causing heat to concentrate at the cutting edge. Solution: Use high-pressure coolant systems and moderate cutting speeds.
Galling: The material tends to stick to cutting tools, creating surface damage. Solution: Coatings like titanium aluminum nitride (TiAlN) and sharp cutting tools minimize galling.
Work Hardening: Titanium hardens when improperly cut, making subsequent passes more difficult. Solution: Maintain continuous tool motion and avoid tool deflection.
Vibration and Chatter: The material’s stiffness can cause tool vibration, leading to poor surface finishes. Solution: Use stable workholding setups and damped tool holders.
Short Tool Life: Heat generation accelerates tool wear. Solution: Select cutting tools with heat-resistant coatings and use optimized speeds and feeds.
Chip Welding: Chips can fuse to the cutting edge, damaging the tool. Solution: Employ sharp tools with proper coatings and use high-pressure coolant for chip evacuation.
High Cost: Titanium machining requires specialized tools and slower machining speeds, raising production costs. Solution: Implement proper cutting strategies and high-efficiency tools to balance productivity and cost.

Common Defects and Solutions:

Burrs and Poor Surface Finish: Often caused by dull tools or excessive heat. Solution: Use sharp tools and adjust cutting speeds.
Tool Breakage: Results from excessive heat and poor chip evacuation. Solution: Apply high-pressure coolant and adjust radial engagement.
Dimensional Inaccuracies: Typically from work hardening or chatter. Solution: Use consistent cutting speeds and minimize tool deflection.

How Much Does Machining Titanium Cost?

On average, machining titanium can range between $50 to $300 per hour depending on factors like the complexity of the titanium part, the grade of titanium alloy, and the machining setup. The raw titanium material itself is expensive, often priced between $20 to $50 per pound, with alloys like Ti-6Al-4V being among the pricier options.

Also, longer cycle times and lower cutting speeds further drive up operational costs. The risk of shorter tool life and higher scrap rates also adds to the expense.

How to Achieve Optimal Surface Finishes on Titanium

Achieving high-quality surface finishes when machining titanium requires precision and attention to detail. Implementing the following strategies can improve surface integrity and part quality:

Use Sharp Tools: Dull tools increase friction and heat generation, leading to poor finishes.
Ensure a Stable Setup: Secure workholding minimizes vibration and deflection.
Employ High-Pressure Coolant: Proper coolant application reduces heat buildup and flushes chips away from the cutting edge.
Optimize Cutting Parameters: Set correct spindle speeds, feed rates, and radial engagement to balance cutting efficiency and surface quality.
Finishing Passes: Use lower chip loads and lighter cuts during final passes to refine the surface.

What Post-Machining Processes Help Improve Titanium Surface Quality?

Post-machining processes play a critical role in refining titanium parts for both functional and aesthetic purposes. These techniques not only enhance surface finish but also improve fatigue life and part reliability:

Polishing: Removes minor surface irregularities and improves visual appeal.
Grinding: Ideal for tighter tolerances and higher dimensional accuracy.
Deburring: Eliminates sharp edges and burrs left after the machining process.
Anodizing: Enhances corrosion resistance and allows for color-coding parts.

What Are Some Design Tips for Machining Titanium?

Designing titanium parts effectively requires careful consideration of the material’s properties and machining behavior. Titanium’s strength, low thermal conductivity, and tendency to work harden demand strategies that minimize machining challenges.

To improve titanium machining results:

Minimize Thin Walls: Thin walls are prone to deflection and vibration, leading to chatter and dimensional inaccuracies during cutting.
Ensure Proper Chip Evacuation: Clear pathways for chip removal help reduce heat buildup and prevent chip welding to the tool.
Incorporate Chamfers: Adding chamfers on edges can reduce stress concentrations and improve surface finishes.
Design for Stable Workholding: A stable fixture ensures the workpiece remains secure, reducing vibration and improving precision.
Optimize Tool Access: Ensure tools can reach all machined areas without excessive tool overhang, which can reduce cutting stability.

What Are the Latest Advancements in Titanium Machining?

Machining titanium has advanced significantly due to innovative tool designs, coatings, and machining techniques. These developments aim to extend tool life, improve surface quality, and reduce heat buildup during machining.

Recent advancements include:

Modern Tool Coatings: Titanium aluminum nitride (TiAlN) and nano-composite coatings improve heat resistance and reduce wear on the tool’s cutting edge.
Advanced Toolpaths: Dynamic milling and trochoidal cutting strategies lower radial engagement, reduce heat buildup, and extend tool life.
Cryogenic Machining: Liquid nitrogen-based cooling systems prevent heat accumulation, enhancing cutting tool performance.
Ultrasonic Machining: Applying ultrasonic vibrations during cutting reduces friction, cutting forces, and heat generation.
High-Torque Machines: CNC machines with high spindle torque and rigid structures are increasingly used to handle the demands of titanium machining.

Conclusion

Successfully machining titanium comes down to finding the right balance between the tools you use, your cutting strategies, and proper process control. Titanium’s impressive properties, like its high strength and low thermal conductivity, make it valuable but also challenging to machine if you don’t take the right steps.

To get the best results, you need to work with sharp, heat-resistant tools and apply high-pressure coolant to keep heat in check while clearing chips effectively. Securing your workpiece properly is just as important since it helps prevent vibration and chatter, which can damage both the tool and the part. Optimizing your toolpaths and using smart machining strategies also go a long way in controlling heat buildup and extending tool life.

By focusing on these best practices, you’ll be better prepared to handle the challenges titanium brings, turning a difficult material into an opportunity for high-quality, precision machining.

Frequently Asked Questions

Is Titanium Harder to Machine Than Aluminum?

Yes, titanium is harder to machine than aluminum. It retains heat at the cutting edge due to low thermal conductivity, leading to faster tool wear. Titanium requires specialized tools with heat-resistant coatings, lower spindle speeds, and high-pressure coolant for heat control. Aluminum, by contrast, can be machined faster with simpler tooling since it dissipates heat more effectively.

Is Titanium Harder to Machine Than Inconel?

Both materials are difficult to machine but for different reasons. Titanium retains heat, causing tool wear, while Inconel is extremely hard, especially at high temperatures, making it abrasive on tools. Titanium machining focuses on heat control with coolant, while Inconel requires tools that withstand extreme hardness and heat. Each needs specialized strategies depending on the alloy and application.

Titanium CNC Machining: Tips, Techniques, Challenges & Things to Consider
