If you’ve ever had to machine a clean, accurate groove into a metal part, you know how important slot milling is.
Whether you’re shaping T-slots, cutting vent grooves, or carving out deep keyways with tight tolerances, slot milling gives you the control and precision you need. It’s one of the most reliable ways to produce complex slots and profiles that actually meet spec, every time.
Today, you’ll see slot milling in action across industries like aerospace, automotive, and electronics. From engine block cooling vents to the tiny guide channels in semiconductor wafers, this technique helps create the high-precision components that keep things moving.
And thanks to modern CAM software and smarter toolpaths, like trochoidal milling, you can boost your productivity by 25–40%, all while improving chip evacuation and reducing heat.
If you’re aiming for cleaner cuts, better surface finish, and a more efficient workflow, you’re in the right place. In this article, we’ll focus on how slot milling works, why it matters, and what you can do to get the best results in your own shop.
What is Slot Milling?
Slot milling is a specific type of milling operation used to produce elongated cavities in a workpiece using a rotating cutter. These cavities, or slots, are typically the same width as the cutting tool, though their dimensions can be adjusted depending on the toolpath and machine strategy.
This process is used to machine keyways, T-slots, and straight grooves with high dimensional accuracy and repeatability, making it a foundational operation in modern CNC machining.
The main purpose of slot milling is to remove material in a controlled linear path, forming geometries that support part integration, load distribution, or fluid and wire routing. It’s a reliable method for creating both open and closed profiles.
You’ll often use this process when working on components that require mechanical joining or channel features, such as T-slots in fixture plates or guide slots in plastic housings.
Slot milling differs from similar techniques like side milling and face milling.
While side milling removes material primarily from the sides and face milling levels large surfaces using broad-diameter cutters, slot milling engages the entire cutter diameter along the centerline of the slot.
This creates uniform slots with well-defined depth and wall geometry. In contrast to groove machining processes like broaching or plunge cutting, slot milling offers greater flexibility in shapes and dimensions.
Common slot profiles include straight grooves, curved contours, T-shaped channels, dovetails, and semicircular keyways. Specialized operations like Woodruff key slotting and deep cavity slotting are possible through modern toolpath techniques.
With advancements in CAM software and tool technology, it’s now standard to hold tolerances within ±0.02 mm and achieve surface finishes below Ra 1.6 µm. Trochoidal milling paths and plunge entry motions allow you to manage radial forces and chip evacuation effectively, even when machining deep slots or working in high-strength materials.
Why is Slot Milling Important in Modern Machining?
It enables the machining of weight-reducing cavities in aerospace frames, cooling galleries in engine components, and lead-screw tracks in precision motion systems. Compared to processes like EDM or broaching, which are slower or less flexible, slot milling offers faster cycle times and lower tooling costs.
Its value in just-in-time and lean manufacturing setups is significant. A single tool, such as an end mill, can cut various slot types, including blind grooves, open-ended slots, and finished side walls, without requiring frequent tool changes.
This reduces machine downtime and simplifies programming. In many setups, tool changes are reduced by more than 30%, leading to measurable gains in production throughput.
Slot milling also supports high-accuracy assembly. In transmission systems, for example, Woodruff keyways are used to ensure alignment between shafts and gears.
What are Key Features of Slot Milling?
Slot milling offers a versatile toolkit for machining features with precision. You can use various types of end mills, including straight flute and helical tools, depending on the material and slot profile. For more complex needs, variable-helix flutes or chip-breaker geometries are preferred, especially in cases where chip evacuation or chatter control is critical.
The operation can be performed on vertical and horizontal CNC milling machines as well as advanced 5-axis setups. In special scenarios, EDM machines or drilling equipment may be used to start a cavity before switching to a milling cutter for the finishing passes.
Slot shapes can range widely, short or long, narrow or wide, open or blind. When slot width exceeds the tool diameter, trochoidal paths allow efficient material removal without overloading the cutter. This approach also reduces tool deflection, improves surface finish, and ensures effective chip clearance, even when dealing with difficult materials or restricted geometries.
High-precision slot milling often achieves repeatability to ±0.02 mm, and final surface roughness levels below Ra 0.8 µm. Whether you’re creating slots for airflow, alignment, or component seating, the process delivers results that meet demanding design and production requirements.
History of Slot Milling
Slot milling originated in the late 19th century during the industrial age, when machinists used manual horizontal milling machines to cut keyways into steam engine shafts.
These early slotting operations were basic but vital for transmitting torque in rotating assemblies. The tooling was limited, but the concept of using a rotating cutter to form a slot along a linear axis quickly gained traction in machine shops.
By the 1950s, the introduction of shell mills and arbor-mounted side-and-face cutters allowed multiple slots to be machined simultaneously. This marked the beginning of gang milling, where several slot cutters were mounted on a single arbor to create uniform T-slots in machine tables or fixture plates.
It significantly improved productivity and became a standard method for producing slots or grooves on large-scale workpieces.
The 1980s saw the integration of CNC controls, enabling programmable ramp down entry and plunge motion. These changes improved chip evacuation and reduced tool breakage, especially in hard materials or when machining deep slots with long tool overhangs. CNC milling machines offered tighter control over feed rate, slot geometry, and slot depth, which was a major leap from conventional milling approaches.
From the 2010s onward, adaptive toolpaths and trochoidal milling strategies became common. These innovations, supported by high-speed machining centers and coated carbide end mills, reduced radial forces and extended tool life.
As a result, slotting cycle times dropped by 30 to 50%, while tool wear decreased by as much as threefold. Today, slot milling is deeply integrated into CNC machining operations across the manufacturing industry, offering precision, versatility, and speed for a wide range of groove machining applications.
How Does Slot Milling Work?
Slot milling follows a structured, linear workflow that starts with detailed preparation and continues through tool selection, setup, machining, and inspection. Each step in the process directly impacts machining performance, especially when you’re working with tight tolerances or difficult materials.
What makes slot milling unique is how much attention must be paid to chip evacuation and thermal control. These factors influence your decisions at every stage, from selecting tool geometry to defining the cutting zone and adjusting feed rates.
The process typically begins by analyzing the design requirements, such as the specific slot width, depth, and contour. After that, you’ll choose suitable cutting tools, such as end mills or slot milling cutters, based on the geometry and workpiece material.
Rigid fixturing is crucial to prevent tool deflection, especially when cutting long or narrow slots. Then, you’ll define machining parameters, including spindle speed, axial and radial depth of cut, and tool entry method, whether ramping or plunging.
During material removal, factors like toolpath strategy, slot milling technique, and coolant delivery play major roles in surface quality and tool life. Finishing involves light spring passes and edge deburring to meet the final surface finish and dimensional accuracy. Inspection tools such as micrometers and CMMs verify slot features before final part release.
Preparation
The first step in any slot milling operation is a thorough review of the part blueprint. You’ll need to examine the required slot width, slot depth, and total length, along with any specifications on corner radii and tolerances.
These dimensions define the slot geometry and help determine if the slot will be open-ended, blind, or fully enclosed. Each of these slot types comes with its own set of machining requirements, which directly influence tool selection and entry strategy.
For example, when preparing for machining deep slots or internal grooves in a closed space, you may need to pilot drill the start point to allow a milling cutter to enter cleanly. Blind slots, in particular, demand careful planning to avoid excessive heat buildup or chip packing, both of which can reduce tool life or compromise surface finish. Identifying datum references early helps align the workpiece correctly on the machine tool and ensures consistency across multiple parts or fixture setups.
Tool Selection
You’ll want to match the milling cutter diameter to the required slot width as closely as possible. A general rule is to use 95–100% of the slot width for a one-pass cut, and 60–70% for roughing passes, especially in tough materials or when removing large volumes.
For machining steel alloys above 35 HRC, TiAlN-coated carbide end mills are a solid choice. These coatings enhance heat resistance and extend tool life, particularly during high-speed CNC milling operations. For softer materials like plastics or wood, uncoated high-speed steel tools are more than adequate and often more cost-effective.
When you’re slotting deeper than 3×D, extended-reach end mills with variable helix designs help reduce chatter and maintain tool stability. If chip control is a concern, consider cutters with serrated flutes or chip-breaker geometries. These designs improve chip evacuation and reduce radial forces, lowering the risk of tool deflection and surface finish degradation.
Setup
Proper fixturing is essential to ensure slotting accuracy and repeatability. Use a rigid setup, such as a precision vise, modular tombstone, or custom fixture plate, that limits movement and vibration during the slot milling operation. Keeping tool overhang below 2× the tool diameter helps maintain rigidity and reduces the effects of long tool overhangs, which are more prone to bending and chatter.
Before cutting, check spindle run-out to ensure it’s within 0.005 mm. Excessive run-out can affect both slot width and surface finish. It’s also important to verify your machine’s work offsets. Use a reliable probing system or dial indicator to zero the workpiece, particularly when producing features that must align with adjacent contours, such as grooves in a workpiece or mating keyways.
For complex parts or high-volume production, you might want to add arbor support or auxiliary clamping to distribute clamping forces more evenly.
Parameters
When cutting alloy steels with carbide tools, you should set spindle speed to achieve cutting velocities in the range of 120–350 meters per minute. Feed per tooth usually falls between 0.03–0.07 mm, depending on cutter diameter, flute count, and workpiece material.
Depth of cut should be broken into two phases: roughing and finishing. Roughing typically removes 70% of the total slot depth, while the final 30% is removed with a lighter pass to improve surface finish and maintain dimensional tolerances. For optimal slot milling, this balance keeps tool forces manageable and enhances tool life.
When entering the material, use a ramp-down motion at an angle of 45 degrees or greater. This ramp angle reduces impulse load on the cutter and ensures better chip evacuation. For very hard materials or deep slots, consider an axial plunge entry, especially if you’re using trochoidal milling, to distribute forces evenly and prevent premature tool wear.
Workpiece Securing
Effective workpiece securing is essential to maintain dimensional accuracy during slot milling. If the stock vibrates, you risk producing slots with inconsistent width, irregular wall geometry, or chatter marks. To avoid this, make sure the workpiece is supported within 50 mm of the cutting area. This proximity reduces tool deflection and maintains alignment along the slot axis.
For irregular parts, step jaws or custom soft jaws offer the flexibility to clamp uneven geometries without damaging the surface. In shaft slotting applications, especially those involving Woodruff key slotting or deep slots, adding tail-stock support helps control axial movement and prevents misalignment under cutting forces.
In more advanced setups, modular fixtures and 5-axis CNC machining platforms offer adaptive clamping across multiple faces. Regardless of your method, the goal is tool stability under high radial forces. When the fixturing is optimized, you not only improve slot geometry but also reduce tool wear and improve chip removal across the full slot depth.
Cutting
In most scenarios, you’ll want to begin with trochoidal milling, which maintains a consistent chip load while reducing radial cutting forces. This is especially useful when you’re machining deep slots or working with hard materials. When trochoidal paths aren’t practical, a conventional linear strategy is acceptable, and plunge cutting may be used as a last resort for tight or enclosed spaces.
Keeping at least one cutter tooth engaged at all times helps stabilize spindle load and maintain steady cutting forces. You should monitor the load meter closely—keeping the load under 90% minimizes the risk of chatter and vibration-related tool damage. For lighter machines, staying within this range also protects the drive system from overload.
High-pressure coolant systems are highly effective for chip evacuation. Aim for at least 70 bar when slotting in steel or titanium. For aluminum or plastics, compressed air may be more suitable.
Finishing Steps
After roughing and semi-finishing, slot walls often require a final pass to meet strict surface quality specifications. A spring-pass using 5–10% radial engagement is ideal for refining slot profiles and removing any remaining tool marks. This helps achieve a wall finish of Ra 1.6 µm or better, which is critical in parts that require tight mating fits or minimal friction during assembly.
Next, deburring is performed to remove sharp edges and burrs. You can use a 0.2 mm chamfer mill for precise edge breaks or a nylon abrasive wheel for components with more delicate features. Deburring ensures safe handling and protects adjacent components from premature wear or damage once assembled.
Before inspection, always clean the slots with a solvent rinse. Any remaining chips, coolant residue, or burr fragments can affect measurement accuracy.
By completing this final stage with care, you’ll help guarantee consistent surface finish, geometry, and compliance with design specifications across all slotting operations.
What are the Benefits and Limitations of Slot Milling?
One of the biggest advantages of slot milling is its ability to achieve extremely tight tolerances, typically ±0.02 mm, making it a go-to choice when dimensional precision is non-negotiable.
Whether you’re producing T-slots in fixture plates or channels in semiconductor wafers, slot milling delivers the accuracy required for functional and assembly-critical parts.
Flexibility is another core strength. With the right milling cutter and machine setup, you can produce complex slot geometries in a single setup, straight, curved, deep slots, or dovetail grooves. This reduces part repositioning and speeds up overall cycle time.
Trochoidal milling and optimized toolpaths also contribute to up to 50% productivity gains while improving tool life and surface finish. It’s effective across a broad range of materials, from aluminum and stainless steel to plastics and wood.
However, there are limitations to consider. Tool deflection becomes a concern when slot depths exceed three times the cutter diameter.
You’ll also need high-pressure coolant, typically above 70 bar, when machining materials like Inconel, where heat buildup and chip evacuation become problematic. Additionally, carbide end mills deliver better results but come with a higher cost than HSS options, especially in high-volume operations.
What are the Different Slot Milling Techniques and Tools?
Slot milling operations often start with conventional end milling, especially when working with standard slot shapes in steel or aluminum. More specialized techniques, like T-slot cutting or Woodruff key slotting, require unique tools such as undercutting cutters or form-ground groove cutters.
Trochoidal milling is widely adopted for deep or wide slots, where managing radial forces and chip evacuation qualities is essential. In contrast, plunge strategies help minimize deflection in hard materials.
Ultimately, your tool selection should align with the slot profile, part material, and machine tool capabilities. From CNC milling centers to manual milling machines, each method comes with trade-offs in speed, accuracy, and tool life.
End Milling
End milling is one of the most common techniques used in slot machining. Standard 2-, 3-, or 4-flute end mills are well-suited for cutting straight slots and closed pockets. These tools are effective for producing variable-depth profiles, especially when working in aluminum or low-carbon steel.
If your part includes internal corner radii or curved edges, switching to a ball-nose end mill helps you create smooth fillets without needing a secondary tool change.
This method is ideal for general-purpose applications where part geometries don’t require undercutting or high aspect ratios.
You’ll often use it for slots in a workpiece such as coolant grooves in brake rotors or alignment channels in gear blanks. End milling also supports adaptive toolpath strategies, like ramp-down motion and trochoidal milling, to reduce cutting forces and extend tool life.
Side Milling
Side milling is a common technique used to create slots or grooves in a workpiece along one or both sides of the milling cutter. Unlike end milling, which cuts using the bottom of the tool, side milling utilizes the periphery of the cutter to remove material. This makes it ideal for machining deep slots or producing clean walls with superior surface finish in structural applications.
Typically, side milling cutters are mounted on an arbor and used in conjunction with horizontal milling machines. The staggered teeth arrangement on the cutter allows for more efficient chip removal, reducing heat buildup and improving tool life.
If you’re working with large components or require long slot lengths, side milling enables you to maintain slot width consistently across the entire length of the cut.
Compared to end mills, side milling cutters can handle larger cutter diameters and are better suited for machining slots with depths greater than the cutter thickness. These cutters are especially valuable in manufacturing heavy-duty frames, guide bars, and channels where stability and precision are critical.
T-Slot Milling
T-slot milling is a two-step machining process used to create the characteristic T-shaped slots commonly found in fixture plates, machine beds, and modular tooling systems. The process starts by machining a straight pilot slot using an end milling cutter. This establishes the upper portion of the T-slot and serves as a guiding path for the next operation.
In the second step, a T-slot cutter, also known as a T-slot milling cutter, is used to undercut the slot profile. These tools feature side-cutting flutes and an enlarged lower diameter that forms the horizontal “arms” of the T. This geometry allows the slot to accommodate fasteners or keys that slide into place, locking components into position. These slots are widely used in workholding systems, allowing machinists to reposition parts efficiently across the table of milling machines.
Since T-slot cutting involves increased radial forces and potential tool deflection, you need to ensure stable fixturing and maintain precise feed rates to avoid compromising the slot geometry.
Woodruff Key Slotting
Woodruff key slotting is a specialized slotting operation used to machine semicircular keyways into shafts. These slots are essential for securing gears, pulleys, or other rotating components onto shafts, ensuring torque is transmitted without slippage. The Woodruff key itself is a half-moon-shaped insert that fits snugly into both the shaft and the mating component.
To perform this machining operation, you’ll use a Woodruff keyseat cutter—an arbor-mounted tool with a flat-sided circular blade.
Standard cutter sizes, such as No. 404 to No. 424, cover slot widths ranging from approximately 1.59 mm to 14.29 mm, accommodating a variety of key sizes used across the manufacturing industry. These cutters are often used in horizontal milling setups or CNC machines configured with suitable arbor support and spindle adjustments.
The key advantage of Woodruff key slotting lies in its ability to create strong, self-aligning connections while reducing the likelihood of shaft distortion. If you’re producing components like engine blocks, gear shafts, or transmission parts, this method offers repeatable results that meet tight tolerances.
Gang Milling
Gang milling is an advanced slot machining method where multiple milling cutters are mounted on a single arbor to machine several surfaces or parallel slots at once. If you’re cutting multiple grooves into a single workpiece, like the cooling fins on a heat-sink plate or multiple screw tracks in a machine base, this approach can save you significant production time.
By synchronizing tool engagement, gang milling reduces spindle load fluctuations and balances radial cutting forces across the arbor. You’ll often see this setup in horizontal milling machines within high-throughput CNC machine facilities.
The gang milling cutter assembly is designed to create slots or grooves of varying depths and widths in one pass, eliminating toolpath changes and reducing tool entry frequency, two major causes of tool wear and heat buildup in conventional milling.
In applications like machining cast aluminum parts or large steel guide bars, this method can cut cycle time by up to 60%.
Face Milling for Slotting
Face milling is typically associated with planar material removal, but in specific slot milling applications, it plays a critical role—especially when you’re dealing with wide, shallow slots or surface grooves in large parts.
This method uses face milling cutters with large diameters, often over 100 mm, to quickly rough wide channels like oil galleries or cooling vents in engine blocks.
You’ll find that in situations where the slot width exceeds 20 mm and the depth is relatively shallow, face milling becomes more efficient than end milling or groove milling. The reason is simple: the larger cutter diameters offer better stability, improved material removal rate, and reduced impulse load per tooth.
This lowers tool wear and allows you to maintain high feed rates without compromising surface quality.
These face cutters can also withstand high cutting forces across wide slotting areas, making them ideal for creating slots in a workpiece where width uniformity and speed are key.
Slab Milling (If Applicable)
Slab milling, sometimes referred to as surface milling, is often used to prepare large plates or blocks before applying precision slot cutting strategies. While not a slot-specific operation, slab milling creates a broad, flat surface that simplifies subsequent machining steps.
It plays a complementary role in projects where you need to ensure uniform slot geometry, especially in cases involving deep slots or long tool overhangs.
The process uses a wide milling cutter, similar to a shell mill, mounted on a horizontal spindle. You’ll typically apply this technique in the early stages of machining to level a rough casting or forged workpiece.
The resulting flat plane offers a clean reference for more complex slot profiles to be machined later using end mills, groove cutters, or even gang milling cutters.
Although slab milling overlaps with face and side milling in cutter configuration, its use in slotting operations focuses on preparation rather than final shaping. If you’re targeting high precision, this step ensures proper tool stability, better chip clearance, and tighter slot tolerances.
Groove Milling
Groove milling is a specialized slot milling technique used when the slot width is equal to or smaller than the milling cutter’s diameter. In most cases, this is achieved using an end mill or slot milling cutter specifically designed for narrow grooves in a workpiece.
You’ll find it especially useful when you’re machining slots for keys, O-rings, cooling channels, or precision-fit assemblies that require clean slot geometry and minimal variation in slot width.
This technique is often programmed with trochoidal milling toolpaths, which reduce radial cutting forces, improve chip evacuation, and extend tool life, particularly in deep slots or hard-to-machine materials.
Groove milling is also applied in both CNC milling and conventional milling setups depending on the material and workpiece configuration. When slotting operations require consistent slot depths and excellent surface quality, groove cutters can deliver high precision with minimal chatter or heat buildup.
Compared to larger cutter diameters used in face or slab milling, groove milling emphasizes control and dimensional accuracy. This is critical in machining applications like woodruff key slotting, t slot cutting, or prototype development for injection molding components.
What are the Most Effective Toolpath Strategies for Slot Milling?
You’ll often choose between conventional and trochoidal strategies depending on machining requirements. For basic operations using end mills or t slot milling cutters, conventional milling remains common. But when you’re facing tougher materials or need to reduce radial cutting forces, trochoidal milling becomes the more effective option. The manufacturing industry increasingly leans on these advanced toolpath techniques to meet the rising precision demands of aerospace, injection molding, and gear machining applications.
Conventional
Conventional toolpaths follow a linear cutting motion along the slot axis. This is the most basic method used in slotting operations. It’s simple to program, especially in CAM software that supports basic machining processes or manual CNC machines.
You might use conventional slot machining when working with softer workpiece materials or when milling shallow slots. However, this approach tends to generate higher radial cutting forces, especially in slots deeper than three times the cutter diameter.
The risk of heat buildup increases with depth, which affects surface quality and accelerates tool wear. For projects that don’t require tight slot tolerances, this strategy remains serviceable.
Still, it may struggle in tougher metals where chatter vibrations and impulse loads become problematic. Compared to other slot milling techniques, this path offers ease but sacrifices performance in harder conditions.
Trochoidal
Trochoidal milling is engineered for slot milling operations that involve narrow slots or materials that produce high cutting resistance. Rather than using a straight path, this method carves spiral-like passes with controlled radial engagement, helping you equalize chip thickness and reduce stress on the cutting edge.
This technique is ideal for machining deep slots where tool deflection or long tool overhangs pose stability concerns. Because radial forces drop by roughly 40%, your cutting tools can withstand high cutting forces for longer durations without overheating or excessive wear.
Trochoidal milling not only improves chip evacuation but also minimizes the need for excessive spindle speed or feed rate adjustments.
However, because the resulting toolpath leaves spiral witness marks along the slot walls, a secondary finishing pass may be needed to meet high surface finish requirements. Despite this, you’ll find this method crucial in optimizing tool life and reducing machine load, especially in applications like t slot cutting, slot profiles for gears, or groove machining in composites.
Plunge
Plunge cutting is a toolpath strategy used in slot milling when you need to create or enlarge a slot by entering the material vertically, rather than ramping in along the slot axis. It’s commonly compared to axial drilling and is especially effective in projects where precision and rigidity are critical.
This method minimizes tool deflection by concentrating cutting forces axially instead of radially, which is a major benefit when machining deep slots with a high aspect ratio—especially those deeper than 4:1.
You’ll often use plunge strategies when working with difficult-to-machine materials like titanium or hardened steels. These materials tend to amplify chatter vibrations and heat buildup in conventional slot milling techniques.
Plunging reduces radial cutting forces and distributes heat more evenly through the cutting zone. However, while it provides stability during entry, it doesn’t produce optimal surface finish on the slot walls. That’s why secondary finishing passes with a side milling cutter or end milling cutter are often needed.
In modern CNC machining, plunge toolpaths are particularly useful for slotting operations that involve t slot milling, woodruff key slotting, or creating internal pockets in aerospace-grade components.
What Materials Can Be Machined with Slot Milling?
For metals, you’ll typically work with low-carbon steel, stainless steel, titanium, aluminum, and copper alloys. These materials respond well to slot milling cutters, but each requires specific cutting speeds.
For instance, aluminum can be machined at around 300–350 m/min, while stainless steel and titanium require slower speeds around 60–120 m/min to avoid heat buildup and premature tool wear.
These materials are common in sectors like aerospace, automotive, and medical device machining.
When machining plastics such as ABS, nylon, and polycarbonate, high-speed steel (HSS) tools are often preferred to prevent melting. Using lower spindle speeds and ensuring chip evacuation is critical, especially when machining slots or grooves in delicate workpieces.
For wood and composite materials, especially fiber-reinforced plastics, you’ll want to use up-cut flute cutters. These help maintain clean walls along the slot axis and minimize fraying or delamination during slotting operations.
Effective chip removal and proper toolpath planning are key when handling these materials to achieve a superior finish and avoid clogging your milling cutter.
What Materials Can’t Be Slot Milled?
If you’re working with extremely brittle ceramics or rubber-like elastomers, slot machining becomes inefficient or even impossible using conventional milling machines and slot cutters.
Brittle materials such as zirconia or silicon carbide tend to fracture under the impulse load generated by milling processes. Without specialized diamond tooling or controlled abrasive methods, you won’t be able to maintain the surface quality or dimensional tolerances needed in grooves or channels.
In these cases, abrasive waterjet cutting or laser machining is often the better alternative.
On the opposite end of the spectrum, elastomers and other flexible plastics present challenges because they deflect under tool load. Instead of forming clean slot shapes, these materials deform, causing irregular slot geometry and poor edge quality. Even with advanced cam software and cutter diameter control, conventional slot milling techniques cannot overcome this issue.
What Machines and Tools are Used in Slot Milling?
CNC milling machines are the most widely used in today’s manufacturing industry. They offer high-speed interpolation, toolpath strategies like trochoidal milling, and adaptive chip evacuation qualities, all vital when working on complex slots or grooves in a workpiece.
However, conventional milling machines still hold value in basic applications, especially in low-volume production or job shops handling standard groove machining operations.
In addition to the machine, you need the right cutting tools. Common options include slot milling cutters, t slot milling cutters, side milling cutters, and specialized groove cutters.
Selecting a milling cutter with the correct diameter, coating, and flute geometry ensures better chip clearance, reduced tool deflection, and superior surface finish. From large-diameter face cutters to smaller end milling tools, the variety allows you to match the tool to your project’s shapes, slot depths, and machining requirements.
CNC Machines and Manual Milling Machines
CNC machines are ideal for complex slot milling techniques due to their ability to execute continuous interpolation and adjust in real time.
With a CNC milling machine, you can generate curved slots, varied slot shapes, or closed-end t slots, all while controlling spindle speed, feed rate, and depth in a consistent loop.
Toolpath planning through CAM software makes it easier to machine pockets or create slots across multiple axes with minimal operator intervention.
In contrast, manual milling machines are better suited for simpler slot profiles like open keyways or straight channels. They offer tactile control but lack the adaptability required for variable-depth slotting or intricate groove configurations.
If you’re producing prototypes or small batches where toolpath changes are minimal, manual machines might still fit your workflow.
However, for optimal slot milling performance, especially when dealing with precision slot features or higher radial cutting forces, CNC machines offer clear advantages in productivity and consistency.
Types of Cutters for Slot Milling
In most cases, end mills are your go-to tool. These are versatile, come in many diameters, and work well for slotting operations in metals and plastics. They’re particularly useful for creating precise grooves in a workpiece or machining deep slots with limited tool overhangs.
Specialized cutters are used for more targeted tasks. For instance, a woodruff key slotting cutter produces concave slots suited for drive keys, while a t slot milling cutter is designed to cut the underside of t-shaped slots often found in machine tool tables. You may also use side milling cutters when working on wider slots or to machine multiple grooves in gang milling setups.
Tool material is another important factor. High-speed steel (HSS) is cost-effective and works well for soft metals and plastics. For tougher applications—such as machining titanium or hardened alloys, you’ll want carbide tools.
These withstand high cutting forces and provide longer tool life. Coatings like TiAlN or TiCN improve heat resistance, reduce friction, and extend performance in high-temperature cutting zones.
What Cutters are Best for Slotting Operations?.
For aggressive material removal in deep slots, serrated roughers, also called roughing end mills, offer superior performance. Their unique cutting edge geometry breaks up chips efficiently, reducing spindle load and preventing heat buildup. These are ideal for machining applications involving high radial forces or long tool overhangs.
If you’re working with harder metals or high-heat alloys, using a TiAlN-coated end milling cutter helps maintain edge sharpness and resist oxidation.
For more specialized needs, t slot cutters and woodruff key cutters offer shape-specific capabilities, such as machining keyways or inverted t shapes in machine tool tables or assembly parts.

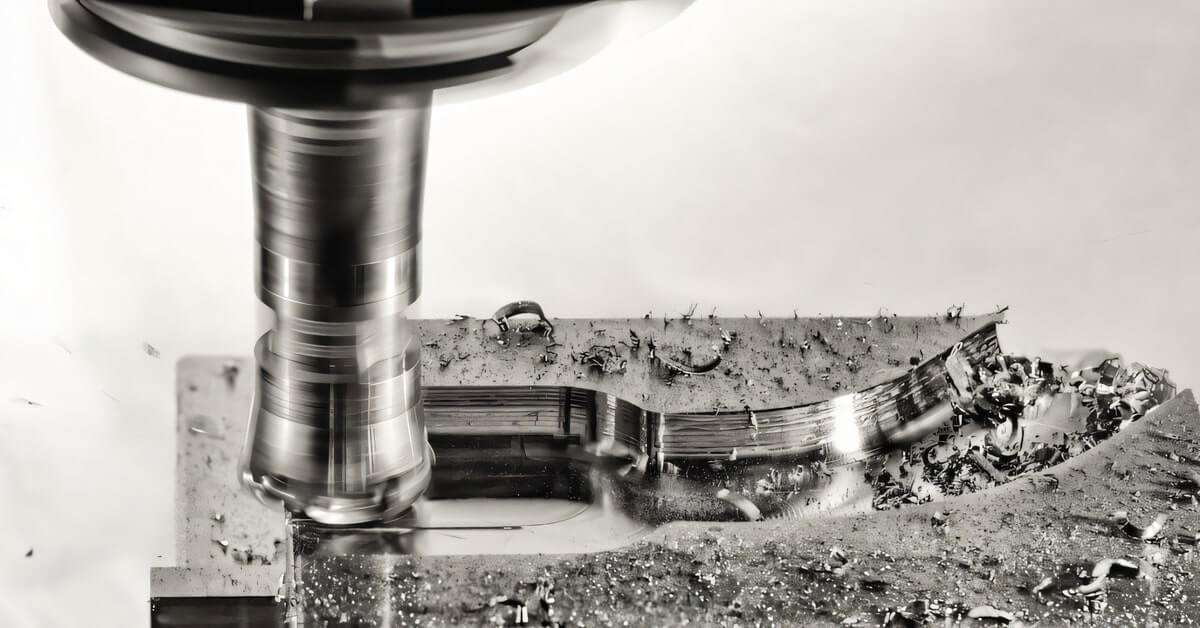

How Do You Select Cutters and Define Cutting Parameters for Slot Milling?
Whether you’re working on grooves in a workpiece or preparing deep slots in high-strength components, your choices directly influence tool life, surface finish, chip evacuation, and dimensional accuracy. You need to consider more than just slot size, you also have to account for the material, cutting zone temperature, tool stability, and slot geometry.
The slot milling process typically involves matching cutter diameter to the slot width and adapting the feed rate and spindle speed to material removal rate goals.
End mills are commonly used for their ability to maintain superior finishes, especially when machining narrow slot features.
In contrast, wider slots or t-slot cutting may call for side milling cutters or t slot milling cutters supported by robust arbor setups to minimize tool deflection and withstand high radial forces.
If your machining requirements include varying slot depths or long slot profiles, techniques like trochoidal milling can offer better chip evacuation and reduce spindle load. CAM software allows you to refine these toolpath strategies and plan ramp down entry motions that preserve tool edges.
For optimal slot milling performance, every detail, from the cutter’s coating to the ramp angle, must align with the workpiece material and the machining parameters you’ve defined.
Choosing the Right Cutter for Slot Width and Depth
When you’re slotting shallow or standard-depth features, you can often rely on a single-pass strategy using a cutter diameter equal to the slot width. However, this only holds true for depths up to three times the cutter diameter.
Once you exceed that ratio, it’s critical to apply a multiple-pass approach—typically in 30–40% step-down increments—to maintain stability, minimize chatter vibrations, and improve chip clearance.
For machining deep slots, use longer end mills with reinforced cores or side milling cutters supported by an arbor. This reduces tool overhangs and helps maintain consistent radial cutting forces throughout the slot milling operation.
Keep in mind that larger cutter diameters help distribute forces more evenly, but they also require sufficient chip evacuation paths to avoid heat buildup and tool wear.
In precision applications, like woodruff key slotting or creating slots for gear teeth, you must also consider cutter geometry and flute count.
Calculating Feed per Tooth
Feed per tooth (fz) directly impacts cutting forces, tool life, and chip thickness. When you set feed rate without adjusting for cutter geometry, you risk either chatter vibrations or tool overload. You calculate this value using the formula:
fz = feed rate / (number of teeth × spindle speed).
For example, with a 10 mm carbide end milling cutter spinning at 6,000 rpm and having 4 flutes, and a feed rate of 1,000 mm/min, the fz equals 0.042 mm. This falls within the typical range for optimal slot milling, 0.03 mm to 0.07 mm.
Staying within this range supports chip evacuation, especially when machining deep slots or narrow slots along the slot axis. If your feed per tooth is too low, the cutter may rub instead of shearing material, causing excessive heat buildup.
Too high, and you’re likely to see tool deflection, rapid wear, or even fracture. Whether you’re using conventional milling or trochoidal milling techniques, precision in feed settings makes the difference between productive CNC machining and costly downtime.
Determining Depth of Cut
Slot depth must match both your slotting operations and your cutting tool’s capability. For many slot milling applications, a two-stage approach works best: rough at 70% of the required depth, then finish the final 30% in a lighter pass. This helps maintain control over chip thickness and tool stability.
Material plays a large role. For aluminum, you can safely run an axial depth of cut (DOC) up to 1.5× the tool diameter. For tougher alloys like titanium, stick to 0.5× the diameter. These rules apply across many types of slot milling techniques, from gang milling to woodruff key slotting.
Slot milling cutters need to resist both radial cutting forces and heat generation as they progress along the slot. Using larger cutter diameters can reduce radial force but increases torque load, especially in applications requiring wide slot widths.
For narrow slots, consider reducing cutter diameter to maintain form accuracy and avoid excessive tool overhangs.
To maintain surface quality and tool life, especially in cnc milling operations, combine calculated DOC with cam software that supports ramp down entry and trochoidal trochoidal path planning.
What Specialized Techniques are Used in Complex Slot Milling Scenarios?
When you’re dealing with unique slot geometries, material constraints, or precise tolerances, you need to apply more advanced slot milling techniques to maintain control over quality and tool wear. These operations go beyond basic slotting, involving compound angles, non-uniform slot depths, or unusual cross sections, like t slots, deep slots, or custom-shaped channels in aerospace parts.
To handle these demands, you’ll need the right toolpath strategies, such as trochoidal milling for superior chip evacuation or climb milling for better surface finish.
Specialized cutting tools like side milling cutters, face milling cutters, and t slot cutters are tailored to resist high radial forces and maintain slot geometry throughout the slot milling process. For slots or grooves with varying profiles, tool deflection and chip removal become limiting factors, especially in softer materials or long tool overhangs.
Complex scenarios also require careful tool selection using cam software and real-time spindle adjustments. These approaches allow you to create slots with accurate slot width and depth while keeping spindle load and cutting forces within safe operating ranges.
Milling Open Slots with Side and Face Cutters
Open slots in large components or thick plate stock are best tackled using a combination of side-and-face cutters. These cutters provide the stability and chip clearance you need to maintain accuracy, especially when machining deep slots. You start by using a side-and-face milling cutter to rough the slot profile, following the slot axis. This stage prioritizes material removal rate and stability under impulse load.
Once the roughing pass is complete, a shell mill or face milling cutter is used to clean the slot floor, ensuring flatness and superior finishes.
To complete the process, deburr the slot edges to prevent burr formation from compromising the fit or performance of mating parts. Each step must consider feed rate, slot width, and chip evacuation qualities to avoid excessive heat buildup and ensure consistent surface quality. This method is widely used in the manufacturing industry for producing t slots or grooves in components like guide bars and fixture plates.
Keyway Slotting Techniques
Keyways in shaft and bore assemblies require extremely tight slot width tolerances and a reliable cutting process. The most effective method involves woodruff key slotting using a t slot milling cutter or a dedicated woodruff key cutter. You begin with a plunge entry into the workpiece, making sure your cutter diameter matches the required key size.
After the initial cut, you perform a light spring pass to finalize the width and clean up any tool deflection from the plunge. Maintaining a tolerance of ±0.013 mm is critical, especially in load-bearing keyway applications like gear blanks, brake rotors, or engine blocks. Tool stability and slot geometry are influenced by the arbor support and radial cutting forces, so spindle speed and cutting zone control must be fine-tuned.
Internal Grooving
When you need to create slots or grooves in a workpiece where external access is limited, internal grooving becomes essential. These slots typically appear inside enclosed housings, pockets, or recessed geometries where conventional milling cannot reach.
To execute this, you’ll rely on miniature end mills with diameters less than 2 mm, often used in conjunction with 5-axis CNC milling machines. These tools allow controlled movement along complex paths inside closed cavities.
Start by plunge-cutting a small starter hole using electrical discharge machining (EDM) if the geometry doesn’t permit standard entry. Then, use the miniature cutter to expand the groove to its final width.
Trochoidal milling strategies improve stability during the cut and reduce impulse load on the tool. Chip removal is a critical consideration in this type of groove machining operation, air blasts or coolant jets help achieve better chip evacuation without overheating the tool or the workpiece.
Applications include cooling vents, internal guide bars, or compact aerospace components with strict slot geometry tolerances.
Creating Narrow and Shallow Slots
Milling narrow and shallow slots requires special attention to tool deflection, chip clearance, and surface finish. For optimal slot milling performance in this scenario, you should choose single-flute micro-end mills with small diameter cutters, typically ranging from 0.5 mm to 2 mm. These are designed to minimize radial cutting forces while maximizing chip thickness for stability.
Your feed rate must remain conservative to prevent chatter vibrations, especially when machining thin-walled parts or composite materials. Maintain a radial depth of cut (DOC) of no more than 10% of the tool’s diameter. This ensures you control heat buildup and avoid excessive wear on the cutting edge.
An air-blast system or high-pressure coolant delivery is recommended to enhance chip evacuation qualities, especially in closed-slot configurations. You’ll often see this method used to create shallow keyways, signal-routing channels, or screw tracks in electronic device enclosures where superior finishes are required.
Rough Slotting with Long-Edge Cutters
When your goal is to remove material fast, without prioritizing tight tolerances or surface quality, rough slotting with long-edge cutters offers a time-saving solution. These cutters feature extended flute lengths and multiple teeth, allowing high axial engagement and larger cutter diameters. In aluminum extrusions, you can achieve material removal rates of 15–20 cm³ per minute using this technique.
To increase tool life and maintain chip control, apply chip-thinning feeds of about 0.2 mm per tooth.
This reduces the actual chip thickness while enabling faster spindle speeds. Stability during this process is critical, especially with long tool overhangs or slot depths exceeding 1.5 times the cutter diameter.
Long-edge milling tools excel in slotting operations that demand efficient stock removal before semi-finishing or finishing passes. You’ll find them used in the manufacturing industry for parts like brake rotors, engine blocks, and large aerospace structures where slot width consistency is less critical in the roughing stage but chip evacuation must be highly effective.
Opening Closed Slots or Pockets in Solid Blanks
When you’re dealing with solid blanks and need to initiate internal slots or grooves, traditional entry methods won’t work. In these scenarios, opening a closed slot requires carefully planned toolpath strategies and precision cutting tools.
You typically begin with pilot drilling to create a starting point. This establishes an entry for the end milling cutter without subjecting it to high axial loads that could cause tool deflection or heat buildup. Once the pilot hole is in place, you transition into trochoidal milling for efficient material removal and controlled chip evacuation.
To protect tool life and maintain stability, it’s critical to reduce the entry feed rate to around 40% of the programmed speed. This controlled entry minimizes radial cutting forces and helps prevent chatter vibrations in long tool overhangs. Helical interpolation can also be used as an alternative to straight plunging, especially when working with harder materials or tight tolerance slots.
These approaches are commonly used when creating slots or grooves in a workpiece for applications like keyways, internal t-slot cutting, or complex part integration in aerospace and electronics.
What are the Applications of Slot Milling?
In aerospace applications, slot milling is used to reduce weight while preserving structural integrity. Weight-saving ribs are commonly machined into spars using long tool overhangs and narrow cutter diameters. Cooling channels are also milled into housing parts for heat-sensitive devices.
In the automotive sector, you often rely on slot machining to produce oil galleries in engine blocks and airflow channels in brake rotors. Keyways for load transfer are created in shafts using woodruff key slotting, while t slots are cut into fixture plates using specialized cutters.
Precision motion systems in medical equipment use slots to guide movement or reduce weight. Infusion pumps and sensor mounts may require lead-screw tracks or slot joints with tight tolerances.
In electronics and semiconductor manufacturing, components such as heat-sink housings or gear blanks benefit from accurate groove features produced by end milling or side milling.
What are the Main Parameters of Slot Milling?
Optimizing the slot milling process begins with controlling key machining parameters that influence tool stability, chip evacuation, and overall slot geometry. Understanding how these variables interact with the workpiece material and slot profiles helps improve both process efficiency and surface finish.
Below are the core parameters you should focus on:
- Spindle speed: The rotational velocity of the cutting tool. It affects heat generation, surface quality, and tool wear.
- Feed per tooth: Determines the thickness of the chip each tooth removes, directly impacting chip clearance and tool load.
- Axial depth of cut: Sets the cutting depth along the tool’s vertical axis, critical for machining deep slots without chatter vibrations.
- Radial depth of cut: Controls the cutter’s engagement across the slot width. Shallower cuts reduce cutting forces in harder materials.
- Ramp angle: Influences how smoothly the cutter enters the slot. A controlled angle minimizes impulse load during entry.
- Coolant pressure: Higher pressure ensures effective chip removal, especially in narrow slots or during t slot cutting.
- Tool engagement time: The duration that the tool actively cuts material. It affects tool life and helps balance heat buildup.
How to Optimize Slot Milling for Productivity and Tool Life?
Using modern machining strategies and software tools is key to achieving better productivity, longer tool life, and more consistent surface quality.
High-speed machining combined with adaptive toolpaths improves material removal rate while reducing heat buildup. Trochoidal milling is a preferred strategy for roughing out deep slots, as it limits radial forces on the cutting edge and minimizes tool deflection.
Digital feedback systems can monitor machining conditions in real time. For example, vibration sensors that detect chatter above 5 microns can trigger automatic feed rate adjustments, improving stability and slot wall quality.
Data-driven strategies are also proving effective. Replacing end mills at 80% of their predicted life reduces scrap by 12%, while maintaining optimal slot cutting performance. These approaches help withstand high cutting forces during prolonged slotting operations.
CAM software enhances toolpath techniques with features like rest machining, smart ramp down motion, and automatic adjustment of spindle speed and feed rate. These allow you to tailor each slot milling operation to the specific workpiece material and design specifications.
What are the Best Tips and Practices for Efficient Slot Milling?
Start by selecting the right milling cutter for the slot width and material type. For deep slots, you need larger cutter diameters and tools with superior chip evacuation qualities.
Ramping techniques, feed rate optimization, and toolpath planning through advanced CAM software can make a significant difference in how the slot milling process performs. With the right strategies, you can reduce cutting forces, control heat buildup, and extend tool life.
You also need to match spindle speed, axial depth, and coolant delivery to the specific slot profiles and workpiece materials. Slot milling cutters, including side milling cutters and t slot milling cutters, require stable tool entry and reduced radial cutting forces to avoid deflection.
Use Ramping Instead of Radial Entry
One of the most overlooked techniques in slot milling is how the cutter enters the workpiece. If you begin the cut with a full radial engagement, especially in hard materials, you’ll generate high impulse load on the cutting edge. This not only reduces surface quality but also leads to early tool wear.
Ramping solves that. By initiating the slot cutting motion with a gradual ramp down entry, ideally at a 45° minimum, you reduce entry loads by approximately 30%. This is particularly useful when machining deep slots or narrow grooves where long tool overhangs are necessary.
Instead of hitting the material head-on, the cutter gently spirals or diagonally enters the cut, distributing forces more evenly along the tool axis.
Ramping is especially valuable when using end mills for groove machining operations. It allows the tool to withstand high cutting forces and maintain stability. Most modern CAM software can automatically generate ramping toolpaths that adapt to the slot shape and depth, optimizing tool deflection and reducing vibrations in the cutting zone.
Ensure Effective Chip Evacuation
Efficient chip removal is central to maintaining surface finish and tool life during slot milling operations. Without it, chips accumulate within the slot, causing recutting, excessive heat, and even tool breakage. To avoid this, your chip evacuation strategy must match the geometry and depth of the slot you’re machining.
For starters, always choose a milling cutter with appropriate flute count and chip breaker geometry. Tools designed for groove milling and t slot cutting often include variable-helix flutes or chip splitters that improve chip clearance in tight slot configurations.
For deep slotting operations, using a multi-pass strategy allows chips to exit more easily and keeps the tool from getting overloaded.
High-pressure coolant systems, rated at 70 bar or higher, help clear chips from the slot axis during the cutting process. Air blasts can be used as an alternative when machining plastics or softer metals.
Slot milling techniques like trochoidal milling also promote better chip removal by minimizing engagement per tooth.
Keep the Spindle Loaded
Fluctuating spindle loads are one of the main causes of inconsistent slot milling results. If your cutter dips below a certain load threshold—typically more than 15%—you risk chatter, tool deflection, and uneven material removal. Maintaining a consistent load ensures that each tooth on the milling cutter engages with the workpiece material effectively throughout the slot axis.
You should aim to keep at least one tooth engaged at all times during the slot milling operation. This is especially critical when using smaller end mills or t slot milling cutters where the cutting edge contact is limited. Load drops typically occur when entering or exiting the workpiece or during sharp toolpath transitions, particularly in groove machining operations.
By adjusting feed rate, spindle speed, and cutter diameter, you create a balanced cutting zone where the machine tool operates within an optimal load range. This not only enhances the quality of slots or grooves but also increases tool life and reduces vibration during the cutting process. It’s a small adjustment with a big impact on machining performance.
H3: Prefer Down Milling Over Up Milling
Choosing down milling instead of conventional milling is another critical decision that directly affects your slot cutting outcomes. In down milling, also known as climb milling, the cutting tool feeds in the same direction as the table movement. This results in lower cutting forces and better load transfer from the tool to the workpiece surface.
With down milling, chip thickness starts thick and tapers off as the cutter exits the material.
This provides better chip clearance and minimizes surface tearing, especially when working on aluminum, composites, or plastic. You’ll notice an improvement in surface finish and reduced heat generation, which is vital when creating slots in a workpiece with tight tolerances.
This method also helps suppress vibrations and chatter during groove milling or when slotting operations involve varying slot depths. Whether you’re machining woodruff key slotting features or t slots, climb milling supports superior finishes while maintaining dimensional accuracy..
Opt for Larger Diameter Tools When Possible
Larger cutter diameters offer several mechanical advantages that directly contribute to optimal slot milling efficiency. As cutter diameter increases, so does tool rigidity. This improved stiffness reduces deflection by approximately 20% for every 2 mm increase in diameter.
For long tool overhangs or deep slot machining, this reduction in flex can be the difference between success and scrap.
Using larger diameter cutters also helps withstand high cutting forces without compromising tool stability. For example, shell mills or face cutters used in slotting operations provide better radial support and distribute cutting loads more evenly.
When machining parts like brake rotors, cooling vents, or gear blanks, this stability is key to maintaining consistent slot widths and depths.
Tool selection depends on slot size, material, and overall machining requirements. If you’re machining wide slots or using gang milling cutters, larger diameter tools reduce the need for multiple passes and speed up the overall process.
Optimize Feed Rates
Balancing your feed rate is one of the most important techniques for achieving optimal slot milling results. If your feed is too aggressive, you risk excessive tool wear, poor slot geometry, and chatter vibrations, especially in materials prone to work hardening.
On the other hand, feeds that are too slow generate heat buildup and reduce cutting efficiency, impacting both tool life and surface quality.
To maintain efficiency, your feed rate should match the cutter diameter, spindle speed, and material removal rate. In slot machining processes such as woodruff key slotting or groove milling, consistent feed helps avoid tool deflection and maintains proper chip thickness along the slot axis.
This is especially critical when machining deep slots using t slot milling cutters or side milling cutters with long tool overhangs.
You can improve results further by using CAM software that applies dynamic toolpath strategies like trochoidal milling. This distributes radial cutting forces more evenly and enhances chip evacuation qualities.
What are the Common Challenges in Slot Milling and How to Solve Them?
Slot milling comes with a unique set of technical hurdles. One of the most frequent issues is tool deflection, especially when using smaller cutter diameters or machining deep slots. As cutting forces increase, the tool can bend slightly, distorting slot profiles and causing dimensional inaccuracies.
To prevent this, you should reduce radial depth of cut to 20% when the slot width increases beyond 0.02 mm. This limits side loading and helps maintain precision along the slot axis.
Another common problem is poor surface finish due to chatter vibrations. You can minimize this by choosing slot milling cutters with balanced flute geometry, especially in end milling operations. Slot width variation can also result from long tool overhangs or unstable setups.
In these cases, using arbor support or switching to a shorter tool improves stiffness and reduces the chances of slot geometry deviation.
You should also pay attention to chip evacuation in slots or grooves. Poor chip removal can cause re-cutting, leading to tool wear and thermal buildup. Trochoidal milling techniques and air blasts help optimize chip flow, especially when cutting grooves in a workpiece with complex shapes and sizes.
How to Inspect and Measure Slot Milling Quality?
You need to check tolerances, slot geometry, and surface characteristics to ensure the part meets design requirements. Dimensional inspection focuses on slot width, depth, and straightness, which are affected by tool wear, cutter runout, and heat generation during the slot milling process.
For accurate inspection, machinists rely on tools such as digital calipers, micrometers, and coordinate measuring machines (CMMs). Optical comparators are also useful for visualizing slot shapes and verifying contours.
When performing woodruff key slotting, go/no-go plug gauges are recommended to quickly assess width compliance.
To evaluate contact and parallelism of slot walls, blue-dyke paste can be applied to the surface. This helps identify misalignments or poor slot milling techniques that impact fitment in assemblies.
What Safety Precautions Should Be Followed During Slot Milling?
Fast-moving cutting tools and metal chips introduce several hazards, from eye injuries to machine damage. One of the most underestimated risks is high-velocity chip ejection. In some cases, chips exit the cutting zone at speeds reaching 70 m/s.
This makes full-length polycarbonate shielding around the milling machine essential, especially in gang milling or face milling setups.
Wearing proper PPE such as ANSI-rated safety glasses, gloves, and ear protection is non-negotiable. Slotting operations also benefit from reinforced gloves to guard against sharp chips and hot workpieces.
Machine guarding should cover all rotating parts, including the milling cutter face and arbor, to prevent contact during tool changes or emergency stops.
To avoid tool breakage, always follow best practices in tool handling and mounting. Use proper torque settings and inspect slot milling cutters for cracks or worn cutting edges before each shift. Maintaining spindle adjustments and monitoring feed rate can help you mitigate impulse loads that lead to unexpected tool failure or poor chip evacuation under stress.
How Much Does Slot Milling Cost?
The pricing of a slot milling machine typically combines several influencing factors, each tied to how efficient and accurate the slot milling process can be for the shape, depth, and geometry of your grooves in a workpiece.
The machine’s hourly rate is a primary factor and usually ranges between €55 to €120, depending on the CNC machine facility and spindle capabilities. Tooling costs vary as well, with end mills or t slot milling cutters adding €8–€40 per part depending on wear resistance and tooth profile.
Setup time increases for slot profiles requiring tighter tolerances or deep slots, especially when using long tool overhangs. Lower material removal rate in complex grooves also contributes to higher cost. Additional inspection overhead, from slot width verification to surface finish checks using CMMs, further impacts the total.
How Does Slot Milling Differ From Other Groove-Making Operations?
Slot milling is often chosen for its flexibility and compatibility with a wide variety of slot shapes, depths, and workpiece materials. However, it’s not the only method used to create slots or grooves in parts. When comparing this technique to other groove-making operations, each method has its own niche based on speed, precision, and cost.
Broaching, for instance, can form a keyway in under 2 seconds but requires a custom tool for each slot geometry, making it impractical for variable designs.
Grinding, while capable of achieving superior finishes (up to Ra 0.4 µm), is three times more expensive due to machine tool requirements and lower material removal rates. Turning with grooving tools works for cylindrical components but lacks flexibility in slot shapes and orientation.
Slot milling stands out for its adaptability, especially in cnc milling applications where you can program complex toolpath strategies to match different design specifications. By using side milling cutters, trochoidal milling techniques, or gang milling setups, you gain more control over slot depths, slot width, and overall machining performance across the full range of components.
Conclusion
Slot milling is more than just another step in the shop. Whether you’re cutting deep into engine blocks or shaping a woodruff key for a gear, the success of your project comes down to how well you manage every detail, tool choice, chip flow, feed rate, and machine setup.
We’ve seen how flexible slot milling can be. It gives you control over slot shapes, cutter sizes, and machining strategies that many other processes just can’t match. And with today’s advanced milling machines, CAM software, and cutting tools, you’ve got everything you need to get the job done right.
So, if you focus on tool stability, chip evacuation, and proper cutting forces, you’ll get the kind of results that keep customers coming back; accurate, repeatable, and built to spec. Slot milling might seem technical, but when you break it down, it’s all about working smarter to shape better parts.
For precision slot milling, 3ERP offers reliable CNC milling services with tight tolerances and fast turnaround times. With over 15 years of experience and ISO 9001:2015 certification, 3ERP is a trusted partner for custom parts—from single prototypes to high-volume production.
Using advanced 3-, 4-, and 5-axis CNC machines, 3ERP produces accurate slots in a wide range of metals and plastics. Their equipment supports tight tolerances down to ±0.01 mm and part sizes up to 4000 × 1500 × 600 mm.
Whether you need keyways, T-slots, or other specialized grooves, 3ERP ensures consistent results and efficient communication throughout your project. Get in touch today to receive a fast quote and bring your slot milling designs to lifе.
Frequently Asked Questions
What is the Difference Between Slot Milling and Peripheral Milling?
Slot milling creates grooves or slots in a workpiece by plunging a milling cutter directly into the material, whereas peripheral milling removes material along the outer edges or sides of a part. The core difference lies in tool engagement—slot milling fully engages the cutter across its width, while peripheral milling removes material using only the side of the cutter.
What is the Difference Between Slot Milling and Face Milling?
Slot milling is used to cut grooves or deep slots directly into the workpiece along a linear toolpath, engaging the full cutter width. In contrast, face milling uses a rotating cutter that removes material from the surface of a workpiece to improve flatness or surface finish.
Face milling typically employs face cutters or shell mills and targets large, flat surfaces such as engine block covers or base plates. Slot milling operations require precise alignment along the slot axis to manage radial cutting forces and ensure clean slot geometry.
What is the Difference Between Slot Milling and Side Milling?
Slot milling engages the cutter to create a complete slot across the width of the tool, while side milling removes material from the vertical sides of a workpiece, often leaving the slot floor untouched.
In slot milling, the tool, often an end milling cutter or a t slot milling cutter, cuts entirely through the part to form defined slot shapes. Side milling, on the other hand, typically uses side milling cutters to shape vertical walls, chamfers, or step profiles along the workpiece’s edge.
What is the Difference Between Slot Milling and Face Milling?
Slot milling creates grooves in a workpiece by plunging a milling cutter into the material along the slot axis, while face milling removes material from a flat surface using a face milling cutter. The primary distinction lies in tool orientation and the direction of material removal—slot milling cuts along the workpiece, face milling cuts across its surface.
Face milling typically uses shell mills or face cutters to produce smooth, broad surfaces with superior finishes. Slotting requires higher radial forces, more chip evacuation strategies, and greater control of cutter depth.
What is the Difference Between Slot Milling and End Milling?
Slot milling specifically targets the creation of full-width slots or grooves, while end milling includes a wider range of operations such as profiling, contouring, and pocketing using the same tool. In short, slot milling is a type of end milling, but not all end milling is slot milling.
In a slot milling operation, the cutter, often a t slot milling cutter or an end mill, is plunged into the workpiece to cut straight slots of defined width and depth. End milling, by contrast, may only engage the side or tip of the cutter depending on the milling technique.
Not sure which machining method is best for your application? Explore our cnc machining services and contact our team to get expert guidance on selecting the most efficient milling strategy for your project.
