Rapid Prototyping for Medical Devices: Techniques, Stages and Examples

Rapid prototyping is a game-changer that’s tackling the significant risks and extensive costs typically involved in bringing new medical solutions to life. This innovative approach allows us to catch design flaws or usability issues early on, significantly reducing the time and money spent on development cycles.

More importantly, it empowers us to push the boundaries of medical technology, ensuring that new devices not only meet regulatory standards but also truly cater to the needs of patients and healthcare professionals.

With cutting-edge tools like 3D printing, CNC machining, and injection molding, we’re now able to iterate faster and bring products to market more quickly than ever before. This isn’t just about efficiency—it’s about transforming patient care with every new device we introduce.

As of 2022, the market for rapid prototyping in medical devices stands at USD 1.5 billion and is expected to soar to USD 3.2 billion by 2030, underscoring its vital role in medical innovation.

In this article, we’ll focus on how rapid prototyping is not just shaping the future of medical devices but also redefining what’s possible in healthcare technology.

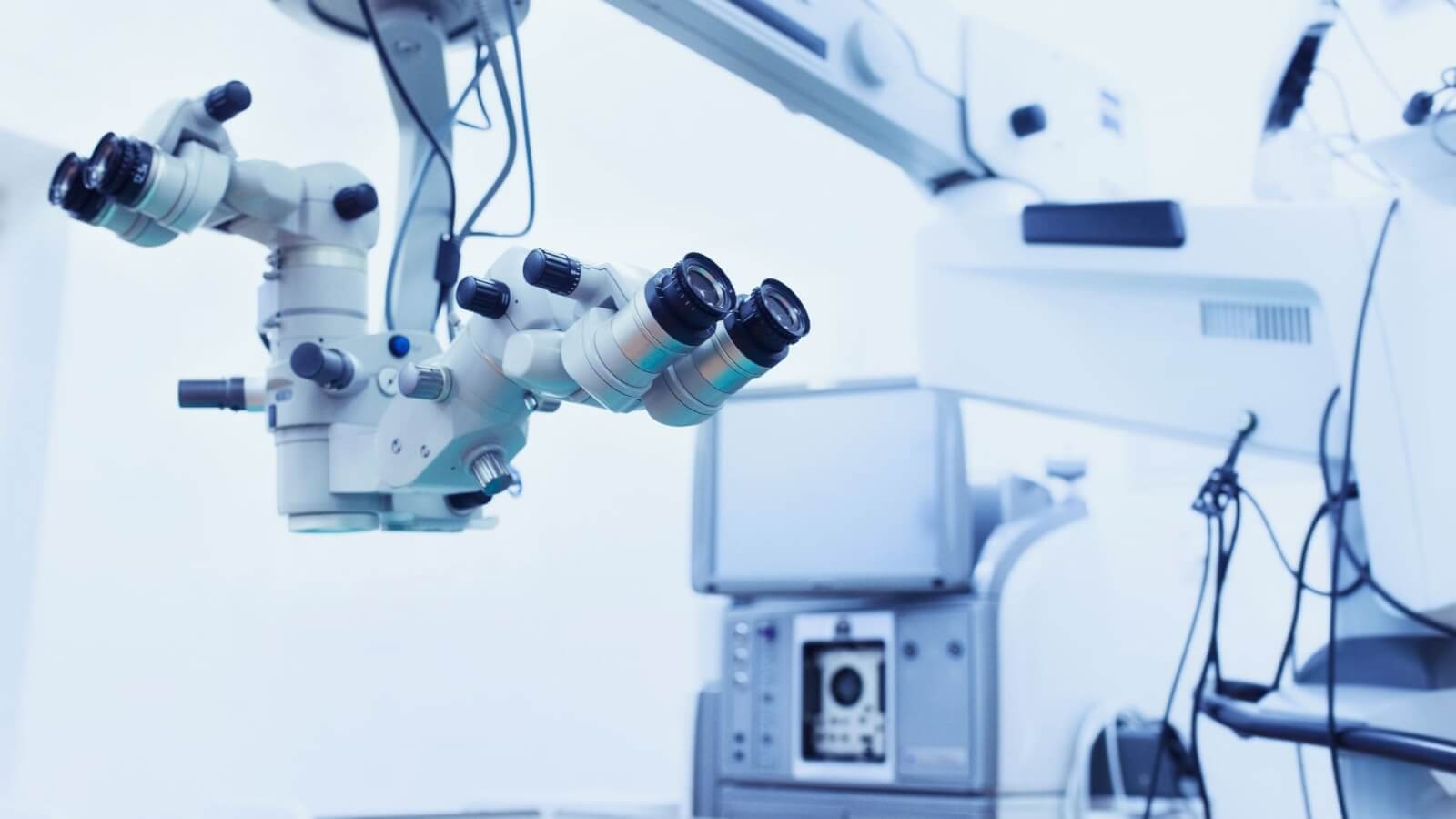

Why is Rapid Prototyping Important for Medical Devices?

Rapid prototyping is crucial in medical device manufacturing due to its significant reduction in time-to-market and minimization of risks by allowing early detection of potential design or functional flaws.

The rapid prototyping process is particularly important for ensuring that the devices meet the rigorous standards for user experience and human-factor engineering. Early prototypes facilitate feedback from healthcare professionals and patients, ensuring the device performs effectively in real-world settings. Moreover, rapid prototyping aids in:

• Accelerated Development: Speeding up the time-to-market through quick iterations.
• Early Detection of Issues: Identifying potential flaws before large investments are made in manufacturing.
• Usability Validation: Gathering and incorporating user feedback to refine ergonomics and user interfaces.
• Cost Efficiency: Reducing financial outlays by preventing costly post-design alterations.
• Regulatory Compliance: Streamlining the documentation and testing necessary for regulatory approvals.
• Investor Engagement: Attracting funding through demonstration of functional prototypes.

How is Rapid Prototyping Implemented for Medical Devices?

Rapid prototyping in medical device development begins with conceptual sketches that quickly transition into physical mockups or digital simulations. This process allows development teams to iterate multiple times, evolving from initial aesthetic models to fully functional units tailored to medical needs. Prototyping in this context is critical for assessing both the “look and feel” of a device and its operational performance.

By employing various tools like 3D printers and computer-aided design (CAD) software, rapid prototyping creates physical or digital representations that enable developers to refine device form, fit, function, and user interaction early in the development cycle.

This approach is instrumental in preventing costly redesigns and ensuring early compliance checks with regulatory standards. Whether through digital simulations (software mockups) or physical models (such as 3D-printed components), rapid prototyping streamlines the path from concept to market-ready medical devices, unveiling necessary improvements while managing budget and accelerating development timelines.

How Does the Rapid Prototyping Process Work for Medical Devices?

The rapid prototyping process for medical devices typically begins with an initial concept that quickly progresses to CAD designs and subsequently into physical or digital prototypes. This initial phase can be completed in as little as one to two weeks, although multiple iterations are often necessary to refine the prototype.

Prototyping tests various aspects of the device, from shape and ergonomics to functionality and user interaction, ensuring that each prototype iteration brings the development team closer to a market-ready product.

Rapid iterations help prevent the project from advancing too far along a potentially unfeasible path. Additionally, each stage of prototyping is crucial for addressing functionality, safety, and meeting stringent regulatory requirements.

The process relies heavily on cross-functional teams—including engineering, medical experts, and regulatory specialists—to ensure a holistic approach to the development of medical devices.

What are the Key Stages of Medical Device Prototyping?

The process of rapid prototyping for medical devices unfolds through several key stages, each critical to ensuring the final product is both effective and compliant with regulatory standards.

1. Conceptualization and Planning:
   • Purpose and Requirements: Initially, the purpose of the device is defined, including a detailed identification of its requirements.
   • Feasibility, Budget, and Timeline: The feasibility of the device is assessed, with budgeting and timeline establishment to guide the project’s progression.
2. Design and CAD Modeling:
   • Digital Blueprints: Using computer-aided design (CAD) software, digital blueprints of the medical device are created.
   • Refinement: These models are iteratively refined to adjust geometry, dimensions, and features, ensuring alignment with the device’s intended function and design specifications.
3. Material Selection:
   • Criteria for Selection: Materials are chosen based on crucial factors such as biocompatibility, durability, sterilization compatibility, and mechanical properties to ensure the device’s safety and functionality.
4. Preliminary Prototyping:
   • Initial Models: Early prototypes, often termed “alpha” prototypes, are developed to check the basic form and fit.
   • Non-functional Testing: These prototypes are primarily used to validate size and ergonomic features, rather than full functionality.
5. Functional Testing and Iteration:
   • Beta Prototypes: More advanced, “beta” prototypes are then created, which test the device’s functionality and gather initial user feedback.
   • Usability Tests: These prototypes undergo rigorous usability tests to minimize user error and verify real-world application viability.
6. Design Refinement:
   • Incorporation of Feedback: Feedback from the testing phase is used to make necessary adjustments to the design, enhancing performance and user interaction.
7. Compliance and Validation Testing:
   • Regulatory Documentation: All changes and test results are documented meticulously to comply with regulatory standards.
   • Preparation for Formal Testing: The prototypes are prepared for formal testing processes, including clinical trials or user trials, to validate their effectiveness and safety.
8. Production Readiness:
   • Finalization for Manufacture: The design is finalized for mass production using cost-effective and efficient manufacturing methods.
   • Supply Chain and Quality Control: Ensure that the supply chain is robust and that manufacturing processes have stringent quality control measures to maintain high standards.

What Techniques Are Used in Medical Devices Prototyping?

Medical device prototyping employs a diverse range of techniques ranging from additive to subtractive manufacturing, each selected based on specific project requirements. These techniques include:

• 3D Printing: Utilizes additive processes to create complex shapes and detailed prototypes quickly.
• CNC Machining: A subtractive process that involves milling and turning to produce highly accurate prototypes.
• Injection Molding: Useful for medium-volume production, allowing for rapid creation of test units.
• Laser Cutting: Precisely cuts materials into desired shapes, suitable for flat components.
• Vacuum Casting: Produces high-quality prototypes by casting resin in a vacuum.

3D Printing

3D printing in medical device prototyping is a pivotal technology characterized by its additive layering process that builds parts directly from CAD data. This technique includes various methods such as Fused Deposition Modeling (FDM), Selective Laser Sintering (SLS), Multi Jet Fusion, and Stereolithography.

Applications:

• Early Conceptual Models: Ideal for rapid visualization of new designs.
• Complex Shapes and Detailed Prototypes: Allows the creation of geometries that are otherwise challenging to produce.
• Mass Customization: Tailors devices to individual patient needs, such as custom prosthetics.

Pros:

• Rapid Turnaround: Accelerates the prototyping process, allowing for faster design iterations.
• Reduced Material Waste: Enhances sustainability by using only the necessary material.
• Flexible Design Changes: Facilitates modifications without the need for new tools or molds.

Cons:

• Material Limitations: Not all materials used in 3D printing are certified for medical applications, which may limit its use in final products.
• Post-Processing: Some 3D printing techniques may require additional finishing to achieve the desired surface quality.
• Scale Limitations: While excellent for prototypes, scaling up production may require other manufacturing methods.

CNC Machining

CNC Machining is extensively used in medical device prototyping for its ability to produce robust, functional prototypes and end-use parts with excellent dimensional accuracy. This subtractive process involves computer-controlled mills, lathes, and routers that carve out materials based on precise digital designs.

Applications:

• Metals and Engineering-Grade Plastics: Ideal for materials that require high strength and durability.
• Mechanical, Thermal, and Stress Testing: Produces prototypes that can withstand rigorous testing environments.

Pros:

• High Precision: Achieves tight tolerances necessary for medical devices.
• Consistent Quality: Ensures that each prototype or part is identical, which is crucial for functional testing and regulatory submissions.

Cons:

• Cost: Higher costs associated with machining complex geometries or using expensive materials.
• Setup Time: Longer preparation times may be needed for intricate designs that require multiple setups or specialized tooling.

Injection Molding

Injection molding is a fundamental technique in medical device prototyping, where molten plastic or rubber is injected into a metal mold and then cooled to form the final parts. This process is typically conducted using injection molding presses and involves mold tooling, which can be made of aluminum for rapid prototypes or steel for higher production volumes.

Applications:

• Suitable for larger batch sizes when testing final material properties is critical.
• Excellent for verifying part geometry, mechanical strength, and assembly feasibility.

Pros:

• Produces consistent, repeatable parts in considerable volumes, ensuring that every component meets the exact specifications required for medical devices.
• Enables realistic testing of final production materials and design, crucial for meeting rigorous healthcare standards.

Cons:

• Initial mold creation can be costly and time-consuming, making it less ideal for projects that require frequent design changes.
• Generally less flexible for iterative design modifications unless using rapid injection molding techniques or soft tooling to reduce costs and time.

Laser Cutting

Laser cutting uses a high-powered laser beam to cut or etch designs into sheet materials, such as metals and plastics. This process is controlled by CNC systems that ensure precise cutting paths, making it ideal for creating flat components, enclosures, or stencils necessary for medical device prototypes.

Applications:

• Creating components that require precise 2D shapes or simple assemblies.
• Often utilized in early design phases for quick conceptualization of parts.

Pros:

• Rapid setup and execution, offering high precision with minimal tooling requirements.
• Ideal for quickly producing custom parts or brackets, which can be crucial in the prototyping phase of medical device development.

Cons:

• Limited to 2D or 2.5D designs, restricting its use for more complex three-dimensional shapes.
• Material thickness and cut edge finish may vary, requiring additional processing for certain medical applications.

Vacuum Casting

Vacuum casting is a versatile prototyping technique that involves creating a silicone mold around a master pattern, typically produced using 3D printing. The process utilizes a vacuum chamber to ensure the resin or urethane is cast without air bubbles, resulting in high-quality parts.

Applications:

• Ideal for small-to-medium batch runs: Particularly useful when detailed surface finish and precision are critical.
• Suitable for flexible or rubber-like parts: Allows for testing of materials that mimic the properties of the final product.

Pros:

• Cost Efficiency: The tooling costs are relatively low compared to other methods like injection molding, making it suitable for prototypes and small production runs.
• High-Quality Surface Finish: Produces parts with excellent detail and surface smoothness, which can be crucial for medical devices that require precise textural properties.

Cons:

• Limited Mold Life: The silicone molds degrade over time and with use, typically limiting the number of parts that can be cast to around 20-25 per mold.
• Variable Repeatability: The quality of parts can diminish as the mold wears, potentially affecting the consistency needed for some medical device applications.

How to Choose the Right Rapid Prototyping Technique for Medical Devices?

Selecting the appropriate rapid prototyping technique for medical devices involves considering several key factors to ensure the prototype meets all necessary standards and requirements. Here are essential aspects to consider:

• Material Requirements: The chosen method must accommodate materials that are biocompatible, mechanically robust, and suitable for sterilization.
• Part Complexity: Techniques like 3D printing are preferable for complex geometries, while simpler shapes may benefit from methods like vacuum casting or CNC machining.
• Volume Needs: Evaluate whether the prototyping method is cost-effective for the required volume, from single prototypes to low-to-medium production runs.
• Cost and Lead Times: Consider both the initial investment for tooling and the overall time from design to part production, which can impact the project timeline.
• Surface Finish and Tolerances: Depending on the medical device’s function, the precision of the prototype in terms of surface finish and tolerances can be critical.

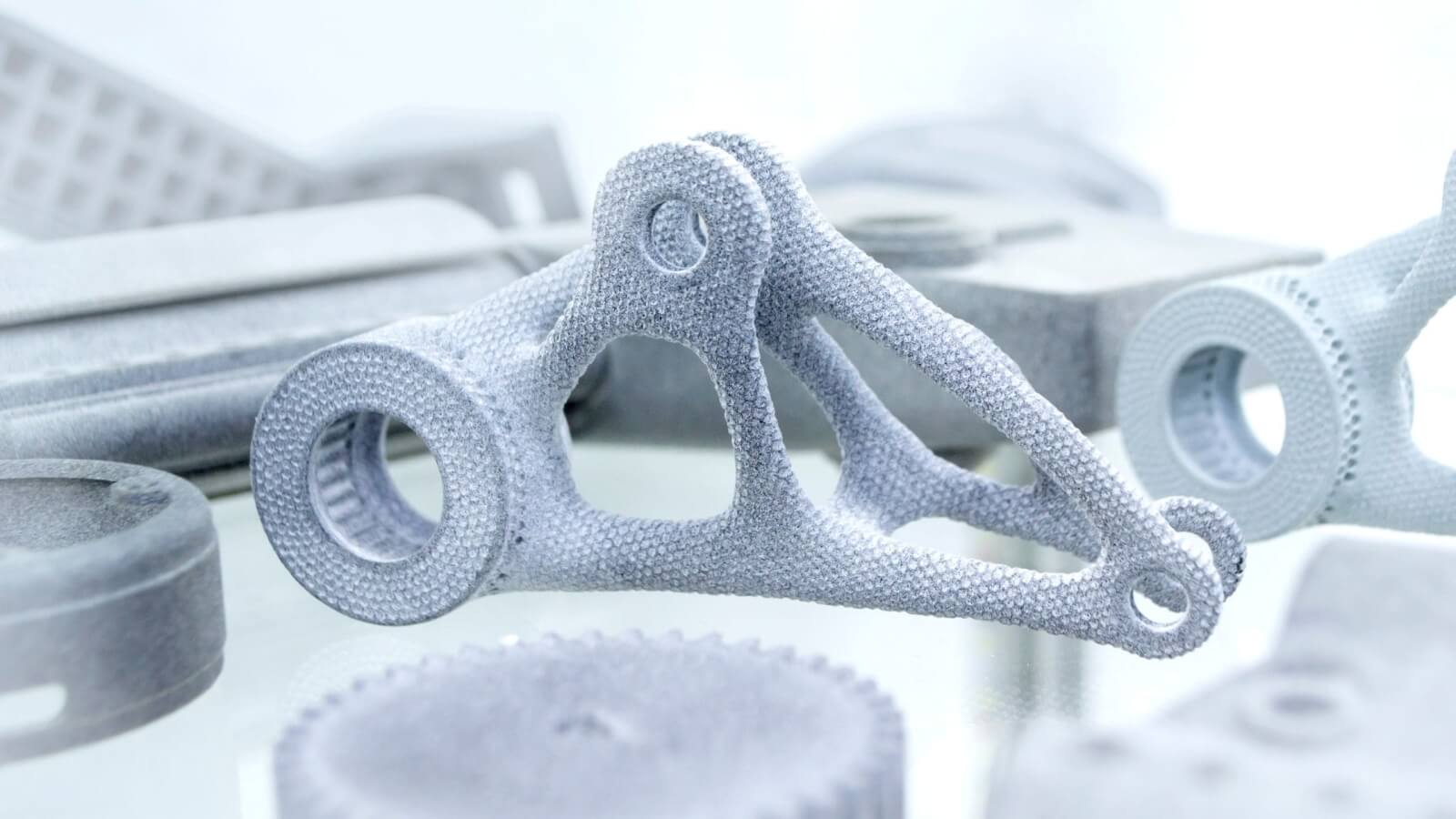

What Materials are Suitable for Medical Device Prototyping?

Choosing the right materials for medical device prototyping is crucial due to the stringent requirements for safety, sterilization, and longevity. Materials must be biocompatible, meaning they must not produce a toxic or immune response when in contact with the body. Additionally, they must withstand the rigorous sterilization processes without degrading. Here are some commonly used materials:

ABS Plastic

ABS plastic is a widely used material in medical device prototyping due to its strength, flexibility, and ease of machining and printing. It is particularly suited for creating general-purpose housings or handles for medical devices.

• Sterilization Compatibility: Can be sterilized under certain conditions, making it a viable option for prototypes that must undergo cleanliness testing.
• Limitations: ABS is not suitable for applications that expose the device to high temperatures or harsh chemicals.

Silicone

Silicone stands out in medical device prototyping for its flexibility, elasticity, and excellent biocompatibility. It is commonly used for creating seals, gaskets, and components that are in direct contact with human tissue.

• Manufacturing Techniques: Easily molded or used in vacuum casting, silicone allows for the creation of detailed, patient-specific shapes.
• Application: Ideal for testing device ergonomics and for use in wearable devices due to its comfort and flexibility.

Medical-Grade Metals (Titanium, Stainless Steel)

Titanium and stainless steel are prized in the medical device industry for their exceptional durability and biocompatibility. These materials are typically used for structural components, surgical tools, and implants due to their strength and resistance to corrosion.

• Manufacturing Technique: CNC machining is commonly employed to achieve precise tolerances required for medical devices.
• Cost and Time Considerations: Both titanium and stainless steel are more costly and take longer to process than some other materials, but their reliability in critical applications justifies the investment.

Bio-Resins

Bio-resins are specialized materials designed for safe contact with biological tissues, making them ideal for prototyping medical devices that will be in direct contact with the body.

• Manufacturing Techniques: Suitable for processing through Stereolithography (SLA) or Digital Light Processing (DLP), allowing for high-detail prototyping.
• Post-Processing Requirements: These resins often require post-curing to reach their final properties, ensuring they meet the mechanical and biocompatible needs of medical applications.

What are the Different Types of Medical Device Prototypes?

In the development of medical devices, various prototypes are crafted to address distinct aspects of design and functionality, each serving a specific role in the progression from concept to market-ready product.

• Proof of Concept Prototypes: These prototypes are essential in the early stages of product development, helping to confirm the feasibility of a concept and identify major technical and design risks before further investment. They focus primarily on testing the core idea, ensuring that the proposed solution is viable in a real-world application.
• Visual Presentation Prototypes: Crafted to represent the look, feel, and aesthetics of the intended product, visual presentation prototypes are crucial for securing stakeholder approval and gathering initial feedback. While they do not function, their focus on design helps in refining the product’s appearance and ergonomic features.
• Functional Prototypes: Often considered “beta” versions, these prototypes test the operational aspects of a device, including its mechanics, electronics, and usability. They provide valuable data on how the device performs in hands-on environments, allowing developers to iterate based on user feedback and testing outcomes.
• Pre-Production Prototypes: Approaching the final design, these prototypes utilize the intended materials and production processes, serving as the final test versions before mass production. They are crucial for validation testing and ensuring compliance with regulatory standards, helping to finalize design details and manufacturing methodologies.
• Early “Alpha” Prototypes: Focus primarily on assessing dimensions and basic physical characteristics without integrated functionality.
• “Pilot” Prototypes: These are nearly complete products used for soft launches or clinical trials, mirroring the final aesthetic and functional design to gauge market readiness and operational success in real-world settings.

What are the Regulatory Compliance in Medical Device Rapid Prototyping?

Knowing and practicing regulatory compliance is important in medical device prototyping, as this will ensure that all developments align with industry standards and government regulations.

• FDA Guidelines: Emphasize design controls, human factors, and pre-market approval processes in the United States to ensure safety and efficacy.
• ISO 13485: Outlines requirements for a quality management system specific to the medical device industry, focusing on consistent design, development, and production.
• CE Marking: Essential for marketing medical devices in the European Economic Area, this marking verifies that a product meets EU safety, health, and environmental protection requirements.
• Biocompatibility Testing: Critical for assessing whether a device’s materials are safe for their intended use, especially those in contact with the human body.

How to Ensure Regulatory Compliance in Medical Device Prototyping:

• Design and Documentation: Develop a detailed design plan that adheres to relevant standards and regulatory requirements from the outset of the project.
• Risk Assessment and Human Factors: Integrate comprehensive risk assessment procedures and human factors engineering to minimize usability issues and enhance safety.
• Record Keeping: Keep meticulous records of all design changes, prototype iterations, and test results to demonstrate compliance and support regulatory submissions.
• Material and Process Validation: Early validation of materials and manufacturing processes can prevent significant hurdles in later stages of development.
• Expert Consultation: Engage with regulatory experts to navigate the complex landscape of medical device approval, ensuring that every prototype stage is designed with compliance in mind.

Is Rapid Prototyping Medical Devices Expensive?

While rapid prototyping introduces upfront costs in the development of medical devices, it is a strategic investment that can significantly reduce expenses in the long run. Engaging in prototyping early in the development process helps identify and resolve design flaws before they escalate into costly post-production issues.

Modern technologies such as 3D printing and CNC machining have streamlined the prototyping process, substantially lowering costs and reducing turnaround times. Although functional prototypes require more resources than simpler visual or conceptual models, the initial financial outlay is justified by the savings from avoiding expensive corrections and regulatory setbacks later.

How Long Does It Take To Develop A Medical Device Prototype?

The timeline for developing a medical device prototype varies significantly based on the project’s complexity and specific requirements. Early prototypes, focusing primarily on form, can often be produced within one to two weeks.

However, as the device progresses through the development cycle, multiple iterations may be necessary, each potentially taking days to several weeks depending on the extent of the revisions required.

Factors such as design adjustments, chosen manufacturing techniques, material availability, and stringent regulatory standards can influence the duration of the prototyping phase. Alpha prototypes appear first, providing basic shape and size assessments, followed by more advanced beta versions that test functionality.

Investing time in comprehensive prototyping not only streamlines regulatory approvals but also enhances the overall development process by ensuring issues are identified and addressed early on.

How to Select a Rapid Prototyping Partner for Medical Devices?

Choosing the right partner for rapid prototyping in medical device development is non-negotiable. Here are some criteria to consider:

• Expertise and Track Record: Look for proven experience with medical device regulations and complexity to ensure they can handle your project’s specific needs.
• Range of Capabilities: Ensure they offer a variety of prototyping techniques and materials that match the unique requirements of your project.
• Quality Assurance: Select a partner with robust processes that adhere to ISO standards and stringent documentation requirements, ensuring every prototype meets quality benchmarks.
• Speed and Scalability: The ability to deliver quick iterations and scale up to pilot or production volumes is vital for meeting project timelines.
• Regulatory Knowledge: Choose a partner familiar with FDA guidelines, CE marking, and other relevant directives to navigate the complex regulatory landscape effectively.
• Communication and Collaboration: A partner should provide transparent project management, clear timelines, and foster an iterative feedback loop to streamline the development process.

3ERP’s medical device prototyping services meet the needs of those facing aggressive design-to-market deadlines. Our technical sales team stands ready to advise you on the most cost-effective and efficient rapid prototyping methods for your given medical application.

Conclusion

Rapid prototyping has truly revolutionized the way we develop medical devices. It’s not just about creating something new; it’s about making real improvements in how these devices are designed, developed, and brought to market. Through this process, we see firsthand the power of iterative design, which allows for continuous feedback and improvements. This approach doesn’t just minimize risks—it boosts patient safety too. If you’re exploring additional options for product development, check out our other rapid prototyping services to find the right fit for your project.

When we incorporate rapid prototyping effectively, it does more than just speed up innovation; it ensures that our medical devices comply with the toughest regulatory standards before they ever reach the market. By sticking to a well-planned development strategy and keeping strict checks on regulatory requirements, we can clear the way to market more smoothly and with greater confidence.

Think of it this way: with rapid prototyping, we’re not just building devices; we’re crafting the future of healthcare. And you play a very important role in this process. Every feedback, every test, every prototype iteration helps shape a safer, more effective medical technology landscape. So, let’s keep pushing the boundaries of what’s possible, ensuring that every step we take is a step toward better care for everyone.
