What is Plastic Injection Molding: Process, Advantages, Applications and Techniques

You use plastic parts every day, probably without thinking twice about where they come from. But behind everything from storage containers to car body panels is a powerful process called plastic injection molding. It’s how we turn molten plastic into strong, detailed parts with speed, accuracy, and almost no waste.

This isn’t some new trend. Injection molding has been shaping the modern world for over 150 years, dating all the way back to 1872, when cellulose acetate was first used in a hand-powered plunger machine. Since then, it’s evolved through breakthroughs like the reciprocating screw, automated mold design, and smarter process controls.

Today, it’s one of the most reliable ways to make millions of identical components across industries like aerospace, packaging, consumer electronics, and automotive. And it’s not slowing down, the global market is projected to grow at a CAGR of 4.6% through 2028, proving just how vital this process is to high-volume manufacturing.

In this article, we’ll focus on how plastic injection molding works, how it keeps getting better, and how you can take full advantage of it, whether you’re prototyping or going full scale.

What is Plastic Injection Molding?

Plastic injection molding is a manufacturing process in which molten plastic is injected into a precisely machined mold cavity, where it cools, solidifies, and is then ejected to form a finished part. This process supports the mass production of plastic components with consistent shape, performance, and tolerances.

The plastic injection molding process typically uses thermoplastics, though thermosets may be used in certain applications. During each cycle, the plastic is heated until molten, then injected under high injection pressure, usually between 10 MPa and 200 MPa, into a metal mold. After the mold is filled, the material is cooled, solidified, and removed before repeating. Depending on the complexity and thickness of the part, a complete injection molding cycle can last anywhere from 3 to 120 seconds.

Precision is one of the most important characteristics of this process. Dimensional repeatability reaches ±0.05 mm, making it ideal for intricate components such as living hinges, internal threads, or undercuts, especially when mold tools are equipped with side-actions or lifters. This level of control helps meet strict mold design specifications across different industries.

You’ll also encounter the term “shot volume,” which refers to the total amount of molten plastic needed to fill the mold cavity, including runners and the sprue. Accurate control of shot volume ensures uniform part size and minimizes material waste. Whether producing electronic housings, plastic parts for consumer goods, or structural components for automotive or medical use, the plastic injection molding machine and process parameters play a vital role in maintaining efficiency and quality.

Why is Plastic Injection Molding Important?

Plastic injection molding is important because it enables the high-speed, high-volume production of complex plastic parts with a high degree of accuracy and cost effectiveness. Its role in the global manufacturing process cannot be overstated, it supports everything from consumer electronics and automotive interiors to packaging components and precision medical devices.

Once the initial mold is fabricated, you benefit from dramatically reduced costs per part. At production volumes above 10,000 units, the cost savings become significant. That’s because labor is minimized, cycle times are short, and machines can operate continuously. You gain more with each run as you scale up your injection molding project without sacrificing quality.

This method is especially critical for producing mission-specific parts. For example, acrylonitrile butadiene styrene (ABS) is widely used for medical housings due to its impact resistance and surface finish. Polycarbonate lenses offer optical clarity for lighting and safety applications. Nylon gears reinforced with glass fibers deliver strength for mechanical systems, while high-density polyethylene (HDPE) caps ensure seal integrity in packaging.

How Did Plastic Injection Molding Evolve Over Time?

The process began in 1872, when John Wesley Hyatt and his brother Isaiah invented a hand-operated plunger machine. Their goal was to mold cellulose acetate into billiard balls, laying the foundation for what would become the modern plastic injection molding industry.

The 1940s brought sweeping changes. Driven by the Second World War, there was an urgent need for lightweight components in military aircraft. This demand accelerated the use of thermoplastics and led to heated-barrel screw systems that improved the consistency of molten plastic flow. These changes initiated a shift from compression molding to faster, more scalable molding processes.

In 1956, James Watson Hendry introduced the reciprocating screw injection unit, which allowed one mechanism to plasticize and inject the raw material. This invention revolutionized precision and repeatability. Then, in 1984, the first commercial all-electric injection molding machine (50-ton press) entered the market, reducing energy usage by approximately 50%.

By the 2000s, the process had matured into a fully automated, high-efficiency manufacturing system. Servo-hydraulic hybrid presses combined the benefits of speed and energy conservation. Meanwhile, embedded in-mold sensors enabled closed-loop control over parameters like clamping force, injection speed, and holding pressure, ensuring consistent quality and reduced material waste.

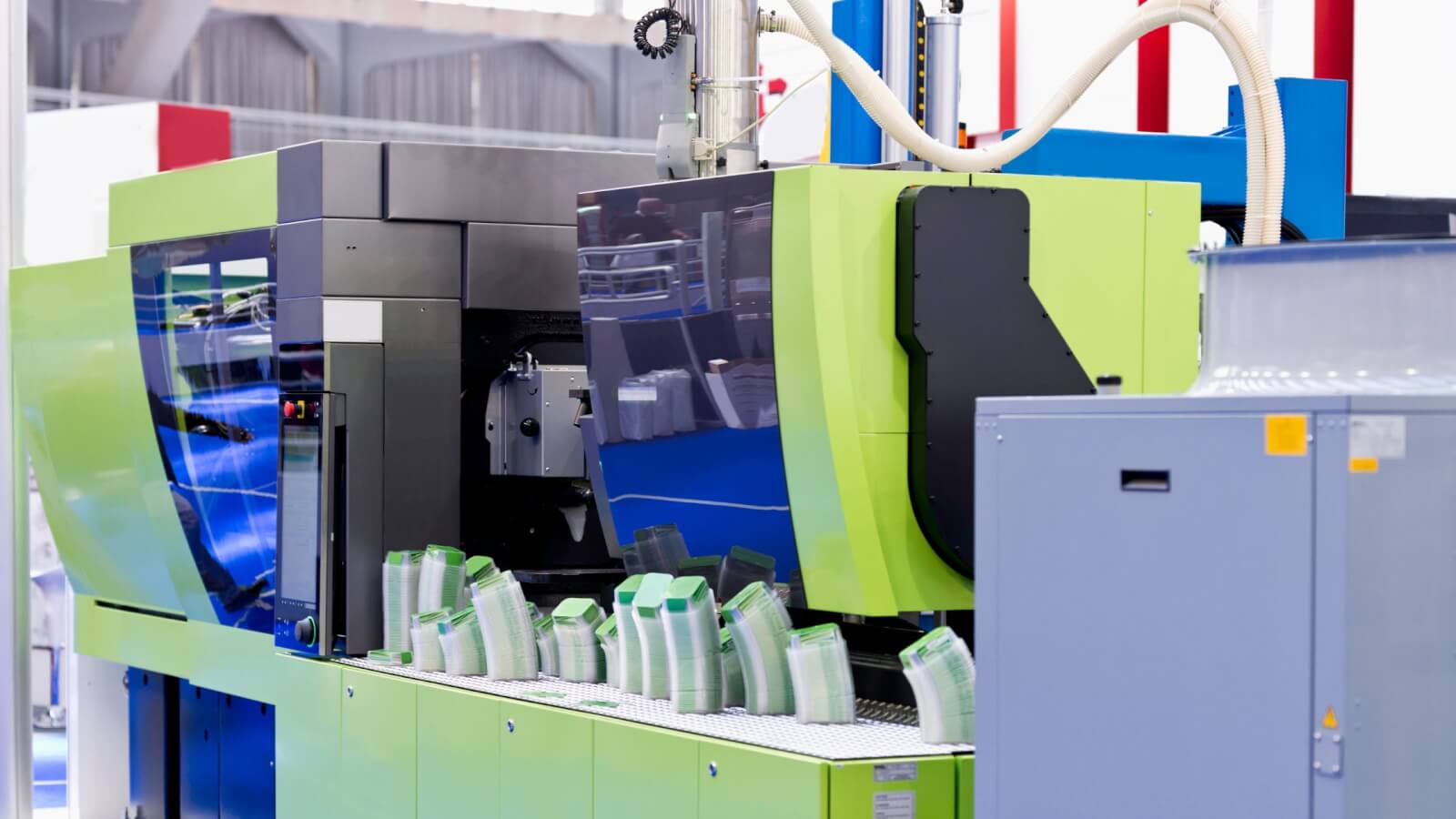

What are the Main Advantages of Plastic Injection Molding?

Plastic injection molding provides a range of advantages that make it one of the most relied-upon manufacturing methods in the world. It offers tight process control, supports complex geometries, and excels at delivering consistent results at scale.

• Supports Complex Part Design and Accuracy – Injection molding enables tight tolerances down to ±0.05 mm. Complex shapes, including undercuts and internal threads, are possible using lifters, side-actions, and advanced mold tools.
• Provides High Efficiency and Repeatability – The injection molding cycle can be as short as 3 seconds for thin-wall parts. Once optimized, the process delivers millions of identical units with minimal variation.
• Reduces Waste – Scrap rates typically fall below 1%. Many thermoplastics tolerate up to 30% regrind without losing structural integrity. This material efficiency helps minimize environmental impact and lowers cost per part.
• Provides Material Efficiency – Shot volume is tightly controlled. Hot-runner systems eliminate runners and sprue, allowing the molten plastic to reach cavities directly with little excess material.
• Supports Low Labor and Automation Friendly – Automated injection molding machines handle insert loading, degating, and part ejection. Robots manage sprue pick-off and packing, cutting direct labor to under 5% of total production cost.
• Offers Flexibility in Color and Material – With additives like masterbatch and quick-change barrels or screws, a single machine setup can support multiple materials or color variants during the same production run.
• Enables Scalability for Mass Production – Machines range from 15-ton micromolding units to 7,000-ton presses capable of forming large body panels. This range supports everything from prototyping to full-scale production volumes.
• Provides Multiple Finishes – Surface textures and finishes can be created directly in the mold. From SPI-A2 mirror finishes to VDI texture standards, the appearance of the final part can be fully controlled without post-processing.

What are the Main Limitations of Plastic Injection Molding?

Although there are many advantages to the plastic injection molding process, there are certain limitations you need to consider. The three most significant are high initial tooling costs, long lead times, and limited design flexibility once tooling has been fabricated.

These issues impact both the feasibility of small production runs and your ability to make quick design adjustments. Environmental concerns tied to energy consumption and plastic waste also present challenges for manufacturers aiming to reduce their carbon footprint.

• High Initial Tooling Costs – Mold tools made from hardened steel or aluminum typically cost between $10,000 and $250,000. These are precision-machined using CNC machining, EDM, and polishing techniques. Tool fabrication for a complex mold cavity usually takes 12–20 weeks, making this investment cost significant for short-run or prototype production.
• Long Lead Times for Tooling – Any delay in finalizing the mold design can push the project timeline back by 4–6 weeks. Since the injection molding machine and production process depend on a finalized mold, this creates downstream delays in your supply chains.
• Limited Design Changes After Tooling – Once mold halves are hardened, modifying internal dimensions becomes difficult. Making a cavity larger may require re-machining. Reducing part size demands inserting plugs or fabricating an entirely new mold, especially when tight tolerances or undercuts are involved.
• Environmental Considerations – The injection molding cycle consumes a large amount of energy during the melting phase. Heater bands, barrel zones, and injection pressure systems all draw power. Additionally, end-of-life plastic parts—especially from materials like acrylonitrile butadiene styrene (ABS) or polyvinyl chloride (PVC)—pose waste and recycling challenges. While hot-runner systems and regrind options reduce material waste, environmental sustainability remains a growing area of concern in the injection molding industry.

How Does the Plastic Injection Molding Process Work?

This molding process begins with selecting a compatible thermoplastic and preparing the mold. From there, plastic pellets are melted and injected into the mold cavity under high injection pressure. Once cooled, the mold opens, and ejector pins push out the finished part. The cycle repeats rapidly, especially in mass production environments using servo-hydraulic or all-electric injection machines.

You’ll find this cycle across applications ranging from packaging and automotive body panels to consumer electronics and storage containers. Optimizing process parameters like injection speed, holding pressure, and mold temperature is essential for minimizing material waste and part defects.

Step 1: Thermoplastic Selection and Mold Preparation

Every successful injection molding project starts with selecting the right thermoplastic for your product’s requirements. You’ll need to match the resin’s melting point and viscosity to the mold design and mold tool material. For instance, materials with high melt temperatures, like polycarbonate or acrylonitrile butadiene styrene (ABS), require steel molds with high wear resistance, especially when glass-filled.

Resin selection should also align with properties such as flexibility, impact strength, and heat resistance. Applications that demand chemical resistance, like components used in medical or industrial settings, may require specialty polymers.

Moisture-sensitive plastics like nylons must be properly dried to under 0.2% moisture content. Failing to dry the resin can lead to cosmetic defects, voids, or strength loss in the final plastic parts. During mold preparation, technicians apply semi-permanent mold release agents, especially for abrasive fillers, to extend tool life and maintain surface quality.

The mold cavity is cleaned, aligned, and installed into the injection molding machine. Cooling channels are checked for blockages, and the mold halves are clamped between the stationary platen and the moving platen, ready for production.

Step 2: Feeding and Melting the Plastic

Once the mold is ready, the next step is to feed plastic pellets into the machine’s hopper. These pellets can include up to 30% regrind mixed with virgin material, offering cost savings and sustainability without compromising part performance. The raw material is gravity-fed into a heated barrel, where a reciprocating screw begins moving the resin forward.

Electric heater bands along the barrel maintain a consistent melt temperature—typically between 180°C and 330°C. As the screw rotates and compresses the material, it generates additional shear heat, often increasing the melt temperature by another 20°C. The combination of conduction and shear ensures the molten plastic reaches a uniform viscosity.

The screw’s design controls the shot volume, injection pressure, and plasticization rate. Once the shot accumulates, the screw moves forward, injecting molten plastic into the mold cavity. Every step here influences the quality, dimensional accuracy, and mechanical strength of the final parts.

Step 3: Injection Into the Mold

Once the molten plastic is properly plasticized, it’s time for the critical injection phase. During this stage, the reciprocating screw acts like a piston, rapidly driving the melt into the mold cavity at controlled speed and pressure. Typical injection speeds range from 100 to 500 mm/s, depending on the shot volume, part geometry, and flow characteristics of the selected resin. Injection pressure can ramp up to 150 MPa to achieve approximately 95% fill before the machine switches to the holding stage.

The clamp unit plays a vital role here. It must apply enough force to keep the mold halves sealed under extreme cavity pressure. A good rule of thumb is 4 to 6 tons of clamping force per square inch of projected area. Without sufficient force, you risk flash along the parting line or inconsistent surface finish on your plastic parts.

By the end of this stage, the mold cavity is mostly filled, and precise pressure control ensures consistency across thousands of cycles, especially important in mass production or tight-tolerance applications like medical components or electronics housings.

Step 4: Holding, Cooling, and Solidifying

After the initial injection, the machine transitions to the holding phase. This step maintains pressure inside the mold to pack more material into the cavity and compensate for shrinkage as the plastic cools. Typically, the holding pressure is about half the injection pressure and is applied until the gate, the narrow channel connecting the runner to the part, solidifies. This freeze-off point usually occurs within 0.5 to 3 seconds, depending on gate design, part size, and material.

Effective cooling is crucial for both product quality and cycle time. During this stage, thermal energy is extracted from the molten plastic through internal mold cooling channels. Some advanced molds use conformal cooling, designed with curved channels that follow the contours of the cavity, offering up to 40% shorter cooling cycles and more uniform temperature control.

The cooling time often dominates the total injection molding cycle. You’ll want to balance heat resistance, mold tool temperature, and cycle efficiency to reduce defects like warping, sink marks, and internal stress. Materials like acrylonitrile butadiene styrene (ABS) or polypropylene benefit from controlled cooling due to their thermal behavior and dimensional stability.

Step 5: Part Ejection and Finishing

Once the molded plastic has solidified and the mold opens, the next step is ejection. You need to remove the part without damaging its features or surface finish. This is where mechanisms like ejector pins, stripper plates, or air blasts come into play. Ejector pins push the part from the core side of the mold, while stripper plates offer a gentler method for delicate or high-surface-area components.

Draft angles of at least 1° are built into vertical walls of the part design to reduce drag during ejection. Without these angles, friction between the mold cavity and the plastic part could cause sticking or surface scratches, especially on deep features or textured surfaces.

Many high-volume production systems use inline robotics to automate part removal. These robots can also degate sprues and runners, transport the parts to quality control vision stations, or direct them to downstream packaging.

What are the Main Components of a Plastic Injection Molding Machine?

Each injection machine is made up of three main sections: the injection unit, the clamping unit, and the mold tooling. These systems work in sync to control shot volume, injection pressure, temperature, and cycle timing. The process has evolved significantly since the innovations of James Watson Hendry, who introduced the reciprocating screw, and continues to outperform older techniques like compression molding and blow molding in terms of speed, automation, and material efficiency.

Injection Unit

The injection unit is responsible for melting and delivering molten plastic into the mold cavity. At the core of this unit is the reciprocating screw, which rotates to plasticize the raw material and then moves forward to inject the melt. This dual-function design ensures consistent melt quality and metered shot control. The screw’s length-to-diameter (L/D) ratio, typically between 18:1 and 24:1, plays a critical role in mixing and heat distribution.

A non-return valve at the tip of the screw prevents backflow, maintaining stable injection pressure during the molding cycle. Heater bands wrap around the barrel to elevate the plastic’s temperature to its melting point, whether you’re processing polypropylene, ABS, or polycarbonate. The result is a homogeneous melt ready for high-speed injection into complex mold geometries.

Clamping Unit

Once the plastic is injected, the clamping unit holds the mold tool shut under immense force until the part solidifies. You need sufficient clamping force to resist the cavity pressure generated during injection. The required tonnage is calculated by multiplying the projected area of the part by the cavity pressure, commonly requiring 4 to 6 tons per square inch.

Clamping systems vary by machine size:

• Toggle clamps are used on presses under 300 tons. They offer fast dry cycles and good mechanical advantage.
• Hydraulic clamps are suited for machines up to 1,100 tons and provide smoother control over mold movement.
• Hydromechanical systems are found on large-scale machines above 1,000 tons, combining speed with precise force application.

Mold Tooling and Mold Channels

The mold tool defines the final shape, surface finish, and structural detail of your plastic parts. It’s machined with extreme precision, often through CNC machining—to form the cavity, core, and mold features like ribs, undercuts, and parting lines. Mold tooling also houses runners, gates, and cooling channels, all of which are essential for an efficient injection molding process.

Hot-runner systems, especially in multi-cavity molds, eliminate the need for cold runners and reduce material waste by up to 30%. They maintain molten flow directly to each gate and can significantly increase cycle efficiency. Gates are carefully sized to keep shear rates below 40,000 s⁻¹ to prevent burn marks, jetting, or surface defects.

Inside the mold, cooling channels regulate temperature and help solidify the part evenly. Proper mold design, including air vents, sprue bushings, and mold vents, ensures smooth filling, prevents trapped air, and extends tool life.

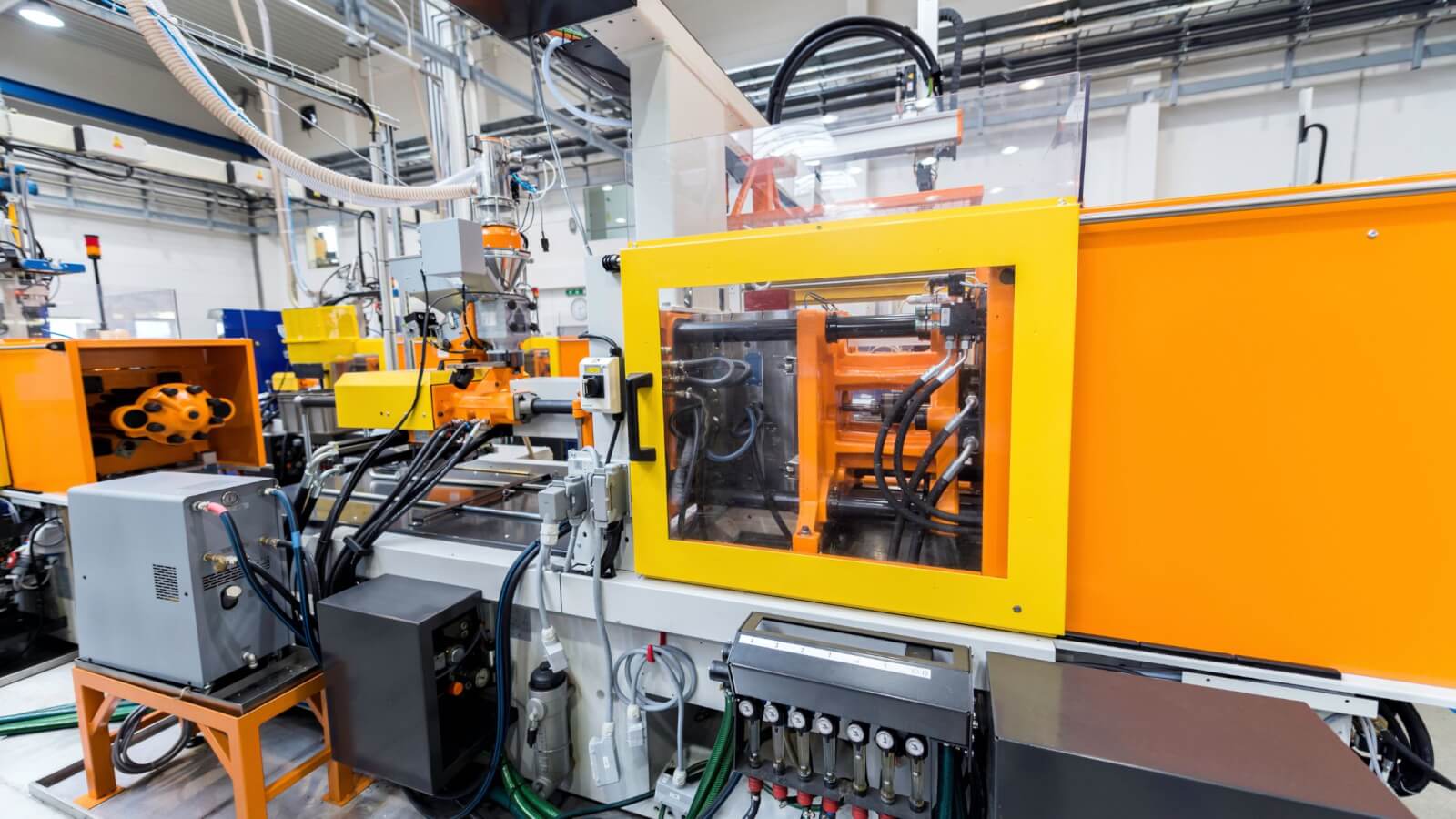

What Thermoplastic Materials are Used in Plastic Injection Molding?

Thermoplastics used in plastic injection molding fall into four primary categories: commodity, engineering, high-performance, and ultra-performance resins. These categories include both amorphous and semi-crystalline types, each offering unique characteristics during the molding process.

The wide range of plastic injection molding materials lets you align key properties like melting point, flow behavior, and mechanical strength with your end-use requirements. Commodity resins are frequently used in packaging or storage containers, while advanced polymers like PEEK serve in aerospace or medical devices requiring high heat resistance and mechanical stability.

Thermoplastics also allow for material waste reduction. You can typically reintroduce up to 30% regrind into commodity resins without performance loss. Process temperatures vary by polymer: polypropylene ranges from 200–240 °C, while PEEK requires 360–400 °C. These parameters affect not only cycle times but also product consistency.

For a deeper look into available resins and their properties, visit this guide on plastic injection molding materials.

Here’s a reference table with common materials and key performance data:

Commodity Resins

Commodity resins are the most widely used class of thermoplastics in plastic injection molding. These materials are selected for their affordability, ease of processing, and ability to support large-scale production volumes. While they may not deliver the highest mechanical performance, they remain the backbone of countless consumer and industrial products.

Typical examples include polyethylene, polypropylene, polystyrene, and polyvinyl chloride. These resins are frequently molded into everyday items such as containers, household tools, packaging components, and even components for toys and consumer electronics. Their performance remains sufficient for low-stress applications that prioritize cost and cycle speed.

For instance, high-density polyethylene offers outstanding chemical resistance, maintaining structural integrity in corrosive environments up to pH 14. Polypropylene is known for its fatigue strength, with hinge cycles surpassing one million repetitions, making it ideal for parts like caps, closures, and thin-walled items. These materials work well with aluminum molds and automated injection molding machines, reducing tooling cost and increasing repeatability across long production runs.

Engineering Resins

Engineering resins are thermoplastics designed for enhanced mechanical, thermal, and chemical performance. You’ll typically use them when parts need to withstand higher stress, friction, or elevated temperatures. Unlike commodity plastics, these materials offer improved strength-to-weight ratios, better dimensional stability, and tighter tolerance control during the injection molding process.

Common examples include nylon (PA), polycarbonate (PC), and acrylonitrile butadiene styrene. ABS, for instance, is well-known for its impact strength and dimensional precision. It’s used in everything from automotive interior panels to medical housings and electronics enclosures. Glass-filled PA 66 is another popular choice, offering tensile strength up to 200 MPa. Its ability to resist wear and absorb vibration makes it ideal for structural parts, gears, and bearings.

Engineering resins often require optimized mold design, precise temperature control, and higher injection pressure. These materials tend to shrink less than commodity resins and are compatible with more complex mold cavities and thinner wall thicknesses.

While investment cost and cycle time may be slightly higher, the performance gain justifies the choice, especially in mission-critical applications. You’ll also find these resins are suitable for aluminum molds and CNC-machined inserts, especially during prototyping or lower-volume production runs.

High-Performance and Ultra Resins

When even engineering plastics fall short, high-performance and ultra resins step in. These are the elite materials of the plastic injection industry—designed to operate under the most extreme conditions where reliability cannot be compromised. If you’re building aerospace brackets, under-hood automotive parts, or sterilizable surgical instruments, this class of materials should be your starting point.

High-performance thermoplastics like PEEK, PEI (Ultem), PPS, and fluoropolymers offer a unique combination of heat resistance, chemical stability, and mechanical strength. PEEK can operate continuously at 260 °C while maintaining its shape and load-bearing capacity. PEI carries a V-0 flame rating at 1.5 mm thickness, making it a top choice in electronics housings where fire safety is critical.

These materials resist aggressive chemicals, high injection pressure, and moisture absorption. You’ll need robust injection molding machines, advanced heater bands, and exact process parameters to maintain consistency across production volumes. Despite the higher cost per pound, you gain extended service life, dimensional stability, and reduced material waste.

Ultra-performance resins also enable production of thinner parts with lower mass and superior performance.

Amorphous Thermoplastics

Amorphous thermoplastics are polymers that lack a crystalline molecular structure. This means the chains in the material are arranged randomly, without a fixed pattern. As a result, these materials do not have a sharp melting point but instead soften over a temperature range. In the context of plastic injection molding, this behavior allows for more forgiving molding windows, which can be particularly useful for achieving tight dimensional tolerances in complex mold cavities.

These thermoplastics offer excellent clarity and are often chosen when you need optical transparency, such as in medical devices, consumer electronics, or automotive lighting. Polycarbonate (PC), polystyrene (PS), and acrylonitrile butadiene styrene are common examples. One of the reasons these polymers are favored for precise plastic parts is their predictable shrinkage and stable behavior during the injection molding cycle.

However, there’s a drawback you need to manage carefully—residual moisture. Amorphous resins are prone to stress cracking if moisture levels exceed 0.02%. That’s why drying systems and careful monitoring of raw material conditions are critical in your molding process.

These polymers bond well to mold tools and allow detailed features, even in aluminum molds or prototype injection molding runs. They offer good gate cosmetics and maintain surface appearance across high-volume production with consistent shot volumes and quality.

Semi-Crystalline Thermoplastics

In contrast to amorphous resins, semi-crystalline thermoplastics feature a well-ordered molecular structure with distinct crystalline regions. This structural characteristic results in a sharp melting point, which means these materials transition from solid to molten plastic at a specific temperature. For your injection molding process, this means tighter control over melting point, injection pressure, and cooling is required.

Semi-crystalline resins are widely used in applications requiring toughness, wear resistance, and chemical stability. Common materials in this category include polyethylene (PE), polypropylene (PP), and nylon (PA). They’re ideal for components like storage containers, gears, and parts that endure repetitive stress or exposure to chemicals. For example, PP is used extensively for its fatigue resistance and cost effectiveness in volume production.

However, one of the technical challenges you’ll face when molding semi-crystalline plastics is shrinkage, up to 2–3% after cooling. This requires higher packing pressure and careful part design to avoid deformation and ensure tight tolerances. Mold design considerations such as venting, cooling channels, and ejector pin placement become especially important to manage flow and maintain consistency.

These materials tend to resist water absorption better than amorphous resins, making them well suited for outdoor and plumbing applications. They also benefit from improved lubricity, meaning reduced wear on both the mold tool and the molded components.

What is the Best Plastic for Injection Molding?

The best plastic for injection molding isn’t a one-size-fits-all answer, it depends entirely on your project’s material selection criteria. To make an informed decision, you need to evaluate mechanical loads, environmental conditions, and compliance requirements. For example, if your application demands strong impact resistance and agency approvals, acrylonitrile butadiene styrene (ABS) is often a preferred option. On the other hand, polypropylene offers chemical resistance and cost savings for high-volume production.

UV exposure, thermal stability, and strength-to-weight ratio also factor into the injection molding process. Engineering-grade plastics like polycarbonate or nylon may outperform commodity resins when heat resistance and dimensional precision are essential. Always reference a material table to match resin type to application characteristics.

What Techniques are Used in Plastic Injection Molding?

Reaction injection molding (RIM) is sometimes used when low-viscosity raw materials are needed for large or complex parts. Each method leverages the core principle of forcing molten plastic into a mold cavity, but they vary significantly in tooling design, shot volume, material flow, and final product characteristics.

These techniques are essential for meeting the demands of modern supply chains and mass production environments. While standard molding processes focus on repeatability and speed, specialty methods provide design flexibility, improved strength, or multi-material integration. By choosing the right technique, you enhance material selection options, optimize the injection molding cycle, and reduce material waste.

Overmolding

Overmolding is a multi-shot molding technique where two or more materials are combined in a single molding cycle. The process begins by forming a rigid plastic substrate using a standard injection molding machine. After this first component solidifies in the mold tool, a second shot of molten plastic, typically a thermoplastic elastomer (TPE), is injected over the initial part. The result is a cohesive assembly without secondary bonding or mechanical fastening.

This method is ideal for improving the ergonomics, aesthetics, or functionality of consumer products. You’ve likely experienced this in soft-touch grips on toothbrushes, handheld tools, or remote-control buttons. When overmolding TPE onto substrates like polycarbonate or acrylonitrile butadiene styrene, you can achieve bond strengths of 5 MPa or higher without relying on primers or adhesives. That makes the operation more efficient and durable.

The benefits go far beyond appearance. Overmolding enhances impact resistance, provides better vibration damping, and creates a seamless parting line. It’s a valuable solution for engineers focused on reducing assembly stages, optimizing injection molding process parameters, and maintaining precision with minimal material waste.

Insert Molding

Insert molding is a hybrid manufacturing process where non-plastic components—such as metal fasteners, bushings, or threaded inserts—are embedded directly into molded plastic parts during the injection molding cycle. It starts by placing the insert manually or robotically into the mold cavity before the molten plastic is injected. Once the plastic fills the space around the insert, it solidifies and creates a strong mechanical bond between the two materials. This eliminates the need for adhesives or secondary fastening processes.

This method is widely used in the United States for electrical housings, automotive components, and consumer electronics, where durable metal-to-plastic assemblies are required. By pre-heating brass inserts to around 80 °C before loading them into the mold tool, you can reduce the overall cycle time by up to 10% compared to room-temperature inserts. That’s a significant advantage in high volume production settings where efficiency matters.

Insert molding enhances the strength of the final product, especially in applications that involve repeated stress, such as threads or fasteners. It also improves design flexibility, reduces assembly costs, and minimizes part misalignment.

Internal Gas Assist Molding

Internal gas assist molding is a variation of the plastic injection molding process that uses high-pressure gas, typically nitrogen, to hollow out thick sections of molded parts. After the initial molten plastic is injected into the mold cavity, gas is introduced through a secondary nozzle or gas pin. The gas pressure, ranging between 7 to 35 MPa, pushes the plastic outward, forcing it against the mold walls and forming hollow channels within the part. This method reduces sink marks and improves material distribution.

One of the main advantages of gas assist molding is weight reduction. By displacing plastic in thicker regions, such as structural ribs or handles, this technique can lower overall part weight by up to 15% without compromising strength. That translates into cost savings on raw materials and shorter cooling cycles due to less thermal mass.

For manufacturers dealing with bulky parts or products with complex geometries, gas assist provides a valuable tool for managing shrinkage, pressure control, and surface quality. You’ll also benefit from smoother flow paths, reduced injection pressure demands, and fewer defects at the parting line.

Extrusion Molding

Extrusion molding is a continuous manufacturing process used primarily for producing long plastic components with uniform cross-sections, such as pipes, tubing, or profiles. Unlike traditional plastic injection molding, which involves injecting molten plastic into a closed mold cavity, extrusion forces the material through a shaped die using a high-pressure screw-driven system. This method is especially efficient for creating high-volume production runs of items like storage containers, window frames, and cable insulation.

The process begins by feeding thermoplastic pellets into a heated barrel through a hopper. A rotating screw, often referred to as a reciprocating screw, moves the raw material forward while simultaneously melting it using heater bands. The molten plastic is then forced through a die, which determines the final shape of the product. After exiting the die, the plastic is cooled and solidified using a series of water baths or air-cooled channels before being cut to the desired length.

You’ll find extrusion molding particularly beneficial when manufacturing items that demand continuous output and dimensional consistency. It is compatible with various polymers including polyethylene, polypropylene, and acrylonitrile butadiene styrene (ABS).

Gas-Assist and Structural Foam Molding

Gas-assist and structural foam molding are two advanced variations of the plastic injection molding process, each offering distinct advantages in material efficiency and part performance. Gas-assist molding uses high-pressure nitrogen to displace molten plastic inside thick-walled parts. This lowers shot volume and reduces defects like sink marks. Structural foam molding, on the other hand, introduces a chemical blowing agent into the molten plastic during the injection cycle. As the resin fills the mold, gas bubbles form internally, lowering part density by 10–15%.

These internal voids help reduce material waste while maintaining part stiffness and shape integrity. Structural foam techniques also permit the use of aluminum molds at pressures below 10 MPa, which cuts tooling costs and cycle time.

Two-Shot Molding

Two-shot molding, also called dual-shot or multi-shot molding, is a specialized plastic injection molding technique where two different materials or colors are molded into a single component during one production cycle. This process involves a highly engineered injection molding machine equipped with two injection units and a rotating mold tool. The first shot injects the base material into the mold cavity to form the initial part shape. Then, the mold rotates or slides to a second cavity where the second shot is injected over or around the first component, bonding both materials together.

You’ll find two-shot molding particularly useful when combining hard thermoplastics with soft elastomers, such as acrylonitrile butadiene styrene (ABS) with thermoplastic elastomers for consumer electronics or medical devices. This method reduces the need for secondary assembly operations, minimizing production costs and improving part integrity. It’s commonly used in the United States for products like toothbrush handles, automotive switches, and soft-touch buttons.

What makes this process efficient is its ability to integrate multiple functions into a single part. It enhances product performance, improves appearance, and supports complex mold designs without increasing material waste.

Reaction Injection Molding (RIM)

Reaction Injection Molding (RIM) is a unique plastic molding process that involves mixing two low-viscosity liquid thermoset components, typically polyol and isocyanateunder pressure before injecting the reactive mixture into a mold. These components impinge-mix at around 100 psi and begin to cure immediately after entering the mold cavity, where in-mold temperatures range from 80 °C to 150 °C. Unlike traditional injection molding processes that rely on molten plastic, RIM uses a chemical reaction to solidify the material.

This technique is especially effective for producing large, lightweight plastic parts with complex geometries and varying wall thicknesses. You’ll often see it used in the automotive and appliance industries for making body panels, instrument housings, and structural covers. Due to the low injection pressure, aluminum molds are often used, which significantly reduces tooling costs for medium-volume production runs.

RIM offers several advantages: low internal stress, excellent dimensional stability, and enhanced design flexibility. Since the resin fills the cavity slowly and evenly, it minimizes defects such as shrinkage and warping.

What Finishing Operations and Post-Processing are Performed After Plastic Injection Molding?

After the plastic injection molding process is complete, several secondary operations are often required to enhance part functionality, aesthetics, or assembly readiness. These post-processing steps may include ultrasonic welding, vibration welding, pad printing, laser engraving, and antimicrobial coatings. Each one addresses specific needs, from joining components to improving surface appearance or adding custom markings.

Ultrasonic welding uses high-frequency vibrations to bond plastic parts at their contact surfaces without additional materials. Vibration welding works similarly but relies on frictional heat generated by surface movement. Pad printing allows you to apply ink directly onto curved plastic surfaces, while laser engraving creates permanent marks for identification or branding. Antimicrobial coatings are commonly added to parts in consumer, healthcare, or packaging applications where hygiene is essential.

How are Parts Trimmed and Flash Removed?

Pneumatic gate shears are frequently used for trimming parts, they apply consistent force to cleanly cut runners without damaging the molded parts.

During degating, special care is taken to avoid overstressing the material. Forces are kept below 20% of the part’s yield strength to prevent whitening or internal fractures, which could compromise both cosmetic quality and mechanical performance. Flash removal is critical, especially for components with tight tolerances or functional mating surfaces.

These finishing methods are especially important when working with brittle thermoplastics like polystyrene or acrylonitrile butadiene styrene (ABS), where stress marks can result from poor trimming. Efficient trimming improves dimensional accuracy, supports downstream assembly, and ensures quality in high volume production.

What Surface Finishing Options are Available?

After injection molding, you have several options for surface finishing, depending on your product’s appearance, texture, and functional requirements. Common finishes include matte, gloss, textured surfaces, and high-polish treatments. These are standardized by the SPI (Society of the Plastics Industry) scale, ranging from A-1 (high gloss) to D-3 (rough texture), and are chosen based on both aesthetic and tactile goals.

You can also apply chemical etch textures to the mold cavity, replicating complex patterns like leather grain or brushed metal. These textures typically exhibit a surface roughness (Ra) between 3 and 15 micrometers, which influences both the visual and tactile quality of the finished plastic part.

Finishes are not just cosmetic, they impact mold release, parting line visibility, and even performance attributes like grip or scratch resistance.

Do Mold and Tooling Design Impact Production?

Yes, mold and tooling design play a major role in determining the efficiency, cost, and quality of your plastic injection molding project. Everything from gate placement to cooling channel configuration directly impacts the outcome. If your mold tool has poorly placed gates, scrap rates can increase by up to 5%, adding unnecessary cost and slowing down your production process.

On the other hand, using conformal-cooled inserts can reduce the injection molding cycle time by as much as 30%. This not only supports high volume production but also boosts energy efficiency and machine uptime. Mold cavity design, wall thickness uniformity, ejector pin locations, and parting line geometry all influence whether you’ll achieve consistency in shot volume, surface finish, and dimensional accuracy.

Designing your mold with precision upfront helps you avoid downstream defects, lower your material waste, and extend the life of your injection molding machine. It’s a key factor in maintaining competitive production volumes in the United States and beyond.

What are Plastic Injection Molding Applications?

Plastic injection molding is widely used across industries due to its scalability, design flexibility, and repeatability. In the medical industry, it’s used for manufacturing IV-pump housings that require exacting tolerances and biocompatible materials. In automotive manufacturing, you’ll find injection-molded body panels and fascia designed for both strength and cosmetic appeal.

For the electronics sector, 5G antenna radomes made from thermoplastics like polycarbonate are common, these require high heat resistance and tight process parameters to ensure performance in demanding environments. Food packaging also benefits from plastic injection molding, especially for thin-wall containers like lids under 0.5 mm thickness, which require excellent flow control and precision.

Thanks to the plastic injection molding process, products ranging from storage containers to consumer electronics can be produced in the thousands with consistent quality.

What Design Guidelines Should Be Followed for Injection-Molded Parts?

If you want to avoid material waste, reduce cycle times, and maintain dimensional accuracy, you need to take the physical limits of the process into account from the beginning.

Start with wall thickness. For engineering resins, you should keep walls between 0.6 mm and 4 mm. Commodity plastics allow a slightly broader range, from 0.8 mm up to 6 mm. Maintaining these limits prevents defects like voids, short shots, or uneven cooling. Additionally, integrating coring into your mold design can remove 15–40% of mass from thick sections without compromising strength. This reduces shot volume and holding pressure while supporting faster solidification.

Wall Thickness and Uniformity

Maintaining uniform wall thickness is one of the most important principles in plastic injection molding. When thickness varies too much across your part, you’re more likely to encounter sink marks, warping, or internal stresses. These issues emerge because molten plastic cools and solidifies unevenly across thicker and thinner regions, affecting shrinkage and final dimensions.

For optimal results, you should aim for gradual transitions between areas of different thickness. Avoid sharp jumps in section size, as they disrupt the flow of molten plastic and create turbulence or incomplete filling of the mold cavity. Uniformity also helps regulate injection pressure and reduces cycle time by supporting even heat dissipation through the mold halves.

In high volume production environments, such as those making packaging, containers, or electronic housings, consistency in wall thickness helps preserve part quality and maintain tight tolerances.

Draft Angles

Once your plastic part is formed, it needs to be ejected from the mold without damage. That’s where draft angles come in. Adding the right amount of draft, typically 1 to 2 degrees per side, allows the part to release smoothly from the mold cavity without scraping or sticking. This simple design feature reduces the stress on both the part and the ejector pins, improving the cycle efficiency of your injection molding machine.

Without adequate draft, the part can drag along the mold walls during ejection, leading to scratches, deformation, or even complete failure. This becomes more pronounced with complex shapes, undercuts, or textured surfaces. Using aluminum molds or molds with highly polished surfaces requires even more attention to draft angle precision due to tighter tolerances and lower abrasion resistance.

Adding a proper draft doesn’t compromise the function of your part, it protects the integrity of your design and supports smoother operation throughout the molding process.

Ribs, Bosses, and Undercuts

When designing plastic parts for the injection molding process, you need to balance structural support with moldability. Features like ribs, bosses, and undercuts all serve mechanical or functional purposes, but if poorly executed, they can increase mold complexity, raise tooling costs, and create defects during the production process.

Let’s start with ribs. You should keep rib thickness less than or equal to 0.6 times the nominal wall thickness to avoid sink marks and ensure consistent cooling throughout the mold cavity. This is critical for parts using engineering-grade thermoplastics such as acrylonitrile butadiene styrene (ABS), where excess thickness can lead to cosmetic and dimensional issues. Bosses, used for fasteners or inserts, should have an outer diameter no more than twice the wall thickness to maintain strength while limiting internal stress during the injection cycle.

Undercuts are trickier. While they allow complex part geometries, they complicate mold design and ejection. They may require side actions or lifters, adding cost and extending cycle times. That’s why you should only include undercuts when absolutely necessary for part function or assembly.

What are Common Defects in Injection Molding and How are They Managed?

Despite the precision of the plastic injection molding process, certain defects are inevitable without strict control of parameters like temperature, injection pressure, cooling, and mold design. When you’re scaling up for high volume production, even small inconsistencies can lead to hundreds of rejected parts. Understanding these defects helps you catch problems early and refine your production process for improved yield and cost savings.

Two of the most frequent issues in injection molding are warping and sink marks. Both arise from improper control of heat transfer, resin flow, and part geometry. They affect not only the appearance of plastic parts but also their strength, assembly fit, and functional reliability. While some solutions involve mold redesign, others require adjusting your shot volume, cooling cycle, or using different polymers to reduce shrinkage and flow resistance. Proactively addressing these defects ensures better product quality and less material waste across production runs.

Warping

Warping is a distortion in the final shape of molded components, typically caused by uneven cooling or inconsistent wall thicknesses. When molten plastic flows into the mold cavity, different cooling rates across the part lead to internal stress. As the material solidifies, these stresses pull the part out of alignment, resulting in bends or twists.

To manage warping, you should first look at your mold design. Ensure that the wall thicknesses remain as uniform as possible to avoid heat imbalance. Proper placement of cooling channels, gates, and air vents also promotes even solidification. Materials like acrylonitrile butadiene styrene (ABS) and polypropylene can be particularly sensitive to heat, so resin selection plays a role too. Controlling injection speed, holding pressure, and mold temperature are further ways to reduce stress buildup. If warping persists, secondary operations such as post-molding heat treatment may help stabilize the shape.

Sink Marks

Sink marks appear as small depressions or dimples on the surface of thicker sections of a molded part. They usually form when the outer surface of the part cools and solidifies faster than the interior, leaving a gap as the inner volume continues to shrink. This is common around ribs, bosses, or thick intersections where molten plastic accumulates.

Minimizing sink marks starts with part design. You should reduce localized mass by coring out thick sections or keeping rib thicknesses under 60% of the nominal wall. Managing the injection molding cycle also matters, specifically, increasing holding pressure and time ensures the molten resin fully packs the cavity before cooling. Mold temperature and resin viscosity, both influenced by heater bands and screw speed, must also be optimized.

Flash

Flash occurs when molten plastic escapes the mold cavity and seeps into the parting line or ejector pin clearance, creating a thin, unwanted layer of material. This is often caused by insufficient clamping force, worn mold halves, or excessive injection pressure that forces resin into unintended gaps.

To avoid flash, you should ensure that your injection molding machine applies enough clamping force to hold the mold shut during the injection phase. Mold maintenance is also critical—any damage or wear along the parting line, runner system, or mold vents can open up gaps that allow leakage. Flash is more common with thermoplastics that have low viscosity, especially when combined with high injection speeds or short cycle times. In precision manufacturing environments, removing flash manually increases labor cost and delays. So optimizing mold tool tolerances and pressure settings is essential for cost-effective, high-volume production.

Short Shots and Flow Lines

Short shots result when the mold cavity isn’t completely filled, leaving voids or incomplete parts. This can happen if the shot volume is too low, the resin cools too quickly, or the melt flow path is poorly designed. Flow lines, on the other hand, are visible streaks that appear as the molten resin fronts meet or slow down due to rapid cooling or mold surface inconsistencies.

Both issues relate to improper control over the injection molding process. To fix short shots, you might need to increase the injection pressure or melt temperature. Replacing narrow gates or runners with optimized designs improves flow and packing. For flow lines, increasing mold temperature and injection speed can help maintain uniform melt flow, reducing surface imperfections. Material selection also plays a role, polymers like polypropylene or ABS with low melt viscosity reduce flow resistance and improve cavity filling.

Delamination

Delamination refers to the separation of plastic layers on the surface of a molded part, creating a flaky, non-uniform finish. This defect typically arises when incompatible raw materials or contaminated pellets enter the injection unit. It can also occur when moisture is present in hygroscopic polymers like nylon or polycarbonate.

To prevent delamination, always ensure your raw materials are properly dried, particularly if you’re working with polyvinyl chloride (PVC) or other moisture-sensitive resins. Using dryer hoppers and maintaining consistent barrel temperature through heater bands can reduce surface instability. Additionally, avoiding contamination from recycled plastics or additives that affect polymer compatibility is key. Delamination isn’t just cosmetic, it can impact mechanical performance and assembly integrity. That’s why manufacturers using the injection molding process for parts like body panels or structural components must follow strict resin handling and material selection protocols.

Discoloration and Burnt Marks

Discoloration and burnt marks are common visual defects that occur when molten plastic degrades inside the injection molding machine. These problems are typically the result of excessive heat, prolonged residence time in the barrel, or trapped air in the mold cavity. The discoloration may present as streaks or patches, while burnt marks usually appear dark and brittle near the gate or vents.

To correct this, you should monitor process parameters like barrel temperature, injection speed, and back pressure. Make sure the resin feed is clean and that the screw and reciprocating screw assembly aren’t worn out, which could trap material and lead to thermal degradation. Also, pay close attention to mold design, especially air vents and runner layout. Improving venting and maintaining appropriate melt flow paths helps reduce hotspots and avoids stagnant material buildup. This is especially important in ABS, which has a lower heat resistance compared to other engineering polymers used in plastic injection applications.

Vacuum Voids

Vacuum voids are internal gaps or bubbles within molded parts, often invisible until post-production testing. These defects usually form when the outer layers of the part cool and solidify faster than the interior, trapping gases or creating shrinkage-related gaps. This is especially problematic when molding thick-walled plastic parts or when using resin with inconsistent moisture content.

To manage vacuum voids, your best approach is to relocate the gate to the thickest section of the part so molten plastic fills the mold cavity uniformly. Additionally, increasing the holding pressure and extending the packing time ensures the inner core has enough time to compress before solidification. You should also review mold design for any sharp transitions or overhangs that may restrict flow. Moisture-sensitive materials like nylon or polyvinyl chloride require proper pre-drying using hopper dryers to avoid steam formation inside the mold cavity.

What Inspection Methods Ensure Quality?

Ensuring consistent quality in plastic injection molding means catching defects before they compromise your final product or delay fulfillment. Today’s manufacturers rely on inline cavity-pressure sensors to monitor mold cavity conditions in real time. These sensors track pressure fluctuations during each cycle, helping you adjust process parameters instantly.

For internal defects like vacuum voids or porosity, 3D computed tomography (CT) scanning provides precise volumetric data without cutting into the plastic parts. When you’re working with complex geometries or tight tolerances, like those found in automotive or electronics components, this non-destructive inspection method is indispensable. Additionally, automated vision systems with ±0.02 mm resolution can detect surface flaws, gate vestiges, or flash.

What Certifications and Standards Apply to Injection Molded Parts?

ISO 9001 is the baseline for quality management across the injection molding industry. If you’re manufacturing plastic parts for healthcare, ISO 13485 ensures alignment with medical device regulations. Automotive components must adhere to IATF 16949, which focuses on process efficiency and consistency in mass production. Meanwhile, FDA compliance is essential for any molded parts that come into contact with food or pharmaceuticals. For environmental and material safety, RoHS restricts hazardous substances, and REACH regulates chemical exposure. If your process involves polymers with specific performance demands, UL 746C addresses the flammability and long-term reliability of thermoplastics used in devices, electronics, and molded enclosures under heat and electrical stress.

How Much Does Plastic Injection Molding Cost?

The cost of plastic injection molding depends on many variables, but it often becomes more economical as production volumes increase. You’ll find that for high-volume production, especially runs over 100,000 parts, the per-unit cost often drops below $1. This cost-effectiveness makes the injection molding process a preferred choice for consumer goods, automotive components, and packaging solutions.

Several core factors drive the total cost. Aluminum molds for short production runs or prototyping typically range from $5,000 to $20,000, while steel production molds built for long-term use can cost between $50,000 and $250,000. Press time, which is based on tonnage and part complexity, generally falls between $30 and $120 per hour. Materials matter too. Thermoplastics like polypropylene or acrylonitrile butadiene styrene (ABS) vary widely in price, and resin properties, such as melting point, shrinkage rate, and heat resistance, directly affect mold design and cycle time. Labor, injection molding machine size, ejector pins, and secondary operations also influence overall investment cost.

Material and Resin Selection

The raw material you choose directly influences the strength, flexibility, temperature resistance, and appearance of the final parts. Common materials include ABS, polypropylene, and polycarbonate, each with distinct properties suited for specific applications ranging from consumer electronics to automotive body panels.

Thermoplastics dominate plastic injection molding due to their repeatable melting and cooling behavior, which aligns well with the injection molding cycle. For example, polypropylene is known for its chemical resistance and cost-effectiveness, while polycarbonate offers superior impact strength and clarity. Specialty polymers may also be required for parts exposed to high temperatures or electrical loads, particularly in devices and connectors.

Your decision also affects mold tool requirements. For instance, abrasive resins may wear out aluminum molds faster than steel tools, increasing long-term production costs.

Mold Design Complexity

Mold design is one of the largest cost components in the plastic injection molding process. The more complex your mold, the more you’ll pay upfront, often by tens of thousands of dollars. When a mold includes intricate parting lines, deep cavities, ejector pins, or undercuts, manufacturers must use advanced CNC machining techniques and high-grade tool steels. This drives up the investment cost significantly.

For simpler parts or prototypes, you may opt for aluminum molds, which typically range from $5,000 to $20,000 and suit lower production volumes. But for high volume production runs or parts with fine tolerances, you’ll likely need hardened steel molds, which can cost anywhere from $50,000 to $250,000 depending on the geometry, features, and number of cavities. The design also affects cooling channels, mold halves, and gate placement, which influence injection pressure, cycle time, and shrinkage.

Production Volume

Production volume plays a defining role in the per-part cost of plastic injection molding. The more units you produce, the more the fixed tooling and setup costs get diluted. For mass production runs over 100,000 pieces, you’ll often see per-part costs fall below $1. That’s where the real cost savings in injection molding lie, it becomes economically viable when you’re dealing with thousands of plastic parts at scale.

However, small batch production or limited-run prototypes, especially those using aluminum molds or requiring frequent design changes, tend to have much higher per-part costs. Volume production also affects shot volume, runner layout, resin consumption, and wear on the injection molding machine itself. High-volume runs require consistent control of process parameters like injection speed, holding pressure, and melt temperature to maintain quality and avoid defects like flash or voids. You should also account for post-molding processes such as trimming, inspection, or packaging, which can add labor and time per unit.

Machine and Labor Costs

Machine and labor costs vary based on the tonnage, cycle time, and complexity of the injection molding job. The type of injection molding machine, whether it’s hydraulic, electric, or hybrid, affects not only energy usage but also injection speed, clamping force, and precision. Machines with higher tonnage, often required for large plastic parts or multi-cavity molds, command higher hourly rates, typically ranging between $30 and $120 per hour in the United States.

Labor costs are also influenced by the degree of automation used during the molding process. A fully automated setup with robots and conveyors reduces direct labor but increases upfront equipment investment. In contrast, manual operations involve operators monitoring injection units, inspecting parts, and handling packaging, which adds recurring labor expenses. Additional time may also be required for setting up heater bands, adjusting the reciprocating screw, purging the barrel, and loading raw plastic pellets into the hopper.

For complex products or demanding tolerances, skilled technicians are necessary to monitor process parameters and make real-time adjustments.

What is the Life Expectancy of a Plastic Injection Mold?

The average life expectancy of a plastic injection mold typically ranges between 100,000 and 1,000,000 shots, depending on the mold material, part complexity, and maintenance practices. For high-volume production, hardened steel molds are engineered to deliver durability over extended injection molding cycles, whereas aluminum molds may wear out faster, especially when used for abrasive plastics or high injection pressures.

Multiple factors influence how long a mold tool will last. The type of thermoplastic being processed, for instance, can affect abrasion and mold cavity wear. Polymers like polycarbonate or polypropylene can degrade less durable mold materials. Similarly, filler additives or recycled resin introduce particulate matter that accelerates surface damage within the cavity and ejector pins.

Temperature control also plays a key role. Poorly regulated heater bands or uneven cooling channels increase thermal fatigue, leading to cracking or misalignment of mold halves. If you’re running a plastic injection molding process under high clamping force or with improper process parameters, mold components like gates, parting lines, or the sprue bushing may wear prematurely.

What is the Environmental Impact of Plastic Injection Molding?

3d Printing Replacement Parts

The environmental impact of plastic injection molding depends heavily on energy usage, raw material consumption, and the generation of waste across the manufacturing process. Traditional hydraulic systems used in the injection molding industry require significant power, especially during the injection molding cycle. Fortunately, newer all-electric machines can cut energy consumption by 20–60%, making operations more sustainable and cost-effective.

Advanced cooling systems such as closed-loop water chillers now reclaim up to 95% of heat during the molding process, reducing thermal waste. While most plastic injection molding still uses polymers like polypropylene, polyethylene, and acrylonitrile butadiene styrene, material selection is evolving. Manufacturers are shifting toward bio-based alternatives and integrating reprocessed resin to reduce environmental strain.

These improvements don’t just benefit the environment—they also improve cost savings, extend the life of injection molding machines, and reduce maintenance related to heater bands and cooling channels. As demand for high volume production grows in the United States, optimizing process parameters and choosing sustainable materials will become essential across the injection molding process.

Can Recycled and Reprocessed Materials be Used?

Yes, recycled and reprocessed materials are compatible with many plastic injection molding applications. If you’re running production where surface finish, part strength, or color uniformity isn’t critical, you can benefit from blending virgin pellets with regrind to reduce both material waste and overall investment cost. Polymers such as polypropylene, polycarbonate, and ABS can often be reused without compromising essential properties.

However, using reprocessed materials does require tight control over feedstock consistency, drying times, and melting point. Unstable resin or excessive moisture can negatively affect the molding process, leading to poor mold cavity filling, inconsistent shrinkage, or ejection issues at the mold tool. This is particularly important in complex projects involving high-performance thermoplastics, tight tolerances, or intricate mold design with undercuts or thin wall thicknesses.

How Can Waste be Reduced in the Process?

Minimizing waste in plastic injection molding starts with thoughtful design and precise execution of the manufacturing process. Properly engineered molds with optimized runners, gates, and parting lines reduce the volume of excess material generated during each shot. The integration of hot runner systems also eliminates the need for sprue removal, reducing scrap and improving shot volume efficiency.

You can further reduce waste by using advanced automation systems to monitor the injection process. These systems allow real-time control over parameters such as injection pressure, cycle time, and clamping force. With tighter control, you reduce the risk of defects related to material flow, overpacking, or voids, especially in parts made from high-viscosity plastics or filled compounds.

In-house regrinding systems offer another way to reclaim plastic from runners and rejected parts, feeding it back into the injection molding machine.

Are There Energy-Efficient Machines Available?

Yes, today’s energy-efficient injection molding machines significantly reduce environmental impact by lowering energy and heat consumption. All-electric models are leading this transition, especially in the United States, where manufacturers demand better energy performance and cost effectiveness. These machines eliminate the need for hydraulic oil, use servo motors instead of pumps, and often cut energy usage by 20–60%, depending on the shot volume and product complexity.

They’re also better at controlling process parameters such as injection speed, clamping force, and holding pressure, all critical in reducing waste and improving part quality. Cooling systems like closed-loop chillers help reclaim over 90% of generated heat, further optimizing the molding process. When working with polymers like polypropylene or acrylonitrile butadiene styrene, these machines also allow for more precise control over melting point and injection cycle times.

What are Biodegradable or Bio-Based Alternatives?

Biodegradable and bio-based materials are becoming viable substitutes for traditional plastics in plastic injection molding. These materials are derived from renewable resources like corn starch, cellulose acetate, and polylactic acid, offering a lower-carbon option for mass production. While not every plastic part can be made using bio-based materials, you’ll find them increasingly used in packaging, consumer goods, and some medical applications.

Their integration into the injection molding industry depends heavily on the type of application and required material properties. For instance, heat resistance, strength, and shrinkage behavior must align with the mold tool’s cavity design and the component’s end-use environment. Manufacturers are also exploring blends that combine bio-based resin with conventional polymers like polyvinyl chloride to balance performance and sustainability.

What are Safety Tips for Plastic Injection Molding?

When working with plastic injection molding equipment, safety should always be your top priority. This manufacturing process involves high-temperature molten plastic, heavy machinery, and complex mold designs, all of which carry inherent risks. You must follow strict safety protocols to protect both operators and equipment.

Lock-out/tag-out procedures are essential before performing maintenance on an injection molding machine. These steps prevent unexpected machine startups, protecting you from injury around moving components like the reciprocating screw or platen. High-temperature personal protective equipment (PPE) is critical when working near the barrel or heater bands, where temperatures can exceed the melting point of many thermoplastics.

Purging procedures must be done properly to avoid the release of hazardous decomposition gases inside the cylinder. This is especially important when changing from polyvinyl chloride to another polymer.

What Does the Future Look Like for Plastic Injection Molding?

The future of plastic injection molding is shifting toward smarter, cleaner, and more flexible production systems. As the industry pushes for more sustainable and efficient operations, you’ll see significant advances in automation, material science, and process simulation.

Digital twin technology is enabling manufacturers to cut time-to-tool by up to 30%, improving mold tool accuracy and accelerating product development. Artificial intelligence is also being integrated into injection molding machines to optimize process parameters like injection pressure, clamping force, and cooling channel efficiency. These technologies help reduce energy consumption and material waste across the production run.

At the same time, bio-based resins such as PHA are entering mass production, offering a promising alternative to conventional polymers like acrylonitrile butadiene styrene. Combined with CNC machining for prototypes and enhanced mold design software, these innovations are driving the next generation of high-volume production.

How Do You Choose The Right Injection Molding Partner or Manufacturer?

Choosing a plastic injection molding partner isn’t just about cost, it’s about capability, reliability, and long-term success. You should start by evaluating their certifications, such as ISO 9001, which signal consistency and adherence to quality standards. Then, review their tooling capabilities. Do they work with both aluminum molds and steel for different production volumes? Can they maintain tight tolerances and create complex mold cavities with advanced features like cooling channels and ejector pins?

Production scalability is also crucial. Whether you’re developing early-stage prototypes or planning high volume production, your manufacturer should handle your required output. Make sure they understand your industry’s applications, whether it involves body panels, medical devices, or consumer-grade storage containers. A dependable injection molding company will also provide quality assurance procedures throughout the injection molding cycle, from material selection to mold tool maintenance.

Importantly, you want a partner who helps reduce material waste, optimizes the injection molding process, and ensures consistency across every shot of molten plastic. Look for openness around process parameters like injection pressure, cycle times, and cooling methods. Those details directly affect part strength, surface finish, and dimensional accuracy.

That’s why companies working with plastic injection molding services from 3ERP benefit from rapid prototyping with aluminum molds and full-scale manufacturing in one place. Their engineers manage everything, from mold design and DFM analysis to final production, so you don’t have to juggle multiple vendors. It’s a comprehensive service built for flexibility, precision, and speed.

Conclusion

When it comes to plastic injection molding, who you work with can make or break your entire project. That’s why choosing the right partner is very important, as it’s how you make sure your parts are strong, your deadlines stay on track, and your budget doesn’t blow up. At the end of the day, this process is about more than just melting plastic and filling a mold. It’s about how well everything fits together, from your mold design and raw materials to the people guiding your production.

You don’t have to figure it all out on your own. When we’re aligned on the right materials, tight tolerances, and smart tooling, you get better results with less stress. Whether you’re building thousands of parts or just starting small, success depends on the little details, and the right team by your side.

Frequently Asked Questions

Can Recycled Plastics Be Used in Injection Molding?

Yes, recycled plastics can be used in the injection molding process, especially for non-critical parts where strength and appearance are less demanding. Many manufacturers incorporate post-consumer or post-industrial resin into production runs to reduce material waste and lower raw material costs. When used correctly, recycled polymers still melt and flow like virgin pellets, filling mold cavities under controlled injection pressure.

Is Plastic Injection Molding Difficult?

Plastic injection molding isn’t inherently difficult, but it is a highly technical manufacturing process that requires expertise in tooling, thermoplastics, and machine operation. You’ll need to understand how parameters like injection speed, holding pressure, and shot volume influence the part’s performance. Complex mold tools with undercuts, multiple mold halves, or intricate parting lines demand precise CNC machining and careful mold design.
