Selecting the right plastic for injection molding can feel overwhelming. With so many options out there, it’s easy to assume they’re all basically the same. But here’s the truth: the plastic you pick can make or break your project. It shapes how your part performs, how it looks, how long it lasts, and yes, how much it’ll cost you in the end.
Whether you’re making food containers, phone accessories, or precise components for medical devices, every plastic behaves differently. Most of the time, it comes down to a handful of common materials, ABS, PC, PA, PE, PP, PS, POM, PMMA, TPE, and TPU, that cover nearly all injection molded parts. And while some resins are great for high-volume, everyday items, others are built to survive heat, chemicals, or stress-heavy environments.
If you choose the wrong one, you’re not just risking a bad finish, you could be looking at 30% to 50% higher production costs from mold rework or slower cycles.
In this article, we’ll focus on how to choose the best plastic for your project, and how to avoid the mistakes that cost you later.
What are Plastic Injection Molding Materials?
Plastic injection molding materials are thermoplastics specifically designed for forming complex parts using high-pressure mold cavities. They’re central to how your part performs, structurally, chemically, and thermally. From mechanical strength to surface hardness, the characteristics of your final product will depend on the plastic’s behavior during the injection molding process.
Materials for injection molding are generally divided into three categories: commodity, engineering, and high-performance plastics. Commodity resins, such as polyethylene, polypropylene, and polystyrene, are commonly used due to their low cost and processability. They typically cost between $1 and $2 per kilogram and are ideal for disposable packaging, food containers, or consumer electronics.
Engineering plastics include options like polycarbonate, polyamide (nylon), and polyoxymethylene. These materials cost more, around $3 to $6 per kilogram but offer increased heat resistance, abrasion resistance, and impact strength. They’re used in parts requiring better wear resistance or long-term durability, such as power tools or automotive components.
At the highest end, performance resins like PEEK, PEI, and LCP are engineered for environments involving sustained high temperatures or exposure to chemicals. These resins retain up to 80 percent of their tensile strength at 200 °C and meet stringent aerospace, medical, and flame-retardant regulations.
What are the Most Common Plastic Materials Used in Injection Molding?
The most commonly used plastic materials in injection molding include PMMA, ABS, PA, PC, PE, POM, PP, PS, TPE, and TPU. These ten polymers make up roughly 80% of all plastic injection molded parts used across consumer and industrial applications.
Each material brings its own balance of strength, flexibility, chemical resistance, and thermal stability. That’s why selecting the right molding materials goes beyond just melting temperature or moldability. You’re making decisions that affect mold design, processing time, part geometry, and long-term durability.
Acrylonitrile Butadiene Styrene (ABS)
Acrylonitrile butadiene styrene is a tough, engineering-grade thermoplastic commonly used in plastic injection molding for rigid consumer and industrial parts. It’s a terpolymer composed of 15–35% acrylonitrile, 5–30% butadiene, and 40–60% styrene, creating a versatile blend that balances impact strength with processability.
In terms of injection molding process conditions, ABS resin typically melts at temperatures between 210–270 °C, with mold temperatures ranging from 40–80 °C. Using higher mold temperatures improves surface finish and reduces internal stresses but may increase cycle times.
ABS offers strong mechanical properties, including an impact strength greater than 200 J/m and a flexural modulus of approximately 2 GPa. It also has good electrical properties and consistent dimensional stability, making it suitable for power tools, wall socket plastic guards, and keyboard keys. However, ABS does not perform well under UV light or outdoor conditions unless additives or coatings are applied.
Its chemical resistance is moderate, it handles bases better than acids but can degrade with prolonged exposure to solvents. Common applications include LEGO-type bricks, protective headgear, and phone adaptors, all of which benefit from ABS’s balance of surface finish, toughness, and stiffness.
Polycarbonate (PC)
Polycarbonate is a high-strength, transparent thermoplastic used extensively in plastic injection molding applications requiring impact resistance and optical clarity. It’s especially well-known for its balance of toughness, stiffness, and transparency.
The glass transition temperature of PC is around 150 °C, and its melt processing window typically falls between 250–300 °C. The service temperature range is –20 °C to 140 °C, with a density of approximately 1.20–1.22 g/cm³. Because of this wide operating range, polycarbonate performs reliably in both room temperature and elevated-temperature environments.
Mechanically, polycarbonate offers outstanding toughness, maintaining structural integrity under repeated impact. It exhibits excellent dimensional stability and retains clarity even in thin-walled parts. Optical grades achieve light transmittance between 88–90%, which makes it ideal for components such as LED light pipes, face shields, and automotive lenses.
On the downside, polycarbonate is sensitive to hydrocarbons and bases. It also degrades under UV exposure if not protected with stabilizers. This limits its use in long-term outdoor applications unless properly treated.
Despite those limitations, PC is widely selected in engineering components that require clarity, impact strength, and thermal resistance. You’ll commonly see it in safety helmets, bullet-resistant glazing, medical housings, and electronic enclosures, especially where good chemical resistance and flame retardant properties are needed.
Polypropylene (PP)
Polypropylene is one of the most commonly used thermoplastics in plastic injection molding. Known for its versatility, cost-efficiency, and chemical resistance, PP is often the first material to consider when flexibility and fatigue resistance are required. Structurally, it’s a semi-crystalline polymer with a melting point of around 160–165 °C. During the injection molding process, it is typically molded at temperatures between 180–240 °C, with a shrinkage rate ranging from 1.0% to 2.5%.
Polypropylene exhibits excellent fatigue resistance. In fact, it can endure over one million hinge cycles without cracking, making it the preferred material for living hinges in containers and dispensers. It also resists solvents, acids, and bases, and clarified grades offer up to 90% light transmission, which is rare for opaque thermoplastics. These features give PP a wide temperature range for indoor-use consumer products.
However, unmodified PP degrades rapidly under UV exposure. Without stabilizers, it loses more than 50% of its mechanical properties after only 600 hours of sunlight. This limits its outdoor use unless it’s blended with UV-resistant additives.
In terms of mechanical properties, polypropylene provides moderate tensile strength and stiffness with excellent elasticity. You’ll find it commonly used in medical trays, packaging films, automotive battery cases, and food containers, particularly where moisture resistance and low density are essential.
Polyethylene (PE)
Polyethylene is a family of semi-crystalline polymers widely used in plastic injection molding applications due to its low cost, high ductility, and strong chemical resistance. It includes several grades, with high density polyethylene (HDPE), low density polyethylene (LDPE), and linear low density polyethylene (LLDPE) being the most common. Each grade varies slightly in molecular structure, influencing properties like stiffness, flexibility, and process temperature.
PE is typically processed between 130–250 °C depending on the type, with mold temperatures often ranging between 40–110 °C. The melting temperature of polyethylene depends on its density, HDPE melts near 130 °C, while LDPE melts around 110 °C. These values help you tailor processing conditions based on your specific injection molding project requirements.
Polyethylene resins offer very good chemical resistance to acids, bases, and many organic solvents. While they lack high tensile strength compared to engineering plastics, their excellent ductility and impact resistance make them ideal for components exposed to dynamic loads or regular handling.
One limitation of PE is its tendency to exhibit environmental stress cracking if not properly formulated or designed. However, this can be mitigated by careful material selection and part design.
PE’s applications span a wide range: HDPE is used for corrosion-resistant piping and blow-molded bottles, LDPE appears in flexible lids and liners, and LLDPE is suitable for cable sheaths and stretch wrap.
High-Density Polyethylene (HDPE)
High-density polyethylene is a widely used injection molding material known for its high strength-to-density ratio, chemical resistance, and affordability. As a member of the polyethylene family, HDPE is a semi-crystalline thermoplastic with a relatively high degree of linear molecular structure, contributing to its stiffness and tensile strength. It melts at approximately 115 °C, and typical molding temperatures hover around 84 °C, making it suitable for energy-efficient production cycles.
From a mechanical standpoint, HDPE offers excellent rigidity and impact resistance at moderate costs. Its stiffness-to-weight ratio is among the highest in its class, which is why it’s often used in applications requiring structural integrity without adding excessive mass. Translucent grades of HDPE can transmit up to 80% of light, making them useful in packaging where partial visibility is required.
The primary drawback of HDPE lies in its vulnerability to environmental stress cracking. If your part design includes sharp corners or concentrated loads, the risk of failure increases unless the resin formulation includes crack-resistant additives. It also exhibits moderate shrinkage and limited dimensional stability under prolonged heat exposure.
HDPE is ideal for corrosion-resistant piping, automotive fuel tanks, blow-molded detergent bottles, and food packaging. Its good chemical resistance makes it suitable for storing acids, bases, and other reactive substances. If you’re producing parts for the packaging industry or the automotive sector, HDPE offers a solid balance of cost, performance, and processing ease in injection molding applications.
Low-Density Polyethylene (LDPE)
Low-density polyethylene is another popular choice for plastic injection molding, especially when flexibility and low-temperature toughness are required. LDPE features a highly branched molecular structure, resulting in lower density and strength but greater elasticity compared to high-density grades. Its process temperature is notably low, approximately 46 °C, which allows for extremely efficient, low-energy production.
What makes LDPE unique is its ability to retain flexibility down to –50 °C, which makes it suitable for cold-chain products and outdoor applications in mild climates. However, this flexibility comes with a tradeoff: it loses mechanical strength quickly when exposed to temperatures above room temperature. In environments with heat buildup or continuous loading, you may notice creep or distortion over time.
LDPE has excellent chemical resistance, especially to alcohols, acids, and alkalis. Its mechanical properties include low tensile strength and moderate impact resistance, but its softness allows for tight-sealing applications. While it’s not the best option for structural or high-stress parts, it shines in products that require easy bending and compression.
Common uses include laboratory tubing, pond liners, flexible lids, and liners for food containers. With a market volume that exceeded $33 billion globally, LDPE remains a cost-effective choice in injection molding materials, particularly when clarity, flexibility, and moldability are top priorities.
Linear Low-Density Polyethylene (LLDPE)
Linear low-density polyethylene is a subclass of polyethylene used in plastic injection molding when a balance between flexibility, toughness, and low-temperature performance is required. LLDPE has a linear backbone with short, uniform branches. This structure gives it higher tensile strength and better impact resistance than low density polyethylene, while still preserving the elasticity required for stretchable and thin-wall parts.
LLDPE is processed within a molding temperature range of 90–110 °C. However, one challenge you may encounter is its shear-thickening behavior under pressure, which can increase injection pressures and reduce flow in complex molds. Understanding this property is key if you want to avoid inconsistent filling or short shots during the injection molding process.
What sets LLDPE apart is its ability to stretch into films thinner than 30 microns without tearing. This makes it ideal for stretch-wrap, cable insulation, flexible covers, and toys. Compared to LDPE, it delivers greater puncture resistance but tends to have poorer flow characteristics, which could impact moldability depending on part geometry.
LLDPE offers good chemical resistance to acids, alcohols, and detergents. It also performs well in applications that experience regular flexing or tension.
Nylon / Polyamide (PA)
Polyamides, commonly known as nylon, are a family of semi-crystalline thermoplastics widely used in plastic injection molding due to their strength, abrasion resistance, and chemical durability. The most frequently used grades in injection molding applications include nylon 6, nylon 66, PA 6/6, and PA 6/66. Each grade varies in crystallinity and thermal behavior, impacting how the resin flows and cools in the mold.
For processing, PA 6 is typically molded between 220–300 °C, while PA 66 requires a slightly higher melt temperature between 260–320 °C. This narrow thermal window makes precise barrel temperature control critical. If not managed correctly, the resin may degrade, leading to discoloration or loss of mechanical properties.
PA 66 stands out for its higher crystallinity, providing superior temperature resistance and lower water absorption than PA 6. However, both materials absorb moisture, up to 3% of their weight, which can impact dimensional stability and make them less suitable for marine environments or precision housings.
You’ll often see PA 66 used in wear pads, guide wheels, and slide bearings due to its excellent fatigue resistance and hardness. PA 6 is commonly used in gears, buckles, and hand cranks, offering balanced toughness and moldability.
Polyoxymethylene (POM / Acetal)
Polyoxymethylene, also known as acetal, is a high-performance engineering thermoplastic known for its exceptional stiffness, dimensional stability, and low friction. It is particularly well-suited for precision plastic injection molded parts where durability and wear resistance are essential. POM is available in two primary forms: homopolymer and copolymer, each offering slightly different thermal and chemical properties.
The typical molding temperature for acetal ranges between 190–230 °C, depending on the grade. Homopolymers are molded closer to 225 °C, while copolymers are often processed at slightly lower temperatures. Regardless of type, POM maintains excellent flow characteristics, allowing for complex geometries and thin-walled parts.
Acetal exhibits strong mechanical properties, including high tensile strength and rigidity, even at elevated temperatures. Its chemical resistance is also notable, especially against fuels, solvents, and weak acids. One of its standout characteristics is its low coefficient of friction, making it ideal for sliding components.
You’ll find POM used in gears, ball bearings, plumbing valves, and fuel system parts where dimensional precision and long-term wear resistance are critical. Because of its stability, acetal is a go-to choice for injection molding projects involving mechanical assemblies, moving parts, or tight tolerance applications across industries like automotive, electronics, and consumer goods.
Copolymer
Copolymer acetal is a popular variant of polyoxymethylene engineered for improved chemical resistance and thermal stability in plastic injection molding. Structurally, it consists of alternating formaldehyde units with ether linkages that disrupt crystallinity just enough to reduce brittleness without sacrificing strength. It’s typically processed at molding temperatures around 110 °C, which makes it efficient for cycle time and energy use.
One of its major advantages is resistance to acids, solvents, and moisture absorption, outperforming homopolymers in chemically aggressive environments. You’ll benefit from its reduced susceptibility to porosity and better long-term dimensional stability, especially for injection molded parts exposed to detergents or hot water.
However, copolymer acetal usually has slightly lower tensile strength than homopolymer grades. While that limits its use in high-load mechanical applications, it still offers sufficient toughness for medium-duty components.
You’ll find copolymer acetal in bushings, rollers, wear strips, and gas-meter parts, especially when friction reduction, durability, and good chemical resistance are essential.
Homopolymer
Homopolymer acetal offers the highest mechanical strength and stiffness within the polyoxymethylene family, making it ideal for precision injection molding where rigidity, creep resistance, and fatigue endurance are critical. Its chemical structure is a repeating chain of formaldehyde-derived units without ether interruptions, giving it greater crystallinity and improved strength metrics.
This resin melts at around 162 °C and is generally molded at temperatures between 205–225 °C. Impact-modified variants are molded at slightly lower temperatures (195–215 °C) to prevent degradation. Despite its tighter processing window, the material maintains excellent flow, allowing for thin-walled, high-precision parts.
Homopolymer acetal provides superior tensile strength and impact resistance compared to copolymer grades. It also supports faster cycle times and thinner part designs, making it ideal for high-volume production parts that must meet strict tolerance requirements.
You’ll often see homopolymer used in gears, fuel system components, plumbing valves, and other engineering components that require surface hardness, dimensional stability, and prolonged mechanical performance.
Acrylic / Polymethyl Methacrylate (PMMA)
When your injection molding project calls for excellent clarity and outdoor durability, polymethyl methacrylate, commonly referred to as acrylic or PMMA, is a dependable choice. Its chemical structure is based on methyl methacrylate monomers, giving it a rigid, amorphous configuration. This makes PMMA ideal for producing transparent plastic parts with optical-grade surface quality.
PMMA resins typically mold at 200–250 °C, with a density between 1.17–1.20 g/cm³. The resulting components often transmit up to 93% of visible light, rivaling glass. They’re also UV-stable and scratch-resistant, which helps maintain clarity over time without the yellowing seen in lower-grade plastics.
Despite these benefits, PMMA has some limitations. It lacks high impact resistance and can crack under stress, especially at low temperatures. You’ll need to avoid sharp corners in design and consider alternatives if your application requires flexibility or high temperature resistance.
Acrylic PMMA is commonly used in windows, greenhouses, solar panels, light covers, and bathroom enclosures. Its mechanical properties include tensile strength in the range of 50–70 MPa, modulus of elasticity around 2–3 GPa, and hardness rated above 90 on the Rockwell M scale. Chemically, it resists most dilute acids and alkalis but softens in contact with certain solvents like acetone.
Polystyrene (PS)
Polystyrene is one of the most commonly used thermoplastics in the injection molding process, valued for its low cost, excellent moldability, and ease of processing. As a linear aromatic polymer made from styrene monomers, it forms a rigid, brittle material suited for both consumer and industrial products.
General-purpose polystyrene (GPPS) melts at approximately 240 °C and is processed within the 180–280 °C range. Its density typically falls between 1.04–1.06 g/cm³. PS offers good dimensional stability and surface finish, which is important when aesthetics matter, such as in consumer electronics or packaging.
That said, it’s prone to brittleness and lacks chemical resistance. Without additives, PS is also sensitive to UV light and flammable, so it’s not ideal for outdoor applications or parts exposed to heat. Still, for simple, lightweight parts produced in high volume, it delivers cost-effective results.
You’ll find PS in items like disposable cutlery, cosmetic containers, CD/DVD cases, and refrigerator liners. Mechanical properties include tensile strength of around 30–50 MPa and a flexural modulus close to 3 GPa.
High Impact Polystyrene (HIPS)
HIPS is a rubber-modified version of GPPS designed to overcome polystyrene’s natural brittleness. Through the inclusion of polybutadiene rubber particles, HIPS achieves impact resistance more than five times greater than unmodified PS, while maintaining easy moldability.
It’s typically processed at molding temperatures between 190–230 °C. Chemically, HIPS retains similar resistance characteristics to GPPS but adds toughness, allowing for use in structural components subject to knocks or drops.
Despite its strength improvements, HIPS remains flammable and degrades under UV exposure unless stabilizers are added. It’s also opaque due to the rubber inclusions, which makes it unsuitable for clear parts.
HIPS is commonly used in appliance housings, television casings, toys, and point-of-sale displays. Its mechanical properties include a tensile strength of 20–30 MPa and an impact strength greater than 200 J/m.
Thermoplastic Polyurethane (TPU)
TPU is a class of thermoplastic elastomers that brings together rubber-like elasticity and the processing ease of conventional plastics. In injection molding, it offers flexible mechanical behavior, excellent surface finish, and dependable repeatability.
The chemical composition of TPU includes alternating soft segments from polyether or polyester polyols and hard segments based on diisocyanates and chain extenders. This block copolymer structure enables a high degree of elasticity combined with tensile strength and wear resistance.
The recommended molding temperature ranges from 180 °C to 230 °C. Pre-drying is critical to prevent moisture-related degradation, and the mold temperature is typically set between 20 °C and 60 °C to ensure proper flow and part ejection.
Advantages include exceptional elasticity, long-term durability under flexural stress, and excellent resistance to oils, fuels, ozone, and many solvents. TPU retains its flexibility at low temperatures and provides rubber-like rebound in molded parts. Its heat resistance and mechanical strength also support thin-walled designs in injection molding.
Limitations include sensitivity to moisture during processing, potential softening above 100 °C under constant load, and higher cost compared to standard elastomers. Without proper drying and cycle control, parts can suffer from reduced strength or surface blemishes.
TPU is widely used in applications where toughness and flexibility are critical. Common parts include footwear midsoles, caster wheels, medical device housings, automotive bushings, and cable insulation. It’s especially preferred for overmolded grips and seals that undergo repeated movement or outdoor exposure.
Typical mechanical properties include tensile strength of 30–60 MPa, elongation at break between 400–600 %, and hardness values from shore A60 to shore D75. Chemically, TPU offers density in the range of 1.10–1.25 g/cm³, with water absorption between 0.2–0.4 %, and good resistance to ozone, greases, and many chemicals. Its glass transition temperature typically ranges from –30 °C to –10 °C, maintaining performance well below room temperature.
Thermoplastic Elastomer (TPE)
TPEs are a family of materials that behave like rubber but are processed using thermoplastic techniques, making them ideal for high-throughput injection molding applications.
Chemically, TPEs are blends of hard thermoplastic segments (such as polypropylene or polystyrene) with rubber-like segments (such as ethylene-propylene-diene or styrene-butadiene rubber). Depending on the base formulation, various types like TPV, SEBS, or SBS offer different balances of softness, strength, and chemical resistance.
The molding window generally falls between 190 °C and 260 °C. Mold temperatures are usually maintained between 20 °C and 60 °C. TPEs do not require crosslinking and are fully recyclable, which simplifies both processing and scrap recovery.
TPEs offer flexibility, fast molding cycles, and good bonding to substrates like ABS, PC, or PP. The tactile feel and broad hardness range make them ideal for grips, wearable components, and personal-care products. Their elastic behavior mimics vulcanized rubber but without the need for post-curing or thermoset molding processes.
On the downside, TPEs exhibit creep under prolonged stress, meaning they can slowly deform if continuously loaded. Their thermal stability is lower than many engineering plastics, with elasticity typically lost above 120 °C. Long-term UV exposure may also require stabilizers to maintain performance.
TPE is commonly found in automotive weather seals, breathing masks, personal care items, pet toys, and flexible overmolded grips. It performs well where moderate mechanical demands are coupled with ergonomic design and skin contact.
Mechanical properties include tensile strength between 5–25 MPa and elongation at break values from 200–800 %, depending on the formulation. Shore hardness spans from A20 to D50. TPEs have densities ranging from 0.90–1.20 g/cm³, exhibit low water absorption under 0.5 %, and resist many acids and alkalis. The typical glass transition temperature falls between –50 °C and –10 °C, enabling cold-weather flexibility in outdoor applications.
Polyether Ether Ketone (PEEK)
PEEK’s chemical structure is semi-crystalline, based on repeating ether and ketone linkages in its polymer backbone. This gives the material outstanding heat resistance and strength retention, even above 250 °C. It also remains stable under autoclave sterilization, making it ideal for medical implants.
The recommended molding temperature for PEEK is typically between 350–400 °C, with mold temperatures held around 170–200 °C to ensure proper crystallinity and dimensional stability. Tight process control is essential to avoid thermal degradation or loss of structural integrity.
Advantages include high tensile strength, chemical resistance to acids and hydrocarbons, and extremely low flammability with minimal smoke and toxic gas emission. PEEK also exhibits low creep and excellent wear resistance, which is crucial for moving parts.
However, the resin cost is high, and processing requires specialized equipment due to its high melting temperature. Still, the long-term performance it offers can outweigh the investment for demanding applications.
PEEK is commonly used to mold bearings, pump components, high-pressure valve seats, surgical instruments, spinal cages, and gear systems. It is also applied in environments requiring radiation resistance and mechanical reliability over decades of service.
Its mechanical properties include tensile strength up to 100 MPa, elongation at break around 20 %, and modulus of elasticity exceeding 3.5 GPa. Density is approximately 1.30 g/cm³. Chemically, PEEK resists most solvents, has minimal water absorption (< 0.1 %), and maintains dimensional accuracy across a wide temperature range, making it a premium material for injection molded parts in critical systems.
Polyetherimide (PEI)
PEI is an amorphous, high-temperature thermoplastic that combines excellent electrical insulation with mechanical strength and chemical resistance. It’s frequently selected for injection molding projects where you need a balance of flame retardancy, transparency, and structural stability, especially in electronics, aerospace, and medical-grade equipment.
Chemically, PEI consists of repeating units of ether, imide, and aromatic rings, making it inherently flame retardant without the need for additives. The polymer’s amorphous structure enables high optical clarity in certain grades, with light transmission reaching up to 82 %.
Injection molding temperatures typically range from 340–400 °C, with mold temperatures around 130–170 °C to ensure proper flow and consistent part strength. It is compatible with hot runner systems and requires drying before processing to reduce moisture-related defects.
PEI’s main benefits include high strength-to-weight ratio, resistance to aviation fluids and acids, and continuous-use thermal performance up to 180 °C. It maintains dimensional stability under mechanical stress and repeated sterilization, making it a preferred choice for reusable medical devices.
However, PEI can become brittle under extended UV exposure and may not be the best option for outdoor applications without stabilization. Additionally, its processing costs are higher than those of standard engineering plastics like polycarbonate or ABS.
Common applications include surgical handles, lab equipment, LED sockets, aerospace ducting, and under-hood electrical connectors.
The material shows a tensile strength of 110 MPa, modulus around 3.3 GPa, and density close to 1.27 g/cm³. Water absorption is typically under 0.5 %, and it maintains electrical insulating properties under humid and high-heat conditions.
Polybutylene Terephthalate (PBT)
Polybutylene Terephthalate, or PBT, is a semi-crystalline thermoplastic polyester widely used in injection molding for its fast processing speed and high dimensional stability. If you’re manufacturing precision electrical parts, connectors, or automotive housings, PBT offers a solid balance between mechanical strength, moldability, and thermal resistance.
Chemically, PBT is a polyester formed through the polycondensation of terephthalic acid and 1,4-butanediol. This chemical structure gives it inherent resistance to solvents, oils, and weak acids, making it highly suitable for components exposed to challenging environments.
Molding temperatures typically range from 225–275 °C, and it flows easily during the injection molding process, which helps reduce cycle times. Pre-drying is essential to prevent hydrolysis, which can degrade the polymer chains and affect part quality.
PBT is known for its excellent abrasion resistance, high dielectric strength, and toughness. It resists dimensional changes caused by moisture and maintains its mechanical properties at elevated temperatures. However, it can become brittle under prolonged UV exposure and may require additives for outdoor use.
You’ll commonly find PBT in injection molded parts like keyboard keys, electrical connectors, switch housings, and small appliance components. It’s also used in food containers and automotive sensor housings due to its food-grade availability and good chemical resistance.
In terms of mechanical properties, PBT typically delivers tensile strength around 55–70 MPa, with flexural modulus ranging from 2.4 to 2.8 GPa. Its density is approximately 1.31 g/cm³. Chemical resistance includes tolerance to esters, ketones, and dilute acids, although it has limited resistance to strong bases and hot water, especially under stress.
Polyethylene Terephthalate (PET / PETE)
Polyethylene Terephthalate, often labeled as PET or PETE, is another polyester-based thermoplastic known for its excellent clarity, mechanical strength, and barrier properties. You’ve likely seen it used in beverage bottles, but PET also plays a vital role in plastic injection molding where durability, dimensional stability, and surface quality are critical.
PET is synthesized from terephthalic acid and ethylene glycol. Its tightly packed, semi-crystalline structure provides excellent tensile strength and resistance to water, alcohols, and many solvents. However, it must be dried before molding to avoid hydrolysis, as it’s highly sensitive to moisture.
The typical molding temperature ranges between 260–290 °C, with mold temperatures around 130 °C to ensure full crystallization. If underprocessed, PET may result in cloudy parts or reduced strength. In injection molding applications, PET is often chosen when visual appearance and strength-to-weight ratio are key priorities.
Advantages include high stiffness, good fatigue resistance, excellent barrier to gases and moisture, and FDA approval for food contact. On the downside, PET is less effective at high temperatures and may warp if not properly annealed. It also tends to absorb moisture over time, which can affect its long-term dimensional stability.
Applications for injection molded PET parts include food trays, automotive headlamp reflectors, packaging films, medical enclosures, and precision engineering components. Its good surface hardness and wear resistance make it a viable alternative to materials like polycarbonate or nylon 6 when chemical resistance and optical clarity are required.
PET’s mechanical properties include tensile strength of 60–80 MPa, modulus of elasticity around 2.7 GPa, and density near 1.38 g/cm³. It maintains transparency up to 90 % light transmittance in amorphous grades and shows good resistance to alcohols, oils, and diluted acids.
Polyvinyl Chloride (PVC)
Polyvinyl Chloride, or PVC, is a versatile thermoplastic commonly used in plastic injection molding for both rigid and flexible parts. Chemically, it is composed of repeating vinyl chloride monomers (CH₂=CHCl), which give it excellent resistance to chemicals, flame, and environmental degradation. Its polar chlorine content helps block UV light, making it more durable for outdoor exposure compared to many other thermoplastics.
In the context of injection molding, PVC requires close control of the molding temperature, typically between 160–210 °C. Decomposition can occur if the melt temperature exceeds safe limits, releasing hydrogen chloride gas. For that reason, stabilizers are often used to maintain thermal stability during processing.
PVC provides strong dimensional stability and good abrasion resistance. You’ll find it particularly useful in manufacturing cable sheaths, lock systems, fittings, and wall socket plastic guards. It’s also suitable for low-pressure pipe fittings, face shields, and flame-retardant housings.
In terms of mechanical properties, PVC typically exhibits tensile strength ranging from 45–60 MPa and flexural modulus around 2.5 GPa. Its density is about 1.38 g/cm³. Chemically, it shows excellent resistance to acids, bases, and alcohols but may degrade in the presence of hydrocarbons or high heat over time.
Despite its wide use, PVC has a few disadvantages. It is sensitive to heat and shear stress and may release corrosive fumes if improperly processed. You’ll want to avoid using it in high-temperature or food-contact applications unless specifically rated.
Polyphenylene Sulfide (PPS)
Polyphenylene Sulfide, or PPS, is a high-performance engineering thermoplastic ideal for injection molding applications that demand exceptional thermal and chemical resistance. It is composed of alternating phenylene rings and sulfur atoms in its polymer backbone, forming a structure that remains stable under prolonged exposure to heat, chemicals, and mechanical load.
In injection molding, PPS is processed at high melt temperatures between 285–325 °C. Thanks to its inherently low viscosity and stable flow, you can mold it into precise, thin-walled geometries with excellent repeatability. It does not require drying and is inherently flame retardant without the need for additives.
PPS provides superior dimensional stability, stiffness, and mechanical strength. It maintains structural integrity at temperatures approaching 200–240 °C and can withstand aggressive chemicals including strong acids, alkalis, fuels, and solvents. Typical parts include automotive pump housings, electronic components, appliance parts, and aircraft brackets.
Its mechanical properties include tensile strength in the range of 90–120 MPa, flexural modulus of approximately 4.0–5.5 GPa, and density around 1.35 g/cm³. PPS is also known for extremely low water absorption and creep resistance, which supports long-term reliability in both dry and humid environments.
Polyphenylene Oxide (PPO)
Polyphenylene Oxide (PPO) is a high-performance engineering thermoplastic commonly used in plastic injection molding for its thermal stability, low moisture absorption, and excellent electrical properties. It is often combined with polystyrene to form a blend known commercially as Noryl, which improves moldability and expands its usability across injection molding applications. Chemically, PPO is a polymer composed of repeating phenylene oxide units, providing a unique combination of rigidity and dimensional stability.
When you’re processing PPO, molding temperatures usually range between 270–310 °C. Drying is typically required beforehand to reduce moisture absorption, which can impact surface finish and mechanical strength. Its amorphous structure allows for uniform shrinkage and precision across molded components.
PPO stands out for its balance of heat resistance and electrical insulation. Its dielectric strength is particularly useful in power tools, electrical housings, and connectors. It also shows resistance to hydrocarbon solvents and has good chemical compatibility with water, acids, and bases—qualities that are essential in injection molding services focused on long-term reliability.
Typical mechanical properties include a tensile strength of 65–80 MPa and a flexural modulus around 2.6 GPa. PPO’s density is approximately 1.06 g/cm³. With low water absorption (≈0.03%), it maintains good dimensional stability even in humid environments.
However, PPO does have limitations. It may become brittle at lower temperatures and lacks UV resistance unless stabilized. For that reason, it’s often restricted to indoor parts unless protected.
Cross-Linked Polyethylene (PEX)
Cross-linked Polyethylene (PEX) is a modified form of polyethylene that has undergone a chemical or physical cross-linking process. Unlike standard polyethylene pe or high density polyethylene hdpe, this cross-linking transforms it from a thermoplastic into a thermoset material, which means it cannot be re-melted once set. In plastic injection molding, this adds significant thermal and chemical resistance but makes processing more challenging.
PEX typically requires molding at elevated temperatures around 200–250 °C, followed by cross-linking through chemical (peroxide) or radiation-based methods. Its enhanced structure provides good chemical resistance and high impact strength even under pressure or heat.
The main advantage is its resistance to cracking and long-term water stress, making it popular in plumbing pipes, tubing for hydronic heating, and cable insulation. On the downside, its thermoset nature limits recyclability and reprocessing. Mechanical properties include a tensile strength of 21–28 MPa, with elongation at break exceeding 300%, and density around 0.94 g/cm³.
Liquid-Crystal Polymer (LCP)
Liquid-Crystal Polymer (LCP) is a high-performance semi-crystalline thermoplastic used in plastic injection molding applications requiring high heat resistance and dimensional precision. Unlike many conventional molding materials, LCP’s unique molecular alignment enables it to retain mechanical strength even at elevated temperatures exceeding 240 °C. It’s chemically composed of aromatic polyester chains that form rigid, rod-like molecules during flow, resulting in superior orientation during the injection molding process.
With a typical processing temperature near 240 °C, LCP exhibits fast cycle times and excellent moldability, even in thin-walled or highly detailed part geometries. It also shows remarkably low coefficients of thermal expansion (CTE), making it ideal when consistent part dimensions are critical across temperature fluctuations.
The key advantages of LCP include high tensile strength (≈ 140 MPa), low moisture absorption, natural flame retardancy, and resistance to high-frequency electromagnetic interference. Mechanical properties like a flexural modulus of around 5.5 GPa and a density of ~1.35 g/cm³ make it especially suitable for compact components. LCP also offers excellent electrical properties and thermal stability—attributes vital to modern injection molding services.
However, this resin can be brittle under stress and has limited impact resistance. You’ll often find LCP used in injection molded parts for microwave electronics, IC sockets, high-frequency connectors, and precision medical devices.
Engineered Thermoplastic Polyurethane (ETPU)
Engineered Thermoplastic Polyurethane (ETPU) is a modified grade of thermoplastic polyurethane designed for extreme elasticity and dynamic load endurance. Used increasingly in plastic injection molding applications, ETPU excels where rebound, fatigue resistance, and cushioning performance are crucial. It’s chemically composed of long-chain polyether or polyester segments and diisocyanates, giving it high toughness and impact resilience.
ETPU can be injection molded across a broad temperature range, roughly 150 °F to 700 °F (≈ 65 °C to 371 °C), depending on formulation. You’ll typically pre-dry the resin to prevent hydrolytic degradation and ensure a consistent surface finish. Unlike standard thermoplastic rubber or silicone rubber alternatives, ETPU’s structural integrity remains intact even under repeated compression or flex.
Its mechanical properties include elongation at break > 300%, tensile strength between 25–35 MPa, and a Shore D hardness that can be tuned based on application, usually ranging between 45 and 65. Chemically, ETPU offers outstanding abrasion resistance, good chemical resistance, and excellent resistance to UV light and ozone, which is vital for long-term use in harsh environments.
You’ll find ETPU in applications ranging from cushioning midsoles and caster wheels to automotive interiors and impact-resistant phone cases.
Optical Silicone Rubber (OLSR)
Optical Silicone Rubber (OLSR) is a specialized class of silicone rubber developed for light-guiding, lens-making, and optical-grade applications in plastic injection molding. What sets OLSR apart from standard thermoplastic or acrylic resins is its unparalleled clarity and UV durability. This material offers up to 94% light transmission, surpassing traditional options like polycarbonate (PC) and polymethyl methacrylate (PMMA) in optical performance, especially over long-term outdoor exposure.
OLSR’s chemical structure is based on siloxane backbones with minimal carbon content, giving it intrinsic resistance to yellowing, thermal degradation, and UV radiation. During the injection molding process, it supports a melt temperature typically in the 140 °C to 180 °C range. It molds efficiently into complex, thick, or thin geometries without sink marks or voids, even at wall thicknesses as low as 0.25 mm or as high as 50 mm.
The mechanical properties include excellent flexibility with a Shore A hardness typically between 30 and 70, depending on the formulation. Optical silicone rubbers are flame-retardant, exhibit minimal shrinkage, and maintain dimensional stability under both heat and stress.
You’ll often see OLSR used in medical devices, face shields, lenses, and LED light guides—anywhere you need stable transparency and high optical precision.
Thermoplastic Rubber (TPR)
Thermoplastic Rubber (TPR), sometimes referred to as thermoplastic elastomer (TPE) in broader classifications, blends the processing advantages of plastic with the flexibility of rubber. In plastic injection molding, TPR is valued for its soft touch, fatigue resistance, and reprocessability. It consists of a physical mix of plastic polymers (like polypropylene) and rubbery elastomers.
The molding temperature typically ranges from 200 °C to 250 °C. TPR shows good chemical resistance, making it useful in harsh environments. It offers a Shore A hardness range between 30 and 90, with a tensile strength of approximately 8–18 MPa, depending on the grade.
However, under high temperatures or continuous loading, TPR can exhibit creep and permanent deformation. That said, you’ll still find it in production parts like power tool grips, phone adaptors, wall socket plastic guards, and sporting goods where slip resistance, flexibility, and resilience are required.
What are the Specialty Plastic Materials for Clear or Transparent Parts
The most commonly used materials for clear parts are polycarbonate (PC), polymethyl methacrylate (PMMA), polyetherimide (PEI), and optical silicone rubber (OLSR). These plastics are chosen for applications that require light transmission, UV resistance, and dimensional stability.
Light transmissivity varies between options. Glass remains the benchmark at 95%, followed closely by OLSR at 94%, PMMA at 93%, polypropylene (PP) at 90%, and PC at around 88–90%. PEI, although more amber in color, still transmits 82% of visible light. High-density polyethylene (HDPE) falls around 80%, making it less suitable for applications demanding optical clarity.
To achieve maximum clarity in injection molded parts, you should use an SPI-A2 mold finish and avoid mold release agents that could haze the surface. Uniform wall thickness and wide gates help prevent flow lines. These materials are often used in face shields, lenses, medical devices, and LED covers, components where surface finish and transparency are critical for performance and aesthetics.
How are Thermoplastics Classified for Injection Molding?
Thermoplastics used in injection molding are generally grouped based on their molecular structure, which affects everything from moldability to mechanical performance and temperature resistance. Understanding how materials are classified helps you make better decisions when choosing polymers for specific injection molding applications.
There are four primary classifications: crystalline, amorphous, semi-crystalline, and elastomeric thermoplastics. Each behaves differently under heat and stress. Crystalline plastics, such as nylon 66 or high density polyethylene (HDPE), have an ordered molecular structure, giving them sharp melting points and good chemical resistance. Amorphous plastics like polycarbonate (PC) or acrylonitrile butadiene styrene (ABS) lack a defined crystalline structure, which allows for better optical clarity and dimensional stability but makes them more sensitive to solvents.
Semi-crystalline materials, like polypropylene (PP) and polyoxymethylene (POM), fall between these two extremes. They offer both toughness and abrasion resistance. Thermoplastic elastomers, including TPE and thermoplastic rubber (TPR), combine rubber-like flexibility with the processing ease of injection molding.
Crystalline Plastics
Crystalline plastics are characterized by their highly ordered molecular structure, which results in a sharp melting temperature and pronounced changes in state. In the context of plastic injection molding, crystalline thermoplastics typically exhibit excellent chemical resistance, low water absorption, and high wear resistance.
You’ll find these materials commonly used in engineering applications that demand strength, temperature resistance, and rigidity. Examples include nylon 6, nylon 66, polyethylene (PE), polypropylene (PP), and polyoxymethylene (POM). These resins crystallize during cooling, which can cause shrinkage and warpage if mold design doesn’t account for them properly. While they are not ideal for clear parts, crystalline plastics remain essential in production parts such as gears, bushings, and food containers, especially where abrasion resistance and low friction are key.
Amorphous Plastics
Amorphous plastics lack a defined crystalline structure, which means their molecules are arranged randomly rather than in ordered patterns. As a result, these materials soften over a range of temperatures instead of having a sharp melting point. This makes them highly moldable and useful for parts requiring precise geometries and good dimensional stability.
Examples of amorphous materials used in plastic injection molding include polycarbonate (PC), acrylic (PMMA), acrylonitrile butadiene styrene (ABS), and polystyrene (PS). These plastics are commonly selected for transparent parts, housings, and components that need impact resistance and tight tolerances. Because of their structure, amorphous polymers offer excellent surface finish and clarity, making them ideal for lighting, medical devices, and consumer electronics where aesthetics and performance intersect.
Semi-Crystalline Plastics
Semi-crystalline plastics exhibit both ordered crystalline regions and amorphous zones in their molecular structure. This dual nature gives them a unique balance of toughness, chemical resistance, and wear resistance. When processed in injection molding, these materials solidify quickly and often shrink more than amorphous types, requiring careful mold design to control tolerances.
Common examples include high density polyethylene (HDPE), polypropylene (PP), polyoxymethylene (POM), and nylon 6 and nylon 66. These thermoplastics are widely used for mechanical parts like gears, bearings, and food containers, where strength, abrasion resistance, and good chemical resistance are critical. Their semi-crystalline nature contributes to their higher melting temperatures and better fatigue resistance compared to amorphous materials, though they may be less suited to applications requiring optical clarity.
Thermoplastic Elastomers and Rubber-Like Materials
Thermoplastic elastomers (TPEs) and rubber-like materials combine the flexibility of rubber with the processing advantages of thermoplastics. These materials can be stretched and flexed repeatedly without permanent deformation, making them ideal for applications where durability and tactile feel matter. They also maintain excellent abrasion resistance and impact resistance, even in thin-walled or complex parts.
Variants include thermoplastic polyurethane (TPU), thermoplastic rubber (TPR), and other blends specifically engineered for softness and elasticity. TPU, for example, offers excellent tensile strength and can endure harsh environments with high temperature resistance. These materials are commonly found in caster wheels, medical devices, overmolded grips, phone cases, and power tools. Thanks to their moldability and resistance to moisture, they are increasingly used in automotive and consumer electronics applications where both flexibility and resilience are needed.
What Factors Should You Consider When Choosing Plastic Material for Injection Molding?
Environmental exposure is critical. If you’re designing for outdoor use, you need materials with excellent UV resistance, like acrylic PMMA or polycarbonate PC. For chemically harsh environments, high-density polyethylene HDPE or polypropylene PP offer good chemical resistance. Compliance with industry regulations is also a factor, especially in medical devices or food containers, where FDA or ISO-certified molding materials like ABS resin or polyetherimide may be required.
Cost and processing compatibility round out the decision. Even high-performance plastics like PEEK or TPU need to be balanced against your production budget. Asking questions like “What temperatures will this part face?” or “Will the part flex repeatedly under load?” will guide you toward the best resin for your injection molding project.
What Mechanical and Physical Properties are Important?
When selecting materials for injection molding, mechanical and physical properties define how your part will perform under real-world stress. Strength is typically a top priority. You’ll want to evaluate tensile strength, especially if the part will bear loads. For example, nylon 66 and PBT both offer high mechanical strength and stiffness, making them ideal for structural applications and housings in power tools or electrical components.
Flexibility is another critical factor. Thermoplastic elastomers like TPE and TPU provide soft-touch surfaces and excellent rebound, which is why they’re widely used in phone adaptors, medical grips, and footwear. If your part needs to bend without breaking, selecting a material with a high elongation at break is essential.
Impact resistance is where polymers like polycarbonate PC and ABS shine. They maintain integrity even when dropped, which is vital in consumer electronics, safety gear, and casings. Additionally, hardness and surface durability come into play for products exposed to friction or repeated contact, such as slide bearings or face shields.
What Environmental or Chemical Conditions Will the Material Face?
In high-moisture environments, water absorption becomes a concern. Materials such as nylon 6 and nylon 66 tend to absorb more moisture, potentially altering their mechanical properties. If dimensional stability is crucial, polyethylene or acetal might be a better fit. For applications involving solvents, detergents, or acidic solutions, chemical resistance should be your top priority. TPU and PTFE-type compounds are often selected for their resilience under corrosive conditions.
Temperature range also matters. Some resins retain their shape and toughness at room temperature but deform under heat. Understanding the maximum operating temperature—and thermal expansion behavior—is essential. In high-heat or fluctuating environments, resins like PEEK or PPS are favored for their low creep and excellent heat resistance. Are There Regulatory or Compliance Standards to Meet?
When your molded part is destined for critical industries like healthcare, food processing, aerospace, or automotive, regulatory compliance can’t be an afterthought. You need to consider how material properties align with specific agency requirements. For example, in food packaging or kitchen-grade applications, FDA-compliant plastics such as polypropylene or HDPE are frequently required. These materials offer good chemical resistance and can withstand repeated exposure to food, water, and cleaning agents.
If you’re developing medical devices, clarity, sterilizability, and biocompatibility matter. Polymers like PEI and certain grades of acrylic PMMA or polycarbonate PC are widely used for their ability to withstand gamma radiation or autoclave sterilization. For aerospace and automotive sectors, the bar is set higher: flame retardance, low smoke toxicity, and performance under pressure must be proven through certifications like UL 94 or ISO standards.
You also need to account for region-specific laws. Europe’s REACH regulation, California’s Prop 65, or the RoHS directive for electronics may affect your material selection.
What Aesthetic or Optical Qualities Are Required?
Materials for injection molding should support the desired surface appearance, clarity, and color accuracy, without warping under thermal stress or degrading in UV-rich environments. Aesthetic plastics must mold well while maintaining uniformity across production runs.
Optical-grade materials like polycarbonate and acrylic PMMA offer good transparency and scratch resistance. For demanding clarity requirements—like lenses or LED housings—optical silicone or specialty materials such as PEI may be ideal. Polycarbonate and polypropylene are often selected for consumer housings due to their balance of impact resistance and visual appeal.
Mold finish also plays a huge role. A high-gloss SPI-A2 finish is often used for clear parts to maximize light transmission, while matte textures can mask sink marks in thicker geometries. Be mindful of additives, flow lines, and wall thickness variations, all of which impact visual uniformity. If your product’s surface is part of its brand experience, select a resin that supports coloring, laser marking, or texturing without sacrificing mechanical integrity.

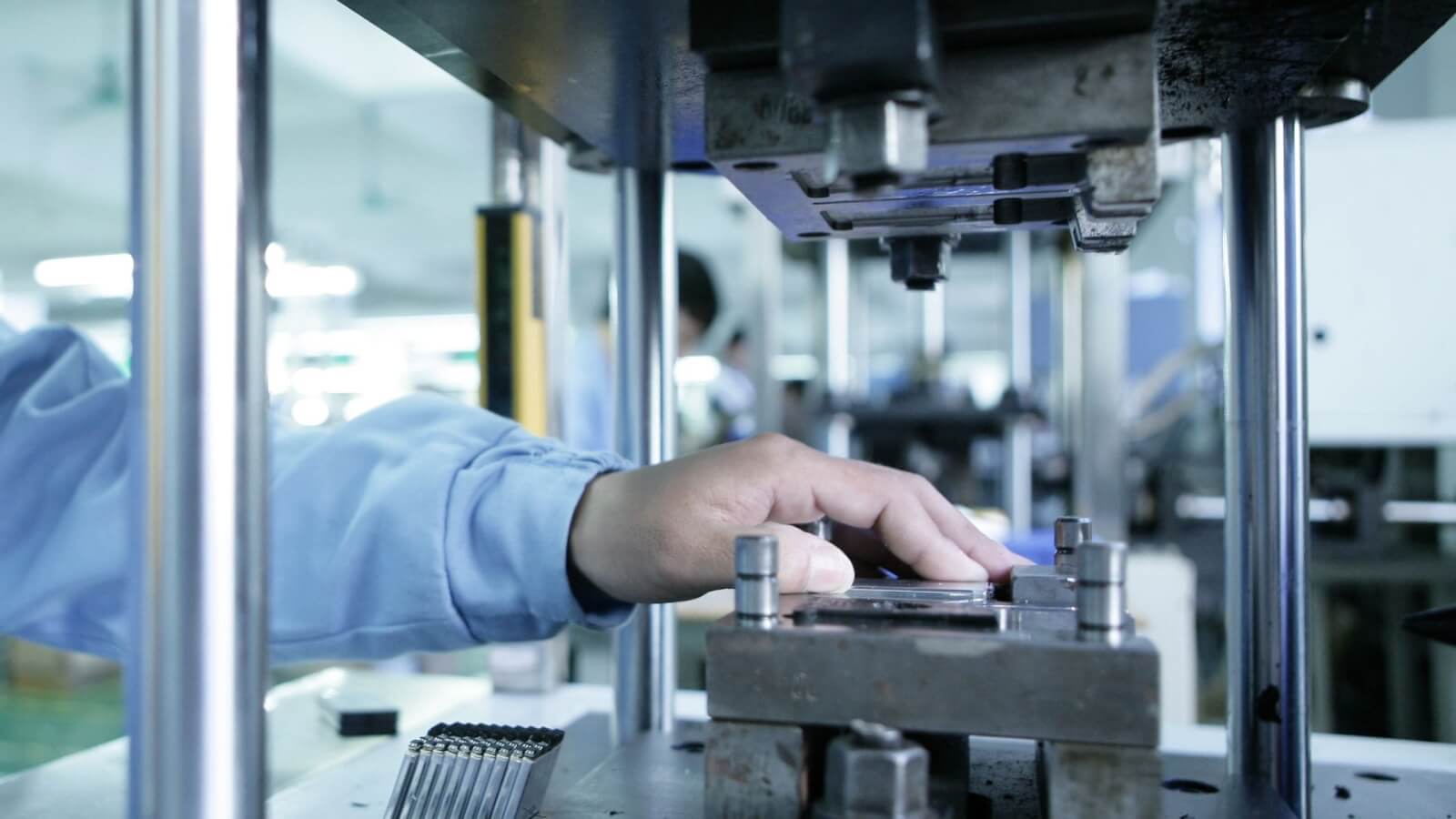

How Do Commodity, Engineering, and High-Performance Resins Compare?
Commodity plastics, such as polystyrene or high density polyethylene, are widely used for general-purpose parts with low to moderate performance needs. They’re affordable and easy to mold, making them ideal for packaging, consumer goods, or disposable components.
Engineering plastics like ABS, nylon 6, or polycarbonate deliver higher strength, better dimensional stability, and improved temperature resistance. These are used extensively in automotive, medical devices, electronics, and industrial housings. Their added performance justifies the increase in cost, especially for long-term use cases.
At the top tier, high-performance resins such as PEEK, PPS, or PEI offer exceptional mechanical properties, thermal endurance, and chemical resistance. These materials are chosen for aerospace, defense, and medical implants where failure is not an option. While more difficult to process, they expand your design possibilities when extreme conditions or certifications are involved. Always match the material’s capabilities with your project’s real-world demands.
How Can You Match Materials to Application Requirements?
In medical applications, biocompatibility and sterilization compatibility are crucial. Materials like PEI or polycarbonate are frequently used for surgical tools or housings for diagnostic devices due to their transparency and ability to withstand autoclaving.
In automotive components, you’ll need materials that resist heat, vibration, and exposure to chemicals like fuels or oils. Nylon 66 or polypropylene are commonly selected for under-hood parts, housings, or interior components due to their balance of strength, flexibility, and weight savings. For consumer electronics or appliances, ABS or thermoplastic polyurethane may provide the right mix of cost-efficiency, durability, and cosmetic finish.
Industrial use cases may require impact resistance, flame retardance, or moisture resistance, especially in outdoor or high-load environments. Polyethylene, acetal, or high-density polyethylene often find roles in conveyor systems, chemical tanks, or pump housings.
When planning your injection molding project, don’t generalize. Identify what your product actually needs to endure. Then select the resin that not only meets but exceeds that bar, ensuring your production parts stand up to their real-world applications.
How Should You Balance Cost with Performance?
If your application involves mechanical load, exposure to UV, or chemical contact, you’ll want to prioritize strength, impact resistance, and environmental stability over cosmetic properties.
Commodity plastics like polypropylene and high density polyethylene are cost-effective and easy to process but might lack the structural rigidity or heat resistance needed in technical components. In contrast, engineering-grade plastics such as polycarbonate or nylon 66 offer better dimensional stability and mechanical properties but come with a higher cost per pound. It’s important to align your resin choice with both the function and lifecycle of the product.
If you’re developing a consumer-facing product, the visual appeal and finish may also matter, especially with materials like acrylic PMMA or ABS. Consider if using a blend or filled resin can reduce cost without sacrificing quality. Always factor in material yield, cycle time, moldability, and scrap rate.
What are the Environmental and Sustainability Considerations in Material Selection?
Thermoplastics such as polypropylene and polyethylene are recyclable, offering you a way to reduce waste and promote circular manufacturing. Materials with high moldability also reduce energy use during production, which contributes to a smaller carbon footprint.
You might want to explore bio-based polymers or resins designed for minimal environmental degradation. Certain applications allow for using post-consumer recycled materials, especially in low-impact, non-structural parts. Also, keep in mind the full lifecycle: from raw material sourcing to end-of-life recyclability. If you’re working with medical devices or food containers, sustainability must also align with regulatory compliance.
Choosing the right material isn’t just about performance or cost. Sustainability is becoming a core decision driver,one that influences not only your product’s market acceptance but also how it fits into broader environmental goals.
What Grades and Standards are Available for Injection Molding Materials?
Injection molding materials are commonly categorized into grades that define their suitability for specific applications. These include commercial, medical, and automotive grades, each engineered to meet precise performance, safety, and compliance standards. You’ll find that even a widely used thermoplastic like polypropylene (PP) or acrylonitrile butadiene styrene (ABS) can differ drastically in composition based on its intended grade.
Commercial grades are designed for general-purpose use, ideal for consumer goods, toys, or housings where cost-efficiency and moderate mechanical properties are key. These materials typically don’t carry regulatory approvals but offer consistent processing and basic dimensional stability.
Medical-grade plastics, such as polycarbonate (PC) or polyethylene (PE), must meet stringent certifications like USP Class VI, ISO 10993, or FDA 21 CFR. These grades are manufactured under strict lot controls and offer enhanced chemical resistance, biocompatibility, and traceability, making them suitable for medical devices, surgical tools, and catheters.
Automotive-grade resins, including nylon 66 reinforced with glass fibers, are tailored for high-impact, heat-exposed environments. These grades often meet UL 94 flammability ratings and ISO/IATF certifications, ensuring resistance to UV light, thermal cycling, and wear.
What are the Differences Between Commercial, Medical, and Automotive Grades?
Commercial-grade plastics prioritize cost and general moldability, making them a fit for high-volume consumer goods. Medical-grade materials, such as certain types of polypropylene or polyethylene (PE), must meet FDA or USP Class VI compliance and often resist gamma radiation and sterilization.
In contrast, automotive-grade resins, such as reinforced nylon 66 or flame-retardant ABS, must meet rigorous performance standards for impact strength, wear resistance, and heat deflection. These grades typically comply with ISO 9001 or IATF 16949 quality standards and offer consistent dimensional stability under thermal cycling, vibration, and UV exposure.
How Do Materials Behave During the Injection Molding Process?
Semi-crystalline materials such as nylon 66 and other PA resins undergo significant volumetric shrinkage, up to 2%, as they cool, which increases the risk of warpage and distortion. In contrast, amorphous materials like polycarbonate and acrylic PMMA exhibit lower shrinkage (typically 0.5–0.7%), making them more dimensionally stable for complex geometries and tight tolerances.
Thermal behavior is another factor. High-performance resins like PEEK or polyetherimide require elevated mold temperatures to ensure proper flow and avoid internal stress. If mold temperatures are not kept uniform, ideally within ±3 °C clear plastics may develop birefringence or surface haze, affecting transparency and finish.
Material flow also impacts performance. Thermoplastics with higher melt flow indices fill thin-walled molds more easily, while stiffer materials might resist flow or trap air, which leads to sink marks or voids.
How to Optimize Design and Surface Finish for Clear Injection-Molded Parts
When you’re molding clear plastic parts, every design choice directly affects optical performance. Materials like polycarbonate (PC), acrylic PMMA, and copolyester are commonly used for their transparency and impact resistance, but they require extra care to achieve the clarity expected in applications such as face shields, light lenses, and consumer devices.
You should maintain uniform wall thickness throughout the part to prevent swirl marks and internal stress concentrations. Abrupt thickness changes tend to distort how light passes through, creating visible flow lines and haze. It’s also important to position gates in a way that flow fronts converge outside critical optical areas. This reduces weld lines or stress marks from being visible in your final part.
Surface finish is just as critical. Manual SPI-A2 polishing delivers near-lens quality but increases tooling time and cost. For flat surfaces like light diffusers or panel covers, resin-based coatings can offer a cost-effective alternative. Be cautious with mold release agents—residue left on the part can degrade surface clarity, especially under UV exposure.
Generous corner radii reduce internal stress in polycarbonate, where sharp angles act as crack initiators.
Conclusion
In summary, choosing the right plastic for injection molding isn’t just a box to check, it’s what makes or breaks your product’s performance. We’re not just talking about hitting a price point or picking what’s in stock. You need a material that fits the real-world demands of your parts, whether that’s a tough ABS for electrical housings, a food-safe polyethylene for packaging, or a medical-grade TPU that can handle wear, cleaning, and strict regulations.
When you understand how different plastics behave during molding, how they flow, cool, shrink, or even warp, you give yourself a real advantage. Fewer surprises. Better consistency. And that means fewer headaches on the shop floor. As the pressure grows to deliver parts that are stronger, lighter, safer, or just more reliable, the materials you choose matter more than ever.
So if you’re serious about quality, start with the resin. Because smart material selection isn’t just technical, it’s the edge that separates good products from great ones.
