Overmolding and Insert Molding aren’t just manufacturing techniques; they’re the backstage magicians that bring together different materials to create complex, integrated parts with enhanced functionality. From the smooth grip on your power tools to the robust casings of medical devices, these processes are behind the scenes, simplifying assembly and boosting product performance.

Every day, thousands of parts are produced using these methods, proving indispensable in everything from your household gadgets to advanced automotive components. By reducing the reliance on adhesives and fasteners, overmolding and insert molding not only streamline production but also reduce costs, making them a “must-use” in both rapid prototyping and mass manufacturing.

In this article, we’ll focus on why and how these techniques are so important, helping you understand their application, benefits, and when to use one over the other.

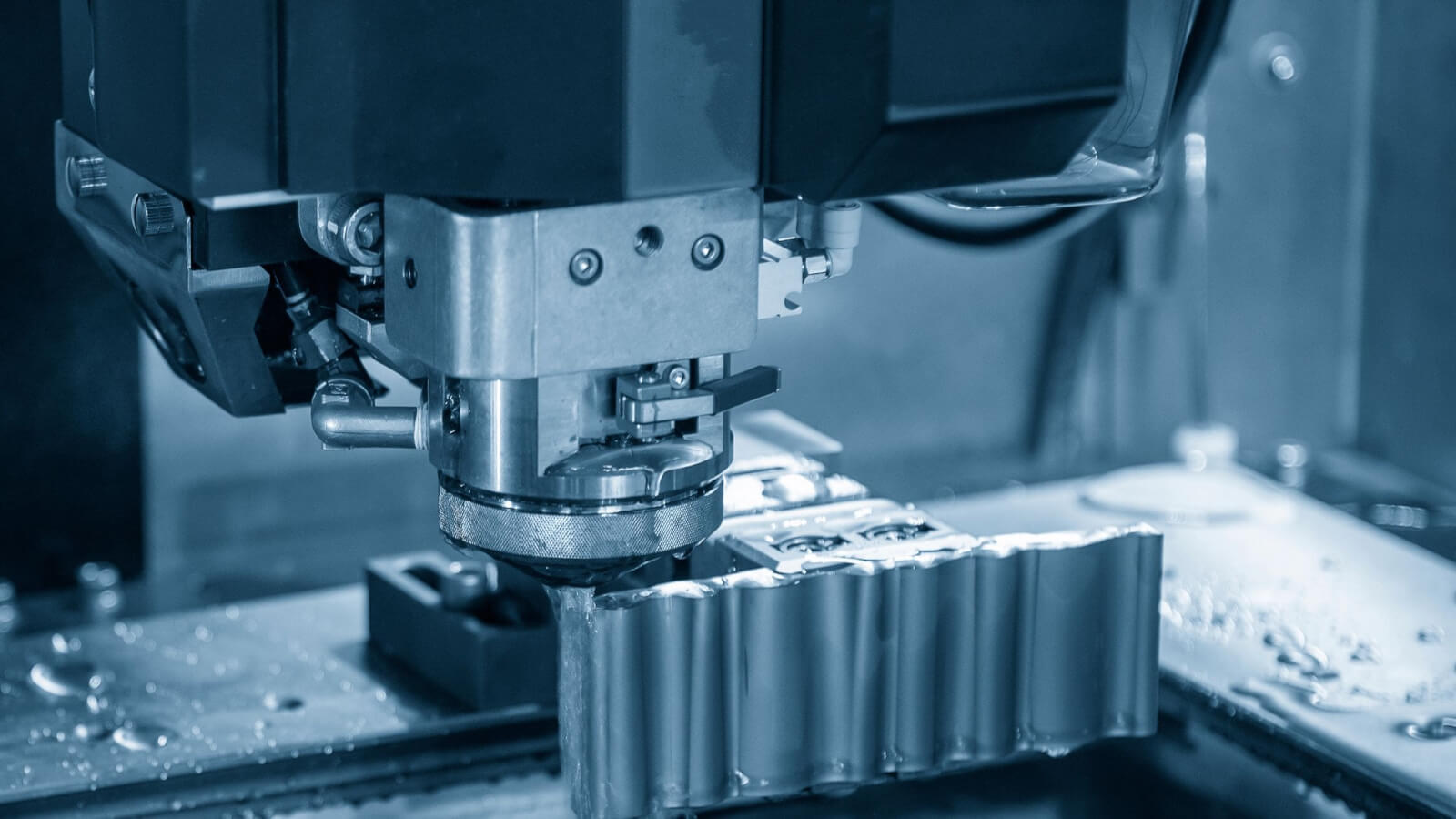

Overmolding vs. Insert Molding: Understanding the Core Differences

Overmolding and insert molding are distinct yet related techniques in the manufacturing world. Both methods aim to seamlessly bond materials to enhance the structural integrity and functionality of components. Overmolding, often performed as a two-step process, involves molding a plastic or elastomer over another material, typically using a two-shot injection process. This method is renowned for its ability to add soft-touch features and ergonomic benefits quickly.

Conversely, insert molding incorporates a pre-existing component—often metal or electronic—directly into the plastic mold. The molten plastic encapsulates the insert, integrating it as part of the finished product. This technique is frequently chosen for its mechanical strength and its capacity to house delicate components securely.

While both processes aim to eliminate the use of adhesives and fasteners, they cater to different applications based on the nature of the substrate used and the desired properties of the final product. Understanding these processes’ nuances helps industries choose the appropriate method for their specific needs, ensuring optimal functionality and cost-efficiency in production.

How are Overmolding and Insert Molding Similar?

Despite their distinct applications, overmolding and insert molding share several foundational characteristics. Both techniques are pivotal in manufacturing processes where different materials are fused into a single, cohesive unit, utilizing molds to achieve this integration. This commonality is crucial in applications where the bonding of plastic to plastic, or plastic to other materials like metal or silicone rubber, is required without traditional fasteners.

Both overmolding and insert molding can utilize injection molding or compression molding techniques. These methods adhere to the fundamental design guidelines of each process, ensuring the materials bond effectively while enhancing the structural integrity of the final product. Additionally, each technique significantly contributes to product ergonomics by adding features like soft gripping surfaces, which improve handling and comfort.

Durability, vibration resistance, and effective sealing are other attributes where both processes excel, making them suitable for a wide range of industrial applications. However, achieving these benefits requires meticulous planning and precise execution to avoid issues such as contamination or misalignment, which could undermine the bond strength. The success of these methods hinges on the use of proper tooling to ensure repeatability, alignment, and consistency across production batches, emphasizing their shared technical requirements and goals in manufacturing multi-material components.

What are Key Differences Between Overmolding and Insert Molding?

While overmolding and insert molding are similar in their goal to create multi-material parts, they diverge significantly in their procedures, part structures, and the equipment required. Overmolding typically involves a two-step or two-shot injection molding process where a plastic layer is molded over another plastic substrate. This method is often selected for its ability to add aesthetic and functional layers to a product, such as soft-touch exteriors and ergonomic features.

On the other hand, insert molding generally involves encapsulating a pre-existing, often rigid, insert made of metal, electronics, or other materials within a plastic matrix. This method is particularly valued for its mechanical strength and the ability to incorporate complex components like threaded inserts or electronic connectors directly into the plastic structure.

Cost considerations also vary between the two. Overmolding may require more significant initial investment in specialized tooling and equipment, such as two-shot injection molding machines. This setup is particularly effective in high-volume production but can be costly upfront. Conversely, insert molding can be more cost-effective for smaller production runs, where manual placement of inserts is feasible, reducing the need for expensive automation equipment.

Additionally, overmolding is ideal for adding soft-touch features and improving the aesthetic qualities of a product, whereas insert molding is better suited for functional, durable parts that require the integration of different materials for structural or electronic purposes.

Comparison Table: Overmolding vs. Insert Molding

The Overmolding Process Explained

Overmolding, a key technique in the manufacturing process, involves a dual-barrel machine for multi-shot injection or sequentially placing a base part into different molds for additional material layers. This method is highly automated, reducing labor costs significantly, although it necessitates higher initial investments in tooling. Alternatively, compression-based overmolding presents a cost-effective option, especially where manual operations are feasible, albeit with increased labor involvement.

Other techniques like transfer, rotational, or core-back overmolding cater to extensive production needs, suitable for runs exceeding 10,000 parts. Key to successful overmolding is ensuring the substrate remains warm and clean before applying the second material, crucial for achieving strong and durable bonds between the layers.

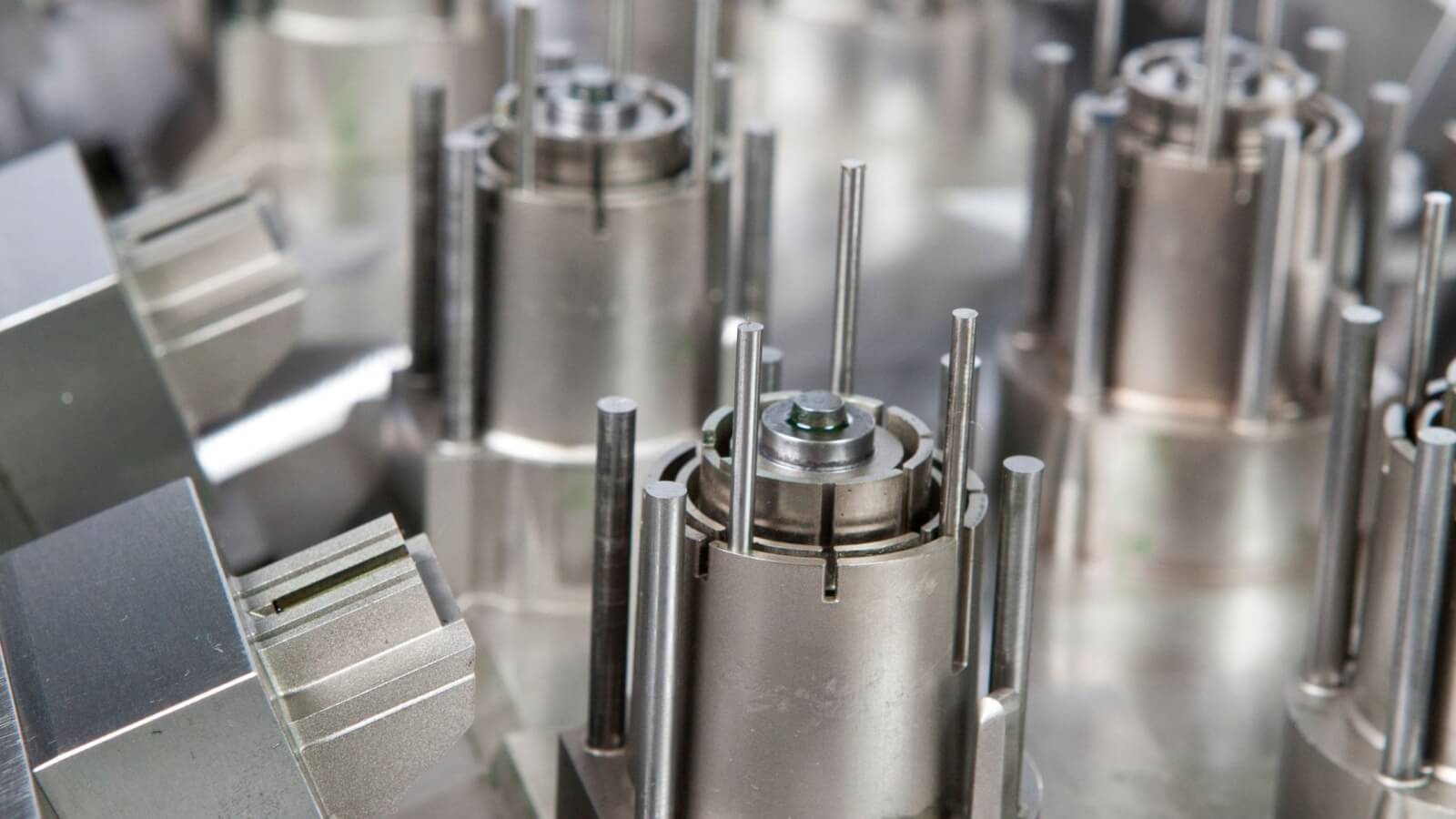

What Is Overmolding?

Overmolding, also known as 2K molding or two-shot molding, is a sophisticated manufacturing technique designed to create multi-layered composite parts. This process typically involves fusing a base substrate with a secondary material, enhancing the product with additional functionalities such as improved grips, enhanced sealing, or aesthetic color accents.

The success of overmolding depends largely on the compatibility between the substrate and the overmold materials. A strong chemical bond is achieved when the materials are highly compatible; otherwise, mechanical interlocks are used to secure the bond. Key factors such as mold temperature, substrate surface preparation, and even the texturing of substrate areas are meticulously controlled to ensure a robust bond, integral to the durability and functionality of the final product.

Methods of Overmolding

Overmolding enhances product functionality and aesthetic appeal through various techniques, each presenting unique trade-offs in terms of automation costs and cycle times. The primary methods include:

1. Multi-shot injection: This process utilizes a single machine equipped with dual barrels, allowing different materials to be injected in sequence without removing the part from the machine. This method is highly efficient for large-scale production as it minimizes cycle times and labor costs.
2. Transfer overmolding: Here, the pre-molded part is transferred to a second mold where additional material layers are applied. This method is suitable for adding fine details or different material properties to specific part areas.
3. Rotational overmolding: Involving the rotation of the mold between injections, this method allows for even distribution of the overmold material around the substrate, enhancing the bonding and integrity of the final product.
4. Core-back overmolding: This technique involves partially filling the mold, then retracting part of the mold core to allow the second material to be injected beside or around the first, creating complex multi-material parts.

Overmolding with Compression Molding

Compression molding in overmolding is particularly advantageous for medium-scale productions where the high cost of multi-shot injection molds is not justifiable. This method involves:

1. Material placement: A predetermined amount of material is placed into a heated mold.
2. Mold closure and material compression: The mold is closed, and heat and pressure are applied to shape the material into the desired form.
3. Transfer to overmold stage: The semi-finished part is then transferred to another mold where the overmolding material is applied.

Overmolding with Injection Molding

Injection molding for overmolding is characterized by its ability to produce complex, multi-material parts with high precision. This method often involves:

1. Use of specialized equipment: Typically, two-barrel injection molding machines or sequential molds that rotate to allow multiple material injections into the same mold.
2. High production suitability: Ideal for large volumes due to its speed and ability to maintain consistent quality over many cycles.
3. Complex tooling: Although the initial setup and tooling costs are higher, the reduction in labor costs and the high consistency in part quality justify the investment for large runs.

Two-Shot vs. Pick-and-Place Techniques

Comparing two-shot and pick-and-place techniques highlights their suitability for different production scales and complexities:

1. Two-shot molding: Offers efficiency and speed, suitable for high-volume production where the cost of complex molds can be amortized over large numbers of parts. This technique reduces cycle times significantly but requires high upfront investment in specialized molding equipment.
2. Pick-and-place: Provides flexibility in material selection and part design, ideal for lower or medium production volumes. While it allows for a broader range of materials and customizations, it involves higher labor costs and longer cycle times.

Typical Materials Used in Overmolding

Overmolding commonly utilizes a variety of thermoplastics and elastomers to achieve strong, durable, and flexible components. Popular plastic substrates include ABS, Nylon (PA), Polycarbonate (PC), Polypropylene (PP), High-Density Polyethylene (HDPE), and Polymethyl Methacrylate (PMMA). For the overmold materials, Thermoplastic Elastomers (TPE), Thermoplastic Polyurethane (TPU), Thermoplastic Rubber (TPR), and Silicone are frequently chosen due to their flexibility and robust bonding capabilities.

The key to successful overmolding lies in selecting materials with compatible melt temperatures and chemical properties, ensuring a reliable adhesion. Compatibility charts are often used to determine the best pairings, categorizing them as suitable for either mechanical bonds only or capable of creating chemical bonds. Factors such as overmolding thickness, durometer, and the inclusion of additives like fillers or glass fibers also significantly influence the bond strength, impacting the overall integrity and performance of the final product.

Advantages and Disadvantages of Overmolding

Overmolding offers numerous benefits, enhancing the functionality and aesthetic appeal of products. It improves ergonomics, providing users with comfortable grips and reducing fatigue during use. This process also allows for multiple color and texture variations within a single component, enriching product design without complicating the assembly process. By integrating different materials, overmolding can effectively seal components, safeguarding them against environmental factors and enhancing product longevity.

Despite its benefits, overmolding comes with challenges. The process often involves higher tooling costs due to the complexity of creating molds that can accurately bond different materials. Precise temperature control is crucial to prevent delamination—where the materials fail to bond correctly leading to separation. This requirement for precise control can add to the operational complexity.

Additionally, the introduction of different materials can lead to issues such as warping if the substrates are partially cured or if there are inconsistencies in material flow and temperature during the process. Balancing the costs of automation for dual-shot setups against manual labor for pick-and-place methods is also critical, as it can influence the overall efficiency and cost-effectiveness of the production.

Common Issues in Overmolding

Overmolding, while highly effective, can encounter several challenges that may impact the quality and integrity of the final product. One common issue is material incompatibility, which can lead to weak bonding or delamination if the substrate and overmold materials do not adhere properly. This is often due to differences in melt temperatures or chemical properties.

Another frequent problem is shrinkage differentials between the substrate and the overmold material. These differences can cause warpage or stress cracks as the materials cool and contract at different rates. Ensuring compatibility and carefully controlling cooling rates are essential to mitigate this issue.

Incorrect shot size or improper mold gating can also lead to incomplete coverage, where the overmold material does not fully encapsulate the substrate, leaving parts of it exposed. Additionally, flash or leakage might occur if the overmold material seeps into unintended areas of the mold, which typically happens if the mold seals are not adequate.

Surface contamination is another critical concern. Dust, oils, or other contaminants on the substrate surface can significantly impair the chemical bonding process, leading to weak interfaces that may fail under stress.

The Insert Molding Process Explained

Insert molding is a manufacturing technique that combines metal or plastic inserts with molten thermoplastic to form a single integrated unit. This process typically begins with manually or robotically placing pre-formed components—such as metal fasteners, blades, electronics, or other inserts—into a mold cavity. Once in place, thermoplastic material is injected around these inserts, encapsulating them completely once it cools and solidifies.

This method is particularly beneficial for applications requiring the mechanical strength of metal combined with the design flexibility and aesthetics of plastic. It is often used to create durable, complex parts with integrated functionality such as electrical contacts or wiring, which are protected against environmental conditions like moisture and dust. The key to its effectiveness lies in the ability to maintain fixed positions of the inserts, ensuring operational reliability and product longevity.

What Is Insert Molding?

Insert molding refers to the process where a pre-formed insert, typically made of metal, plastic, ceramics, or electronics, is placed into a mold before plastic is injected. This integration allows for the production of components that combine the strength of the insert material with the versatility of plastic. It is an essential technique in manufacturing sectors where components need to be robust yet lightweight, such as in automotive or consumer electronics.

The process not only enhances the structural integrity of the component but also eliminates the need for post-assembly, reducing labor and production costs. Effective insert molding requires precise control over temperature and pressure during the injection phase to prevent the inserts from shifting or being damaged, ensuring that the final product meets strict quality standards.

Methods of Insert Molding

Insert molding integrates various materials, typically inserting metal or plastic pieces into a thermoplastic mold, where they are permanently encapsulated by the injection material. This process can be executed through several methods, each suited to different production scales and complexities.

1. Manual Loading: Ideal for low to medium volumes, manual loading involves operators placing inserts into the mold by hand before the plastic injection phase. This method allows for high flexibility and is cost-effective for smaller runs.
2. Robotic Loading: In high-volume production settings, robotic systems are used to place inserts precisely and consistently. This automation significantly reduces labor costs and increases the repeatability of the process, crucial for maintaining quality in large-scale production.
3. Specialized Fixturing: To ensure that inserts do not shift during the molding process, specialized fixtures or jigs are used to secure them in place. This is particularly important for complex parts where precise alignment of the insert affects the functionality of the final product.

Insert Molding with Compression Molding

Compression molding combined with insert molding is used for products that benefit from reduced injection pressures. This process involves:

• Placing a preheated mold filled with a measured amount of material.
• Manually inserting the component into the mold, ensuring correct orientation and placement.
• Applying heat and pressure to form the material around the insert.

Insert Molding with Injection Molding

The injection molding technique for insert molding involves:

• Using either manually loaded or robot-assisted systems to place inserts into the mold.
• Injecting thermoplastic material around the securely held inserts to create a unified part.

Two-Shot vs. Pick-and-Place Techniques

Comparing two distinct techniques in insert molding:

• Two-Shot Molding: This process automates the injection of two different materials in one continuous operation using a single mold that rotates between two injection positions. It’s highly efficient for large-scale production, reducing cycle times and increasing output.
• Pick-and-Place: Involves separately molding parts and then manually or robotically placing them into a second mold for overmolding. This method offers flexibility in using different materials and is suitable for medium to low volumes.

Typical Materials Used in Insert Molding

Insert molding, a technique melding inserts made typically from metals with thermoplastics, utilizes a variety of materials to enhance product functionality. Commonly used inserts include metal components like brass, stainless steel, and aluminum, often featuring knurled surfaces to improve retention within the plastic matrix. These are popular for their mechanical strength and ability to create durable, integrated parts such as threaded fasteners or electrical connectors.

For the plastics part, materials such as Polypropylene (PP), Nylon (PA), Polycarbonate (PC), and Acrylonitrile Butadiene Styrene (ABS) are preferred due to their robustness, moldability, and compatibility with metal inserts. Special treatments might be applied to these polymers to enhance bonding characteristics, ensuring a strong interface between the metal and the plastic components.

Challenges include ensuring the metal inserts can withstand the high temperatures and pressures of the injection molding process without warping. Additionally, surface treatments are critical as some coatings or residues can interfere with the molding material, potentially compromising the bond or overall part integrity.

Advantages and Disadvantages of Insert Molding

Insert molding presents several advantages and disadvantages that dictate its suitability for various applications:

Advantages:

• Integration Efficiency: By embedding components such as electronics directly into the plastic, insert molding reduces the need for post-assembly, lowering production costs and improving structural integrity.
• Material Diversity: It allows for the combination of different materials, such as metal with plastics, providing improved functionality and aesthetic options.
• Durability and Sealing: This method enhances the durability of the product by securely encasing the insert, often improving the seal against environmental factors, which is crucial for electronic components.

Disadvantages:

• Production Costs: Initial setup and tooling costs can be higher than other molding processes, particularly due to the complexity of creating molds that precisely accommodate inserts.
• Process Sensitivity: The alignment and positioning of inserts need to be controlled meticulously to prevent misalignment, which can lead to product defects or failure.
• Material Constraints: Shrinkage and thermal expansion of different materials must be carefully managed to avoid stresses and potential cracks in the final product.

Common Issues in Insert Molding

Despite its benefits, insert molding can encounter several issues that may affect the quality and efficacy of the manufactured parts:

• Flash and Leakage: Incorrect mold fits can lead to resin flash or leakage, where the molten plastic escapes from intended boundaries, forming undesired thin layers or extrusions around the insert.
• Insert Misalignment: Improper placement of inserts can result in misalignment, leading to functional and structural deficiencies in the final product.
• Thermal Stress: If the inserts and the plastic have significantly different thermal properties, differential cooling rates can induce stresses, potentially leading to warping or structural weaknesses.
• Venting and Gating Problems: Inadequate gating or poor venting can cause short shots, where not enough plastic encapsulates the insert, resulting in incomplete parts.

What are the Common Applications of Overmolding and Insert Molding

Overmolding and insert molding both play key roles in the production of high-volume consumer products like household goods, where ergonomics and aesthetic appeal are crucial. In the automotive industry, components such as handles, sensors, and various internal modules rely on these techniques for enhanced structural integrity and design flexibility.

Electronic connectors and casings also benefit greatly from overmolding, which provides necessary environmental protection and mechanical stability. Moreover, in the realm of wearable technology, these processes ensure devices remain lightweight and resistant to environmental factors, extending their usability and comfort.

Further applications are found in tools and medical devices, where grips and protective housings are essential for functionality and user safety. Industrial applications include the integration of robust metal threads in machinery components, facilitating ease of assembly and maintenance.

Automotive Components

Insert molding is particularly useful for integrating metal and plastic elements, such as threaded fasteners that simplify assembly processes and improve production efficiency. It’s commonly applied in parts that require robust mechanical properties and precise dimensional tolerances, such as under-the-hood components, interior buttons, and knobs.

Overmolding is utilized for its ability to create ergonomic and safe touchpoints in vehicles, such as grips on levers and handles, contributing to both comfort and non-slip functionality. This method is also advantageous for manufacturing sealed modules within the vehicle’s cabin, offering enhanced protection against dust, moisture, and mechanical stress. Overmolding helps in reducing vehicle weight by allowing the integration of lighter plastics with metal only where necessary, such as in multi-material engine covers, which can also help improve fuel efficiency and reduce emissions.

Consumer Products

In the consumer products sector, overmolding and insert molding cater to both functional and aesthetic requirements. Overmolding is frequently used to produce items with a comfortable, non-slip grip, such as toothbrushes and kitchen utensils, enhancing the user experience through improved handle ergonomics and attractive design. It allows for the incorporation of soft-touch materials onto harder substrates, providing durability and a pleasant tactile feel.

Insert molding shines in applications where structural integrity is paramount, integrating metal components like hinges or blades into plastic housings without additional assembly. This process is particularly beneficial in personal care products and toys, where safety and durability are critical. The ability to mold around metal parts ensures that sharp edges are encapsulated, reducing the risk of corrosion and enhancing the longevity of the items. Additionally, the aesthetic flexibility of insert molding allows for innovative design expressions, such as multi-color parts or custom decorative accents, making it a popular choice for enhancing product appeal and functionality.

Medical Industry

In the medical sector, both overmolding and insert molding are crucial for creating devices that meet strict hygienic standards while providing durability and functionality. Insert molding is particularly beneficial for encapsulating sensitive electronic components within sterilizable, high-grade plastics. This technique is often used in making advanced medical equipment, such as monitors that require robust, moisture-resistant casings. Additionally, insert molding allows for the integration of metal components into soft plastic matrices, ensuring that devices like scanners or surgical tools are both durable and comfortable to handle.

Overmolding enhances device usability and patient safety, providing soft, biocompatible surfaces on handles and grips. This not only improves the handling of surgical tools but also reduces the fatigue experienced by medical professionals during long procedures. Overmolding can also be used to create sealed enclosures for portable medical devices, protecting sensitive electronics from environmental exposure and making them safe for use in various clinical environments. Techniques such as multi-lumen overmolding are particularly advantageous in manufacturing complex catheter systems where multiple channels are needed within a single catheter body, eliminating the need for adhesives and reducing contamination risks.

Electronics Sector

Insert molding is widely used to protect critical electronic parts from mechanical damage and environmental factors like moisture and dust. This process is ideal for embedding connectors, switches, and other electronic components within protective plastic shells, enhancing their durability and extending their operational life.

Overmolding serves a dual function in electronics: it provides mechanical protection and electrical insulation. It is commonly applied in cable assemblies where it adds strain relief and improves the overall strength and flexibility of cables. Overmolding can also be employed to color-code components for easier identification and to integrate soft-touch materials for better user interaction. High-volume production benefits significantly from overmolding, which can streamline the assembly of complex wire harnesses used in automotive and aerospace applications, ensuring that these critical components are robust enough to withstand harsh operating conditions.

Beauty and Personal Care

Overmolding is used to create cosmetic bottles and compacts with appealing, soft-touch exteriors and vibrant colors, making these products not only functional but also aesthetically pleasing. This process can also add ergonomic features to personal care tools, such as razors or brushes, providing a more comfortable grip.

Insert molding is advantageous for incorporating functional elements such as metal clasps or decorative accents directly into plastic components without the need for additional assembly. This method ensures that items like eyelash curlers or nail clippers have the necessary mechanical strength where it counts, while still allowing for design flexibility in terms of shape and color. Moreover, the integration of soft seals or tips via insert molding is crucial for dispensing mechanisms in products like lotions or creams, ensuring precise application and maintaining product integrity.

Industrial Equipment

Overmolding is commonly used to manufacture handles for power tools, providing a non-slip grip that also reduces vibration and insulates against electrical shocks. This application is crucial for tools used in construction and manufacturing, where durability and user safety are paramount.

Insert molding plays a key role in integrating robust metal parts into plastic components, which is essential for creating durable industrial machinery and protective gear. This technique allows for the incorporation of metal bolts, hooks, or inserts into plastic housings, providing strong mechanical joints that are critical for the structural integrity of heavy machinery. Insert molding is also used to add wear-resistant features to equipment parts that undergo frequent stress, ensuring that these components can withstand the rigors of industrial use without failure.

When to Choose Overmolding or Insert Molding

Overmolding is often the preferred method when the product design calls for soft-touch features or needs multiple colors integrated into the part. This process is particularly effective in creating ergonomic and aesthetically pleasing products such as tool handles, consumer electronics, and other personal use items. Overmolding allows for the addition of soft, tactile surfaces to hard substrates, enhancing the product’s feel and functionality. The two-shot overmolding process, although requiring higher initial tooling investments, becomes cost-effective in large production runs due to its efficiency and ability to reduce assembly time and costs by molding multiple materials in a single process.

Insert molding, on the other hand, is more appropriate when incorporating metal inserts, electronics, or other pre-fabricated items into a plastic matrix is required. This method is crucial for products that need to integrate strong, functional components such as threaded fasteners, electrical connectors, or structural reinforcements. Insert molding is particularly valuable in applications where the mechanical bond of the insert with the plastic is critical for the product’s functionality and integrity. For smaller production volumes or prototypes, insert molding is advantageous because it can handle complex and varied part designs with lower upfront tooling costs compared to overmolding.

Deciding Factors for Overmolding

For projects requiring the integration of multiple materials for aesthetic or functional enhancement, overmolding is often the best choice. This process is ideal for adding protective or soft-touch layers to a product, which can significantly enhance the user experience by providing a comfortable grip or by adding visually appealing color contrasts. Overmolding is particularly beneficial in applications where part integrity and sealing from external elements such as moisture and dust are crucial. For instance, overmolding is used to create waterproof seals in outdoor equipment, medical devices, and other durable goods where protection against environmental conditions is essential.

Moreover, overmolding can consolidate multiple assembly steps into a single, streamlined process, reducing labor and production costs while improving product durability and performance. It’s also the go-to method when the design calls for chemical bonding between different polymers, as it can securely bond materials with compatible chemical properties without the need for adhesives.

Deciding Factors for Insert Molding

Insert molding is particularly beneficial when your design demands the integration of metal inserts or threaded components that need to withstand mechanical stresses. This method excels in applications where the robust mechanical properties of metal combined with the design flexibility of plastic are required. It is ideal for creating parts that require strong, durable fasteners without the need for secondary operations like welding, soldering, or adhesive bonding, which can streamline production and reduce costs.

Key scenarios where insert molding is often preferred include:

• Electronics: Encapsulating electronic components such as sensors and connectors to protect them from mechanical shock, vibration, and environmental factors.
• Automotive Industry: Integrating metal inserts for functional components like fasteners, knobs, and switches that require high strength and must be serviceable.
• Medical Devices: Creating components where metal parts such as surgical instruments and diagnostic devices are embedded within a plastic matrix, ensuring sterilization capability and patient safety.

Also, when considering insert molding, it is essential to evaluate factors such as:

• Volume of Production: Suitable for both low and high-volume production, but particularly cost-effective for medium-volume runs where the use of automated systems for insert placement can offset initial setup costs.
• Complexity of Design: Ideal for complex designs requiring the integration of multiple functions or materials within a single component.
• Durability and Functionality: Necessary when the final product must exhibit enhanced mechanical strength, electrical insulation, or thermal resistance.

Additional Considerations

When deciding between overmolding and insert molding, several ancillary factors must be considered to ensure the success and efficiency of the manufacturing process. Key considerations include:

• Preheating Inserts: Preheating metal inserts before molding helps align the thermal expansion rates of different materials, significantly reducing issues like shrinkage and misalignment.
• Material Compatibility Tests: Conducting thorough material compatibility tests is crucial to prevent delamination and adhesion failures, ensuring that the materials bond correctly under the molding conditions.
• Surface Preparation: Texturing or adding undercuts to substrate surfaces can greatly enhance mechanical interlocks, promoting stronger bonds between the substrate and the overmolded material.
• Tooling Adjustments: The specific geometry of inserts and the parts being molded often necessitates specialized fixtures or modifications to existing tooling to accommodate unique shapes and sizes.

Manufacturing Cost Overview

Understanding the cost drivers in overmolding and insert molding is essential for budgeting and decision-making. Here are some key factors that influence the costs:

• Tooling Complexity: Two-shot injection molds, necessary for overmolding, are significantly more expensive upfront but can reduce per-part costs in high-volume production.
• Labor Costs: Manual insertion for insert molding increases labor costs but can be more economical with lower initial capital compared to investing in automated machinery.
• Volume Break-Even Points: High-volume production typically justifies the cost of automation. Sources indicate that break-even points, where automation becomes cost-effective, are usually between 10,000 and 20,000 parts.
• Material and Mold Design: The choice of materials and the complexity of mold design also significantly affect costs. More complex molds and premium materials increase the initial investment but may offer better performance or durability.

Quality Control in Multi-Material Molding

Quality control is paramount in multi-material molding to ensure that the final products meet stringent specifications. Here are several methods and best practices for quality assurance:

• Automated Vision Systems: These systems are employed to verify correct placement of inserts and check for defects in real-time during the molding process.
• Periodic Testing: Regular checks on bond strength and dimensional accuracy are essential to maintain the integrity of the molded parts.
• Inspection for Defects: In-line inspection helps identify common issues such as partial fills or flash, which can compromise the quality and functionality of the parts.
• Clean Production Environment: Maintaining cleanliness is crucial to prevent contamination that could affect the surfaces meant to bond, ensuring reliable adhesion and overall product quality.

Managing Cycle Time

Efficiently managing cycle time is crucial in molding processes to enhance productivity without compromising quality. Here are some strategies to optimize cycle times in overmolding and insert molding:

• Multi-cavity and Rotating Molds: Utilizing multi-cavity or rotating molds can significantly increase output by allowing multiple parts to be produced simultaneously. However, this comes at the cost of higher tooling expenses.
• Optimal Gate Placement and Material Selection: Positioning gates effectively and choosing fast-curing polymers can drastically reduce cooling times, speeding up the overall cycle.
• Automation in Placement: While manual insertion of components can increase cycle time, employing robotic systems for insert placement boosts efficiency, particularly in high-volume production.
• Minimizing Mold Open Time: Focusing on reducing the duration the mold remains open during ejection and loading phases can substantially enhance cycle efficiency, leading to faster turnaround times.

Prototyping Strategies with Overmolding and Insert Molding

Prototyping is a critical phase in product development, and both overmolding and insert molding benefit significantly from modern prototyping techniques:

• 3D Printing of Molds and Inserts: By utilizing 3D printing to create temporary molds or mock inserts, companies can reduce prototyping times from weeks to mere days, allowing for rapid iteration and testing.
• Testing with Reusable Inserts: Using reusable components like electronic modules or sensors in overmolded prototypes can validate the design and functionality without the need for extensive resources.
• Short-Run Tooling: Employing pilot or short-run tooling helps refine the molding process for complex multi-material parts, ensuring the final production tooling is well-optimized.
• Material and Design Validation: Early prototyping stages offer a crucial opportunity to test material compatibility and mold design, preventing costly changes during full-scale production.

Conclusion

As we close the debate over overmolding and insert molding, we must realize that selecting between these two technologies is more than a simple choice—it’s a strategic decision that defines the future of your products. Think of it as tailoring a suit: every choice from the fabric (materials) to the style (design requirements) must align perfectly to suit your needs.

For us, the journey doesn’t end at picking a technique. We balance the scales of cost and performance, ensuring that every dollar spent maximizes the potential of your product. And let’s not forget the invaluable partnerships with material specialists.

So, as you stand at the crossroads of overmolding and insert molding, remember, you’re not just making a choice; you’re setting a foundation for innovation and reliability.
