Non-Destructive Testing is a critical group of analysis techniques used in science and industry to evaluate the properties of a material, component, or system without causing damage.
Unlike destructive testing, NDT does not alter the item being inspected, making it an invaluable process for saving both time and money in product evaluation, troubleshooting, and research.
What is Non-Destructive Testing (NDT)?
Non-Destructive Testing (NDT) refers to a range of inspection techniques that allow for the evaluation of materials and components without compromising their integrity. Essential in maintaining safety and quality, NDT is crucial across industries, enabling the detection of defects and inconsistencies within tested objects while they remain in service.
How is Non-Destructive Testing (NDT) different from Destructive Testing?
Non-Destructive Testing differs fundamentally from Destructive Testing in that it preserves the usability of the materials or components after testing.
This key characteristic not only saves resources but also allows for ongoing monitoring and maintenance, which is unfeasible with destructive methods where samples are broken down or permanently altered.
- Purpose: NDT is used to evaluate properties or detect defects without damaging the materials, allowing the items to be used post-testing. Destructive testing involves methods that require the sample to be broken down or altered to measure its physical properties, such as tensile strength and elongation.
- Cost Efficiency: NDT is generally more cost-effective in the long run as it does not destroy the parts being tested, preserving valuable resources and reducing waste. Destructive testing, while sometimes cheaper per test, involves the actual destruction of each tested part, requiring more samples and increasing costs.
- Time: NDT methods are typically quicker as they do not involve the preparation and repair of test samples. Destructive tests may take longer due to the detailed preparation and the time needed to analyze each specimen destructively.
- Wastage: NDT does not result in material wastage, making it a more sustainable choice. Destructive testing, by nature, leads to material wastage as each tested sample is rendered unusable.
- Safety: NDT provides a safer testing environment with minimal risk to operators and can also ensure the ongoing safety of the structures or materials tested. Destructive testing, while providing comprehensive data on material behavior under stress, does not contribute to the safety of the tested objects.
- Reliability of Results: Both methods can provide highly reliable data; however, NDT is advantageous for continuous evaluation over time without damaging the integrity of the asset. Destructive testing offers definitive, one-time results that are indisputable but at the loss of the tested sample.
Why Is Non-Destructive Testing Essential?
Non-Destructive Testing is indispensable in modern industry due to its ability to ensure the safety, reliability, and longevity of components in a cost-effective manner. Industries such as aerospace, automotive, and construction utilize NDT to preempt failures and enhance material compliance without disrupting ongoing operations.
- Safety and Quality Assurance: The application of NDT contributes significantly to the safety protocols of various high-stake industries by identifying potential failures before they occur. This proactive approach not only saves lives but also upholds the industry standards for quality and durability, ensuring that all products and structures meet rigorous safety and performance benchmarks. Furthermore, the use of NDT helps in maintaining cost efficiency by mitigating expensive failures and ensuring regulatory compliance, thus preventing legal and financial repercussions.
- Failure Prevention: Regular use of NDT methods plays a critical role in the life cycle management of infrastructure and machinery. By detecting defects early, NDT prevents catastrophic failures that could result in significant financial losses and, more critically, loss of life. Its role in predictive maintenance strategies ensures that repairs are carried out only when necessary, optimizing maintenance schedules and extending the lifespan of the equipment.
Where Is NDT Applied?
Non-Destructive Testing (NDT) is used across a broad spectrum of industries, ensuring the safety, reliability, and longevity of structures and systems without causing any damage. Here’s how NDT is applied across various sectors:
- Aerospace – Used for inspecting aircraft components, engines, and airframes.
- Automotive – Checks critical automotive components to ensure they are free of defects and meet safety standards.
- Construction – Assesses the structural integrity of buildings, bridges, and other infrastructures.
- Oil and Gas – Inspects pipelines, tanks, and offshore platforms for corrosion and wear.
- Power Generation – Used in nuclear, wind power, and conventional power plants to check turbines, boilers, and other equipment.
- Manufacturing – Ensures the quality of products ranging from metal parts to electronic assemblies. Widely utilized for manufacturing processes like CNC machining, injection molding and 3D printing.
- Railway – Inspects rails and rolling stock for defects to prevent accidents.
- Shipbuilding – Checks the integrity of hulls and other structural components of ships.
- Chemical Processing – Monitors the condition of vessels, pipes, and structures in aggressive chemical environments.
- Military – Used for maintenance and safety checks of military vehicles and equipment.
- Pharmaceuticals – Inspects packaging and containers to ensure product integrity and safety.
- Petrochemicals – Used to check for corrosion and wear in refineries and chemical plants.
- Utilities – Inspects infrastructure for utilities like water and sewage for degradation and faults.
- Art and Archaeology – Helps in the preservation of artifacts and historical monuments by detecting subsurface defects.
- Medical – Used for the inspection of medical devices and implants to ensure they meet stringent safety and quality standards.
How Does Non-Destructive Testing Work?
Here’s a concise overview of how NDT functions, different techniques used, and the importance of choosing the right method for specific applications:
- Energy and Material Interaction: NDT techniques depend on the interaction between energy—such as sound waves, magnetic fields, or electromagnetic radiation—and materials to detect flaws or assess conditions. The response of the material to this energy helps reveal its internal state.
- Signal Detection and Analysis: Energies transmitted through the material are captured by sensors. The data collected are then analyzed to accurately determine the material’s condition and identify any defects or irregularities.
- Flaw and Condition Detection: The primary aim of NDT is to identify defects like cracks, voids, and inclusions, as well as to evaluate other material properties such as corrosion or thickness, which are critical for maintaining the system’s reliability and performance.
- Safety and Compliance: NDT is crucial for adhering to safety standards and regulations without interrupting ongoing operations, thereby minimizing downtime and enhancing continuous operational safety.
Importance of Selecting the Right Method
- Material Compatibility: The choice of NDT method largely depends on the material’s nature. For instance, magnetic particle testing suits ferrous materials, whereas ultrasonic testing is better for dense materials.
- Nature of Defects: Different defects require different detection techniques; surface defects might be best found with liquid penetrant tests, while subsurface issues could be identified through ultrasonic or radiographic tests.
- Accuracy and Practicality: Selecting a method also considers factors like the required accuracy, component size, and practical application constraints. Some methods might require complex setups or special conditions, affecting their feasibility.
- Environmental and Safety Considerations: Some NDT methods may involve risks, such as exposure to radiation, requiring stringent safety measures to protect personnel and comply with environmental standards.
What are The Different NDT Methods?
Non-Destructive Testing (NDT) comprises various methods, each suited to different materials and defect detection needs.
The six main NDT methods are:
- Visual Inspection (VT): The simplest form of NDT, using the naked eye or optical instruments to find defects.
- Magnetic Particle Testing (MT): Uses magnetic fields to detect surface and near-surface discontinuities in ferromagnetic materials.
- Liquid Penetrant Testing (PT): Involves applying a dye to the material surface, which penetrates into defects and is then made visible under UV light.
- Ultrasonic Testing (UT): Employs high-frequency sound waves to detect flaws in materials by analyzing the sound waves’ reflections from the material’s internal structures.
- Radiographic Testing (RT): Uses X-rays or gamma rays to produce images of the internal structure of a material, revealing hidden flaws.
- Eddy Current Testing (ET): Uses electromagnetic induction to detect imperfections in conductive materials.
Each method has its strengths and applications, making it vital to understand how each works and where it can be best applied.
Visual Inspection (VT)
Visual Inspection, or VT, is one of the most fundamental forms of NDT. It involves direct observation of a component to assess its surface condition. Simple tools like magnifying glasses, mirrors, or borescopes may enhance the effectiveness of a visual inspection.
Technique and Applications
- Technique: VT can range from a basic visual check to more sophisticated methods using video technology to inspect areas that are hard to reach. Inspectors look for cracks, misalignments, corrosion, and other surface anomalies.
- Applications: It is widely used across all industries, particularly where quick and cost-effective inspections are required. It is often the first step in an inspection regime, capable of identifying obvious defects before employing more complex techniques.
Visual Inspection serves as a primary screening tool in many safety-critical industries, including aerospace, manufacturing, and construction, where even minor surface irregularities can signify deeper problems. This method’s simplicity and low cost make it indispensable, often dictating the need for further testing with more specialized NDT methods.
Ultrasonic Testing (UT)
Ultrasonic Testing (UT) is a widely utilized Non-Destructive Testing (NDT) method that employs high-frequency sound waves to detect imperfections, measure material properties, and evaluate the integrity of components. It is renowned for its accuracy and ability to detect both surface and subsurface defects in various materials, including metals, plastics, and composites.
Basic Principles
Ultrasonic Testing works on the principle of sound wave propagation through a medium. A small probe, called a transducer, emits high-frequency ultrasonic sound waves into the material. These waves travel through the material until they encounter a boundary with another medium (like air, in the case of a crack), where they reflect back to the probe. The reflected waves are then analyzed to determine the presence and position of flaws within the material.
- Technique: The transducer is typically coupled to the test material using a couplant (such as oil or water) to ensure efficient transmission of ultrasonic waves.
- Applications: UT is essential in sectors like aerospace for checking the integrity of aircraft fuselages, in automotive manufacturing to inspect welded joints, and in the energy sector for pipeline testing.
Advanced Ultrasonic Methods
Advanced ultrasonic methods have been developed to enhance flaw detection and characterization capabilities beyond basic UT techniques. These include:
- Pulse Echo Technique: The most common ultrasonic method where the time it takes for the ultrasonic pulses to return to the transducer is measured. This technique is effective for locating and sizing defects within a material.
- Through Transmission: Used when access to both sides of the test material is possible. Two transducers are used, one to send and one to receive the ultrasonic waves. The absence or change in the received signal strength indicates defects.
- Time of Flight Diffraction (ToFD): Utilizes the diffraction of sound waves produced at the tips of a crack or defect to provide sizing and orientation information, offering improved accuracy in defect characterization.
- Phased Array Ultrasonic Testing (PAUT): Involves using multiple transducers to steer and focus the ultrasonic beam. PAUT is highly effective for complex geometries and provides detailed images of defects.
- Electromagnetic Acoustic Transducer (EMAT): Unlike traditional UT methods, EMAT does not require a couplant. It uses electromagnetic fields to generate ultrasonic waves within the material, useful in situations where the application of a couplant is impractical.
- Guided Wave Testing (GW): Uses low-frequency ultrasonic waves that can travel long distances along the structure, making it suitable for rapid inspection of large areas and structures like pipelines and rails.
Radiographic Testing (RT)
Radiographic Testing (RT) is a crucial Non-Destructive Testing (NDT) technique that uses X-rays or gamma rays to produce images of the internal structure of a material. This method is highly valued for its ability to detect internal defects such as cracks, voids, and inclusions in a variety of materials, including metals, composites, and ceramics.
Applications:
RT is widely used in industries such as aerospace, automotive, and manufacturing to ensure product integrity and safety.
X-ray and Gamma Ray Methods
Both X-ray and gamma ray methods involve the use of penetrating radiation to capture images of an object’s internal features.
The radiation passes through the material and is captured on a detector or film on the opposite side. Differences in material density and thickness affect the amount of radiation that passes through, creating a shadow image that reveals internal imperfections.
- X-ray Testing: Utilizes X-rays generated by an X-ray tube, which can be controlled in terms of intensity and exposure time. X-ray testing is particularly effective for inspecting welding joints and detecting cracks or voids in metallic components.
- Gamma Ray Testing: Employs radioactive isotopes such as Iridium-192 or Cobalt-60 to produce gamma radiation. This method is more portable compared to X-ray testing and is preferred in field conditions, especially for pipeline inspection and in situations where electric power is not readily available.
Applications:
- X-ray Applications: Commonly used in manufacturing, aerospace, and automotive industries for quality control and assurance, especially suitable for complex mechanisms and high-density materials.
- Gamma Ray Applications: Often used in oil and gas pipelines and construction to check structural integrity because of its deeper penetration and ability to handle thicker materials compared to X-rays.
Differentiation:
- Safety Considerations: Both methods require stringent safety protocols to protect operators from radiation exposure. Gamma rays, being more penetrating, necessitate higher safety measures than X-rays.
- Mobility and Flexibility: Gamma ray equipment offers greater mobility and is ideal for remote or outdoor inspections, whereas X-ray equipment is typically more stationary and requires an electrical power source.
- Material Penetration: Gamma rays have a higher energy level, allowing for the inspection of thicker and denser materials, while X-rays are more suitable for finer details within less dense materials.
Magnetic Particle Testing (MT)
Magnetic Particle Testing (MT) is a nondestructive testing technique used to detect surface and slightly subsurface discontinuities in ferromagnetic materials. This method is highly effective for quick and accurate inspections, making it a popular choice in industries such as automotive, aerospace, and manufacturing where metal integrity is critical.
Electromagnetic Testing (ET)
Electromagnetic Testing (ET), including Eddy Current Testing, utilizes electromagnetic induction to detect flaws and conduct measurements in conductive materials. It is particularly valued for its ability to measure thickness, conduct conductivity testing, and detect surface cracks without direct contact with the part being tested.
ET is widely used in the aerospace industry for inspecting aircraft fuselage and engine components as well as in the manufacturing of tubes and wires.
Vibration Analysis (VA)
Vibration Analysis (VA) is employed primarily in predictive maintenance to diagnose the condition of rotating machinery and detect misalignments, unbalance, and other mechanical issues.
By analyzing vibration signatures, technicians can identify changes over time that signify wear and impending failure, crucial for industries reliant on heavy machinery such as manufacturing, power generation, and automotive.
Dye Penetrant Testing (PT)
Dye Penetrant Testing (PT), also known as Liquid Penetrant Inspection, is a widely applied method to detect surface-breaking defects in non-porous materials. This technique involves applying a visible or fluorescent dye solution to the clean surface of a test object.
The dye enters the surface-breaking defects and is drawn out by a developer, revealing the presence of defects under ultraviolet or white light.
PT is essential in the fabrication, casting, and forging industries to ensure defect-free products.
Liquid Penetrant Testing (PT)
Liquid Penetrant Testing (PT) is a widely used nondestructive testing method that helps identify surface-breaking defects in non-porous materials. This method is particularly effective for examining materials like plastics, ceramics, and metals where other NDT methods may be less effective.
- Technique: PT involves applying a liquid penetrant to the surface of the component. The liquid seeps into any surface-breaking defects and is then drawn out by a developer, highlighting the defect area with vivid color contrast.
- Applications: It’s extensively used in the automotive, aerospace, and manufacturing industries to check for cracks, leaks, and fatigue signs in critical components.
Neutron Radiographic Testing (NR)
Neutron Radiographic Testing (NR) uses neutrons instead of X-rays or gamma rays to create images that reveal internal structures and materials’ properties.
This method provides a different contrast mechanism compared to traditional radiography, making it useful for inspecting components made from different materials.
- Technique: Neutrons, due to their high penetrating power and ability to be absorbed by light elements (such as hydrogen or boron), provide detailed images of organic compounds, water, oils, and plastics within a component.
- Applications: NR is particularly valuable in the aerospace and defense industries for inspecting explosive devices, composite aircraft components, and corrosion under insulation.
Eddy Current Testing (ET)
Eddy Current Testing (ET) utilizes electromagnetic induction to detect flaws and conductivity changes in conductive materials. This method is highly valued for its speed and ability to measure coating thickness and conduct conductivity testing without making contact with the material.
Technique and Applications
- Technique: A coil carrying current is placed near the material surface, inducing eddy currents. Flaws or changes in material properties affect the flow of these currents, which can be detected by changes in the coil’s impedance.
- Applications: Used in the tube and pipe industry, as well as for aircraft fuselage inspection and heat exchanger tubes checks.
Acoustic Emission Testing (AE)
Acoustic Emission Testing (AE) is a passive testing technique that listens for emissions of ultrasonic waves from active cracks or faults in stressed materials. This method is useful for monitoring the integrity of structures over time.
- Technique: AE sensors are attached to the surface of the structure under test. As the material is stressed, acoustic emissions from crack propagation or other failure mechanisms are detected.
- Applications: Commonly used in bridge pylons, pressure vessels, and large tanks to monitor crack development and prevent catastrophic failures.
Leak Testing (LT)
Leak Testing (LT) is a critical nondestructive testing method used to ensure the integrity and tightness of materials and components by detecting and locating leaks. This method is essential in industries such as automotive, aerospace, and various manufacturing sectors where the prevention of fluid or gas leaks is crucial for safety and operational efficiency.
- Technique: LT can be performed using several methods, including pressure decay, bubble testing, ultrasonic detection, and helium sniffing, each suitable for different types of materials and leak sizes.
- Applications: Commonly used to test fuel systems, pipelines, and HVAC systems within vehicles, aircraft, and residential and commercial buildings to prevent failures and ensure compliance with safety standards.
Magnetic Flux Leakage (MFL)
Magnetic Flux Leakage (MFL) is a magnetic method of nondestructive testing that is used to detect corrosion and pitting in steel structures, particularly pipelines and storage tanks. MFL technology is invaluable for the oil and gas industry, helping maintain the integrity of aging infrastructure.
- Technique: MFL involves magnetizing a ferromagnetic material and detecting magnetic leakage fields where the material’s continuity is interrupted by corrosion or other forms of discontinuities.
- Applications: Primarily used for the inspection of oil and gas pipelines and tank floors, where early detection of potential failure points can prevent leaks and catastrophic environmental damage.
Laser Testing Methods (LM)
Laser Testing Methods (LM) encompass various techniques that use laser technology to examine the properties of materials or to detect defects. This approach is known for its precision and ability to perform non-contact measurements.
- Technique: Common laser methods include laser shearography, laser profilometry, and holographic testing, each providing detailed surface and sub-surface inspections.
- Applications: Widely applied in the aerospace and automotive industries for material characterization, deformation analysis, and detecting delaminations and disbonding in composite materials.
Microwave Testing
Microwave Testing uses electromagnetic waves in the microwave frequency range to evaluate the properties of a material or to detect defects. This method is effective for both metallic and non-metallic materials, including ceramics and composites.
- Technique: Microwave sensors emit waves that penetrate the tested material and reflect back from any discontinuities or inhomogeneities, similar to radar technology.
- Applications: It is particularly useful in the construction industry for non-invasive inspection of concrete structures and in the aerospace industry for checking the integrity of aircraft radomes and composite panels.
Ground Penetrating Radar (GPR)
Ground Penetrating Radar (GPR) is a nondestructive testing method that uses radar pulses to image the subsurface. This method is highly effective for detecting hidden objects, changes in material properties, voids, and cracks beneath surfaces.
- Technique: GPR involves emitting microwave radar pulses into the ground and recording the echoes that return from subsurface structures to create an image. The strength and time delay of the returned signals help in identifying the depth and the nature of the subsurface features.
- Applications: GPR is widely used in geotechnical engineering, archaeology, and environmental studies. It is essential for locating underground utilities, assessing roads for integrity, and identifying potential archaeological sites without excavation.
Thermal/Infrared Testing (IRT)
Thermal or Infrared Testing (IRT) involves the use of infrared technology to detect variations in thermal emissions from materials. These variations often indicate anomalies due to differences in material properties, voids, or cracks.
- Technique: IRT uses infrared cameras to capture the thermal signature of an object. Differences in thermal emissions can indicate issues like heat loss, moisture accumulation, or structural defects.
- Applications: Commonly used in building inspection to detect heat leaks, in electrical systems to find overheated components, and in mechanical systems to monitor bearing and motor temperatures.
What is the Role of NDT in Welding Inspection?
Nondestructive Testing (NDT) plays a crucial role in welding inspection by ensuring the integrity and quality of welds without damaging the components.
NDT allows for the early detection of faults such as cracks, porosity, and incomplete fusion in welds, which are critical for preventing failures in service. Quality assurance through NDT helps in avoiding costly repairs and downtime by ensuring that welds meet the required standards and specifications.
Best NDT Methods for Welding Inspection:
- Ultrasonic Testing (UT): Ideal for detecting subsurface defects in welds. UT is valued for its depth of penetration and ability to provide a detailed image of the defect.
- Radiographic Testing (RT): Uses X-rays or gamma rays to produce images of the weld, revealing defects such as cracks and voids inside the weld bead.
- Magnetic Particle Testing (MT): Effective for finding surface and near-surface discontinuities in ferromagnetic materials.
- Dye Penetrant Testing (PT): Suitable for identifying surface-breaking defects in all non-porous materials, including welds on stainless steel and aluminum.
What are The Advantages and Limitations of NDT?
Non-Destructive Testing offers several significant advantages:
- Safety Assurance: NDT allows for the inspection of materials and components in a manner that does not compromise their integrity, ensuring continued safety and functionality.
- Failure Prevention: By detecting defects early, NDT helps prevent potential failures that could result in costly and hazardous outcomes.
- Cost Efficiency: Reducing the need for repairs and allowing for more controlled maintenance schedules lowers the overall costs associated with material management.
- Quality Assurance: Regular NDT ensures that components meet the quality standards required for their intended use, maintaining high levels of performance.
- Environmental Protection: With minimal waste production, NDT is more environmentally friendly compared to destructive methods.
Despite its many benefits, NDT also faces several limitations:
- Surface Detection Only: Some NDT methods, such as visual inspections and magnetic particle testing, are only effective for detecting surface defects and may miss subsurface imperfections.
- Skill Required for Interpretation: High levels of expertise and experience are necessary to accurately interpret NDT results, which can be subjective and require complex analysis.
- Equipment Cost: The initial investment for NDT equipment, especially for advanced technologies like ultrasonic testing or computed tomography, can be significant.

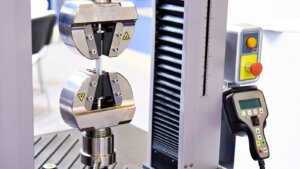

What are NDT Codes, Standards, and Certification?
Non-Destructive Testing (NDT) operates within a framework of rigorous codes, standards, and certifications that ensure the reliability, safety, and efficiency of testing methods.
These guidelines are not only crucial for quality assurance but also essential for regulatory compliance across various industries, including aerospace, manufacturing, and civil engineering.
- ISO 9712: This international standard specifies the requirements for the qualification and certification of personnel performing non-destructive testing. It is recognized globally and ensures that NDT technicians meet a minimum level of competence.
- ASNT (American Society For Nondestructive Testing): ASNT provides certification known as ASNT SNT-TC-1A, guiding the training, qualification, and certification of NDT personnel in various methods.
- API (American Petroleum Institute): API standards are crucial in the oil and gas industry, focusing on inspection methodologies and ensuring equipment integrity and safety.
- ASME (American Society for Mechanical Engineers): ASME develops codes that apply to new construction issues and requirements for the fabrication of boiler and pressure vessels.
- ASTM (American Society for Testing and Materials): ASTM’s standards cover various materials and products, providing guidelines for their testing and quality assurance.
- COFREND (French Committee for Non-destructive Testing Studies)
- CSA Group (Canadian Standards Association) and CGSB (Canadian General Standards Board): These bodies set standards primarily used in Europe and Canada, enhancing local compliance and international cooperation in NDT standards.
How Long Does It Take to Get NDT Certified?
The time required to become NDT certified can vary significantly based on the level of certification and the specific method of NDT. Typically, it involves:
- Level I Certification: Can be achieved in a few weeks to months, involving basic training and passing a specific examination.
- Level II Certification: Requires additional hours of experience and a more rigorous set of exams, often taking several months to a year.
- Level III Certification: The most advanced level, requiring years of experience and a deep understanding of NDT principles and practices.
What Certification Is Best for NDT?
ASNT certification is one of the most widely recognized and respected in the global NDT community. For those looking to work internationally, pursuing certifications that align with ISO standards can also be beneficial. The choice should consider:
- Industry Requirements: Certain sectors may prefer specific certifications, such as API for oil and gas or ASME for mechanical engineering.
- Career Progression: Higher levels of certification can provide greater job opportunities and higher roles within companies.
- Geographic Location: Some certifications are more recognized in certain countries than others
Conclusion
In conclusion, non-destructive testing (NDT) is essential in ensuring the safety, reliability, and integrity of critical infrastructure and components across various industries. From aerospace to manufacturing, NDT techniques are indispensable for detecting flaws, defects, and irregularities without causing damage.
Looking ahead, the integration of advanced technologies such as AI, robotics, and digital twins is poised to revolutionize NDT practices, offering greater accuracy, efficiency, and predictive capabilities.
As industries continue to evolve, the importance of NDT in maintaining quality assurance and safety standards cannot be overstated. Embracing these advancements and fostering innovation will be key to driving the future growth and success of NDT.
