Mind blowing CNC parts (ONE)

cutting-dream-contest-banner1


Cutting Dream Contest Award is hosted by Mori Seiki Co., Ltd. The Cutting Dream Contest is open to companies, schools and research institutions engaged in machining in Japan. It is intended to promote the exchange of information on machining technologies and techniques. These CNC experts show off their capability as well as their imagination by creating crazy parts. They try to hit the limited of the machines, tools and materials. And eventually, they proved CNC machining can do much more than we expected.

Please take this opportunity to take a look at the works produced with skillful techniques and unique ideas.

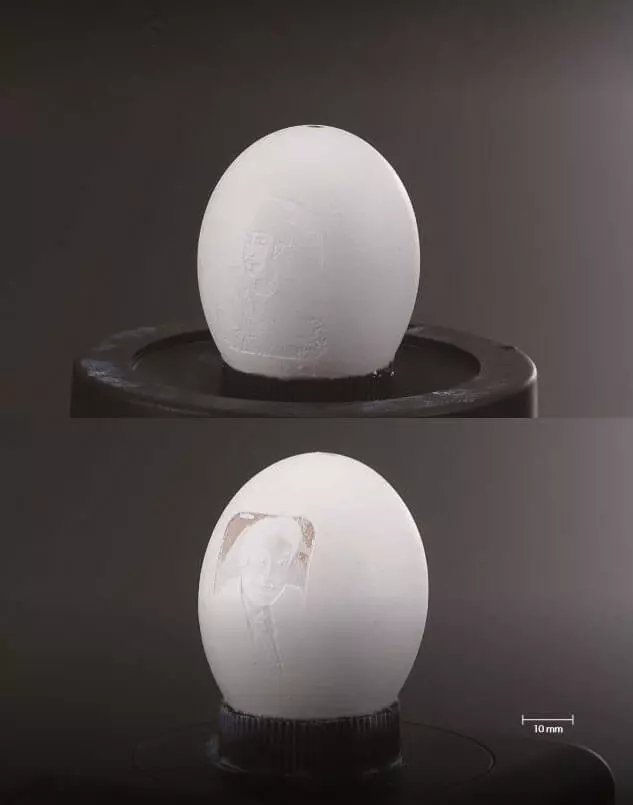

Egg Shell Art
Egg Shell Art

Egg Shell Art

Material:Egg Shell
Machinery :NVD4000 DCG
Processing time: 140 Minutes

Award Image

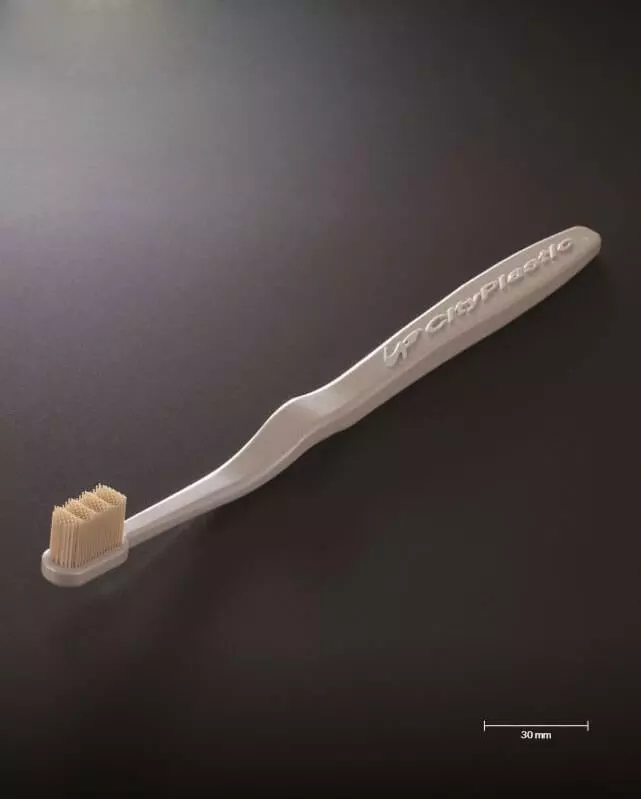

PEEK Machined tooth brush
PEEK Machined tooth brush

PEEK Machined tooth brush

Material:PEEK(high temperature resistance plastic)
Machine type :NT4200 DCG
Remarks: To milling the brush in one piece is a super challenge due to the φ0.3mm×12mm brushes. The engineers have to sort out deformation, vibration, cracking and burrs.

Award Image

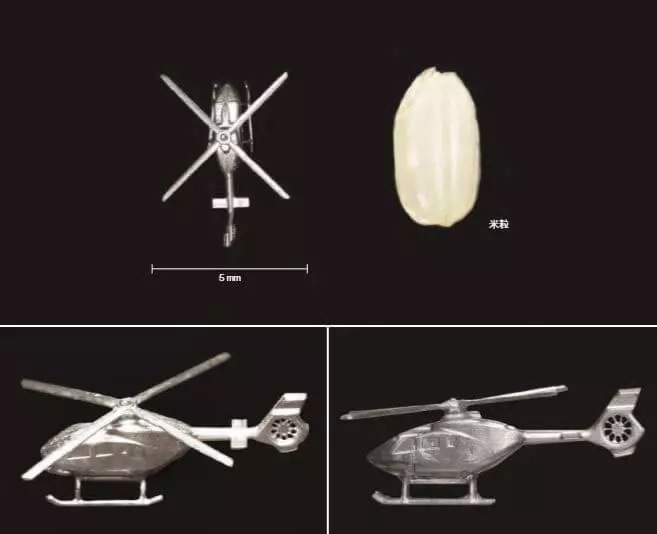

Mini helicopter
Mini helicopter

Mini helicopter

Material: A5052
Machinery: Vertical machining center
Comments: The mini helicopters are assembled from three parts. The referent next to the helicopter is a grain of rice.

Award Image

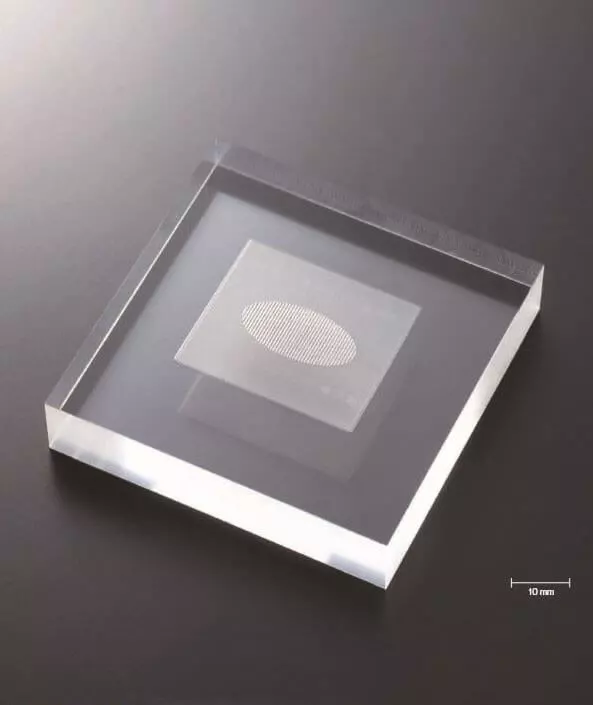

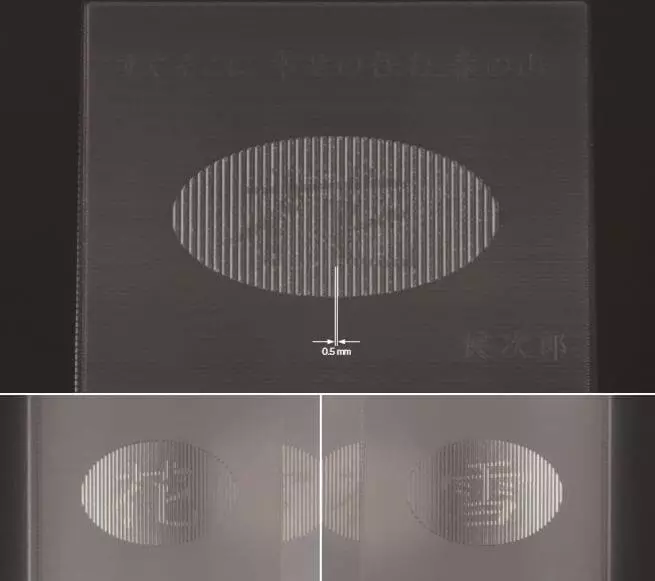

Characters on Acrylic plate
Characters on Acrylic plate

Characters on Acrylic plate

Material: Acrylic
Processing machine: NV 5000
Comments: The word "Snow" "Flower" stand out by cutting the V groove in the ellipse.

Award Image

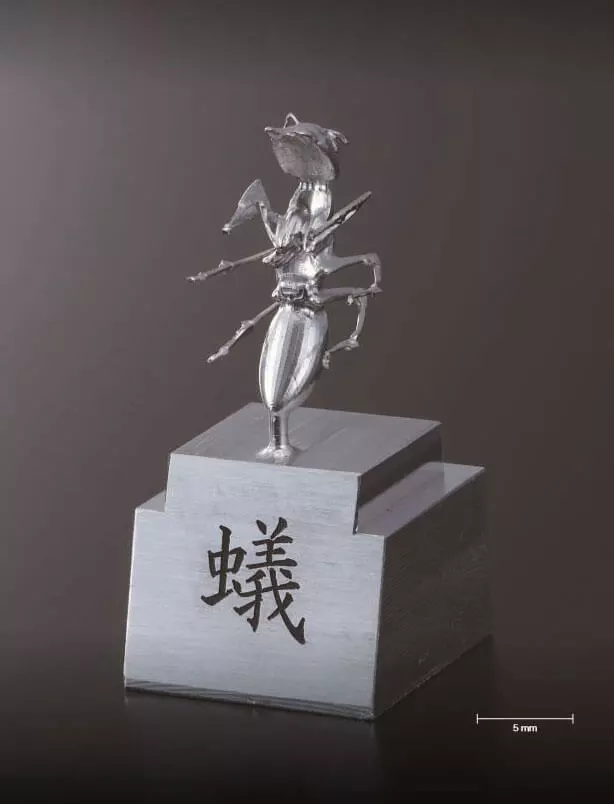

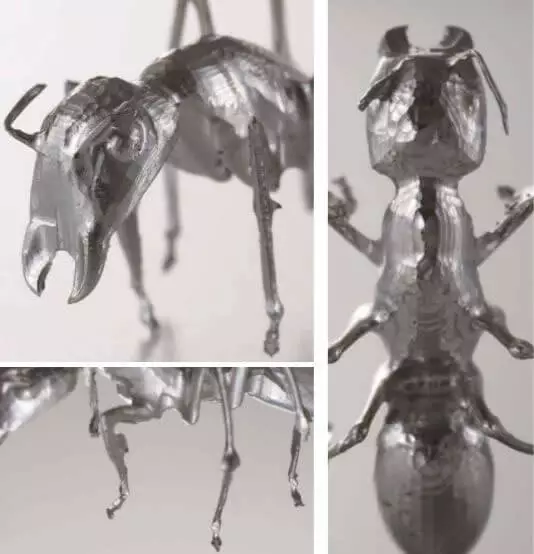

Ant
Ant

Ant

Material: A5052
Machinery: NV4000 DCG
Processing time:10 hours
Comments: The model was well-processed throughout each detail, the fitter worked perfectly, the degree of completion of the form was high.

Award Image

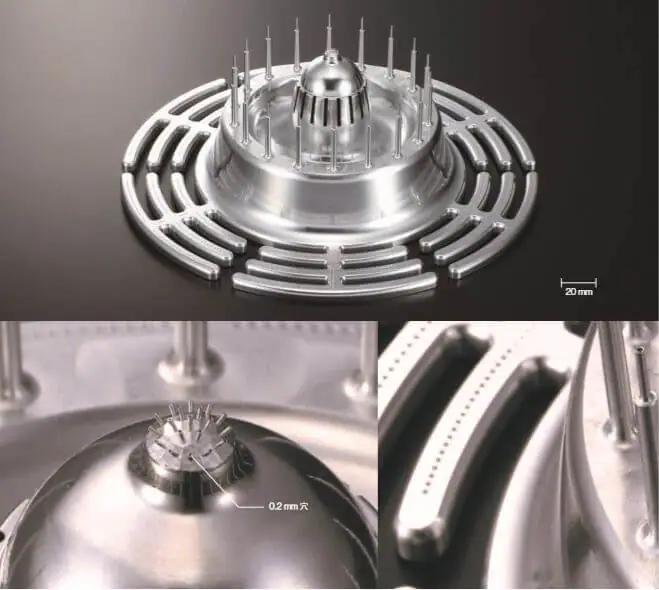

Nozzle
Nozzle

Nozzle

Material: A6061 T6
Machinery :MT-250/1000
Comments: The are three challenges: φ0.5 mm cutting in the front end, φ0.2 mm through the central hole and 0.2 mm wall thickness during the process.

Award Image

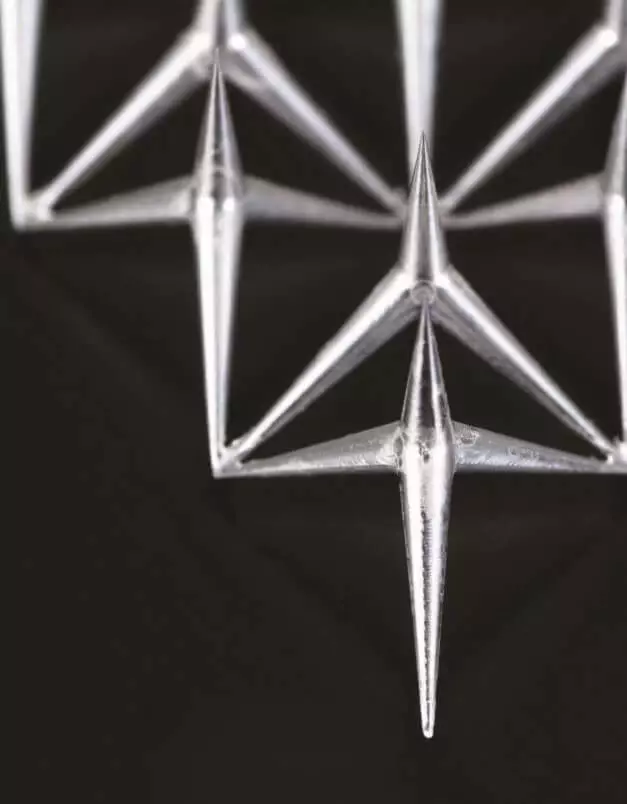

Sharp Art
Sharp Art

Sharp Art

Material: A7075
Machinery: Vertical machining center
Comments: The challenging is how to make the uneven shape to be processed by high-speed machining center and CAD/CAM.

Award Image



We will be posting more  winning workpieces in the next blogs. 3ERP provides cutting-edge CNC Machining Services , if you are curious how these workpieces be made, please read our latest blog “how to make precise parts & mold cavities”.
