What is Metallization: Process, Methods and Applications

You might not hear about metallizing as much as other finishing techniques, but it’s a powerhouse when it comes to boosting the toughness and looks of materials. This method excels in areas where strength, electrical conductivity, and style are key. Plus, it’s making a name for itself in the world of CNC machining, providing that extra shield and functionality that really make parts last longer and perform better.

Metallization is perfect for situations where a plastic part needs to look like metal or behave like metal on the surface, but remain both lightweight and affordable.

During a metallizing process, a metal coating is applied to the surface of the part, giving it a new, metallic surface layer that can be aesthetic, functional or both.

Whether you’re looking to spruce up a project or need that extra durability, metallizing could be the solution you’re searching for.

In this article, we’ll focus on diving deeper into how metallizing works, its key benefits, and where it’s making the biggest impact.

What is the Metallizing Process?

Metallizing is the method of applying a thin metal layer onto the surface of a substrate, which can be metallic or non-metallic. This process serves multiple purposes: it enhances aesthetic appeal, improves electrical conductivity, and provides significant protection against corrosion.

Common materials used include aluminum, zinc, copper, and silver, employing techniques such as thermal spraying, vacuum metallizing, and electroplating.

Metallizing differs from simpler coating methods because it fundamentally uses metal to achieve the coating, enhancing the substrate’s durability and functional capabilities.

Unlike basic paint coatings, metallizing imbues the coated object with metallic properties such as improved electrical conductivity and enhanced thermal resistance.

This method involves converting solid materials into vapor through Physical Vapor Deposition (PVD) or Chemical Vapor Deposition (CVD), which then condenses back to form a thin, uniform metallic layer on the object’s surface.

How Does Metallizing Differ from Simple Coating?

Metallizing provides a metal-based coating that offers superior durability and protection compared to basic coatings, which might use non-metallic substances like paint. This metal coating significantly enhances the substrate’s resistance to environmental factors such as corrosion, wear, and fatigue.

The application of metallizing also introduces metallic properties such as electrical conductivity, which basic coatings cannot achieve, making it a preferred choice for applications requiring these specific attributes.

By employing advanced techniques, metallizing transforms the functional dynamics of the substrate, enabling it to withstand harsh conditions and extending its lifespan while maintaining or enhancing its original aesthetics. This makes metallizing an essential process in industries that demand high durability and specific functional properties from their materials.

Short History of the Metallizing Process

The metallizing process has a storied history that dates back to the early 19th century. It began with the invention of silvered glass mirrors by Justus von Liebig in 1835, a method that would evolve into what we now refer to as vacuum metallizing.

This advancement was pivotal, allowing for the metallizing of non-metallic surfaces, such as ABS plastics, which broadened the application of this technique significantly. Throughout the 20th century, the metallizing process saw substantial enhancements with the introduction of methods like thermal spraying, cold spray, and electroplating.

These developments cemented metallizing’s role across various industries, including aerospace, automotive, and electronics, where it became crucial for enhancing material properties without compromising the structural integrity of the substrates.

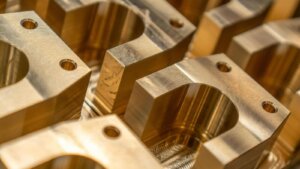

How Does Metallizing Work?

Metallizing is a transformative process that applies metal in a vaporized or molten form onto a substrate, which has been prepared through meticulous cleaning, etching, and activating to enhance adhesion.

The techniques employed include thermal spraying, where metal powders or wires are heated to a molten state and sprayed onto the substrate; vacuum metallizing, which involves vaporizing metal within a vacuum chamber allowing it to condense onto the substrate; and electroplating, where metal ions are deposited onto the substrate using an electric current.

Additionally, innovations like cold spraying have emerged, where metal powders are propelled at high velocities using a gas stream to bond to the substrate without the need for melting.

This method is particularly beneficial for substrates that might be sensitive to high temperatures. The coatings applied during metallizing are typically thin, ranging from a few micrometers to several hundred micrometers, which are crucial for ensuring detailed and precise application that meets specific industrial needs.

What are the Different Stages of the Metallizing Process?

The metallizing process is comprised of six critical stages that ensure the final product meets the required standards:

1. Surface Preparation: This initial stage involves cleaning and etching the substrate to remove any impurities that could impair adhesion.
2. Activation: Particularly for non-metallic substrates, a conductive layer is added to facilitate the metal coating process.
3. Coating Application: The metal is applied using one of the various techniques mentioned, tailored to the project’s specific needs.
4. Curing: Once applied, the coating is cured to solidify and enhance its mechanical properties.
5. Finishing: The coated substrate may undergo additional polishing or treatments to achieve the desired surface characteristics.
6. Inspection: Finally, the coated substrate is inspected to ensure uniformity, proper adhesion, and correct thickness.

What are the Main Metallizing Processes?

Metallizing encompasses a variety of techniques, each suited to different applications and offering unique benefits:

• Thermal Spraying: This process involves melting metal and spraying it onto a surface, creating a coating renowned for its strong adhesion and superior corrosion resistance.
• Vacuum Metallizing: Here, metal is vaporized in a vacuum chamber and then condensed onto the surface, commonly used for creating reflective coatings in the automotive and packaging industries.
• Electroplating: Involves depositing metal onto a surface using an electrical current, favored for its precision and cost-effectiveness, especially in jewelry and electronics manufacturing.
• Hot-dip Galvanizing: This method involves dipping steel into molten zinc, providing robust corrosion resistance, often used in construction and automotive industries.
• Cold Spraying: Metal powders are sprayed at high velocities without melting, which bonds strongly with the substrate without altering its temperature-sensitive properties.
• Sputter Deposition: Metal atoms are ejected from a target and deposited onto a substrate in a vacuum, ideal for high-precision applications in electronics and fine mechanics.

Thermal Spraying

Thermal spraying is a metallizing process that coats a substrate with molten or semi-molten metal. It is predominantly used for enhancing corrosion protection and wear resistance of metals.

Industrial applications include safeguarding steel structures in marine environments and fortifying engine parts or machinery against wear and degradation.

Pros:

• Offers high adhesion strength.
• Provides long-lasting protection.
• Cost-effective for large surface areas.

Cons:

• Requires significant investment in equipment.
• Limited to certain types of metals.

Vacuum Metallizing

Vacuum metallizing involves heating metal to its vaporization point within a vacuum chamber, allowing the vapor to condense onto the substrate. This method is extensively used for producing high-quality reflective coatings on mirrors, automotive components, and packaging materials.

Pros:

• Yields a smooth, uniform coating.
• Ideal for delicate or intricately shaped objects.

Cons:

• The setup for vacuum metallizing is costly.
• Generally limited to producing thin coatings.

Electroplating

Electroplating is a precise process where metal ions are electrically deposited onto a substrate from a solution. It is extensively used in industries such as electronics, automotive, and jewelry for both decorative and functional enhancements. For instance, electroplating can apply a gold layer to jewelry or improve the corrosion resistance of automotive parts.

Pros:

• Cost-effective and highly precise.
• Allows customizable coating thickness.

Cons:

• Limited to conductive materials.
• Requires complex and precise setup.

Hot-dip Galvanizing

Hot-dip galvanizing involves submerging steel into molten zinc, forming a protective layer that dramatically enhances its corrosion resistance.

It is predominantly used in heavy-duty applications such as construction, infrastructure, and automotive manufacturing where long-term durability is essential.

Pros:

• Provides durable, long-lasting corrosion protection.
• Economical for large-scale projects.

Cons:

• High temperatures can distort or warp thinner materials.

Cold Spraying

Cold spraying propels metal powders at high velocities using a compressed gas to bond them to substrates without the need for high temperatures. This technique is ideal for sensitive materials in aerospace and electronics that cannot withstand the heat of traditional metallizing methods.

Pros:

• Maintains the integrity of the substrate by avoiding high temperatures.
• Suitable for precision repairs and adding material to existing structures.

Cons:

• Limited to materials that can endure the kinetic energy of high-velocity particles.

Sputter Deposition

Sputter deposition is a sophisticated metallizing process where atoms are ejected from a metal target and deposited onto a substrate within a vacuum.

This method is extensively utilized in semiconductor manufacturing, optical coatings, and decorative finishes due to its precision and ability to apply uniform, thin layers.

Pros:

• Highly precise, allowing for control over layer thickness and uniformity.
• Ideal for applications requiring thin, consistent coatings.

Cons:

• The setup for sputter deposition is costly and complex.
• Generally limited to applications that require only thin layers.

Electroless Plating

Electroless plating differs from other plating methods as it does not require an electric current. Instead, metal ions in a solution are chemically reduced and deposited onto the substrate.

This process is widely adopted in the automotive and electronics industries, where uniform and corrosion-resistant coatings are crucial.

Pros:

• Provides a uniform coating even on complex shapes.
• Does not require electrical power, allowing for greater flexibility in application.

Cons:

• Generally slower than electroplating processes.
• The range of metals that can be used is more limited.

How to Choose Which Type of Metallizing for Your Project

For large-scale applications where extensive surface areas need coverage, thermal spraying might be most effective. Conversely, for projects requiring high precision and detail, such as in electronic components or fine art, vacuum metallizing or sputter deposition could be more appropriate.

Also choosing the right metallizing process depends on several factors:

• Desired Properties: Consider whether corrosion resistance, wear resistance, or aesthetic appearance is most important.
• Substrate Material: Not all processes are suitable for every material type; choose a method compatible with your substrate.
• Environmental Conditions: The operating environment may dictate the best method, especially concerning temperature and exposure to chemicals.

What Equipment and Tools are Essential for the Metallizing Process?

To achieve optimal results in metallizing, several specialized tools and pieces of equipment are essential:

• Spray Guns: Crucial for thermal and cold spraying processes, these tools facilitate the application of metal coatings by dispersing molten or powdered metal onto surfaces.
• Vacuum Chambers: Integral for vacuum metallizing, these chambers allow the metal to vaporize and condense in a controlled, air-free environment, ensuring high-quality coatings.
• Electroplating Baths: Used in electroplating, these baths contain the metal ion solution necessary for the deposition of metal onto the substrate through electrical currents.
• Power Supplies: These are vital for processes like electroplating and sputter deposition, providing the necessary electrical power to drive the deposition.
• Heating Elements: Essential for thermal spray processes and some vacuum metallizing procedures, heating elements are used to melt the metal before application.
• Surface Preparation Tools: Including abrasives, etching equipment, and cleaning systems, these tools prepare the substrate to ensure optimal adhesion of the metal coating.

What are the Important Metallizing Parameters?

Understanding and controlling several key parameters are crucial to the success of the metallizing process:

• Coating Thickness: This varies typically from 80 micrometers to several millimeters, depending on the application’s demands, with thicker coatings used for parts exposed to harsh conditions and thinner ones for decorative purposes.
• Bond Strength: A critical parameter, bond strength ensures that the coating adequately adheres to the substrate, providing the expected protective or decorative qualities.
• Porosity: Minimizing porosity is essential to maximize the durability and integrity of the coating.
• Temperature: The temperature during the application affects both adhesion and the quality of the coating, making precise temperature control essential.
• Time: The duration of the metallizing process can influence the properties of the coating, with longer times potentially leading to thicker or more durable coatings.
• Material Type: The choice of material for both the substrate and the coating determines the applicable methods and the potential quality of the finish.

What is Metallizing Thickness?

Metallizing thickness can significantly influence both the performance and appearance of the coated object. Typically, this thickness ranges from 80 to 150 micrometers, depending on the intended application.

Thicker coatings are often necessary for components exposed to extreme conditions, providing enhanced protection against wear and corrosion, while thinner layers are more common in applications requiring fine decorative finishes.

What is the Degree of Metallizing?

The degree of metallizing refers to the completeness of the coverage provided by the metallic coating. Achieving a higher degree of metallizing is often necessary for applications requiring enhanced corrosion resistance and electrical conductivity. This complete coverage ensures that the substrate is thoroughly protected and that the coating fulfills its functional role effectively.

What Materials Can Be Metallized?

A diverse range of materials are suitable for metallizing, each chosen for specific properties that enhance the end-use of the product:

• Plastics (e.g., ABS): Frequently used for metallizing due to their moldability and robustness, plastics are often coated for decorative purposes or to increase electrical conductivity.
• Glass: Utilized primarily in optical applications, metallized glass is pivotal in producing mirrors and certain types of optical lenses that reflect light precisely.
• Metals (Steel and Aluminum): These are commonly metallized to improve their corrosion resistance and mechanical strength, essential in automotive and aerospace industries.
• Ceramics: Because of their excellent thermal and electrical properties, ceramics are metallized to create functional surfaces in electronic and aerospace components.

How Do You Prepare Surfaces for Metallizing?

Proper surface preparation is crucial to ensuring the adhesion and quality of metallizing coatings. The steps include:

• Cleaning: Removes oils, dirt, and contaminants that could impair coating adhesion.
• Chemical Etching and Sandblasting: These methods roughen the surface, increasing its surface area and improving the mechanical bond of the metal coating.
• Surface Activation: Chemical treatments enhance the surface’s chemical properties, increasing its ability to bond with the metal being applied.

Importance of Surface Cleanliness

The cleanliness of a surface prior to metallizing cannot be overstated. Any residual contaminants can prevent the metal coating from adhering correctly, resulting in a coating that is visually flawed and structurally weak.

Thus, thorough cleaning is not just a preparatory step; it is a critical component of the metallizing process that ensures the longevity and performance of the metallized product. This attention to surface cleanliness is vital across all types of materials, from metals to plastics, ensuring that each piece emerges from the process with optimal quality.

What are the Applications of Metallizing Process in Industry?

Metallizing finds diverse applications across various industries, each benefiting from its unique protective and functional enhancements:

• Aerospace: Utilized for enhancing the wear resistance and fatigue strength of aircraft components, metallizing helps in extending the lifecycle of parts exposed to extreme operational conditions.
• Automotive: Applied for both protective and aesthetic purposes, metallizing offers corrosion resistance and enhances the visual appeal of automotive parts.
• Electronics: Essential for improving electrical conductivity, metallizing is used in the production of electronic components where durable and conductive coatings are required.
• Construction: Used to provide protective coatings on steel structures, metallizing shields against corrosion and environmental wear, thereby prolonging the structural integrity of buildings and infrastructures.

What are the Advantages of Metallizing Processes?

The metallizing process brings several advantages that make it a preferred choice for treating surface materials:

• Corrosion Resistance: Metallizing forms a protective barrier that shields the underlying material from moisture and chemical exposure, significantly reducing the risk of rust and corrosion.
• Wear Resistance: It enhances the durability of components, allowing them to withstand wear and abrasion better, which is crucial in high-friction applications.
• Aesthetic Appeal: Metallizing can produce a variety of finishes, from metallic shines to matte looks, which are highly valued in consumer products and automotive manufacturing.
• Electrical Conductivity: Particularly important in the electronics industry, metallizing can impart necessary conductive properties to non-metallic surfaces.

How Long Does Metallizing Process Typically Take?

The duration of the metallizing process can vary significantly based on three factors:

• Coating Thickness: Thicker coatings require more time to apply and cure properly.
• Substrate Preparation: Extensive surface preparation can extend the overall process time, especially if extensive cleaning, etching, or roughening is needed.
• Method Used: Different metallizing techniques such as vacuum metallizing, thermal spraying, or electroplating have varying time requirements. Vacuum metallizing might take longer due to the need for creating and maintaining a vacuum, whereas thermal spraying might be quicker but requires additional time for post-treatment finishing.

What are Alternative Technologies to the Metallizing Process?

Alternative surface coating technologies offer diverse benefits across various applications, complementing or substituting traditional metallizing methods:

• Anodizing: Enhances the natural oxide layer on aluminum and other metals, improving corrosion resistance and surface hardness, and allowing for coloration.
• Plasma Spraying: Deploys a high-velocity jet of plasma particles to create coatings that can withstand high temperatures, useful in aerospace and power generation equipment.
• Dip Coating: Involves immersing the substrate in a liquid coating solution followed by withdrawal to leave a uniform layer, commonly used for smaller parts or delicate materials.

Comparison Table For The Different Alternative Technologies

Conclusion

Metallizing really steps up the game for many industries by boosting materials to be tougher against wear and corrosion. But as we move forward, technology keeps evolving, and metallizing is just one of the many tools you might consider. It’s important for you to keep an eye on these changes because new and specialized techniques are popping up all the time, tailored for different kinds of projects.

Looking ahead, we’re expecting even more advancements in how materials are handled and improved. This could make metallizing even more valuable to you and your work. So, as you think about your next project, remember to weigh your options carefully. Embracing these new methods could really make a big difference in the quality and durability of what you create.

It’s an exciting time to be involved in this field, with so many possibilities opening up. Stay curious and informed, and you’ll find the best solutions to make your projects shine.

3ERP, we offer many surface finishing options for metallizing your parts, each of which has its own particular benefits.

Our metallization services include:

• • Vacuum Metallizing
  • Chroming
  • Chrome Sputtering
  • Color Plating
  • Zinc Plating
  • Tinning

Frequently Asked Questions

1. Is Metallizing the Same As Galvanizing?

No, metallizing is not the same as galvanizing. Metallizing involves applying a thin metallic coating to a substrate, typically through spraying or vacuum deposition, which can be used on various materials. Galvanizing specifically refers to immersing steel in molten zinc to form a protective barrier that significantly enhances corrosion resistance. Each process has distinct applications and benefits, suitable for different industrial needs.

2. Can you metallize a metal?

While metallization is often used to add a metal coating to non-metal parts, it is also possible to coat a metal part with a different kind of metal. Again, this could be for aesthetic reasons, or to provide a part with a new function. One of the most common methods for adding a metal coating to a part is plating. Plating is famously used to add a desirable surface finish to jewelry, but its uses go far beyond that. In fact, plating is a highly versatile process that can be used to adjust finish, function and conductivity of a metal part.
