Machining Polycarbonate: Ultimate Guide to CNC Machining Polycarbonate

Polycarbonate first made its mark in 1898, transforming over the decades into a powerhouse material patented for industrial use in 1953. What makes polycarbonate stand out? It’s not just its remarkable durability and crystal-clear clarity, but also how easily it can be shaped and machined. This has made it a favorite in fields as diverse as automotive, aerospace, and medical devices, where reliability under tough conditions is a must.

As a material that shapes the edges of innovation and withstands the demands of heavy use, polycarbonate has proven its value time and again. In this article, we’ll focus on the nitty-gritty of machining polycarbonate, and finding out how its strengths can be maximized in manufacturing to deliver products that not only meet but exceed expectations.

What Is Polycarbonate?

Polycarbonate is a thermoplastic polymer that stands out for its remarkable impact resistance and transparency. This material is frequently used in applications requiring high performance and reliability. Its inherent strength and ability to be molded, thermoformed, or machined make polycarbonate an ideal choice for a myriad of uses ranging from bulletproof windows to eyewear lenses.

How Is Polycarbonate Made?

Polycarbonate is primarily produced through polycondensation reactions, involving BPA (Bisphenol A) and phosgene. Interestingly, eco-friendly alternatives that avoid toxic intermediates are also being developed, reflecting the industry’s shift towards greener manufacturing processes. This material is typically available in forms such as rods, sheets, and blocks, which are ready for machining or molding into final products.

Short History of Machining Polycarbonate

Machining of polycarbonate became industrially significant post-1953, following its patent. Initially, its use was dominated by military and aerospace applications due to its superior impact resistance and clarity. Over the decades, the availability of polycarbonate expanded, leading to its widespread adoption in sectors like automotive, where it is used for components such as car lighting systems, and in construction, as well as in the medical field for protective gear and devices.

The progression from its discovery to becoming a mainstay in advanced machining processes illustrates the adaptability and enduring relevance of polycarbonate in modern engineering and design.

Can You Machine Polycarbonate?

Polycarbonate is notably easier to machine compared to many other plastics, showcasing a high tolerance for various machining methods. This adaptability makes it an excellent candidate for CNC milling, drilling, turning, and other conventional machining operations. Its inherent properties, such as high impact resistance and thermal stability, contribute to its machining efficiency, allowing for the creation of precise polycarbonate parts with excellent dimensional stability and clarity.

How Does Machining Polycarbonate Work?

Machining polycarbonate involves several critical stages that ensure the material’s properties are optimally utilized while maintaining its structural integrity.

What Are the Different Stages of Machining Polycarbonate?

The process of machining polycarbonate is meticulously planned from start to finish to maximize both efficiency and product quality:

• Design Review: Every machining project begins with a comprehensive review of the design to ensure that the polycarbonate’s properties align with the intended use of the part.
• Material Selection: Selecting the right grade of polycarbonate is crucial, as different grades vary in heat resistance, strength, and optical clarity.
• Initial Cutting: Commonly starting with sawing or rough milling, this stage shapes the polycarbonate into a rough approximation of the final product.
• Intermediate Shaping: This includes more precise milling and turning processes, where the material begins to take on its final dimensions and shape.
• Finishing Operations: Techniques such as polishing, vapor smoothing, or applying scratch-resistant coatings are used to enhance the optical clarity and physical properties of the polycarbonate.
• Final Inspection: The last stage involves a thorough inspection to ensure that the part meets all specifications and quality standards.

What Are the Different Methods of Machining Polycarbonate?

Machining polycarbonate involves several methods tailored to specific project requirements and part specifications. Each method leverages polycarbonate’s excellent machinability, offering a unique balance of dimensional stability, clarity, and durability.

Milling

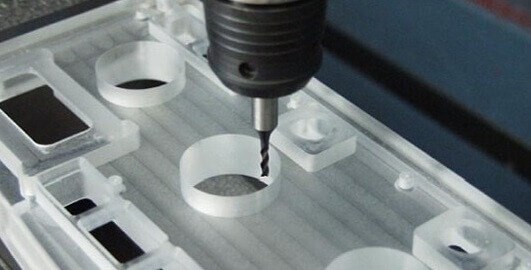

Milling is one of the preferred methods for machining polycarbonate due to its precision and versatility. Here’s how it’s typically done:

• Machines Used: CNC milling machines equipped with high-speed steel or carbide tools.
• Technique Overview:
  • Tool Choice: Carbide or high-speed steel cutters are chosen for their durability and heat resistance.
  • Cooling Method: Water-soluble, non-aromatic coolants are used to minimize heat buildup and prevent polycarbonate from melting.
• Application Tips:
  • Multiple Passes: Employing multiple lighter passes can prevent stress cracking and ensure the dimensional stability of the final product.
  • Tool Speed: Adjusting the speed and feed rate is crucial to maintain the integrity of the polycarbonate material.

Drilling

Drilling polycarbonate requires precision to avoid material damage such as cracks or chips. Here are the key considerations:

• Machines Used: Precision drilling equipment with sharp, properly maintained drill bits.
• Technique Overview:
  • Sharp Tools: Using sharp tools ensures clean cuts and prevents chips.
  • Controlled Feed Rates: Managing the feed rate and RPM is essential to prevent melting and achieve high-quality holes.
• Application Tips:
  • Pre-cooling: Applying coolant or compressed air can help maintain the temperature and improve the cut quality.
  • Slow and Steady: A gradual approach allows for better control and results in smoother holes.

Turning

Turning polycarbonate on a lathe is ideal for creating cylindrical parts with high precision. Here’s what you need to know:

• Machines Used: Lathes equipped with sharp tools and appropriate fixtures to hold the material securely.
• Technique Overview:
  • Tool Geometry: Selecting the correct tool geometry and maintaining sharpness are critical to avoid surface defects.
  • Coolant Use: Utilizing coolants can help prevent overheating and preserve the clarity and dimensional accuracy of the polycarbonate.
• Application Tips:
  • Consistent Application: Consistent tool contact and speed help maintain the quality of the surface finish.
  • Temperature Management: Effective cooling strategies are necessary to avoid warping or other heat-related issues.

Grinding

Grinding polycarbonate is crucial for achieving very fine finishes and precise dimensional tolerances. Here’s how it is implemented:

• Machines Used: Surface and cylindrical grinders.
• Process Details:
  • Continuous Shearing Action: Ensures a smooth finish by minimizing material tearing.
  • Coolant Use: Essential to prevent excess frictional heat that could deform the polycarbonate.
• Applications: Often used as a secondary operation after milling or turning to refine surface finishes.

Bending

Bending is another versatile method used to shape polycarbonate sheets into various forms without altering their molecular structure.

• Machines Used: Heat-controlled bending machines.
• Process Details:
  • Temperature Control: Heating polycarbonate to 180–210°C makes it pliable and ready for bending.
  • Cooling: Must be controlled to prevent warping and ensure the material retains its shape post-forming.
• Applications: Used in creating components for automotive, construction, and consumer products where curved shapes are required.

Injection Molding

Injection molding is a primary method for mass-producing polycarbonate parts with complex geometries.

• Machines Used: Injection molding machines.
• Process Details:
  • High Temperatures and Pressures: Melt temperatures around 280–320°C and mold temperatures between 70–100°C.
  • Cycle Time: Optimized to enhance productivity while maintaining the quality of the parts.
• Applications: Suited for producing high volumes of parts like protective covers, optical lenses, and various automotive components.

Thermal Forming

Thermal forming is particularly useful for making large, complex shapes out of polycarbonate sheets.

• Machines Used: Vacuum forming and pressure forming machines.
• Process Details:
  • Heating: Sheets are heated until pliable and then formed over molds.
  • Cooling: Must be controlled to ensure the formed part maintains its shape and dimensional accuracy.
• Applications: Commonly used for architectural features, signage, and protective covers that require durable, yet aesthetically pleasing materials.

Laser Cutting

Laser cutting is a precise method used to shape polycarbonate sheets, especially effective for thinner materials requiring intricate details.

• Machines Used: CO2 and fiber lasers that offer controlled cutting capabilities.
• Process Details:
  • Settings and Cooling: Critical to use appropriate power settings and active cooling methods to prevent local melting.
  • Precision: Capable of achieving extremely fine cuts with clean edges.
• Applications: Ideal for creating detailed prototypes, decorative elements, and complex parts like gears and panels used in various industries.

Waterjet Cutting

Waterjet cutting stands out for its ability to cut thick polycarbonate sheets without inducing thermal stress, preserving the material’s structural integrity.

• Machines Used: High-pressure waterjet cutters, often combined with abrasive materials to enhance cutting power.
• Process Details:
  • Cold Cutting Method: Eliminates the risk of heat-affected zones, ensuring the edges remain sharp and intact.
  • Edge Quality: Produces smooth, clean edges requiring minimal to no finishing.
• Applications: Suitable for applications requiring thick material cuts, such as protective panels in construction and automotive industries.

CNC Routing

CNC routing provides versatility and precision, making it a preferred method for machining detailed 2D and shallow 3D shapes from polycarbonate sheets.

• Machines Used: CNC routers equipped with specialized polycarbonate cutting tools.
• Process Details:
  • Tooling: Uses sharp single-edge cutters to minimize stress and improve finish quality.
  • Depth Passes: Gradual passes are essential to prevent material stress and achieve high-quality finishes.
• Applications: Frequently used for signage, architectural models, and detailed components in electronics and consumer products.

Ultrasonic Welding

Ultrasonic welding is a sophisticated technique used to join polycarbonate components without the need for adhesives. Here’s how it works:

• Machines Used: Ultrasonic welding machines that generate high-frequency acoustic vibrations.
• Process Details:
  • Vibration: High-frequency vibrations are applied to polycarbonate parts held together under pressure to create a solid-state weld.
  • No Adhesives: This method does not require any adhesives, ensuring clean and strong joints.
• Applications: Ideal for assembling complex polycarbonate components in the automotive and medical industries due to its precision and quick cycle times.

Hot Air Welding

Hot air welding leverages controlled heat to melt and join polycarbonate materials, often used for larger panels and repair works.

• Machines Used: Hot air welders that precisely control temperature and airflow.
• Process Details:
  • Controlled Heating: Hot air is used to gradually melt the polycarbonate edges, which are then pressed together with a filler material to form a bond.
  • Skill Requirement: Requires skilled operation to ensure smooth, defect-free welds.
• Applications: Frequently used for repairing polycarbonate parts or joining large sheets in construction and industrial applications.

Flame Polishing

Flame polishing is a finishing technique used to enhance the aesthetic qualities of polycarbonate by smoothing machined edges.

• Machines Used: Precision-controlled flame polishing equipment.
• Process Details:
  • Controlled Flame: A controlled flame lightly touches the polycarbonate surface, melting the outermost layer to remove micro-scratches and improve clarity.
  • Application Limitations: Not suitable for very thick or intricately shaped parts.
• Applications: Commonly applied in the final finishing of display components, lenses, and other optical devices where clarity is critical.

How Do You Choose the Right Machining Method for Polycarbonate?

Selecting the most appropriate machining method for polycarbonate involves several crucial factors that ensure efficiency, cost-effectiveness, and quality of the finished product. Consider the following when determining the best approach for your project:

• Part Geometry: Complex shapes may require more precise methods like CNC machining or laser cutting.
• Dimensional Accuracy: High precision is crucial for components that must fit tightly with other parts.
• Material Thickness: Thicker materials might benefit from methods like waterjet cutting to prevent warping.
• Required Surface Finish: Techniques like flame polishing or vapor polishing are necessary for a high-gloss finish.
• Production Volume: High-volume runs might justify the setup costs of injection molding for consistent reproduction.
• Tolerance Levels: Tight tolerances may require more controlled and precise machining settings.
• Heat Sensitivity and Optical Clarity: Methods that produce less heat are preferable to avoid altering the intrinsic properties of polycarbonate.
• Cost Constraints: Assess the cost-effectiveness of each method, balancing between quality and budget limitations.

What Are the Finishing Options for Polycarbonate Machining?

After machining, polycarbonate parts often require finishing to enhance their appearance or functionality. Here are several finishing techniques you might consider:

• Vapor Polishing: Uses solvents to smooth the surface, enhancing optical clarity and transparency.
• Buffing or Mechanical Polishing: Removes tool marks and minor imperfections, achieving a high-gloss finish.
• Scratch-Resistant Coatings: Applied to increase the durability and lifespan of polycarbonate surfaces.
• Bead Blasting: Creates a uniform, matte finish for aesthetic purposes or to reduce light reflection.
• As-Machined Finish: The most economical option, suitable when surface appearance is not critical.

What Are the Different Grades of Polycarbonate?

Polycarbonate is available in various grades, each tailored to specific applications and environments:

• General-Purpose: Offers clear visibility and high impact strength; suitable for a wide range of applications.
• Glass-Filled: Provides increased stiffness and strength, ideal for structural components requiring rigidity.
• UV-Stabilized: Best for outdoor use as it resists yellowing and degradation from sunlight exposure.
• Optical Grades: Designed for applications requiring high optical clarity such as lenses and protective covers.
• Flame-Retardant: Utilized in electrical and electronics industries where fire resistance is crucial.
• Medical Grades: Engineered to withstand repeated sterilization processes without degrading.

What Are the Key Properties of Polycarbonate That Affect Machining?

When machining polycarbonate, certain physical and mechanical properties of the material influence the process and outcomes:

• High Impact Strength: Minimizes the risk of chipping and cracking during machining.
• Heat Resistance: Allows for more aggressive machining tactics without deforming the material.
• Optical Clarity: Demands careful handling during finishing to maintain transparency.
• Low Moisture Absorption: Ensures that the material maintains dimensional stability throughout its lifecycle.
• Chemical Resistance: Affects the choice of coolants and lubricants used during machining to avoid material damage.

What Are the Tools Required for Machining Polycarbonate?

Machining polycarbonate efficiently and effectively requires a well-considered selection of tools to accommodate its material characteristics. Below is a comprehensive list of four tools essential for machining polycarbonate:

• Carbide or Diamond Cutting Tools: These materials reduce friction and prevent the polycarbonate from melting due to their hardness and sharpness.
• Single-Flute End Mills: Ideal for evacuating chips efficiently, thereby reducing heat buildup and preventing melting.
• Water-Soluble, Non-Aromatic Coolants: These coolants help maintain the integrity of the polycarbonate’s surface finish without causing any material degradation.
• Jigs and Fixtures: Used to ensure the stability of the part during machining, which is crucial for achieving precise cuts and maintaining dimensional accuracy.

What are the Applications of Machining Polycarbonate?

Polycarbonate’s versatility is reflected in its wide range of applications across various industries. Here are some key uses:

• Automotive: Components like headlight lenses, dashboards, and protective panels.
• Aerospace: Uses include cockpit canopies and interior panels due to the material’s strength and clarity.
• Medical: Polycarbonate is used for making durable housings for medical devices, fluid reservoirs, and even surgical tools.
• Electronics: Ideal for enclosures, protective guards, and optical components because of its insulating properties and clarity.
• Construction: Used in applications such as protective glazing, safety guards, and skylights.
• Industrial: Common for creating custom prototypes, machine guards, and fixtures.
• Consumer Goods: Frequently used in lenses, protective eyewear, and various household appliance housings.

What are the Advantages & Disadvantages of Machining Polycarbonate?

Machining polycarbonate offers numerous benefits and some challenges, as outlined below:

Advantages:

• High Impact Strength: Makes it resistant to breakage under stress.
• Excellent Optical Clarity: Ideal for applications requiring transparency.
• Good Dimensional Stability: Maintains its shape, even under stress or heat.
• Wide Processing Window: Can be processed through various machining operations.
• Good Heat Resistance: Can withstand higher temperatures without deforming.
• Chemical Resistance: Stands up well against many common chemicals.
• Lightweight yet Strong: Offers a great strength-to-weight ratio.
• Sterilization Compatibility: Can be used in medical applications where sterilization is required.

Disadvantages:

• Susceptibility to Scratches: Surface can be easily scratched if not protected.
• Cost: Generally more expensive than some other plastics.
• Stress Relieving Requirement: May require annealing to relieve internal stresses after machining.
• Heat Sensitivity: Requires careful handling to prevent melting during machining.

How to Achieve Optimal Machining Results with Polycarbonate?

Achieving optimal results when machining polycarbonate requires meticulous attention to various machining parameters and practices. Below are expert tips designed to enhance the quality of your machining efforts:

• Optimal RPM and Feed Rates: Begin with the highest feasible RPM and feed rate, then adjust downward to find the sweet spot that minimizes heat without sacrificing efficiency.
• Cooling and Lubrication: Implement proper cooling techniques and use non-aromatic, water-soluble coolants to prevent the polycarbonate from melting and to preserve the tool life.
• Annealing: Consider pre-drying or annealing the polycarbonate to reduce internal stresses that can lead to warping or cracking during machining.
• Tool Sharpness: Utilize sharp, well-maintained tools to ensure clean cuts and reduce the risk of chipping or cracking the material.
• Stable Fixturing: Ensure that the workpiece is securely fixed to avoid vibrations that can degrade precision and surface finish.

How Do You Ensure Tolerances and Precision in Polycarbonate Machining?

Maintaining tight tolerances and achieving high precision are critical in polycarbonate machining, particularly for applications requiring meticulous detail and functionality. Here are four strategies to ensure that these standards are met:

• Finishing Passes: Employ finishing passes with lower feed rates to refine the surface and achieve closer tolerances.
• Measuring Instruments: Utilize precision measuring instruments such as Coordinate Measuring Machines (CMM) to verify dimensions and ensure consistency across batches.
• Environmental Control: Maintain consistent environmental conditions in the machining area to minimize dimensional changes due to temperature or humidity fluctuations.
• Machine Rigidity: Operate with machines that have high rigidity and stable setups to prevent errors and deviations in the machining process.

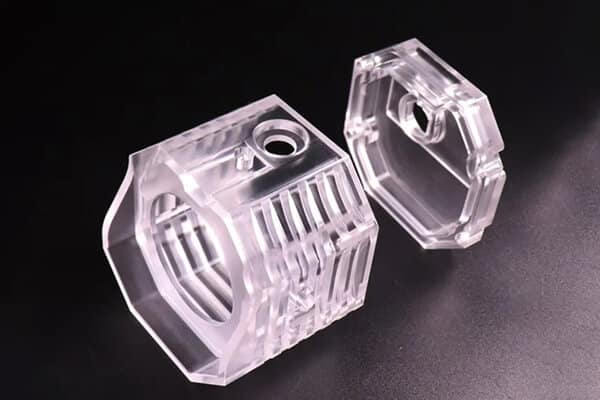

What are some design tips for machining polycarbonate?

When machining polycarbonate, the design phase is critical for ensuring efficiency and quality. Here are several design tips that can help avoid common issues:

• Larger Radii: Avoid sharp internal corners, which can stress the material; instead, use larger radii to reduce stress concentrations.
• Uniform Wall Thickness: Design parts with uniform wall thickness to minimize the risk of sinks and voids, ensuring more consistent material properties throughout.
• Reduced Thickness in Thicker Areas: To prevent cooling stresses that can lead to warping or distortion, strategically reduce thickness in areas prone to gathering heat.
• Thermal Expansion Consideration: Account for the thermal expansion in the final dimensions of your design to ensure fit and function throughout its service life.

Safety Tips for Machining Polycarbonate

To mitigate the risks associated with machining polycarbonate, consider the following safety measures:

• Dust Extraction Systems: Install and use dust extraction systems to remove airborne particles.
• Protective Gear: Always wear protective eyewear, gloves, and masks to shield against particles and heat.
• Avoid Harmful Solvents: Use appropriate coolants and avoid solvents that could degrade polycarbonate, releasing harmful vapors.
• Ventilation: Ensure that the machining area is well-ventilated to disperse dust and fumes.

What are Some Common Problems and Defects with Machining Polycarbonate?

When machining polycarbonate, several common issues may arise that can affect the quality and functionality of the finished parts. Here are some problems and practical solutions:

• Stress Cracks: Caused by excessive heat. Use slower feed rates and adequate coolant to manage temperature.
• Cloudy Edges: Result from frictional heat. Reduce tool RPM and consider vapor polishing after machining to restore clarity.
• Scratches: Occur during handling and machining. Apply protective film or coatings and handle materials carefully.
• Surface Voids or Sinks: Due to uneven wall thickness. Ensure even wall thickness and proper annealing to relieve internal stresses.
• Burrs and Rough Edges: Caused by dull tools. Use sharper tools and refine cutting parameters to produce cleaner cuts.
• Heat Buildup: Excessive heat can cause the polycarbonate to melt during the machining process. Use of sharp carbide or diamond tools with appropriate coolants reduces friction and heat, preventing melting.

How Does Polycarbonate Compare to Other Plastics in Machining?

Polycarbonate is frequently chosen for applications that require durability and clarity, but how does it stack up against other plastics in machining? Here’s a comparison:

• Compared to Acrylic: Polycarbonate is tougher and less prone to cracking, supporting higher cutting speeds and handling more stress without fracturing. However, it is generally more expensive.
• Compared to ABS: Polycarbonate offers superior clarity and dimensional stability, which is crucial for precision parts. However, it may require more careful handling and tooling to prevent stress and heat impact.
• Compared to PVC: Polycarbonate machines more easily and does not react with common coolants, making it safer and more versatile for various applications.

Conclusion

Choosing polycarbonate for your projects means you’re using a strong, clear, and versatile material. It’s great for many industries, from cars and planes to medical devices and construction. When working with polycarbonate, it’s important to manage heat properly during machining and use the right finishes to make the product look and work better.

Polycarbonate is perfect for making durable and precise parts. Whether you’re making complex parts for medical equipment or tough components for outdoor use, polycarbonate provides a reliable mix of performance and looks. The key is in how we handle and shape it to bring out its best qualities.

Frequently Asked Questions

1. Does Polycarbonate Shrink When Heated?

Polycarbonate exhibits a relatively low shrink rate of approximately 0.5–0.9%, which is advantageous for maintaining dimensional stability in precision applications. However, it’s essential to consider the material’s expansion and contraction due to temperature changes during the machining process.

2. Is Polycarbonate Safe to Machine?

Yes, polycarbonate is safe to machine under the right conditions, although it requires careful management to minimize risks associated with the machining process.
