Ever tried to machine a shape that just won’t cooperate, curved edges, gear profiles, or custom grooves? We’ve all been there. When standard milling falls short, form milling steps in with a smarter approach. Instead of cutting your part piece by piece, this technique uses a cutter that already has the final shape built in. That means you get the full profile in one go.
Yes, you’ll need to slow things down, feed rates and cutting speeds often drop 20–30% compared to conventional milling, but that’s the price you pay for precision. The reward? Clean finishes, fewer setups, and tools that last longer.
Form milling is a go-to in industries like aerospace, medical, and mold making, anywhere accuracy, repeatability, and complex shapes are the norm. Whether you’re dealing with radii, contours, or intricate geometries, this technique helps you do more with less.
In this article, we’ll focus on how form milling works, how it compares to other methods, and when it’s the right move for your next CNC project.

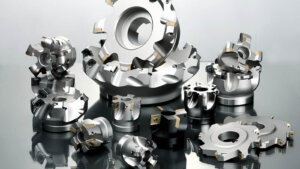

What Is a Form Milling?
Form milling is a type of milling operation that focuses on shaping surfaces with intricate profiles using a specially contoured cutting tool. The key element here is the form cutter, which is crafted to replicate the geometry of the part’s final design. As the tool rotates and cuts, it removes material in a pattern that mirrors the intended contours, whether those are grooves, arcs, beads, or angles.
What makes form milling different from other milling methods is its use of customized cutters. While face milling or end milling typically employs flat or helical tools to create straight or flat surfaces, form milling relies on tools that are anything but generic.
The cutter does most of the work by virtue of its unique shape, so the milling machine doesn’t need to compensate with multiple tool paths or complex software routines.
This approach is ideal for producing parts with features that would be difficult or inefficient to achieve through conventional methods.
For example, if you’re producing gear teeth, threads, or decorative mold features, using a form milling cutter allows for faster setup and better control over the final profile.
Although the cutting speed may be lower due to the intricate shape of the tool, the payoff is significant: fewer production steps, greater accuracy, and a better surface finish.
When your workflow requires high precision and the ability to create complex shapes, form milling is a method that delivers dependable results with minimal post-processing.
How Does Form Milling Work?
Form milling follows a structured, step-by-step process that ensures precision when shaping irregular profiles.
The entire operation depends on accurate planning, proper tool selection, and careful machine setup.
Before any cutting begins, engineers define the desired profile, often using 3D CAD software to model the final contour. These designs guide the selection or customization of the form milling cutter.
Once the profile is confirmed, you’ll need a form tool that mirrors the intended geometry. This cutter can be an off-the-shelf option for common features or a custom-ground profile for complex shapes.
Material choice for the tool matters too. High-speed steel is often used for low-to-medium volume runs, while carbide tools offer better wear resistance for extended production.
During machine setup, alignment of the rotating cutting tool and the workpiece must be exact. Even slight misalignment can cause deviations in profile or poor surface finishes.
The workpiece is typically clamped using fixtures designed to resist vibration during the cut.
Feed rate and spindle speed settings must be conservative. This isn’t about high speed—it’s about control.
The cutter’s complex geometry demands reduced cutting parameters to maintain form integrity and avoid tool wear.
Lubrication and cooling systems help regulate temperature, especially when cutting materials like alloy steel or hardened surfaces.
After material removal, precision inspection is essential. Metrology tools are used to confirm tolerances, angles, and contour fidelity.
If needed, a finishing pass or polishing operation is added to meet surface requirements.
Overall, this technique allows you to machine contours, grooves, keyways, and even gear teeth with a level of repeatability and detail unmatched by many other milling operations.
Design and Tool Selection
You start by evaluating what shapes need to be cut, whether it’s a radius, V-groove, ball nut track, or multi-step profile. This decision will guide the toolmaker or CAM engineer in choosing the right form cutter.
You also need to consider the hardness of the material being machined. For softer metals or plastics, high-speed steel might be sufficient.
But if you’re working with stainless steel, titanium, or hardened alloys, carbide tools are often a better solution due to their wear resistance.
Some cutters combine multiple profile elements, like combining diameters, grooves, and radii—into a single form. This helps reduce tool changes and improves the productivity of the machining process.
Multi-tooth tools, which engage the material with more cutting edges at once, can improve efficiency, but they also require tighter runout control to maintain dimensional accuracy.
CNC Programming and Setup
Using CAM software, you can generate a toolpath that matches the shape and depth of the desired contour. This digital step is crucial in translating the form into motion, especially if you’re dealing with complex curves or irregular surfaces.
For most jobs, CNC programming accounts for whether a single pass or multi-pass approach is best.
A single pass works well for shallow or soft materials, while harder materials or deeper profiles may require several passes to prevent overloading the cutting tool.
Next comes machine setup. The milling machine must be carefully prepared, tool holders secured, spindle speed calibrated, and the workpiece fixtured in place to eliminate any movement.
Precision here avoids chatter and ensures a smooth finish. Often, a dry run or air cut is performed to verify clearances and make sure the toolpath won’t lead to collisions.
The Milling Process
Once your machine setup is complete and the toolpath is verified, the actual milling process begins. At this point, precision in both cutting strategy and machine control becomes critical.
Unlike plain milling or end milling, where material is removed in predictable flat passes, form milling involves variable contact between the cutting tool and the workpiece due to the tool’s custom profile. This adds a layer of complexity that requires attention to detail.
Because the cutting edges are not uniform along the form cutter, feed rate settings are typically reduced compared to conventional milling.
A slower feed helps prevent overloading delicate sections of the tool and ensures that curved or recessed features retain their shape. In most cases, you’ll also need to reduce spindle speed to balance heat generation and tool wear.
Intermittent lubrication or coolant application is recommended throughout the operation. This helps control temperature, flush away chips, and prolong the life of the form cutter. It’s especially important when working with alloy steel or other heat-sensitive metals where surface integrity matters.
Cutting depth also demands care. If the form includes steep radii, gear teeth, or internal corners, you’ll want to gradually increase depth in multiple shallow passes rather than a single deep cut.
This reduces stress on the rotating cutting tool and maintains dimensional accuracy across complex geometries. Form milling used in aerospace components or thread milling applications often relies on this cautious approach to meet strict tolerance requirements.
Inspection and Finishing
After the main milling operation is complete, inspection and finishing steps help verify the integrity of the part and prepare it for use. These final stages are essential, particularly when you’re working on mission-critical components where any deviation from the specification could lead to performance or safety issues.
To inspect profile accuracy, you’ll typically rely on metrology tools such as coordinate measuring machines (CMMs), laser scanners, or optical comparators. These instruments allow you to measure everything from overall dimensions to very fine surface deviations along the contours.
Some shops also use thread gauges or radius templates for fast visual checks when dealing with repetitive tasks like thread form or corner rounding features.
Surface finishing comes next. Depending on the project requirements, you might apply light sanding, polishing, or micro-abrasive techniques to improve surface quality.
These finishing passes help remove tool marks, correct minor inconsistencies, and ensure the part meets tolerance specs for surface finishes.
You’ll see this step often in mold making or when machining parts that need to interface with injection-molded components.
An often overlooked but important part of the finishing process is checking the cutter itself. After a full production cycle, measuring tool runout or inspecting cutting edges for wear helps you determine if the form milling cutter is still viable for future use.
This step plays a vital role in quality control and helps you maintain consistency across production runs without unexpected tool degradation.
What Is Form Milling Used For?
Form milling is most often used in applications that require detailed surface geometries, tight tolerances, and consistent profile replication across multiple parts.
It’s a preferred technique in industries where you need to machine grooves, beads, radii, or irregular contours that standard milling operations cannot achieve as effectively.
By using a cutting tool shaped to match the target profile, this method allows you to reproduce that shape with minimal setup changes and reduced finishing time.
Industries such as aerospace, medical device manufacturing, and automotive production frequently rely on form milling.
It enables you to produce turbine blade roots, orthopedic joint implants, or gear teeth with high precision.
Mold and die making is another key area where form milling is used to sculpt complex cavity walls or contour-driven mold patterns.
The real value lies in efficiency. Instead of combining multiple passes with flat or ball end mills, you can use a single form cutter to produce the final shape in one or two passes.
What are Common Applications of Form Milling?
When form milling is used, it typically fills a very specific need: machining parts with non-standard shapes, or where the surface geometry plays a functional or aerodynamic role.
Here are a few typical scenarios:
- In gear manufacturing, form milling is used to create involute tooth profiles on spur, helical, or bevel gears. This allows for accurate meshing and minimal vibration in transmission systems.
- For thread milling tasks, it’s applied to form the thread geometry directly into components where tapped threads may not be suitable.
- In mold making, it’s used to cut core shapes, grooves, beads, or fillets into steel or tool-grade alloy blocks, setting the stage for injection molding or die casting.
- When machining turbine blade roots or curved structural profiles, a form cutter can help maintain surface finishes and match exact aerodynamic geometries.
Aerospace and Defense
The aerospace and defense sectors demand high precision and absolute repeatability. Parts like turbine blades, aerodynamic fins, and structural ribs often feature intricate curvature and compound profiles.
These surfaces are not just aesthetic, they influence airflow, mechanical fit, and overall system performance.
Form milling is ideal for such applications because it allows you to replicate those curves in a controlled, repeatable way. Whether you’re machining concave root sections of turbine blades or cutting complex joints in aluminum or titanium alloy frames, the ability to maintain tight dimensional tolerances is essential.
A custom form milling cutter can match the part’s geometry, allowing for efficient material removal without compromising shape fidelity.
Even small surface inconsistencies can lead to increased drag or part failure under stress.
That’s why aerospace components are often milled using conservative feed rates, temperature-controlled coolant, and rigorous quality control standards, including post-machining inspection with CMMs or 3D scanning.
Automotive Industry
In automotive manufacturing, form milling plays a central role in producing powertrain components and precision molds.
Gears, for example, require accurate tooth profiles to function properly within transmissions.
Rather than using multiple passes with generic tools, a dedicated gear milling cutter ensures that each tooth profile is replicated identically, improving both assembly efficiency and mechanical reliability.
You’ll also find form milling used in custom engine parts, especially where curved surfaces or specialty contours are part of the design.
Engine housings, valve channels, and intake or exhaust ports can all benefit from a form-milled approach.
When done correctly, this technique reduces the need for post-processing and maintains tighter tolerances from part to part.
Because the automotive industry often operates on long production runs, form milling becomes a cost-effective option.
Once the form tool is dialed in and your machine setup is calibrated, the workflow becomes fast, repeatable, and optimized for consistent production efficiency.
Medical and Dental
When you’re producing implants or custom-fitted components, the ability to replicate exact contours isn’t just important, it’s essential.
Whether you’re machining the curved profiles of orthopedic implants or the fine edges of dental crowns, form cutters provide the level of control needed to meet strict regulatory and comfort requirements.
One key advantage of this approach is its ability to create complex shapes with minimal tool changes.
For example, joint replacement parts often have multi-curve profiles that a single form milling cutter can reproduce efficiently.
Likewise, dental prosthetics require highly accurate fits for long-term patient comfort and alignment.
Form milling also supports repeatability. Once your machine setup is dialed in, the process can produce dozens, or even hundreds of identical components with no variation.
That’s critical in medical applications, where dimensional accuracy, surface finishes, and biocompatible materials are closely regulated.
Tool and Die Making
Tool and die making demands machining techniques that support both detail and durability. In this sector, form milling is used to cut complex profiles into high-strength materials like tool steel or carbide.
These profiles might include cavity contours, radii, keyways, or compound curves that are difficult, if not impossible to achieve using standard milling operations.
You might use form milling when shaping the detailed walls of an injection mold or the beveled faces of a die for metal stamping.
Because the geometry of these components directly influences the shape of the products they form, even minor deviations can lead to defective output. Using a form cutter helps reduce those risks.
In addition to shaping, form milling can reduce the need for secondary finishing steps. Since the cutter geometry is matched to the cavity or tool shape, you can often achieve the desired form in one or two passes. This not only shortens the production timeline but also minimizes tool wear over multiple runs.
Custom Fabrication and Prototyping
In custom fabrication and prototyping, flexibility is just as important as precision. That’s where form milling excels.
When you’re working with small-batch production runs or unique part geometries, the ability to use a dedicated form cutter can dramatically speed up your process. Whether it’s machining complex grooves, angled recesses, or profiles that require tight corner radii, this method reduces time spent switching tools or reprogramming paths.
Form milling is also valuable in quick-turn prototyping environments. If your prototype includes functional contours or surface patterns, using a form millin
g cutter lets you simulate final production features without the need for post-machining. This means you can validate designs faster and make necessary adjustments before full-scale manufacturing begins.
For one-off parts or small orders, investing in a form tool might seem counterintuitive. But if the design repeats, across multiple components or iterations, the upfront cost is often offset by time savings and fewer finishing steps.
What Is a Form Milling Cutter?
A form milling cutter is a type of specialized cutting tool used in CNC machining to reproduce complex contours and surface geometries on a workpiece. Unlike general-purpose tools like end mills or face mills, a form cutter is uniquely shaped to match the inverse profile of the final part.
This geometry may include curves, grooves, radii, or intricate patterns, depending on the application.
These cutters are typically made from high-speed steel or carbide and can be designed as solid tools or feature brazed inserts for shaping more intricate forms.
The material choice often depends on the type of metal being cut—such as alloy steel, tool steel, or composites—and the production volume.
What distinguishes a form milling cutter is its ability to perform material removal in a single pass. Because the cutter mirrors the final contour, it eliminates the need for multiple tools or repeated finishing steps.
This allows you to improve precision, reduce tool changes, and speed up the overall milling process, especially useful when producing parts like gear teeth, thread forms, or mold cavities with tight tolerances.
How Form Milling Cutting Tools Are Made
Creating a form milling cutter begins with selecting a tool blank, typically made from high-speed steel, carbide, or cobalt-based alloy depending on your project’s speed, material, and precision requirements. This blank forms the base that will eventually carry the custom profile.
Next, the cutting profile is ground into the blank using a precision grinding machine. These machines use computer numerical control (CNC) software to replicate the required geometry with high repeatability.
The shape must mirror the final contour you want to machine on the workpiece, whether it involves a single curve or a complex combination of grooves, beads, or corner rounding features.
To improve durability and wear resistance, heat treatment is often applied. In some cases, carbide or polycrystalline diamond (PCD) inserts are brazed into the cutter body and ground to the final shape. These inserts are ideal for working with hard metals or abrasive materials.
Quality control is critical. After the cutter is shaped, its geometry is verified using coordinate measuring machines (CMMs) or optical inspection tools to ensure it matches design tolerances.
Over time, these cutters can be resharpened or rebuilt, extending tool life and improving cost efficiency across multiple production runs.
Key Manufacturing Processes for Producing Form Milling Cutters
The workflow for manufacturing a form cutter starts by forming a cylindrical or disc-shaped blank from durable tool steel, carbide, or alloy steel. This blank acts as the foundation for the milling tool’s future cutting profile.
Depending on the cutter type, whether it’s for slot milling, thread milling, or gear milling, the blank will differ in diameter, thickness, or internal features.
CNC grinding is used to define the final shape. The cutting edges are carefully ground to match the desired form, ensuring they replicate the required contours, whether those involve ball nut tracks, gear teeth, or irregular recesses.
If you’re working with tougher materials or planning extended production runs, carbide-tipped tools or PCD inserts may be brazed into place. These segments are then finish-ground using diamond abrasives to match the intended milling profiles.
Once shaped, the tool undergoes heat treatment to increase hardness and resistance to thermal fatigue. This step is especially important for maintaining consistent cutting performance in high-speed machining or when processing abrasive materials.
To ensure dimensional accuracy, finished tools are tested for runout and form deviation. Measuring the cutting geometry using a CMM or laser scanner confirms that the tool will perform reliably within the required tolerances.
This final inspection step ensures every form tool meets manufacturing standards before it reaches the shop floor.
What are the Materials Used for Form Milling Tools?
For many standard applications, high-speed steel (HSS) remains a versatile and cost-effective choice. HSS tools offer a good balance between hardness and toughness, making them suitable for mild to moderate cutting tasks, especially in job shops and general-purpose workflows.
For demanding production environments, carbide tools are the go-to option. They provide superior wear resistance, edge strength, and can maintain sharpness even at high spindle speeds and elevated temperatures.
If you’re working with stainless steel, titanium, or hardened alloy steels, carbide tools help maintain machining accuracy over longer runs.
Cobalt steel is another material used for applications involving high feed rates and elevated cutting temperatures. Its improved heat resistance makes it ideal for aggressive metalworking processes.
Advanced tools sometimes incorporate ceramic, cermet, or PCD inserts. These materials handle extreme conditions well, although they’re typically more brittle and expensive. In rare cases, polymer-based form tools may be used for machining soft materials like plastics or composites, where high feed forces are not required.
Metal Options
Common metal options include high-speed steel (HSS), cobalt steel, and tungsten carbide, each offering unique advantages depending on the application.
High-speed steel remains a go-to choice for many general-purpose form cutters. Grades like M2, M35, or M42 are engineered with added alloy content, enhancing wear resistance and thermal stability.
These variations are ideal for jobs where cutting forces are moderate, and where durability must be balanced with flexibility during interrupted cuts.
Tungsten carbide offers a higher level of hardness and can maintain sharp cutting edges even under extreme spindle speeds or during high-volume runs. This makes carbide particularly effective when machining abrasive materials like stainless steel, alloy steel, or titanium.
Cobalt steels, often categorized as HSS-Co variants, offer elevated temperature resistance and edge retention, making them reliable under higher feed rates. These properties reduce tool wear during continuous milling operations and support complex shapes like grooves, threads, and gear teeth.
Plastics and Composites
Polymer-based form cutters, though rare, may be applied in situations where delicate surfaces or ultra-lightweight components are involved. When you’re working with thermoplastics, for example, you need a cutting edge that’s sharp enough to slice cleanly without melting the material or creating burrs. Form tools for plastics often include fine-tuned geometries that prevent chip buildup and help control surface temperatures.
Composite-based form cutters, often enhanced with coatings or engineered cutting edges—are also used when working with layered materials or fiber-reinforced plastics.
These tools are designed to minimize delamination and fiber pull-out, which can compromise the structural integrity of the finished part.
Though they aren’t suited for heavy-duty milling operations, these tools can still deliver significant advantages in prototyping, low-speed cutting, and precision plastic part fabrication.
What Are Different Types of Form Milling Cutters?
Common types of form milling cutters include convex and concave cutters for curved surfaces, corner-rounding cutters for smooth transitions, and multi-form tools that combine multiple profiles into one.
General-purpose form tools can be ground to custom geometries to match unique machining needs, offering flexibility for both prototyping and large-scale production.
Choosing the right cutter depends on factors such as profile complexity, material type, and production volume. For high-speed or high-precision jobs, the tool must match the cutting speed and feed rate requirements without compromising the surface finish or geometric integrity.
Form Tools
Form tools are commonly used to create defined shapes such as chamfers, radii, gear teeth, or V-grooves in a single, efficient pass.
Unlike conventional milling operations that rely on multiple cuts with basic end mills or face mills, form tools are specifically ground to replicate one precise feature.
These tools are especially effective in high-volume manufacturing where consistency is key. When you’re machining parts that require tight tolerances or uniform profiles across hundreds or thousands of components, form tools offer clear advantages.
Their ability to replicate the exact same contour in a single pass dramatically reduces cycle time and tool wear.
Many form tools are available in standardized shapes—like thread form or corner rounding—but others are custom-fabricated using high-speed steel or carbide, depending on your material and job requirements.
In industries like gear manufacturing or mold making, these cutters are a necessity to create complex contours quickly and accurately.
If you’re working with automated CNC machining workflows, form tools also reduce the complexity of programming by eliminating the need for multi-step toolpaths.
Convex and Concave Cutters
A convex cutter shapes outwardly curved surfaces—think bulbous features or spherical transitions, while a concave cutter does the opposite, removing material to create inward arcs or recesses.
These cutters are particularly valuable in industries where surface profiles are functional, not just cosmetic.
In the aerospace sector, for instance, turbine blade roots often include concave radii to support aerodynamic flow and stress distribution. In the automotive industry, suspension and drivetrain components may feature convex profiles that form-load-bearing edges or fluid-carrying channels.
The cutter radius must match the intended curvature precisely to maintain uniformity and minimize tool deflection. In some cases, you may also need to adjust spindle speed or feed rate to prevent chatter or heat buildup—especially when working with high-alloy steel or other heat-resistant materials.
While these tools require a more tailored setup and tighter control of cutting parameters, their ability to produce complex shapes with a high degree of repeatability makes them indispensable in precision machining environments.
When standard cutters fall short on form detail or contour accuracy, convex and concave tools give you a reliable solution for shaping intricate geometries.
Corner Rounding Cutters
Corner rounding cutters are form milling tools specifically designed to produce precise radii on external edges. With their quarter-circular cutting profile, these cutters are commonly used when you need to eliminate sharp corners, either for mechanical strength, part safety, or improved visual design.
You’ll often find these tools in operations where stress concentration needs to be minimized. For example, in gear manufacturing or mold making, rounded edges help reduce fatigue in components that undergo repeated load cycles.
From a safety perspective, these cutters are also useful when fabricating consumer products, hand tools, or structural parts where sharp edges could lead to injury.
Available in a wide range of diameters and radii, corner rounding cutters are typically made from high-speed steel or carbide.
Coated variants, such as those with TiAlN or TiCN, offer added durability and better wear resistance, especially when working with alloy steel or stainless materials at higher spindle speeds.
What are the Factors That Affect Form Milling Cutter Precision, Geometry, and Longevity
The material used in the form cutter is one of the most significant factors.
For example, carbide tools resist wear and heat better than high-speed steel, especially under the higher spindle speeds common in modern CNC machining. This makes carbide ideal for milling harder metals and handling longer production runs.
Surface coatings, like titanium nitride (TiN) or aluminum titanium nitride (AlTiN) also matter. These reduce friction, allowing the cutting edges to stay cooler and sharper during high-speed form milling operations.
However, material alone isn’t enough. Improper machine setup, like misalignment or excessive runout in the spindle, can reduce surface finishes and increase tool wear.
Chatter caused by an aggressive feed rate or depth of cut will dull the tool and harm the contour quality.
Finally, the number of flutes, relief angle, and rake must be matched to the workpiece material and shape complexity.
Precision machining relies on a consistent balance between geometry and operational control, so you should always check for edge damage or microfractures before reuse.
What are the Important Form Milling Cutting Parameters?
Since form milling cutters often deal with complex profiles or irregular contours, maintaining optimal conditions becomes crucial to part quality and tool longevity.
Here are the main parameters you should consider:
- Cutting speed: Measured in surface feet per minute (SFM) or meters per minute (m/min). This should be adjusted based on both tool material (e.g., HSS vs. carbide) and workpiece hardness. Carbide tools allow higher speeds without sacrificing cutter life.
- Feed rate: Usually lower than conventional milling because of the cutter’s detailed geometry. Excessive feed can cause vibration or poor finishes, especially on curves or small radii.
- Depth of cut: Deeper cuts may reduce cycle time but can overstress the form cutter, particularly on parts with multiple contours or delicate features.
- Toolpath strategy: Climb milling often gives a better surface finish and minimizes deflection when form milling soft metals or plastics. Conventional milling might work better for tougher materials.
- Coolant/lubrication: Continuous or intermittent coolant helps remove chips, manage heat, and improve cutting edge retention.
- Spindle speed: Often slower than with face milling or plain milling due to the complexity of the cutting edge geometry.
How to Choose the Right Form Milling Cutter?
If you’re working with hard metals like alloy steel, for instance, carbide cutters are your best bet due to their superior heat resistance and edge retention.
But for general-purpose use on softer metals or plastics, high-speed steel (HSS) can be a more cost-effective option.
Another key factor is cutter geometry. The tool must precisely reflect the profile you want to replicate, whether that’s a chamfer, gear tooth, or a convex arc.
Even small deviations can lead to inconsistent results, especially in aerospace or mold manufacturing where tolerances are tight.
You should also consider the production volume. Custom form tools might seem expensive upfront, but they pay off in large runs by reducing machining steps and improving repeatability.
Conversely, off-the-shelf form tools can be more practical for small jobs or prototypes.
If you’re aiming to maximize both speed and quality, look for cutters with coatings like TiCN or AlTiN. These improve wear resistance and reduce tool changes—especially when running long production cycles or working with abrasive surfaces.
What are the Advantages of Form Milling?
One of the most notable benefits is its ability to cut entire shapes in a single pass. That means fewer tool changes, fewer machining steps, and less chance for accumulated error in your production process.
Other four key form milling benefits are:
- Single-pass shape cutting: It can cut entire shapes in one pass, reducing the need for multiple tool changes and machining steps, which minimizes the risk of accumulated error.
- Consistent precision: Ideal for machining curved surfaces, special grooves, or irregular profiles, form cutters help replicate the same geometry across multiple workpieces—critical when tight tolerances are required, such as in gear manufacturing, mold making, or aerospace components.
- Improved efficiency: By eliminating the need for multiple setups common in conventional milling, form milling saves time and reduces operator involvement.
- Lower long-term costs: Although the initial cost of a form tool may be higher, it becomes cost-effective over time—especially for repeatable shapes—by cutting down on machining time and setup labor.
What are the Disadvantages of Form Milling?
A major primary concern of form milling is tooling cost. Custom cutters are expensive to design and manufacture, especially when you’re only producing small quantities or prototype runs.
Another challenge is setup complexity. The cutter must be perfectly aligned to the workpiece to avoid producing off-spec parts.
That means more time spent in machine setup, and a greater dependency on experienced operators who understand how to adjust spindle speed, feed rate, and depth of cut correctly.
Changes in part geometry can also be an issue. If you modify the design, the original form cutter may become obsolete, requiring a new tool altogether or a regrind of the existing one.
Additionally, cutting forces can be concentrated in small areas of the tool profile. That can lead to deflection, chatter, or inconsistent surface finishes, especially if the cutter or fixturing isn’t rigid enough.
Form milling is powerful, but it’s not the most flexible method. You need to balance performance against cost, tool wear, and machine capability.
How Form Milling Compares to Other Milling Processes?
Where other milling techniques, like end milling, plain milling, or angular milling build geometry through successive linear or rotational passes, form milling achieves the result in a single pass.
This makes form milling ideal when you’re producing parts with complex shapes or recurring contours.
Because the cutter itself mirrors the finished shape, the amount of tool repositioning and setup time is drastically reduced. In contrast, conventional milling might need several tools or multi-axis programming to recreate the same result.
You’ll find this technique especially useful when the design includes radii, grooves, fillets, or special edge conditions.
It’s a go-to method for achieving consistent results in high-volume production, particularly when surface quality and dimensional repeatability are critical. But its advantages become clearer when you look at how it compares with specific milling types.
Form Milling vs Angular Milling
The main difference between form milling and angular milling comes down to geometry and cutter configuration.
Angular milling is used when you need to produce inclined planes or chamfers on a workpiece. This is done by tilting the cutter or the spindle to a set angle. The tool removes material linearly, leaving behind angled surfaces—great for simple bevels and straight-line geometry.
Form milling, by contrast, is used when the part demands more than a simple slope. Whether you’re working with circular arcs, concave profiles, or bead-like transitions, form milling lets you create complex contours that angular cutters can’t match.
Rather than adjusting tool orientation, the profile is built directly into the form cutter itself.
When you’re machining more than just straight angles, such as curved grooves or intricate part edges, form milling saves time and boosts precision. Angular milling is simpler and more flexible for basic profiles, but it doesn’t offer the same efficiency when dealing with irregular contours or profiles that require high-precision consistency.
Form Milling vs End Milling
End milling is one of the most versatile processes in any CNC machining shop. It’s commonly used to create pockets, slots, and surfaces with either flat or slightly contoured features. End mills can remove material in multiple directions and work well on a variety of metals and plastics. They’re ideal for short-run jobs, prototypes, or projects where the design may change.
Form milling serves a different purpose. Rather than cutting with a generic tool and adjusting paths, you use a cutter with a profile that directly matches the finished shape of the part. This makes it more efficient for tasks that require consistent, repetitive geometry—like gear teeth, fillets, or radiused edges.
While end milling provides unmatched flexibility, it often requires multiple passes and additional finishing steps. Form milling reduces that need by completing everything in one go. It’s a smart solution for parts where geometry won’t change and speed, accuracy, and surface finish are priorities, especially in industries like aerospace or automotive manufacturing.
Form Milling vs Side Milling
Side milling uses cutters aligned parallel to the workpiece surface to shape vertical faces, keyways, and shoulders. These cutting tools engage the side of the part and are often used to prepare straight surfaces or to finish vertical walls. You’ll commonly see side milling used in operations where the geometry is relatively simple and linear.
Form milling, on the other hand, goes beyond flat or angled faces. Its purpose is to reproduce a detailed profile by using a cutter that matches the desired shape. For example, if your part needs a concave groove or bead-like feature, a form milling cutter shaped to that profile can replicate it precisely.
The main distinction lies in flexibility versus specialization. Side milling is more adaptable for general flat surfaces and edges, while form milling excels in precision workpieces that require specific contours.
Form Milling vs Plain (Plane) Milling
Plain milling, sometimes referred to as surface or slab milling is one of the most widely used operations in machining shops. It involves removing material from large, flat surfaces using a rotating cutting tool positioned perpendicular to the workpiece.
This technique is effective for cleaning up surfaces, leveling castings, or preparing components for additional steps in the manufacturing process.
However, if the final part requires more than a flat face, say you need fillets, radii, or a compound curve, plain milling starts to fall short. That’s where form milling takes over. Instead of removing flat stock, form milling tools are engineered to match the geometry of the finished part.
With a single pass, you can replicate complex profiles without extensive CNC programming or multiple tool changes.
While plain milling is more cost-effective for large, flat areas, it doesn’t provide the detailed finish or accuracy needed for intricate contours. In contrast, form milling adds value in projects involving precision machining, aerospace components, or specialized injection molding molds.
Form Milling vs Face Milling
Face milling is typically used when your priority is creating a smooth, flat finish across a large surface area. It’s one of the most common milling techniques and uses large-diameter cutters with multiple cutting edges. These tools are ideal for surfacing blocks, plates, or removing material quickly from the top face of a workpiece.
Form milling approaches the task differently. Instead of flattening, it aims to generate specific shapes or profiles into the workpiece, often with more detail and precision. While face milling maximizes surface coverage per pass, form milling focuses on accuracy along a custom contour, such as a rounded edge, complex groove, or thread form.
If your job involves parts like gears, ball nut tracks, or radiused features that need to be created to spec with minimal post-processing, form milling will offer more capability.
Form Milling vs Slot Milling
Slot milling focuses on creating long, straight grooves or narrow channels, commonly used for keyways, bolt slots, or channels in transmission parts.
The tool is typically an end mill or T-slot cutter, and the motion is linear. It’s effective when you need a clean, flat-bottomed cut along a defined path.
This milling technique is precise for simple shapes and excels in producing uniform-width slots in both horizontal and vertical orientations.
Form milling, on the other hand, goes far beyond cutting straight edges. Its purpose is to replicate a shape, curves, profiles, or radii into the workpiece using a rotating cutting tool that mirrors the final geometry.
Whether it’s crafting gear teeth, beads, or custom grooves with complex shapes and profiles, form milling lets you achieve everything in one pass.
While slot milling is useful for rectangular paths, form milling is your go-to when creating contours, ornamental trims, or components with aerodynamic needs, such as those found in the aerospace or automotive industry.
Form Milling vs “Airplane” or Other Niche Milling Terms
From time to time, you’ll hear terms like “airplane milling” or other niche expressions used in shop talk or within specific industries.
These aren’t official types of milling operations; instead, they usually describe setups used in aerospace manufacturing or components made for aircraft.
Often, these phrases refer to the scale, material, or geometric complexity rather than the milling technique itself.
The core principle of form milling doesn’t change, regardless of the terminology being tossed around. What defines it is the use of a form cutter, a tool shaped to replicate the final workpiece contour.
Unlike general-purpose end mills or surface cutters, form tools are designed with precision to match the profile you want. This makes the method especially relevant for parts like turbine blades, control linkages, and compound surfaces often seen in the aerospace sector.
How Is Form Milling Incorporated in Different Manufacturing Processes?
By integrating seamlessly into high-speed, high-volume, and precision-demanding environments, form milling supports both prototyping and mass production across multiple sectors.
While this technique is best known for shaping detailed profiles on metal components, it’s not limited to one setting.
Whether you’re running a CNC machine shop or fabricating molds for injection molding, form milling delivers precision, repeatability, and production efficiency.
CNC Parts Production
In CNC machining, form milling enhances the precision machining workflow by producing complex profiles without manual intervention. If you’re working with a 3D CAD model, you can generate toolpaths that drive the cutter along the contours of the part with exact accuracy.
These milling cutters, often made of high-speed steel or carbide, are programmed to replicate intricate geometries based on your design.
You can combine form milling with drilling, tapping, or thread milling within the same machine setup. This reduces overall cycle time, minimizes tool changes, and lowers the risk of misalignment.
Thanks to computer numerical control, you also gain tight control over feed rate, spindle speed, and depth of cut—crucial for preserving cutter longevity and delivering clean surface finishes.
This workflow is common in the aerospace industry, automotive prototyping, and high-precision component production, where creating complex shapes or curved surfaces is a necessity.
Molding Parts Production
Form milling also finds a critical application in mold and die making. Here, the ability to match a mold cavity or forming die’s geometry is a game-changer.
Instead of relying on multiple passes with standard end mills or time-consuming EDM processes, a form cutter shaped to mirror the mold’s internal contour can complete the task efficiently.
If you’re manufacturing injection molds or forging dies, chances are you’re dealing with compound curves or detailed recesses. A form milling cutter helps you create these intricate surfaces without compromising on accuracy.
With proper machine setup and cutter selection, even hard-to-reach pockets or rounded edges can be formed in a single setup—saving both time and tool wear.
In mold manufacturing, reducing post-processing is key. Form milling can eliminate the need for extensive polishing or secondary machining steps, delivering better quality control and consistent dimensions across large production runs.
One-Stop Service Solutions
Many modern manufacturing shops now offer one-stop service solutions, where form milling plays a central role. You might already be familiar with how frustrating it is to outsource every stage, design to finishing across multiple vendors.
This fragmentation slows down turnaround and increases the chance of dimensional errors.
In a one-stop model, form milling fits naturally. You begin with CAD-based design, transition smoothly into CAM programming, and carry out the material removal with form-specific milling cutters, all within the same facility.
These setups often include CNC machining centers capable of combining form milling with thread milling, drilling, and surface finishing without multiple changeovers. You get shorter lead times, tighter quality control, and cost efficiencies that scale with batch size..
Using CNC Metals and Plastics
Versatility in materials is another advantage when you’re working with form milling inside a CNC machining setup. You’re not limited to a single category.
Aluminum, stainless steel, alloy steel, and titanium are commonly used metals, while thermoplastics like ABS, nylon, and acrylic can also be machined, each offering different properties in terms of machinability, heat resistance, and tool wear.
Switching between these materials requires precision in feed rate adjustments, spindle speed, and even tool geometry.
That’s where having a facility equipped with multiple form cutters and deep knowledge of cutting parameters becomes critical.
You might use a carbide form cutter with sharp edge retention for tough alloys, or high-speed steel for general-purpose work. For plastics, specialized cutting edges can prevent melting or delamination during high-speed passes.
By keeping both the tooling variety and the materials in-house, manufacturers can deliver projects faster, reduce setup downtime, and maintain high standards of surface finish and contour fidelity, no matter the workpiece type or its application.
What are the Common Challenges in Form Milling and How Do You Troubleshoot Them?
One of the most common problems is chatter. You’ll usually notice this when milling complex contours or when the cutter is long or poorly supported.
To reduce chatter, slow the feed rate and check that your fixturing is secure and vibration-resistant. Stiffer setups reduce tool deflection, especially important when machining deeper profiles.
Poor surface finishes often result from dull cutting edges or worn-out form cutters. If your surface starts to feel rough or striated, inspect the tool for micro-chipping. Resharpening or replacing inserts can restore finish consistency.
Tool deflection and premature tool wear can also occur when feed rates are too aggressive or when the form tool is used beyond its optimal cutting parameters.
Cooling strategies help, especially when milling materials like alloy steel or composites where heat buildup is common. Checking radial runout and balancing spindle speed with cutter geometry ensures that the tool performs with high precision and consistent results.
How To Maintain Form Milling Cutters
Start with the basics. Clean your tools after every job. Chips or residue can abrade the cutting edges and cause irregular wear.
You also want to inspect cutters for tool wear regularly. For high-speed steel or carbide tools, that means checking edge sharpness before visible damage sets in. Delaying maintenance can lead to excessive material removal when resharpening, reducing the cutter’s useful life.
Alignment is equally critical. Check for runout using a dial indicator and confirm radial accuracy with your CNC machine setup.
Misalignment accelerates uneven wear and leads to chatter or deflection, especially when the tool is used in high-speed or high-load operations.
If you’re using insert-based cutters, replace all inserts together. That keeps the load evenly distributed across cutting edges.
As a general rule, match feed rates and spindle speeds to manufacturer specs, especially when working with harder materials or when using the cutter on intricate shapes.
What are the Cost Considerations and ROI of Form Milling?
Cost analysis for form milling involves more than just tooling expenses, it’s about understanding the full value chain.
The most obvious cost is the custom cutter itself. Whether it’s a carbide form cutter or a high-speed steel profile tool, the upfront price can be high, especially for low-volume jobs or prototypes.
However, the return becomes clear over repeated production runs. The ability to complete complex geometries in a single pass reduces machining time, tool changes, and even part handling. You save not just on labor but on cumulative dimensional variation that can occur in multi-step workflows.
Setup is another factor. Initial machine setup, alignment, and toolpath programming may take longer than plain milling or slot milling, but once complete, the repeatability improves drastically.
If you’re manufacturing aerospace components, transmission parts, or injection molding dies, that consistency is a major asset.
Material costs remain similar across different milling types, but using more durable tools, like carbide inserts or PCD, can reduce replacement frequency.
By factoring in feed rate efficiency, reduced rework, and faster cycle times, you can often recover your initial investment in just a few production batches.
How Do You Ensure Quality Control and Manage Tolerances in Form Milling?
To start, define your geometric dimensioning and tolerancing (GD&T) requirements early in the process. This helps everyone, from designers to machine operators, understand the critical surfaces, datum references, and tolerance zones. It eliminates ambiguity and sets the benchmark for accuracy.
Next, leverage coordinate measuring machines (CMM) or 3D laser scanning to inspect form cutter results. These technologies are designed to evaluate contours and non-linear geometries in ways that traditional calipers can’t handle.
Digital probing and in-process inspections help you detect cutter wear and machine drift before they result in scrapped parts.
If you’re running high-volume batches, statistical process control (SPC) allows you to track key parameters like slot depth or profile radius over time. Fixture calibration also plays a big role, if your workholding isn’t perfectly aligned, your measurements may mislead you.
Environmental and Safety Considerations in Form Milling
Safety and sustainability in form milling aren’t just good practices, they’re essential to modern manufacturing operations. With rotating cutting tools and high-speed setups, a single mistake can put operators or the environment at risk.
Start with coolant choice. Using water-soluble or synthetic lubricants cuts down on chemical exposure and minimizes environmental hazards. They’re easier to dispose of, often biodegradable, and still offer excellent heat resistance for high-speed or carbide-based operations.
Chip control is another factor. Whether you’re cutting alloy steel or softer plastics, chips pile up fast. Recycling these byproducts not only keeps your shop clean but can also recover valuable material. Keep chip guards in place to prevent shavings from becoming airborne hazards.
In terms of personnel safety, guarding around the spindle, cutter, and part should be maintained at all times. Proper personal protective equipment (PPE), including face shields and gloves, is essential when handling sharp form tools or during machine setup.
Don’t overlook coolant system hygiene either. Stagnant coolant can harbor bacteria, which can irritate skin or airways.
Operator training should include hazard identification, safe tool handling, and steps for managing chemical exposure, all of which help keep your milling processes efficient, clean, and compliant.
What are the Future Trends and Emerging Technologies in Form Milling?
Advanced coatings are a clear frontrunner. New materials like diamond-like carbon (DLC) or nano-ceramics are making form cutters last longer while handling higher spindle speeds. This means fewer tool changes, tighter tolerances, and improved surface finishes.
Another major shift is the integration of AI-driven CAM software. These platforms don’t just automate cutter paths, they optimize them based on material type, tool geometry, and even real-time spindle feedback.
You can now calculate the best feed rate or cut depth for form milling with minimal trial and error.
Multi-axis CNC machining is also on the rise. With 4- and 5-axis machines, you can achieve form milling at angles that used to require separate setups. This saves time and boosts part consistency, especially for complex contours or undercuts.
Lastly, hybrid machines are entering the market, combining additive and subtractive processes. You can 3D print a near-net shape and follow it up with precise form milling to achieve the final geometry, all within the same machine. It’s a big leap forward in reducing material waste and improving production flexibility.
How to Select a Reliable Service Provider for Form Milling?
Start by reviewing their experience with CNC machining and form milling cutters. A strong portfolio of completed projects involving complex shapes or high precision forms is a good indicator of their expertise.
Next, confirm their machining capabilities. Do they have multi-axis CNC milling machines? Can they work with different types of milling operations, including contouring, gear milling, and slot milling? If the shop has in-house tooling or works closely with cutter manufacturers, you’ll likely benefit from faster lead times and fewer sourcing delays.
You should also check for certifications like ISO 9001 or AS9100. These show commitment to quality control, workflow discipline, and traceability. Make sure they offer advanced inspection options, like CMMs or laser scanning, to validate surface finishes and profile tolerances.
Communication matters, too. Providers that respond quickly, stick to timelines, and offer clear updates can better support your production efficiency.
As a precision parts manufacturer, 3ERP provides on-demand cnc milling services, including form milling. One-off CNC prototypes to 100K+ mass production runs are supported, with tolerances as tight as ±0.01 mm.
With over 15 years of experience, our engineers and machinists collaborate closely to ensure fast feedback, smart adjustments, and efficient toolpaths. We optimize every milling process to reduce material waste, cut labor, and deliver consistent results, all without compromising quality.
Conclusion
If you’ve ever needed to machine a part with tricky shapes or tight curves, you know it takes more than just a standard approach. That’s where form milling steps in, it’s not just another type of milling; it’s a smarter way to shape complex profiles in one clean pass.
With the right setup, form milling helps you hit exact tolerances, reduce tool changes, and save valuable production time. Whether you’re working on gears, cam profiles, or mold components, this method delivers consistency where it counts. And while the initial tooling may cost more, the payoff is in speed, accuracy, and fewer headaches down the line.
At the end of the day, if you care about making parts that are both precise and repeatable, without overcomplicating your workflow, form milling is a technique worth considering. It’s how we take on complex jobs efficiently, and it might just be the solution your next project needs too.
