Ever wondered how manufacturers get those perfectly flat, smooth surfaces on metal parts? That’s face milling at work, and chances are, if you’re making anything with precision, you’ve either used it or relied on it. From prepping a cast block for drilling to machining a clean reference plane before slotting, face milling is often where the whole process begins.
You’ll see it everywhere, from the automotive world to aerospace, where accuracy isn’t just preferred, it’s mandatory. And whether you’re cutting aluminum, steel, or composites, this technique helps you remove large amounts of material fast, without compromising surface finish.
Pairing CNC machining with the right face milling strategy doesn’t just boost accuracy, it also saves time and reduces mistakes. With the cutter positioned perpendicular to the workpiece, it’s built for efficiency and consistency at scale.
In this article, we’ll focus on what makes face milling so powerful, and how you can use it to get better results from your machining process.

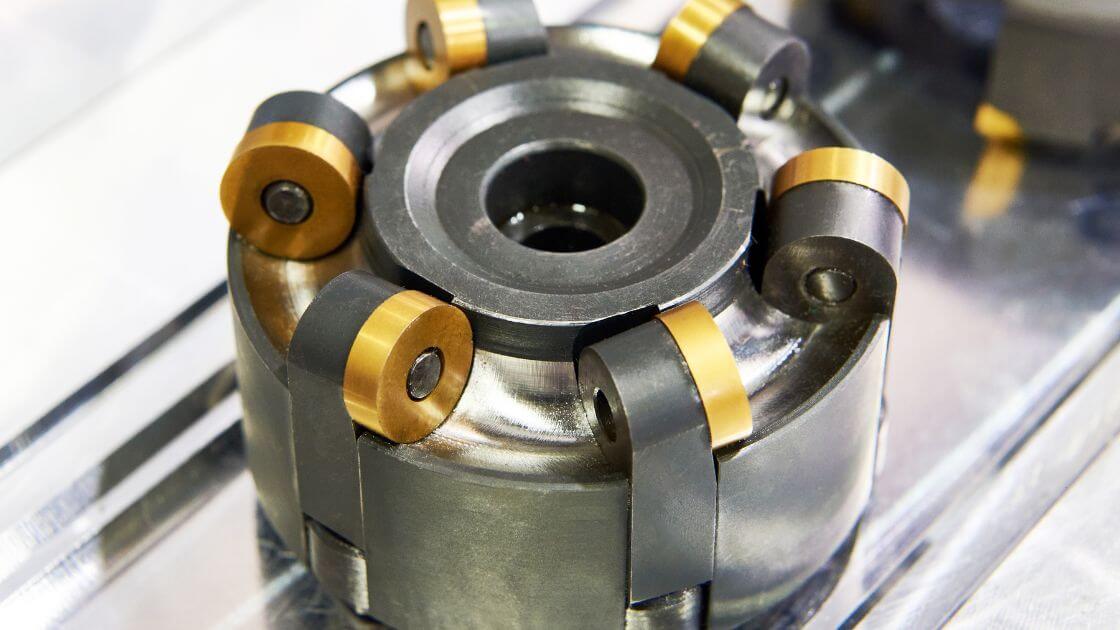

What Is Face Milling?
Face milling is a type of milling process used to cut flat surfaces or shallow contours into a workpiece by rotating a cutting tool positioned perpendicular to the surface.
The cutting action takes place at the face and periphery of the tool, typically a multi-insert cutter or shell mill, designed to sweep across the surface and remove material efficiently.
The goal of face milling is to produce uniform, clean surfaces that act as a base for subsequent manufacturing processes.
You’ll typically use this method to smooth rough stock, create precise datums, or refine the surface finish of cast or machined parts. It’s one of the primary milling operations performed across a variety of materials, from aluminum and steel to composites and engineering plastics.
What sets face milling apart from other milling methods, such as peripheral milling, is the orientation of the tool. In face milling, the cutter’s axis is perpendicular to the surface being machined, allowing for efficient coverage of wide areas.
CNC machining centers often perform this operation using insert cutters or face milling cutters tailored for the material and finish required. These tools are designed to balance cutting edge geometry, tool life, and surface quality depending on the feed rate, spindle speed, and depth of cut.
How Does Face Milling Work?
First, you need to securely clamp the workpiece to the table of the milling machine. This step is critical, any vibration or movement can negatively impact surface finish and tool life.
Once the workpiece is positioned, the face milling cutter is aligned so that its axis is perpendicular to the workpiece surface.
If you’re using manual milling tools, you’ll likely need to pause often to realign the cutter or adjust depth.
With CNC machining, on the other hand, the tool path, feed rate, and spindle speed are all programmed in advance.
This means the cutter follows a precise pattern across the part without human intervention. The result is a smoother, more consistent surface finish and fewer entry or exit marks on the material.
During machining, the cutter removes material in overlapping passes. The size of each pass depends on the selected feed rate, spindle speed, and depth of cut.
You might choose lighter passes for finishing, or more aggressive cuts when roughing large amounts of material.
In both cases, chip formation must be stable, and chip evacuation should be efficient to avoid re-cutting, especially when machining over holes or interrupted surfaces.
Several factors influence surface quality during face milling operations. Machine rigidity, insert geometry, tool wear, and coolant application all play a role.
For example, using high-pressure coolant can reduce heat buildup, especially at higher cutting speeds. When dealing with interrupted cuts, such as passing over a slot or cavity, reducing feed rate can prevent stress on the cutting edge and avoid early insert wear.
This stage is where tool selection matters. Whether you use shell mills, fly cutters, or indexable insert cutters, each offers different advantages depending on your setup and machining goals.

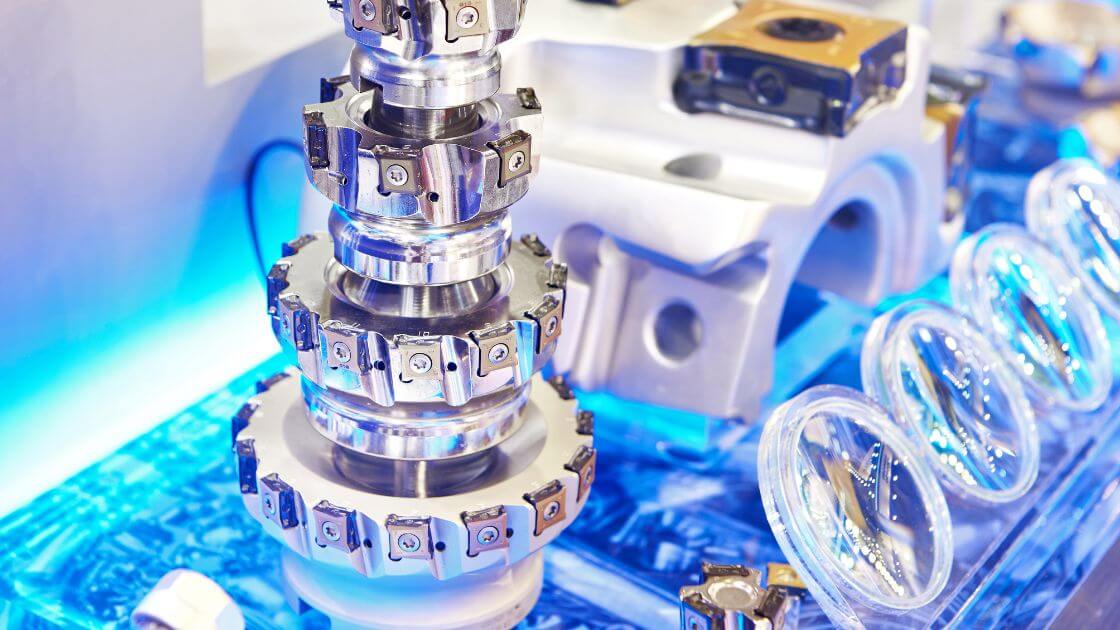

What are the Common Face Milling Operations?
In face milling, you’ll typically see operations categorized as general face milling, heavy-duty milling, high-feed milling, and fine finishing. These differ in how they balance speed, surface finish, and chip formation.
Some methods are optimized for rapid stock removal, while others are designed to create refined surface finishes on precision components.
Certain strategies like climb milling and conventional milling also impact surface quality, depending on the direction of tool rotation and feed.
Heavier face milling operations often begin the process by leveling warped or rough stock, while lighter passes follow up to refine the surface. Each of these methods plays a role in maintaining surface integrity, managing vibrations, and ensuring clean chip evacuation.
General Face Milling
General face milling is the most versatile and widely used method in modern machining. You’ll use this technique when you need to remove moderate amounts of material while maintaining a consistent surface finish across the entire workpiece. It’s the default choice for creating reference surfaces in many manufacturing processes.
This operation commonly uses a face milling cutter with a 45-degree entering angle. That geometry offers a balance between cutting efficiency and surface finish, making it ideal for most general-purpose applications.
The cutter diameter is usually chosen to be about 20 to 50 percent larger than the width of the workpiece to ensure stable engagement and reduce partial contact.
By entering the workpiece slightly off-center, you can reduce cutting forces during tool exit, which helps with chip thinning and minimizes vibrations. This setup improves tool life, reduces chatter, and contributes to better surface quality.
If you’re running a CNC milling machine, this method allows you to automate the tool path easily and achieve reliable results with minimal manual intervention.
Heavy Duty Face Milling
Heavy-duty face milling is used when you need to remove large volumes of material quickly, especially from hard metals or large workpieces. It’s particularly useful for roughing operations, where precision isn’t the top priority, but time and material removal rate are.
This method is typically used in heavy equipment production, structural components, or large cast parts.
The face milling process here often involves a milling cutter with a 60-degree entering angle, which distributes cutting forces more evenly.
That means less stress on individual insert cutters and improved chip formation during deeper cuts. It also supports better force management when machining tougher materials like stainless steel or hardened alloys.
Because the depth of cut can be significantly higher than in other operations, you’ll need a rigid setup and powerful spindle to handle the forces involved. It’s also important to keep the chips moving. Heat builds up quickly under these conditions, so proper coolant flow and chip evacuation are essential.
Rolling into the cut, rather than plunging directly, helps avoid impact loads on the inserts, especially when dealing with cast surfaces or parts with scale.
High Feed Milling
High feed milling is a face milling operation designed to remove material at an extremely fast rate while keeping the depth of cut relatively shallow. If your goal is productivity, especially in high-volume production settings, this method can drastically reduce cycle times. It’s commonly used during roughing stages where the primary focus is material removal rather than surface quality.
This method uses milling cutters with low entering angles, often around 10 degrees. These angles create a chip-thinning effect that allows you to increase the feed rate significantly—sometimes reaching 3 to 4 mm per tooth—without overstressing the cutting tool. You’ll often see this setup paired with round inserts or indexable tools engineered to handle the impact forces created at such aggressive speeds.
High feed milling demands rigid setups. You need stable machine tools and solid fixturing to avoid vibration, especially as cutting speeds often exceed 1000 meters per minute.
Proper insert geometry and durable coatings become essential at this level, as any tool wear can quickly degrade surface finish and tool life.
Fine or Finishing Face Milling
Once you’ve removed bulk material from a surface, finishing face milling helps you achieve a smooth, polished result. This operation uses precise cutting tools and light depths of cut, typically between 0.5 and 1 mm, to improve surface quality and dimensional control.
It’s ideal when you’re working on components that demand high-precision machining, such as those in aerospace or medical applications.
Wiper inserts are commonly used in this process. These inserts extend slightly below the others in the cutter body and act like scrapers to smooth out peaks left by standard inserts. As a result, you can run higher feed per revolution without sacrificing surface finish.
The outcome is a flatter, cleaner face with reduced roughness values.
Machine alignment is critical in this operation. Even minor misalignment in spindle runout or tool axis can introduce visible tool marks. A high spindle speed combined with adequate coolant flow helps prevent heat buildup, maintain insert sharpness, and produce uniform results.
Climb vs. Conventional Face Milling
The direction in which your cutting tool moves across the workpiece, relative to its rotation has a noticeable effect on the outcome. In face milling, you can choose between climb milling and conventional milling, and each comes with its own strengths and constraints.
In climb milling, the tool rotates in the same direction as the feed. This allows the cutting edge to engage the material at the thickest point of the chip and exit at the thinnest.
As a result, you get better chip evacuation, reduced friction, and a cleaner surface finish.
However, this method can pull the workpiece toward the cutter, so it requires a rigid setup with secure fixturing.
Conventional milling rotates the tool against the feed direction, offering more stability when machine rigidity is limited. The downside is increased heat and tool wear, as the tool slides across the surface before cutting begins. In practice, many machinists alternate between these two techniques depending on material type, part geometry, and specific machining conditions.
Angular Face Milling
When your part design calls for chamfers, beveled edges, or angled surfaces, angular face milling gives you the precision to produce those profiles reliably.
Unlike traditional horizontal face milling where the tool axis remains fixed and perpendicular to the workpiece, angular milling involves a tilted cutter or a tilting fixture to change the cutting approach.
This method is typically used after general face milling has established a flat reference surface. By adjusting the cutter angle or mounting the workpiece at a tilt, you can achieve precise contours or edge finishes without needing additional setups.
It’s especially useful when machining components that require functional or aesthetic bevels along specific surfaces.
To ensure accurate results, the cutting edge geometry must be compatible with the desired entry angle. If the wrong insert geometry is used, you risk burr formation or premature wear at the tool corners.
Whether you’re machining aerospace brackets, mold components, or structural frames, this operation allows you to combine standard face milling and chamfering into a single pass, reducing time while maintaining finish quality and dimensional integrity.

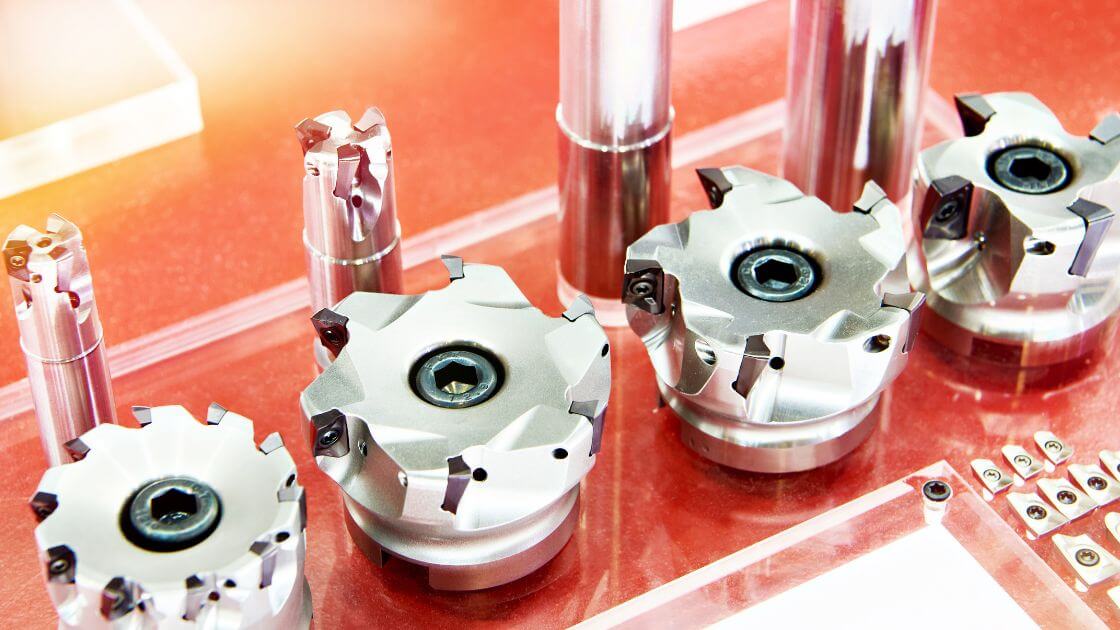

How to Choose Which Face Milling Process to Use?
If you’re working on a part that requires high-volume material removal, heavy-duty face milling or high-feed milling is likely your best option.
These methods are optimized for clearing large amounts of material quickly and are ideal for roughing operations before finishing cuts.
On the other hand, if you’re refining surfaces or working on tight-tolerance parts, you’ll want to consider light finishing passes.
Using a cutter equipped with wiper inserts can help you achieve mirror-like finishes with minimal tool pressure. These tools are especially effective on delicate surfaces where excessive force might cause deflection or chatter.
To make the right decision, factor in your machine’s horsepower, part geometry, desired surface finish, and available cutter types.
Advanced CNC machining centers often allow you to combine strategies within a single operation, using high-feed roughing to remove material rapidly, followed by a fine finishing toolpath.

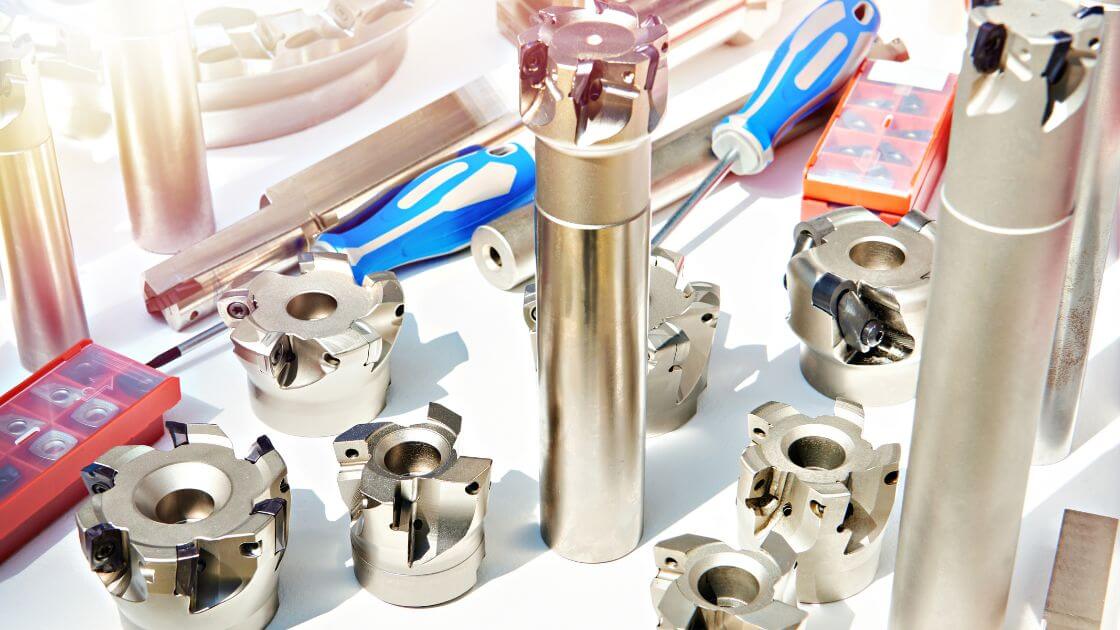

What are the Materials Used in Face Milling?
Metals such as aluminum, steel, stainless steel, cast iron, titanium, and tool steel are commonly used for face milling. Softer materials like aluminum allow higher cutting speeds and less insert wear, making them easier to machine using standard carbide face milling cutters.
For non-ferrous metals, you can often increase the feed rate without sacrificing surface quality.
In contrast, harder alloys like titanium and hardened steels require more rigid setups, lower cutting speeds, and ceramic or CBN inserts to maintain tool life.
Cast iron presents a different challenge. Its abrasive nature can wear down cutting edges quickly, especially when the surface contains scale or inclusions.
In these cases, a robust cutting tool with reinforced corners is recommended. You’ll also want to consider specialized coatings or insert materials that can withstand thermal stress and chip impact.
Plastics and composites, though easier to cut, bring their own complications. Composites can delaminate if feed rate and toolpath aren’t optimized.
Plastics may melt or deform under high heat. For these materials, choose milling tools that reduce friction, limit heat buildup, and avoid excessive plunge cutting.
What are the Tools and Cutter Types for Face Milling?
Face milling requires choosing the right tool for the job, and different cutter types are optimized for different tasks, materials, and machine setups. The most common options include shell mills, end mills, fly cutters, and indexable face mills. Each has unique construction and performance characteristics.
- Shell mills are mounted on an arbor and use multiple replaceable inserts along the edge, making them a go-to for covering large surface areas quickly.
- End mills, though not exclusive to face milling, are extremely versatile—ideal for tight spaces, finer details, or small-surface operations.
- Fly cutters use a single cutting point and are perfect when a fine finish is more important than material removal rate.
- They shine in low-power setups or when machining softer materials.
- For fast insert swaps and material flexibility, indexable face mills offer a modular solution with tunable insert geometry, coatings, and approach angles (like 45°, 60°, or 90°), directly impacting tool life, chip evacuation, and surface finish quality.
Shell Mills
Shell mills are built for efficiency on wide, flat surfaces. Designed with a central arbor hole, they mount securely to the spindle via a keyed or screwed connection.
Around the perimeter, they carry multiple cutting inserts that can be swapped as they wear or changed to suit different materials.
Common in heavy-duty machining, shell mills are used when larger diameters—often 100 mm and above—are needed to clear material quickly in fewer passes.
Their balanced insert layout spreads cutting forces evenly, helping maintain consistent surface quality across the entire workpiece. This makes them particularly useful in roughing or semi-finishing applications, especially where machines can handle high horsepower and deeper cuts.
With the right insert geometry and grade, shell mills can also double as finishers—switching from aggressive material removal to lighter, more precise passes.
They’re a staple in operations that demand high productivity and adaptability across various metals and alloys.
End Mills
End mills stand apart for their precision and flexibility. Unlike shell mills, they’re held by their shank rather than mounted on an arbor, making them more compact and better suited for detail work or smaller surfaces.
While not designed solely for face milling, they can handle it effectively in limited, fine-featured areas.
Their strength lies in versatility—end mills can slot, contour, pocket, and even chamfer.
Available in diameters as small as a few millimeters, they’re a top choice for finishing tight corners or creating intricate geometries.
Though not ideal for heavy material removal, they shine in applications with limited machine power or where accuracy takes priority over speed.
For small-part face milling, they offer a cost-effective and adaptable solution.
Whether roughing out a pocket or polishing a small flat, end mills deliver precise control and cleaner results—especially when toolpaths are optimized and rigidity is maintained. Ideal for finishing, moderate cuts, and specialty features, they’re a must-have in any machinist’s toolkit.
Fly Cutters
Unlike more complex face milling cutters, fly cutters operate with a single-point cutting edge, either brazed, clamped, or set into a rotating bar. This simplicity means they remove less material per pass, but they excel at producing clean, flat surfaces, especially on softer materials like aluminum, brass, or certain plastics.
Because of their basic design, fly cutters are ideal for low-power milling machines or manual setups where you want a consistent finish without investing in larger tooling. Their lower cutting speeds and shallower depth of cut reduce tool wear, making them especially suitable for small-scale face milling operations or detailed part finishing.
To avoid swirl marks or inconsistent toolpaths, you’ll need to maintain a steady feed rate and ensure your machine is rigid. Despite slower material removal, fly cutters can deliver premium surface quality with minimal tool wear, perfect for jobs where surface finish is the deciding factor.
Indexable Face Mills
Indexable face mills are a versatile solution when you need both performance and cost-efficiency. These tools are built around a reusable cutter body, into which insert cutters are clamped or screwed. The real value lies in the inserts, made from materials like carbide, CBN, or ceramic, that can be replaced as they wear down, without discarding the entire tool.
Because each insert typically features multiple cutting edges, you can rotate them as one edge dulls, extending total tool life significantly. This makes indexable face mills a popular choice in high-volume cnc machining and production environments where uptime, cost control, and consistency are non-negotiable.
Depending on the material you’re working with, steel, stainless steel, cast iron, or exotic alloys, you can select inserts with specific coatings or geometries to optimize tool life, chip formation, and surface finish.
When you’re switching between parts or setups frequently, the ability to adapt your cutter with minimal downtime is a major advantage.
Tool Materials and Coatings
For high-performance face milling, carbide tools dominate the field thanks to their ability to maintain hardness at elevated temperatures. Carbide is well-suited for fast feed rates and high cutting speeds, making it ideal for both roughing and finishing.
In contrast, high-speed steel (HSS) tools are more affordable and offer decent toughness, but they wear out faster under heat and are better for lower-speed jobs or when cutting less abrasive materials.
Ceramic and cubic boron nitride (CBN) inserts are used when you’re machining extremely hard materials, such as hardened tool steels or cast iron. However, these materials are brittle and require stable setups to avoid chipping.
Modern coatings, like titanium nitride (TiN), aluminum titanium nitride (AlTiN), and titanium carbonitride (TiCN), play a crucial role in reducing friction, enhancing chip evacuation, and extending tool life. These coatings let you push your spindle speed and feed rate higher while maintaining control over temperature and wear.
How to Choose the Right Tool?
Start with the workpiece material. For hard materials like stainless steel or titanium, use shell mills or indexable face mills with carbide inserts.
These tools offer the durability and cutting edge retention needed to handle heat and stress. For softer metals or plastics, fly cutters or end mills can deliver finer finishes with lower spindle speeds.
Next, think about your desired surface finish and depth of cut. Low lead angles, around 10°, let you feed faster but limit cutting depth.
If you’re chasing speed over precision, high-feed cutters or large diameter cutters help remove large amounts of material quickly, provided your milling machine has enough horsepower.
Also, consider insert geometry and coating. Choosing the right insert for your part and milling process reduces tool wear and boosts overall productivity. Finally, balance tool cost with your production goals.
What are the Key Face Milling Parameters?
To get the most out of the face milling process, you need to understand and optimize several core parameters: depth of cut, feed rate, spindle speed, stepover, lead angle, and coolant flow.
Each of these directly affects your surface finish, tool life, and overall material removal rate.
For roughing, deeper cuts and higher feed rates can help you remove large amounts of material quickly.
But this also increases chip formation and tool wear, especially if your machine power or rigidity is limited. During finishing, shallower cuts and slower feeds improve surface quality and reduce vibration.
Spindle speed should match the cutter diameter and material type to ensure proper chip evacuation and avoid heat buildup.
The lead angle, often 45° or 60°, affects how cutting forces are applied to the workpiece, while proper coolant flow protects the cutting edge and clears chips from the face.
How Deep Can You Cut with a Face Mill?
The ideal depth of cut in face milling varies depending on your tool, material, and machine setup.
For high-performance cnc machining centers with rigid spindles and high horsepower, depths beyond 10 mm are achievable during heavy-duty milling operations. This is especially true when using shell mills or insert cutters built for roughing.
However, deeper cuts also come with risks. You increase the chance of chatter, insert breakage, or deflection of the milling cutter. That’s why it’s crucial to balance your depth of cut with feed rate and tool path stability.
Finishing passes, where you aim for fine surface finish and dimensional accuracy, typically use depths of just 0.1 to 2 mm.
Also consider the insert geometry and the cutting edge angle. Some tools like high-feed mills, favor shallow cuts but high feed rates, while others handle deeper plunges better.
What are the Advantages of Face Milling?
Face milling benefits offers fast material removal, excellent surface finishes, and tooling flexibility—making it one of the most efficient and adaptable machining operations in manufacturing. Below are the key advantages and how they benefit your process:
- High Material Removal Rate: Face milling uses multiple cutting edges simultaneously, enabling rapid stock removal across large surfaces. This reduces cycle time significantly, making it ideal for both roughing and semi-finishing tasks.
- Excellent Surface Finish: With the right inserts and approach angles, face milling delivers flat, consistent finishes. High-speed CNC setups paired with wiper inserts can even produce mirror-like surfaces in fewer passes.
- Flexible Tooling Options: You can adjust approach angles (10°, 45°, 60°, etc.) or switch between shell mills, end mills, and fly cutters based on machine capacity, part size, and finish requirements. This adaptability makes face milling suitable for a wide range of materials and geometries.
- Reduced Downtime with Replaceable Inserts: Most face milling cutters feature indexable inserts. Instead of removing the entire tool for sharpening, you simply replace worn inserts—minimizing setup time and maintenance costs.
- Process Control and Precision: Whether you’re roughing or finishing, face milling allows controlled depth of cut and feed rate adjustments. This gives operators the ability to hit tight flatness tolerances while maintaining production efficiency.
What are the Disadvantages of Face Milling?
While face milling is highly efficient, it comes with certain limitations—including tool cost, setup complexity, and application-specific challenges. Below are four key limitations to consider:
- High Tooling Costs: Advanced face milling cutters and premium-grade inserts (like coated carbide or CBN) can be expensive, especially when machining hardened steels or abrasive alloys. Tool investment may be significant for high-performance or high-precision applications.
- Complex Setup Requirements: Achieving optimal performance requires careful adjustment of spindle speed, feed rate, and toolpath. Improper setup can lead to issues like chatter, poor surface finish, or accelerated tool wear—particularly on less rigid machines or difficult materials.
- Not Ideal for All Geometries: Face milling is best suited for flat, open surfaces. It’s less effective for deep cavities, thin walls, or intricate 3D features, where end or peripheral milling would offer better control and accessibility.
- Interrupted Cutting Challenges: When milling across slots, holes, or interrupted surfaces, the cutter can experience uneven chip loads and increased stress on inserts. This raises the risk of chipping, poor finish, or vibration if feed settings aren’t carefully managed.
What are Face Milling Applications?
Face milling is a foundational CNC machining process used to create flat, accurate surfaces efficiently—making it essential in both roughing and finishing stages across multiple industries. Here are the most common applications and their benefits:
- Workpiece Preparation and Referencing: Face milling is often the first machining step for large parts like steel plates or cast iron blocks. It produces a clean, flat reference face that is critical for accurate alignment in subsequent operations such as drilling, end milling, or profiling.
- Automotive Component Machining: In the automotive industry, face milling ensures the flatness and parallelism required for cylinder heads, valve covers, and engine blocks—where tight tolerances directly impact sealing and performance.
- Aerospace Surface Finishing: Aerospace parts demand uniform surface finishes and dimensional consistency. Face milling is used to achieve the parallel planes and finish quality needed for structural and aerodynamic components.
- Tool and Die Manufacturing: Mold and die makers rely on face milling to create smooth, even faces before cavity cutting or contour shaping begins. It lays the groundwork for precision work in hardened steels and tool alloys.
- Chamfering and Angular Milling: By adjusting the cutter’s approach angle, face milling can also produce beveled edges or chamfers—useful for improving aesthetics, safety, or part assembly.
- General Fabrication and Production: From machine bases to welded assemblies, face milling is used in general fabrication to level surfaces and improve fit-up between parts, enhancing both structural integrity and final appearance.
What are Common Problems in Face Milling and How to Fix Them?
Face milling offers high efficiency, but it also presents common challenges like chatter, tool wear, and poor surface finish. Understanding these issues—and how to correct them—can help improve results and extend tool life.
- Chatter (Vibration During Cutting): Chatter creates visible tool marks, noise, and reduced tool life. It’s typically caused by lack of machine rigidity, worn spindle bearings, or incorrect feed rates. Reduce feed rate, ensure machine and fixture stability, and check for mechanical wear in the spindle or tool holder.
- Rapid Tool Wear: Fast insert wear can result from excessive cutting speeds, poor chip evacuation, or incorrect insert material. Use coated or high-performance inserts, reduce spindle speed, optimize depth of cut, and ensure proper coolant or air blast to clear chips.
- Overheating and Burn Marks: High temperatures during high-feed operations can cause thermal damage, workpiece discoloration, or material hardening. Apply coolant or compressed air directly at the cutting zone, and avoid aggressive parameters without adequate heat control.
- Inconsistent Surface Finish or Chip Formation: Uneven cutting, poor chip evacuation, or mismatched cutter geometry can lead to rough finishes or irregular chips. Match insert geometry and cutter type to the job, use wiper inserts for smoother finishes, and adjust feed to avoid uneven engagement.
- Cutting Across Holes or Voids: Interrupted cuts can damage inserts and degrade surface quality due to sudden load changes. Avoid tool paths that pass directly over holes or gaps whenever possible. If unavoidable, use robust inserts and reduce feed during engagement.
What are Practical Tips and Best Practices to Optimize Face Milling?
To get consistent, high-quality results in face milling, careful attention to setup, tooling, and technique is essential. Here are the most effective tips to optimize your process:
- Ensure Proper Tool Setup: Align the cutter so it enters and exits the material cleanly. A well-aligned tool reduces surface defects, lowers tool wear, and improves finish consistency.
- Keep the Tool Perpendicular to the Surface: Always maintain 90° orientation to the workpiece. This prevents uneven loading on inserts and helps avoid chatter or uneven finishes.
- Secure Rigid Fixturing: Any movement in the setup can introduce vibration and instability. Use solid clamps and check for any play in the fixture before starting a cut.
- Use Recommended Cutting Parameters: Match spindle speed and feed rate to your cutter type and material. Wrong settings can cause built-up edges, excessive heat, and tool damage.
- Optimize Chip Evacuation: Prevent chip recutting by using high-pressure coolant or focused air blasts—especially important in deep cuts or roughing operations.
- Minimize Tool Overhang: Keep the cutter as close to the holder as possible. Excessive overhang increases the risk of chatter and reduces overall cutting stability.
- Monitor Insert Condition and Edge Geometry: Replace worn or dull inserts promptly. Sharp cutting edges reduce drag, improve surface finish, and extend tool life.
- Plan Balanced, Consistent Tool Paths: Distribute cutting forces evenly and avoid abrupt changes in direction. For multi-pass operations, keep the tool engaged steadily to maintain a smooth cut.
Optimizing Cutting Parameters
When adjusting cutting parameters in face milling, think of it as a balancing act between productivity and tool life. Pushing the feed rate might seem efficient, but exceeding optimal chip thickness leads to increased cutting forces and faster tool wear. On the other hand, feeding too slowly can cause the cutter to rub instead of cut, producing heat and built-up edges.
Start by referencing the manufacturer’s guide for recommended spindle speeds, based on cutter diameter, tool material, and workpiece hardness.
As a general rule, harder materials like stainless steel or titanium require slower spindle speeds and lower feed rates to reduce tool wear.
You’ll want to monitor chip formation during milling. Chips that are silver-blue and curl nicely indicate good speed/feed balance. If you see dust-like chips or smoke, reduce the cutting speed or increase the feed slightly.
Aim for consistent chip thickness, this helps with heat dissipation and extends tool life, especially in high-feed milling or when using insert cutters in roughing passes.
Effective Use of Coolant
During high-speed or heavy-duty milling operations, friction between the milling cutter and the workpiece can generate enough heat to damage insert geometry or degrade surface finish. That’s where coolant steps in.
For tougher materials like steel or nickel alloys, high-pressure coolant directed precisely at the cutting edge helps remove heat and flush chips from the cutting zone. This not only prevents recutting but also reduces risk of thermal shock to your insert cutters.
For softer materials like aluminum, a mist system may be enough, helping you avoid the mess or contamination associated with liquid coolants.
If you’re cutting cast iron or composites, you might consider dry milling. Coolant in these cases can mix with abrasive dust or resin particles, causing buildup on the tool or affecting finish quality.
Regardless of the material, make sure coolant flow targets the point of chip formation. It should follow the tool path and match your feed rate to ensure consistent cooling and flushing.
Ensuring Proper Tool Overhang
The farther your face milling cutter extends from the tool holder, the greater the leverage effect applied to the spindle and tool assembly. This leverage amplifies vibrations, increases tool deflection, and negatively affects your surface finish and dimensional accuracy.
To reduce chatter and maintain stability, keep the tool overhang as short as possible. In most precision machining environments, a minimal overhang helps you maintain perpendicularity to the workpiece and lowers the risk of cutting edge damage.
f you’re working with deep pockets or hard-to-reach areas and must use longer tools, it’s essential to reduce the feed rate and depth of cut to compensate for reduced rigidity.
For extended-reach scenarios, opt for specialized face milling tools designed with reinforced shanks or anti-vibration features. These tools are engineered to handle the stresses of face milling and peripheral engagement without sacrificing surface quality or insert life.
Chip Control and Removal
Proper chip control isn’t just about keeping your workspace clean, it’s vital to the performance of the entire face milling process.
Uncontrolled chips can be re-cut by the milling cutter, causing poor surface quality, tool wear, and unpredictable cutting forces. If chips get trapped between the insert and the workpiece, you’re also looking at a serious risk of scratches, chatter, or even tool breakage.
To avoid this, use high-pressure coolant or targeted air blasts to evacuate chips efficiently, especially in high-feed milling or when removing large amounts of material.
Chip formation also depends on insert geometry. Inserts with built-in chip breakers help curl and break chips into manageable sizes, making removal easier and safer.
You should regularly pause during heavy-duty face milling operations to inspect and remove any accumulated chips. Consistent chip flow not only protects your insert cutters but also helps maintain optimal feed rate and surface finish.
Machine Calibration and Maintenance
Even the best face milling cutter can’t make up for a poorly calibrated machine. Your milling machine needs to be in top condition to deliver precision machining results.
Misaligned axes, worn spindle bearings, and loose fixture clamps introduce chatter, erratic cutting depths, and can severely compromise the surface finish of your workpiece.
Routine inspection is non-negotiable.
Check spindle runout regularly and ensure your toolpath stays true and consistent.
Table flatness must be verified to keep the cutter perpendicular to the workpiece, and guideway lubrication should never be skipped.
Dry or worn-out slides lead to stick-slip behavior that directly impacts machining accuracy and tool wear.
For milling operations that rely on high spindle speed and rapid feed rate, even a minor calibration issue can lead to amplified vibration or excessive tool pressure.
Dedicated Face Milling Setup
When you want consistent results across multiple parts, a dedicated face milling setup can make all the difference. Instead of recalibrating for each job, specialized fixtures allow you to standardize your operations—especially helpful in high-volume environments.
If you’re working on repeatable components like valve bodies, flanges, or cast housings, using modular tombstones or quick-change fixturing can drastically reduce downtime between batches.
A rigid and repeatable setup is key to maintaining flat surfaces and reliable dimensional accuracy.
Dedicated fixtures prevent part misalignment and help keep the milling cutter perfectly perpendicular to the workpiece. This minimizes tool deflection, especially during heavy face milling operations with large-diameter cutters or deep passes.
By reducing the number of adjustments you make between cycles, you also preserve tool life and prevent machining errors.
Whether you’re working with aluminum or hardened steels, purpose-built face milling setups ensure a stable face milling process from start to finish—saving both time and scrap costs.
How Should I Secure Large or Thin Workpieces for Face Milling?
Thin or oversized parts are especially vulnerable due to their tendency to flex under cutting pressure. For fragile or broad materials, like sheet aluminum or long steel plates, even slight movement can ruin surface finish and accuracy.
Vacuum plates offer even clamping pressure without distorting the workpiece.
These are ideal for flat surfaces where traditional clamping might warp the part. If you’re working with thin metal sheets, try sandwiching them between sacrificial plates.
This reinforces the material and helps prevent flexing during the cut.
On large castings, make sure unsupported regions are backed by spacers, parallels, or bridging fixtures. This prevents sagging and ensures the tool for face milling contacts the workpiece evenly across its full diameter.
Also, check for uniform clamp pressure before each cycle to ensure machining forces don’t distort the part, especially with high feed rates or aggressive depth of cut settings.
How to Inspect and Verify Quality After Face Milling?
After face milling, thorough inspection is critical to ensure the part meets surface finish, flatness, and dimensional accuracy requirements—especially in high-precision industries. Here are the key methods and best practices to verify quality:
- Use a Surface Roughness Tester (Profilometer): Don’t rely on visual inspection alone. A profilometer measures Ra or Rz values to quantify surface texture. Take readings at multiple locations to detect inconsistencies across the milled face.
- Check Flatness with a Dial Indicator or Height Gauge: For small to medium-sized parts, place the workpiece on a granite surface plate and sweep a dial indicator or height gauge across the surface. This reveals any high or low spots that could affect assembly or sealing.
- Inspect Large Parts with CMMs or Laser Scanners: For bigger components like castings or machine bases, use a portable coordinate measuring machine (CMM) or 3D laser scanner. These tools provide fast, accurate flatness and contour checks over large areas.
- Evaluate for Tool Marks or Inconsistent Finish: If visible marks or texture variation appear, inspect the cutter for dull inserts, verify your toolpath strategy, and check that chips are being cleared effectively.
- Verify Spindle Runout and Machine Geometry: Poor surface results can stem from misalignment. Use a test indicator to check spindle runout, and confirm axis squareness to eliminate machine-induced errors.
Safety Considerations
Face milling is a high-energy process, and safety should never be treated as an afterthought, especially when you’re working with large amounts of material, high spindle speeds, and sharp cutting edges.
Whether you’re machining stainless steel, aluminum, or composites, one thing is constant: safety starts with you.
Always wear ANSI-rated safety glasses to protect your eyes from fast-moving chips and coolant spray.
While gloves are useful when handling sharp insert cutters or changing face milling tools, never wear them around rotating spindles—entanglement is a real risk.
Make it a habit to remove them before starting the milling machine.
Ensure the machine enclosure is shut before beginning a face milling operation.
Escaping chips or mist coolant can cause slips or burns.
Never adjust a workpiece or fixture while the spindle is in motion, even if it seems like a quick tweak. And make sure your emergency stop button is easily accessible during cnc machining.
Check for burrs or sharp edges on the milling cutter before handling, and store used tools in labeled trays.
What are the Sustainability and Environmental Considerations in Face Milling?
In modern cnc machining, sustainability is no longer optional, it’s a responsibility.
And if you’re running face milling operations regularly, there are several ways you can make a meaningful impact without compromising on performance or quality.
One of the most effective strategies is using optimized toolpaths. High-efficiency milling patterns reduce cycle time, lower energy consumption, and minimize excess material removal.
When you’re dealing with large amounts of material, even a small improvement in path planning leads to measurable reductions in power use and scrap generation.
Coolant selection also plays a critical role. Water-soluble coolants or biodegradable alternatives limit environmental contamination, especially when paired with proper filtration and chip evacuation systems.
For face milling processes involving aluminum, steel, or composites, synthetic or semi-synthetic coolants may offer better heat control with less waste.
Reusing or re-coating insert cutters extends their life, cutting down on raw material demand.
Reconditioned tools also help reduce both cost and landfill waste, especially valuable in high-volume face milling operations using shell mills or indexable cutters.
What is the Difference Between Face Milling and Other Milling Processes?
In face milling, the cutting tool’s face is the primary contact with the workpiece, meaning the cutter’s axis is perpendicular to the surface.
This is what makes face milling ideal for machining flat surfaces with high accuracy and a clean surface finish.
In contrast, peripheral milling, sometimes called plain milling, positions the cutter parallel to the surface. This configuration relies on the cutting edge along the tool’s side, making it better suited for machining slots, profiles, or vertical walls.
Meanwhile, end milling uses the tool’s tip and periphery for detailed features like pockets and cavities, giving you more flexibility for intricate toolpaths.
What is the Difference Between Face Milling and Peripheral Milling?
In face milling, the tool’s axis is perpendicular to the workpiece, and the flat face of the cutter does the bulk of the cutting.
This makes it excellent for achieving a refined surface finish across large, flat surfaces, especially in high-production environments.
Peripheral milling, on the other hand, aligns the tool’s axis parallel to the surface being cut. The side cutting edges of the tool remove material along the vertical or angled faces.
This method is more suitable when you’re machining slots, contours, or deep walls where the vertical geometry of the part is critical.
In terms of cutter design, face milling cutters typically feature insert cutters arranged around a rotating body, while peripheral milling often uses end mills or similar tools.
You’ll likely turn to face milling when your goal is wide-area material removal and smooth finishing. But for detailed side features or deep grooves, peripheral milling is the way to go.
What is the Difference Between Face Milling and End Milling?
At first glance, face milling and end milling might seem interchangeable, but their differences are critical depending on what you’re trying to achieve.
Face milling is all about efficiency in producing flat surfaces. It uses large-diameter face milling cutters with multiple inserts, and its cutting action happens on the face of the tool, making it ideal for removing large amounts of material quickly and consistently.
In contrast, end milling is more versatile. The tool’s cutting edges are located both on the tip and the sides, allowing you to machine slots, pockets, profiles, and 3D contours. It’s the go-to method when you need precision in tight spaces or complex geometries, think cavities in molds or detailed mechanical parts.
While face milling prioritizes surface quality and broad coverage, end milling focuses on toolpath flexibility. Choosing between the two depends on your specific part geometry, depth of cut, and whether you’re finishing or roughing. In many cases, you’ll end up using both in tandem as part of a complete milling process.
What is the Difference Between Face Milling and Plain Milling?
In face milling, the cutter’s axis is positioned perpendicular to the workpiece, and material is removed primarily using the face of the tool. This method is commonly used to achieve flat surfaces and high-quality finishes across wide areas.
Plain milling, on the other hand, uses the side of the cutter to engage the workpiece. The cutter’s axis runs parallel to the surface, and the cutting edges along its circumference perform the work. This approach is typically better for machining slots, profiles, and vertical walls.
Face milling delivers superior flatness and surface quality, making it ideal for top-facing applications. Plain milling excels when you need to shape the sides of a part or remove material in long, horizontal passes. Choosing between them depends on your specific geometry, surface goals, and tool access.
Conclusion
If you’re aiming for smooth, flat surfaces and precision down to ±0.01 mm, face milling is your go-to process. It’s not just about cutting metal, it’s about doing it smarter, cleaner, and more efficiently. Whether you’re working on a prototype or pushing out thousands of parts, success comes down to using the right tools, setting the correct speeds, and keeping everything stable and well-aligned.
Throughout this guide, we walked you through real tips that make a difference—like keeping your tool overhang short, choosing the right inserts, and making sure chips don’t pile up and cause trouble. These aren’t just “nice-to-haves”—they’re how you extend tool life, improve finishes, and avoid expensive do-overs.
At 3ERP, we live and breathe this stuff. With over 15 years under our belt, we help you move from concept to production fast, without sacrificing quality. From tight-tolerance jobs to high-volume runs, we’re here to get it right, save material, and keep your machining on point—every single time.
