What is Design for Manufacturing (DFM)?

What is Design for Manufacturing (DFM)

Design for Manufacturing (DFM) is a proactive approach to designing products that are simpler, more cost-effective to produce, and robust in quality. It integrates the design and manufacturing processes to minimize complexity and streamline production. This strategy focuses on reducing costs, enhancing product quality, and accelerating production times by considering manufacturing aspects during the design phase.

Why is DFM Crucial in Modern Manufacturing?

Design for Manufacturing (DFM) is indispensable in modern production environments because it directly impacts the financial and operational aspects of manufacturing. Approximately 70% of a product’s production costs stem from initial design decisions that influence material choices and manufacturing techniques. The remaining 30% are governed by production-related decisions such as process planning and tool selection. By emphasizing design optimization from the outset, DFM reduces the need for costly redesigns, enhances the overall quality of products, and significantly shortens the time to market.

What Does DFM Aim to Achieve?

DFM is designed to streamline and optimize the manufacturing process, achieving several key objectives:

Cost Reduction: Minimizes overall manufacturing costs by simplifying designs and using materials more efficiently.

Increased Productivity: Enhances the production process through streamlined operations and reduced need for extensive manual labor.

Improved Product Quality: Ensures higher quality outcomes by addressing potential manufacturing issues during the design phase.

Faster Time to Market: Accelerates the product development cycle by reducing the time spent on troubleshooting and redesigns.

Sustainability: Promotes more sustainable manufacturing practices by reducing waste and optimizing resource use.

What is the History and Origins of DFM?

The concept of Design for Manufacturing has its roots in the industrial revolution, but it gained structured prominence in the late 20th century as manufacturers faced heightened global competition and increased production complexities. The evolution of DFM has been significantly shaped by technological advancements in manufacturing processes such as CNC machining and 3D printing, which demand precise design specifications to optimize output and reduce waste.

Engineers and designers developed DFM principles as a response to the burgeoning need for efficiency and cost-effectiveness in mass production. These principles have continuously adapted to include modern technologies and materials, reflecting the dynamic nature of global manufacturing standards.

How does DFM work?

Design for Manufacturing (DFM) is an essential strategy aimed at refining the design process to enhance manufacturability. Ideally, it is initiated early in the design phase, much before the commencement of tooling. DFM involves all key stakeholders, including engineers, designers, contract manufacturers, mold builders, and material suppliers.

What are the Key Stages of the DFM Process?

The DFM process comprises several critical stages designed to optimize manufacturing from the outset:

  1. Concept Review: This initial stage involves evaluating the product concept from a manufacturing perspective, considering factors like feasibility and cost-effectiveness.
  2. Design Assessment: At this point, the design is analyzed in detail to identify potential manufacturing challenges and opportunities for simplification.
  3. Material Selection: Choosing appropriate materials that balance functionality, cost, availability, and manufacturability is crucial.
  4. Process Selection: This involves selecting the most suitable manufacturing processes that align with the design requirements and production volume.
  5. Prototype Development: Early prototypes are developed to test the design in real-world manufacturing conditions, allowing for the identification and correction of any issues.
  6. Final Optimization: The design is finalized with an emphasis on optimizing all aspects to ensure ease of manufacturing, assembly, and quality assurance.

Process Selection

Choosing the right manufacturing process is critical to ensure the product can be manufactured efficiently and economically. The process must align with the product’s design specifics, materials, and anticipated production volumes.

How It Is Done?

Process selection involves evaluating various manufacturing methods to find the most suitable one based on the product’s requirements. For instance, while injection molding might be ideal for high-volume production due to its speed and precision, it involves significant initial costs for tool and die making. In contrast, thermoforming could be more cost-effective for lower-volume parts due to lower setup costs.

Examples:

  1. High-Volume Manufacturing: For a product designed for mass market, injection molding might be selected due to its ability to produce large quantities efficiently once the initial tooling is complete.
  2. Low-Volume Production: For a bespoke component of a medical device, additive manufacturing (3D printing) could be chosen to allow for cost-effective production without the need for extensive tooling.

Design Simplification

Simplifying the design of a product is essential to minimize potential manufacturing issues, reduce costs, and enhance manufacturability. Simplified designs are typically easier to produce, assemble, and maintain.

How It Is Done?

This stage focuses on reducing the number of parts, simplifying assembly processes, and using standard components where possible. Designers work to eliminate unnecessary complexity in the product without compromising on functionality.

Examples:

  1. Integration of Functions: A gear assembly might be redesigned to reduce the number of gears and bearings without affecting performance.
  2. Use of Standard Parts: Instead of custom-designed screws, a design might incorporate standard screws to reduce manufacturing and maintenance costs.

Material Selection

Material selection in Design for Manufacturing (DFM) is crucial as it directly impacts both the functionality and manufacturability of the product. Selecting the right materials ensures that the product meets its performance requirements while being cost-effective and easy to manufacture.

How It Is Done?

During this stage, materials are chosen based on their compatibility with the product’s requirements and the intended manufacturing processes. Factors such as mechanical strength, durability, weight, aesthetic qualities (like color and finish), and cost are considered. Engineers must also account for the material’s behavior under various operating conditions, including exposure to temperatures, chemicals, and physical stresses.

Examples:

  1. For a component that must withstand high temperatures within an engine, a high-temperature resistant material like silicone or certain high-performance polymers might be chosen.
  2. For optical applications where clarity and light transmission are critical, materials such as polycarbonate or acrylic could be used due to their excellent optical properties and impact resistance.

Environment Consideration

The environment in which the product will operate plays a significant role in the DFM process. Understanding environmental conditions helps in designing products that can perform reliably under expected stresses and strains.

How It Is Done?

This stage involves analyzing all potential environmental impacts on the product, such as temperature fluctuations, humidity, exposure to chemicals, and mechanical stresses. The design team must ensure that the selected materials and design approaches can handle these conditions without failure.

Examples:

  1. If a product is to be used outdoors, it must be designed to withstand factors like UV radiation, rain, and extreme temperatures. Materials with UV stabilizers or coatings might be selected to enhance durability.
  2. In industrial settings where chemicals are prevalent, materials that are chemically resistant, such as certain plastics or coated metals, are chosen to prevent corrosion or degradation.

Prototyping

Prototyping is a critical phase in the Design for Manufacturing (DFM) process, serving as a bridge between conceptual design and full-scale production. This stage is essential for validating design specifications, functionality, and manufacturability before committing to mass production.

How It Is Done?

During prototyping, physical or digital models of the product are created to evaluate its design, identify potential production issues, and test the product under conditions that simulate actual use. Techniques such as 3D printing, CNC machining, and rapid prototyping are commonly used to quickly and cost-effectively produce these prototypes.

Examples:

  1. 3D Printing: A consumer electronics company might use 3D printing to create a prototype of a new smartphone case to assess its design aesthetics and functionality before finalizing the design for injection molding.
  2. CNC Machining: An automotive manufacturer may use CNC machining to prototype a new aluminum gearbox component to test its durability and fit within an existing assembly.

Testing Protocols and Compliance

This stage ensures that the product not only meets design specifications but also complies with all relevant standards and regulations. Effective testing protocols are vital for maintaining quality, ensuring safety, and fulfilling compliance requirements, which are critical for market acceptance and legal conformity.

How It Is Done?

Testing involves a series of structured trials using the prototypes to check for functionality, durability, safety, and regulatory compliance. This may include mechanical testing, environmental stress testing, and user trials to ensure the product performs as intended under varied conditions. Compliance with standards such as ISO certifications is verified to ensure global market acceptability.

Examples:

  1. Durability Testing: A furniture manufacturer might conduct load and stress tests on a prototype chair to ensure it can withstand the weight and usage it was designed for, adhering to both safety and quality standards.
  2. Regulatory Compliance Testing: A medical device producer would perform extensive tests to meet stringent FDA regulations, ensuring that the device operates safely and effectively under expected clinical conditions.

Feedback and Iteration

Feedback and iteration form a critical phase in the Design for Manufacturing (DFM) process, essential for refining and finalizing the design to ensure optimal manufacturability. This stage allows for the integration of insights gained from prototyping and testing, making it possible to adjust the design to better meet production realities and product requirements.

How It Is Done?

After initial prototypes are tested, the design team collects and analyzes feedback regarding the product’s performance, manufacturability, and compliance with specifications. Based on this feedback, the product may undergo multiple iterations of redesign to resolve any identified issues, enhance functionality, or reduce production costs. This iterative process continues until the design meets all predefined criteria effectively.

Examples:

  1. Aerospace Component: An aerospace company may prototype a new turbine blade and conduct extensive testing under simulated operational conditions. Feedback regarding the blade’s performance and structural integrity could lead to iterative redesigns to optimize the blade’s shape and choice of material for enhanced durability and efficiency.
  2. Consumer Electronics: For a new smartphone design, feedback might highlight issues with the device’s assembly process or component fit. Iterative design adjustments could simplify the assembly, improve component integration, and enhance the overall robustness of the final product.

What Factors Must Be Considered When Implementing DFM?

What Factors Must Be Considered When Implementing DFM

Implementing Design for Manufacturing (DFM) requires consideration of various factors that influence the final product’s manufacturability and cost-effectiveness. Understanding these factors helps in optimizing the design process to meet production goals while minimizing costs.

Product Complexity

The complexity of a product directly impacts its manufacturability and associated costs. Product complexity should be carefully managed by:

  • Minimizing the number of parts: Reducing the number of components in the product can decrease production time, reduce material waste, and simplify inventory management.
  • Designing for modularity: Creating modular designs can facilitate easier manufacturing and assembly processes, as well as simplify future upgrades or repairs.
  • Using standard components: Standardizing parts where possible can reduce costs and lead times by utilizing readily available and tested components.

Examples:

  1. Consumer Electronics: In the design of a smartphone, engineers might integrate functions into fewer components to simplify the assembly line, reducing labor costs and minimizing potential assembly errors.
  2. Automotive Manufacturing: A car manufacturer could design engine components that are interchangeable across different models to reduce manufacturing complexity and inventory requirements.

Material Selection

Selecting the right materials is fundamental in DFM because it directly influences the manufacturing processes, costs, and product performance.

When selecting materials, consider:

  • Cost-effectiveness: Evaluate materials not just for their purchase cost but also for their cost over the product’s life cycle, including maintenance and durability.
  • Availability: Opt for materials that are readily available to avoid supply chain disruptions.
  • Manufacturability: Choose materials that are compatible with intended manufacturing processes and that do not complicate the production with excessive waste or high precision requirements.

Examples:

  1. Consumer Electronics: For devices like smartphones, materials such as aluminum or polycarbonate can be chosen for their durability, light weight, and ease of manufacturing.
  2. Automotive Parts: Manufacturers might select high-tensile steel for body parts for its strength and cost-effectiveness, balancing safety standards and manufacturability.

Manufacturing Processes

The choice of manufacturing processes impacts the product’s design, quality, and production efficiency.

Key considerations include:

  • Compatibility with Design: Ensure that the chosen manufacturing processes can accurately produce the designed parts without requiring extensive modifications.
  • Scalability: Choose processes that can scale effectively with production volume needs without significant cost increases.
  • Efficiency: Opt for manufacturing methods that minimize waste and energy use, contributing to lower production costs and environmental impact.

Examples:

  1. Aerospace Components: Advanced manufacturing processes like additive manufacturing (3D printing) are used for producing complex lightweight structures that are otherwise difficult to achieve with traditional manufacturing.
  2. Furniture Manufacturing: Processes like CNC routing are chosen for their ability to efficiently produce intricate designs in wood, maximizing material utilization and detail.

Standardize Parts and Materials

Standardization is vital in DFM as it simplifies manufacturing processes, reduces costs, and minimizes inventory requirements. Factors to consider when using standard parts and materials:

  • Consistency: Standardized components ensure consistency in the quality and performance of the final product.
  • Supplier Availability: Using widely available standard materials and parts reduces risks associated with supplier reliability and lead times.
  • Cost Reduction: Standardization often leads to lower costs due to bulk purchasing and reduced design complexity.

Examples:

  1. Electronics Industry: Manufacturers often use standard screws and fasteners to simplify assembly and maintenance.
  2. Automotive Sector: Standardizing batteries and other components in electric vehicles can reduce manufacturing complexity and facilitate easier upgrades.

Cost Constraints

Cost constraints are a driving factor in DFM, as effective cost management ensures the product is financially viable without compromising quality.

Performance and Considerations:

  • Budget Alignment: Designs must align with budgetary constraints without compromising essential functions.
  • Material and Process Selection: Choosing cost-effective materials and processes that meet design requirements without over-engineering.
  • Lifecycle Costs: Consideration of the total cost of ownership, including maintenance, repair, and disposal.

Examples:

  1. Consumer Goods: Designing products with modular components that can be easily replaced or upgraded to extend the product’s life and reduce long-term costs.
  2. Industrial Equipment: Utilizing robust, slightly more expensive materials that withstand harsh conditions and reduce downtime and maintenance costs.

Create Modular Assemblies

By designing products in modular sections, manufacturers can streamline both production and maintenance, facilitating easier upgrades and replacements.

Performance and Considerations;

  • Flexibility in Design: Modular designs provide the flexibility to mix and match components to meet diverse customer needs without significant changes to the core design.
  • Ease of Assembly: Simplifies the assembly process, reducing time and labor costs by allowing different modules to be preassembled independently.
  • Cost-Effective Inventory Management: Reduces inventory costs by using standard modules across different product lines.

Examples:

  1. Consumer Electronics: Smartphones and laptops often use modular components that users can easily replace or upgrade, such as batteries and screens.
  2. Automotive Industry: Cars are designed with modular interiors, allowing for different features and trims to be installed on the same assembly line, adapting to customer preferences without extensive retooling.

Part Production Volume

High production volumes justify the use of advanced, cost-intensive manufacturing methods due to economies of scale, whereas low volumes might favor simpler, less expensive methods.

Performance and Considerations:

  • Economies of Scale: Higher production volumes can reduce the cost per unit, making expensive manufacturing methods like injection molding more viable.
  • Tooling and Setup Costs: Significant in low-volume productions, impacting the overall feasibility and cost-efficiency of the project.
  • Flexibility vs. Cost: Balancing the flexibility of manufacturing processes with the cost implications of the chosen volume.

Examples:

  1. High Volume: Consumer gadgets like smartwatches might use precision molding and automated assembly lines to manage high demand efficiently.
  2. Low Volume: Custom machinery parts might be produced using additive manufacturing (3D printing) to avoid high tooling costs and to allow for easy customization.

Market Requirements

Understanding market requirements cannot be overlooked in DFM because it ensures that the product design aligns with customer expectations and market trends.

Performance and Considerations:

  • Customer Preferences: Design should meet the aesthetic and functional needs of the target audience.
  • Market Trends: Keeping up with industry trends, such as sustainability and technological advancements, can give a competitive edge.
  • Regulatory Compliance: Ensuring that the product meets all relevant safety and quality standards applicable in the market.

Examples:

  1. Electronics Industry: Smartphones are designed considering consumer demands for sleekness and durability, leading to choices like using aluminum bodies or water-resistant features.
  2. Automotive Sector: Electric vehicles are designed focusing on environmental regulations and consumer trends towards green technology.

Sustainability

Sustainability in DFM is becoming highly rated as consumers and regulatory bodies demand more environmentally friendly products. Integrating sustainability into the design process can reduce waste, use of resources, and environmental impact throughout the product’s lifecycle.

Performance and Considerations:

  • Material Selection: Choosing recyclable or biodegradable materials can minimize environmental impact.
  • Energy Efficiency: Designing for reduced energy consumption during product use can appeal to eco-conscious consumers.
  • End-of-Life Planning: Designing for disassembly can facilitate recycling and reduce landfill waste.

Examples:

  1. Packaging Design: Using minimal and recyclable packaging materials to reduce waste.
  2. Consumer Appliances: Designing appliances that are energy efficient, like refrigerators or air conditioners that consume less power, appealing to markets with high electricity costs or environmental regulations.

Technological Capabilities

The technological capabilities of a manufacturing facility directly impact the feasibility of a product’s design for manufacturing.

Performance and Considerations:

  • Current Technology: Assess the existing technology to determine if it can achieve the design requirements efficiently.
  • Innovation Adoption: Consider the integration of new technologies like 3D printing and automated CNC machinery to improve production capabilities.
  • Compatibility: Ensure that the design is compatible with the available manufacturing technologies to avoid costly modifications.

Examples:

  1. Automotive Industry: Using automated robotics for assembly to ensure high-precision and consistent quality in mass production.
  2. Consumer Electronics: Implementing surface-mount technology for PCB assembly, which allows for smaller, more compact device designs.

Quality Control

Quality Control

Quality control is essential in DFM as it ensures that the manufacturing process reliably produces a product that meets predefined quality and reliability standards.

Performance and Considerations:

  • Standardization: Develop and implement a standard quality assurance protocol to be followed throughout the manufacturing process.
  • Testing Procedures: Incorporate rigorous testing stages during and after production to identify and rectify defects early in the manufacturing process.
  • Feedback Loop: Establish a systematic feedback loop with the design team to ensure continuous improvement and adaptation of the design to manufacturing needs.

Examples:

  • Aerospace Sector: Employing statistical process control to monitor and control the manufacturing process, ensuring components meet stringent safety standards.
  • Medical Devices: Implementing cleanroom standards for the assembly of sterile medical devices to prevent contamination and ensure compliance with health regulations.

Design for Efficient Joining

Efficient joining design directly impacts manufacturing speed, cost, and the final product integrity. So, by simplifying joining methods, you can reduce manufacturing complexity.

Performance and Considerations:

  • Joining Method: Selecting the right joining technique such as welding, brazing, or the use of adhesives, which should align with the material properties and product design requirements.
  • Minimization of Parts: Aim to reduce the number of separate parts that need joining by designing multi-functional components.

Examples:

  1. Electronics Assembly: In electronic devices like smartphones, manufacturers often use adhesives instead of screws for quicker assembly and smoother surface finishes.
  2. Automotive Manufacturing: Cars typically employ spot welding and adhesives to join sheet metal effectively, reducing the need for bolts and screws, thus speeding up the assembly line.

Clearly Define “Acceptable” Surface Finishes

Defining acceptable surface finishes is vital for ensuring that the product meets both aesthetic and functional quality standards. Proper surface finish enhances product appeal and longevity, particularly for consumer-facing components.

Performance and Considerations:

  • Finish Types: Differentiate between aesthetic finishes for visible components and functional finishes for internal mechanisms.
  • Manufacturing Techniques: Choose manufacturing processes that inherently meet these finish requirements, such as powder coating for durability or high-gloss injection molding for visual parts.

Examples:

  1. Consumer Appliances: Kitchen appliances require durable, easy-to-clean surface finishes to resist wear and maintain appearance.
  2. Industrial Equipment: Components often need corrosion-resistant finishes to ensure longevity and reliability under harsh operational conditions.

Streamline Number of Manufacturing Operations/Processes

Streamlining manufacturing operations directly impacts efficiency, cost, and quality.

Performance and Considerations:

  • Integration of Processes: Combine multiple manufacturing steps into single operations where possible.
  • Automation: Utilize automated systems to perform repetitive tasks more consistently and quickly.

Examples:

Automotive Industry: Many car manufacturers integrate the forming and welding steps for parts like doors or hoods, reducing handling and production time.

Electronics: Manufacturers often use automated soldering processes that integrate placement and soldering in one step, increasing throughput and reducing defects.

Design Multi-functional Parts and Products

Designing multi-functional parts reduces the total number of components in a product, which simplifies assembly, lowers costs, and often improves performance.

Performance and Considerations:

  • Simplicity: Aim to design parts that perform multiple functions, reducing the need for additional components.
  • Modularity: Create modular designs that allow for easy assembly and maintenance.

Examples:

  1. Furniture Industry: A coffee table design might integrate storage compartments, eliminating the need for additional storage units.
  2. Consumer Electronics: Smartphones are designed to function as a camera, GPS device, and web browser, consolidating multiple functions into a single device.

Design Your Products So They Can Join Without Using Screws, Fasteners, or Adhesives

Designing products to join without traditional fasteners can significantly reduce assembly labor costs, which often make up a large portion of production expenses.

Performance and Considerations:

  • Interlocking Designs: Implement designs that naturally interlock or snap together, reducing the need for additional joining materials.
  • Material Selection: Choose materials that are robust enough to handle the stress of being joined without fasteners.

Examples:

  • Furniture Design: Some modern furniture designs use clever joinery that slots together, eliminating the need for screws and allowing for easy assembly and disassembly.
  • Children’s Toys: Many toys are designed to snap together, which simplifies assembly and reduces the risk of small, detachable parts.

Configuration Management

Effective configuration management ensures that the manufacturing process remains consistent and efficient. It is crucial for maintaining product quality and meeting production deadlines, especially when multiple design iterations are involved.

Performance and Considerations:

  • Documentation: Maintain detailed records of all design changes to ensure that they are accurately reflected in the manufacturing process.
  • Standardization: Standardize components wherever possible to minimize variation and simplify assembly.

Examples:

  • Aerospace Industry: Configuration management is critical in aerospace, where a single change can affect multiple systems; detailed tracking ensures that all changes are properly implemented.
  • Automotive Industry: Car manufacturers use configuration management to keep track of the numerous parts and variants in different models to ensure that each vehicle meets the required specifications.

Engineering Change Management

Engineering change management ensures that all changes to a product design are assessed, managed, and smoothly integrated into the manufacturing process.

Performance and Considerations:

  • Assessment: Evaluate the impact of design changes on the entire production lifecycle to ensure compatibility and feasibility.
  • Communication: Maintain clear and open lines of communication between design engineers, manufacturing teams, and other stakeholders to ensure that all changes are well-understood and properly implemented.

Examples:

  1. Automotive Industry: In the automotive sector, a change in engine design might affect various components such as the chassis or electrical system. Effective change management ensures these modifications are reflected accurately across all related processes.
  2. Electronics Manufacturing: For electronics, a slight alteration in circuit board design may require adjustments in soldering processes, which must be managed to prevent defects.

Integration with Manufacturing Systems

Integrating DFM with manufacturing systems like Advanced Planning and Scheduling (APS), Manufacturing Execution Systems (MES), and Quality Management Systems (QMS) enhances the efficiency and output of manufacturing operations. This integration ensures that the design is optimized not just for functionality but also for manufacturability.

Performance and Considerations:

  • Data Consistency: Ensure that data flows seamlessly between systems to maintain accuracy and up-to-date information across the production chain.
  • System Compatibility: Check that all systems are compatible and can communicate effectively, reducing the risk of errors or delays.

Examples:

  1. High-Tech Production Lines: In high-tech industries, integration of DFM with systems like MES and APS can drastically reduce the time from design to production by ensuring that manufacturing constraints are considered early in the design process.
  2. Pharmaceutical Manufacturing: In pharmaceuticals, integration with QMS is essential to meet rigorous quality standards and regulatory requirements, ensuring that any design adjustments do not compromise product integrity.

Closed-Loop Manufacturing

Closed-loop manufacturing is essential for design for manufacturability as it incorporates feedback from various stages of the manufacturing process to continually refine and optimize the production. This approach allows for real-time adjustments and improvements, enhancing both product quality and manufacturing efficiency.

Performance and Considerations:

  • Feedback Integration: Utilize sensors and monitoring systems to gather data from the manufacturing process, which can be fed back into the design and planning stages to identify areas for improvement.
  • Continuous Improvement: Implement iterative cycles of testing, feedback, and adjustment to refine manufacturing processes and product designs.

Examples:

  1. Automotive Industry: Integration of real-time assembly data to adjust machine settings automatically for each vehicle model.
  2. Electronics Manufacturing: Use of solder paste inspection results to modify stencil designs dynamically, reducing defects in PCB assembly.

Simulation of Manufacturing Methods

Simulating manufacturing methods is crucial in DFM to predict potential issues and bottlenecks before actual production begins. This proactive approach allows designers and engineers to visualize and plan for various manufacturing scenarios and optimize the design accordingly.

Performance and Considerations:

  • Process Selection: Evaluate different manufacturing methods using simulation to determine the most efficient process based on cost, time, and resource availability.
  • Identification of Potential Issues: Use simulations to anticipate and solve problems such as material waste, tool wear, and process delays.

Examples:

  1. Aerospace Components: Simulation of the milling and drilling processes to select the best machining paths and reduce the risk of material deformation.
  2. Consumer Goods: Use of flow simulation in injection molding to ensure optimal mold design and prevent defects in high-volume production.

Process Planning Functionality

Effective process planning allows for the logical and efficient organization of production steps. By leveraging configurable Bills of Materials (BOMs), manufacturers can streamline operations, minimize waste, and enhance flexibility in the production line.

Performance and Considerations:

  • Adaptability: Adapt process plans quickly to changes in design, customer demands, or material availability.
  • Technology Integration: Utilize advanced software tools to generate and manage BOMs dynamically, ensuring accurate and efficient process planning.

Examples:

  1. Automotive Industry: Using software to automatically adjust machine settings and routing instructions in response to real-time changes in vehicle design.
  2. Electronics Manufacturing: Streamlining PCB assembly lines by dynamically generating process instructions based on configurable BOMs, reducing setup times and enhancing throughput.

Management of Design and Operational Data

Managing design and operational data effectively is fundamental to ensuring the integrity and efficiency of the manufacturing process. By maintaining comprehensive and accurate records of design files, process data, parts used, and other operational metrics, companies can ensure consistency and quality throughout the production cycle.

Performance and Considerations:

  • Data Integration: Ensure all data from design to production is integrated and accessible to relevant stakeholders.
  • Continuous Updates: Keep data updated in real-time to reflect any changes in design, material specifications, or manufacturing techniques.

Examples:

  1. Aerospace Manufacturing: Maintaining a centralized database of design modifications and operational performance to ensure that all manufactured components meet rigorous safety standards.
  2. Consumer Goods Production: Utilizing cloud-based platforms to manage and synchronize design data across global manufacturing sites, ensuring uniformity in product quality and design.

Tight Tolerances

In design for manufacturing (DFM), the precision of tolerances determines the manufacturability and cost-effectiveness of parts. Tight tolerances often require advanced manufacturing techniques and can significantly increase both tooling and production costs. However, they are necessary when the part’s function dictates high accuracy to ensure reliability and performance.

Performance and Considerations:

  • Cost-Benefit Analysis: Assess whether the tight tolerances are justified by the part’s operational requirements.
  • Manufacturing Capability: Ensure that the manufacturing processes are capable of achieving the specified tolerances without excessive cost.
  • Material Selection: Choose materials that can maintain dimensional stability throughout the manufacturing process.

Examples:

  1. Aerospace Components: Parts that must endure extreme conditions often require tight tolerances to ensure safety and functionality.
  2. Medical Devices: Implants and surgical tools require precise tolerances to ensure they perform their functions without failure, directly impacting patient outcomes.

What are the Most Common DFM Techniques?

What are the Most Common DFM Techniques

Let’s take a look into some fundamental DFM techniques that are instrumental in optimizing design and manufacturing integration.

Tolerance Analysis

Tolerance analysis involves determining the acceptable limits of physical dimensions in parts. Engineers must establish tolerances that are neither too tight, which can increase production costs, nor too loose, which may compromise the product’s functionality.

Considerations:

  1. Manufacturing Process: Each manufacturing technique, from injection molding to CNC machining, has its own set of achievable tolerances.
  2. Material Used: Different materials behave differently under manufacturing stresses, affecting the tolerances they can handle without deforming.

Examples:

  1. Automotive Industry: Tolerances are crucial in engine parts, where precise measurements can significantly impact performance and fuel efficiency.
  2. Electronics: Tolerances affect how well components fit together, impacting both assembly efficiency and device reliability.

DFMA (Design for Manufacturing and Assembly)

DFMA simplifies and optimizes the manufacturing and assembly process. The goal is to reduce the product’s complexity by designing with fewer parts and ensuring those parts are easy to assemble.

Considerations:

  • Part Reduction: Reducing the number of parts generally lowers the complexity and cost of assembly.
  • Standardization: Using standard components can reduce costs and simplify both the manufacturing and assembly processes.

Examples:

  1. Furniture Design: Easy-to-assemble furniture that uses standardized fasteners or snap-fit connections benefits significantly from DFMA.
  2. Consumer Electronics: Devices designed with fewer screws and more clip-together parts streamline assembly and reduce manufacturing costs.

Poka-Yoke (Error-Proofing)

Poka-Yoke, or error-proofing, is a preventive approach in manufacturing that helps avoid mistakes before they occur. This technique is vital for maintaining consistency and quality in mass production. Implementing Poka-Yoke involves designing parts and assemblies that are foolproof, thereby minimizing human error during the manufacturing and assembly processes.

Considerations:

  • Design Simplicity: Devices or designs are made such that their assembly errors are either impossible or easily detectable.
  • Feedback Mechanisms: Incorporating immediate feedback systems to alert operators when a mistake is made.

Examples:

  1. Color Coding of Components: Using different colors for similar parts that might be confused with one another.
  2. Guide Pins: Implementing guide pins in assemblies to ensure components are correctly oriented and fit only the right way.

Simplification of Designs

Simplification of designs involves reducing the part count, assembly directions, and generally minimizing the complexity of products.

Considerations:

  • Modular Design: Creating interchangeable modules that can be easily replaced or upgraded.
  • Use of Standard Components: Opting for standard parts reduces the costs and complexity of inventory management and speeds up the production process.

Examples:

  1. Consumer Electronics: Designing devices with fewer screws and using snap-fit connections instead, simplifying the assembly and disassembly processes.
  2. Furniture: Developing flat-pack furniture that customers can assemble at home with minimal tools.

Standardization of Parts

Standardizing parts involves using common, interchangeable parts within a product design. This practice simplifies the manufacturing process, reduces inventory costs, and streamlines the assembly and maintenance of products.

Considerations:

  • Inventory Management: Reduced inventory varieties lower the storage and management costs.
  • Supplier Negotiations: Standard parts typically have more suppliers, allowing for competitive pricing and reliability.

Examples:

  1. Electronics Industry: Using standard screws and fasteners across multiple product lines to simplify assembly and repair services.
  2. Automotive Industry: Standardizing batteries or dashboard components that are used across different models to simplify production and maintenance.

Modular Design

Modular design divides a system into smaller parts that can be independently created and then used in different systems to drive multiple functionalities. This approach not only facilitates easier manufacturing but also allows for better customization of products to meet specific customer needs without significant increases in production cost.

Considerations:

  • Flexibility in Design: Allows for easy upgrades and customization by swapping out modules.
  • Ease of Repair: Faulty modules can be quickly replaced without the need to overhaul the entire system.

Examples:

  1. Consumer Electronics: Smartphones with modular cameras or batteries that can be easily upgraded or replaced by the user.
  2. Furniture Design: Office desks and storage units designed with modular components that can be rearranged or expanded as needed.

Use of CAD/CAM Software

Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) software are crucial for translating design concepts into ready-to-manufacture outputs. This technology allows design engineers to create detailed 3D models that include precise dimensions and material specifications, which can be directly fed into manufacturing systems.

Considerations:

  • Compatibility: Ensuring that CAD designs are compatible with CAM systems and the actual machinery used in manufacturing.
  • Training: Engineers and designers need to be proficient in software utilization to fully leverage its benefits.

Examples:

  1. Aerospace Industry: Using CAD/CAM to design and manufacture critical aircraft components with precise tolerances and complex geometries.
  2. Automotive Industry: Employing CAD/CAM for designing and testing vehicle components before actual production to reduce prototyping costs and time.

Rapid Prototyping

Rapid prototyping, including 3D printing, is a revolutionary DFM technique that allows for quick fabrication of prototype parts directly from digital models, significantly speeding up the iterative testing phases of product development. This method supports immediate feedback and continuous improvement, enabling faster market entry and greater flexibility in design.

Considerations:

  • Material Choices: Selecting appropriate materials that closely mimic the properties of the final production materials.
  • Cost Efficiency: Balancing the benefits of rapid prototyping against its costs, especially for high-volume or simple designs.

Examples:

  • Consumer Electronics: Using 3D printing to prototype new device cases or components, allowing for hands-on testing and aesthetic evaluation.
  • Medical Devices: Rapid prototyping of medical device components to test form, fit, and function, ensuring compliance with strict industry standards.

Robust Design

Robust Design focuses on creating products that are immune to variations in manufacturing processes, ensuring consistent performance despite external influences. By emphasizing tolerance design and using statistical tools, engineers can predict and mitigate potential failures in the design phase.

Considerations:

  • Sensitivity Analysis: Evaluating how changes in process parameters affect the product, aiming to minimize this sensitivity.
  • Simulation Tools: Using advanced simulation software to predict outcomes under various scenarios.

Examples:

  1. Automotive Industry: Implementing robust design in engine components to ensure performance consistency across different operating conditions.
  2. Electronics: Designing circuit boards to function reliably under thermal and mechanical stresses.

Design for Serviceability

Design for Serviceability ensures that products are easy to maintain, repair, and upgrade. This technique involves designing products with the end-user maintenance experience in mind.

Considerations:

  • Modular Design: Facilitating easier replacement or upgrades of components.
  • Accessibility: Ensuring that parts requiring regular maintenance are easily accessible.

Examples:

  1. Consumer Appliances: Designing appliances with removable panels that allow easy access to internal components for quick servicing.
  2. Commercial Vehicles: Structuring vehicle components for easy removal and replacement to minimize downtime during repairs.

Design for Supply Chain

Design for Supply Chain (DfSC) ensures that product design facilitates optimal supply chain management. It involves designing products with consideration for logistics, procurement, and assembly processes.

Considerations:

  • Supplier Capabilities: Designing products that align with the capabilities and limitations of your suppliers to prevent supply disruptions.
  • Logistics Efficiency: Optimizing product design for packaging, handling, and transportation to reduce logistics costs and potential damage.

Examples:

  1. Electronics Industry: Designing devices in standard sizes that fit well into shipping containers, optimizing space and reducing transportation costs.
  2. Furniture Manufacturing: Creating furniture that is easy to disassemble and pack flat, simplifying shipping and storage.

Geometric Dimensioning and Tolerancing (GDT)

Geometric Dimensioning and Tolerancing (GDT) is a system for defining engineering tolerances and geometries precisely. GDT helps in communicating complex geometrical specifications through engineering drawings, ensuring that everyone involved in the manufacturing process has clear, concise, and actionable information.

Considerations:

  • Accuracy: Providing precise dimensional requirements that reduce ambiguity during production.
  • Functionality: Ensuring that parts fit and function correctly with intended tolerances that consider manufacturing variability.

Examples:

  1. Automotive Components: Using GDT to specify the precise alignment of engine parts, which are crucial for performance and safety.
  2. Aerospace Parts: Applying GDT to ensure the aerodynamic components of an aircraft meet strict tolerance limits for optimal performance and safety.

Failure Modes and Effects Analysis (FMEA)

FMEA is an analytical methodology used to ensure potential problems are considered and addressed throughout the design phase. This proactive technique helps identify possible failure modes, their causes, and effects on the final product, allowing for robust design strategies that mitigate risk effectively.

Considerations:

  • Systematic Analysis: Systematically evaluating design, assembly, and component choices to pinpoint and prioritize potential failure points.
  • Risk Priority Number (RPN): Calculating the RPN to quantify the risk associated with each potential failure, guiding the prioritization of mitigation efforts.

Examples:

  1. Automotive Industry: Automakers apply FMEA to assess risks in vehicle systems to prevent failures that could lead to safety issues.
  2. Electronics Manufacturing: FMEA is used to analyze electronic assemblies and components, focusing on reducing failures in highly complex production processes.

Design for Six Sigma (DFSS)

DFSS integrates Six Sigma principles into product design, which anticipates customer needs and ensures high quality from the earliest stages. Unlike corrective Six Sigma methods, DFSS focuses on designing to prevent problems before they occur, thus promoting efficiency and effectiveness in manufacturing.

Considerations:

  • Customer-Centric Design: Incorporating customer feedback and expectations into the design to ensure the final product meets quality and usability standards.
  • Robust Design Techniques: Utilizing advanced statistical tools and techniques to model and optimize product designs under varying operating conditions.

Examples:

  1. Consumer Goods: DFSS is crucial in consumer electronics, where manufacturers integrate complex requirements to deliver high reliability and user satisfaction.
  2. Pharmaceuticals: In drug manufacturing, DFSS ensures that the production processes maintain stringent quality standards essential for patient safety.

Thermal and Stress Analysis

Thermal and Stress Analysis

Thermal and Stress Analysis involves simulating how product designs will perform under extreme temperatures and stress conditions, which is crucial for materials selection and ensuring durability.

Considerations:

  • Material Behavior: Understanding how materials react to heat and stress to predict potential deformations or failures.
  • Simulation Tools: Utilizing advanced CAD/CAM software to model thermal and stress impacts on designs.

Examples:

  1. Aerospace Components: These analyses are vital for components that will experience significant temperature fluctuations and mechanical stresses.
  2. Automotive Engineering: Ensuring engine parts can withstand high temperatures and stress loads to avoid mechanical failures.

Environmental Compliance

Environmental Compliance in DFM ensures that product designs adhere to environmental regulations and standards, such as those limiting the use of hazardous substances.

Considerations:

  • Regulatory Standards: Staying updated with international environmental standards like RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals).
  • Eco-friendly Materials: Selecting materials that are less harmful to the environment and are sustainable.

Examples:

  1. Electronics Industry: Implementing designs that use lead-free solder and recyclable materials to minimize ecological impact.
  2. Packaging Designs: Developing packaging that reduces waste and is made from recycled materials.

Design for Disassembly (DfD)

Design for Disassembly focuses on designing products so that they can be easily taken apart. This in turn assists in repair, maintenance, and recycling.

Considerations:

  • Ease of Access: Parts should be easily accessible without the need for specialized tools.
  • Modularity: Incorporating modular designs where components can be independently assembled and disassembled.
  • Material Compatibility: Using materials that can be easily separated for recycling purposes.

Examples:

  1. Electronics: Smartphones designed with removable batteries and modular components for easy replacement or upgrades.
  2. Furniture: Flat-pack furniture designed for easy assembly and disassembly, facilitating repairs and reducing end-of-life waste.

Design for X (DfX)

Design for X encompasses a group of principles that aim to optimize specific aspects of a product, such as manufacturability, testability, or reliability. The ‘X’ in DfX stands for different focus areas depending on the product requirements and goals.

Considerations:

  • Cross-functional Teams: Collaboration among different departments (design, engineering, production) to align the DfX objectives.
  • Customer and Stakeholder Feedback: Integrating feedback to tailor the design according to user and stakeholder needs.
  • Life Cycle Analysis: Considering the entire product lifecycle during the design phase to ensure sustainability and efficiency.

Examples:

  1. Automotive: Designing vehicles with components that enhance fuel efficiency and reduce emissions.
  2. Software: Developing applications with a focus on user experience design, ensuring ease of use and functionality.

What are the Machines and Tools Required for the DFM Process?

The Design for Manufacturing (DFM) process integrates various tools and machines to streamline and optimize product design for ease of manufacturing. Utilizing the right tools not only minimizes manufacturing costs but also enhances product quality and manufacturability.

CAD Software

Computer-Aided Design (CAD) software is essential in the DFM process for creating precise and detailed 3D models of parts and assemblies.

How It’s Used:

  1. Design Optimization: Engineers use CAD to analyze and optimize designs for manufacturability, ensuring that parts can be easily and economically produced.
  2. Simulation: Many CAD programs include simulation capabilities that allow engineers to test and analyze the physical behavior of a design under real-world manufacturing conditions, such as stress and thermodynamics.
  3. Integration with Other Tools: CAD software often integrates with other software tools, such as CAM (Computer-Aided Manufacturing) and CAE (Computer-Aided Engineering), to provide a seamless transition from design to production.

CAM Software

CAM software translates CAD models into actionable manufacturing instructions for machines, such as CNC routers and 3D printers. It is crucial for automating the manufacturing process and ensuring that the design intents are accurately and efficiently executed in the manufacturing phase.

How It’s Used:

  1. Toolpath Generation: CAM software automatically generates toolpaths based on the design parameters set in the CAD model, optimizing the movements of machinery to reduce waste and increase precision.
  2. Machine Simulation: Before actual production begins, CAM software can simulate the machine operation to predict errors and collision risks, allowing for adjustments without risking material waste.
  3. Quality Control: Through detailed monitoring and adjustments of the machine operations, CAM ensures that the final product adheres closely to the design specifications, maintaining high quality and consistency.

Prototyping Machines

Prototyping machines allow designers and engineers to create physical samples of their designs, facilitating early detection and correction of potential manufacturing issues. Let’s explore the roles of several key prototyping machines:

  1. 3D Printers: These machines are invaluable for rapid prototyping, providing the ability to quickly produce complex geometries that are often difficult to create using traditional manufacturing methods. 3D printers work by layering materials based on digital models, making it possible to iterate designs swiftly to enhance manufacturability.
  2. CNC Machines: CNC machining stands out in prototyping for its precision and versatility. These machines use computerized controls to handle materials like metal, plastic, and composites, allowing for high-fidelity prototypes that closely mimic final products. CNC machining is essential for validating the design and function of parts before full-scale production.
  3. Injection Molding Machines: Often used for prototyping, especially in later stages when designs are near finalization, these machines inject molten materials into molds. This is critical for testing the manufacturability of designs under real-world conditions, ensuring that the mass production will be feasible and cost-effective.

Manufacturing Equipment

Beyond prototyping, the transition to actual manufacturing necessitates a different set of tools and machines, each integral to achieving efficient, scalable production. Key manufacturing equipment includes:

  1. Automated Assembly Lines: These are designed to optimize the assembly process, reducing labor costs and minimizing human error. By automating sequences of operations, manufacturers can ensure consistent quality and faster production times.
  2. Quality Control Systems: Incorporating advanced imaging and robotic arms equipped with sensors, these systems perform precise inspections and detect defects in real-time. This helps maintain high standards of product quality throughout the manufacturing process.
  3. Material Handling Systems: Efficient movement of materials is fundamental in a manufacturing setting. Automated conveyors, robotic handlers, and sorting systems reduce downtime and optimize the flow of materials, enhancing overall production efficiency.

Inspection and Testing Equipment

Inspection and testing equipment are vital in the DFM process, ensuring that every part meets stringent quality and compliance standards before full-scale production commences. Here’s how different types of equipment are utilized:

  1. Coordinate Measuring Machines (CMM): These sophisticated devices measure the physical geometrical characteristics of an object. By using CMMs, manufacturers can achieve and maintain precision and quality control throughout the production process, ensuring that each component aligns with the design specifications.
  2. Optical Inspection Systems: These systems use high-resolution cameras and specialized software to detect surface defects and dimensional inaccuracies. They are crucial for automated inspections where high throughput and accuracy are required, particularly in electronics manufacturing.
  3. Test Benches: These setups are customized to apply mechanical loads and simulate operating conditions for various components, verifying durability and functional performance. Test benches are crucial for preventing future failures and ensuring that products meet safety standards.

Assembly Tools

Assembly tools are tailored to optimize the efficiency of the assembly process, ensuring that parts fit together correctly and function seamlessly in the final product. Key tools include:

  1. Automated Screwdrivers: These tools are essential for high-speed assembly lines, providing consistent torque control and reducing assembly time significantly.
  2. Pneumatic and Electric Hand Tools: These are used for tasks requiring more precision and flexibility, such as assembling complex electronics or machinery. They help maintain high standards of quality and reliability.
  3. Robotics: Robotic arms are increasingly common in modern manufacturing environments. They perform a range of tasks from picking and placing components to completely automating an assembly process. Their precision and speed contribute significantly to reducing labor costs and improving product consistency.

Material Handling Equipment

Material handling equipment in DFM plays a critical role in managing and maneuvering materials through different stages of manufacturing, thereby minimizing handling costs and maximizing efficiency. Key types include:

  1. Conveyor Belts: Essential for the automated transport of materials between production stages, they reduce labor costs and improve production time.
  2. Automated Guided Vehicles (AGVs): These vehicles are employed to transport products and materials around a manufacturing facility without manual intervention, enhancing throughput and reducing delays.
  3. Cranes and Hoists: Used in heavy manufacturing environments to lift and transport heavy materials, which helps in maintaining the integrity of structural components and reduces the risk of handling-related damages.

Software for Analysis and Optimization

In the realm of DFM, software tools are indispensable for achieving precision in design and manufacturability. They facilitate simulations, analyses, and modifications before physical models are built.

Important software includes:

  1. Finite Element Analysis (FEA) Software: This tool allows engineers to simulate and predict the reaction of a product to physical forces, ensuring the product is optimally designed to withstand operational stresses.
  2. Computer-Aided Manufacturing (CAM) Software: CAM software takes designs from computer-aided design (CAD) software and translates them into detailed instructions for machines, like CNC routers, to execute precise manufacturing.
  3. Statistical Process Control (SPC) Software: Utilized for monitoring production processes, SPC software helps in identifying and controlling quality during the manufacturing process.

Who is Involved in the DFM Process?

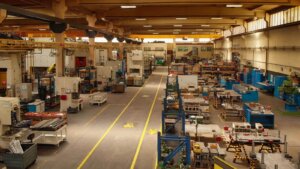

Who is Involved in the DFM Process

The Design for Manufacturing (DFM) process integrates various disciplines and expertise to ensure that a product can be manufactured efficiently and cost-effectively. This approach involves multiple stakeholders from the initial design phase through to the final production.

Key Personnel Involved in the DFM Process

The success of DFM relies on the collaborative efforts of a diverse group of professionals, each contributing unique skills and perspectives:

  1. Design Engineers: They develop product designs with manufacturability in mind, ensuring that parts are easy to produce while meeting quality standards.
  2. Manufacturing Engineers: These professionals bridge the gap between the designs and the manufacturing process, focusing on how to produce the parts efficiently.
  3. Product Managers: They oversee the product’s lifecycle, coordinating between different teams to ensure the product meets market needs and manufacturability criteria.
  4. Quality Assurance (QA) and Quality Control (QC) Teams: These teams ensure that the products meet necessary quality standards and are free from defects through rigorous testing and evaluation.
  5. Procurement and Supply Chain Teams: Responsible for sourcing the materials needed for production while managing logistics and supply chain efficiency.
  6. Cost Estimators: They analyze the cost implications of product designs and suggest cost-effective solutions without compromising on quality.
  7. Tooling and Equipment Specialists: Experts in designing and maintaining the tools and equipment used in the production process to ensure operational efficiency.
  8. Cross-Functional Teams: These teams provide a holistic approach to DFM by integrating input from various departments, including marketing, finance, and operations.
  9. Suppliers and Contract Manufacturers: They are essential for providing high-quality raw materials and sometimes for carrying out specific manufacturing tasks.
  10. Test and Inspection Teams: They conduct the crucial final checks to ensure the product meets design specifications and regulatory standards.
  11. Regulatory and Compliance Experts: They ensure the product adheres to all industry-specific standards and legal requirements, which is crucial for market approval.
  12. Continuous Improvement Teams: Focused on ongoing improvements, these teams analyze the DFM process to find inefficiencies and areas for cost reduction and quality enhancement.

What are the Benefits of DFM?

Here are the significant benefits of implementing DFM processes, each illustrated with a practical example of how it can positively impact a business:

  1. Reduced Material Costs: By optimizing design to use less material or cheaper alternatives without compromising quality, companies can significantly cut costs. For example, a company redesigning a part to require less raw material could see a direct reduction in expenses related to procurement.
  2. Minimized Waste: DFM encourages the design of products that generate minimal waste during production, promoting more sustainable practices and reducing disposal costs. A manufacturer might use precise cutting techniques and nested part layouts to minimize scrap material.
  3. Enhanced Product Quality: With a focus on manufacturability, DFM helps improve the overall quality of the final product. For instance, using uniform wall thickness in plastic products can prevent warping and reduce defects.
  4. Shortened Time to Market: Streamlining the design and manufacturing processes reduces the time from concept to market launch. A company can accelerate product launch by integrating rapid prototyping within the DFM framework, allowing for quicker testing and revisions.
  5. Increased Manufacturing Efficiency: By designing products with manufacturing in mind, there is less downtime and fewer delays in the production process. This could be seen in a facility that integrates automation and tooling improvements suggested by DFM analysis to speed up assembly lines.
  6. Lower Production Costs: DFM aids in identifying and eliminating unnecessary complexity in products, leading to simpler and cost-effective manufacturing routes. An example includes redesigning a product to use fewer fasteners and weld points, simplifying assembly and reducing labor costs.
  7. Improved Supplier Integration: DFM facilitates better collaboration with suppliers to ensure components are designed for availability and cost-effectiveness. By involving suppliers early in the design process, a company can ensure that parts are easy to obtain and fit seamlessly into the production process.
  8. Reduced Risk of Product Failure: By considering potential manufacturing issues during design, DFM helps reduce the risk of product failures and recalls. This proactive approach can be illustrated by incorporating higher standards of heat tolerance in product design to prevent malfunctions in electronic devices.

How Does DFM Influence Product Lifecycle Management Exactly?

DFM plays a crucial role in Product Lifecycle Management (PLM) by ensuring that products are not only easy to manufacture but also designed with their entire lifecycle in mind. This holistic approach impacts various stages of a product’s life:

  • Durability: DFM strategies involve selecting appropriate materials and manufacturing processes that enhance the durability of the product. For example, choosing corrosion-resistant materials in the design phase ensures that products last longer even under harsh environmental conditions.
  • Maintenance: Products designed with DFM principles are generally easier to maintain due to the consideration of accessibility and repairability during the design stage. A practical application is the design of modular components that can be easily replaced or upgraded without needing to overhaul the entire system.
  • End-of-Life Disposal: DFM also considers the environmental impact of products at the end of their useful life. Designing for easier disassembly allows components to be recycled more efficiently, reducing environmental footprint. An instance of this could be designing electronic devices where batteries and circuit boards can be easily removed and recycled separately.

How Can DFM Reduce Manufacturing Costs?

Implementing DFM can lead to substantial cost reductions in the manufacturing process. Here’s how it achieves these savings:

  • Material Conservation: DFM promotes the efficient use of materials, reducing waste and often utilizing lower-cost alternatives without impacting functionality.
  • Reduced Labor Costs: Simplified designs streamline the assembly process, reducing the labor hours required to build the product.
  • Minimization of Waste: By optimizing the product design, DFM reduces the generation of waste materials, which not only cuts the costs of materials but also reduces waste processing and disposal expenses.

How Does DFM Improve Product Quality?

DFM enhances product quality by taking into consideration the entire pathway to manufacturing and figuring out the most cost effective route.

Here are different other ways DFM helps with product quality;

  1. Shorter Time to Market: By streamlining the design and manufacturing processes, DFM reduces the development cycle. This acceleration allows businesses to bring products to market more quickly, which can be a critical advantage in fast-paced markets.
  2. Increased Manufacturing Efficiency: DFM optimizes the manufacturing process by ensuring that the design is inherently easier to produce. This optimization can lead to faster production cycles and less downtime, boosting overall operational efficiency.
  3. Enhanced Product Lifecycle Management: By integrating early design decisions with product lifecycle considerations, DFM ensures that products are designed for optimal life cycle performance, from manufacturing through to disposal, which supports sustainability and compliance initiatives.
  4. Reduced Environmental Impact: DFM helps in selecting materials and processes that minimize environmental impact. This sustainable approach often involves the use of recyclable materials and energy-efficient manufacturing processes.
  5. Greater Customer Satisfaction: When products are designed for manufacturability, they tend to have higher quality, greater reliability, and better performance, all of which lead to increased customer satisfaction. Satisfied customers are more likely to be repeat buyers and to recommend products to others.
  6. Flexibility in Manufacturing: DFM provides greater flexibility in manufacturing operations, allowing for easier adjustments to product designs in response to market changes or new technologies. This flexibility can be crucial for businesses that need to adapt quickly to remain competitive.

What are the Common Challenges and Misconceptions in DFM?

Several challenges and misconceptions can impede effective implementation of DFM. Understanding these pitfalls and how to navigate them can significantly impact the success of DFM strategies.

Key Challenges and Misconceptions:

  • Balancing Cost and Quality: There’s a common misconception that DFM primarily reduces costs at the expense of quality. In reality, DFM aims to optimize both by simplifying designs and using materials more efficiently without compromising product integrity.
  • Resistance to Change: Adopting DFM principles can be met with resistance, especially from teams accustomed to traditional manufacturing methods. Overcoming this requires demonstrating the long-term benefits of DFM, such as cost savings and improved market competitiveness.
  • Early Integration of DFM Principles: DFM should be integrated at the earliest stages of product design. Delaying its implementation can lead to increased costs and extended time to market. Early integration helps identify potential production issues before they become costly.
  • Cross-Departmental Coordination: Effective DFM requires seamless collaboration between design, engineering, and manufacturing teams. Lack of coordination can lead to misalignments that undermine the benefits of DFM practices.
  • Keeping Pace with Technology: Rapid technological advancements mean that DFM strategies need to be continually updated. Staying current with new technologies and methods is crucial for maintaining efficiency and competitiveness.
  • Stakeholder Understanding: It’s easier to bring stakeholders together early in the design process when developing a new product. For established products, it is crucial to challenge the original design to avoid repeating past mistakes. This involves examining the original drawings, deconstructing the product, and reviewing competitive and adjacent products. Engage with contract manufacturers who might have addressed similar issues with other clients. This approach not only identifies but also resolves potential design flaws early, ensuring a smoother manufacturing process and a superior final product.
  • Complex Design Requirements: Design complexity can escalate costs and complicate the manufacturing process. DFM helps simplify designs without reducing functionality, ensuring that products are easier and more cost-effective to manufacture.
  • Manufacturing Limitations: Recognizing the limitations of current manufacturing capabilities is essential. DFM assists in designing products that can be manufactured with existing resources and technologies, thus avoiding the need for costly new investments.

How is DFM Applied Across Different Industries?

Here’s a close look at how DFM is uniquely applied in several key industries:

  1. Aerospace: DFM is crucial for ensuring the reliability and precision of aerospace components. Techniques include minimizing material use while maximizing structural integrity and optimizing part count through consolidation, which significantly impacts safety and function.
  2. Automotive: In automotive manufacturing, DFM helps reduce weight and consolidate parts, which improves fuel efficiency and reduces emissions. Integrating DFM early in the design process is key to optimizing assembly lines and reducing production costs.
  3. Electronics: For electronics, DFM focuses on improving product assembly and handling, reducing the number of components, and ensuring that devices are easy to manufacture. This includes the design of PCBs to optimize space and improve heat dissipation.
  4. Medical Devices: In this industry, DFM is used to enhance the manufacturability of devices without compromising stringent regulatory and safety standards. This includes using biocompatible materials and ensuring that devices can be reliably produced in sterile conditions.
  5. Consumer Goods: DFM in consumer goods focuses on reducing costs and speeding up production times to respond quickly to market trends. It involves material selection and efficient design practices to optimize manufacturing processes.
  6. Energy: In the energy sector, particularly renewables, DFM helps optimize the design of components such as solar panels and wind turbines for durability and manufacturability, often using simulation to predict product performance under various conditions.
  7. Construction: DFM streamlines the production of construction materials and components, ensuring they are designed for ease of use on-site, which can significantly reduce building times and costs.
  8. Custom Manufacturing: DFM is critical in custom manufacturing to adapt to varied client requirements rapidly. 3ERP, a leader in on-demand manufacturing services, provides expert DFM feedback for Rapid Prototyping, On-Demand Production, CNC Machining, and Additive Manufacturing Services.

How Much Does DFM Cost?

The cost of implementing DFM can vary widely depending on the complexity of the product and the specific manufacturing processes involved. Typically, initial costs may include expenses for redesigning existing products to make them more manufacturable, which could range from a few thousand to several hundred thousand dollars. However, these upfront costs are generally offset by significant reductions in production costs, including decreased material waste, reduced labor needs, and lower tooling costs. For instance, a medium-scale project could see DFM-related expenses ranging from $10,000 to $50,000, but the long-term savings in production can exceed these initial investments manifold, particularly when scaled across mass production.

How Long Does a Typical DFM Process Take?

The duration of a Design for Manufacturing (DFM) process can vary significantly based on the complexity of the product and the specific requirements of the manufacturing process. On average, a DFM process can take anywhere from a few weeks to several months. Key factors that influence the timeline include the complexity of the product design, the number of parts involved, the type of materials used, and the manufacturing methods to be employed. Additionally, the level of collaboration between design engineers and manufacturing teams can either shorten or extend the duration.

How to Improve DFM?

Improving your Design for Manufacturing (DFM) process can lead to significant enhancements in product quality, manufacturing efficiency, and cost-effectiveness. Here are some tips to refine your DFM strategies:

  1. Integrate DFM Early: Involve DFM principles at the beginning of the product design phase to influence the entire process positively.
  2. Enhance Collaboration: Foster a collaborative environment where design engineers work closely with manufacturing teams to ensure designs are optimized for manufacturing capabilities.
  3. Simplify Designs: Reduce the complexity of designs by minimizing the number of parts and assembly directions, which can decrease manufacturing costs and increase reliability.
  4. Utilize Standard Components: Where possible, use standard components to reduce costs and simplify inventory management.
  5. Implement Modular Design: Adopt a modular design approach to streamline assembly and maintenance, and facilitate easier upgrades.
  6. Conduct Regular Reviews: Schedule regular design reviews to identify potential production issues and ensure that the design meets both manufacturing and functional requirements.
  7. Leverage Technology: Use advanced CAD and simulation tools to predict how designs will perform in the manufacturing phase, allowing for adjustments before production begins.
  8. Feedback Loop: Establish a feedback loop from the production floor back to the design team to continuously improve the process based on real-world manufacturing experiences and challenges.
  9. Training and Development: Continually train design and manufacturing teams on the latest DFM techniques and technologies to keep your processes at the cutting edge.

What is the Difference Between Design for Manufacturability and Design for Assembly?

Design for Manufacturability (DFM) and Design for Assembly (DFA) are both critical elements in the product development process, aimed at reducing production costs and improving product quality. However, they focus on different aspects of manufacturing and assembly. Here’s how they compare across five main factors:

  • Objective Focus:

DFM focuses on simplifying the manufacturing process by reducing material usage, minimizing complexity, and optimizing the design to use less expensive and more readily available materials.

DFA concentrates on reducing the product’s assembly cost by minimizing the number of assembly operations required, using fewer fasteners, and designing parts that are easier to handle and assemble.

  • Impact on Production:

DFM aims to make the manufacturing process more efficient by ensuring the design is optimal for making the manufacturing process easier and cost-effective.

DFA seeks to reduce the time and cost associated with the assembly phase, often leading to simpler designs with fewer parts and steps needed to assemble.



  • Techniques Employed:

DFM techniques include reducing the total number of parts, developing a robust design that can be manufactured using standard processes, and selecting materials that meet both performance and cost objectives.

DFA techniques focus on designing parts that are easy to orient and insert, which may involve the use of features that lead parts into the right position automatically and reduce the need for fasteners.



  • Cost Reduction:

DFM reduces costs by minimizing raw material use, employing less expensive manufacturing methods, and using commonality of parts.

DFA reduces costs primarily by reducing labor costs, minimizing operations, and using fewer parts, which can also decrease the overall complexity of the inventory and logistics.

  • Benefits:

DFM benefits include a broader impact on reducing manufacturing complexity, improving product quality, and potentially reducing environmental impact.

DFA benefits are typically seen quicker in the production cycle by speeding up assembly processes, reducing labor costs, and decreasing the potential for errors during assembly.

What are the Latest Trends and Innovations in DFM?

The field of Design for Manufacturability (DFM) is continually evolving with advancements in technology and changes in manufacturing practices. Some of the most significant trends and innovations shaping DFM today include:

  1. Integration of AI and Machine Learning: AI technologies are being used to predict potential manufacturing issues before they occur, optimize material usage, and enhance the precision of manufacturing processes. This integration allows for more complex designs to be simplified automatically, aligning with manufacturing capabilities.
  2. Advancements in 3D Printing: Additive manufacturing, or 3D printing, has revolutionized DFM by allowing for complex, high-strength parts to be produced more efficiently and cost-effectively. This technology supports the manufacturing of designs that were previously impossible or too costly to produce using traditional methods.
  3. Increased Use of Sustainable Materials: With a growing emphasis on sustainability, DFM is increasingly incorporating eco-friendly materials and processes aimed at reducing waste and energy consumption. This includes the use of biodegradable materials and the optimization of designs to use less material without compromising strength or durability.
  4. Enhanced Simulation Software: Modern simulation tools can model how a design will perform under various manufacturing processes, which helps in making informed decisions about material selection and process optimization. This capability reduces the need for physical prototypes, decreasing the time and cost associated with development cycles.
  5. Greater Collaboration Tools: As manufacturing becomes more globalized, collaboration tools that integrate DFM principles are becoming critical. These tools help bridge the gap between design teams and manufacturers spread across different geographies, ensuring that DFM principles are correctly implemented.

Conclusion

Integrating Design for Manufacturability (DFM) into manufacturing strategies is paramount for technology advancements, reducing costs, and streamlining production processes.

As DFM continues to evolve, it remains a foundational strategy for companies aiming to remain competitive in a fast-paced market. By adopting DFM principles, businesses not only enhance product quality but also improve their market responsiveness and operational efficiency.

Frequently Asked Questions

What is DFM and DFA?

Design for Manufacturability (DFM) is a product design approach that focuses on simplifying the manufacturing process to reduce costs and production time. It involves designing products in such a way that they are easy to manufacture with minimal use of resources.

Design for Assembly (DFA), on the other hand, is a design process that simplifies the product assembly process, aiming to reduce assembly time and costs by reducing the number of parts and simplifying the assembly operations
