CNC Machining vs 3D Printing

CNC machining and 3D printing have reshaped modern manufacturing, driving forward innovations that we can expect to see accelerate in the coming years. However, choosing between these two powerful technologies is often challenging for manufacturers. Each method brings its own strengths to the table, so there’s no universal answer—it all depends on your project’s unique requirements and, naturally, your budget.

Let’s take a closer look at how CNC machining and 3D printing work, what sets them apart, and how you can decide which approach is right for your production needs.

What is the Difference Between Subtractive and Additive Manufacturing

At their core, CNC machining and 3D printing represent two different approaches to manufacturing: subtractive and additive. Subtractive manufacturing, like CNC machining, removes material from a solid block to create parts, while additive manufacturing, such as 3D printing, builds objects by adding material layer by layer. This primary difference shapes the applications, benefits, and limitations of each technology.

In prototyping and production, CNC machining is widely recognized for its precision and durability, often used for creating high-tolerance parts. On the other hand, 3D printing is prized for its flexibility in design, ideal for producing prototypes quickly with minimal material waste. The choice between these methods largely depends on your goals, from achieving tight tolerances to exploring creative and complex geometries.

What is CNC Machining?

CNC machining, or Computer Numerical Control machining, is a subtractive manufacturing process that uses computer-controlled cutting tools to remove material from a solid block, or “blank,” to produce precision parts. Known for its reliability and accuracy, CNC machining can achieve fine tolerances and is ideal for both prototypes and mass production.

Originally developed at MIT in the 1950s, CNC technology revolutionized manufacturing by allowing automated control over machining processes.

How CNC Machining Works

The CNC machining process involves several key steps, beginning with design and ending with the finished part. First, an engineer creates a 2D or 3D model of the desired part using CAD (Computer-Aided Design) software. This CAD file is then converted into instructions through CAM (Computer-Aided Manufacturing) software, which translates the model into machine commands known as G-code.

The G-code is sent to the CNC machine, which uses various cutting tools to remove material from the blank. The machine operates on multiple axes—typically three, four, or five—allowing it to produce complex shapes with precision. Stepper or servo motors control each axis, ensuring precise movements and accurate cuts.

Common CNC Machines and Their Functions

In CNC machining, there are several types of machines, each with specific functions tailored to different applications. Some of the most common types include:

CNC Mills: These machines use rotating cutting tools to remove material, typically from metals and plastics. CNC milling is ideal for producing detailed parts with complex shapes, and it’s widely used in industries requiring high precision.
CNC Lathes: Lathes work by rotating the material while cutting tools are applied to shape it. They are excellent for cylindrical parts like bolts, shafts, and other round objects, making them popular in automotive and aerospace manufacturing.
Drills: CNC drills are specialized for creating holes with precise diameters. They are often used in combination with other CNC machines to produce components requiring exact hole placement.
Grinders: CNC grinders use abrasive wheels to achieve a smooth surface finish on metal parts, suitable for applications where polished surfaces are critical, such as medical instruments or automotive parts.
Plasma Cutters and Laser Cutters: Plasma cutters use an ionized gas to cut metal, while laser cutters employ focused light beams for high-precision cuts. These machines are often used for sheet metal processing, enabling intricate designs with minimal material waste.

In addition to these types, CNC machines come with different axis capabilities, which significantly impact the complexity of parts they can create. Standard configurations include:

3-Axis Machines: These machines operate along three axes—X, Y, and Z—allowing basic movement for simpler parts.
4-Axis Machines: Adding a fourth axis, often rotation along the X-axis, these machines can work on more complex shapes.
5-Axis Machines: With five axes of movement, these machines can handle the most intricate parts, providing precision and flexibility needed for advanced applications. Industries with strict requirements for part complexity, such as aerospace and medical, often rely on 5-axis machines for their advanced capabilities.

What is 3D Printing?

3D printing, or additive manufacturing, is a process that builds objects layer by layer from a digital model. This technology enables the creation of complex geometries that are challenging to achieve through traditional manufacturing methods. Originally developed at MIT in the late 1980s, 3D printing has expanded into numerous fields, revolutionizing prototyping and allowing for the rapid development of custom designs in industries like healthcare, automotive, and consumer electronics.

Unlike CNC machining, which removes material to shape parts, 3D printing minimizes material waste by only adding what is necessary. This quality, combined with its capacity for intricate shapes, has made 3D printing an essential tool for prototyping and producing small batches of custom parts with limited post-processing.

How 3D Printing Works

The 3D printing process starts with creating a 3D model, often using CAD (Computer-Aided Design) software. Alternatively, a 3D scanner can be used to convert a physical object into a digital model. Once the model is complete, it goes through an analysis to detect any errors, such as holes or intersecting faces, which might affect print quality.

Next, the model is processed through a slicer program that divides it into thin, 2D layers, creating a G-code file. This file serves as the blueprint for the 3D printer, guiding it to deposit or cure material layer by layer. The material deposition method depends on the 3D printing technology used, such as FDM (Fused Deposition Modeling), SLA (Stereolithography), or SLS (Selective Laser Sintering). For example:

FDM: Uses plastic filament that is heated and extruded to form layers.
SLA: Uses liquid resin cured by a UV light to create each layer.
SLS: Utilizes powdered materials fused by a laser.

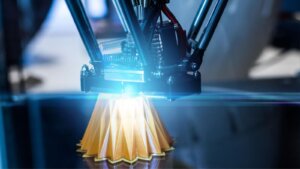

What are the Types of 3D Printing Technologies

There are several main types of 3D printing technologies, each with unique methods, materials, and applications:

Material Extrusion (e.g., FDM): This method uses plastic filament, heated and extruded through a nozzle to form layers. It is commonly used for rapid prototyping and functional parts in industries like consumer electronics and automotive.
Vat Polymerization (e.g., SLA, DLP): Here, a liquid resin is cured by light to create solid layers. Vat polymerization offers high detail and is frequently used for dental and medical models, as well as jewelry.
Powder Bed Fusion (e.g., SLS, SLM, DMLS): Using a laser or electron beam, this method fuses powdered material layer by layer. Powder bed fusion works well with metals and high-strength materials, making it ideal for aerospace, automotive, and medical applications.
Binder Jetting: This process deposits a liquid binding agent onto a powder bed, which is later cured to form the part. Binder jetting can work with metals, ceramics, and sands, often used for creating metal parts that are further processed for strength.
Material Jetting: This technology jets droplets of material that solidify upon deposition, similar to inkjet printing. It is known for producing high-quality surface finishes and is often used in prototypes and medical models.
Direct Energy Deposition (DED): In this process, focused energy, such as a laser or electron beam, melts material as it is deposited. DED is used for repairs, as well as for producing large metal parts in industries like defense and aerospace.
Sheet Lamination: This technique bonds and cuts sheets of material to form a 3D object. It is commonly used for low-cost metal or paper parts, especially where high detail is less critical.

Advantages and Disadvantages of CNC Machining and 3D Printing

Both CNC machining and 3D printing bring unique benefits and limitations, which can make one more suitable than the other depending on project requirements. Below is a comparison of the main advantages and disadvantages of CNC machining, with 3D printing discussed in later sections.

Advantages of CNC Machining

CNC machining is favored for its precision, strength, and repeatability, making it a reliable choice for high-performance applications. Some key benefits include:

High Precision and Tight Tolerances: CNC machines can achieve tolerances as precise as ±0.005 mm, making them ideal for parts requiring exact dimensions.
Material Versatility: CNC machining is suitable for metals, plastics, wood, and more, providing flexibility across materials with different properties.
Excellent Surface Finish: This process produces a smooth surface finish, often requiring minimal post-processing, which is important in industries needing parts ready for immediate use.
Cost-Effective for High Volumes: For large production runs, CNC machining becomes more economical, as setup costs are distributed across higher quantities, reducing the cost per part.
Durable, Isotropic Parts: CNC machining creates strong parts with consistent material properties, making it ideal for components that need to endure mechanical stress.
Repeatability: This method can produce identical parts in successive runs, maintaining quality and consistency in mass production.
Capability for Larger Parts: Unlike 3D printing, which can be limited by build volume, CNC machines can handle large-scale components, making them suitable for sizable applications.
Material Integrity: CNC machining preserves the structural integrity of materials, often resulting in parts without internal defects.

Disadvantages of CNC Machining

While CNC machining has many strengths, it also has certain drawbacks that may limit its suitability for specific applications:

High Material Waste: CNC is a subtractive process, generating significant material waste, especially in complex parts.
Difficult-to-Recycle Waste: The waste material may be contaminated, making it more challenging to recycle compared to additive methods like 3D printing.
Expensive for Low Volumes: Due to setup costs, CNC machining can be costly for low-volume or highly intricate parts, where 3D printing might be more economical.
Extended Setup Time: CNC machining requires significant initial setup and programming, which can add to the time needed before production begins.
Requires Skilled Operators: Operating CNC machines requires specialized knowledge, as setup and maintenance involve complex procedures.
Limitations in Complex Geometries: CNC machining struggles with highly complex internal geometries, which are more easily handled by 3D printing.
Tool Wear and Maintenance: CNC machines involve regular tool changes and maintenance to prevent wear, which adds to operational costs and downtime.
Environmental Considerations: CNC machining consumes higher energy and may use coolants or lubricants that impact the environment, requiring additional disposal and treatment processes.

Advantages of 3D Printing

3D printing, known for its flexibility and customization, offers several key advantages in manufacturing:

Complex and Intricate Designs: 3D printing excels in creating complex, intricate designs that CNC machining may not handle effectively, such as internal structures and lattice geometries.
Minimal Material Waste: As an additive manufacturing process, 3D printing adds only the material necessary to build each layer, resulting in significantly less waste than subtractive processes like CNC machining.
Rapid Prototyping: With the ability to quickly turn digital designs into physical objects, 3D printing supports fast prototyping, making it valuable in product development where quick design iterations are essential.
Cost-Effective for Low Volumes: 3D printing does not require extensive setup, making it economical for low-volume production and custom parts, where CNC machining may incur higher costs.
Design Flexibility and Easy Modifications: Changes to digital designs can be made with minimal effort and without altering tools or machines, providing a straightforward way to test new concepts or customize parts.
Lower Startup Costs and Minimal Skill Requirement: Compared to CNC machining, 3D printing has lower initial setup costs and often requires less operator skill, making it accessible to a broader range of users.
Mass Customization: 3D printing enables mass customization, allowing manufacturers to produce personalized items efficiently, especially in healthcare, fashion, and consumer electronics.
Internal Structures and Complex Geometries: Unlike CNC, which has limitations on internal features, 3D printing can produce internal cavities, honeycomb structures, and other complex geometries with ease.

Disadvantages of 3D Printing

Despite its many advantages, 3D printing also presents challenges that may limit its effectiveness for some applications:

Lower Precision and Surface Finish: Generally, 3D printing cannot match the precision and surface finish achievable with CNC machining. Post-processing is often needed to improve surface quality or dimensional accuracy.
Limited Material Options: High-performance metals and other specialized materials are often unavailable for 3D printing, and metal 3D printers come at a significant expense.
Post-Processing Requirements: Many 3D-printed parts require additional steps, like sanding or polishing, to reach desired quality standards or improve strength.
Less Cost-Effective for Large-Scale Production: In high-volume production, the per-unit cost for 3D printing remains consistent, making it less economical than CNC machining for large batches.
Anisotropic Material Properties: 3D-printed parts may have weaker material properties in certain directions, impacting their strength and durability compared to CNC-machined components.
Build Volume Constraints: 3D printers are limited by their build volume, which restricts the size of parts they can produce without needing to be assembled from smaller pieces.
Slower Production for Large Batches: While 3D printing is efficient for prototypes and custom parts, it is slower for mass production, as each printer typically produces one part at a time.

Detailed Comparison of CNC Machining and 3D Printing

To understand the strengths of CNC machining and 3D printing more fully, it helps to examine each process in detail. Below is an overview of the manufacturing process for both methods, along with differences that highlight their unique advantages and limitations.

Manufacturing Process

CNC machining is a subtractive manufacturing method that starts with a solid block of material, known as a blank. Through computer-controlled movements, the machine removes material using spinning tools, such as drills, mills, or lathes, to achieve the desired shape. The process is programmed with a CAD file that is translated into G-code, which the machine interprets to make precise cuts. CNC machines can change tools automatically, allowing for versatile cuts and shapes within the same production setup.

3D printing, on the other hand, follows an additive manufacturing approach, building parts layer by layer from a digital model. Various 3D printing technologies exist, each with different methods for material deposition or solidification, such as FDM, SLA, and SLS. The 3D printer reads a G-code file generated from CAD software, guiding it to create each layer precisely.

Materials Used

CNC machining can handle an extensive range of materials. Metals, such as aluminum, steel, titanium, and brass, are commonly used due to their strength and precision capabilities. For applications requiring plastic components, CNC machining supports options like ABS, Nylon, Polycarbonate (PC), Acrylic, POM, and PEEK. Each material retains its natural isotropic properties, providing uniform strength and reliability in all directions. Additionally, CNC machining processes work well with wood and specialty materials like jewelry wax, making it versatile for both industrial and artistic applications.

3D printing, an additive manufacturing process, supports a variety of materials, primarily plastics, including PLA, ABS, Nylon, and ULTEM. In recent years, it has also expanded to select metals, such as aluminum, stainless steel, titanium, and Inconel, though the setup costs for metal 3D printing are significantly higher. Emerging materials in 3D printing include ceramics, composites, and even bio-materials, opening possibilities in industries from medical to automotive. However, 3D printing has limitations in material strength and durability compared to CNC machining. Superalloys, for example, are challenging to print and may not match the strength achieved through traditional metalwork.

Material Flexibility and Limitations

Both CNC machining and 3D printing have constraints regarding material compatibility, making each suited to different project types and industries.

CNC machining offers flexibility with materials, including metals, wood, plastics, and specialized materials like jewelry wax. For manufacturers looking to create durable components, CNC machining allows for high-strength metals and alloys that are difficult to process with 3D printing. Additionally, CNC materials are often more affordable than those used in 3D printing, especially for metals, as there are fewer restrictions related to heat and melting points.

While 3D printing provides unique benefits in design freedom, it has limitations in material selection, especially with high-melting-point metals. The materials required for metal 3D printing, such as powders or specialized filaments, can be expensive and limited in range compared to those used in CNC machining. For example, 3D printing excels in polymer materials but is often more costly for metals. Furthermore, materials like superalloys or TPU are best suited for 3D printing, as CNC machining cannot easily handle these types due to flexibility and elasticity requirements.

Precision and Tolerances

CNC machining is known for its ability to achieve high precision, with tolerances as tight as ±0.005 mm. The process uses computer-controlled cutting tools that produce parts with smooth surface finishes and sharply defined details. This level of precision ensures consistent positional accuracy, typically within 0.01 to 0.05 mm, depending on the part’s geometry. CNC machining often requires little to no post-processing, as surface quality is inherently high. T

Although 3D printing technology has improved in precision, it generally does not match the exact tolerances achievable with CNC machining. 3D printers produce parts layer by layer, often resulting in visible layer lines, with layer thicknesses usually ranging between 0.1 mm to 0.5 mm. The resulting surface quality may be rougher, and parts often require additional post-processing to improve their appearance and functionality. Additionally, print speed and material choice can impact the precision of 3D-printed parts.

Dimensional Accuracy

Dimensional accuracy is essential in manufacturing, ensuring parts meet design specifications and function as intended. CNC machining offers high precision, with tolerances as close as ±0.005 mm. This level of accuracy is achieved by computer-guided cutting tools, which deliver smooth surface finishes and consistent detail. CNC is the preferred choice for parts needing fine tolerances and crisp edges, as its subtractive method minimizes errors and maintains positional accuracy.

In comparison, 3D printing precision depends on the printing technology and material. Most 3D printing processes use a layer-by-layer approach, generally resulting in thicker layer lines and lower dimensional accuracy than CNC machining. While additive manufacturing continues to improve in precision, CNC machining still provides superior tolerances and is more suitable for components where exact fit is necessary.

Key Applications and Industries

Both CNC machining and 3D printing offer unique benefits and applications in various industries, from producing functional parts to creating prototypes. Let’s explore the key applications of each.

Key Applications of CNC Machining

Aerospace: CNC machining is essential in aerospace, where precision is critical. It’s used to create turbine blades, structural parts, and other components requiring high tolerances.
Automotive: In automotive manufacturing, CNC machining helps produce engine components, transmission parts, and custom tooling for various vehicle models.
Medical: CNC machining supports the production of surgical instruments, orthopedic implants, and other devices that require exact measurements for safe use.
Industrial Equipment: Many industrial machines rely on custom CNC parts, including molds, dies, and specialized machinery components.
Woodworking: CNC machines are popular in woodworking for furniture production, cabinetry, and intricate engravings.
Prototyping: For metal and plastic prototypes, CNC machining provides high durability and quality that closely resembles the final product.
Functional Parts: CNC machining produces strong, reliable parts with excellent mechanical properties, suitable for high-stress environments.

Key Applications of 3D Printing

Rapid Prototyping: 3D printing is widely used in rapid prototyping, allowing designers to create concept models quickly and refine designs based on early feedback.
Medical Devices: The medical industry uses 3D printing for custom prosthetics, dental implants, and anatomical models, where personalization and complex shapes are beneficial.
Aerospace: Lightweight 3D-printed components are valuable in aerospace for complex brackets, ducting, and parts that benefit from reduced weight.
Automotive: In automotive design, 3D printing supports quick prototyping of custom parts and interior components for testing before mass production.
Architecture and Art: 3D printing enables detailed scale models for architects and intricate designs and sculptures for artists.
Emerging Fields: 3D printing has applications in newer fields, such as fashion (accessories), construction (building components), bio-printing (tissue engineering), and even food production.
Mold Creation: Some 3D printing processes are used to create molds for casting, allowing for flexibility in shape and material without the need for traditional mold-making.

Production Speed

CNC machining is generally faster when it comes to producing larger parts and high volumes. After setup, it can handle repetitive tasks quickly, particularly in mass production. If precision can be relaxed, production speeds can further increase. However, setup time, especially for complex projects, can take a while since detailed programming and tooling adjustments are often needed.

In contrast, 3D printing speeds vary depending on part size and complexity. For small, intricate prototypes, 3D printing can often deliver faster results without the lengthy setup needed for CNC. Larger parts take significantly longer to print, as build time increases with volume. Unlike CNC, slicing files for 3D printers is typically straightforward, allowing for a quick start once the design is complete.

Maintenance and Operational Costs

CNC machines incur maintenance costs that include tool replacement, energy consumption, and occasional downtime from tool wear. Frequent maintenance is needed to keep cutting tools sharp and ensure precision, especially in high-volume production. Complex machinery and additional cooling systems can increase energy use, adding to operational costs. Skilled operators are often required to manage these tasks, adding labor expenses to the equation.

For 3D printers, maintenance costs are lower, though the equipment still requires regular upkeep. Common expenses include replacing consumables like nozzles and print beds, which wear out over time, especially with frequent use. Materials used in 3D printing can also be costly, particularly with metals or specialty polymers. Printer downtime may occur if parts, such as the extruder or print head, need repairs or adjustments, but compared to CNC, maintenance is generally simpler and requires less specialized labor.

Cost Implications

CNC machining usually involves higher initial costs for both the machinery and setup. Tooling expenses and programming contribute to the upfront investment. However, for larger production runs, CNC is highly cost-effective, as the per-unit price decreases with volume. Materials and consumables for CNC are often more economical than 3D printing, especially for high-strength metals. Skilled labor is needed to operate CNC equipment, which adds to labor costs but provides precise, high-quality parts in return.

With lower startup costs, 3D printing is a great option for low-volume production or one-off parts. Since it requires minimal setup, 3D printing keeps initial costs down, although material prices can be higher, especially for specialty filaments and metals. Per-part costs in 3D printing remain relatively constant regardless of production volume, making it less suitable for high-volume runs but ideal for rapid prototyping and customized parts.

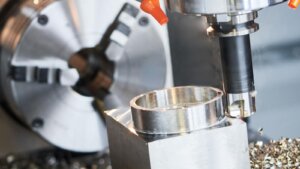

Design Flexibility and Geometric Complexity

CNC machining faces some limitations in design flexibility due to its subtractive nature. The cutting tools need direct access to each area of the part, which restricts the shapes that can be created in a single setup. Complex internal features are often challenging or impossible to machine and may require additional operations or multiple setups. CNC is ideal for simpler geometries where sharp, well-defined edges and flat surfaces are needed.

3D printing excels in producing complex and intricate geometries. With its layer-by-layer additive process, it can create internal channels, lattice structures, and organic shapes that would be difficult or impossible with CNC machining. This design freedom supports rapid modifications and enables engineers to make adjustments without incurring high setup costs. Additionally, 3D printing makes it easy to iterate designs and add complex features, making it ideal for innovative applications in prototyping and beyond.

Waste Production and Environmental Impact

CNC machining, a subtractive manufacturing process, generates significant material waste as it involves removing material from a larger block to shape the part. The waste material is often challenging to recycle, especially if contaminated by cutting fluids or coolants, making disposal more complex. CNC machines also tend to consume more energy, given the continuous operation of motors, tools, and additional cooling systems. Some companies are making strides to improve the energy efficiency of CNC machines and reduce the use of environmentally harmful coolants, but traditional setups still have a higher environmental footprint compared to additive processes.

3D printing, in contrast, is an additive manufacturing process, using only the material needed to build the part layer by layer. This minimal-waste approach makes 3D printing an environmentally friendlier choice, with far less leftover material. In addition, many 3D printing materials and supports are recyclable or biodegradable, adding to its sustainability profile. Energy consumption varies by the specific 3D printing process, with some techniques, like Fused Deposition Modeling (FDM), consuming less power than CNC.

Ease of Use and Operator Skill Level

CNC machining typically demands a high level of skill and expertise. Operators need training in CAM (Computer-Aided Manufacturing) software for programming, as well as knowledge of tool paths, speeds, and feeds to achieve precision results. The setup process, from creating CAD files to generating G-code, can be complex and time-consuming. This level of technical requirement means that CNC machining requires skilled technicians for both programming and operation, often increasing labor costs.

3D printing is more accessible to a wider range of users, from hobbyists to professionals, due to its simpler setup process. Most 3D printers require only basic knowledge of slicing software, which is generally more intuitive and user-friendly than the CAM software for CNC. With minimal setup and simpler file preparation, users can start printing quickly without the need for extensive operator training.

Post-Processing Requirements

Parts produced with CNC machining often have excellent surface finishes right out of the machine, reducing the need for extensive post-processing. For specific applications, parts may require light deburring, sanding, or surface treatments to achieve a finer finish or meet stringent aesthetic standards. CNC machining offers the advantage of high-quality finishes directly from the machine, which saves time on post-processing and can streamline production for certain industries, particularly those needing metal parts with minimal manual finishing.

In 3D printing, post-processing is typically more involved. Printed parts may need support removal, sanding, or surface treatments to improve aesthetics and functionality. In particular, metal 3D printed parts often require thermal post-processing to relieve internal stresses, enhancing durability and structural integrity. Additionally, post-processing can be used to achieve smoother surfaces or add strength to parts, especially those with layer lines from additive processes.

Surface Finish

CNC machining is renowned for delivering high-quality surface finishes, often eliminating the need for additional finishing steps. The cutting tools used in CNC milling and turning create smooth, uniform surfaces, particularly on metals and hard plastics. CNC is ideal for applications where aesthetics or precision are crucial, as the process can achieve surface finishes that meet strict industry standards without much additional work.

3D printing, while versatile, typically produces a rougher surface finish than CNC machining, particularly in FDM and other polymer-based processes. Visible layer lines are common, especially on curved or intricate parts. In cases where a smoother finish is needed, post-processing techniques like sanding, polishing, or coating can improve the appearance and feel of 3D printed parts. Advanced 3D printing technologies, such as SLA or Multi Jet Fusion, offer finer surface finishes than traditional FDM, but CNC machining remains the preferred method for achieving a polished, high-quality finish directly from the machine.

Safety and Compliance Standards

CNC machining involves moving parts, sharp cutting tools, and high-speed rotating components, all of which require strict safety measures. Operators must follow protocols to avoid physical injuries, especially hand or eye injuries from flying debris or accidental tool contact. CNC processes often use coolants or lubricants, which can expose workers to chemical hazards if not managed properly. These fluids must be handled in a way that meets environmental and health standards.

3D printing, though generally lower-risk than CNC, also has its safety requirements. Certain 3D printing materials release fumes or particles that require adequate ventilation or filtering to maintain a safe environment. Handling powders in processes like SLS (Selective Laser Sintering) can pose respiratory risks, while handling photopolymers in SLA printing requires gloves to avoid skin irritation.

Portability

CNC machines are generally large, heavy, and require a dedicated industrial space to operate. These machines, which include lathes, mills, and routers, need stable foundations and ample space for setup and tool changes, making them unsuitable for on-site or field use. CNC equipment also relies on complex installations and power sources, adding to its stationary nature. Due to these requirements, CNC machining is typically limited to manufacturing facilities.

In contrast, 3D printing is far more adaptable to different spaces. Desktop 3D printers are lightweight, compact, and can be set up in office environments or even homes. This portability allows users to produce parts on-site, making 3D printing a popular choice for prototyping and small production runs outside traditional factory settings. Although industrial 3D printers can also be large, smaller models enable flexible, decentralized production, allowing 3D printing to be used in labs, offices, and even mobile setups.

Scalability and Production Volume

CNC machining benefits from economies of scale, making it more cost-effective as production volume increases. Once the setup is complete, CNC machines can produce large batches of parts efficiently, with the initial setup and programming costs spread across the total output. This makes CNC ideal for mass production, especially for parts with high precision and repeatability requirements. However, smaller production runs may lead to higher per-unit costs, as setup time remains constant regardless of batch size.

3D printing shines in flexibility for small batch sizes or one-off parts. Since the cost per part remains relatively constant, 3D printing is better suited for limited production volumes and custom or complex designs. However, for large-scale production, 3D printing can become less competitive due to the time required for each part, especially if the design is complex or requires intricate details.

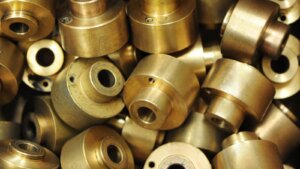

What are Important Factors to Consider When Choosing Between CNC Machining and 3D Printing

Selecting between CNC machining and 3D printing depends on several factors, including customization needs, production speed, budget, and required precision. Each method has unique strengths, making it well-suited for specific applications.

Considering these factors will help you decide the best manufacturing method for your project.

Complexity of Component

The complexity of a part’s design is a significant factor when deciding between CNC machining and 3D printing. Each method has strengths based on geometry and detail requirements.

3D printing excels at producing complex geometries and intricate internal features that would be difficult or impossible with CNC machining. This includes designs with undercuts, hollow structures, and lattice frameworks. In applications where internal channels, organic shapes, or fine details are essential, 3D printing allows for greater freedom in design without the need for complex setups or additional tooling.

CNC machining is more suitable for simpler geometries where high precision and tight tolerances are needed. The process allows for exact measurements and smooth surface finishes, making it ideal for components requiring high accuracy. While CNC can handle some complex shapes, intricate internal features or overly complex geometries can be challenging to produce due to tool access limitations.

Customization and Variability

For projects requiring significant customization or variation, 3D printing is often the ideal choice. This technology is well-suited for producing one-off parts or small batch items, as design adjustments do not require extensive retooling. You can modify designs quickly, with minimal impact on overall production time and cost, making 3D printing an excellent option for custom or prototype parts.

CNC machining, while precise, is less efficient for one-off or highly customized parts due to its setup and programming requirements. Changes in design may need new tooling, specific programming in CAM software, and additional time, which can make adjustments costly and time-consuming. Therefore, CNC machining is typically reserved for applications where customization is less frequent, and designs are more standardized.

Turnaround Time

Once a CNC machine is set up, it can efficiently produce large volumes of parts, making it faster for high-quantity orders. However, the setup and programming phase can add time, especially if the part geometry is complex or requires multiple tool changes. CNC machining is most time-effective when producing a high volume of identical parts, as the setup costs are distributed over the batch.

3D printing stands out for its quick transition from digital design to physical part. The lack of extensive setup means you can get started almost immediately after creating the CAD file and slicing it. For rapid prototyping or small-batch production, 3D printing provides an efficient pathway, cutting down lead time and allowing for faster design iterations without the need for tooling adjustments.

Budget and Cost

CNC machining generally involves higher upfront costs due to equipment, tooling, and skilled labor. However, when manufacturing large volumes, CNC can become more economical as per-unit costs decrease significantly with scale. This method can offer a better return on investment for mass production, where setup expenses are amortized across a high volume.

For smaller production volumes or limited budgets, 3D printing can be more cost-effective. It has lower startup costs, as it typically requires less setup and fewer specialized tools. However, the per-part cost remains relatively constant, meaning it does not benefit as much from economies of scale.

Required Precision and Surface Finish

CNC machining is ideal for applications that demand high precision and a smooth, consistent surface finish. This method can achieve tolerances as tight as ±0.005 mm, making it the preferred choice for parts requiring exact dimensions and a refined finish. CNC machines excel in producing parts with sharp edges and intricate details that often need little to no post-processing.

3D printing, while improving in precision, generally cannot match the fine tolerances and smooth surface finishes of CNC machining. It is ideal for prototypes and parts where minor surface imperfections are acceptable. However, 3D-printed parts may show layer lines and typically require post-processing steps like sanding or coating to enhance surface quality. F

When Is CNC Machining the Better Choice?

There are several scenarios where CNC machining stands out as the best option:

High Precision and Tight Tolerances: CNC machining provides the most consistent accuracy, suitable for parts with strict dimensional requirements.
Durable, Functional Parts: For applications needing high mechanical properties, CNC machining works well with robust materials, ensuring the production of functional parts that withstand stress.
Wide Range of Materials: CNC machining allows for extensive material selection, including metals and alloys that cannot be printed. This flexibility makes it popular in industries that use materials like stainless steel, aluminum, and titanium.
Large-Scale Production: If you require a high volume of parts, CNC machining becomes cost-effective as the per-unit cost decreases with larger production runs.
Surface Finish and Detail: CNC machining offers a smooth finish with fine details, making it ideal for parts that must meet high visual or aesthetic standards.
Simpler Geometries: When parts do not require complex internal features or intricate designs, CNC machining is efficient and effective.

When Is 3D Printing the Better Choice?

3D printing is ideal for certain design and production needs:

Complex Geometries: 3D printing allows you to create intricate designs and internal structures that CNC machining cannot easily achieve.
Rapid Prototyping and Quick Design Changes: For prototypes or projects that require frequent modifications, 3D printing is the more flexible option, with faster turnaround times for updated designs.
Low-Volume or Custom Parts: 3D printing is well-suited for small production runs or unique items. There’s no need for extensive setup, making it cost-effective for custom or low-quantity orders.
Limited Budget and Tight Timelines: Without the high setup costs associated with CNC, 3D printing is an efficient choice for smaller budgets or projects on a shorter timeline.
Reduced Material Waste: 3D printing uses only the material necessary to build each part, making it a more sustainable option with minimal waste.
Difficult-to-Machine Materials and Designs: Certain designs and materials, like some composites or flexible polymers, are better suited to 3D printing, which can handle these challenges without the limitations of traditional machining.

Can You Combine 3D Printing and CNC Machining?

Combining 3D printing and CNC machining can enhance production capabilities, leading to better overall results. Hybrid manufacturing leverages the strengths of both methods—3D printing can handle complex geometries and internal structures, while CNC machining finishes surfaces to high precision. This approach is particularly useful for applications requiring both intricate designs and smooth, accurate surfaces.

For example, you might 3D print a part to create its overall shape and internal features, then use CNC machining for critical surfaces that need to meet precise tolerances. This process is common in aerospace and medical device manufacturing, where parts must be both complex and extremely precise. The hybrid approach can also shorten production times by reducing the need for extensive post-processing, achieving both efficiency and accuracy.

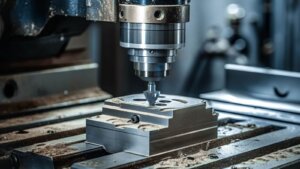

Future Trends in CNC Machining and 3D Printing

The manufacturing industry continues to innovate, and both CNC machining and 3D printing are evolving with new technologies.

CNC Machining: Future advancements in CNC include increased automation, with multi-axis machines and robotic integration. Software improvements make it easier to create complex tool paths, and environmental efforts are focusing on energy efficiency and recyclable materials.
3D Printing: The range of printable materials is expanding to include more metals, bio-materials, and high-performance polymers. New techniques aim to increase print speeds and enable larger build volumes, opening possibilities for industrial and architectural applications. Bioprinting, which uses cells as “ink” to build tissue, is also on the horizon, with potential applications in medicine.

Injection Molding as an Alternative to Both 3D Printing and CNC Machining

Injection molding offers a third option for manufacturing, especially effective in high-volume production scenarios. Unlike CNC machining or 3D printing, which are suited to low-volume, custom projects, injection molding is designed to produce large numbers of identical parts with high efficiency. The injection molding process involves creating a mold that is filled with a molten material—usually a thermoplastic—under high pressure, which then cools and solidifies to form a precise part.

While injection molding has higher initial setup costs due to the expense of creating molds, the per-unit cost becomes much lower at scale, making it ideal for mass production. This process is often chosen over CNC machining or 3D printing when consistency across a large number of parts is necessary and when the budget allows for initial mold investment. Additionally, injection molding can achieve excellent surface finishes and handle a wide variety of materials, including durable plastics and some specialty polymers that 3D printing may struggle with.

However, injection molding does have limitations in flexibility and design modifications. Once a mold is created, any design changes require a new mold, adding significant time and cost. For high-volume runs of uniform parts, though, injection molding is unmatched in efficiency and scalability within the manufacturing industry.

Conclusion

Choosing the right manufacturing technology—whether it’s CNC machining, 3D printing, or injection molding—comes down to understanding your project’s specific goals, budget, and production needs. Each method has distinct advantages: CNC machining is unparalleled in precision and durability, 3D printing provides the flexibility and speed for rapid prototyping, and injection molding becomes a cost-effective solution for large production runs. By evaluating factors like part complexity, production volume, and material requirements, you can make an informed choice.

Often, combining CNC machining and 3D printing offers an ideal solution, harnessing the strengths of both to efficiently produce parts and tackle intricate design challenges. This hybrid approach allows you to prototype quickly, refine designs, and scale up seamlessly as production demands grow.

Frequently Asked Questions

Is CNC Machining Better Than 3D Printing?

The choice between CNC machining and 3D printing depends on your project’s specific needs. CNC machining shines when precision, material range, and durability are essential, especially with metals and high-strength plastics. For example, CNC milling is ideal for parts requiring tight tolerances or a smooth surface finish. On the other hand, 3D printing offers unmatched design flexibility and rapid prototyping. If your project involves intricate internal geometries or a quick design-to-production cycle, 3D printing is often preferable.

Can 3D Printing Replace CNC Machining?

While 3D printing complements CNC machining, it does not fully replace it. Each method offers advantages suited to different applications. 3D printing excels in complex design flexibility and low-volume production, while CNC machining provides precision and durability for high-volume manufacturing. In practice, many industries use both technologies together—3D printing for prototyping or creating complex components, and CNC machining for refining parts and ensuring precise final dimensions.

Can CNC Machining Achieve the Same Detail as 3D Printing?

CNC machining can achieve high precision and excellent surface finish, particularly on external surfaces and simpler geometries. However, CNC may face challenges with extremely complex internal details or undercuts that require intricate tool access. 3D printing handles these complex internal features more effectively, though it may sometimes compromise surface quality.
