CNC Machining Part Size: Limitations, Design and Values

Understanding the limitations and considerations related to CNC machining part size is crucial for optimizing the CNC machining process.

In this article, we’ll look at the various factors that influence part size in CNC machining and how these limitations affect production outcomes.

How Does Part Size Impact CNC Machining Capabilities and Production?

The size of the part being machined is one of the most critical factors influencing the CNC machining process. Larger parts may exceed the machine’s work envelope, leading to challenges in achieving the required precision and finish.

Conversely, smaller parts can be difficult to secure and machine accurately, especially when tight tolerances are required.

CNC machining size limitations directly affect the choice of CNC machines and the specific tools required for the job.

For example, CNC milling machines have varying work envelopes that dictate the maximum part size they can handle. These size constraints necessitate careful planning in the design and production stages to ensure that the parts can be machined efficiently and within the desired specifications.

What are the Fundamental Factors Affecting Part Size in CNC Machining?

The primary factors that influence the part size in CNC machining are the machine’s work envelope, tool reach, and material properties. Each of these elements plays a critical role in determining the maximum and minimum dimensions of parts that can be successfully machined.

Machine Work Envelope

The work envelope is a defining factor in CNC machining that directly impacts the maximum part size that can be produced. This envelope is the three-dimensional space within which the CNC machine operates, defined by the X, Y, and Z axes. The travel limits of these axes dictate the boundaries of the work envelope, thereby limiting the dimensions of the part that can be machined in a single setup.

For instance, in CNC milling machines, the work envelope is crucial for determining the size of parts that can be machined without repositioning. A larger work envelope allows for machining bigger parts or multiple smaller parts in one setup, which can significantly improve production efficiency.

Conversely, a smaller work envelope restricts the size of parts that can be machined, often requiring multiple setups or different machines to complete the machining process.

How Tool Reach Impacts Part Size

Tool reach is another critical factor that affects the size and complexity of parts in CNC machining. Tool reach refers to the distance a cutting tool can extend into the material to remove material from the workpiece. In CNC machining, especially when dealing with intricate or deep parts, tool reach limitations can restrict the part size that can be accurately machined.

For instance, when machining deep cavities or features within a part, the tool must reach into the material without causing interference or deflection. If the tool cannot adequately reach all areas of the part, it may result in incomplete machining, necessitating additional setups or the use of specialized tools.

Axis Types

The type and configuration of axes in a CNC machine play a critical role in determining the maximum and minimum part sizes that can be produced.

3-Axis CNC Machines: These machines operate along the X, Y, and Z axes. The X and Y axes control the movement of the workpiece horizontally, while the Z axis controls the vertical movement of the cutting tool. In a 3-axis machine, the part size is largely determined by the work envelope, which is the maximum area the machine can cover on these three axes. This type of machine is commonly used for simple parts where the cutting tool approaches the workpiece from a single direction.
4-Axis CNC Machines: In addition to the X, Y, and Z axes, a 4-axis machine includes a rotational axis, typically referred to as the A axis. This additional axis allows the workpiece to rotate, enabling more complex geometries and features to be machined. The ability to rotate the workpiece increases the effective size of the part that can be machined, as it allows for multiple faces of the workpiece to be accessed without requiring re-clamping or repositioning.
5-Axis CNC Machines: These machines add another rotational axis, often referred to as the B axis, in addition to the X, Y, Z, and A axes. The 5-axis capability allows the cutting tool to approach the workpiece from virtually any angle, making it possible to machine extremely complex parts with intricate geometries. The flexibility provided by 5-axis machining significantly expands the range of part sizes and shapes that can be produced. However, the complexity of the machine setup and programming increases with the number of axes, which can also affect the part size and machining time.

CNC Axis Travel

Axis travel refers to the maximum distance that each axis can move, which directly defines the work envelope of the CNC machine. The greater the axis travel, the larger the parts that can be machined.

X, Y, and Z Axis Travel: The X and Y axes determine the horizontal movement range, while the Z axis controls the vertical movement. The axis travel limits the maximum length, width, and height of the part that can be machined. For instance, if the Z travel is limited, taller parts may not fit within the machine, requiring either a different machine or a different approach to machining.
Impact on Part Size: The axis travel is crucial for machining large parts. If a part’s dimensions exceed the machine’s travel limits, it may require multiple setups or repositioning, which can introduce errors and increase production time. Additionally, for smaller parts, axis travel might determine how many parts can be machined simultaneously, affecting overall production efficiency.
Rotational Axis Travel (A and B Axes): In 4-axis and 5-axis machines, the rotational axes also have travel limits, which affect the machine’s ability to position the part accurately. These limits are especially important when machining parts with complex geometries that require multiple angles of approach. Ensuring that the axis travel can accommodate the full range of movements needed for the part is essential for achieving the desired accuracy and finish.

Material Blank Size

The size of the material blank you select plays a significant role in determining the final part size in CNC machining. When you choose a blank, its dimensions must accommodate the largest part you intend to produce, considering the machine’s work envelope and axis travel. Selecting an appropriate blank size ensures that you minimize material waste and optimize the machining process.

For instance, if you are working with sheet metal fabrication, the blank size must be large enough to cover the length, width, and thickness of the part while allowing space for cutting and finishing operations. Similarly, in injection molding, the blank size influences the design guidelines you follow to achieve precise part dimensions and surface finishes.

Machine Precision

Machine precision is a crucial factor that affects the size and quality of the parts produced through CNC machining. Precision refers to the machine’s ability to maintain accurate dimensions and tolerances throughout the machining process. High precision machines can produce parts with tight tolerances, ensuring that each part meets the exact specifications required for its application.

When you consider CNC machining size limitations, machine precision becomes even more important. Larger parts can introduce challenges such as thermal expansion and tool deflection, which can compromise accuracy.

Therefore, selecting a CNC machine with the appropriate precision capabilities is essential for maintaining the integrity of your part dimensions. For example, CNC milling machines with advanced control systems and high-quality spindles offer better precision, allowing you to machine complex geometries and intricate features without sacrificing accuracy.

Tooling Availability

The availability of appropriate tooling is a significant factor that affects the size of parts that can be produced through CNC machining. Tooling refers to the various cutting tools, fixtures, and accessories used in the machining process, and the selection of these tools is critical for achieving the desired part dimensions and tolerances.

Impact on Part Size: The size and type of cutting tools available dictate the range of part sizes that can be machined. For instance, larger cutting tools can remove more material in a single pass, making them suitable for machining larger parts. However, they may not be able to achieve the fine details required for smaller or more complex parts. Conversely, smaller tools can provide higher precision and detail but may not be effective for larger parts due to limitations in material removal rates.
Tooling Constraints: In some cases, the desired part size may exceed the capabilities of the available tooling, leading to the need for custom tools or specialized equipment. This can increase the complexity and cost of the machining process. For example, machining deep cavities or intricate internal features may require long-reach tools, which are more prone to deflection and may not achieve the necessary accuracy without additional support or adjustments.
Tooling Technology: Advances in tooling technology, such as the development of high-performance cutting tools with enhanced wear resistance, have expanded the range of part sizes that can be machined. These tools can maintain their sharpness and precision over longer periods, allowing for the production of larger parts with tighter tolerances. Additionally, the use of modular tooling systems, where different tool heads can be interchanged on the same machine, provides greater flexibility in machining parts of varying sizes.

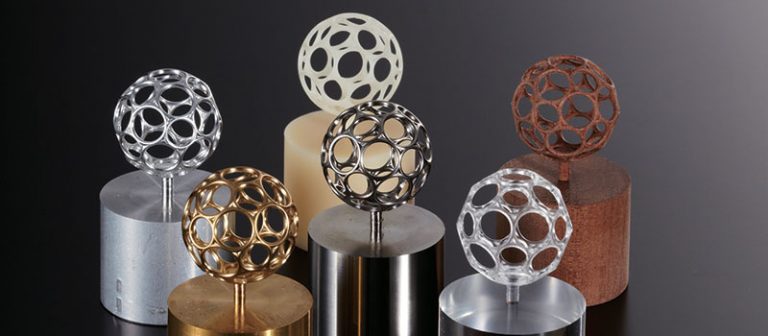

Part Complexity

Part complexity is another fundamental factor that influences the size of parts that can be produced using CNC machining. Complex parts often involve intricate geometries, multiple features, and tight tolerances, all of which can pose challenges in the machining process.

Influence on Part Size: The complexity of a part can affect the size limitations in several ways. For instance, a part with numerous small features, such as holes, threads, or undercuts, may require the use of smaller tools and more precise machine settings. This can limit the overall size of the part that can be machined, as the smaller tools may not be able to efficiently remove large amounts of material.
Geometric Considerations: Parts with complex geometries may also require multiple machining operations or setups, which can further constrain the size of the part that can be produced. For example, a part with intricate internal cavities may need to be machined from multiple angles, requiring the use of 5-axis CNC machines or other advanced machining techniques. The need for multiple setups can increase the risk of alignment errors and may necessitate the use of specialized fixturing to maintain accuracy.
Balancing Complexity and Size: When designing parts for CNC machining, it is important to balance complexity with the practical limitations of the machining process. Highly complex parts may need to be divided into smaller, more manageable sections that can be machined separately and then assembled. This approach allows for greater flexibility in part size but can also introduce additional challenges related to assembly and alignment.

Thermal Expansion of Materials During Machining

Thermal expansion is a significant factor that affects part size during CNC machining. As materials are subjected to heat generated by the machining process, they expand. This expansion can lead to variations in part dimensions, which must be carefully managed to ensure the accuracy and consistency of the final product.

Impact on Material Behavior: Different materials exhibit varying degrees of thermal expansion. For instance, metals like aluminum and steel expand at different rates when exposed to heat. Aluminum, with a higher coefficient of thermal expansion, will experience more significant dimensional changes compared to steel under the same temperature conditions. This property must be considered when designing parts and selecting materials for CNC machining, especially for high-precision applications.
Effect on Machining Accuracy: As the material expands, the dimensions of the part being machined can change, leading to potential deviations from the specified tolerances. This is particularly critical in CNC machining, where precision is paramount. If not properly accounted for, thermal expansion can result in parts that are either too large or too small, requiring additional machining operations or even leading to part rejection.
Mitigation Strategies: To mitigate the effects of thermal expansion, several strategies can be employed. These include controlling the machining environment’s temperature, using coolant systems to reduce heat buildup, and selecting materials with lower thermal expansion coefficients for applications where tight tolerances are required. Additionally, machining processes can be adjusted to account for expected thermal expansion, ensuring that the final part dimensions fall within the desired tolerances.

What is the Tolerance for CNC Machined Parts?

Tolerance refers to the permissible variation in part dimensions and is a critical factor in CNC machining. The tolerance level defines how much a part’s dimensions can deviate from the specified measurements while still being considered acceptable.

Importance of Tolerance: In CNC machining, tolerance affects both the function and assembly of parts. Tight tolerances are often required for components that must fit together precisely or for parts used in high-stress environments where even small deviations can lead to failure. For example, in the aerospace and automotive industries, where precision is critical, tolerances are typically very tight, often in the range of micrometers.
Types of Tolerance: Tolerances can be specified in various ways, including dimensional tolerances, which control the allowable variation in part size, and geometric tolerances, which govern the shape, orientation, and position of part features. Both types of tolerances are crucial in CNC machining, as they ensure that parts not only fit together but also function as intended in their final application.
Factors Affecting Tolerance: Several factors influence the achievable tolerance in CNC machining. These include the precision of the CNC machine, the tooling used, the material properties, and the machining process itself. High-precision CNC machines, such as those used in micro machining, can achieve tighter tolerances than standard machines. However, tighter tolerances often result in higher machining costs and longer production times, as more careful control of the machining process is required.
Balancing Tolerance and Cost: While tight tolerances are often necessary, they come at a cost. Machining to tighter tolerances typically requires more precise equipment, longer machining times, and more rigorous quality control measures. Therefore, it is essential to balance the need for precision with the associated costs, ensuring that the tolerance specified is appropriate for the part’s intended use without unnecessarily increasing production costs.

What are the Key Dimensions in CNC Machined Parts?

In CNC machining, the key dimensions of machined parts include external dimensions, such as length, width, and height, as well as profile dimensions, which refer to the external contours and profiles of the part.

External Dimensions

External dimensions are the primary measurements that define the overall size and shape of a CNC machined part. These include the length, width, and height of the part, which together establish the part’s footprint and volume.

Length: The length of a part is the longest dimension and is typically measured along the X-axis of the CNC machine. In many applications, length is a critical dimension as it can impact the part’s compatibility with other components and its ability to fit within the designated space in an assembly. For example, in sheet metal fabrication, maintaining precise length dimensions is essential to ensure that the sheet metal parts align correctly during assembly.
Width: Width is the dimension measured along the Y-axis and is the second most significant measurement after length. In CNC machining, width must be controlled carefully, especially in parts where the width directly influences the part’s structural integrity and functionality. For instance, in the production of injection molding tools, the width of the tool must be precise to ensure consistent mold cavity dimensions.
Height: Height is measured along the Z-axis and defines the part’s thickness or depth. Height is particularly important in applications where the part must fit within a specific vertical space, such as in the case of mechanical assemblies where clearance is limited. In CNC milling machines, the Z travel capability determines the maximum height of the part that can be machined in a single setup.

Profile Dimensions

Profile dimensions refer to the external contours and profiles of a CNC machined part. These dimensions are critical in defining the part’s shape and ensuring that it meets the design requirements. Profile dimensions are often more complex than simple external measurements, as they involve the curvature, angles, and intricate details of the part’s surface.

External Contours: The external contours of a part define its overall shape and include features such as curves, radii, and edges. In CNC machining, controlling the profile dimensions is essential for achieving the desired aesthetics and functionality of the part. For example, in the production of automotive components, precise control of external contours ensures that the parts fit seamlessly with other components and contribute to the overall aerodynamic performance of the vehicle.
Profiles: Profiles refer to the specific shapes and geometries of the part’s surface, including any patterns, grooves, or other features that may be present. Accurate profiling is crucial in applications where the part’s surface must interact with other components, such as in sealing surfaces or mating parts. In CNC milling, tools such as ball-end mills are often used to achieve the desired profile dimensions, allowing for the creation of complex 3D shapes and contours.

Internal Dimensions

Internal dimensions refer to the specific measurements of features within the part, such as holes, cavities, slots, and undercuts. These features are essential for the part’s function, whether they are used for fasteners, assembly, or other mechanical purposes. Accurate measurement and machining of these internal dimensions are crucial to the overall performance of the part.

Holes and Cavities (Diameter, Depth)

Holes and cavities are used for various purposes, including housing fasteners, creating pathways for fluids or gases, or reducing the part’s weight.

Diameter: The diameter of a hole or cavity is a critical dimension that must be precisely controlled. In CNC machining, the diameter of holes can vary depending on the application, ranging from very small holes used in micro machining to larger cavities for structural components. The choice of cutting tools, such as drill bits or end mills, directly influences the achievable diameter. Maintaining tight tolerances on hole diameters is essential, especially in applications like injection molding, where the accuracy of the mold cavities directly impacts the quality of the molded parts.
Depth: The depth of holes and cavities is another crucial dimension that must be carefully managed. Depth affects the overall design and function of the part, especially in applications requiring deep pockets or blind holes. In CNC machining, achieving the correct depth can be challenging, particularly when dealing with deep holes, as the tool’s length and rigidity can limit accuracy. Proper setup and tool selection are necessary to achieve the desired depth without compromising the surface finish or causing tool deflection.

Slots and Undercuts (Width, Depth)

Slots and undercuts are additional internal features often used to create pathways for components, allow for assembly, or provide clearance for specific functions.

Width: The width of slots and undercuts is a critical dimension that must be controlled to ensure proper fit and function. In CNC machining, the width of these features is typically determined by the cutting tool’s size and the machine’s precision. For example, in sheet metal fabrication, precise slot widths are necessary to ensure that the metal pieces can be correctly assembled without excessive play or interference. The width must be consistent along the entire length of the slot or undercut to maintain the part’s integrity.
Depth: The depth of slots and undercuts is equally important, as it determines the feature’s ability to accommodate other components or provide the necessary clearance. In CNC machining, achieving the correct depth requires careful planning and tool selection, particularly for deep or narrow features. The depth must be consistent across the entire feature to ensure that it functions as intended. In cases where multiple passes are required to achieve the desired depth, the machining process must be carefully controlled to avoid errors such as tool deflection or uneven surfaces.

Interrelational Dimensions

Interrelational dimensions refer to the relationships between different features of a part that are critical for assembly and function. These dimensions ensure that parts align properly, fit together without gaps or excessive force, and operate as designed when assembled into larger systems.

Tolerances and Fit (Relationship Between Part Dimensions for Assembly)

Tolerances and fit are essential considerations in CNC machining, directly affecting how parts interact with each other during assembly. Tolerances define the allowable variations in part dimensions, while fit describes how two parts will come together.

Tolerances: In CNC machining, tolerances specify the degree of variation that is acceptable for a part’s dimensions. Tight tolerances indicate that minimal deviation from the specified dimensions is allowed, which is crucial for high-precision components where even minor discrepancies can lead to assembly issues or functional failures. For example, in the manufacturing of parts for aerospace or medical devices, tolerances must be extremely tight to ensure the parts perform reliably under demanding conditions. Achieving these tolerances requires precise control of the machining process, including tool selection, machine calibration, and environmental factors like temperature.
Fit: Fit describes the relationship between two mating parts and is categorized into three main types: clearance fit, interference fit, and transition fit.
- Clearance fit allows for easy assembly with some play between parts, often used in applications where movement or flexibility is required.
- Interference fit involves a tighter fit where the parts are slightly oversized relative to each other, requiring force to assemble, which creates a secure and permanent connection.
- Transition fit offers a middle ground between clearance and interference, where parts may fit together easily or with slight force, depending on the exact dimensions and tolerances.
Ensuring the correct fit type is crucial for the part’s intended application, as it affects everything from assembly ease to the long-term durability and performance of the product.

Datum Features (Reference Points for Machining)

Datum features are critical reference points used in CNC machining to ensure that parts are machined accurately and consistently. These features serve as the basis for all subsequent measurements and machining operations, ensuring that all dimensions are relative to a common starting point.

Purpose of Datum Features: Datum features provide a standardized reference for positioning and aligning parts during the machining process. They are essential for maintaining consistency across multiple parts and ensuring that all critical dimensions are machined with respect to a common origin. This is particularly important in complex assemblies where multiple parts must align precisely with each other. For example, in the production of sheet metal components, datum features are used to ensure that each bend, cut, and hole is positioned correctly relative to the entire part.
Types of Datum Features: Common types of datum features include flat surfaces, edges, and centerlines, each serving a specific purpose in the machining process.
- Flat surfaces are often used as primary datums, providing a stable base for measuring other features.
- Edges can serve as secondary datums, guiding the placement of additional features like holes or slots.
- Centerlines are used in cylindrical parts to ensure that features like holes are centered accurately.
Proper selection and use of datum features are critical for ensuring that all parts are machined consistently, reducing the risk of dimensional errors and misalignment during assembly.

Functional Dimensions

Functional dimensions are those that directly influence the performance and utility of a CNC machined part. These dimensions must be precisely controlled to ensure that the part meets the design requirements and performs its intended function without failure.

Load-Bearing Surfaces

Load-bearing surfaces are critical in many CNC machined parts, especially in applications where the part must support weight or withstand forces. The design and machining of these surfaces must ensure that they can handle the expected loads without deformation, wear, or failure.

Surface Finish: The finish of load-bearing surfaces is crucial to their performance. A smooth finish reduces friction and wear, which is especially important in moving parts. In CNC machining, achieving the desired surface finish involves selecting the right cutting tools and machining parameters. For example, in the production of parts for injection molding machines, the surface finish of the load-bearing components can significantly impact the machine’s efficiency and lifespan.
Material Selection: The material used for load-bearing surfaces must be chosen carefully to match the application’s requirements. Materials with high tensile strength, such as certain grades of steel or titanium, are often used for load-bearing components. Additionally, the CNC machining process must be optimized to maintain the material’s strength and durability, ensuring that the final part can handle the operational stresses.

Aesthetic Dimensions

Aesthetic dimensions refer to the aspects of a part that affect its appearance, such as surface contours, edge quality, and overall finish. While these dimensions may not directly influence the part’s functionality, they are essential in applications where the part’s appearance is critical, such as in consumer products or visible components in machinery.

Surface Contours: The contours of a CNC machined part contribute significantly to its visual appeal. Smooth, continuous contours are often desired, especially in products where aesthetics play a crucial role. Achieving these contours requires precise control over the CNC milling process, including the selection of appropriate tools and machining strategies. In sheet metal fabrication, for instance, smooth contours and edges are essential for creating parts that are both functional and visually pleasing.
Edge Quality: The quality of the edges on a CNC machined part is another important aesthetic dimension. Sharp, clean edges are often required for parts that need to fit together precisely or have a high visual standard. Poor edge quality can result in burrs or uneven edges, which detract from the part’s appearance and may even interfere with its function. In CNC machining, achieving high edge quality involves careful control of the cutting process, including tool selection and maintenance.
Surface Finish and Coatings: Beyond the basic machining process, additional treatments such as polishing, coating, or painting may be applied to enhance the part’s aesthetic appeal. For example, anodizing aluminum parts can provide a durable, attractive finish that also improves corrosion resistance. These finishing processes must be carefully integrated with the CNC machining process to ensure that the final product meets both functional and aesthetic requirements.

What Are General Manufacturing Standards and Tolerance in CNC Machining Parts?

In CNC machining, adhering to strict manufacturing standards ensure consistency, accuracy, and reliability in the production process, which is essential for maintaining quality across different parts and assemblies.

ISO 2768: This standard defines general tolerances for linear dimensions, angular dimensions, and geometrical tolerances. It is widely used in CNC machining to ensure that parts are manufactured within acceptable limits. For example, ISO 2768-mK (medium class) is commonly applied in sheet metal fabrication, where precise but not overly tight tolerances are required.
ASME Y14.5: This standard provides guidelines for geometric dimensioning and tolerancing (GD&T), which are used to specify the allowable variation in part features. GD&T is essential in CNC machining as it helps to control the form, orientation, and location of part features, ensuring that they fit together correctly in an assembly. For instance, in the production of CNC milling machines, GD&T ensures that critical components such as the work envelope and z travel are manufactured to exacting standards.
DIN 7168: Similar to ISO 2768, this German standard specifies general tolerances for linear dimensions. It is commonly used in European CNC machining operations to define the permissible variations in part size. This standard is particularly relevant in the automotive industry, where parts such as engine components must meet stringent size limitations to ensure proper function.
ANSI B4.1: This American standard outlines preferred limits and fits for cylindrical parts. It is crucial in CNC machining processes such as turning and lathe work, where parts like shafts and holes must be manufactured to tight tolerances to ensure proper assembly and operation. For example, when machining a part that requires a precise fit, such as a shaft and bearing, the ANSI B4.1 standard would be applied to ensure compatibility.
JIS B0401: The Japanese Industrial Standard (JIS) B0401 defines the tolerances for linear and angular dimensions, as well as geometrical tolerances. It is widely used in CNC machining in Japan and other Asian countries, particularly in industries like electronics and robotics, where high precision is required for components such as micro-machined parts.
Surface Finish Standards: Surface finish is a critical aspect of CNC machining, affecting both the functionality and aesthetics of the final part. Commonly used surface finish standards include Ra (roughness average) and Rz (mean roughness depth), which specify the allowable deviations in surface texture. For instance, in injection molding, a smooth surface finish is essential for producing high-quality plastic parts with minimal friction and wear.
Tolerance Grades (IT Grades): Tolerance grades, also known as IT grades (International Tolerance grades), are used to specify the permissible deviation in part dimensions. These grades range from IT01 (very high precision) to IT18 (low precision). In CNC machining, IT grades are applied based on the part’s function and the required precision. For example, a part with tight diameter limitations would be manufactured to an IT5 or IT6 grade to ensure accurate fitting.
Material-Specific Standards: Different materials have unique machining characteristics, and standards have been developed to address these. For example, the ASTM standards for metals and alloys specify the acceptable tolerances and material properties for various metals used in CNC machining. This is particularly important when machining materials like titanium or aluminum, which require specific machining parameters to achieve the desired tolerances.

What Are the General Size Limitations of CNC Machined Parts?

These limitations are influenced by various factors, including the machine’s work envelope, the weight capacity of the machine table, and the accessibility of the tools to the part’s geometry. Here, we’ll explore the general size limitations in CNC machining, providing you with essential details for successful part design.

Maximum Part Size: The maximum size of a part that can be machined is largely determined by the machine’s work envelope. For example, a typical CNC milling machine might have a work envelope of 40 inches x 20 inches x 20 inches, which sets the upper limit for the part’s dimensions.
Minimum Feature Size: This depends on the precision and capability of the CNC machine and the cutting tools used. High-precision machines can produce features as small as 0.005 inches in diameter, making them suitable for intricate and detailed work.
Weight Capacity: The weight a CNC machine can handle is another limitation. Most machines have a table or fixture that can support up to several tons, but this varies depending on the machine’s design and application.
Geometry Constraints: The complexity of the part’s geometry can also impose limitations. If the tools cannot access certain areas, the part may need to be redesigned or produced using a different manufacturing method.

Maximum Part Size Determined by the Machine’s Work Envelope

The maximum size of a part that can be machined is constrained by the physical dimensions of the CNC machine’s work envelope. This includes the X, Y, and Z axes, which define the maximum length, width, and height the machine can accommodate.

For example, a CNC milling machine with a work envelope of 40 inches x 20 inches x 20 inches can machine parts up to 40 inches in length, 20 inches in width, and 20 inches in height.

Factors that influence the maximum part size include the type of CNC machine, whether it’s a 3-axis, 4-axis, or 5-axis machine, and the setup configuration. For instance, 5-axis machines have a more flexible work envelope because they can approach the part from multiple angles, allowing for machining of larger and more complex parts.

Additionally, the Z travel, or the vertical movement of the spindle, is crucial when machining tall parts. Machines with greater Z travel can handle parts with significant height, which is particularly important in industries like aerospace and automotive where large, complex components are common.

Minimum Feature Size Based on the Precision and Capability of the Machine

The minimum feature size in CNC machining is largely determined by the precision of the machine and the size of the cutting tools used.

High-precision CNC machines can achieve very fine tolerances, typically in the range of ±0.001 inches. This allows for the machining of intricate features such as small holes, fine threads, and detailed surface textures.

For example, in micro-machining applications, tools with diameters as small as 0.005 inches are used to create features with extremely small dimensions. These tools enable the production of parts with very fine details, which are essential in industries such as electronics and medical devices.

Maximum Weight Capacity of the Machine Table or Fixture

The weight capacity of the machine table or fixture directly affects the maximum part size that can be machined. For instance, a standard CNC machine might have a weight limit of 2,000 pounds, while more robust machines designed for heavy-duty applications can support weights of up to 10,000 pounds or more.

This capacity must be considered when designing large parts, especially those made from dense materials like steel or titanium.

In addition to the machine’s weight capacity, the distribution of weight across the table or fixture is also important. Uneven weight distribution can lead to inaccuracies during machining, which can affect the final quality of the part. Therefore, it is essential to ensure that the part is properly secured and balanced on the table to maintain precision throughout the machining process.

Limitations on Part Geometry Due to Tool Accessibility

Tool accessibility is a key factor in determining the feasibility of machining complex geometries. CNC machines rely on cutting tools to remove material, and these tools need to reach every part of the surface to perform their function. However, certain geometries, such as deep cavities, undercuts, or intricate internal features, may be challenging to machine due to limited tool access.

For example, a deep pocket with a small opening might be beyond the reach of standard milling tools. In such cases, specialized tooling or alternative machining techniques, like EDM (Electrical Discharge Machining), might be required.

Additionally, the size and shape of the cutting tool itself can impose limitations. Larger tools may not fit into tight spaces, while smaller tools, though capable of finer details, may be limited by their length and rigidity.

Restrictions on Material Thickness That Can Be Effectively Machined

For instance, while CNC machines can handle thick materials, there are practical limitations. For sheet metal, the effective range is typically between 0.020 inches and 0.250 inches. Thicker materials may require additional passes with the cutting tool, which can increase machining time and cost.

For materials like aluminum or titanium, the machining process can accommodate thicker sections, but the trade-off is often increased wear on the cutting tools and longer machining times. In contrast, thinner materials may present challenges in maintaining structural integrity during the machining process, requiring careful setup and fixturing to prevent deformation.

Minimum Wall Thickness That Can Be Reliably Produced

The minimum wall thickness that can be reliably produced is another crucial factor in CNC machining. Typically, walls as thin as 0.030 inches can be machined, though this varies with material and machine capability. For instance, softer materials like plastics can support thinner walls, while harder materials like steel may require thicker walls to prevent breakage during machining.

Thin walls are particularly challenging because they can flex or vibrate during the machining process, leading to inaccuracies. To combat this, machinists may use additional support structures or adjust the machining strategy to ensure the walls remain stable and within tolerance. The material’s properties also play a role, with metals like aluminum offering more flexibility in wall thickness compared to more brittle materials like glass-filled plastics.

Maximum Depth of Cavities That Tools Can Reach Without Interference

The maximum depth a tool can reach during CNC machining is largely dependent on the type of machine, the specific tooling used, and the material being machined. Generally, the depth is constrained by the length of the cutting tool, the rigidity of the setup, and the risk of tool deflection.

Tool Length and Rigidity: In CNC milling, the tool length plays a critical role in determining how deep a cavity can be machined. Longer tools can reach deeper into the material, but they are also more prone to deflection, which can lead to inaccuracies and poor surface finish. As a rule of thumb, the depth should not exceed 3 to 4 times the diameter of the tool. For example, a 0.25-inch diameter end mill would typically be limited to a depth of around 0.75 to 1 inch.
Machine Capabilities: The specific CNC machine also imposes limitations. Machines with more robust spindles and high-precision setups can handle deeper cuts, but even the most advanced machines have practical limits. For instance, many CNC machines can reliably machine cavities up to 4 to 6 inches deep, depending on the tool diameter and material.
Material Considerations: Harder materials like steel or titanium generally require shorter tool lengths to maintain precision, while softer materials like aluminum or plastics allow for deeper cuts. However, regardless of the material, increasing depth typically requires slower cutting speeds and more conservative passes to maintain tool integrity and part accuracy.
Cooling and Chip Evacuation: As depth increases, effective cooling and chip evacuation become more challenging. Without proper cooling, heat build-up can cause tool wear or material deformation, while poor chip evacuation can lead to clogging and surface damage. These factors further limit the practical depth of machining.

What Are the Size Limitations Specific to Each CNC Machining Process?

Understanding the size limitations of CNC machining processes is crucial for designing parts that meet both functional and manufacturability requirements. Each CNC machining process has its own set of constraints related to the size of the parts that can be produced. These limitations are dictated by factors such as the machine’s work envelope, tool access, and material properties. Below, we’ll break down the specific size limitations for various CNC machining processes, starting with CNC milling.

Size Limitations for CNC Milling

CNC milling is one of the most versatile machining processes, but it does have specific size constraints that must be considered during the design phase.

Minimum Size Parts: For CNC milling, the minimum part size is determined by the precision of the machine and the tools used. For example, at 3ERP, the minimum part size is approximately 4×4 mm (0.1×0.1 in). Parts smaller than this may not be reliably machined due to difficulties in securing the part and ensuring tool access without deflection.
Standard Size Parts: Standard size parts for CNC milling typically range within the machine’s work envelope, which varies depending on the machine configuration. Most standard CNC mills can handle parts with dimensions up to 1000×500×500 mm (39.4×19.7×19.7 in), though this can vary.
Maximum Size Parts: The maximum size part that can be milled is largely dependent on the machine’s work envelope. For example, at 3ERP, the maximum part size for CNC milling is 4000×1500×600 mm (157.5×59.1×23.6 in). Parts larger than this may require specialized equipment or be broken down into smaller sections for machining and later assembly.

Impact of Milling on Part Size Using Different CNC Configurations

The configuration of the CNC milling machine—whether it’s a 3-axis, 4-axis, or 5-axis mill—has a significant impact on the part size and complexity that can be achieved.

3-Axis CNC Milling: In 3-axis milling, the tool moves along the X, Y, and Z axes. This setup is ideal for simpler parts but is limited in accessing complex geometries. The maximum Z travel, or depth of cut, is typically around 600 mm (23.6 in), depending on the machine. The work envelope is also smaller compared to multi-axis machines, limiting the size of the part that can be machined.
4-Axis CNC Milling: A 4-axis mill adds rotational movement around the X-axis, allowing for more complex parts with features on multiple sides. This configuration expands the machine’s capabilities but still retains some of the size limitations of 3-axis machines, particularly in terms of tool reach and depth.
5-Axis CNC Milling: A 5-axis mill offers the greatest flexibility, with the ability to move the tool along the X, Y, and Z axes while rotating the part along two additional axes (A and B). This configuration allows for the machining of highly complex parts in a single setup, reducing the need for multiple fixtures and setups. The 5-axis configuration can handle larger and more complex parts, but tool access and clearance remain critical factors in determining the maximum size and depth that can be achieved.

Size Constraints in CNC Turning

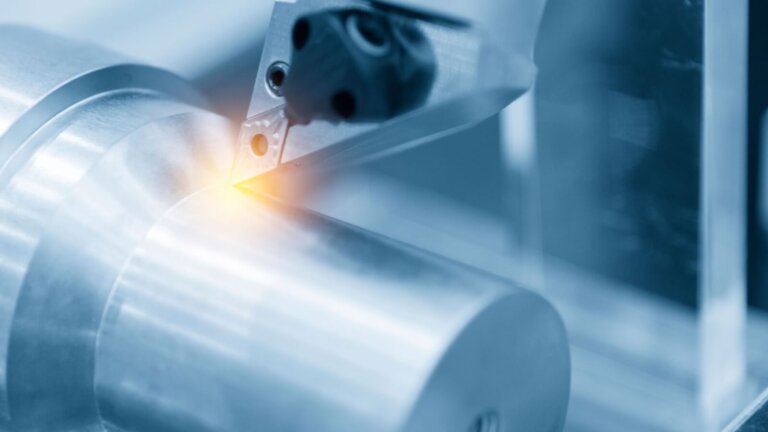

CNC turning, or lathe machining, is widely used for producing cylindrical parts with high precision. However, the size of the parts that can be machined on a CNC lathe is determined by several factors, including the machine’s distance between centers and the swing over bed:

Minimum Size Parts: For CNC turning, the minimum part size is limited by the precision of the lathe and the tools used. For example, at 3ERP, the minimum size for parts that can be effectively machined is approximately 2×2 mm (0.079×0.079 in). Parts smaller than this may not be feasible due to challenges in securing the workpiece and maintaining the necessary tolerances during machining.
Standard Size Parts: The standard size parts in CNC turning typically fall within a range that balances the machine’s capabilities and the need for precision. These parts usually vary based on the specific application but generally fit within the machine’s work envelope, which is defined by the distance between centers and the swing over bed. This range ensures that the parts can be securely held and machined without issues related to tool access or stability.
Maximum Size Parts: The maximum size of parts that can be machined on a CNC lathe is constrained by the machine’s physical dimensions. For example, at 3ERP, the maximum part size that can be handled is 200×500 mm (7.9×19.7 in). This limitation is influenced by the machine’s bed length and the swing over bed, which dictate the largest diameter and length that can be accommodated.

Distance Between Centers and Its Impact on Part Length

This distance refers to the maximum length between the headstock and tailstock that the machine can handle. For instance, a lathe with a distance between centers of 500 mm (19.7 in) can accommodate parts up to this length, assuming the part’s diameter does not exceed the swing over bed.

The distance between centers must be carefully considered during the design phase, especially for long parts, to ensure that the entire length of the part can be machined without requiring repositioning or special fixturing, which could introduce errors and increase production time.

Swing Over Bed and Its Effect on Part Diameter

The swing over bed refers to the maximum diameter of the workpiece that can rotate over the lathe bed without interference. This measurement is critical for determining the largest diameter that can be machined on a specific CNC lathe. For example, if the swing over bed is 200 mm (7.9 in), then the maximum diameter of the part that can be machined is slightly less than this, allowing for tool clearance and safe operation.

Understanding the swing over bed is vital for designing cylindrical parts that need to be turned on a CNC lathe. If the part diameter exceeds the swing over bed, it cannot be machined on that particular lathe, necessitating either a redesign or the use of a different machine with a larger capacity.

What Are the Specific Size Limitations for CNC Drilling?

CNC drilling is widely used for creating precise holes in a variety of materials. The size of the parts that can be effectively drilled depends on the capabilities of the CNC machine and the tooling used.

Minimum Size Parts: The minimum size for parts that can be drilled on a CNC machine is determined by the smallest drill bit that can be accurately positioned and controlled. Typically, the smallest drill size is around 0.5 mm in diameter, making it possible to machine very small holes in parts as tiny as 1 mm in thickness. However, working with such small parts requires careful attention to detail, as the risk of damaging the part or the drill bit is higher.
Standard Size Parts: Standard-sized parts for CNC drilling usually fall within a range that balances ease of handling with precision. These parts are often between 10 mm to 100 mm in thickness, allowing for a wide variety of hole sizes and depths to be drilled without compromising on accuracy. This range is commonly used in industries where multiple holes of varying diameters are required, such as in sheet metal fabrication or injection molding applications.
Maximum Size Parts: The maximum size parts that can be drilled are constrained by the machine’s work envelope and the length of the drill bit. For larger parts, the depth of the hole is often limited to about 10 times the diameter of the drill bit. For instance, a drill bit with a diameter of 10 mm can typically drill a hole up to 100 mm deep. Beyond this depth, the stability and accuracy of the drill bit can be compromised, leading to potential issues with hole alignment and surface finish.

Drilling Depth and Hole Diameter Limitations

The depth and diameter of holes that can be drilled on a CNC machine are interdependent. Larger diameter drill bits can typically drill deeper holes, but the depth is still limited by factors such as chip removal and tool rigidity. For example, a hole with a diameter of 20 mm can usually be drilled to a depth of 200 mm, but ensuring proper chip evacuation and cooling is critical to maintaining the quality of the hole.

Conversely, smaller diameter holes are often limited in depth to avoid breakage of the drill bit. For example, a 1 mm diameter hole may only be drilled to a depth of 10 mm. These limitations must be considered during the design phase to ensure that the parts can be manufactured without requiring special tooling or setups that could increase costs and lead times.

CNC Grinding: What Are the Part Size Limitations?

CNC grinding is used for achieving high precision and smooth surface finishes on parts, often following other machining processes. However, the size of the parts that can be ground is also subject to specific limitations.

Minimum Size Parts: The minimum size for parts in CNC grinding is largely determined by the ability to securely hold the part without causing deformation or vibration during the grinding process. Typically, parts as small as 5 mm in thickness can be ground, but achieving the desired surface finish and maintaining dimensional accuracy on such small parts can be challenging.
Standard Size Parts: Standard-sized parts for CNC grinding usually fall within a range that allows for stable clamping and consistent contact with the grinding wheel. Parts that are between 20 mm and 200 mm in size are commonly ground to achieve fine surface finishes and precise dimensions. This range is suitable for a variety of applications, from automotive components to aerospace parts.
Maximum Size Parts: The maximum size parts that can be ground are limited by the size of the grinding machine’s work envelope and the diameter of the grinding wheel. For instance, a CNC grinder may be able to handle parts up to 500 mm in diameter and 1000 mm in length. Larger parts may require specialized grinding equipment or multiple setups, which can increase production time and complexity

Electrical Discharge Machining (EDM): What Are the Part Size Limitations?

Electrical Discharge Machining (EDM) is used for creating complex shapes and fine details in hard materials, often where traditional machining methods would struggle.

Minimum Size Parts: In EDM, the minimum size parts that can be machined are typically around 0.1 mm in thickness. This allows for the creation of extremely fine features, making EDM ideal for precision applications like micro machining or intricate mold components.
Standard Size Parts: Standard parts for EDM generally range from 10 mm to 200 mm in size. This range is suitable for producing detailed components with complex geometries, such as those used in aerospace, medical devices, and high-precision molds.
Maximum Size Parts: The maximum size for parts that can be machined with EDM is constrained by the work envelope of the machine. Typically, parts up to 1000 mm in length and 500 mm in width can be machined, though larger parts may require multiple setups or specialized equipment. The depth of the cut is also limited by the length of the electrode, which can range up to 300 mm in some cases.

CNC Plasma Cutting: What Are the Part Size Limitations?

CNC plasma cutting is widely used for cutting through electrically conductive materials, such as steel, aluminum, and copper.

Minimum Size Parts: For CNC plasma cutting, the minimum size parts are generally around 1 mm in thickness. This allows for precise cuts in thin materials, making it suitable for applications where minimal material wastage is important.
Standard Size Parts: Standard-sized parts for CNC plasma cutting usually range from 2 mm to 25 mm in thickness. This range covers most industrial applications, including sheet metal fabrication and construction components, where precise cuts are needed for various shapes and sizes.
Maximum Size Parts: The maximum size for parts in CNC plasma cutting is primarily limited by the machine’s work envelope and the thickness of the material. Typically, parts up to 50 mm in thickness can be cut with high accuracy, though thicker materials may require multiple passes or adjustments to the cutting speed and power. The work envelope of the machine can accommodate parts up to 3000 mm in length and 1500 mm in width.

How to Address Size Limitations Through Advanced CNC Techniques?

CNC machining has transformed manufacturing by offering high precision and versatility.

However, traditional CNC processes have inherent size limitations that can hinder the production of larger or more complex parts.

This is where advanced techniques, such as 5-axis machining, come into play.

Utilizing 5-Axis Machining to Extend Size Capabilities

5-axis machining is a significant advancement in CNC technology, addressing many of the size limitations faced in traditional 3-axis or 4-axis machining. By allowing the cutting tool to move along five different axes, this method provides greater flexibility and precision, enabling you to machine more complex parts and larger dimensions without the need for multiple setups.

Enhanced Reach and Accessibility: One of the primary benefits of 5-axis machining is its ability to reach areas of a part that are difficult or impossible to access with 3-axis machines. This increased accessibility reduces the need for repositioning the part, which in turn minimizes errors and improves surface finish. For example, when machining deep cavities or complex geometries, 5-axis machines can approach the part from different angles, ensuring that every area is machined accurately and efficiently.
Handling Larger Parts: Traditional CNC machines are often limited by their work envelope—the maximum size of the part they can handle. However, 5-axis machines can mitigate some of these limitations. By allowing the part to be rotated and tilted during machining, these machines can handle larger components within a given work envelope. This flexibility is particularly beneficial in industries like aerospace and automotive, where large, complex parts are common.
Reduction of Setup Time and Costs: Another advantage of 5-axis machining is the reduction in setup time. With traditional CNC machining, producing a complex part may require multiple setups and fixtures, each introducing potential errors and increasing production time. 5-axis machining, by contrast, allows the part to be completed in a single setup, reducing the overall time and cost associated with the production process.
Improved Surface Finish and Precision: The ability to approach the part from different angles also enhances the surface finish and precision of the final product. By reducing the need for tool changes and minimizing the number of setups, 5-axis machining can produce smoother surfaces and more accurate dimensions, particularly in parts with intricate designs or tight tolerances.

What are the Most Common Design Issues Related to Size and How to Avoid Them?

When working within CNC machining size limitations, certain design issues frequently arise. These challenges, if not addressed, can lead to inefficiencies, higher costs, or even failed parts. Below are some common design issues related to size and practical tips on how to avoid them:

Cavities and Pockets: Deep cavities or pockets are difficult to machine, especially when they exceed the tool’s length. This can lead to issues with tool deflection, poor surface finish, and increased machining time.
Tool Access: Inadequate tool access to intricate areas of the part can result in incomplete machining or necessitate multiple setups, adding to production time and cost.
Thin Walls: Designing with thin walls can cause parts to become unstable during machining, leading to warping or breakage.
Part Size Exceeding Work Envelope: When a part is too large for the machine’s work envelope, it may require repositioning, which can introduce errors and inconsistencies.

What Are Best Practices for Designing Parts Within CNC Size Limitations?

When designing parts that need to fit within the size limitations of CNC machining, adhering to certain best practices can significantly enhance the manufacturability and quality of the final product. Here are some design tips to consider:

Optimize for Tool Access: Ensure that all areas of the part are accessible to the cutting tool. Consider the tool’s reach and clearance when designing intricate features.
Consider Tolerances Early: Define tolerances that are realistic for the machine’s capabilities. Overly tight tolerances can increase production time and costs.
Limit Deep Cavities: Avoid deep cavities that require long tools, as these can lead to deflection and poor surface finishes. If deep features are necessary, consider breaking them into multiple steps or using different machining strategies.
Use Standard Sizes: Design parts using standard sizes for stock material and tools whenever possible. This reduces material waste and tool wear.
Account for Part Stability: Design parts with adequate thickness and support features to maintain stability during machining, especially for larger or more complex components.

How to Handle Design Challenges with Thin Walls, Holes, and Threads?

Designing parts with thin walls, holes, and threads within the constraints of CNC machining can be challenging. These features often require special consideration to ensure they can be machined accurately and without compromising the part’s integrity. Here are some techniques to optimize designs for these elements:

Thin Walls:
- Minimum Thickness: Maintain a minimum wall thickness of 0.8-1.0 mm to prevent warping and ensure structural integrity.
- Support Structures: Add support structures or ribs to thin walls to enhance stability during machining.
- Material Selection: Choose materials with good machinability that can withstand the forces involved in CNC machining without deforming.
Holes:
- Drilling Depth: Limit hole depth to 3-4 times the diameter of the hole to maintain accuracy and prevent tool breakage.
- Hole Size: Standardize hole sizes to match available drill bit sizes, reducing the need for custom tooling.
- Spacing: Ensure adequate spacing between holes and edges to prevent weakening the part.
Threads:
- Thread Depth: Keep thread depth within a reasonable range (typically 1.5-2 times the diameter) to balance strength and machinability.
- Standard Threads: Use standard thread sizes to simplify tooling and ensure compatibility with existing components.
- Helical Inserts: For parts requiring strong threads in weaker materials, consider using helical inserts to improve durability.

How CNC Machined Part Size Influences Cost Efficiency

Understanding the relationship between part size and cost implications is essential for optimizing both the manufacturing process and the final product. Let’s explore how different factors such as material wastage, machining time, and machine capabilities contribute to the cost efficiency of machining large versus small parts.

Material Wastage: Material usage is one of the primary cost drivers in CNC machining. Larger parts typically require more raw material, which can lead to higher initial costs. However, the amount of material that ends up as waste during the machining process can also vary significantly depending on part size.

Large Parts: While large parts use more material, they may also generate more waste, especially if the design is complex or if there are large cavities or pockets. This waste contributes to higher overall material costs.
Small Parts: Smaller parts generally use less material, but they can also result in higher relative waste if the material removal process is inefficient. For example, intricate designs that require fine cutting tools may produce more scrap relative to the part’s size.

Machining Time: The time required to machine a part is directly linked to its size, complexity, and the capabilities of the CNC machines used. Machining time is a critical factor in determining cost efficiency.

Large Parts: Machining large parts often requires more time due to the extensive material removal and the need for multiple setups. The larger the part, the more time-consuming the process, especially when tight tolerances are required.
Small Parts: Small parts can be machined more quickly, but they may require precise tools and settings, which can still lead to longer machining times. Additionally, small parts with complex geometries may need slower cutting speeds to maintain accuracy, further increasing production time.

Machine Capabilities and Work Envelopes: The capabilities of CNC machines, including their work envelopes, directly impact the cost of machining parts of different sizes. The work envelope of a CNC machine defines the maximum size of the part that can be machined in a single setup.

Large Parts: Large parts may exceed the work envelope of standard CNC machines, requiring multiple setups or even different machines to complete the process. This not only increases machining time but also introduces the risk of errors during part repositioning.
Small Parts: Small parts can be machined efficiently within most CNC machines’ work envelopes. However, if the part size is too small, it may require specialized micro-machining tools, which can be expensive and time-consuming to operate.

Conclusion

Knowing the size limitations in CNC machining is essential for ensuring that your projects are both feasible and efficient. While it’s true that CNC machining is a powerful technology, but even its small and large scale parts have some limitations that might impact manufacturing outcomes.

So, to ensure a successful manufacturing operation, you need to understand the constraints imposed by the machining process and create a balance between CNC machining capabilities and size limitations.
