CNC Machining Glossary

CNC machining, or Computer Numerical Control machining, is a game-changer in modern manufacturing. It takes raw materials and transforms them into precise, high-quality parts with incredible accuracy and efficiency. Regardless of what part you are building, CNC technology helps you get the job done faster and better.

CNC machining uses programmed instructions to control tools across the X, Y, and Z axes. This means less trial-and-error, less waste, and more consistent results.

To really take advantage of what CNC can do, it’s important to know the key terms and concepts. In this article, we’ll break them down for you.

CNC Machining Glossary

The CNC machining glossary is designed to provide clear and concise definitions of the key terms used in this industry. It’s your go-to reference for everything from machine components to machining processes.

CNC Machines and Types

This section defines key types of CNC machines and their uses, providing an overview of the technology shaping modern manufacturing.

• 4th Axis: An additional rotational axis on a CNC machine that allows for machining more complex geometries by rotating the workpiece along its axis. It complements the primary X, Y, and Z axes.
• Automatic Grinding Center: A fully automated machine designed for precision grinding tasks, often used for finishing processes that require high accuracy and smooth surfaces.
• Band Saw: A cutting machine that uses a continuous looped blade to make straight or curved cuts in a variety of materials, including metals and wood.
• Bench Grinder: A stationary tool equipped with abrasive wheels, used for sharpening cutting tools or grinding workpieces to achieve a desired finish.
• Bench Lathe: A compact, table-mounted lathe ideal for small-scale machining operations and creating prototypes.
• CNC (Computer Numerical Control): A method of automating the control of machining tools through software programs. CNC allows precise and consistent operation of cutting, drilling, and milling processes.
• CNC Lathe: A CNC machine designed for turning operations, where a rotating workpiece is shaped using stationary cutting tools. Ideal for creating cylindrical parts.
• CNC Machining: The process of removing material from a workpiece using computer-controlled tools. This technique ensures accuracy, repeatability, and efficiency in manufacturing.
• CNC Milling Machine: A versatile CNC machine that uses rotary cutters to remove material, ideal for creating complex shapes, contours, and surfaces.
• CNC Processes: The collective term for all machining operations carried out using CNC machines, such as milling, turning, and grinding.
• CNC Router: A machine optimized for cutting and shaping softer materials like wood, plastics, and composites. Frequently used in signage, furniture, and model-making.
• CNC Technology: The hardware, software, and systems that power CNC machines, enabling automation and high-precision manufacturing.
• Coordinate Measuring Machine (CMM): A precision instrument that measures the geometry of a part using probes. CMMs are essential for quality control and ensuring dimensional accuracy.
• Drill Press: A machine tool for drilling precise and uniformly deep holes in various materials, commonly used in manufacturing and assembly lines.
• EDM (Electrical Discharge Machine): A specialized machine that removes material by generating controlled electrical discharges, ideal for machining hard metals or intricate designs.
• Lathe: A machine tool that rotates a workpiece while a cutting tool is applied to shape it. Lathes are commonly used to produce cylindrical components.
• Machining Center: A versatile CNC machine capable of performing multiple operations like milling, drilling, and tapping in a single setup.
• Machine Tool: A mechanical device used for shaping or machining metal or other materials. Examples include lathes, milling machines, and grinders.
• Milling Machine: A machine that uses rotary cutters to remove material from a workpiece, shaping it into precise forms. Milling machines are critical in creating intricate designs and surfaces.
• Mill: Another term for a milling machine, often used in informal or industry-specific contexts.
• Multi-Slide CNC Screw Machines: CNC machines designed for high-speed, high-precision production of small, complex parts like screws and pins.
• Precision Machining: The practice of machining parts with exceptionally tight tolerances, often required in aerospace, medical, and automotive industries.
• Router: A woodworking tool used for hollowing out areas in a material’s surface. CNC routers automate this process for higher precision and efficiency.
• Screw Machine: A type of lathe optimized for producing small, cylindrical parts in high volumes with consistent accuracy.
• Slotter: A machine used to cut vertical slots or grooves into a workpiece, often employed in creating keyways or other specific profiles.
• Swiss Machining: A CNC process used to create small, intricate parts with extreme precision. Commonly used in the watchmaking and medical device industries.
• Turning Center: A type of CNC lathe that performs advanced turning operations, often incorporating milling capabilities for greater versatility.
• Universal Grinder: A grinding machine capable of performing multiple functions, from surface grinding to cylindrical grinding, with high precision.
• Vertical Machining Center: A CNC milling machine with a vertically oriented spindle. These machines are versatile and widely used for machining parts of various sizes and complexities.
• Vertical Turning Center: A CNC machine similar to a lathe, designed for turning operations with a vertical spindle orientation. Ideal for heavy or large-diameter workpieces.
• Work Envelope: The maximum three-dimensional space within which a CNC machine can operate. It is determined by the range of movement along the X, Y, and Z axes.

Machine Components and Parts

This section explores the critical components and parts of CNC machines. Each definition provides insights into the function and significance of these elements within the CNC machining process.

• Acme Thread: A trapezoidal screw thread design commonly used in lead screws of CNC machines. Its robust structure ensures efficient transmission of motion while resisting wear and backlash.
• Adapter: A device that connects different machine components, ensuring compatibility between tools or parts with varying specifications.
• Anti-backlash Nut: A precision nut used to reduce backlash in lead screw systems, enhancing accuracy and maintaining consistent positioning during machining operations.
• Apron: The front section of a lathe that houses controls and mechanisms for tool movement, ensuring smooth and precise operation.
• Arbor: A shaft used to securely mount cutting tools or grinding wheels, critical for maintaining stability during high-speed machining.
• Ball Screw: A high-precision mechanical component that converts rotational motion into linear motion, reducing friction and increasing efficiency in CNC machines.
• Bearing: A component that reduces friction between moving parts, enabling smooth rotational or linear motion essential for CNC operations.
• Bed: The base frame of a CNC machine, providing structural support and ensuring alignment for other components.
• Bevel Gear: A type of gear with angled teeth, used for transferring motion between non-parallel axes, often found in complex CNC assemblies.
• Bolt: A threaded fastener used to secure components together, ensuring the stability and reliability of machine assemblies.
• Bull Gear: A large gear that transfers power to smaller gears in a CNC machine, crucial for driving the main spindle.
• Bushing: A cylindrical lining that minimizes friction between two components, enhancing the lifespan and performance of moving parts.
• Carriage: The movable part of a lathe that holds and guides the cutting tool, ensuring precision during machining.
• Cathead: A device used to support and stabilize long workpieces in a lathe, preventing deflection during operations.
• Center: A fixed or rotating support point in a lathe or CNC machine, ensuring accurate alignment of the workpiece.
• Center, Live: A rotating center that supports the workpiece while reducing friction, often used in high-speed turning operations.
• Chuck: A clamping device that securely holds a workpiece or cutting tool in place, ensuring stability during machining.
• Cross Feed: The motion of a cutting tool perpendicular to the workpiece’s axis, enabling precise adjustments during machining.
• Dovetail: A joint or slide design with interlocking features, used in CNC machines for precision alignment of moving components.
• Fulcrum: A pivot point that supports mechanical leverage, essential for maintaining stability and balance in CNC assemblies.
• Gear Blank: A pre-machined piece of material that will be cut into a finished gear, typically used in high-precision applications.
• Handwheel: A manual control wheel that adjusts the position of machine axes, providing fine control for setup and calibration.
• Headstock: The section of a lathe or turning center that houses the spindle, gears, and drive mechanisms for rotating the workpiece.
• Idler: A gear or pulley that redirects motion or tension in a mechanical system, used for maintaining alignment and stability.
• Jarno: A standardized taper used in machine spindles and tooling, ensuring compatibility and precision in tool holding.
• Knee: The vertical support structure on a milling machine that holds the worktable, allowing for height adjustments during machining.
• Lead Screw: A threaded shaft responsible for precise linear motion in CNC machines, critical for accurate axis positioning.
• Live Tooling: Tooling on CNC lathes that rotates independently, allowing for milling, drilling, and other operations on turning centers.
• Mandrel: A shaft or rod used to hold workpieces during machining or inspection, ensuring concentricity and stability.
• Quill: The movable sleeve that houses the spindle or tool, allowing for controlled vertical movement during drilling or milling.
• Rack: A linear gear used in conjunction with a pinion gear to provide precise linear motion, often found in CNC drive systems.
• Set Screw: A small screw used to secure components, such as gears or pulleys, onto a shaft, preventing slippage during operation.
• Shank: The part of a cutting tool or drill bit that fits into a chuck or tool holder, providing a secure connection during machining.
• Shims: Thin, flat pieces of material used to adjust spacing or alignment between components, ensuring precision.
• Shoulder: The stepped edge on a workpiece or component, often used as a reference point for machining or assembly.
• Spindle: The rotating axis of a CNC machine that drives the cutting tool or workpiece, critical for maintaining precision and speed.
• Spur Gear: A gear with straight teeth that transmits motion between parallel shafts, commonly used in CNC drive systems.
• Standoff: A spacer that creates a gap between components, often used in fixtures and assemblies for clearance or alignment.
• Tailstock: The movable component of a lathe that supports the free end of the workpiece, ensuring alignment and stability.
• Tang: A flat end on a drill bit or tool shank, used for securing the tool in a chuck or spindle.
• Tool Changer: An automated system in CNC machines that switches cutting tools during machining, improving efficiency and reducing downtime.
• Tool Turret: A rotating tool holder that allows multiple tools to be accessed quickly, enhancing the flexibility of CNC lathes.
• Tumbler Gears: A set of gears that reverses the direction of rotation in a machine’s lead screw, often used for threading operations.
• Ways: The linear tracks or guides that support and align the moving components of a CNC machine, ensuring smooth and precise motion.

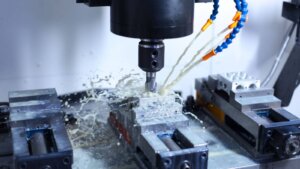

Cutting Tools and Tooling

Cutting tools and tooling are at the heart of CNC machining, enabling precision and efficiency in shaping materials. Below is a glossary of commonly used cutting tools and their related terms, each defined to enhance your understanding of their roles and applications.

• Abrasion Wheels: Grinding wheels made from abrasive materials, used for removing surface imperfections, smoothing edges, or preparing materials for further machining processes.
• Ball End (Ball Nose): A cutting tool with a rounded tip, ideal for creating smooth curves, contours, and 3D shapes. Often used in CNC milling for surface finishing.
• Bit/Tool: General terms for the cutting, drilling, or milling instruments used in CNC machines to shape or remove material.
• Box Tool: A tool used in turning operations, providing support and guiding the cutting tool to maintain stability during machining.
• Broach: A toothed cutting tool used to remove material and create precise internal or external profiles, such as keyways or splines.
• Carbide Tool Bits: Cutting tools made from carbide, a durable material known for maintaining sharp edges under high temperatures and speeds.
• Center Drill: A short, sturdy drill bit used to create a pilot hole, ensuring accuracy for subsequent drilling or machining operations.
• Center Punch: A tool used to mark the center of a workpiece, guiding drill bits to maintain accuracy.
• Ceramic Cutter: A cutting tool made from ceramic materials, ideal for high-speed machining of hard materials due to its heat resistance and durability.
• Chamfer: A beveled edge on a workpiece created to remove sharp edges or prepare parts for assembly.
• Compression Bit: A specialized bit designed to minimize tear-out on laminated materials by cutting from both the top and bottom.
• Corncob Bits: End mills with a serrated edge, used for roughing operations to remove large amounts of material quickly.
• Cutting Tool: Any tool used in CNC machining to remove material from a workpiece, including drills, end mills, and inserts.
• Die: A tool used in shaping, forming, or cutting materials into specific shapes, often employed in mass production.
• Drag Knife: A blade used in CNC machines for cutting soft materials like vinyl or cardboard, pivoting to follow the machine’s path.
• Drill: A cutting tool designed to create cylindrical holes in a workpiece. Drills come in various sizes and materials for different applications.
• Drill Bushing: A cylindrical guide that ensures accurate drilling by aligning the drill bit with the workpiece.
• Drill Rod: A high-strength steel rod used as raw material for creating tools like drills or taps.
• Drill Sleeve: A cylindrical adapter used to fit drill bits of varying shank sizes into a chuck or spindle.
• End Mill: A versatile cutting tool used in CNC milling machines, capable of side and bottom cutting for creating complex shapes and slots.
• Flute: The spiral grooves on a cutting tool that allow chips to escape and reduce friction during cutting.
• Flute Length: The length of the spiral groove on a cutting tool, determining its cutting depth capacity.
• Form Bit: A cutting tool designed to create a specific shape or profile on a workpiece in a single pass.
• Inserts: Replaceable cutting edges mounted on tool holders, providing flexibility and cost-efficiency in machining operations.
• Jacobs Chuck: A common type of chuck used to hold drill bits securely in a drill press or CNC machine.
• Knurl: A pattern of ridges or grooves machined onto a workpiece to provide a textured surface for grip or decorative purposes.
• Milling Cutter: A rotary tool used in CNC milling to remove material and create complex geometries on a workpiece.
• Pilot: A smaller diameter drill used to create an initial hole, guiding larger drills or cutting tools for precise machining.
• Reamer: A precision tool used to enlarge and finish existing holes to achieve a specific diameter and smooth surface.
• Rake: The angle of a cutting tool’s edge, influencing the efficiency and quality of the cut.
• Shank: The part of a cutting tool that fits into the tool holder or chuck, ensuring stability during machining.
• Side Cutter: A milling cutter designed for cutting along the sides of a workpiece, useful for slotting or contouring.
• Slabbing Cutter: A wide cutting tool used for rough machining, removing large volumes of material quickly.
• Slotter: A cutting tool used to create slots or grooves in a workpiece, typically in vertical machining applications.
• Surfacing Bit: A large cutting tool used to flatten and smooth the surface of a material, often in preparation for additional machining.
• Tap: A tool used to cut internal threads in a hole, enabling screws or bolts to be fastened securely.
• Thread Mill: A cutting tool used to create threads on a workpiece, offering precision and flexibility for varying thread sizes.
• Tool: A broad term for any device or instrument used in CNC machining to shape or modify a workpiece.
• Toolholders: Devices used to secure cutting tools in a CNC machine, ensuring alignment and stability during operations.
• Up Cut Bit: A cutting tool designed to pull chips upward, improving material removal while minimizing heat buildup.
• V-Bit: A cutting tool with a V-shaped tip, commonly used for engraving, chamfering, or creating decorative edges.

Machining Operations and Processes

Machining operations and processes are fundamental to CNC machining, enabling the transformation of raw materials into finished components. Below, you’ll find definitions of key terms used in machining, providing clarity on their roles and significance in manufacturing.

• Adaptive Machining: A process where CNC machines adjust tool paths dynamically based on real-time measurements, ensuring precision even when there are material or setup variations.
• Boring: A machining operation that enlarges and finishes an existing hole, often using a single-point cutting tool for high precision.
• Burnishing: A finishing process that improves surface finish and hardness by deforming the material’s surface without removing it.
• Centerless Grinding: A grinding process where the workpiece is supported by a blade and rotates between a grinding wheel and a regulating wheel, eliminating the need for centers or chucks.
• Climb Milling: A CNC milling technique where the cutting tool moves in the same direction as the workpiece feed, reducing heat generation and improving surface finish.
• Conventional Milling: A milling approach where the cutting tool moves against the direction of the workpiece feed, providing better control but potentially increasing heat.
• Counterbore: A machining process that enlarges a portion of a hole to allow bolt heads or fasteners to sit flush with or below the surface.
• Countersink: A process that creates a conical hole at the opening of a drilled hole, typically for accommodating flat-head screws.
• Deburring: The process of removing sharp edges or material remnants (burrs) from a workpiece after machining, improving safety and fit.
• Drilling: The creation of cylindrical holes in a workpiece using a rotating drill bit. Drilling is one of the most common CNC machining operations.
• Finishing Pass: The final machining operation that achieves the desired surface finish and tight tolerances on a workpiece.
• Grinding: A machining process that removes material using an abrasive wheel, providing high precision and excellent surface finishes.
• Gun Drilling: A specialized drilling technique for creating deep, narrow holes with precision, often used in aerospace and automotive applications.
• Hardening: A heat treatment process that increases the hardness of metal, improving its wear resistance and durability.
• Heat Treating: A process involving controlled heating and cooling of metals to alter their physical and mechanical properties.
• Honing: A precision machining process used to improve the geometric accuracy and surface finish of holes or cylindrical surfaces.
• Knurl: A process that creates textured patterns on a workpiece, often for grip or aesthetic purposes, using a knurling tool.
• Lapping: A fine abrasive process used to achieve high precision and smooth surface finishes, typically on flat or cylindrical surfaces.
• Milling: A machining process where rotating cutters remove material from a workpiece, allowing for complex shapes and contours.
• Plunge: A machining technique where the cutting tool moves directly into the material, often used for slotting or pocketing.
• Polishing: A finishing process that uses abrasives to create a smooth and reflective surface on a workpiece.
• Quench: A step in heat treating where the material is rapidly cooled to lock in specific mechanical properties, such as hardness.
• Reaming: A precision machining process that enlarges and finishes an existing hole to achieve a specific size and smooth surface.
• Recutting: The process of re-machining a part to correct defects or achieve additional features.
• Roughing: A machining operation that removes large amounts of material quickly, preparing the workpiece for finer finishing passes.
• Roughing Pass: The initial machining pass that focuses on removing excess material efficiently, without concern for surface finish.
• Sandblasting: A process that uses a stream of abrasive material to clean or texture a surface, often used for preparation before coating.
• Spot Facing: A machining operation that creates a flat surface around a hole, ensuring that bolts or fasteners sit evenly.
• Surface Grinding: A grinding process that produces a smooth and precise surface on flat or contoured parts.
• Surfacing: A machining operation that flattens or smooths a surface, often a preparatory step for further machining.
• Tapping: A machining process that cuts internal threads into a pre-drilled hole, allowing screws or bolts to secure components.
• Threading: The process of creating external or internal helical grooves (threads) on a workpiece for fasteners or connections.
• Thread Relief: A groove machined at the end of a threaded section to allow full thread engagement without interference.
• Truing: The process of reshaping a grinding wheel or other tool to ensure it is concentric and balanced for precise machining.
• Trochoidal Milling: An advanced milling strategy that uses a circular tool path for efficient material removal while minimizing tool wear.
• Turning: A machining operation performed on a lathe, where the workpiece rotates while the cutting tool removes material to shape it.
• Undercut: A machining feature where material is removed below the surface level, often used for clearance or design purposes.

Materials and Metallurgy

Materials and metallurgy form the foundation of CNC machining, influencing machinability, precision, and performance. Below, we define critical terms related to materials and their processing, focusing on their roles in CNC operations.

• Alloy: A material composed of two or more metals, or a combination of metal and non-metal elements, engineered to achieve specific properties such as strength, corrosion resistance, or machinability.
• Allowance: The intentional deviation from a component’s nominal dimensions to account for machining, assembly, or finishing processes, ensuring proper fit and function.
• Aluminum: A lightweight, corrosion-resistant metal widely used in CNC machining for its excellent machinability and thermal conductivity, making it ideal for aerospace and automotive applications.
• Bar Stock: Pre-formed raw material, typically cylindrical or rectangular, used as the starting point for machining various components.
• Brass: An alloy of copper and zinc, known for its corrosion resistance and ease of machining, making it suitable for fittings, valves, and decorative components.
• Carbon Steel: A strong and versatile material composed primarily of iron and carbon, used extensively in structural applications and CNC-machined parts.
• Carburizing: A heat treatment process that adds carbon to the surface of low-carbon steel, enhancing its hardness and wear resistance.
• Case Hardening: A surface-hardening process that increases the wear resistance of metals while maintaining a softer, more ductile core for durability.
• Cold Rolled Steel: Steel processed at room temperature to improve its surface finish, dimensional accuracy, and mechanical properties, making it ideal for precision machining.
• Crucible Steel: High-quality steel melted in a crucible to achieve uniform composition, often used for cutting tools and high-performance components.
• Cyaniding: A surface hardening process that involves adding carbon and nitrogen to the surface of a steel component, enhancing wear resistance and surface strength.
• Ferrous: A term referring to metals containing iron, such as steel and cast iron, known for their magnetic properties and strength.
• High-Speed Steel: A tool steel alloyed with elements like tungsten, molybdenum, and chromium, designed for high-temperature cutting and wear resistance.
• Hot-Rolled Steel: Steel formed at elevated temperatures, resulting in lower strength but improved ductility, commonly used for structural and industrial applications.
• Machinability: A measure of how easily a material can be machined, influenced by its composition, hardness, and thermal properties.
• Materials: The substances, including metals, alloys, and composites, used in CNC machining to create parts and products.
• Nitriding: A heat treatment process that introduces nitrogen into the surface of steel, enhancing hardness and corrosion resistance without quenching.
• Nonferrous: Metals that do not contain iron, such as aluminum, copper, and brass, known for their lightweight and corrosion-resistant properties.
• Normalizing: A heat treatment process that refines a metal’s grain structure, improving toughness and uniformity by cooling the material in air.
• Oil Hardening: A heat treatment process where a metal is heated and then cooled rapidly in oil to increase its hardness and strength.
• Porosity: The presence of voids or pores within a material, which can affect its strength, machinability, and surface finish.
• SAE Steel: Steel grades standardized by the Society of Automotive Engineers (SAE), commonly used in manufacturing for their predictable properties.
• Steel: An iron-carbon alloy known for its strength, durability, and versatility, making it one of the most commonly used materials in CNC machining.
• Stock: The raw material used as the starting point in machining, typically in the form of bars, sheets, or billets.
• Temper: A heat treatment process that reduces brittleness and increases toughness in metals by controlled cooling after heating.
• Tempering: A secondary heat treatment process applied to hardened steel to relieve internal stresses and achieve a balance of hardness and toughness.
• Titanium: A lightweight, high-strength, and corrosion-resistant metal used in aerospace, medical, and high-performance CNC-machined components.
• Tool Steel: A group of carbon and alloy steels known for their hardness, wear resistance, and ability to hold a sharp edge, ideal for making cutting tools.
• Work Hardening: The process of strengthening a metal through plastic deformation, often seen in machining operations like bending and cold working.

Measurement and Inspection

This section introduces you to the world of measurement tools and techniques that make sure every angle, surface, and thread meets exact specifications. Whether you’re evaluating the depth of a cut or the smoothness of a finish, these terms reveal the meticulous side of machining.

• Acute Angle: An angle less than 90 degrees, essential in machining for creating sharp edges or specific geometric features in a workpiece.
• Block, Jo (Jo Block): Precision ground steel blocks used for calibration, these ensure tools and measurements are perfectly aligned to industry standards.
• Brinell Hardness: A measure of material hardness obtained by pressing a steel or tungsten carbide ball into the material under test.
• Caliper: A versatile measuring tool for determining dimensions such as the diameter, thickness, or depth of a component, often with digital precision.
• Center Gage: A small, triangular tool used to check the angles of cutting tool tips, particularly for threading operations.
• Center Head: Part of a combination square set, it helps locate the center of cylindrical workpieces.
• Concentric: Describes circles or shapes that share a common center point, crucial in machining for ensuring alignment in rotating components.
• Cross Section: A cut or slice through a workpiece, exposing internal features and dimensions for inspection or design verification.
• Datum: A reference point, line, or surface from which measurements are taken, serving as a foundation for dimensional accuracy.
• Depth Gage: A precision tool used to measure the depth of holes, grooves, or other recessed features in a workpiece.
• Diameter: The straight-line measurement across a circle or cylindrical object, fundamental for evaluating parts like shafts and holes.
• Edge Finder: A tool used to locate the edges of a workpiece in CNC machining, establishing the starting point for precise toolpaths.
• Gauge: A broad term for tools used to measure dimensions, angles, or surface properties, ensuring quality control.
• Helix Angle: The angle formed between the helix of a thread or flute and the axis of the tool or part, crucial in cutting tool design.
• Indicator: A sensitive instrument that detects and measures small deviations in height, alignment, or positioning of a workpiece.
• Kerf: The width of material removed by a cutting tool, such as a saw blade, impacting fit and tolerance.
• Pitch: The distance between corresponding points on adjacent threads, defining the coarseness or fineness of a screw.
• Pitch Diameter: The diameter at which threads on a screw or bolt are at their theoretical midpoint, critical for mating parts.
• Profilometer: A device that measures surface roughness and texture, ensuring that parts meet specific finish requirements.
• Pyrometer: A tool used to measure high temperatures during processes like heat treating, ensuring proper material properties.
• Rockwell Scale: A hardness scale that measures the resistance of a material to penetration, commonly used in material testing.
• Scale: A graduated tool or feature for measuring or marking distances, often integrated into machining instruments.
• Sine Bar: A precision tool used in conjunction with gauge blocks to measure or set angles with high accuracy.
• Surface Finish: The texture or smoothness of a part’s surface, measured to ensure it meets functional or aesthetic requirements.
• Surface Plate: A flat, stable reference surface used in inspection for measuring and aligning components.
• Taper: A gradual decrease in diameter along the length of a part, commonly found in tools like end mills or shafts.
• Tenth: A machinist’s shorthand for 0.0001 inches, reflecting the ultra-fine precision often required in CNC machining.
• Thread Gauge: A tool used to measure the pitch or angle of threads, ensuring compatibility between mating parts.
• Tolerance: The permissible deviation from a specified dimension, balancing precision and manufacturability.
• Touch-Off Plate: A tool used to establish the exact position of a cutting tool relative to a workpiece, ensuring accurate depth of cut.

Software and Programming

Software and programming transform ideas into precise machine movements, guiding cutting tools along paths as intricate as the most detailed CAD design. Whether you’re defining contours or creating toolpaths, understanding these terms gives you the power to bring your designs to life.

• Bezier: A mathematical curve widely used in CAD programs for smooth, scalable designs. Bezier curves enable intricate shapes that can be translated into toolpaths for CNC machining.
• CAD: Short for Computer-Aided Design, CAD software allows you to create detailed 2D and 3D models, forming the blueprint for CNC operations.
• CAD Drawing: A precise digital illustration created in CAD software, often containing dimensions and design elements for manufacturing processes.
• CAM: Computer-Aided Manufacturing software generates toolpaths and machine instructions, ensuring CNC machines perform operations like milling and cutting with exact specifications.
• Closed Vector: A continuous loop in a design, essential for defining areas like pockets or profiles in CNC machining.
• Computer-Aided Design (CAD): Software that turns conceptual designs into detailed digital models, forming the foundation for CNC machining processes.
• Computer-Aided Manufacturing (CAM): A tool for converting CAD designs into machine-readable instructions like G-code, optimizing tool movements for efficiency and precision.
• Contour: A curved or linear path defined in software, guiding cutting tools along the edges of a workpiece for precise machining.
• Digitizer: A device that converts physical measurements or shapes into digital data for use in CAD and CAM programs.
• G-Code: The language of CNC machining, comprising commands that control movements, speeds, and functions of machine tools.
• Grbl: An open-source CNC motion control firmware used to interpret G-code and communicate with CNC machines.
• Iges File: A file format for transferring 2D and 3D design data between different CAD programs and CNC systems.
• Open Vector: A line or curve that does not form a closed loop, often used in engraving or line-cutting operations.
• Pocket Cut: A machining operation that removes material from within a closed vector to create recessed areas.
• Pocket Toolpath: The programmed route a cutting tool follows to remove material from a pocket, considering factors like feed rate and depth of cut.
• Post Processor: Software that translates CAM-generated toolpaths into G-code specific to a CNC machine’s configuration.
• Profile/Contour Cut: A machining process where the cutting tool follows the outline of a design, typically to shape or separate material.
• Profile Toolpath: The planned path for a cutting tool to follow when executing profile cuts on a workpiece.
• Programming: The act of creating G-code or other machine instructions to define every action of a CNC machine during an operation.
• Restore Point: A saved state in software that allows you to revert to a previous version of your design or machining plan.
• SolidWorks: A popular CAD software known for its advanced modeling capabilities and seamless integration with CAM systems.
• Tiling: A method in CNC machining that divides large designs into smaller sections for processing on smaller machines or workpieces.
• Toolpath: The exact route a cutting tool takes during machining, designed in CAM software to optimize efficiency and precision.
• Vector: A mathematically defined line, curve, or shape in CAD software, essential for guiding toolpaths in CNC machining.
• Visualizer: A software feature that simulates toolpaths, helping machinists preview and verify operations before running the CNC machine.
• Working Drawing: A detailed set of plans, often derived from CAD designs, that specifies dimensions, materials, and machining processes for a project.

Workholding and Fixtures

Without secure, precise, and repeatable ways to hold materials in place, even the most advanced CNC machine cannot deliver consistent results. These tools ensure that your workpiece remains steady while cutting tools move with precision across the x, y, and z axes.

• Clamps: Devices used to hold a workpiece securely on a CNC machine bed. They are adjustable, ensuring the material stays in place while cutting tools move along programmed paths. Proper clamp placement avoids damage while ensuring accuracy.
• Collet: A cylindrical device that grips a tool or workpiece, typically in a spindle or chuck. Its flexible design allows it to contract and hold items with precision, vital for operations requiring repeatability.
• Fixture: Custom or standard tools used to hold, position, and support workpieces during machining. Fixtures provide stability and ensure precise operations, critical for maintaining tolerances in CNC machining processes.
• Hold-down: A flat clamping device that secures a workpiece directly to the machine table. Hold-downs are commonly used for thinner materials or CNC router setups where top clamping isn’t feasible.
• Independent Chuck: A type of chuck where each jaw moves independently, allowing for the irregular positioning of workpieces. It is commonly used in lathe operations requiring precise centering.
• Jacobs Chuck: A versatile chuck type used for gripping drill bits in CNC machines and drill presses. Known for its adjustable jaws, it’s essential for accurate drilling operations.
• Jig: A guiding tool used in CNC machining to ensure tools follow a specific path or operation. Unlike fixtures, jigs also assist in directing the cutting tool during machining processes.
• Magnetic Chuck: A device that uses magnetism to hold ferrous workpieces firmly in place. It’s ideal for surface grinding or machining flat materials without the need for physical clamps.
• Parallels: Precision-machined bars used to raise workpieces off the machine table, ensuring alignment with cutting tools. They are critical for maintaining consistent depth of cut.
• Shrink Fit: A method of securing tools or components by thermal expansion and contraction. The process involves heating one component to expand it and then cooling it to create a tight grip.
• Steady Rest: A support device used in lathe operations to hold long workpieces steady. It prevents deflection and ensures accurate machining along the length of the material.
• Step Block: Adjustable tools that work with clamps to secure workpieces at varying heights. They provide flexibility for setups requiring uneven or elevated support.
• Tailstock: A movable part on a lathe or milling machine that supports the end of a workpiece. Often used in conjunction with a live center, it ensures stability during operations like turning.
• Vises: Bench-mounted or machine-mounted devices that securely grip workpieces. Vises come in many forms, including precision vises for CNC machining centers.
• Wasteboard: A sacrificial surface placed on the machine bed to protect it from cutting operations. Wasteboards are essential in CNC routers to prevent damage during through-cuts.
• Work Holding Devices: A general term for tools and fixtures used to secure materials during CNC operations. These include clamps, vises, collets, and magnetic chucks, ensuring the workpiece remains immobile while cutting tools perform machining operations.

Toolpath and Machining Parameters

These concepts determine how the cutting tool interacts with the workpiece, ensuring efficiency, accuracy, and superior surface finishes. Below, we define key terms that govern the success of CNC machining operations.

• Chip Load: The thickness of material removed by each cutting tool tooth per revolution. Optimizing chip load prevents tool overheating and ensures smooth cutting, balancing the feed rate, spindle speed, and material hardness.
• Cutting Feed Rate: The linear speed at which the cutting tool engages the material, measured in inches per minute (IPM). This parameter significantly influences tool wear and surface finish quality.
• Cutting Speed: The speed at which the cutting tool’s edge moves relative to the workpiece, often measured in surface feet per minute (SFM). Adjusting cutting speed is crucial for maintaining tool life and efficient material removal.
• Depth of Cut: The thickness of material removed in a single pass, measured along the z-axis. Proper depth of cut prevents tool deflection while maximizing productivity.
• Depth Per Pass: The vertical depth the tool removes during each cutting pass. This parameter is adjusted based on tool strength, material type, and machining goals.
• Feed; The rate at which the tool or workpiece advances along the toolpath. Feed affects the chip load and, consequently, the finish and longevity of the cutting tool.
• Feed and Speed: A combination of feed rate and spindle speed settings. Achieving the correct balance ensures optimal cutting efficiency and surface quality.
• Feed per Revolution: The distance the cutting tool advances per spindle revolution. This setting is key for operations such as drilling and threading.
• Feed Rate: The movement speed of the cutting tool along the x, y, and z axes, measured in IPM. Proper feed rates minimize tool wear and maximize cutting efficiency.
• Lead-in / Lead-out: Transitional movements that ease the cutting tool into and out of the material. These movements reduce stress on the cutting edges and prevent tool marks.
• Lead-in / Lead-out Feed Rate: The feed rate during the lead-in and lead-out phases. A slower rate is often used to protect the tool and material edges.
• Material Removal Rate (MRR): The volume of material removed per minute, calculated using feed rate, depth of cut, and width of cut. Higher MRR indicates more efficient machining.
• Offsets: Adjustments in the CNC program to account for tool length, diameter, or workpiece position. Offsets ensure precision in machining operations.
• Plunge Rate: The vertical speed at which the tool enters the material. Proper plunge rates avoid excessive tool wear and ensure a clean entry point.
• Ramp Feed Rate: The feed rate applied during ramping movements when the tool gradually enters the material. This technique reduces stress on the tool and spindle.
• Ramping: A machining strategy where the tool enters the material at an angle rather than vertically. Ramping is ideal for operations requiring reduced tool wear and heat buildup.
• Rapid Movement: Non-cutting, high-speed movements used to reposition the tool or workpiece. These movements minimize downtime between machining operations.
• Retract Height: The vertical distance the cutting tool lifts above the workpiece during non-cutting movements. This ensures clearance from clamps and obstacles.
• Revolutions per Minute (RPM): The rotational speed of the spindle or cutting tool, a fundamental parameter for determining cutting speed and chip load.
• Spindle Speed: The rotational velocity of the spindle, measured in RPM. Proper spindle speed is critical for efficient cutting and surface finish.
• Stepover: The lateral spacing between consecutive passes of the cutting tool. It’s a key parameter in achieving smooth surface finishes and efficient material removal.
• Surface Speed: The speed of the cutting edge relative to the material, measured in SFM. This parameter affects heat generation, tool wear, and cutting efficiency.
• Tool Change: The process of replacing a cutting tool during machining. Modern CNC machines use automatic tool changers to streamline this process.
• Traverse: The rapid movement of the machine’s axes during non-cutting operations. Traversing reduces machining cycle times by efficiently positioning the tool.
• Zero Point: The origin point from which all toolpath coordinates are measured. Accurate zero-point setting is essential for achieving precise and repeatable machining results.

Surface Treatments and Finishing

From strengthening metals to preparing surfaces for coatings, surface treatments ensure durability and functionality while meeting precise manufacturing standards. Let’s break down the key terms and their applications.

• Acid Bath: A chemical process that removes rust, scale, and surface contaminants by immersing the workpiece in an acidic solution, ensuring a clean surface for subsequent treatments.
• Anodizing: An electrochemical technique that enhances the oxide layer on aluminum or non-ferrous metals, improving corrosion resistance, surface hardness, and aesthetics.
• Barrel Plating: A cost-effective method where parts are rotated in a barrel filled with plating solution, ensuring an even metallic coating for small, uniform components.
• Black Oxide: A chemical conversion coating applied to ferrous metals to create a dark, corrosion-resistant surface while maintaining part dimensions.
• Brine: A saltwater solution used in heat treatment processes, such as quenching, to increase cooling rates and improve material hardness.
• Burnishing: A process where pressure is applied using a hardened tool to smooth the workpiece surface, increasing hardness and fatigue resistance.
• Carburizing: A heat treatment that diffuses carbon into the surface of low-carbon steel, creating a hard outer layer while retaining a tough core.
• Case Hardening: A collective term for processes like carburizing and nitriding that strengthen the surface layer of metal while preserving core ductility.
• Deburring: The removal of sharp edges or residual material from a workpiece after machining to improve safety, functionality, and aesthetics.
• Electroless Nickel Plating: A chemical plating process that deposits a nickel-phosphorus alloy layer uniformly without electric current, ideal for corrosion resistance.
• Metal Plating: The application of a thin metallic layer, such as gold, silver, or chrome, to enhance aesthetics, conductivity, or corrosion resistance.
• Passivation: A chemical treatment for stainless steel that removes surface impurities and creates a protective oxide layer to resist corrosion.
• Plating: A general term for techniques like electroplating and electroless plating to coat surfaces with metals for durability and performance.
• Polishing: A mechanical or chemical process to enhance surface smoothness and shine, often used for aesthetic and functional improvements.
• Rack Plating: A plating technique for larger or irregularly shaped parts where components are mounted on racks to ensure uniform coating.
• Sandblasting: A surface preparation technique that uses high-speed abrasive particles to clean, smooth, or roughen surfaces before further treatments.
• Surface Grinding: A machining process that uses a grinding wheel to create flat and smooth surfaces, critical for achieving tight tolerances and superior finishes.

Standards and Certifications

Standards and certifications not only enhance trust but also streamline compliance across industries, from aerospace to consumer goods. Here’s an overview of key standards and certifications in the field:

• AS9100: A quality management standard specific to the aerospace industry, ensuring robust practices in manufacturing, documentation, and safety. It integrates ISO 9001 but adds aviation-specific requirements.
• ASME (American Society of Mechanical Engineers): Provides engineering standards for mechanical systems and components, ensuring safety and interoperability in areas like pressure vessels and structural components.
• ASTM (American Society for Testing and Materials): Sets global standards for materials, products, and systems, ensuring consistency in material properties like tensile strength and hardness.
• First Article Inspection (FAI): A quality control process verifying that a production process meets specifications by inspecting an initial sample against design data.
• ISO 9001:2015: A globally recognized standard for quality management systems, emphasizing customer satisfaction, continual improvement, and regulatory compliance.
• RoHS (Restriction of Hazardous Substances): A directive limiting the use of hazardous materials in electrical and electronic products, ensuring environmentally friendly manufacturing practices.

Motion Control and Electronics

Understanding motion control and electronics is essential for optimizing CNC machining processes. These components and technologies form the backbone of CNC machines, dictating their precision, movement, and operational efficiency. Below are key terms and definitions to expand your knowledge of this intricate field.

• Arduino: A microcontroller platform often used for CNC machine prototyping. It facilitates control of stepper motors, servos, and other components, allowing for customizable and cost-effective CNC solutions.
• DIP Switch: A set of small switches in a single unit, used to configure or set parameters like microstepping and motor current on CNC machine drivers.
• Driver: A device that controls the motion of stepper or servo motors in CNC machines. It translates commands from the CNC controller into precise movements along the x, y, and z axes.
• Electromagnetic Interference (EMI): Disruptive electromagnetic signals that can impact CNC machine electronics, leading to communication errors or inaccuracies during machining operations.
• Endstop: A sensor or mechanical device used to define the limits of movement along an axis, ensuring the CNC machine operates within safe boundaries.
• Homing: The process of moving a CNC machine’s axes to predefined reference points, establishing a consistent starting position for accurate machining.
• IOT Relay: An Internet of Things (IoT)-enabled relay used to automate CNC machine components, such as controlling dust collection systems or spindle operation remotely.
• Limit Switch: A safety device that prevents a CNC machine from exceeding its operational limits, protecting both the machine tools and the workpiece from damage.
• Machine Control Unit (MCU): The central processing unit of a CNC machine, responsible for interpreting G-code and coordinating the machine’s movements and functions.
• Microstepping: A method of controlling stepper motors to achieve smoother and more precise motion, often critical for intricate CNC machining tasks.
• NEMA Enclosures: Standardized protective housings for CNC electronics, safeguarding components against environmental factors like dust and moisture.
• Potentiometer: A variable resistor used in CNC systems to fine-tune settings such as spindle speed or motor current for optimal performance.
• Proximity Switch: A sensor that detects the presence of an object without physical contact, commonly used for homing and limit functions in CNC machines.
• Servo Motor: A high-precision motor used in CNC machines for applications requiring accurate positioning and consistent torque.
• Soft Limits: Software-defined boundaries for CNC machine movements, offering an additional layer of safety by preventing collisions or over-travel.
• Stepper Motor: A motor that moves in discrete steps, providing precise control for CNC machine axes. Ideal for applications like CNC routers and 3D printers.
• Torque: The rotational force generated by a motor, critical for determining a CNC machine’s ability to cut through various materials effectively.
• VFD (Variable Frequency Drive): A device that controls the speed of a CNC machine’s spindle by varying the frequency of the electrical power supplied.
• X-Axis: The horizontal axis in a CNC machining system, representing left-to-right motion across the workpiece.
• Y-Axis: The vertical axis in CNC machining, corresponding to front-to-back movement relative to the workpiece.
• Z-Axis: The depth axis in CNC machining, enabling up-and-down motion of the cutting tool to achieve precise depth of cut and surface finishes.

Maintenance and Safety

This section highlights essential maintenance and safety terms to help ensure the longevity of your CNC machines and safeguard operations. Proper understanding of these concepts allows you to optimize performance, reduce downtime, and promote safe machining practices.

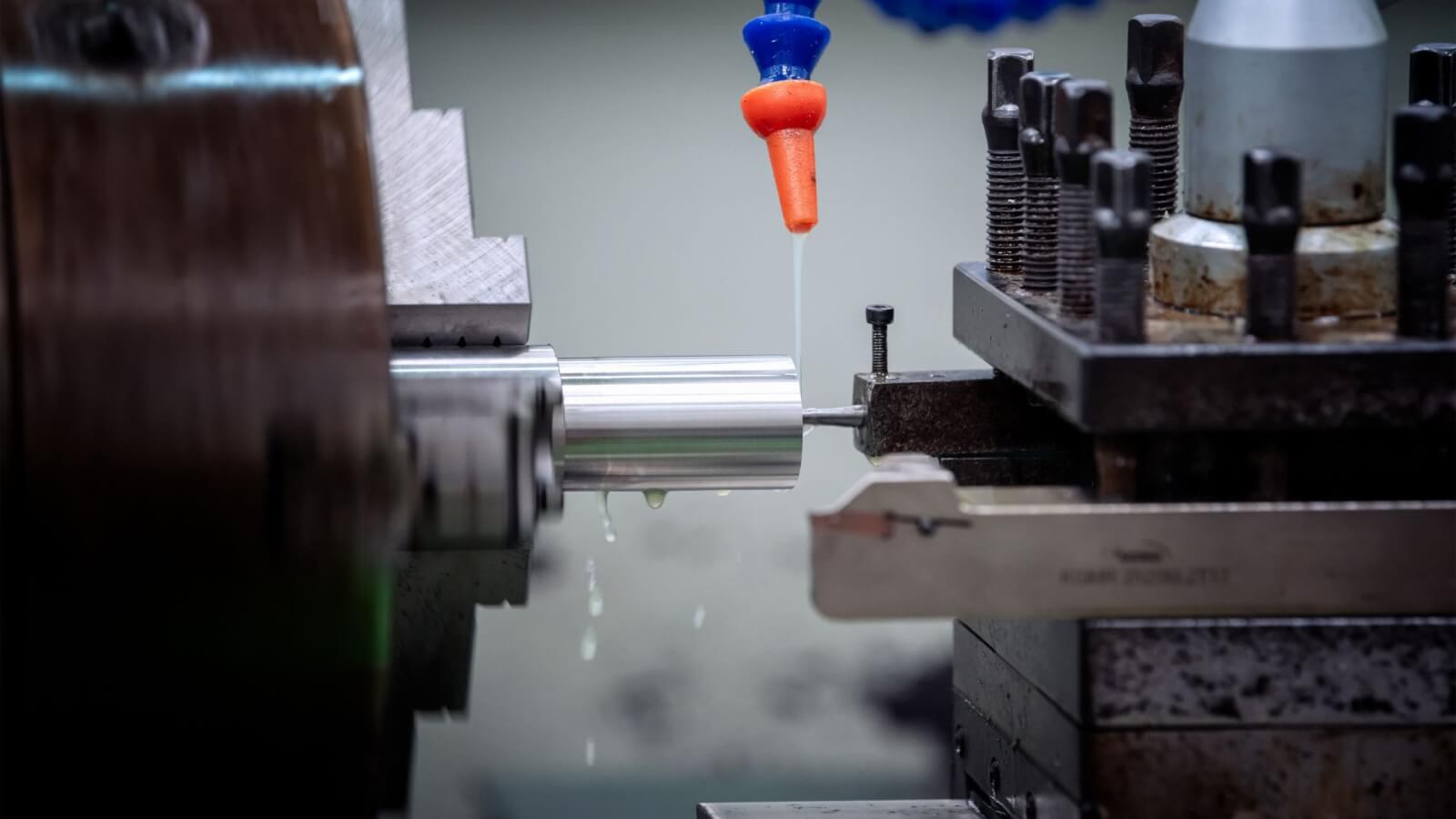

• Coolant: A fluid used to regulate temperature during machining by absorbing heat from the cutting tool and workpiece, reducing friction, and improving tool life.
• Cutting Oil: A specific type of lubricant that minimizes wear on cutting tools and enhances surface finish by reducing friction and heat during CNC machining operations.
• Deflection: The deviation of a tool, workpiece, or machine component from its intended position due to applied forces, which can impact precision and surface finish.
• Dust Shoe: A device attached to a CNC router’s spindle or gantry that collects debris and dust during machining, maintaining a clean workspace and protecting sensitive components.
• Machine Stiffness: The ability of a CNC machine’s frame and components to resist deformation under load, critical for achieving accuracy and reducing chatter during machining operations.
• Stability: The steadiness of a CNC machine during operation, ensuring consistent performance by minimizing vibrations and maintaining alignment of axes and tools.
• Tramming: The process of aligning the CNC machine’s spindle perpendicular to the work surface, essential for accurate cuts and uniform machining results.

Manufacturing Processes and Strategies

This glossary provides concise definitions of key manufacturing terms and strategies used in CNC machining. These concepts are crucial for ensuring smooth production processes and achieving precise results across various machining operations.

• Assembly: The act of connecting or joining machined parts into a finished product using techniques like welding, bolting, or adhesive bonding.
• Cycle Time: The duration taken to complete an entire machining operation, including cutting, repositioning, and tool changes, impacting overall efficiency.
• ERP: Enterprise Resource Planning integrates data across production systems to improve resource allocation, scheduling, and inventory control in CNC machining.
• Extrude: A process where material is forced through a die to create objects with consistent cross-sectional shapes, commonly used to produce raw stock material.
• Extrusion: The product or outcome of the extruding process, often providing standard shapes such as rods or tubes for further machining.
• High-Speed Machining (HSM): A machining technique that employs faster feed rates and spindle speeds to enhance productivity while maintaining precision and surface quality.
• IIoT (Industrial Internet of Things): The application of smart sensors and connected devices in machining operations to enable real-time monitoring, diagnostics, and predictive maintenance.
• Job / Cutting Job: A designated task or series of machining operations programmed into a CNC machine to produce a specific part or product.
• Just-In-Time Manufacturing (JIT): A lean manufacturing approach that ensures materials and parts are delivered exactly when needed, minimizing inventory and reducing waste.
• Kanban: A visual workflow management system used to streamline production scheduling, often employed in lean manufacturing to signal material or task readiness.
• Nesting: The optimization of part layouts on a stock material sheet or billet to maximize usage and minimize scrap, crucial in reducing material costs.
• Operator: The individual responsible for managing CNC machine setup, operation, and monitoring to ensure precise and accurate machining outcomes.
• Precision Machining: A machining approach focused on producing parts with extremely tight tolerances and superior finishes, often required for critical applications.
• Setup: The preparation phase in machining, involving alignment of tools, fixtures, and workpieces, as well as inputting parameters like g-code into the CNC machine.

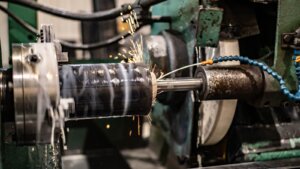

Mechanical Properties

This section outlines the key mechanical properties critical in CNC machining and material selection. These properties define how materials behave under different forces and conditions, providing insights necessary for machining operations, tooling, and end-use performance.

• Brinell Hardness: A measure of material hardness determined by pressing a steel or tungsten carbide ball into the material’s surface under a fixed load. It is crucial for assessing wear resistance in CNC-machined parts.
• Ductility: The ability of a material to stretch or deform under tensile stress without breaking. High ductility materials, such as aluminum, are preferred in processes requiring forming or bending.
• Hardness: The resistance of a material to deformation, indentation, or scratching. Harder materials require specialized cutting tools and higher spindle speed in CNC machining.
• Porosity: The presence of tiny holes or voids in a material, which can affect its strength and machining behavior. Minimizing porosity is essential for precision machining.
• Tensile Strength: The maximum amount of tensile stress a material can withstand before failure. It is a key factor in designing components for high-stress applications.
• Work Hardening: A process where a material becomes harder and stronger due to plastic deformation, often affecting cutting tools’ lifespan during machining.
• Elasticity: A material’s ability to return to its original shape after deformation. Elastic materials are useful in applications requiring flexibility and resilience.
• Plasticity: The ability of a material to undergo permanent deformation without cracking or breaking. It is important in CNC machining operations involving forming.
• Flexural Strength: The maximum stress a material can endure before it breaks when bent. This property impacts the durability of CNC-machined parts under bending loads.
• Fatigue Strength: A material’s ability to resist weakening or failure under repeated stress cycles. This is vital for components subjected to cyclic loading in real-world applications.
• Shear Strength: The maximum stress a material can endure before shearing. It is critical in designing components like fasteners or structural joints.
• Impact Strength: A material’s capacity to absorb energy during a high-speed impact without fracturing. This property is crucial for CNC-machined parts in dynamic environments.
• Creep Resistance: The ability of a material to resist deformation under constant stress and elevated temperatures. This is essential for high-precision CNC machining.
• Yield Strength: The stress at which a material begins to deform permanently. Understanding yield strength ensures accurate tolerances in CNC machining.
• Modulus of Elasticity (Young’s Modulus): A measure of a material’s stiffness, representing its ability to resist deformation under stress. This is significant in applications requiring rigidity.
• Poisson’s Ratio: The ratio of transverse strain to axial strain in a material under load. It provides insights into material deformation under CNC machining processes.
• Toughness: The ability of a material to absorb energy and deform without fracturing. Tough materials are ideal for applications requiring impact resistance.
• Hardening Modulus: A measure of the increase in stress required to continue deforming a material plastically. It is relevant in processes involving work hardening.
• Compressive Strength: The capacity of a material to withstand compressive forces. It is crucial for components subjected to heavy loads.
• Wear Resistance: The ability of a material to resist surface damage caused by friction or abrasion. This property extends tool life and ensures durability in CNC-machined parts.
• Resilience: The capacity of a material to absorb energy elastically and recover upon unloading. It is important in applications requiring shock absorption.

Miscellaneous Terms

In CNC machining, certain miscellaneous terms are crucial for understanding processes and equipment performance. These definitions explain essential concepts and variables that influence machining operations, ensuring clarity for both beginners and professionals.

• Breakpoint: A designated stopping point in a machining process, often used to allow inspection or tool change without restarting the entire program. It helps maintain precision in CNC machining.
• Eccentric: A feature or component offset from the center of rotation, such as in cams or gears. Eccentric designs are used in CNC applications to achieve specific mechanical motion or functionality.
• Resistance: The opposition to the flow of electricity or motion, affecting tool performance and motor efficiency. Properly managing resistance ensures smooth operations in CNC machines and electronics.
• Torque: A rotational force applied to an axis, crucial for driving cutting tools, spindle rotation, and motor operations. It directly influences the material removal rate and machining power.

Conclusion

We hope this glossary has helped you make sense of the often complex world of CNC machining. Whether you’re exploring mechanical properties, mastering machining parameters, or diving into operational concepts, having a clear understanding of these terms can truly empower you in your work. CNC machining isn’t just about machines and tools; it’s about precision, creativity, and turning ideas into tangible results.

By breaking down these key terms, we aim to make the technology more approachable and less intimidating, whether you’re new to the field or looking to refine your knowledge. Think of this glossary as a tool in your toolbox—one you can turn to whenever you need clarity or a deeper understanding.
