Casting vs Machining: Differences, Similarities and 12 Factor Comparison

When you’re designing a part, whether it’s for a prototype, a car engine, or your next big product idea, you’ll eventually run into a tough but essential question: Should I cast it or machine it? We’ve all been there, trying to weigh speed, cost, precision, and complexity, especially when deadlines and budgets are tight.

Casting and machining are two of the most trusted ways to turn raw material into real parts. Casting lets you shape molten metal into complex forms, while machining carves solid blocks with incredible accuracy.

Both are used everywhere, from aerospace and electronics to the stuff you use every day.

So how do you decide which one makes more sense for your project? In this article, we’ll focus on when to choose casting, when machining is the better move, and how to get the best of both worlds.

What is the Difference Between Casting and Machining?

Casting and machining differ fundamentally in how they shape materials into usable parts. Casting is a forming-based manufacturing process that begins with melting metal and pouring it into a mold that defines the shape of the final component.

Machining, on the other hand, is subtractive. You start with a solid block of material and remove excess using cutting tools guided by either manual operators or computer numerical control systems.

Casting offers distinct advantages when you’re working with complex geometries or need to form internal cavities that would be difficult or impossible to machine. It’s often the more cost-effective option for mass production because once the mold is created, it can produce thousands of parts with minimal labor.

However, casting may result in porosity, shrinkage, or surface irregularities that require secondary finishing processes.

Machining is known for its accuracy and superior surface finish. If you’re aiming for tight tolerances and detailed features, especially in metals like aluminum or steel, machining delivers consistent results. It’s typically faster to set up, making it ideal for prototyping or smaller production runs. While it may generate more material waste, it avoids the upfront tooling costs of casting.

In many industries, the two methods are used in tandem—casting to shape the bulk form and machining to refine critical dimensions. The decision between casting vs machining depends on the part design, production volumes, cost constraints, and the level of dimensional precision required.

What Is Casting?

Casting is a manufacturing process where molten metal is poured into a mold, allowed to solidify, and then removed to form a finished part. It’s especially valuable when you need to produce components with intricate shapes, internal cavities, or large sizes that would be costly or difficult to create using machining methods.

The process starts by heating metal, such as steel, aluminum, iron, or copper alloys above its melting point. The molten material is then transferred into a pre-designed mold that reflects the geometry of the desired object.

Once cooled and solidified, the mold is removed, and the resulting cast part may undergo trimming, surface smoothing, or heat treatment, depending on the project requirements.

Casting supports various materials and offers flexibility for high-volume production runs. Molds may be permanent or expendable, depending on the casting method used. This approach is commonly seen in the creation of engine blocks, turbine housings, and structural components across the automotive and aerospace sectors.

Sand Casting

Sand casting is one of the most adaptable and time-tested casting methods in the manufacturing industry. It uses sand-based molds that can be quickly formed around a pattern and reused with relative ease.

Because of its simplicity, sand casting is often chosen for components ranging from simple brackets to complex engine blocks.

The process begins by packing a special sand mixture around a mold pattern. This mold is then separated to remove the pattern, leaving behind a cavity that’s filled with molten metal.

Once the metal solidifies, the sand is broken away, and the part is cleaned and, if necessary, machined to achieve tighter tolerances.

This method excels at handling metals with high melting points and is suitable for both small batches and large-scale industrial components. It’s cost-effective for low- to medium-volume production and allows significant flexibility in size and shape. However, sand casting typically yields a rougher surface finish, and dimensional variability may occur if the sand compaction is inconsistent. When precision matters, secondary machining operations may still be necessary.

Die Casting

Die casting is a metal casting process designed for high-volume production using precision molds and high-pressure injection. It’s especially suited for nonferrous metals like aluminum, zinc, and magnesium, which have lower melting points and can flow easily into detailed molds.

The process starts by injecting molten metal into a steel die at high speed and pressure, ensuring the metal fills even the most intricate cavities before solidifying.

Once the die is set up, cycle times are short and part-to-part consistency is high. This repeatability makes die casting ideal for manufacturing components like housings, brackets, and enclosures where both accuracy and speed are critical.

Tolerances as tight as ±0.1 mm per 25 mm are achievable depending on the material and part design, though additional CNC machining may be added to refine features or meet tighter dimensional specs.

Compared to other casting methods, die casting often delivers a smoother surface finish and reduces the need for extensive post-processing. However, the initial investment in die tooling can be significant. This cost becomes manageable, and highly cost-effective, when spread across large production volumes.

Squeeze Die Casting

Squeeze die casting builds upon traditional die casting by adding forging-like pressure during the solidification phase. This applied pressure compresses the molten metal within the mold, minimizing internal porosity and enhancing material density.

As a result, squeeze casting creates parts that approach the mechanical strength of wrought materials, making it a strong fit for performance-critical applications.

The process typically begins with molten metal being poured into a preheated die cavity. Once filled, the die closes and exerts high pressure on the metal, which is maintained as it solidifies.

This pressure helps align the grain structure and eliminates many common casting defects such as shrinkage voids or gas pockets. The improved microstructure translates to higher tensile strength and fatigue resistance.

You’ll often see squeeze casting used in the production of strong, lightweight parts like automotive suspension arms, wheels, or structural brackets. While the cycle times can be quicker than other advanced casting techniques, the need for specialized dies and press systems means it’s best suited for medium to high production volumes.

If your part design calls for both strength and complexity with minimal defects, squeeze die casting offers a highly capable manufacturing solution.

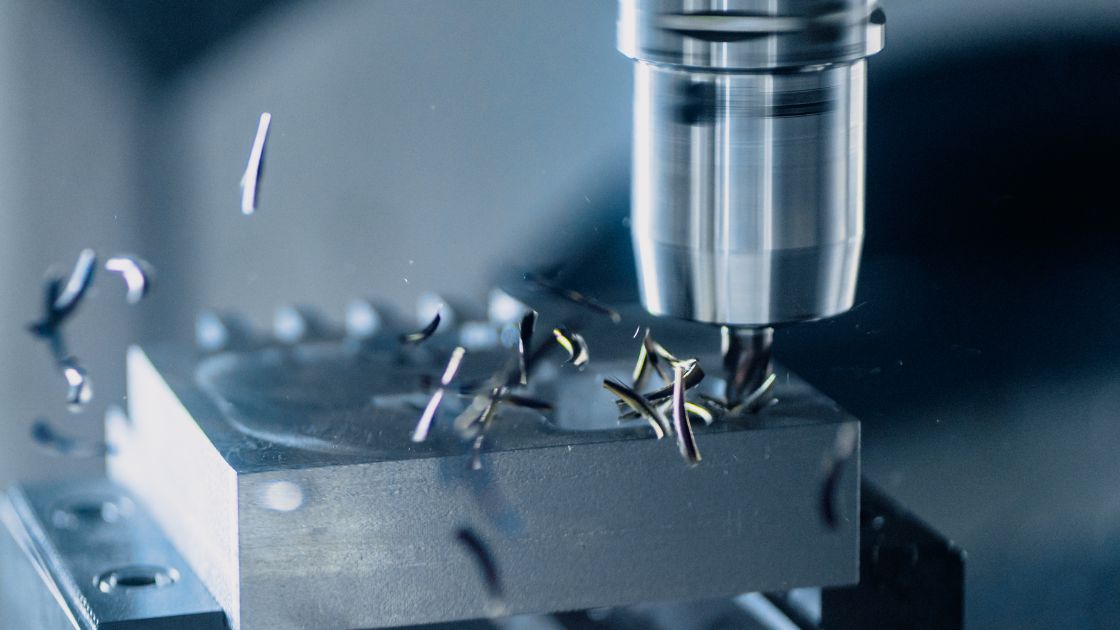

What Is Machining?

Machining is a subtractive manufacturing method that removes material from a solid workpiece using mechanical cutting tools. The process can be manual or automated and includes techniques like milling, turning, drilling, and grinding. It’s commonly used to shape metals such as steel, aluminum, and titanium, but it also works well with plastics, composites, and other non-metal materials.

You begin with a block or bar of raw material and use tools to cut away excess until only the desired geometry remains. This allows you to achieve precise dimensions and surface finishes without altering the base material’s structure. One of the most important advantages is the high tolerance range—CNC machining, for instance, can routinely achieve ±0.001 inches, with advanced processes reaching even tighter values.

Because the process doesn’t involve melting, it avoids defects like porosity, common in casting. And when you’re in the prototyping phase, setup is fast and straightforward. Tools like mills, lathes, and drills can be combined into a single system to perform multiple operations in one setup, making machining a flexible and precise manufacturing technique.

CNC Machining

CNC machining, short for computer numerical control machining, is a manufacturing technique that automates machining processes using a computer program. It replaces manual control with digitally programmed instructions known as G-code, allowing tools to operate with remarkable precision and repeatability.

This method is well-suited for both prototyping and large production runs. Whether you’re working on hundreds of components or a single high-value prototype, CNC machining can maintain dimensional accuracy and consistency.

Once programmed, the system can run with minimal supervision, helping reduce errors and labor costs. It’s particularly valuable when you need to process complex features, undercuts, or curved geometries, thanks to multi-axis configurations (3-axis to 5-axis and beyond).

The level of precision achievable, often within ±0.025 mm is ideal for industries like aerospace, electronics, and medical devices. CNC machining also handles a wide variety of materials, from stainless steel and aluminum to engineering plastics and composites.

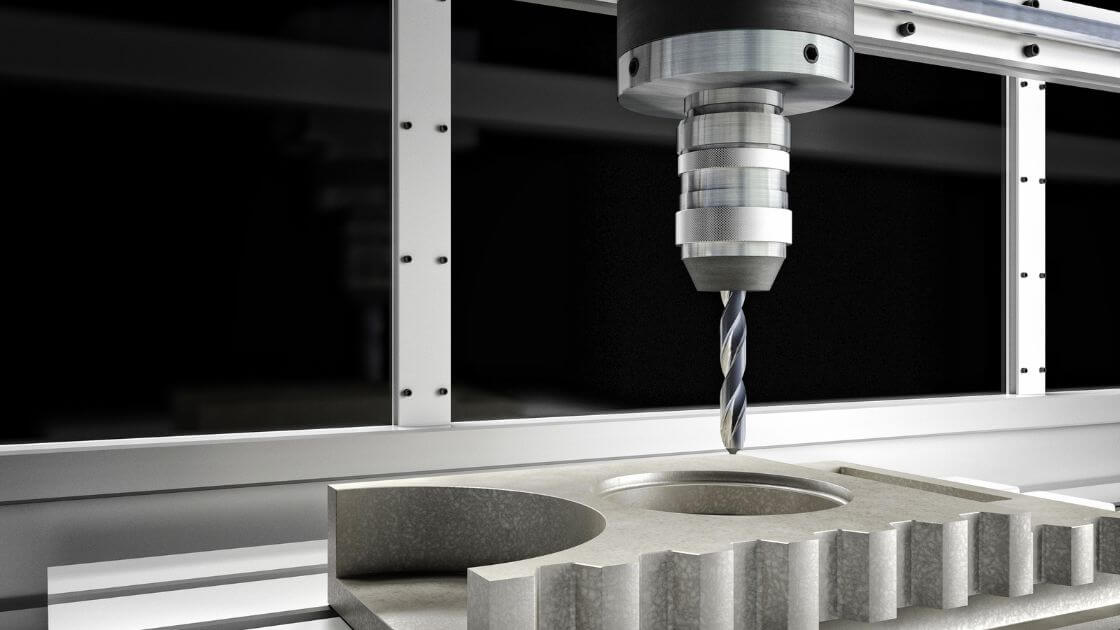

Milling

Milling is a machining process that involves a rotating cutting tool moving across a stationary workpiece to remove material. It is among the most widely used methods for producing parts with flat surfaces, contoured shapes, and fine features such as pockets, holes, and slots.

You can feed the material into the cutter from different angles, making it versatile for a range of geometries.

Milling machines can be equipped with different tools like end mills, chamfer mills, and ball-end mills, each designed to handle specific features or surface finishes. For example, a ball-end mill can be used to sculpt 3D contours, while an end mill is ideal for sharp edges and detailed patterns.

Modern CNC milling centers can automatically change tools and shift between axes, reducing downtime between operations. These systems improve both speed and accuracy, making milling suitable for high-volume production cycles and intricate part designs. The process is particularly effective when machining flat or prismatic shapes in metals like aluminum or plastics.

Turning

Turning is a machining operation performed on a lathe, where the workpiece spins while a stationary cutting tool removes material to produce cylindrical or symmetrical parts. This process is ideal when you’re working with components such as shafts, rods, bushings, or threaded features, which require precise roundness and smooth finishes.

During the operation, the cutting tool moves both axially and radially to form the desired profile. Because the entire workpiece rotates, turning offers excellent concentricity, making it a go-to method for parts that must maintain uniform diameters along their length.

Advanced CNC turning centers often feature live tooling, allowing additional operations like drilling or milling without removing the part from the machine.

Turning is highly effective for applications demanding consistent finishes, reduced lead times, and accurate geometries. In many modern setups, it’s combined with multi-axis milling to create hybrid machining systems that reduce setups and enhance throughput. For mass production of cylindrical metal parts with tight tolerances, turning offers both efficiency and precision.

Grinding

Grinding is a finishing process that uses abrasive wheels to remove minute amounts of material, enhancing both dimensional precision and surface finish.

It’s often the final step in manufacturing workflows that require low roughness values, high accuracy, or exact thickness control, down to thousandths of an inch.

You’ll find grinding especially useful when refining parts that have undergone heat treatment or casting, as it can correct minor warping or structural inconsistencies. Centerless grinding, a variation of the process, allows for the production of cylindrical parts in large batches with exceptional consistency.

This is particularly beneficial when you’re working with components like rollers, pins, or automotive parts that need uniform diameters across high-volume production runs.

Despite its slower pace compared to other machining methods, grinding is essential when your application demands tight tolerances or mirror-like finishes. The choice of grinding technique, surface, cylindrical, or centerless, depends on part geometry, material hardness, and the final surface requirements.

Drilling

Drilling is one of the most fundamental machining operations, designed to create round, straight holes using a rotating cutting tool. Whether you’re preparing parts for bolts, fluid channels, or fasteners, drilling is critical across a wide range of industries and part designs.

You can use a variety of drill bits depending on your needs, twist drills for standard holes, step drills for tiered openings, or reamers for refining internal diameters.

CNC drilling systems allow you to set exact hole depths and angles, making it possible to achieve complex hole patterns, even on curved or angled surfaces.

Modern machining centers often combine drilling with milling or turning, thanks to automated tool changers that streamline the workflow.

Advanced setups also monitor cutting forces and rotational speeds, helping prevent tool breakage and ensuring uniform hole dimensions. Drilling may seem straightforward, but when paired with precision machining, it becomes a vital part of the broader manufacturing process.

What are the Advantages and Disadvantages of Casting and Machining?

Both casting and machining bring unique strengths to the manufacturing process, and understanding their trade-offs helps you choose the right method for your part design and production goals. Below is a breakdown of their main advantages and disadvantages:

Advantages of Casting

Casting provides distinct benefits when you’re aiming for volume, complexity, and material efficiency. Once the initial mold is developed, the casting process becomes highly scalable.

You can achieve thousands of identical parts with consistent form and dimensional range, significantly lowering the cost per unit across large production runs.

One of its core strengths lies in part complexity. With casting, you can create sealed cavities, irregular shapes, and non-uniform wall thicknesses in a single pour—capabilities difficult to replicate with traditional machining.

This flexibility opens doors for product designers working on aerospace housings, automotive components, or fluid-handling equipment.

Casting also enables near-net-shape production, meaning the part often requires minimal finishing. Any excess material from gating systems or risers can usually be re-melted and reused, enhancing cost effectiveness and reducing waste. If your design is finalized and not subject to frequent changes, casting delivers exceptional economies of scale over the long term.

Disadvantages of Casting

Despite its advantages, casting also comes with critical challenges that may influence your decision during the design phase.

The process of cooling molten metal can introduce shrinkage or internal voids that compromise dimensional accuracy.

These defects often require additional inspection steps or even secondary machining to meet precise tolerances.

Another factor to consider is the upfront cost and time required to create and test molds.

Complex or high-performance casting methods, such as investment casting or die casting—, demand specialized tools and simulation to verify mold flow and solidification before the first part is made.

Surface finish can also be an issue. Most castings, especially those produced through sand casting, will have a rougher surface that may require grinding or polishing.

Inconsistent cooling rates across the mold may lead to variable microstructures, which in turn affect the mechanical properties of the final product. If uniform strength and tight dimensional control are essential to your application, these drawbacks should be carefully weighed.

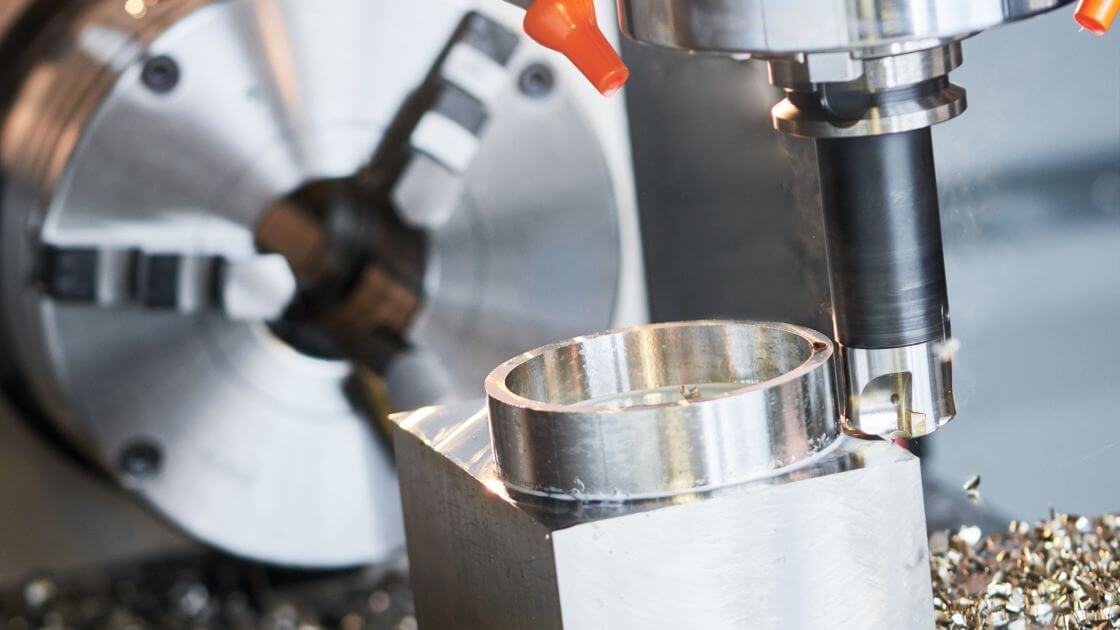

Advantages of Machining

Machining is one of the most effective ways to achieve high precision and control in manufacturing. Whether you’re using traditional methods or advanced computer numerical control (CNC) systems, the ability to maintain tolerances down to ±0.0002″ sets machining apart when accuracy is non-negotiable.

This makes it an ideal solution for industries like aerospace, electronics, and medical devices, where the smallest dimensional variation can affect performance.

Another key advantage is material versatility. You can machine metals like aluminum, steel, and titanium, as well as non-metals such as plastics and composites.

Because no melting is involved, the material’s original properties remain intact—improving consistency and reducing structural defects.

Machining is also perfect for prototyping. Since you don’t need to create a mold, design changes can be implemented instantly by adjusting the computer program.

CNC machining allows automated, repeatable production of complex geometries while maintaining consistent surface finish, even across thousands of parts. If you’re looking for flexibility, speed, and precision in your production runs, machining offers all three.

Disadvantages of Machining

Despite its precision and versatility, machining comes with certain drawbacks, especially when you’re managing high volume production.

Since it’s a subtractive manufacturing method, a large portion of the raw material is cut away. This generates significant waste, particularly when working with expensive metals or producing complex parts with deep cavities or intricate contours.

High tooling costs are another concern. Advanced CNC machines, cutting tools, and jigs require substantial investment.

Over time, cutting tools wear out and must be replaced or re-sharpened, adding to operational costs. This makes machining less cost effective for large-scale production runs compared to casting methods.

Additionally, not all features are accessible to machining. Internal geometries, such as undercuts or enclosed cavities, can be difficult or impossible to machine without custom fixtures or multi-step setups.

These limitations may extend lead times and increase setup complexity. For very large batches or intricate internal shapes, casting often becomes the better alternative.

How Does Casting and Machining Compare on 12 Factors?

Casting and machining serve distinct purposes in manufacturing, and comparing them across core factors gives you a better idea of which method fits your project requirements.

These differences become especially clear when you’re looking at material compatibility, part geometry, production speed, or surface finish. In many cases, casting and machining aren’t mutually exclusive—you can cast a part close to final shape and machine the critical features for improved tolerances or surface quality.

Casting can often produce multiple identical parts in a single mold, which speeds up production cycles.

Machining, on the other hand, treats each workpiece individually, giving you better control but requiring more time per piece. If you’re working with complex cavities or internal cooling channels, casting might save steps.

But if you’re chasing tight tolerances, surface finish, or fast prototyping, machining offers more flexibility and precision.

Material Considerations

Casting works best with metals that have predictable melting points and fluidity, such as aluminum, iron, steel, zinc, and copper alloys. These materials flow well into molds and solidify consistently, making them ideal for complex mold designs or high-volume production.

Machining, in contrast, offers broader flexibility. It can handle a wide range of solid materials, including high-strength metals, engineering plastics, composites, and even ceramics.

You don’t have to worry about melting point or mold compatibility—only that the material is available in a machinable form like bar stock, billets, or plates.

In terms of advanced materials, machining is often the better choice. Titanium, hardened steels, or exotic alloys can be very challenging to cast due to high temperatures or chemical reactivity. But with proper tooling and feeds, machining them becomes manageable.

You can even combine materials by machining each component separately and assembling them later, something casting can’t easily accommodate unless inserts are embedded during the casting process.

Part Geometry and Complexity

Your part’s geometry plays a major role in choosing between casting and machining. Casting is generally better suited for shapes that are difficult—or even impossible—to machine directly.

This includes sealed internal cavities, curved flow paths, and complex lattice structures. Processes like investment casting or sand casting allow molten metal to fill intricate mold spaces, forming complex contours in one step.

On the other hand, machining is subtractive. It starts with a solid block and removes material using a cutting tool. Internal features like deep slots or undercuts often require custom tooling, multi-axis machines, or multiple operations.

That increases both lead times and cost. However, if you need tight internal corners or very sharp edges, machining offers the control and repeatability to achieve them.

Overly thick cross-sections can be a challenge for both methods. In casting, thick areas can cause uneven cooling and result in shrinkage or defects. In machining, thicker parts simply take more time and tools to cut through, extending production time.

For fragile or thin-walled components, casting may offer better structural support during the manufacturing process.

A practical strategy for many design engineers is to use a hybrid approach: cast the part to near-net shape and then machine the features that require tighter tolerances or cleaner finishes. This allows you to benefit from casting’s flexibility and machining’s precision, without overcommitting to one method alone.

Dimensional Accuracy and Surface Finish

Casting, especially die casting, typically achieves tolerances around ±0.1 mm for every 25 mm of dimension. This is acceptable for many applications, but if your project requires extremely tight tolerances or intricate fits, casting alone may not be enough. In contrast, machining methods—especially precision machining using CNC systems—can regularly hit tolerances as tight as ±0.025 mm, and even tighter when using specialized setups.

Surface finish is another key distinction. Cast parts, particularly those produced via sand casting, often have rougher textures and may need additional finishing processes like grinding or polishing. Investment casting offers a better finish but still doesn’t match what machining can produce.

With proper cutting tools and feeds, machined parts can achieve low Ra values, ideal for high-performance applications or visually exposed components.

If your application demands flawless surfaces and minimal dimensional variability, machining is often the right method. But when minor variances are acceptable, and cost savings are prioritized, casting may still provide a viable solution.

Production Volume and Speed

Casting is highly effective for high volume production once the mold has been created and validated. Processes like die casting and investment casting can produce hundreds or thousands of identical metal parts with minimal variation in each cycle.

These casting methods become more cost-effective as your batch size increases.

Machining, however, shines when flexibility and short lead times matter. Since there’s no need for mold design or tooling, you can go straight from digital model to production. For low- to mid-volume projects, this can save you weeks of preparation.

CNC machining also handles product design changes well, making it ideal for prototyping or short production runs.

Still, casting wins on production speed once it’s up and running. A single mold cycle can yield multiple parts, and the rate of output is limited only by cooling time and mold longevity. If your priority is speed at scale, casting has the edge.

But if you’re working under time pressure with a low quantity, machining is the faster and more agile option.

Cost Analysis

Cost is often the deciding factor in the casting vs machining debate. Casting generally involves higher initial investment because of tooling and mold creation. However, the per-part cost drops rapidly as production volume increases.

This makes it an attractive option for mass production, particularly when the design is fixed and volumes are high enough to amortize setup costs.

Machining, in contrast, has a lower barrier to entry. You don’t need molds or complex setup; instead, the process relies on programmable machines and cutting tools. This makes it perfect for prototyping and short runs.

But as quantities increase, the cumulative cost of machine time, tool wear, and material waste can add up quickly.

Labor dynamics also differ. Casting may involve manual processes during mold preparation or handling, while CNC machining requires skilled programming but less hands-on operation once automation takes over.

Here’s the balance: if you’re producing a few dozen parts, machining often remains more cost effective. Once you exceed that threshold—especially beyond 50 parts—casting can become the more economical method.

But don’t forget to factor in your project’s complexity, tolerances, and lead time.

Repeatability and Consistency

Repeatability and consistency are essential when you’re manufacturing parts at scale, especially for industries like aerospace, automotive, or medical devices where reliability can’t be compromised. In casting, once the mold and pouring conditions are optimized, the process can deliver highly repeatable results.

Die casting, in particular, is known for its ability to replicate metal parts consistently across thousands of production cycles, though molds do require eventual maintenance or replacement due to wear and thermal stress.

Machining, especially when driven by computer numerical control, is also extremely repeatable. If your cutting tool, fixtures, and CNC program remain stable, you’ll get the same part every time, down to sub-thousandths of an inch. Tool wear is one of the main variables, but modern machining centers can track this and compensate in real time.

Prototyping Feasibility

When speed and flexibility are priorities, especially during the product development phase, machining has a clear advantage. CNC machining doesn’t require hard tooling or molds, you simply update your CAD model, feed it into your CAM software, and begin producing a part.

This makes it perfect for iterative design, low-volume trials, and prototyping phase development.

Casting, on the other hand, tends to involve more preparation. Unless you’re using rapid sand casting or temporary mold techniques, the lead time for making and validating a new mold can stretch from days to weeks.

For one-off parts or early testing, that’s rarely efficient. However, once a part design is stable, transitioning to casting offers major benefits in terms of long-term cost and production speed.

Many manufacturers adopt a hybrid strategy: use CNC machining for early-stage prototypes, validate functionality and geometry, and then shift to metal casting methods, such as investment casting or die casting for mass production.

Environmental Impact

Casting can be relatively efficient with material use, especially when you reuse and remelt sprues, gates, and runners. Some casting operations also use energy-efficient furnaces and recirculating molten metal to reduce overall energy demands.

Machining, however, tends to generate more waste in the form of chips and offcuts. But this material isn’t necessarily lost—aluminum, steel, titanium, and even plastics can often be reclaimed and recycled.

Many CNC machining centers incorporate chip collection and recycling systems as part of their standard operations.

Energy consumption is another factor. Casting may require high temperatures to melt metal, while machining’s energy use comes from machine tool motors, cutting operations, and cooling fluids.

For small runs or precision work, CNC machining may have a smaller footprint. For high-volume production, especially if remelt systems are in place, casting can be the more sustainable choice over the full production cycle.

Strength and Mechanical Performance

Casting can produce strong parts, especially when advanced techniques like squeeze casting or investment casting are used to reduce porosity and increase material density.

These methods help enhance structural integrity, particularly in components like engine blocks and turbine blades. Casting also enables directional solidification, allowing you to engineer grain structure for better stress distribution in certain parts.

On the other hand, machining starts with a solid, uniform workpiece. That means the original material properties—such as tensile strength and hardness, remain consistent, especially when you’re using heat-treated bar stock or forged billets.

However, because machining cuts across the natural grain flow, the result may be less ideal for applications where directional strength matters.

In hybrid approaches, you can cast a near-net-shape blank and use CNC machining to remove surface defects or refine geometries for improved fatigue performance and tighter tolerances.

Skilled Labor and Expertise Requirements

Foundry operations rely heavily on deep knowledge of metallurgical behavior, mold design, and defect prediction. A casting engineer or melt operator must control variables like mold temperature, molten metal flow, and cooling cycles.

Pattern makers and gating designers also play a critical role in ensuring final part integrity.

Machining, particularly in modern facilities, is heavily driven by automation. But that doesn’t eliminate the need for skilled operators. CNC machinists must understand machine calibration, toolpath programming, and how to optimize cutting parameters based on material properties and part geometry.

Expertise in computer numerical control systems and simulation software is vital to achieving repeatable, high-precision results.

In both methods, operator experience directly influences production consistency, quality assurance, and downtime reduction. If your manufacturing setup depends on small teams or limited labor pools, this difference in required skill sets may guide your choice between casting and machining.

Equipment Setup and Maintenance

Setting up and maintaining casting or machining operations requires different types of capital investment and long-term upkeep. In metal casting, you’re dealing with furnaces, mold-handling systems, and sometimes high-pressure injection units for die casting.

These systems must be calibrated carefully to maintain correct melting temperatures and flow rates. Mold tooling, particularly for high-volume production, can wear over time and require inspection or re-machining to prevent flash or misalignment.

Machining setups, especially those built around CNC machining centers, demand a different form of maintenance. Precision machining relies on cutting tool integrity, spindle accuracy, and clean coolant delivery systems.

Over time, tools dull and fixtures can shift slightly, introducing dimensional variation unless operators recalibrate regularly.

Software updates and machine control integration also play a part in long-term reliability.

Whether you’re machining aluminum housings or secondary features on cast parts, keeping your machines and programs aligned with your quality standards is essential for repeatable success across production cycles.

Surface Treatment and Post-Processing

After the initial manufacturing process, both casting and machining usually require some level of post-processing to meet final product specifications.

For cast parts, surface treatments are often necessary to remove residual gating material, correct shrinkage marks, and improve appearance.

Common finishing processes include sand or shot blasting, surface grinding, trimming flash, and heat treatment. These steps are especially common after sand casting or die casting, where surface roughness and dimensional variances can be more pronounced.

In contrast, machined parts generally have a better initial surface finish due to precise cutting tools.

Still, additional operations like polishing, anodizing, plating, or even powder coating may be applied for corrosion resistance, enhanced durability, or aesthetic reasons. CNC machining allows for tight control of part geometry, making subsequent surface treatment more predictable.

Heat treatments are often applied to relieve internal stresses, improve hardness, or enhance ductility, whether you’re working with castings or machined components.

For parts exposed to wear or high loads, post-machining heat treatment can be critical.

Additionally, manufacturers may apply protective coatings depending on the part’s environment—especially in aerospace, automotive, or marine applications.

You should also account for inspection procedures like dye penetrant or ultrasonic testing. These help detect internal casting defects before surface treatment begins.

How to Decide if You Need Casting or Machining?

If you’re aiming to produce a complex geometry at scale with minimal material waste, casting might be the more cost-effective method, especially when using techniques like die casting or investment casting.

On the other hand, if your part demands ultra-tight tolerances, rapid design changes, or low production volumes, precision machining offers unmatched flexibility.

You should also assess how stable your design is. If it’s still evolving, machining saves you from investing in tooling you’ll have to revise later.

In contrast, when part geometry and material are locked, casting provides an excellent long-term solution. Many manufacturers combine both methods, first casting a near-net shape and then using CNC machining to finalize surfaces or add critical features.

Ultimately, your decision hinges on aligning production method with budget, timeline, and part function.

Based on Production Volume

For small batches or prototyping phases, machining is typically more practical. It eliminates the need for expensive tooling and offers quick turnaround times.

You can update a CAD file and immediately generate a new part using CNC machining or cnc milling, which is essential when working with evolving product designs.

Once your production run reaches a moderate volume, let’s say around 40 to 100 units, casting starts to become competitive.

At this stage, the initial investment in mold creation begins to spread across more parts, lowering your per-unit cost. If your part design is complex or includes internal cavities, casting also offers advantages that machining can’t match without custom fixtures or multi-axis setups.

For high-volume production, especially when using metal casting or the die casting process, the cost per part drops significantly. If you anticipate repeated runs or long-term demand, casting becomes the most cost-effective manufacturing method.

Based on Material Requirements

Casting is particularly effective for metals that melt cleanly and flow well into molds, such as aluminum, iron, copper alloys, and many types of steel. These materials behave predictably during the casting process, making them reliable for complex shapes or large production runs.

However, if you’re working with exotic metals, ultra-hard alloys, or materials that degrade under high heat, you may face limitations with traditional casting unless advanced techniques or high-temperature equipment are used.

Machining, by contrast, accommodates an exceptionally wide range of materials. This includes hardened steels, titanium, plastics, and composites.

If your part needs heat resistance, corrosion protection, or dimensional stability, machining can be the better option. It lets you retain the original material’s properties by removing only what’s necessary, especially for heat-sensitive alloys that might warp during melting or cooling in a mold.

Based on Tolerance and Finish

If your component needs precise geometry or refined surface texture, machining provides a clear advantage. It can consistently deliver tight tolerances down to thousandths of an inch. This is often necessary in precision applications where alignment and consistency are critical across all units.

Casting, depending on the method used, typically yields looser tolerances and rougher surface finishes.

For many general-purpose applications, this is perfectly acceptable. However, when parts must fit tightly or interface with sealing surfaces, additional finishing may be required.

In those cases, a hybrid approach—casting the part and machining select features—can offer a balance between cost and accuracy.

Machined parts come off the line with smoother finishes, which often eliminates the need for post-processing. Casting may still be suitable for near-net-shape production, but you should expect to schedule light polishing, trimming, or grinding if high surface quality is required.

Based on Speed and Demand

Once a casting mold is made, it’s possible to manufacture large quantities quickly, especially in automated setups. That efficiency makes casting highly suitable for mass production, where throughput and cost per part matter most.

However, the initial tooling for casting takes time and investment. If you’re working on a small batch or need to deliver parts quickly, machining provides more flexibility. There’s no mold creation stage—you can start producing parts as soon as the digital file is programmed.

For just-in-time or limited-volume manufacturing, machining allows quick scale-up or changes without added tooling costs. But if the part will be produced in the hundreds or thousands over time, casting becomes more economical.

Automated CNC systems can also be used to machine parts in parallel, though the per-unit cost tends to remain higher than casting once volumes increase.

Based on Part Complexity

If your design includes internal voids, complex passages, or curved geometries, casting is often more practical. These features can be created during mold setup with the use of cores and inserts, reducing the need for secondary assembly. It’s a strong advantage when you’re aiming to simplify production cycles.

Machining intricate geometries is possible but more time-intensive. Internal cavities may require several tool changes, special jigs, or 5-axis CNC systems.

If your design includes aggressive undercuts or non-linear part geometry, this can drive up cost and setup time.

For parts with both thin and thick sections, you’ll also need to manage heat dissipation and shrinkage risks in casting. In machining, the main challenge lies in workholding and precision cutting across variable geometries.

These considerations should guide your approach when dealing with high-complexity components.

Based on Cost Constraints

If budget is a primary concern, understanding cost drivers for each method is key. Casting involves upfront mold creation, which can be expensive.

But once that mold is in place, each additional part becomes relatively cheap—especially in high-volume production runs. This makes casting ideal for long-term projects with steady demand.

Machining doesn’t have the same setup cost, but it does carry higher ongoing expenses. Tooling wear, setup time, and the cutting path complexity all impact the final cost per unit.

If a part requires several machining operations or has tight tolerances on multiple features, labor and machine time can add up quickly.

For early-stage production, machining gives you flexibility and faster turnaround. Once volumes increase and your design stabilizes, switching to casting may significantly reduce your cost per piece.

A detailed cost-benefit analysis, factoring in expected defects, finishing steps, and scrap rates, will help you make the right call.

Based on Prototyping Needs

In the prototyping phase, you need speed, flexibility, and ease of modification. This is where machining often stands out.

You can adjust part geometry quickly using CAD/CAM software, rerun the updated computer numerical control program, and have a new version within hours. There’s no mold investment and no waiting on foundry lead times.

That said, if the final production plan involves casting, building early prototypes using sand casting or investment casting helps test the part in real-world conditions.

This can be critical if mechanical properties are influenced by the casting method or surface structure.

You may even benefit from a hybrid approach—machine the first few units, verify fit and function, then switch to casting for later prototypes or scaled production. If you expect ongoing design revisions, machining is your safest and most cost-effective path.

Based on Material Waste

Material waste plays a bigger role in total cost and environmental responsibility than many realize. Casting has a clear advantage in this area for high-volume runs.

Excess material from sprues, runners, and risers can often be re-melted and reused in future production cycles. That means less scrap and more efficient material usage.

Machining, on the other hand, removes material from a solid block, generating swarf and chips. While these byproducts can be recycled—especially in facilities with well-managed collection systems—they often require extra steps for sorting and remelting.

And when expensive alloys like titanium or high-grade stainless steel are involved, that waste translates directly into higher cost.

If your component’s geometry involves removing large amounts of stock, machining can result in significantly more raw material loss. Casting is better suited when you want to maximize metal utilization across longer production runs and reduce your per-part waste footprint.

Based on Where You Are in the Design Process

Where you are in the design cycle often shapes the smarter choice between casting and machining. At early stages, when changes are frequent, machining offers unmatched flexibility. You can revise the CAD model, update the computer program, and produce the new part in hours without needing a new mold or pattern.

Casting becomes more attractive once your design is locked down. That’s when the upfront cost of creating a mold pays off over high production volumes.

However, reworking a casting die after testing can be time-consuming and expensive. If you’re not completely confident in the geometry, the risk of retooling should push you toward machining for a few more iterations.

Many product designers take a phased approach: start with precision machining during prototyping, then shift to casting for scaled manufacturing once validation is complete.

Conclusion

At the end of the day, choosing between casting and machining isn’t just about picking one process over the other, it’s about finding the right fit for your project. We’ve all been there, trying to balance budget, deadlines, design changes, and production goals. If you’re aiming to make lots of parts with complex internal features or near-final shapes, casting often gives you more for less. But if you’re in the early stages, need high precision, or expect lots of changes, machining is your best friend.

And here’s the thing, sometimes you don’t have to choose. Many manufacturers cast the part first, then machine just the critical areas. That hybrid approach saves time and money while still delivering accuracy where it counts.

So as you move forward, think about where you are in the design process, how many parts you really need, and how flexible you want to be. The smartest choice is the one that works for you.
