When most people hear “3D printing,” they imagine a small desktop machine making plastic parts. But there’s a lot more going on behind the scenes. What we call 3D printing is actually a group of different technologies that build objects layer by layer from a digital design.
Unlike traditional manufacturing, where material is carved away from a solid block, 3D printers only add what’s needed.
According to the ISO/ASTM 52900-15 standard, 3D printing is divided into seven categories, vat photopolymerization, material jetting, binder jetting, powder bed fusion, material extrusion, directed energy deposition, and sheet lamination. Each of these uses a different approach, and each one has its own strengths depending on the materials you’re working with, your budget, and how complex your part is.
Some of today’s most advanced 3D printing methods go all the way back to the 1980s. Stereolithography (SLA) was patented in 1986, and since then, we’ve seen huge breakthroughs, like FDM, SLS, and MJF each designed for different goals: speed, detail, material range, or cost efficiency.
You can now find desktop machines for under $200 and industrial-grade systems that cost over $1 million. From PLA and ABS to metal powders, ceramics, and photopolymer resins, the 3D printing industry has grown into a serious tool for both hobbyists and manufacturing engineers.
In this article, we’ll break down each major 3D printing type, explore how they work, and help you figure out which one is the best fit for your needs, whether you’re just getting started or scaling up production.
Material Extrusion
Material extrusion refers to a group of 3D printing processes where build material is pushed through a nozzle and laid down layer by layer to form a three-dimensional part.
The material—typically a thermoplastic—is heated until semi-liquid, then extruded in a controlled path guided by a computer-aided design file. Each layer fuses with the previous one as it cools, forming a solid structure.
This is one of the most common and accessible types of 3D printing methods. You often see it in desktop 3D printers that use spooled filament, but the category also includes high-capacity machines that extrude pellets, concrete, or pastes.
Whether you’re producing small components or large-scale prototypes, material extrusion offers significant flexibility in design and build volume.
The range of supported 3D printing materials is broad. Standard thermoplastics like PLA, ABS, and PETG are common, while more advanced setups can handle carbon fiber composites, temperature-resistant polymers, or metal-filled filaments.
Some machines are even used in construction or food modeling.
Dimensional accuracy typically falls around ±0.5 mm, although this varies by equipment, material, and environmental controls. Objects with overhangs often require support structures to prevent collapse during printing. Post-processing may be needed to improve surface finish and remove supports.
Material extrusion remains a leading choice for prototyping because of its cost efficiency, especially when compared to more complex technologies like selective laser sintering or stereolithography. It also serves as the foundation for fused deposition modeling, a widely used implementation of this category.

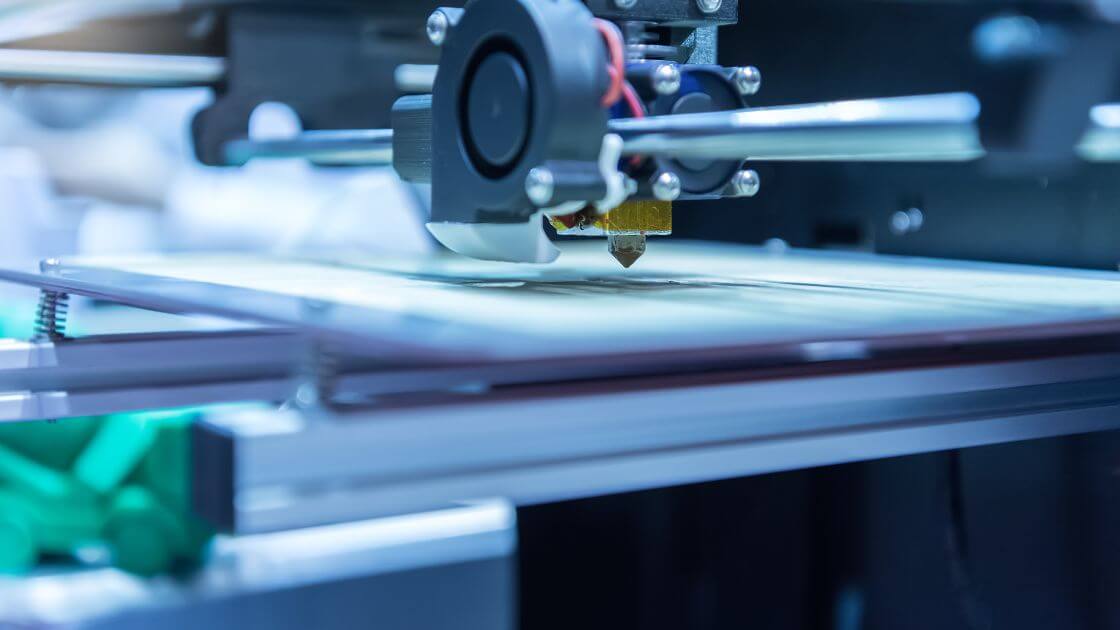

Fused Deposition Modeling (FDM) or Fused Filament Fabrication (FFF)

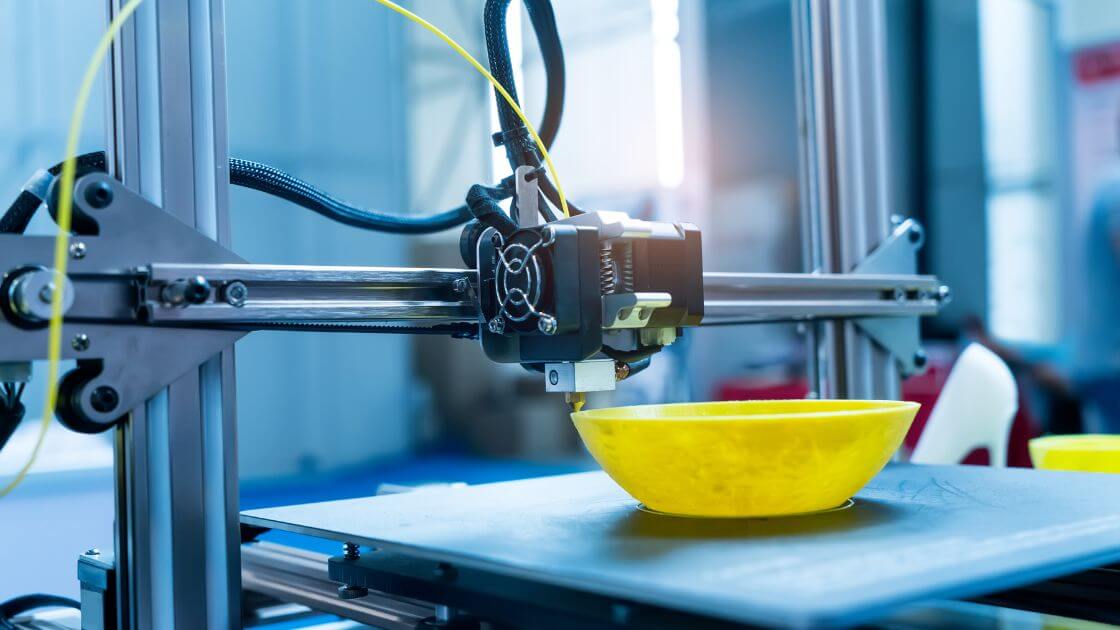

Fused deposition modeling, also known as fused filament fabrication, is a type of material extrusion where thermoplastic filament is fed into a heated print head. The material melts and is extruded through a nozzle, forming each layer of the 3D object as it cools and solidifies on the build plate.
You’ll commonly work with materials like PLA, ABS, PETG, and TPU. More advanced options include polycarbonate, ULTEM, and filaments filled with carbon fiber or metal powders. These filaments can offer different mechanical properties depending on your part’s functional requirements.
This process is ideal for applications like rapid prototyping, educational models, consumer product testing, and manufacturing aids such as jigs or fixtures.
FDM 3D printing is also common in product development workflows where part geometry or assembly fit needs to be evaluated before mass production.
Typical accuracy ranges around ±0.5 mm, and layer resolution usually spans from 50 to 300 microns. Print speed varies depending on material and part complexity, but standard rates fall between 40 and 100 mm/s.
Pros:
- Low cost: Entry-level printers and filament are widely available at affordable prices.
- Material variety: A broad selection of plastics with various strengths, colors, and finishes.
- Ease of use: Simple software workflows make it approachable for beginners and professionals alike.
- Scalability: Available from desktop machines to industrial-scale systems with large build volumes.
Cons:
- Visible layer lines: Parts often show ridges between layers unless post-processing is applied.
- Weaker interlayer bonds: Mechanical properties may be inconsistent depending on part orientation.
- Support requirements: Overhangs and bridges may need additional material that must be removed later.
- Lower precision: Compared to resin 3D printing or powder bed fusion, FDM can struggle with fine details.
3D Bioprinting
3D bioprinting is a specialized form of material extrusion that uses bio-inks—typically made from living cells suspended in hydrogels—to create tissue-like structures layer by layer.
Unlike traditional 3D printing methods that rely on thermoplastics or metal powders, this process prioritizes cell viability and biomaterial compatibility.
The extrusion must be precise and gentle enough to avoid damaging the living components, all while forming functional biological geometries.
The materials you’ll find in this process include biodegradable polymers like alginate, collagen, gelatin, and fibrin.
These serve as scaffolding to support the growth and arrangement of cells. Since the structures need to mimic real tissue, these materials are selected for their compatibility, flexibility, and ability to support vascularization.
Applications are advancing rapidly. You’ll see 3D bioprinting used in research for organ-on-a-chip devices, tissue scaffolds, regenerative medicine models, and even early-stage biofabrication of skin or cartilage. These are not just concept models—they’re practical steps toward future implantable solutions.
Dimensional accuracy can reach between 100–200 microns or finer, depending on printer calibration and bio-ink viscosity. However, performance varies depending on environmental factors like humidity, printhead control, and sterility.
Print speed depends on cell density, nozzle size, and hydrogel flow rates. Typically, prints are slower than polymer extrusion because maintaining cell health is more important than speed.
Pros:
- Tissue engineering potential: Offers a path toward functional organs and regenerative therapies.
- Customizability: Tailored structures for drug testing or patient-specific implants.
- Layer-by-layer control: Enables spatial placement of different cell types.
Cons:
- High complexity: Demands strict control of temperature, sterility, and bio-ink consistency.
- Limited longevity: Printed constructs often require immediate culturing or conditioning.
- Regulatory hurdles: Clinical use involves extensive testing and compliance steps.
Construction 3D Printing
Construction 3D printing is a large-scale additive manufacturing method that uses automated extrusion systems, typically robotic arms or gantry-mounted nozzles to deposit construction-grade materials, such as concrete, in layered formations.
Unlike traditional methods, it builds directly from digital models using 3D printing technology, allowing walls, structural shells, or even entire buildings to be produced layer by layer without standard molds or formwork.
You’ll usually see materials like cementitious mixes, quick-setting concrete, geopolymer compounds, and specialized mortars used in these systems.
The choice of base material must meet strict flowability and curing requirements, ensuring each new part layer bonds well with the previous one while maintaining structural integrity.
This approach has gained global traction in projects aiming for sustainable, rapid, and low-cost construction. From low-income housing to emergency shelters and artistic architecture, the range of applications is growing.
While it’s still emerging, you’ll find several real-world examples where 3D printers created entire homes or key structural parts in just days—saving weeks over traditional construction timelines.
Accuracy typically falls between ±5 mm and ±10 mm depending on the printer’s build platform size, nozzle precision, and environmental factors. Print speed can vary but is often faster than manual labor for straight or repetitive shapes. Layer resolution tends to be coarse, ranging between 10 mm and 30 mm but can be improved using finishing techniques.
Pros:
- Reduces labor requirements, especially in repetitive tasks
- Accelerates build time dramatically for certain geometries
- Minimizes material waste during deposition modeling
- Enables new, organic architectural forms not feasible with traditional methods
Cons:
- Requires massive equipment, limiting mobility and setup ease
- Materials must be precisely engineered for flow and quick curing
- Code compliance and inspection standards are still evolving
- Surface finish and part geometry may need manual refinement after printing
Vat Photopolymerization
Vat photopolymerization is a 3D printing process that uses light to selectively cure layers of liquid resin into solid parts. You start with a vat filled with photopolymer resin, usually acrylic-based which reacts to specific wavelengths of light.
A laser, digital light projector, or LCD screen guides this curing process with high precision. As each photopolymer layer hardens, the build platform gradually lifts or lowers to allow the next layer to form. This sequence repeats until the entire object is complete.
What sets this method apart is its ability to produce extremely fine details and ultra-smooth surface finishes. That’s why it’s favored for applications where precision matters—like dental molds, intricate jewelry, and miniaturized medical components.
Dimensional accuracy can be within ±0.1 mm or even better on finely tuned machines, and part geometry remains consistent due to controlled light exposure and resin flow behavior.
You’ll also find this process in multiple formats—SLA, DLP, and LCD—each using a slightly different light source but operating under the same general principle: photopolymerization.
Resins used in these machines come in many formulations—some optimized for toughness, others for flexibility, clarity, or temperature resistance. Some are biocompatible, enabling use in medical prototyping or surgical guides.
Keep in mind, though, that support structures are necessary for certain overhangs or bridge features, and they must be manually removed after printing. Post-curing under UV light is usually essential for improving the mechanical properties and ensuring a clean surface free from any residual tackiness.
Stereolithography (SLA)
Stereolithography, or SLA, was the first commercially successful 3D printing process and remains one of the most accurate today. In SLA systems, a UV laser traces and solidifies one layer of a photosensitive resin at a time.
The build platform then shifts incrementally, allowing each subsequent part layer to cure on top of the last. This creates a seamless structure with exceptional surface quality.
What makes SLA stand out is its range of specialized resins. You’ll find standard resins for prototypes, high-temp versions for heat resistance, flexible options for elastic parts, and even castable formulas used in jewelry and investment casting. Some biocompatible resins are used in dental applications and medical devices.
Typical SLA printers achieve layer resolutions as fine as 25 microns and dimensional tolerances near ±0.1 mm, depending on part geometry and printing settings. While print speed isn’t its strongest advantage, the results are consistently high in quality and fine detail—ideal for concept models or small production runs of precision components.
Pros:
- Delivers extremely smooth surface finish and minimal visible layer lines
- High accuracy and resolution for intricate features
- Wide resin variety supports functional and aesthetic applications
- Ideal for rapid prototyping and short-run production parts
Cons:
- Resin can be brittle, limiting mechanical properties under stress
- Exposure to UV light may degrade parts over time
- Requires post-processing steps like washing and UV-curing
- Resin cost and printer maintenance can be relatively high
Digital Light Processing (DLP)
Digital Light Processing, or DLP, is a vat photopolymerization technique that uses a digital projector to cure entire layers of liquid resin at once. Unlike stereolithography (SLA), which traces each cross-section with a UV laser, DLP flashes an entire image of the layer using a light projector.
This process speeds up the printing significantly, especially when building multiple parts or parts with a larger cross-sectional area.
DLP relies on photopolymer resin, similar to what is used in SLA printers. These materials require support structures for certain geometries and often need post-processing steps like rinsing in isopropyl alcohol and UV curing. Each pixel in the projector becomes a voxel—essentially a 3D pixel—leading to highly detailed surface features.
This method is especially useful when you need fine detail and speed. While it can match or even surpass SLA in resolution, it depends heavily on the resolution of the projector.
Lower-end systems may show pixelation artifacts, but modern desktop DLP printers have largely mitigated that with improved optics and smaller pixel sizes.
Pros:
- Cures each resin layer simultaneously, increasing print speed
- Excellent detail resolution, ideal for intricate 3D printed parts
- Often more affordable than large-format SLA systems
- Consistent layer adhesion and smooth surface finishes
Cons:
- Potential for visible pixelation depending on projector resolution
- Requires precise calibration of the digital light path
- Resin vats and optics require careful maintenance
Liquid Crystal Display (LCD)
LCD-based 3D printing, also known as masked stereolithography, uses an LCD panel to selectively block and allow light from a UV backlight to cure resin. The panel acts like a stencil, only exposing the areas of each layer that need to solidify.
This layer-by-layer curing method is similar to DLP but uses an LCD screen instead of a digital projector, which makes the setup more compact and affordable.
In recent years, LCD 3D printers have surged in popularity due to their low cost, high resolution, and ease of use. You’ll find them especially prevalent in desktop machines for consumers, prosumers, and even dental or jewelry applications.
Some models now feature 4K and 8K LCD screens to boost detail and reduce visible pixelation, which improves surface finish and resolution.
These printers work with a wide range of photopolymer resins, just like DLP and SLA systems. They can achieve layer resolutions between 35–100 microns and dimensional accuracies around ±0.1–0.2 mm, depending on the build volume and screen quality.
Pros:
- Budget-friendly entry point for resin 3D printing
- Compact desktop machines with high feature resolution
- Fast layer curing due to uniform exposure
- Excellent for fine-detail prototyping and small production parts
Cons:
- LCD screens degrade over time and may require replacement
- Effective resolution tied to screen pixel density
- Build volumes are generally smaller than industrial alternatives
Continuous Liquid Interface Production (CLIP) & Computed Axial Lithography (CAL)
CLIP and CAL represent the cutting edge of vat photopolymerization, pushing the boundaries of how fast and smooth additive manufacturing can be. Instead of curing resin layer by layer with discrete pauses, these methods focus on continuous printing to eliminate visible layer lines and reduce mechanical weaknesses.
CLIP, developed by Carbon, uses a unique oxygen-permeable window to create a “dead zone” just above the light source. This thin layer of uncured photopolymer resin remains in liquid state during printing, allowing the 3D object to be drawn upward continuously from the vat.
As a result, you get extremely smooth surface finish and parts that don’t need to pause between layers. This process also enhances part strength and reduces post processing needs for production parts.
CAL, still in early development, approaches the challenge differently. It projects multiple 2D images into a spinning volume of liquid resin.
By reconstructing the geometry from all angles simultaneously, CAL enables volumetric curing. This radically cuts down the time required to produce a complex part and can generate entire 3D printed parts in minutes.
Pros:
- Extremely high print speeds with no layer-by-layer interruption
- Smooth surface finishes and reduced mechanical layer lines
- Excellent for functional prototypes and production-grade components
Cons:
- Requires advanced, expensive equipment
- Limited material choices compared to traditional resin 3D printers
- CAL is not yet widely available for commercial use
Powder Bed Fusion
Powder Bed Fusion (PBF) refers to a category of additive manufacturing processes where layers of fine powder, typically polymers or metals are selectively fused using a high-energy source such as a laser or electron beam.
As each new layer of powder is spread across the build platform, the heat source melts or sinters specific areas, forming solid cross-sections of the part layer by layer.
What sets PBF apart is its ability to produce complex geometries with exceptional mechanical properties. Because the unfused powder surrounds the printed part, it naturally supports overhangs and internal structures.
This eliminates the need for many traditional support structures, especially in polymer-based systems like selective laser sintering.
PBF supports a broad range of engineering-grade materials. Common options include nylon, polyamide composites, stainless steel, titanium, and aluminum.
These powders are chosen for their mechanical strength, thermal resistance, and application-specific features. Whether you’re developing rapid prototypes or functional end-use components, this process offers impressive versatility.
One of the primary benefits of powder bed fusion is the ability to achieve near-injection molding quality for 3D printed parts—particularly in terms of mechanical properties and durability.
However, the process demands advanced equipment, inert gas chambers (for metal PBF), and skilled post-processing to remove excess powder and refine surface finish.
PBF systems typically offer build volumes between 200 and 400 mm on each axis. Many manufacturers use them for small batch production, nesting dozens of parts in a single run. This scalability is a key advantage for cost-effective additive manufacturing at production level.
Selective Laser Sintering (SLS)
SLS is one of the most prominent polymer-based powder bed fusion methods used in the 3D printing industry. It employs a high-powered laser to scan and sinter powdered material—usually nylon or polyamide composites—into solid, functional parts.
Each cross-section is fused inside a heated chamber, layer by layer, without requiring external support structures.
SLS is widely appreciated for its material flexibility. You’ll often work with PA12 or PA11 nylon, sometimes blended with carbon fiber, glass beads, or flexible elastomers. These powders provide a solid balance between strength, durability, and design freedom, making SLS ideal for rapid prototyping and small-batch production parts.
Common applications include housings, jigs, brackets, fixtures, snap-fits, and functional test parts. Dimensional accuracy is typically ±0.3 mm or ±0.3% of part length, which makes it competitive with certain traditional manufacturing methods.
Layer resolutions for SLS generally fall between 100 and 150 microns. While individual build speeds vary by printer and laser power, the ability to nest multiple parts simultaneously improves throughput significantly.
Pros:
- No need for support structures due to surrounding powder bed
- Excellent mechanical properties, ideal for functional and end-use parts
- Strong resistance to wear and heat with certain engineering materials
- Compatible with complex geometries and fine design details
Cons:
- Surface finish is powdery and may require smoothing or coating
- Higher equipment cost and maintenance requirements
- Powder must be refreshed or recycled between builds
Multi Jet Fusion (MJF)
Multi Jet Fusion is an advanced powder bed fusion method used in 3D printing. Instead of using a laser to sinter powder like SLS, MJF selectively jets a fusing agent onto a bed of polymer powder, then applies infrared heat to bond the particles.
This results in faster, more uniform layer fusion, making MJF a highly efficient solution in additive manufacturing.
You’ll most commonly see nylon (PA12) used in MJF, with newer developments expanding into TPU, polypropylene, and flame-retardant materials. These engineering-grade polymers are ideal for functional parts that require strength, precision, and consistency in mechanical properties.
MJF is frequently used for short-run production parts, housings, brackets, and customized enclosures. You might find it especially useful for components with fine internal features or text that needs to remain legible after printing.
Dimensional accuracy often falls within ±0.2 to 0.3 mm, making it more precise than many fused deposition modeling methods.
Layer thickness is generally between 80 and 120 microns. Because each layer is fused simultaneously across the full cross-section, print speeds are significantly faster than laser-based processes like SLS.
Pros:
- Uniform mechanical properties throughout the part
- Faster than SLS due to full-surface layer fusion
- No support structures needed thanks to surrounding powder
- Smoother surface finish compared to typical sintered parts
Cons:
- Higher material and equipment costs
- Post-processing still required to remove residual powder and enhance finish
Selective Laser Melting (SLM)
Selective Laser Melting is a metal-based powder bed fusion process that uses a high-power laser to fully melt metal particles into dense, strong parts.
Unlike sintering, which fuses material at lower temperatures, SLM creates fully solidified layers—closer in performance to traditionally manufactured metal components.
SLM works with materials like stainless steel, titanium, cobalt-chrome, and aluminum. These metals are widely used in industries where strength, precision, and durability are essential—such as aerospace, automotive, medical implants, and industrial tooling.
Typical dimensional accuracy ranges between ±0.1 and ±0.2 mm, depending on the part’s geometry and scanning strategy. Layer resolutions are fine, between 20 and 50 microns, which allows you to print highly detailed components with complex internal features.
Pros:
- Produces nearly 100% dense metal parts
- Mechanical properties match or exceed traditional manufacturing
- Enables highly complex geometries like lattice structures or cooling channels
- Compatible with critical sectors like aerospace and medical
Cons:
- Machines are expensive and require inert gas environments
- Post-processing is labor-intensive (support removal, heat treatment, surface finishing)
- Slower print speed compared to polymer-based powder bed fusion
Direct Metal Laser Sintering (DMLS)
Direct Metal Laser Sintering (DMLS) is a powder bed fusion process in which a high-powered laser sinters metal powder particles layer by layer to build complex metal components.
While similar to Selective Laser Melting (SLM), DMLS may operate near the metal’s melting point rather than fully melting the powder—depending on the alloy and material requirements.
You’ll most often see stainless steel, tool steel, titanium alloys, and nickel-based superalloys used in DMLS. These materials are commonly selected in the aerospace, industrial tooling, and medical device sectors.
Functional prototypes and small-batch production parts benefit from this process, especially when conventional manufacturing would involve costly subtractive operations.
DMLS achieves dimensional accuracy in the ±0.1 to ±0.2 mm range and uses fine layer heights between 20 and 50 microns. Print speed varies depending on scan strategy and machine power, but it typically aligns with other metal additive manufacturing technologies.
Pros:
- Enables the creation of consolidated, high-strength 3D printed parts
- Supports complex geometries not feasible with traditional machining
- Minimizes material waste compared to CNC or casting
- Compatible with many high-performance alloys used in critical industries
Cons:
- Requires inert gas shielding (argon or nitrogen)
- May involve internal stresses needing post-print heat treatment
- Equipment and material costs are relatively high
Electron Beam Melting (EBM)
Electron Beam Melting (EBM) is another metal powder bed fusion process, but instead of a laser, it uses a focused beam of electrons to fuse particles together.
What makes EBM unique is its operation within a high-vacuum chamber, which significantly reduces oxidation and supports high-temperature materials.
You’ll often find EBM used with titanium alloys and cobalt-chrome—metals widely adopted in the aerospace and biomedical industries. The ability to print lightweight structures with strong mechanical properties makes it particularly valuable for orthopedic implants and high-performance engine components.
Dimensional accuracy is generally around ±0.2 mm or better, and layer thickness falls between 50 and 100 microns. Preheating the build chamber helps to reduce residual stress, allowing you to produce parts with minimal warping.
Pros:
- Excellent for oxidation-prone materials due to vacuum environment
- High build temperature improves part strength and stress relief
- Delivers fully dense 3D printed parts with uniform properties
- Suitable for medical implants and aerospace-grade components
Cons:
- Requires vacuum operation, adding to setup time and complexity
- Limited material options compared to laser-based metal 3D printing
- Post-processing is still necessary for support removal and surface finish
Laser Powder Bed Fusion (LPBF)
Laser Powder Bed Fusion (LPBF) is an umbrella term for laser-based metal 3D printing technologies such as Selective Laser Melting (SLM) and Direct Metal Laser Sintering (DMLS).
This additive manufacturing process uses a high-powered laser to selectively melt or sinter layers of fine metal powder, forming fully dense and highly complex 3D printed parts. Each layer of material is deposited and fused in a controlled environment, typically with inert gas flow to prevent oxidation.
You’ll often work with a wide range of 3D printing materials in LPBF, including stainless steel, titanium alloys, and aluminum. These engineering materials are especially favored in aerospace, medical, and automotive sectors due to their strength-to-weight ratio and ability to form intricate geometries.
Dimensional accuracy typically falls between ±0.1 and ±0.2 mm, which is precise enough for production parts and functional prototypes. Layer thickness generally ranges from 20 to 60 microns, enabling fine surface detail. Print speed varies depending on laser wattage, scan strategy, and part complexity.
Pros:
- Creates fully dense parts with strong mechanical properties
- Suitable for high-performance product design and industrial components
- Enables complex geometries not feasible with traditional manufacturing
- Compatible with a wide range of materials
Cons:
- Expensive 3D printers and powder feedstock
- Requires post processing (e.g., support removal, surface finish improvement)
- Limited build volume and sometimes slower for large-scale parts
Material Jetting
Material jetting is a precision-focused additive manufacturing process that builds parts by depositing tiny droplets of liquid material onto a build platform. These droplets, often photopolymers or wax-like substances, are solidified layer by layer through UV light or thermal curing.
The process resembles 2D inkjet printing, but instead of creating flat images, it constructs fully three-dimensional objects.
You’ll find that material jetting is ideal when surface finish and detail matter most. The build material is dispensed through multiple nozzles, sometimes alongside a separate support material. That support is later dissolved or removed, leaving behind clean, intricate geometries with minimal manual cleanup.
Since each droplet is placed with high accuracy, the resulting parts can feature multiple materials or even multiple colors within the same print, which sets it apart from many other 3D printing processes.
Material jetting is frequently used with UV-curable resins, elastomeric inks, and waxes. These materials allow for visual prototyping, functional testing of soft-touch components, and even mold-making.
Because it can produce smooth surface finishes and capture ultra-fine resolution, it’s especially useful for design validation, medical visualization models, or overmold simulations in product design workflows.
However, this method does come with trade-offs. Photopolymers used in material jetting generally don’t match the mechanical strength of thermoplastics used in fused deposition modeling. Material costs are also higher, and parts may be sensitive to prolonged UV exposure.
PolyJet
PolyJet is a high-resolution material jetting technology that precisely jets and cures layers of photopolymer using UV light. The process builds parts with exceptional surface finish and detail by depositing droplets layer by layer, similar to an inkjet printer working in 3D. It’s a powerful option if you need visual accuracy, multiple material properties, or color simulation in a single part.
You can choose from a wide range of materials—rigid, rubber-like, transparent, or high-temperature resins—many of which are blendable in real time during printing. This allows you to replicate overmolded parts, simulate silicone or soft-touch textures, and produce full-color prototypes for marketing or ergonomic testing.
PolyJet typically offers dimensional accuracy within ±0.1–0.2 mm and layer heights down to 16 microns.
Print speed depends on the model’s size and complexity, but the ability to jet multiple materials at once increases throughput for multi-property components. It’s most commonly used for concept models, dental or medical devices, and design verification of complex assemblies.
Pros:
- Exceptional surface finish and resolution (as low as 16 microns)
- Ability to print multiple materials and colors in one part
- Smooth gradient transitions for lifelike visual models
- Supports dissolvable or water-removable support structures
- Ideal for overmold simulations and concept validation
Cons:
- Parts may degrade when exposed to long-term UV light
- Lower mechanical durability compared to thermoplastics
- Material costs are relatively high
- Photopolymer parts are not ideal for load-bearing functions
NanoParticle Jetting (NPJ)
NanoParticle Jetting (NPJ) is a precision-driven 3D printing process that deposits liquid suspensions containing nanoparticles of metal or ceramic materials. These suspensions are jetted layer by layer, similar to how inkjet printers work—except instead of ink, the droplets contain densely packed particles.
After deposition, the liquid carrier evaporates or is removed, and the remaining solid material is sintered in a post-processing stage to form a high-density part.
This method enables the creation of fine-featured metal or ceramic components. Common 3D printing materials for NPJ include stainless steel, zirconia, and other engineering-grade alloys and ceramics. These parts are ideal for industries that demand miniaturization and high mechanical properties, such as medical, aerospace, and electronics.
You’ll often find NPJ used for prototypes and production parts that require tight tolerances, such as surgical tools or micro-mechanical assemblies. It’s capable of producing intricate geometries and detailed surface textures without the need for traditional support structures, thanks to the inherent self-supporting nature of each layer during the drying stage.
Dimensional accuracy generally falls within ±0.1–0.2 mm, although some shrinkage occurs during sintering. Print speed is moderate and depends on part geometry and the thickness of the printed layers. Layer resolution is usually within 20–50 microns, allowing for highly detailed builds.
Pros:
- Capable of producing dense metal or ceramic parts with fine details
- Minimal material waste compared to subtractive methods
- No need for complex support removal systems
- Suitable for multi-material applications using different suspensions
Cons:
- Requires post-processing via sintering, which adds time and cost
- Dimensional changes from shrinkage must be anticipated in design
- Material options are more limited than in polymer-based technologies
- Equipment and nanoparticle inks can be expensive
Binder Jetting
Binder jetting is a 3D printing process where a liquid binding agent is selectively deposited onto thin layers of powder, gradually building up a part layer by layer. Unlike energy-intensive methods like laser sintering or melting, this approach relies on adhesion between particles to create what’s called a “green part.”
The materials used in binder jetting are diverse—metals, ceramics, sand, and polymer powders are all common.
Once a part is fully printed, it often requires post-processing to gain final strength. This may involve sintering, infiltration with metals like bronze, or curing, depending on the base material.
Binder jetting stands out for its speed and scalability. Because it doesn’t use lasers or high heat during printing, machines can process layers more rapidly and in larger volumes. However, accuracy and final density often depend on the specific post-processing route used.
Applications range from functional metal components to full-color architectural models made with plaster-like gypsum powder. You’ll also find it used in low- to mid-volume production of parts where traditional manufacturing would be cost-prohibitive.
Because it prints without the need for complex support structures, binder jetting is ideal for geometries that would be challenging with other 3D printing methods.
Metal Binder Jetting
Metal binder jetting is a subset of the binder jetting process that targets metallic powders. Instead of melting the metal directly, a print head deposits a binding agent onto the metal powder layer by layer.
After printing, the “green” part is sintered in a furnace to fuse the particles and achieve the required strength and density.
Typical materials include stainless steel, tool steel, and cobalt-chrome, which are all known for their mechanical properties and thermal resistance. This makes the process well-suited for end-use parts in aerospace, industrial tooling, and even consumer electronics.
Dimensional accuracy is typically in the ±0.3–0.5 mm range, though sintering shrinkage must be anticipated during the design phase. Print speed is a major advantage since it avoids point-by-point scanning. Layer resolution usually falls between 50 and 100 microns.
Pros:
- Lower machine and operational costs than laser-based metal 3D printing systems
- No need for support structures during the build phase
- Allows production of complex geometries and internal channels
- Ideal for batch production of small metal parts
Cons:
- Final part density may be lower than laser-melted components
- Sintering introduces shrinkage and potential warping
- Post-processing can add time and complexity
Sand Binder Jetting
Sand binder jetting is a form of binder jetting where layers of sand are selectively bonded using a liquid adhesive.
The process creates large-scale molds and cores that are primarily used in metal casting applications. Instead of producing the final part, this method builds complex sand forms that act as temporary structures into which molten metal is poured.
The materials typically include silica sand and specialty foundry-grade sands. These sands are chosen for their thermal stability and compatibility with different casting alloys.
You’ll find this method valuable in industries like automotive, heavy machinery, and aerospace, where intricate or large cast components are needed quickly.
Dimensional accuracy ranges from ±0.5 to ±1 mm, depending on sand grain size and geometry. Although the layer resolution is coarser than polymer-based processes, it’s more than sufficient for foundry-grade precision. One of the standout benefits is the high print speed, especially when producing large molds or multi-part assemblies.
Pros:
- Enables fast production of large, complex casting molds
- Eliminates traditional mold tooling, reducing cost and time
- Allows internal geometries not possible with conventional sand cores
- Scalable for industrial applications
Cons:
- Printed object is not the final part; casting is a required next step
- Limited to foundry sands; surface finish depends on particle size
- Fragility of green molds may require careful handling before use
Plastic Binder Jetting
Plastic binder jetting operates by jetting a liquid adhesive onto fine layers of polymer powder. Over successive layers, a “green” object is formed. After printing, parts typically undergo post-processing steps—like curing in an oven or chemical infiltration—to reach final strength and durability.
Common materials used in this process include thermoplastic powders, resin powders, and sometimes full-color composites. These materials can produce vivid, detailed parts that are especially useful for visual prototypes, marketing samples, and moderate-strength components.
Dimensional accuracy usually falls within ±0.3 to ±0.5 mm, depending on geometry and finishing techniques.
Print speed tends to be high because the process avoids laser scanning, making it an efficient option for volume prototyping or display-grade production. Layer resolution typically ranges from 100 to 200 microns.
Pros:
- Ideal for full-color 3D printing with rich visual detail
- Fast throughput with relatively low machine complexity
- No laser or complex energy source required
- Good for marketing models and concept design validation
Cons:
- Requires careful curing or post-infiltration to reach usable strength
- Lower mechanical properties compared to other polymer 3D printing methods
- Parts can be brittle if not properly post-processed
Directed Energy Deposition (DED)
Directed Energy Deposition (DED) is a metal 3D printing process where material is fed directly into a high-energy source—usually a laser, electron beam, or plasma arc—which creates a melt pool on the surface of a substrate.
Wire or powdered feedstock is melted upon contact, then solidifies as you build up the part layer by layer. Unlike powder bed fusion, which forms parts in a static bed, DED uses motion-controlled multi-axis systems to apply material dynamically in various directions.
One of the major strengths of DED is its ability to add material to existing components. You can use it to repair damaged parts, reinforce areas with wear, or add entirely new features to an otherwise finished component.
This makes it incredibly valuable in aerospace, oil and gas, and defense sectors where part costs are high and downtime is expensive.
DED is compatible with a variety of metals, including stainless steel, titanium, nickel-based superalloys, and even composite materials. The process supports rapid deposition rates, which is especially useful for building large parts near net shape. However, you’ll often need follow-up machining or post-processing to achieve precision tolerances or smoother surfaces.
Since shielding gas is critical during energy deposition, a stable inert atmosphere helps prevent oxidation or contamination.
Some systems also enable gradient material transitions by blending powders during deposition.
You should consider DED if you’re looking to extend the life of expensive components, experiment with multi-material designs, or produce large-scale metallic parts that can’t be made efficiently through traditional manufacturing methods.
Laser Directed Energy Deposition
Laser Directed Energy Deposition (L-DED) is a specific type of DED that uses a focused laser beam to melt metal feedstock, usually in the form of powder or wire directly onto a build surface. This method is excellent for adding new material to existing parts or fabricating large metal structures from scratch.
L-DED supports a wide range of metals including tool steels, titanium, cobalt-chrome, and nickel superalloys.
These materials are typically used in high-performance or mission-critical applications. Think turbine blade repairs, aerospace brackets, or custom medical components where both size and strength matter.
Dimensional accuracy for laser DED generally ranges from ±0.5 mm to ±1 mm. While this is coarser than what powder bed systems can achieve, it’s often sufficient when you plan to machine the part post-build.
The layer resolution typically falls between 300 and 1000 microns, depending on the laser settings, nozzle diameter, and material feed rate.
Pros:
- Supports large parts and hybrid manufacturing with fewer size constraints
- Ideal for repair and refurbishment of high-value components
- Flexible deposition with multi-axis robotic systems
- Utilizes common welding powders, reducing raw material costs
Cons:
- Requires precision machining afterward to achieve tight tolerances
- Equipment and operation complexity drive up initial cost
- Surface finish is rougher and may require secondary processing
Electron Beam Directed Energy Deposition
Electron Beam Directed Energy Deposition (EB-DED) is a metal additive manufacturing method that uses a focused electron beam to melt metal wire or powder feedstock, layer by layer.
The process is performed inside a vacuum chamber to prevent oxidation and ensure high purity in the final part. Unlike laser-based systems, the electron beam offers deeper penetration and faster energy transfer, making it well-suited for reactive materials.
EB-DED is commonly used with titanium alloys, nickel-based superalloys, and stainless steels. These materials are ideal for aerospace, energy, and defense sectors—especially when large structural parts or critical repairs are needed.
The vacuum setup not only protects the metal from oxidation but also enhances bonding and thermal stability.
Dimensional accuracy is usually around ±1 mm, depending on the feedstock form, beam stability, and system calibration. Layer resolution is coarse, often ranging from several hundred microns to a few millimeters.
While this limits fine detail, the process shines when you need fast deposition over large areas.
Pros:
- Enables high deposition rates for large or heavy-duty parts
- Vacuum chamber prevents oxidation and preserves material properties
- Excellent for working with reactive metals like titanium
Cons:
- Requires a large vacuum system, increasing setup time and machine size
- Limited to materials that perform well under vacuum conditions
- Surface finish is rough and needs post-processing for precision
Wire Directed Energy Deposition
Wire Directed Energy Deposition (Wire DED) is a form of metal 3D printing where a spool of metal wire is continuously fed into a melt pool generated by a laser, electron beam, or plasma arc.
This process enables you to build up layers of metal quickly and efficiently, particularly when you’re dealing with large-scale structures or repairs.
Wire DED supports a wide range of materials, including stainless steel, titanium alloys, and aluminum alloys. It’s often chosen for aerospace frames, marine parts, and large industrial structures that benefit from thick wall sections and robust material properties.
Because wire feedstock is easier to handle and generally safer than metal powder, it’s also attractive for operations focused on safety and simplicity.
Dimensional accuracy for wire DED typically ranges around ±1 mm. The print speed can be quite high thanks to the continuous feed, although layer resolution is on the coarser side, often over 1 mm per layer.
Despite this, you can achieve excellent mechanical strength, especially when paired with subtractive finishing processes like CNC machining.
Pros:
- Lower material cost and safer handling than powder-based systems
- Faster build rates for large-scale parts
- Suitable for repairs and bulk material additions
Cons:
- Requires machining to achieve fine tolerances and surface finish
- Not ideal for highly detailed or intricate geometries
- Limited design freedom compared to powder-based 3D printing
Cold Spray
Cold spray is a form of directed energy deposition where metal powders are accelerated to supersonic speeds using compressed gas and then directed at a target surface.
Unlike other 3D printing methods that rely on melting, cold spray achieves bonding through solid-state deformation. When the particles hit the surface at high velocity, they plastically deform and adhere without undergoing any melting.
This unique approach enables you to apply material without the thermal stress typically associated with metal additive manufacturing.
This process is well-suited for materials like aluminum, copper, titanium, and other ductile alloys. Because of its low-heat nature, cold spray is often used in the additive manufacturing industry to repair aerospace components, restore damaged surfaces, or apply corrosion-resistant coatings.
It’s also useful for creating functional metal parts with decent mechanical properties, especially when thermal distortion must be avoided.
Dimensional accuracy tends to be relatively coarse, around ±1 mm or more due to the spray nature of deposition. Layer resolution is also limited, so you’ll often need post-processing or machining to achieve precision. However, cold spray offers fast coverage, especially for larger parts.
Pros:
- Minimal heat input reduces oxidation, warping, or thermal distortion
- Ideal for repair applications or surface coating in high-performance industries
- No melting means metallurgical integrity of base material is preserved
Cons:
- Coarse resolution and surface roughness limit use in high-detail applications
- Requires specialized, high-pressure gas equipment
- Not ideal for complex 3D printed parts or internal geometries
Molten Directed Energy Deposition
Molten Directed Energy Deposition (DED) refers to additive manufacturing processes where the feedstock—typically metal wire—is fully melted during deposition.
Unlike standard wire DED, molten DED focuses on controlling the melt pool with greater precision or alternative energy inputs, such as variable arc control or plasma transfer. This allows for more consistent material flow and fusion, especially in large-scale metal parts.
Materials commonly used include stainless steels, titanium alloys, and nickel-based superalloys. These are often chosen for applications in shipbuilding, energy infrastructure, and heavy machinery.
Whether you’re fabricating structural frames or adding material to worn parts, molten DED enables you to build big—fast.
Dimensional accuracy is usually coarse, in the range of ±1–2 mm. Layer resolution is also larger, often exceeding 1 mm per pass. But that’s a tradeoff many are willing to make for the speed and size advantages this process delivers.
Pros:
- High deposition rates make it ideal for large, bulky components
- Suitable for multi-material builds and custom alloy mixing
- Effective for adding features or repairing large industrial equipment
Cons:
- Significant thermal gradients can introduce residual stress
- Requires post-machining for accuracy and smoother surface finish
- Geometry complexity is limited compared to powder-based 3D printing
Sheet Lamination
Sheet lamination is a group of 3D printing processes where objects are created by stacking and bonding sheets of material layer by layer.
These sheets, commonly paper, metal foil, or plastic film—are either pre-coated with adhesive or fused during the build process through heat, pressure, or ultrasonic welding.
Once a layer is bonded, a laser or blade cuts the profile of the part, either before or after the bonding stage.
Unlike some additive manufacturing methods that require high-energy sources like lasers or UV light, sheet lamination operates at lower temperatures.
This makes it a more cost-effective option for producing large parts, especially in applications where surface finish or material strength is not the primary concern.
Materials often used in this process include standard office paper for color prototypes, polymer films for lightweight models, or thin metal foils for structural or embedded-function parts. Depending on the bonding and cutting technique used, the level of detail and final mechanical properties can vary.
Sheet lamination is often chosen for its speed, affordability, and ability to create large visual prototypes quickly. Its applications range from architectural models and packaging mockups to experimental builds involving embedded electronics or multi-material stacking.
Laminated Object Manufacturing (LOM)
Laminated Object Manufacturing, or LOM, is a specific type of sheet lamination where layers of adhesive-backed material are bonded together and cut to shape, one layer at a time. It works by feeding sheets—usually paper—over a build platform.
Each layer is bonded using heat and pressure, then shaped with a laser or mechanical blade based on the CAD design.
This process is straightforward and cost-effective, particularly useful when you need a large physical prototype quickly but don’t need engineering-grade mechanical properties. It doesn’t use photopolymers or require a controlled atmosphere, which makes it relatively easy to implement in an office or design studio environment.
Typical materials include standard paper, plastic films, or thin composite sheets. Paper-based builds can even include color by printing graphics onto each sheet before layering. Once the part is finished, excess material is trimmed, and post-processing like sanding or sealing can improve appearance.
The layer resolution of LOM is usually determined by sheet thickness; usually around 0.1–0.2 mm. Depending on blade sharpness and calibration, the dimensional accuracy is within ±0.5–1 mm.
Pros
- Low-cost raw materials (especially paper)
- High-speed production for large models
- Easy to operate without hazardous materials
- Simple post-processing and cleanup
Cons
- Limited mechanical properties for structural parts
- Visible layer lines, especially on paper builds
- Not suitable for fine detail or functional testing
- Significant waste from trimmed sheet margins
Ultrasonic Consolidation (UC)
Ultrasonic Consolidation is a solid-state additive manufacturing method where thin layers of metal foil are bonded using high-frequency ultrasonic vibrations. Unlike traditional 3D printing methods that rely on high heat or melting, UC fuses metal at a molecular level by vibrating the foil while applying pressure. This allows bonding without reaching the material’s melting point.
The process is part of the broader sheet lamination category in additive manufacturing. Each foil sheet is cut to shape using a CNC-controlled system and ultrasonically welded layer by layer.
Because there’s no full melting involved, this method avoids issues like residual stress or large heat-affected zones—making it ideal when you want to preserve original material properties.
Materials include lightweight metals like aluminum, titanium, and copper alloys—especially in foil form. UC can also embed sensors, wires, or electronics between layers, enabling functional integration in a single part.
Applications are most common in aerospace and defense, where you might need lightweight structures with embedded components, or multi-metal parts for complex mechanical behavior. Its dimensional accuracy typically falls within ±0.2–0.3 mm, though final machining is often performed for tight tolerances.
Print speed is moderate; each weld is fast, but layering takes time due to foil preparation and trimming. Also, the layer resolution depends on foil thickness—usually between 50 to 200 microns.
Pros
- Minimal thermal distortion and residual stress
- Can bond dissimilar metals effectively
- Supports embedding of sensors or electronics during printing
- Avoids oxidation due to solid-state bonding
Cons
- Requires specialized ultrasonic welding equipment
- Limited to foil-based feedstock
- Post-processing often required for surface finish
- Slower overall speed for large parts compared to powder-based deposition
Additive Friction-Stir Deposition
Additive Friction-Stir Deposition (AFSD) is a solid-state 3D printing process that builds parts without melting the feedstock. Instead of lasers or electron beams, this method uses a rotating tool or nozzle to force metal in solid or near-solid form onto a base surface.
Friction between the tool and material generates enough heat to plastically deform and bond the layers. This energy-efficient process allows you to create or repair metal components while avoiding the residual stresses and porosity often seen in melt-based additive manufacturing methods.
You’ll typically see materials like aluminum, copper, and titanium used in AFSD due to their favorable mechanical properties and thermal conductivity. Since the feedstock stays below its melting point, the final part often retains better structural integrity.
AFSD is ideal for applications requiring large-scale structural builds, localized repair jobs, or multi-metal gradient structures.
It allows the integration of dissimilar alloys without forming brittle intermetallic layers—something difficult with traditional powder bed fusion or fused deposition modeling.
While the dimensional accuracy may still require post-machining for tight tolerances, the process enables unique possibilities for producing high-performance 3D printed parts with minimal distortion.
Other Emerging or Specialized 3D Printing Methods
Beyond the well-known additive manufacturing processes like fused deposition modeling and stereolithography, several specialized or still-developing 3D printing methods are gaining attention.
These techniques often tackle very specific design challenges, whether it’s printing micro-scale features, combining materials in a single build, or achieving full-color surface finishes for display models.
You’ll find these methods pushing boundaries in fields such as biomedical device manufacturing, embedded electronics, and aerospace prototyping.
Hybrid techniques are also emerging, where two or more energy deposition methods (like friction and powder) are combined.
These innovations continue to broaden the scope of 3D printing technology, expanding material compatibility, reducing printing time, and improving part resolution in unique ways.
3D Printing at Microscale or Nanoscale
When your project demands ultra-high precision, such as building medical micro-implants or lab-on-a-chip devices, microscale 3D printing enters the picture. These advanced systems use highly focused energy sources, including lasers or electron beams, to deposit or cure materials at resolutions measured in microns or even nanometers.
At this scale, specialized photopolymer resins and nanoparticle inks become essential. Some methods use two-photon polymerization to cure light-sensitive materials only at the precise focal point of a laser, allowing incredibly detailed structures to be built layer by layer. This results in 3D printed parts with minimal feature size and excellent dimensional accuracy.
Despite its precision, this method is slower than traditional processes and requires careful control over heat, material flow, and shrinkage. However, the benefits are significant when you’re working on microfluidics, drug delivery systems, or advanced electronics packaging.
Drop on Demand (DOD)
Drop on Demand (DOD) is a precision-oriented 3D printing method where droplets of build material are selectively deposited only where needed. Unlike continuous inkjet systems, DOD technology triggers each droplet individually, allowing you to achieve tight control over shape and detail. These droplets solidify immediately upon contact or through a curing process like UV exposure.
This process is commonly used for wax patterns in investment casting or small polymer parts that require detailed surface finish and dimensional accuracy. DOD printers often feature two nozzles, one for build material and one for support material that’s later dissolved or removed. Layer height can be as fine as tens of microns, making it ideal for smooth, intricate 3D printed parts.
Continuous Fiber Reinforcement (CFR)
CFR 3D printing combines traditional polymer extrusion with continuous fiber placement to boost mechanical strength. You feed fibers such as carbon, Kevlar, or glass through a specialized nozzle while depositing a thermoplastic matrix. The result is a high-strength composite that retains lightweight characteristics, something you’d want for functional parts in aerospace, automotive, or tooling applications.
The fiber paths can be customized within your computer-aided design software to align with stress loads, enhancing tensile performance where it’s needed most. Parts produced with this method often outperform metal in strength-to-weight ratio and can replace heavier components in structural designs.
Atomic Diffusion Additive Manufacturing (ADAM)
Atomic Diffusion Additive Manufacturing (ADAM) is a metal 3D printing technique that begins with metal rods encased in a polymer matrix. These rods are deposited layer by layer, forming a “green” part that retains the desired geometry but lacks full density. After printing, the part undergoes sintering, where heat causes the metal particles to diffuse and bond, resulting in a fully metallic component.
This process is ideal for complex metal parts that require simpler post-processing and is more cost-effective than some powder bed fusion systems. Since the base material is rod-shaped rather than powder, ADAM minimizes handling hazards and can increase deposition rates. It’s well-suited for prototyping, functional testing, and low-volume production of geometries that are difficult to achieve using traditional manufacturing methods. If you’re looking for a bridge between fused filament fabrication and direct metal laser sintering, ADAM is worth considering for its balance of safety, resolution, and performance
Powder Adhesion
Powder adhesion is a lesser-known additive manufacturing method closely related to binder jetting. Instead of using lasers or high-powered heat sources, it selectively bonds powder using chemical binders or controlled heat. This can involve applying infrared light or heat-absorbing agents to fuse specific regions of thermoplastic or composite powder. Each pass deposits a fine layer of material, which bonds where energy or binder is applied.
While the parts often need post-processing—such as sintering or infiltration—this technique offers flexibility in handling materials that respond poorly to direct melting. Maintaining a consistent powder bed is critical to ensure layer accuracy and part geometry. Powder adhesion processes are especially appealing for industries focused on prototyping and product development where powder bed fusion might be too costly or intense. As with most powder-based 3D printing methods, it emphasizes surface finish, build plate stability, and post-processing to refine mechanical properties and dimensional tolerances.
Plaster-Based 3D Printing & ColorJet Printing (CJP)
ColorJet Printing (CJP) is one of the few 3D printing processes capable of producing full-color models directly from CAD files, making it ideal when you need high-fidelity visuals for presentations, educational models, or marketing prototypes.
Each layer is formed by selectively depositing liquid binder and colored ink droplets onto a thin layer of gypsum powder. Over time, the printed part is built layer by layer with accurate coloring embedded in the structure.
After printing, parts can be strengthened and sealed using infiltration materials like epoxy resin, enhancing durability and vibrancy. The resulting 3D printed parts don’t possess high mechanical strength but excel in aesthetics and detail—particularly useful for architecture, figurines, and medical demonstrations.
ColorJet technology reflects the diverse applications of inkjet printing in additive manufacturing. Unlike other types of 3D printing that prioritize strength, CJP focuses on appearance, offering vibrant models at a lower cost and faster turnaround than polymer-based SLA or FDM 3D printing methods.
Selective Heat Sintering (SHS)
Selective Heat Sintering (SHS) is a thermoplastic-based additive manufacturing method that uses a thermal printhead to fuse powder rather than relying on high-power lasers like those used in selective laser sintering (SLS). The process is energy-efficient, operating at lower temperatures, and is well-suited for quick prototyping with polymers like nylon or polylactic acid (PLA).
In each layer, the printhead selectively applies heat to regions of the powder bed based on your 3D model.
As new layers are deposited, they fuse together and gradually build up the object. Since the heat input is lower than in laser sintering, SHS may result in parts with reduced mechanical properties and rougher surface finish, making it better suited for concept models than production parts.
If you’re exploring different types of 3D printing for prototyping without the cost and safety demands of laser-based machines, SHS offers an approachable entry point. It also supports workflows with smaller desktop machines and doesn’t require specialized build chambers.
Laser Metal Deposition (LMD)
Laser Metal Deposition (LMD) is a form of directed energy deposition that exclusively uses a laser as the energy source to melt metal feedstock—either wire or powder—as it is deposited. Unlike electron beam melting (EBM) or plasma-based systems, LMD is often integrated with CNC machines to convert them into hybrid platforms that combine additive and subtractive manufacturing in one setup.
This method is ideal for adding features to existing components or producing near-net-shape parts with minimal material waste. It enables precise control of the melt pool, which can help reduce thermal stress and improve overall surface finish compared to more generalized DED systems.
While it shares many traits with other 3D printing processes, its laser-based control and ability to repair or modify components mid-life make it particularly appealing for aerospace and industrial tooling applications.
Multi-Jet Modeling (MJM)
Multi-Jet Modeling (MJM) is a material jetting technique where multiple print heads dispense photopolymers or waxes in parallel lines across the build area. Each droplet is cured by UV light or solidified by cooling, depending on the material used.
This method stands out from typical inkjet printing by offering simultaneous deposition of support and build materials, allowing you to fabricate complex geometries with minimal post-processing.
Thanks to its fine resolution, sometimes under 20 microns, MJM is well-suited for concept models, investment casting patterns, and even dental devices. Because you can vary materials between jets, MJM can also create gradient structures or embed variable mechanical properties in a single build. While not the fastest of the 3D printing methods, its precision and surface quality give it a place in high-end product design and prototyping workflows.
Powder Bed and Inkjet Head (PBIH)
Powder Bed and Inkjet Head (PBIH) printing works by laying down thin layers of powder, often metal or ceramic, and then selectively depositing a liquid binder through an inkjet print head.
This technique is essentially a type of binder jetting, where the deposited binder holds the part together in a “green” state before final sintering or infiltration.
What makes PBIH unique is its material flexibility. It’s often used for research applications, small-batch production, or parts that require advanced ceramics or metal alloys. Because no lasers or thermal energy are used in the printing stage, there’s less warping and distortion, making it ideal for geometrically complex parts.
While mechanical properties depend on post-processing, this method is becoming a valuable tool in your 3D printing toolkit if you’re working with unconventional or fragile materials.
Photopolymer Jetting (PJ)
Photopolymer Jetting (PJ) is very similar to PolyJet 3D printing but can differ depending on the printer brand or specific system design. In this process, UV-curable photopolymers are jetted as tiny droplets onto the build plate and solidified with ultraviolet light.
The layer height can be extremely fine, often producing parts with a smooth surface finish and high dimensional accuracy.
Some PJ systems offer multiple nozzles for different material types, allowing you to create multi-color or multi-material prints within a single build. Other versions provide temperature-controlled print heads to maintain material viscosity for consistent droplet formation.
Because of its precision and quality, PJ is widely used in fields such as product design, dental modeling, and visual prototyping—where aesthetics and surface detail are more important than load-bearing performance.
How to Choose the Right 3D Printing Type for Your Needs?
When choosing a 3D printing technology, start by identifying the base material that fits your project—thermoplastics, metal powders, ceramics, or photopolymers.
If you’re producing functional parts with high mechanical properties, selective laser sintering (SLS) or direct metal laser sintering (DMLS) may be better than basic fused deposition modeling (FDM).
For visual models or concept parts, stereolithography (SLA) or inkjet printing methods like Multi Jet Fusion (MJF) or PolyJet could deliver excellent surface finish and detail.
Geometry matters too. Are there overhangs, internal channels, or thin walls?
Processes like powder bed fusion or vat photopolymerization handle complex geometries better than material extrusion.
Budget also plays a role—binder jetting can offer lower unit costs at medium volumes, while traditional FDM 3D printers remain cost-effective for prototyping and consumer use.
Consider your accuracy and tolerance requirements. Some technologies like SLA or DMLS consistently hit sub-0.1 mm tolerances.
Others, such as large-format material extrusion or DED, may produce larger deviations but accommodate bigger build volumes.
Lastly, don’t overlook post-processing. Support removal, sanding, infiltration, and heat treatments all affect lead time and cost. If speed and minimal finishing matter most, aim for processes with clean support strategies or automated post-processing workflows.
Which 3D Printing Method Is Most Accurate?
If your top priority is accuracy, vat photopolymerization—especially SLA and DLP—is your best bet. These methods can achieve resolutions as fine as 25–50 microns, producing sharp edges, smooth surface finishes, and intricate features.
For high-precision metal parts, powder bed fusion technologies like DMLS or SLM are also excellent, often maintaining tolerances of ±0.1–0.2 mm.
However, final accuracy still depends on post-processing like machining or heat treatment to correct for shrinkage.
Material jetting methods such as PolyJet and photopolymer jetting also excel in accuracy and are ideal for smaller components that need tight dimensional control and visual detail.
In contrast, FDM 3D printing generally offers lower resolution and visible layer lines, though tuned machines can achieve decent results—especially for low-cost prototyping or fixtures where tolerances are less critical.
So, if you’re aiming for ultra-precise parts, start with SLA, DLP, or PolyJet, and consider metal powder bed fusion when strength and dimensional fidelity must combine.
What Is the Most Common 3D Printing Type?
Fused deposition modeling (FDM) is the most widely used 3D printing method across consumer, educational, and industrial segments.
This material extrusion process dominates due to its affordability, ease of use, and wide availability of plastic filaments.
Desktop FDM 3D printers are often priced under $500, making them ideal for classrooms, hobbyists, and small businesses. Many product designers and startups use them for prototyping and early-stage development.
Industrial FDM systems can handle engineering-grade thermoplastics with higher melting points, enabling production runs of durable parts. The popularity of FDM stems from its low entry barrier and the scalability it offers across multiple use cases.
Which Process Is Best for Complex Geometries?
Powder bed fusion (PBF), including selective laser sintering and selective laser melting, is the best method for printing intricate geometries.
It excels at producing parts with internal channels, fine lattice structures, and unsupported overhangs, especially when using polymer powder or metal powder as the base material.
Resin-based vat photopolymerization processes, like SLA or digital light processing, also perform exceptionally well with fine features and delicate structures. They provide high-resolution prints and are favored in industries requiring precision, such as dental modeling and medical devices.
Binder jetting offers similar freedom since the surrounding powder bed supports overhangs naturally. However, keep in mind that final properties depend on post-processing like sintering or infiltration. If you’re designing components with high complexity, these technologies offer the greatest design freedom.
Which Method Produces the Smoothest Surfaces?
SLA consistently delivers the smoothest surface finish among all 3D printing methods. It uses a UV laser to cure liquid resin layer by layer, producing minimal layer lines and high detail. This makes SLA ideal for visual prototypes, jewelry design, or dental models.
Material jetting also ranks high in surface quality. These systems jet tiny droplets of photopolymer and cure them instantly with UV light. The result is a nearly polished surface without the need for sanding or polishing.
For other methods like FDM or SLS, achieving similar finishes usually requires additional post-processing. Sanding, vapor smoothing, or coating can reduce visible layer lines, but the base print typically won’t match the native smoothness of photopolymer technologies.
What’s the Cheapest 3D Printing Method?
Fused deposition modeling (FDM) is typically the most affordable 3D printing method available. You’ll find low-cost desktop machines under $500, and basic thermoplastic filaments are inexpensive and widely accessible.
This makes FDM ideal for hobbyists, educators, and startups experimenting with prototyping or concept models.
Even in small production environments, its low material cost and minimal support requirements keep unit costs down.
For large prints or complex parts, however, FDM may not always remain the cheapest. Resin printers and binder jetting with gypsum can also offer cost-efficiency, especially when accuracy or color modeling is essential and post-processing is minimal.
Which 3D Printing Type Is Most Expensive?
Powder bed fusion (PBF) for metals, especially DMLS, SLM, and EBM is currently the most expensive form of 3D printing. These machines rely on high-powered lasers or electron beams, requiring precise energy deposition, inert gas handling, and extremely fine metal powder.
The cost goes beyond just the equipment. You’ll also have to factor in powder handling systems, post-processing tools, and highly trained technicians. Parts may need heat treatment or machining for final tolerances, adding labor and time.
These systems are often used in aerospace or medical sectors where performance justifies the investment, but for most users, the price tag is a major barrier to entry.
Which 3D Printing Process Is Fastest?
Continuous liquid interface production (CLIP), developed by Carbon, is among the fastest 3D printing processes. It builds parts continuously without stopping between layers, unlike most layer-by-layer techniques.
In other high-speed categories, multi jet fusion (MJF) and binder jetting also perform well. These methods apply entire layers of powder and binder in one pass, cutting down build time significantly for certain geometries.
Material extrusion can be fast when using pellet-fed systems and large nozzles, though you trade off fine detail. If you need production speed without sacrificing resolution, MJF and DLP (digital light processing) offer a strong balance.
Which 3D Printing Is Best for Metal Parts?
Powder bed fusion processes, specifically DMLS, SLM, and EBM are the best options for metal 3D printing. They produce fully dense, high-strength metal components that can match or exceed the performance of cast or machined parts.
These technologies are especially effective for complex geometries, tight tolerances, and critical applications in aerospace, medical, or tooling.
Proper post-processing like support removal, surface finishing, and thermal treatments ensures optimal results.
Binder jetting is an alternative for larger batches or lower-cost metal parts. While mechanical properties may be slightly lower, it offers faster throughput and lower material costs. For repairs or large features, directed energy deposition (DED) provides added flexibility.
Conclusion
Yes, we’ve covered a lot, but here’s the truth: choosing the right 3D printing method isn’t about picking the “best” one. It’s about finding the one that fits you.
Each process, from simple fused filament fabrication (FDM) to high-end metal printing like DMLS or EBM, has its own strengths, costs, and materials. And whether you’re building a quick prototype, a functional part, or something that looks like it came out of a sci-fi movie, there’s a 3D printing solution waiting for you.
Maybe you’re just starting out with a low-cost desktop printer and some PLA. Or maybe you’re working with engineering-grade materials for aerospace parts.
Either way, this technology lets you create faster, smarter, and more flexibly than traditional manufacturing ever could. Today, 3D printing isn’t just for experimenting, it’s shaping real production across industries.
The best part? You don’t have to do it all alone. If you’re unsure which path to take, reach out to experts and 3D printing service provider like 3ERP who know the machines, the materials, and the methods.
Your perfect match isn’t just out there, it’s already printing.
